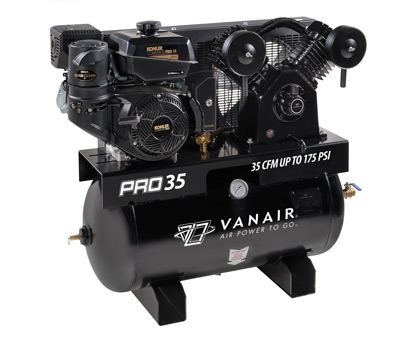

Ultra portable, yet powerful, the gas powered Pro Series is an excellent option for individuals working in the mechanic, service, agriculture and contractor markets. Due to it's extremely compact size, this unit is ideal for work performed on the go or where portability is a must.
Powerful, yet portable, this rugged engine-driven air compressor is powerful enough to run most 90lb jack hammers, while being small enough to fit behind the cab of your truck. It's compact build, portability and powerful performance make it the perfect choice for delivering the air power you need, where you need it.

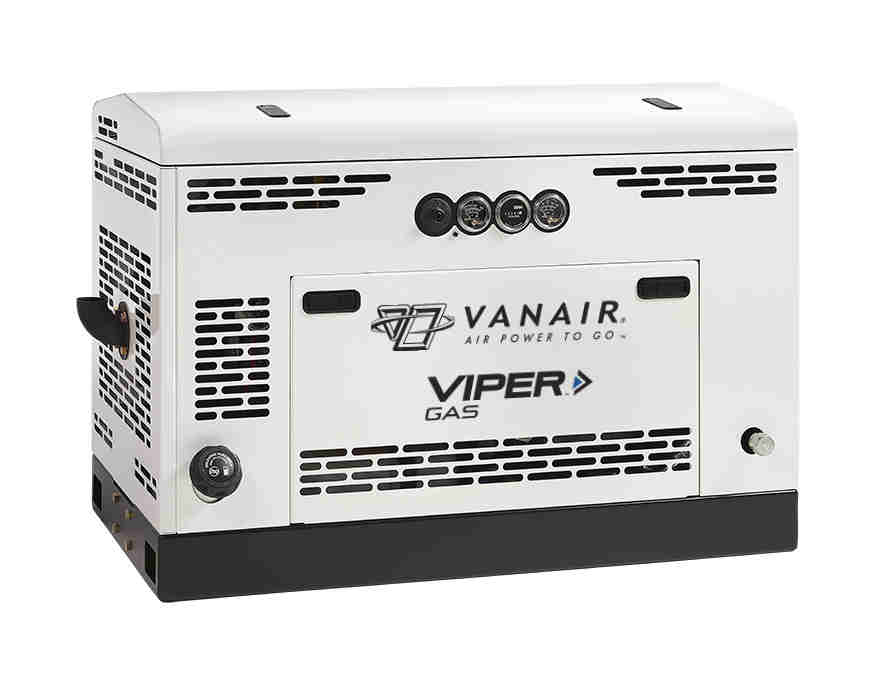

When you need a high-performance air compressor that delivers proven performance on or off your truck, you need a Vanair Viper Series Engine-Driven Air Compressor. This gas-powered, compact unit can easily be loaded and unloaded from your pickup for maximum versatility.

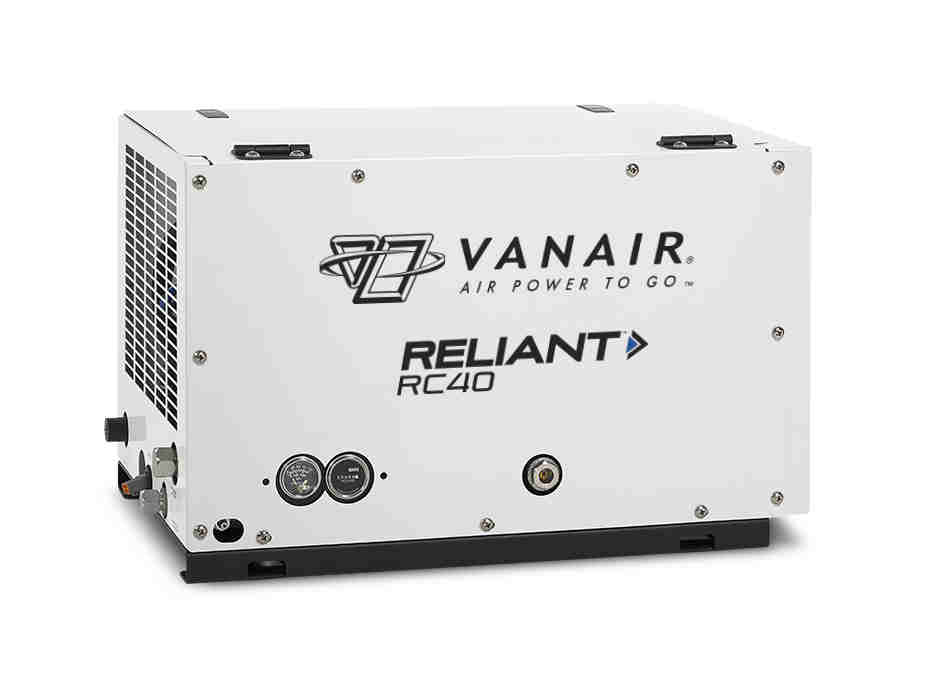

Providing the highest CFM of any abovedeck unit on today’s market, these compact, hydraulic powered units offer the versatility and sheer power to match the task at hand.

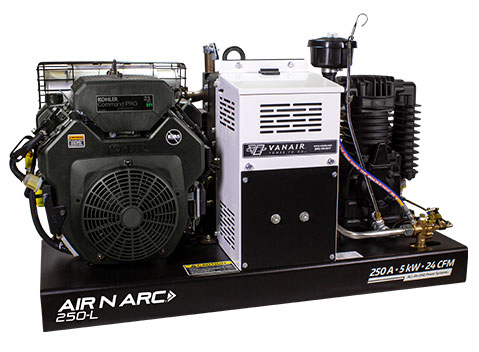

One machine can do it all. The Air N Arc® All-in-One Power Systems® provide up to six forms of power in one compact machine. Featuring configurations consisting of a welder, generator, air compressor, battery booster, battery charger and hydraulic output, the Air N Arc line provides you witha complete moble workstation on the back of your truck.
* Ratings are approximate and are based on new equipment specifications. Refer to tool manufacturer recommendations for tool consumption needs. Makes and models differ in requirements.
Specifications
PRO
CONTRACTOR
VIPER DIESEL
VIPER GAS
VIPER GAS W/ GENERATOR
Warranty
Vanair 2 year
Vanair 3 year
Vanair lifetime (on air end)
Air Compressor Type
Reciprocating
Rotary Screw
Pro 18: 3 cylinder head Pro 35: 2 cylinder head
3 cylinder head design
Vanair encapsulated air end
Sullair air end
Generator
N/A
4.2kW
N/A
N/A
5.2kW
Drive System
Belt-drive system for anti-vibration and long service intervals
Direct Drive - no belts
8V Serpentine belt
3V belt
Engine type
Honda 9 & 10 HP or Kohler 11 & 14 HP
Kohler 14 HP
Kubota 3 cylinder 24.8 HP
Kohler 26.5 HP or 23 HP, fuel injected
Kohler 23.5 HP, carbureted
Engine Features
Electric Start
1.6 gal. fuel tank
Gasoline fueled
Electric start
1.9 gal. fuel tank
Gasoline fueled
Auto shut off & start
9.5 gal. fuel tank
Diesel powered
Tier 4 certified
Liquid cooled
Glow Plugs
4-cycle, V-twin, overhead valve
5 gal. fuel tank
Gasoline fueled
Instrumentation
Pressure gauge
Pressure gauge
120V & 240V receptacles
Volt meter
Thermal breakers
Generator on/off switch
Hour Meter
Electric easy-start panel with
Pressure and temperature readout
Hour meter
Fuel gauge
Engine RPM
Control can be remote mounted with extension harness
Pressure gauge
Hour meter
Engine diagnostic lamp
Temperature gauge
Pressure gauge
Hour meter
120V and 240V receptacles
Thermal circut breakers
Safety Equipment
Air pressure safety relief valve
Low engine oil shutdown
Air pressure safety relief valve
Low engine oil shutdown
Oil fill plug safety relief
Automatic blowdown on shutdown
High Compressor temperature shutdown
Minimum pressure valve/orifice
Special features
Self-contained, but can be integrated with the chassis for maximum versitility
