Above-Deck Hydraulic powered
Engineered to meet the most demanding applications and conditions, Vanair's powerful and reliable abovedeck air compressors are the Mobile Power Solution® when truck-bed space is at a premium. Hydraulically driven and offering 30 to 185cfm of air power, these reciprocating and rotary screw machines outperform the competition by offering a wider range of air power. Ideal for a variety of heavy-duty markets, these vehicle-mounted designs carry many built in features, including cold weathr packages and integrated hydraulic/compressor oil coolers. For reliable power and performance, Vanair's abovedeck hydraulic machines offer the Moble Power Solutions® needed for your next job.
Power and Versatility

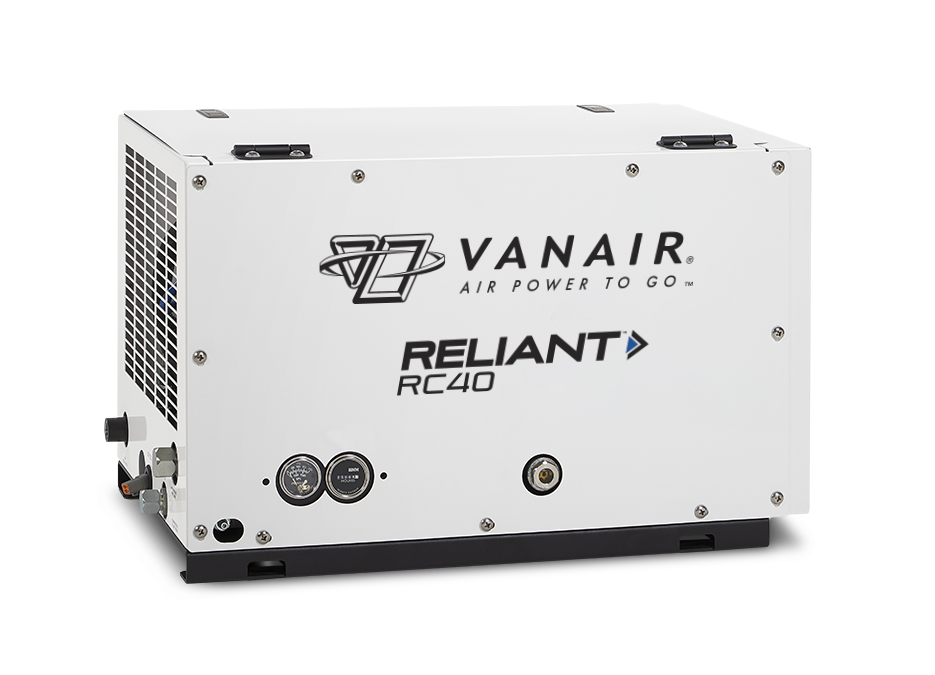

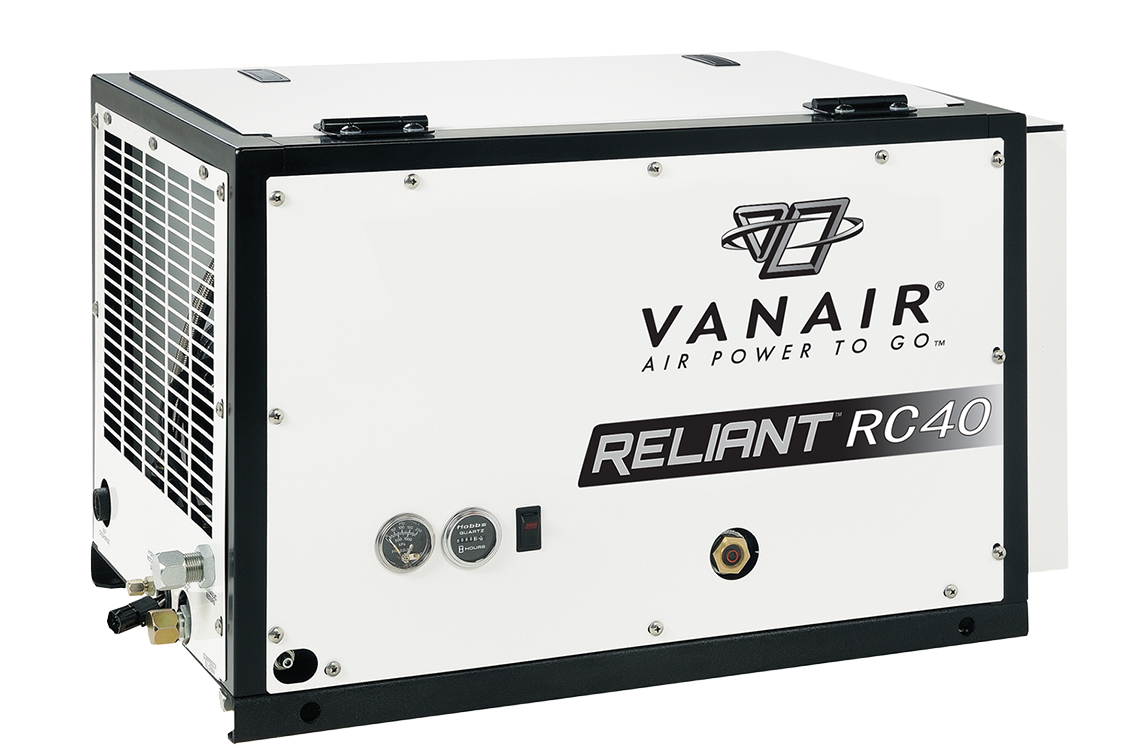

Providing a full 40 CFM of air, at up to 175 PSI, the Reliant™ RC40 provides you with the most CFM for the cost in the market. Reliable and field-proven, the Reliant™ RC40 has been the go-to hydraulic driven reciprocating air compressor for mechanic and service technicians for over 10 years. Featuring an integrated cold weather package that will work in any type of climat, the Reliant™ RC40 has been designed to provide flexible mounting configurations and for easy maintenance.
The Reliant™ RC40-L was designed with an aluminum air end and canopy to reduce weight on the vehicle without compromising quality. Offering a solid 40 CFM of power, the rust resistant, durable, reliable, and power Reliant™ RC40-L features a reversible hinged hood, easy to read control panel, and easily accessible service panels to provide flexibility of where to mount the unit on the vehicle. Leading the industry by providing hydraulic cooling assist for additional hydraulic systems, the Reliant™ RC40-L is also available with a cold weather package.
Special Features
SPECIAL FEATURES
- 30-40cfm and up to 175psi
- Ambient Operating Range of -20°F to +125°F
- 12V DC models avilable
- Open center or closed center hydraulic manifold block
- Vibration isolation on air compressor and drive system for quiet operation
- Four-pin (Six-pin on RC40-L) weatherproof electrical connection
- RC40-L - Hydraulic cooling assist for additional hydraulic systems
|
|
RECIPROCATING AIR COMPRESSOR
- Rugged, Cast Iron Crankcase
- Corrosion-resistant Steel Valves
- Tapered Roller Type Main Bearings
- Balanced Crankshaft
- Weight-matched Balanced Pistons
- High Flow Valve
- Lightweight Connecting Rods
RC40-L
- Aluminum air end
- Reed Valve System
- Integrated air interstage and after coolers
|
AIR COMPRESSOR CONTROL SYSTEM
- 3-in-1 air compressor manifold for less potential leak points
RC40-L
- Eliminates accumulator hose
- Gear-type motor
|
|
HYDRAULICS
- Air Pressure Relief Safety Valve and Automatic Blow Down on Shut Down
- Hydraulic Oil Pressure Relief Valve
RC-40L
- Direct Drive Coupled to Air End
- Integral Hydraulic Cooler for Air System
- Hydraulic Oil In – ¾” 37° JIC (#12)
- Hydraulic Oil Out – 1” 37° JIC (#16)
- Hydraulic Case Drain – 3/8” 37° JIC (#6)
- Hydraulic Load Sense Line – 1/4” 37° JIC (#4)
|
SAFETY EQUIPMENT
- Air Pressure Relief Safety Valve
- Hydraulic Oil Pressure Relief Valve
- Automatic Blow-Down on Shutdown
RC40-L
- Open center hydraulic oil pressure relief valve
|
|
INSTRUMENTATION
- Conveniently Located and Easy to Read Hour and Pressure Gauges
RC-40L
- Relocatable to other side of canopy
|
COLD WEATHER PACKAGE (OPTIONAL)
- Integtrated system with thermal valve
RC40 only
- Premium pressure switch
- Braided stainless steel hose
|
|
SERVICEABILILTY/CONVENIENCE
RC40-L
- Reversible hinged hood
- Access panel for closed center flow control valve
- JIC fittings on front of machine for hydraulic and air connection for convenience
|
HYDRAULIC SYSTEM RECOMMENDATIONS
- All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair highly recommends consulitng a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your appilication. Please take into consideration the following: The hydraulic flow and pressure requirements of the air compressor, the continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system.
|
Specifications - RC40 |
Capacity |
cfm |
30 |
40 |
Air Pressure |
psi |
100-175 |
100-175 |
Hydraulic Flow |
gpm |
9.5 |
12 |
Hydraulic Pressure |
psi |
1775-2200 |
1950-2275 |
Dimensions (LxWxH) |
in |
37 x 21 x 22 |
|
Dry Weight |
lbs |
408 |
|
|
|
|
|
Specifications - RC40-L |
|
|
|
Capacity |
cfm |
30 |
40 |
Air Pressure |
psi |
100-175 |
100-175 |
Hydraulic Flow |
gpm |
8.25-9.0 |
10 |
Hydraulic Pressure |
psi |
2300-2600 |
2300-2600 |

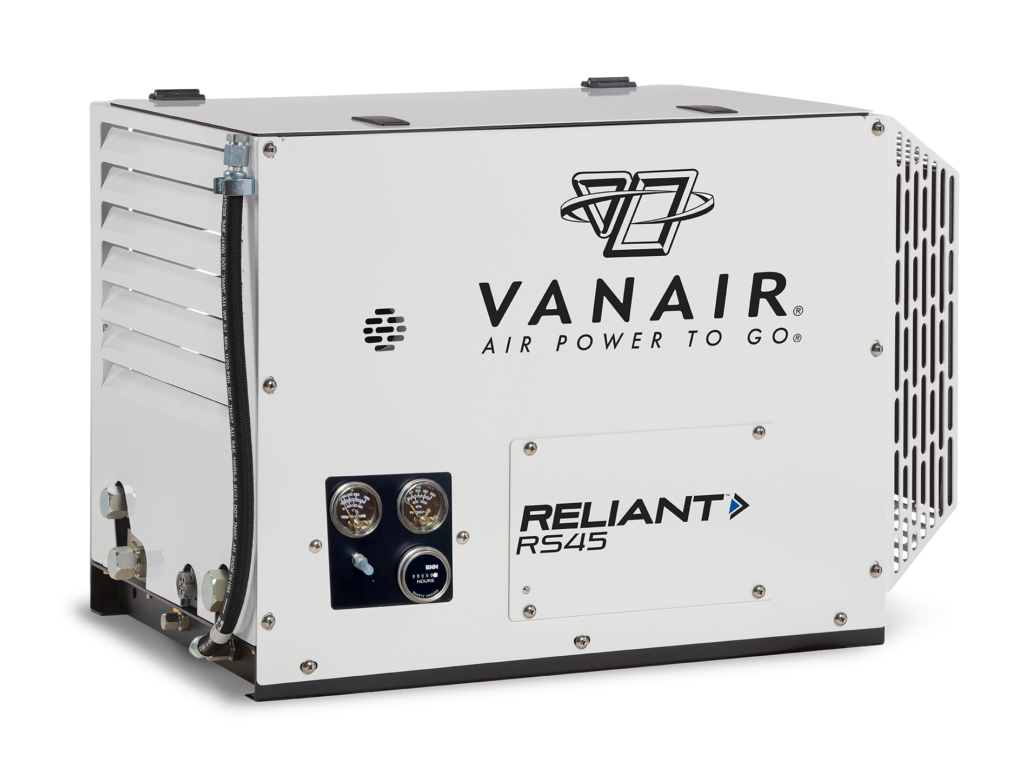

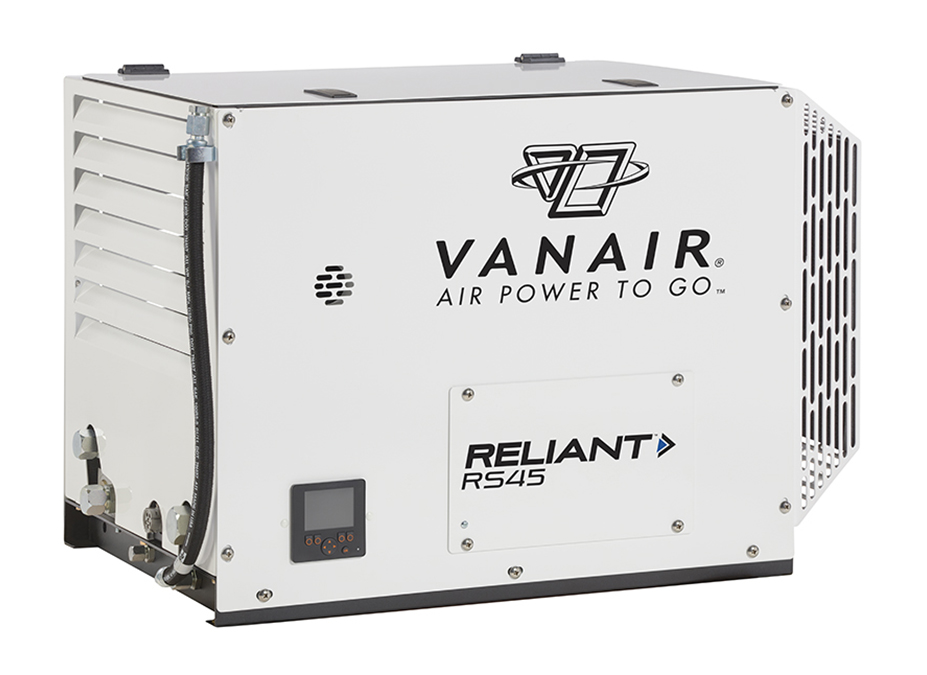

Reliant RS45 Hydraulic Compressor with Open Center
Vanair once again is listening and meeting the demands of the marketplace with the introduction of the new Reliant™ RS45 air compressor; the most powerful, lightweight system in its class. At 45% less weight than its predecessor, the RS45's featherweight rust-proof aluminum canopy reduces truck weight and fuel consumption. Providing an impressive 45 CFM and 150 PSI of on-demand air power at 100% duty cycle, the RS45 has the hightest CFM rating in its class. Advanced sound attenuation technology has significantly reduced the sound level on the machine. Quieter, lighter and more powerful, the RS45 will meet your toughest challenges out in the field.
SPECIAL FEATURES
PERFORMANCE/FEATURES
- 30-45 CFM and Up to 150 PSI
- Lightweight - Only 195 lbs12V and 24V DC Models Available
|
HYDRAULIC COOLER
- Integrated Cooler Reduces Heat in Truck Hydraulic System
|
ENCAPSULATED AIR COMPRESSOR
- Rotary Screw Air Compressor
- Bolt-On Electric Inlet Valve
- Integral Air-to-Oil Separator Tank
- Lifetime Warranty on Air End
|
AIR-TO-OIL COOLER
- Capable of Cooling Up to 175 PSI
- Ambient Operating Range of -20ºF to + 125ºF
|
INSTRUMENTATION
- Conveniently Located and Easy to Read or Remote Mountable
- LED Electronic Display for Temperature, Pressure, and Machine Hours
|
HYDRAULICS
- Gear-Type Motor
- Hydraulic Oil In – 1/2” 37 Degree JIC #12)
- Hydraulic Oil Out - 3/4” 37 Degree JIC (#16)
- Open Center or Closed Center
- Hydraulic Case Drain - 3/8” 37 Degree JIC (#6)
- Hydraulic Load Sense Line - 1/4” 37 Degree JIC (#4)*
|
SERVICEABILITY/CONVENIENCE
- Reversible Hinged Hood and Oil Fill Service
- Access Panel for Easy Accessibility
- JIC Fittings on Front of Machine for Hydraulic and Air Connections for Convenience
|
Safety Equipment
- Air Pressure Relief Safety Valve
- Hydraulic Oil Pressure Relief Valve
- Automatic Blow-Down on Shutdown
- High-Temperature and High-Pressure
- Compressor Shutdown
- Oil Fill Plug Safety Relief
|
CANOPY
- Lightweight Powder-Coated Aluminum Sheet Metal Enclosure
- Single Point Lifting Bail
|
|
Specifications |
|
|
Capacity (cfm) |
30 |
35 |
40 |
45 |
Air Pressure (psi) |
100-150 |
100-150 |
100-150 |
100-150 |
Hydraulic Flow (gpm) |
7-7.3 |
8.4-8.6 |
9.6-9.8 |
11-11.2 |
Hydraulic Pressure (psig) |
1950-2375 |
2000-2450 |
2050-2475 |
2150-2550 |
Compressor Dimensions with Fittings (in): 35.3L x 21W x 22.81H
Dry Weight (lbs): 195
The Reliant™ RS85-L provides a whopping 85 CFM of air power at almost half the weight of its predecessor. Enough power, in fact, to operate a 90 lb. jack hammer or 4” piercing tool or 1-1/2 inch impact wrench or assist in air gouging. No other brand of hydraulic driven abovedeck systems can even come close. The RS85-L is designed with an aluminum air end and canopy to reduce weight and to protect against rust. Its compact footprint increases deck space on your truck, and its sound attenuation design decreases noise levels for comfortable operation.
SPECIAL FEATURES
- Electrical 12-volt DC or 24-volt DC
- Gear-type hydraulic motor
- Powder-coated, galvanneal sheetmetal enclosure
- 4-Pin weather-proof electrial connection
- 3⁄4" FNPT air discharge
- Available with open or closed center hydraulic manifold block
- Integral hydraulic cooler
- Encapsulated oil-injected rotary screw
- Spin-on air separating element
- On/off solenoid valve
- Air-to-Oil compressor fluid cooler
- Integrated inlet valve
Air Compressor Control System
- Integral on/off manifold with solenoid diverter valve and hydraulic pressure relief valves
Safety Equipment
- Air pressure safety valve and automatic blow-down on shutdown
- Hydraulic oil pressure-relief valve
- High temperature and high pressure compressor shutdown
- OIl fill plug safety relief
Instrumentation
- Conveniently located, easy-to-read instrumentation panel with a hour meter and pressure gauge
- Conveniently located, easty-to-read compressor temperature gauge
Specifications |
Capacity |
CFM @ 100 PSIG |
60 - 85 |
Compressor |
85CFM |
Encapsulated Rotary-Screw, gear driven |
Input Speed |
RPM |
2850 |
Hydraulic Motor |
|
Gear-type |
Hydraulic Requirement |
CFM Rating @ 100 PSI |
60 |
70 |
80 |
85 |
Air Pressure |
|
100/150 |
100/150 |
100/150 |
100/150 |
Compressor |
RPM |
1950/1975 |
2275/2300 |
2650/2650 |
2850/2850 |
Hydraulic Flow |
GPM |
14/14.2 |
16.7/16.8 |
18.5/18.8 |
19.7/19.9 |
Hydraulic Pressure |
PSIG |
2240/2750 |
2370/2800 |
2470/3075 |
2470/2700 |
Compressor Drive |
|
Integral spline drive |
Weight (Dry) |
lbs |
400 |
Dimensions |
in |
39.5L x 21.0W x 25.0H |
Parts & Accessories |
|
|
|
|
RS85-L Compressor Service Kit, initial 50 hour |
KIT1212 |
$244.00
|
|
Vanguard Reciprocating Compressor Oil - 1 Qt |
271856-1QT |
$34.00
|
RS85-L Compressor Service Kit, 500 Hour |
KIT1221 |
$360.00
|
|
Vanguard Reciproacting Compressor Oil - 1 Gal |
271856-1GAL |
$135.00
|
Optional 24V/12V, DC-DC, 80A Converter |
033226 |
$314.00
|
|
Vanguard Premium Rotary Screw Oil - 1 Gal - 4 Pack |
264626-4PACK |
$272.00
|
Air Reservoir Tank - 14 Gallon Underdeck |
032708 |
$1,196.00
|
|
Vanguard Premium Green Biodegradable Rotary Screw Oil - 1 Gal - 4 Pack |
264626-4GREEN |
$413.00
|
Air Reservoir Tank - 28 Gal - Twin 18 Gal Underdeck |
032707 |
$2,278.00
|
|
Filter Lubricator Regulator - 1/2" |
264493 |
$388.00
|
Air Reservoir Tank - 30 Gal |
OA49645 |
$930.00
|
|
Hose Reel for 1/2" x 50" Hose (hose NOT inc.) |
269602 |
$885.00
|
Moisture Separator - Service Line |
265243 |
$329.00
|
|
Hose Reel for 3/4" x 50'Hose (with high temp hose and ball stop) |
263914 |
$1,255.00
|
OSHA Valve up to 70 CFM 1/2" |
MA272578 |
$63.00
|
|
Air Hose - 1/2" x 50' |
264514 |
$247.00
|
OSHA Valve 72-88 CFM 3/4" |
263645 |
$97.00
|
|
Hose Stop - 1/2" |
276175 |
$26.00
|
Vibration Isolator Kit - 1/2" |
KIT1202-001 |
$115.00
|
|
|
|
|

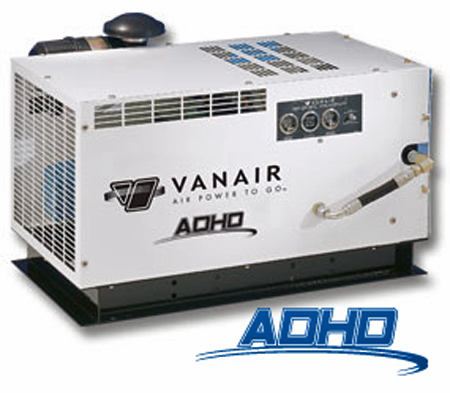

Big Air Power Abovedeck
Powerful, and built for heavy-duty applications, Vanair’s hydraulically driven ADHD provides you with the power of a 185 CFM and 150 PSI PTO shaft-driven system in a modular package. Designed to be versatile, the ADHD can be placed anywhere on the vehicle to meet your layout needs. Available in multiple configurations, the ADHD features a lifetime warranty on its air end.
Special Features
PERFORMANCE
- 60-85 CFM and up to 150 PSI
- Ambient Operating Range of -20°F to +125°F
- Lightweight
- Six-Pin Weatherproof Electrical Connection
- Hydraulic Cooling Assist for Additional Hydraulic Systems
- 12V DC Model Available
- Open Center or Closed Center Hydraulic Manifold Block
|
ENCAPSULATED AIR COMPRESSOR
- Direct-Driven Aluminum Encapsulated Rotary Screw Air End
- Bolt-On Inlet Valve
- Integral Air-to-Oil Separator Tank
- Lifetime Warranty on Air End
- Made in the USA
|
AIR-TO-OIL COOLER
- Capable of Cooling Up to 150 PSI
- Ambient Operating Range of -20 ˚F to + 125 ˚F
|
HYDRAULIC COOLER
- Integrated Cooler Reduces Heat in Truck Hydraulic System
|
HYDRAULICS
- Gear-Type Motor
- Hydraulic Oil In – 3/4” 37 Degree JIC (#12)
- Hydraulic Oil Out – 1” 37 Degree JIC (#16)
- Open Center or Closed Center
- Hydraulic Case Drain – 3/8” 37 Degree JIC (#6)
- Hydraulic Load Sense Line – 1/4” 37 Degree JIC (#4)*
|
SAFETY EQUIPMENT
- Air Pressure Relief Safety Valve
- Open Center Hydraulic Oil Pressure Relief Valve
- Automatic Blow-Down on Shutdown
- High-Temperature and High-Pressure Shutdown
- Vented Fill Cap
|
INSTRUMENTATION STANDARD
- Conveniently Located and Easy to Read Temperature, Hour, and Pressure Gauges
- Relocatable
|
SERVICEABILITY/CONVENIENCE
- Reversible Hinged Hood
- Access Panel for Easy Accessibility for Oil Changes
- JIC Fittings on Front of Machine for Hydraulic and Air Connections for Convenience
|
CANOPY
- Lightweight Powder-Coated Aluminum Sheet Metal Enclosure
- Single Point Lifting Bail
|
COLD WEATHER PACKAGE (OPTIONAL)
- Integrated System with Hydraulic Thermal Valve
|
Specifications |
Capacity |
cfm |
125 |
160 |
185 |
Air Pressure |
psi |
100-150 |
100-150 |
100-150 |
Hydraulic Flow |
gpm |
27.6-29.2 |
36.8 - 38.3 |
42.2 - 44.2 |
Hydraulic Pressure |
psi |
2100-2620 |
2200-2700 |
2400-2830 |
Input Speed |
rpm |
1340-1370 |
1770-1780 |
2015-2040 |
Dimensions: |
|
|
|
|
Standard Side-Mount Receiver |
in |
46.3L |
47.4W |
26.8H |
Standard Side-Mount Receiver 185 CFM @ 100 PSI |
in |
46.3L |
47.4W |
26.8H |
Vertically Stacked Receiver |
in |
45.9L |
35.7W |
42.9H |
Vertically Stacked Receiver 185 CFM @ 100 PSI |
in |
48.4L |
35.7W |
42.9H |
Dry Weight: |
|
|
|
|
Standard Side-Mount |
lbs |
730 |
|
|
Vertical Stacked Configuration |
lbs |
900 |
|
|
