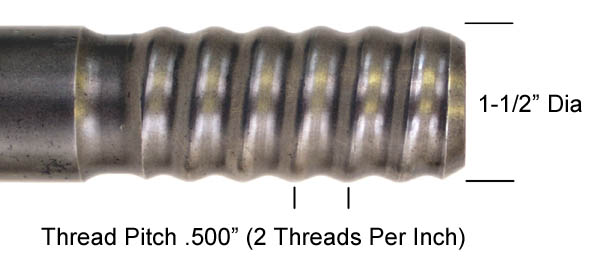

1 12" Rope (R38 or 150 Rope)

Extension Rod

  112" Round
Single Thread
Price   112" Round All Thread Price
1'     ER38-12AT $73.00
10' ER38-38R-120 $329.00 ER38-120AT $402.00
12' ER38-38R-144 $416.00 ER38-144AT $469.00
14' ER38-38R-168 $471.00 ER38-168AT $478.00

All thread is sold in standard lengths or can be cut to custom lengths at $44.00 per foot.

Drifter (Club) Rods
Description Part No. Price
1 14"H R38-R32 10' 1 12" CLB-R38-32H-R32-121 $362.00
1 14"H R38-R32 12' 1 12" CLB-R38-32H-R32-145 $416.00
1 14"H R38-R32 14' 1 12" CLB-R38-32H-R32-169 $469.00
1 14"H R38-R32 16' 1 12" CLB-R38-32H-R32-193 $587.00
1 14"H R38-R32 18' 1 12" CLB-R38-32H-R32-217 $618.00

Rock Bits

  Cross Bit   Button Bit   Retrac Bits   Reaming Bits
2 12" BCR3864 $171.00 BBR3864 $158.00 BCR3864RT QUOTE
2 34" BCR3870 $190.00 BBR3870 $187.00
3" BCR3876 $216.00 BBR3876 $205.00 BCR3876RT QUOTE
3 12" BCR3889 $266.00 BBR3889 $263.00 BCR3889RT QUOTE
4" BCR38102 $334.00 BBR38102 $384.00 BCR38102RT QUOTE BRR38102 QUOTE

Button Types - Round, Conical, Ballistic, Parabolic.
Face Design - Modified Chisel, Crown, Flat Face, Dome, Drop Center.

Rock Bit Care

Percussive rock bits do not “cut” through rock. Rock bits are designed to utilize the percussive energy of the rock drill to shatter the rock and blow the cuttings up out of the hole. When running in clay or dirt it creates a very big problem for a traditional rock drill/bit. Dirt and clay does not shatter and the percussive energy is simply absorbed and the blow air and drag of the bit across the material, are the only means to progressing the hole. In these cases “drag bits” can be a very effective way to deal with ground that will often shut down the productivity of a rock drill. Drag bits have carbide tipped welded wings on them and are made to actually “cut” their way through clay and dirt. Note: Welds do not hold up to percussion and only the rotation of the drill is used until you are back in solid rock. Then the bit should be switched out for a traditional button or cross bit.

Drag bits are made to order - call for pricing and delivery.

Couplings

coupling

CPLR38 R38 Coupling $76.00

coupling adaptor

Coupling Adaptors

Coupling adaptors are female to female and used to adapt to a different thread than what you may currently be running. They are machined and heat treated blast-hole quality couplings. We keep a large variety in stock, though minimum order quantities may apply.

Choose One End:

Choose Other End:

R25 R32 R38 R51 H55 T38
CPLR25 $45.00 CAR25-R32 $110.00 CAR25-R38 $136.00 CAR25-R51 $290.00 CAR25-H55 $290.00 CAR25-T38 $136.00
T45 T51 TTN30 TTN40 TTN52 T76
CAR25-T45 $175.00 CAR25-T51 $290.00 CAR25-TTN30 $136.00 CAR25-TTN40 $136.00 CAR25-TTN52 $290.00 CAR25-T76 $467.00
Miscellaneous Coupling Adaptors
CAR32-R38SQ 1 14" Rope - 1 12" Rope SQ. $180.00
CAR38-T38WF 1 12" Rope - T38 W/ Flats CALL

Bit Adaptors

bit adaptor female

Choose Female End:

Choose Male End:

Adaptors:

R25 R28 R32 R38 R51 H55 T38 T45 T51
N/A BAR25-R28 $122.00 BAR25-R32 $122.00 BAR25-R38 $122.00 BAR25-R51 QUOTE BAR25-H55 QUOTE BAR25-T38 $122.00 BAR25-T45 QUOTE BAR25-T51 QUOTE
Hole Saver
HSBR38 Bell Hole Saver 1 12" Rope $177.00
HSSR38 Spear Hole Saver 1 12" Rope $177.00
