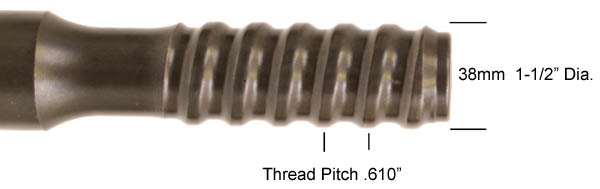

T38

Single Thread

Male - Female

Extension Rod

  1 12" Round
Single Thread
Price   1 12" Round
Double Thread
Price   1 12" Round
Male - Female
Price
1'
2'
4'         ET38-38R-52MF $330.50
5'         ET38-38R-64MF $343.40
6' ET38-38R-72 $250.90     ET38-38R-76MF $356.10
8' ET38-38R-96 $296.10     ET38-38R-96MF $375.00
10' ET38-38R-120 $304.50 ET38-38R-120T $346.30 ET38-38R-124MF $407.30
12' ET38-38R-144 $356.30 ET38-38R-144T $394.70 ET38-38R-148MF $463.10
14' ET38-38R-168 $409.90 ET38-38R-168T $455.10 ET38-38R-168MF $509.00
16' ET38-38R-192 $528.50 ET38-38R-192T $618.90
18' ET38-38R-216 $580.40

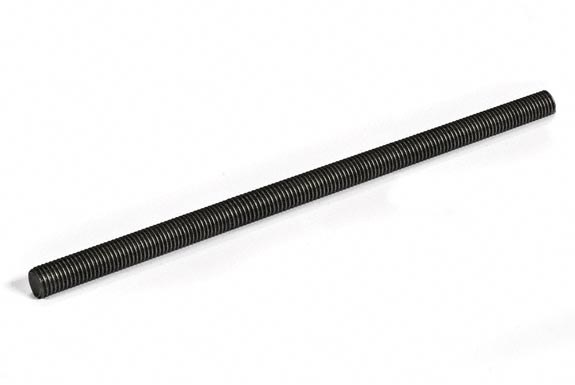

All Thread

All thread is sold in standard lengths or can be cut to order at $35.00 per Foot.

  T38 All Thread Price
8" ET38-08AT $44.00
1' ET38-12AT $44.00
2' ET38-24AT $88.00
4' ET38-48AT $176.00
5' ET38-60AT $220.00
6' ET38-72AT $264.00
8' ET38-96AT $352.00
10' ET38-120AT $343.90
12' ET38-144AT $402.20
14' ET38-168AT $459.10
Drifter (Club) Rods
Description Part No. Price
1 14"H T38-R32 6' CLB-T38-32H-R32-72 CALL
1 14"R T38-R32 14' CLB-T38-32R-R32-168 CALL
1 14"H T38-R32 10' 1 12" CLB-T38-32H-R32-121 $309.60
1 14"H T38-R32 12' 1 12" CLB-T38-32H-R32-145 $356.30
1 14"H T38-R32 14' 1 12" CLB-T38-32H-R32-169 $401.40
1 14"H T38-R32 16' 1 12" CLB-T38-32H-R32-193 $503.10
1 14"H T38-R32 18' 1 12" CLB-T38-32H-R32-217 $529.80
1 38"H T38-R32 16' 1 12" CLB-T38-35H-R32-192 $609.10
1 38"H T38-R35 18' 1 12" CLB-T38-35H-R32-217 $635.80

Rock Bits

  Cross Bit   Button Bit   Retrac Bits   Reaming Bits
2"     BBT3851 $131.80
2 14" BCT3857 $110.00 BBT3857 $92.50 BBT3857RT $140.90
2 12" BCT3864 $146.40 BBT3864 $135.40 BBT3864R $178.30
2 34" BCT3870 $162.50 BBT3870 $160.10 BBT3870RT $204.20
3" BCT3876 $184.80 BBT3876 $175.20 BBT3876R $240.30
3 12" BCT3889 $227.50 BBT3889 $224.70 BBT3889RT $271.40
4" BCT38102 $285.80 BBT38102 $328.50 BBT38102RT $348.70 BRT38102 QUOTE
4 12"     BBT38115 $325.00 BBT38115RT $405.00 BRT38115 QUOTE
5"     BBT38127 $387.00 BBT38127RT $469.00 BRT38127 QUOTE
6"     BBT38152 $482.00     BRT38152 QUOTE
Button Types - Round, Conical, Ballistic, Parabolic.
Face Design - Modified Chisel, Crown, Flat Face, Dome, Drop Center.
Rock Bit Care

Percussive rock bits do not “cut” through rock. Rock bits are designed to utilize the percussive energy of the rock drill to shatter the rock and blow the cuttings up out of the hole. When running in clay or dirt it creates a very big problem for a traditional rock drill/bit. Dirt and clay does not shatter and the percussive energy is simply absorbed and the blow air and drag of the bit across the material, are the only means to progressing the hole. In these cases “drag bits” can be a very effective way to deal with ground that will often shut down the productivity of a rock drill. Drag bits have carbide tipped welded wings on them and are made to actually “cut” their way through clay and dirt. Note: Welds do not hold up to percussion and only the rotation of the drill is used until you are back in solid rock. Then the bit should be switched out for a traditional button or cross bit.

Drag bits are made to order - call for pricing and delivery.

Couplings

coupling

CPLT38 T38 Coupling $59.60

coupling adaptor

Coupling Adaptors

Coupling adaptors are female to female and used to adapt to a different thread than what you may currently be running. They are machined and heat treated blast-hole quality couplings. We keep a large variety in stock, though minimum order quantities may apply.

Choose One End:

Choose Other End:

R25 R32 R38 R51 H55 T38
CPLR25 $38.30 CAR25-R32 $85.30 CAR25-R38 $115.75 CAR25-R51 QUOTE CAR25-H55 QUOTE CAR25-T38 $115.75
CAR25-R32 $85.30 CPLR32 $42.60 CAR32-R38 $86.80 CAR32-R51 $256.00 CAR32-H55 QUOTE CAR32-T38 $86.80
CAR25-R38 $115.75 CAR32-R38 $86.80 CPLR38 $59.60 CAR38-R51 $256.00 CAR38-H55 $243.00 CAR38-T38 $86.80
CAR25-R51 QUOTE CAR32-R51 $256.00 CAR38-R51 $256.00 CPLR51 $242.50 CAR51-H55 $256.00 CAT38-R51 $256.00
CAR25-H55 QUOTE CAR32-H55 QUOTE CAR38-H55 $243.00 CAR51-H55 $256.00 CPLH55 QUOTE CAT38-H55 $256.00
CAR25-T38 $115.75 CAR32-T38 $86.80 CAR38-T38 $86.80 CAT38-R51 $256.00 CAT38-H55 $256.00 CPLT38 $59.60
CAR25-T45 $151.60 CAR32-T45 $151.60 CAR38-T45 $151.60 CAT45-R51 $256.00 CAT45-H55 $256.00 CAT38-T45 $113.70
CAR25-T51 QUOTE CAR32-T51 QUOTE CAR38-T51 $256.00 CAR51-T51 $256.00 CAT51-H55 $256.00 CAT38-T51 $256.00
CAR25-TTN40 QUOTE CAR32-TTN40 QUOTE CAR38-TTN40 $115.75 CATTN40-R51 QUOTE CATTN40-H55 QUOTE CAT38-TTN40 $115.75
CAR25-TTN52 QUOTE CAR32-TTN52 QUOTE CAR38-TTN52 $256.00 CAR51-TTN52 $256.00 CATTN52-H55 QUOTE CAT38-TTN52 $256.00
T45 T51 TTN30 TTN40 TTN52 T76
CAR25-T45 $151.60 CAR25-T51 QUOTE CATTN30-R25 CALL CAR25-TTN40 QUOTE CAR25-TTN52 QUOTE CAR25-T76 CALL
CAR32-T45 $151.60 CAR32-T51 QUOTE CATTN30-R32 $113.75 CAR32-TTN40 QUOTE CAR32-TTN52 QUOTE CAR32-T76 CALL
CAR38-T45 $151.60 CAR38-T51 $256.00 CAR38-TTN30 CALL CAR38-TTN40 $115.75 CAR38-TTN52 $256.00 CAR38-T76 CALL
CAT45-R51 $256.00 CAR51-T51 $256.00 CAR51-TTN30 CALL CATTN40-R51 QUOTE CAR51-TTN52 $256.00 CAR51-T76 $432.00
CAT45-H55 $256.00 CAT51-H55 $256.00 CAT51-TTN30 CALL CATTN40-H55 QUOTE CATTN52-H55 QUOTE CAH55-T76 $432.00
CAT38-T45 $113.70 CAT38-T51 $256.00 CATTN30-T38 $115.75 CAT38-TTN40 $115.75 CAT38-TTN52 $256.00 CAT38-T76 CALL
CPLT45 $86.10 CAT45-T51 $192.00 CATTN30-T45 $151.60 CATTN40-T45 $151.60 CAT45-TTN52 $256.00 CAT45-T76 $400.00
CAT45-T51 $192.00 CPLT51 $119.80 CAT51-TTN30 CALL CATTN40-T51 $256.00 CAT51-TTN52 $256.00 CAT51-T76 $432.00
CATTN40-T45 $151.60 CATTN40-T51 $256.00 CATTN40-TTN30 CALL CPLTTN40 QUOTE CATTN40-TTN52 $256.00 CATTN40-T76 CALL
CAT45-TTN52 $256.00 CAT51-TTN52 $256.00 TTN52-TTN30 CALL CATTN40-TTN52 $256.00 CPLTTN52 QUOTE CATTN52-T76 $432.00

Bit Adaptors

bit adaptor female

Choose Female End:

Choose Male End:

Adaptors:

R25 R28 R32 R38 R51 H55 T38 T45 T51
N/A BAR25-R28 $107.30 BAR25-R32 $107.30 BAR25-R38 $107.30 BAR25-R51 QUOTE BAR25-H55 QUOTE BAR25-T38 $107.30 BAR25-T45 QUOTE BAR25-T51 QUOTE
BAR28-R25 QUOTE N/A BAR28-R32 QUOTE BAR28-R38 QUOTE BAR28-R51 QUOTE BAR28-H55 QUOTE BAR28-T38 QUOTE BAR28-T45 QUOTE BAR28-T51 QUOTE
BAR32-R25 $115.90 BAR32-R28 QUOTE N/A BAR32-R38 $115.90 BAR32-R51 QUOTE BAR32-H55 QUOTE BAR32-T38 $115.90 BAR32-T45 $115.90 BAR32-T51 QUOTE
BAR38-R25 QUOTE BAR38-R28 QUOTE BAR38-R32 $138.00 N/A BAR38-R51 $138.00 BAR38-H55 QUOTE BAR38-T38 $138.00 BAR38-T45 QUOTE BAR38-T51 QUOTE
BAR51-R25 QUOTE BAR51-R28 QUOTE BAR51-R32 QUOTE BAR51-R38 QUOTE N/A BAR51-H55 QUOTE BAR51-T38 QUOTE BAR51-T45 $150.70 BAR51-T51 QUOTE
BAH55-R25 QUOTE BAH55-R28 QUOTE BAH55-R32 QUOTE BAH55-R38 QUOTE BAH55-R51 QUOTE N/A BAH55-T38 QUOTE BAH55-T45 $230.00 BAH55-T51 $230.00
BAT38-R25 QUOTE BAT38-R28 QUOTE BAT38-R32 $138.00 BAT38-R38 $138.00 BAH55-R51 QUOTE BAT38-H55 QUOTE N/A BAT38-T45 $138.00 BAT38-T51 $138.00
BAT45-R25 QUOTE BAT45-R28 QUOTE BAT45-R32 $179.00 BAT45-R38 QUOTE BAH55-R51 QUOTE BAT45-H55 QUOTE BAT45-T38 $179.00 N/A BAT45-T51 $179.00
BAT51-R25 QUOTE BAT51-R28 QUOTE BAT51-R32 QUOTE BAT51-R38 QUOTE BAH55-R51 QUOTE BAT51-H55 QUOTE BAT45-T38 $179.00 BAT51-T45 $230.00 N/A
Stud Rod Adaptors
SRT45-T38 Stud Rod Male/Male Adaptors - T45 to T38 $113.40
SRT38-R32 Stud Rod Male/Male Adaptors - T38 to R32 $86.40
SRT38-R25 Stud Rod Male/Male Adaptors - T38 to R25 $86.40

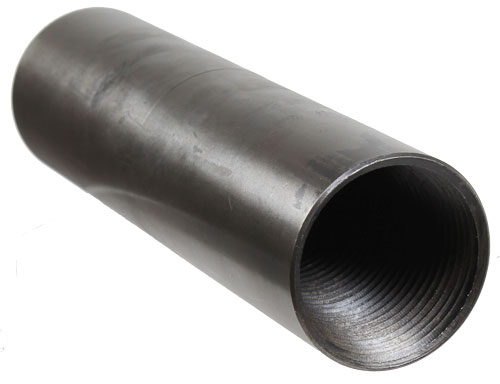

Hole Saver
HSBT38 Bell Hole Saver $194.30
HSST38 Spear Hole Saver T38 $194.30
