DOWN-THE-HOLE HAMMERS

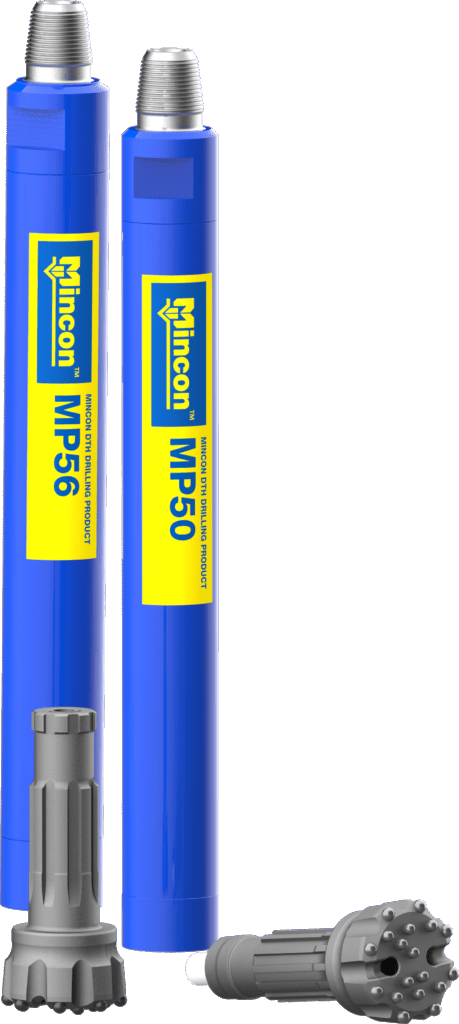

5" Series Hammers
The Mincon hammers maintain excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon products are all manufactured in house (Ireland), and processes are carried out under one roof. This guarantees that the quality you expect is always delivered.
Applications include geothermal, shallow oil & gas, blast hole, water well, environmental, exploration, construction.
** FREE ground shipping to non-dealers within the Continental United States
Design Highlights:
- Patented features maximize energy output and reduce service requirements
- Fewer internal components to minimize service requirements
- Valveless, high frequency design ensures smooth operation
- Hardened wear sleeve for optimum wear resistance even the most abrasive conditions
- Reversible hardended wear sleeve for optimum wear resistance even in the most abrasive conditions.
- Multi-start threads on back head and chuck ensure easy coupling/uncoupling of hammer
- Unique internal mount system eliminates the need for wear shims and special assembly tools
- All critical internal components are heat treated under strict control to maximize tool longevity
- An overall cost-effective and user-friendly tool for use in the most demanding conditions
Mincon Hammers
| Descripton |
Length (in) |
Weight (lbs) |
Back Head Thread API Reg Pin |
Standard Part No. |
Price |
Button Back Head Part No |
Price |
Back Reamer Back Head Part No |
Price |
| MC55 Hammer |
39.3 |
152 |
3½" | MBX501AS08 | $6,450.00
|
MBX501AS08B | $6,615.00
|
MBX501AS08BR | $6,985.00
|
| MP50 Hammer |
39.1 |
124 |
3½" | MP501AS01 | $6,450.00
|
||||
| MQ50 Hammer |
41.6 |
132 |
3½" | MP501AS02 | $6,450.00
|
||||
| 55BH Hammer |
39.9 |
146 |
3½" | MBX501AS02 | $6,450.00
|
MBX501AS02B | $6,615.00
|
MBX501AS02BR | $6,985.00
|
| MP56-QL Hammer |
40.1 |
148 |
3½" | MP5601AS01 | $6,450.00
|
MP5601AS01B | $6,615.00
|
MP5601AS01BR | $6,985.00
|
| MP56-MQ |
40.1 |
148 |
3½" | MP5601AS02 | $6,450.00
|
MP5601AS02B | $6,615.00
|
MP5601AS02BR | $6,985.00
|
| Model | Part No. | Price |
|---|---|---|
| Mincon MC55 Hammer | MBX501AS08 | $6,450.00
|
| Mincon MC55 Hammer - Button Back Head | MBX501AS08B | $6,615.00
|
| Mincon MC55 Hammer - Backreamer Back Head | MBX501AS08BR | $6,985.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | Mincon MC51 | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.88 |
| Minimum Bit Size | (in) | 5.5 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 39.3 |
| Hammer Weight | (lbs) | 152 |
| Piston Weight | (lbs) | 39.9 |
| Wear Sleeve Reverse Limit | 4.570 | |
| Wear Sleeve Discard Limit | (in) | 4.400 |
| Back Head Thread | 3-1/2" API Reg Pin | |
| Accessories | ||
|---|---|---|
| O Ring Kit | MB525OK04 | CALL |
| Service Kit | MB526SK04 | CALL |
| Rebuild Kit | MBX501RB08 | $3,659.00
|
| Rebuild Kit with Buttons | MBX501RB08B | $3,803.00
|
| Rebuild Kit with Backreamer | MBX501RB08BR | $4,160.00
|
| Rebuild Kit with Backreamer Bushing | MBX501RB08BRB | $3,376.00
|
| Backreamer Back Head Assy | MBX501BH04AS | $1,391.00
|
| Mincon MQ50 Hammer | MP501AS02 | $6,450.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | QL50 | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.5 |
| Minimum Bit Size | (in) | 5.0 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 41.6 |
| Hammer Weight | (lbs) | 132 |
| Piston Weight | (lbs) | 30.0 |
| Wear Sleeve Reverse Limit | Non-Reversible | |
| Wear Sleeve Discard Limit | (in) | 4.17 |
| Back Head Thread | 3-1/2" API Reg Pin | |
| Recommended Minimum Air Package | 600 CFM @ 250PSI | |
| Accessories | ||
|---|---|---|
| Service Kit | MB526SK01 | CALL |
| O Ring Kit | MB525OK01 | $21.00
|
| Rebuild Kit | MP501RB02 | $3,659.00
|
| Backreamer Back Head Assy | MBX501BH04AS | $1,391.00
|
| Model | Part No. | Price |
|---|---|---|

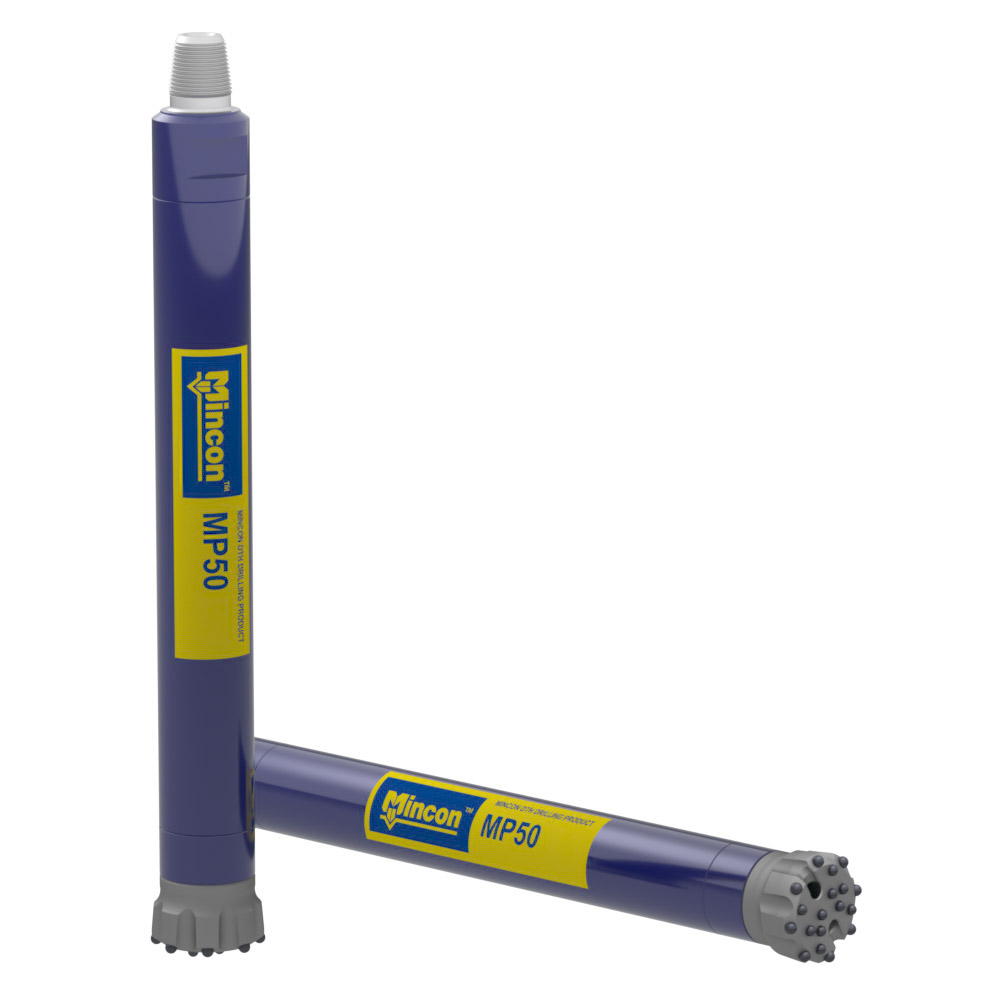

| Mincon MP50 Hammer | MP501AS01 | $6,450.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | Atlas Copco QL50 | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.53 |
| Minimum Bit Size | (in) | 5.0 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 39.1 |
| Hammer Weight | (lbs) | 124 |
| Piston Weight | (lbs) | 27.7 |
| Wear Sleeve Reverse Limit | 4.57 | |
| Wear Sleeve Discard Limit | (in) | 4.173 |
| Back Head Thread | 3-1⁄2" API Reg Pin | |
| Accessories | ||
|---|---|---|
| Service Kit | MB526SK01 | CALL |
| O Ring Kit | MB525OK01 | $21.00
|
| Rebuild Kit | MP501RB01 | $3,659.00
|
| Model | Part No. | Price |
|---|---|---|
| Mincon MP56-QL Hammer | MP5601AS01 | $6,450.00
|
| Mincon MP56-QL Hammer - Button Back Head | MP5601AS01B | $6,615.00
|
| Mincon MP56-QL Hammer - Backreamer Back Head | MP5601AS01BR | $6,985.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | QL5 / 4315 | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.9 |
| Minimum Bit Size | (in) | 5.5 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 40.1 |
| Hammer Weight | (lbs) | 148 |
| Piston Weight | (lbs) | 33.7 |
| Wear Sleeve Reverse Limit | 4.57 | |
| Wear Sleeve Discard Limit | (in) | 4.40 |
| Back Head Thread | 3-1/2" API Reg Pin | |
| Recommended Minimum Air Package | 600 cfm @ 250 psi | |
| Accessories | ||
|---|---|---|
| Service Kit | MB526SK02 | CALL |
| O Ring Kit | MB525OK03 | $21.00
|
| Rebuild Kit | MP5601RB01 | $3,659.00
|
| Rebuild Kit with Buttons | MP5601RB01B | $3,803.00
|
| Rebuild Kit with Backreamer | MP5601RB01BR | $4,160.00
|
| Rebuild Kit with Backreamer Bushing | MP5601RB01BRB | $3,376.00
|
| Backreamer Back Head Assy | MBX501BH04AS | $1,391.00
|
| Model | Part No. | Price |
|---|---|---|
| Mincon 55BH Hammer | MBX501AS02 | $6,450.00
|
| Mincon 55BH Hammer - Button Back Head | MBX501AS02B | $6,615.00
|
| Mincon 55BH Hammer with Backreamer | MBX501AS02BR | $6,985.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | Atlas Copcp DHD 350A | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.88 |
| Minimum Bit Size | (in) | 5.5 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 39.9 |
| Hammer Weight | (lbs) | 146 |
| Piston Weight | (lbs) | 33.6 |
| Wear Sleeve Reverse Limit | 4.750 | |
| Wear Sleeve Discard Limit | (in) | 4.400 |
| Back Head Thread | 3-1/2" API Reg Pin | |
| Accessories | ||
|---|---|---|
| Service Kit | MB526SK02 | CALL |
| O Ring Kit | MB525OK02 | $21.00
|
| Rebuild Kit | MBX501RB02 | $3,659.00
|
| Rebuild Kit with Buttons | MBX501RB02B | $3,803.00
|
| Rebuild Kit with Backreamer | MBX501RB02BR | $4,160.00
|
| Rebuild Kit with Backreamer Bushing | MBX501RB02BRB | $3,376.00
|
| Backreamer Back Head Assemby | MBX501BH04AS | $1,391.00
|
| Model | Part No. | Price |
|---|---|---|
| Mincon MP56-MQ Hammer | MP5601AS02 | $6,450.00
|
| Mincon MP56-MQ Hammer - Button Back Head | MP5601AS02B | $6,615.00
|
| Mincon MP56-MQ Hammer - Backreamer Back Head | MP5601AS02BR | $6,985.00
|
*** FREE shipping within continental United States for non-dealers
| Consumables | ||
|---|---|---|
| Bit Shank Type | Atlas Copco QL 50 | |
| Specifications | ||
|---|---|---|
| Outside Diameter | (in) | 4.9 |
| Minimum Bit Size | (in) | 5.5 |
| Spanner Flat Size | (in) | 3.5 |
| Hammer Length | (in) | 40.1 |
| Hammer Weight | (lbs) | 148 |
| Piston Weight | (lbs) | 33 |
| Wear Sleeve Reverse Limit | (in) | 4.57 |
| Wear Sleeve Discard Limit | (in) | 4.4 |
| Back Head Thread | 3-1/2" API Reg Pin | |
| Recommended Minimum Air Package | 600 cfm @ 250 psi | |
| Accessories | ||
|---|---|---|
| Service Kit | MB526SK02 | CALL |
| O Ring Kit | MB525OK02 | $21.00
|
| Rebuild Kit | MP5601RB02 | $3,659.00
|
| Rebuild Kit with Buttons | MP5601RB02B | $3,803.00
|
| Rebuild Kit with Backreamer | MP5601RB02BR | $4,160.00
|
| Rebuild Kit with Backreamer Bushing | MP5601RB02BRB | $3,376.00
|
| Backreamer Back Head Assy | MBX501BH04AS | $1,391.00
|
