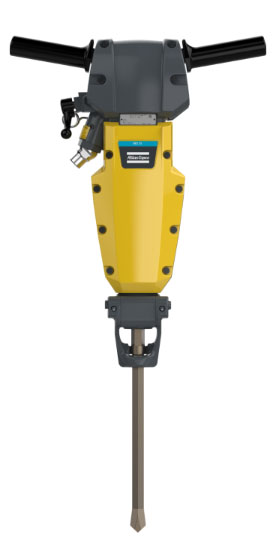

SRD 25E Rock Drill

SRD 25E Rock Drill

Features

  • Quick Tool Changes - kick-latch retainers allow you to quickly and easily swap tools
  • Comfortable drilling - built-in silencers, a lightweight design and vibration reducers ensure safe and comfortable operation.  Thanks to HAPS (Hand and Arm Vibration Protection System), vibrations are reduced up to 75%
  • Balanced Performance - these surface rock drills are designed for excellent balance, without adding unnecessary weight
  • Fast Flushing - built-in flushing with compressed air avoids jamming and allows you to quickly clean the drill hole
  • Drilling Depth - up to 20 ft, hole diameters from ½" to 3"

Suitable for

  • Quarrying
  • Production Drilling
  • Mining

** FREE ground shipping within Continental United States

SPECIFICATIONS

Weight lbs 60 60
Length in 24 24
Chuck Size in 7/8 x 4 1/4 1 x 4 1/4
Air Consumption cfm 106 106
Impact Rate bpm 2040 2040
Revolutions rpm 215 215
Penetration Rate in/min 11.6 11.6
Hose Connection in 3/4 3/4
Sound Level dB(a) 110 110
Part No   AC-8311032510 AC-8311032509
    $2,590.00 $2,590.00

DOCUMENTATION

Spare Parts List
Safety and Operating Instructions

CONSUMABLES

H & D Threaded Steel and Bits

ACCESSORIES & COMMON REPLACEABLE PARTS

Service Kit SRD25 3310101856 $158.80   Rock Drill Oil - 1 Gal RDO1G $42.00
Complete Retainer 3310100617 CALL   Rock Drill Oil - 5 Gal RDO5G $122.00
Side Bolt Kit 3310100596 CALL   Line Oiler LO-10PF $81.00
Complete Flushing Tube 3310100595 $10.87   Whip Check WCSML $12.50
Water Kit 3121511200 CALL   Contractors Air Hose AIRH-19-50R $124.00
Wacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-Kit $1,545.00   Universal Air King Coupling AM8 $10.20
Dust Control Spray Kit 9753300015 $146.87
