155 Rock Drill - 1 x 4-1/4" Dry

$2,290.00

Weight: 67.5 lbs

Add to Cart:

155 Rock Drill - 1 x 4-1/4" Dry

The Model 137 and Model 155 are used in general construction, utility work, and plant maintenance. They are designed for drilling through granite, hard faced rock, quarry drilling and drilling secondary holes for blasting. They are also used with dowel hole drilling machines. Adaptable to wet drilling application by attaching APT valve, wet tube and swivel assembly.

** FREE GROUND SHIPPING within the Continental United States

SPECIFICATIONS

Type   Dry
Chuck Size in 1 x 4-1/4
Bore in 2-5/8
Stroke in 3
Impact Rate bpm 2100
Air Consumption cfm 110-120
Weight lbs 61
Length in 22-3/8
Ain Inlet NPT 3/4" Male

CONSUMABLES

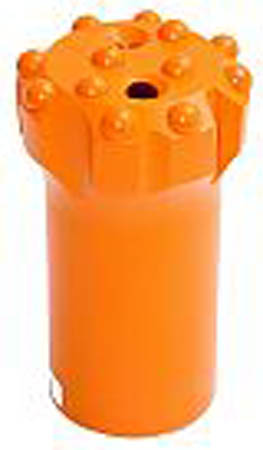

H & D Thread Steel & Bits
Whirlibits

DOCUMENTATION

Spare Parts List
Maintenance and Repair Information
Model 155 Rock Drill Controls

COMMON REPLACEABLE PARTS AND ACCESSORIES

Retainer - 1 x 4-1/4" 18442 Rock Drill Oil - 1 Gal RDO1G
Muffler Kit 18756 Rock Drill Oil - 5 Gal RDO5G
Side Rod Kit 18799 Whip Check WCSML
Hose Whip Assy - 3/4" x 6' Hose & Constant Feed Oiler 18748 Contractors Air Hose AIRH-19-50R
O-Ring and Seal Kit 18784 Line Oiler LO-10PF
Dust Control Spray Kit 9753300015 Dust Extraction Kit for Paving Breakers & Rock Drills (inc. TAM3P Pail & Vacuum Hose) PB-RD-VDEX-KIT




  • Model: APT5233
