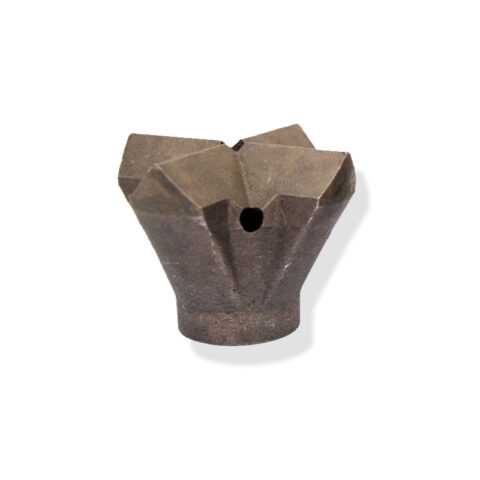

A Soil Stabilization Steel Soil Cross Bit is a specialized drill bit designed for soil stabilization in various construction, geotechnical, and mining applications. This bit is tailored to enhance the drilling process in soft to medium soil conditions and is typically used for preparing the ground before the application of stabilization agents like cement, lime, or other chemicals. The bits design, featuring a cross-shaped cutting structure, allows for efficient soil penetration and material removal.

• Design:The bit features a cross-shaped cutting structure, which means there are four cutting edges arranged in a cross pattern around the bit’s body. This configuration provides multiple cutting points to facilitate efficient drilling through soil.The cutting edges are designed to scrape, cut, and break apart the soil, helping to create stable, evenly distributed holes for the injection of stabilization agents.The cross pattern ensures that the forces of penetration are evenly distributed across the bit, preventing excessive wear on any single cutting edge.The shank of the bit is designed to fit into the drilling rig and often features threaded ends for a secure connection to the drill rods or extensions. The threading ensures that the bit stays firmly in place during operation.The cutting action of the Soil Stabilization Steel Soil Cross Bit involves scraping and shearing. The four cross-shaped blades cut into the soil and create an even hole, which is essential for stabilizing the ground.The bit’s design helps ensure that material removal occurs without excessive friction, allowing for smoother operation and minimizing the chance of the bit becoming stuck.
• Applications:
  • Soil Stabilization:The primary application of the Steel Soil Cross Bit is in soil stabilization projects. It is used to drill holes into the soil, creating pathways for the injection of stabilization agents such as cement, lime, or chemical solutions.By drilling precise holes, the bit facilitates deeper penetration of the stabilization agents, improving soil strength, reducing moisture content, and enhancing the soil’s overall stability.This application is critical in areas where the soil is too loose, soft, or prone to erosion and requires strengthening before construction can proceed.
  • Geotechnical Drilling:In geotechnical investigations, the Steel Soil Cross Bit is used to collect soil samples or perform soil tests. This is essential for determining the properties of the soil and assessing its suitability for construction, foundations, or other infrastructure projects.The ability to drill precise holes through soft to medium soil layers ensures that geotechnical engineers obtain accurate data to guide their assessments.
  • Road Construction and Pavement Stabilization:In road construction and pavement stabilization, the Steel Soil Cross Bit is employed to drill holes for stabilizing the underlying soil. This is particularly important when dealing with weak or loose soils that cannot support the weight of traffic or infrastructure without proper reinforcement.The bits ability to create deep, evenly distributed holes allows stabilization agents to be injected into the soil, improving its load-bearing capacity and making it suitable for the construction of roadbeds or pavements.
  • Foundation Drilling:The Steel Soil Cross Bit is used for foundation drilling in areas where soil stabilization is required before building large structures, such as buildings, bridges, or other heavy infrastructure.By stabilizing the soil prior to foundation work, the bit ensures that the ground can support the weight of the structure and prevents future settlement or shifting.
  • Utility Installation:The bit is also used for preparing the ground for the installation of utilities such as water pipes, electrical conduits, or telecommunication lines. Soil stabilization is particularly important in areas where the soil is loose or unstable, ensuring that the utilities remain properly aligned and protected from shifting soil.
  • Mining and Quarrying:In mining and quarrying, the Steel Soil Cross Bit may be used for drilling in soft rock or soil to prepare for blasting or sampling. It helps create holes for the placement of explosives in the rock or soil, making it easier to break apart large volumes of material.It is especially useful in areas where soil stabilization is needed to prevent soil erosion or instability during mining or exploration activities.
  • Water Well Drilling:In water well drilling, the Steel Soil Cross Bit is employed to create holes for installing wells. The bit helps to penetrate soft to medium soil layers, ensuring the well is properly placed and stabilized for water extraction.Its cross-shaped design allows for better penetration and control, making it effective for drilling in areas with varying soil conditions.
• Materials:The bit body is typically made from high-strength steel or alloy steel to withstand the physical stresses and wear during drilling, ensuring durability in demanding environments.Steel cutting surfaces or carbide inserts are sometimes added to increase wear resistance. These additions make the bit more effective in cutting through tough or compacted soil without losing performance.
• Configuration: R32, R38 and X32 threads, 2″ to 4″ bit diameter.
