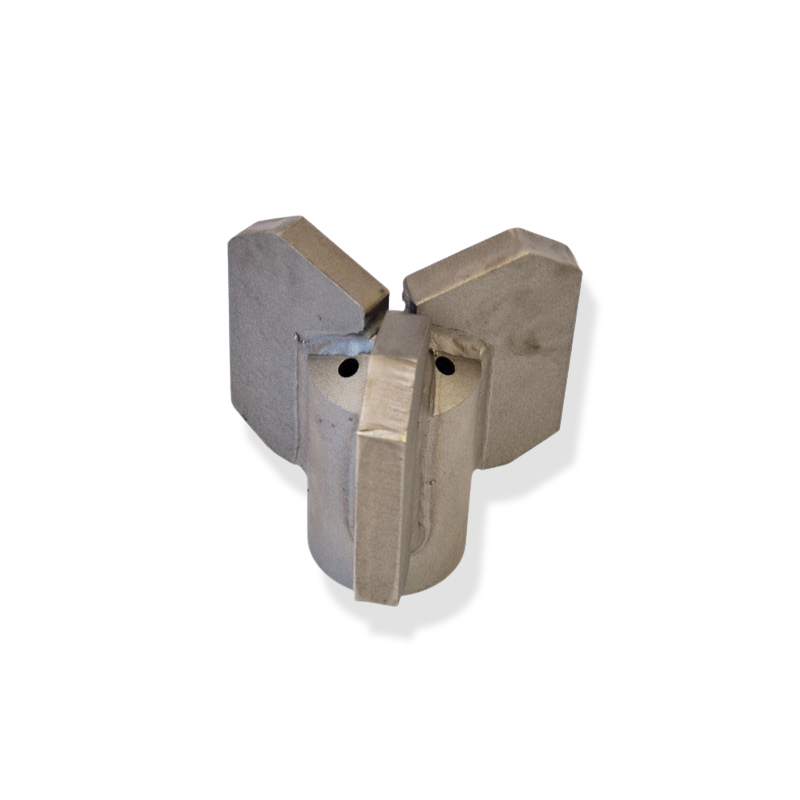

A Soil Stabilization Three Wing Drag Bit is a specialized type of drill bit designed to improve soil stability in construction, geotechnical, and mining applications. This bit is particularly useful for soft to medium soil conditions, providing a cost-effective solution for stabilizing soils by drilling and preparing the ground for the application of stabilization agents like cement, lime, or chemical additives. The design of the drag bit features three wings that facilitate effective cutting, penetration, and material removal.
- Design:The three-wing design of the drag bit allows for better distribution of the cutting force, which provides uniform penetration into the soil or rock. The three cutting wings are positioned at 120-degree intervals around the body of the bit, offering improved cutting performance and balanced operation.Each wing has a sharp cutting edge to scrape through the material, ensuring that the ground is broken up evenly. This design helps reduce resistance while maximizing the effectiveness of the drilling process. The dragging action is what distinguishes this type of bit. As the drill bit rotates, the three wings “drag” across the soil, cutting into it and removing the material. Unlike rotary bits that have teeth or buttons for impact-based cutting, drag bits rely on a scraping and slicing motion, which works well in softer soils. The cutting edges of the wings may be designed with chisel points or curved edges to further optimize the penetration and scraping action. The shank of the drag bit is designed to connect securely to the drill rig, usually with a threaded connection to attach to drill rods or extension rods. The threads ensure that the bit remains securely attached during operation.
- Applications:
- Soil stabilization: The primary application for the Three Wing Drag Bit. The bit is used to drill into the soil, creating holes where stabilization agents like cement, lime, or chemical agents can be injected to improve soil strength and prevent future soil erosion.The bit’s efficient cutting action makes it ideal for preparing the ground for treatment, particularly when dealing with soft or loose soil conditions that require stabilization before construction activities can proceed.
- Geotechnical Drilling: The drag bit is often used in geotechnical investigations, where it helps to drill into the ground to take soil samples or conduct tests. It is ideal for softer soils, and its design ensures smooth penetration for collecting accurate data.Boreholes are drilled with the bit for soil testing, determining the soils composition, density, and moisture content. This is essential for construction projects, as it helps engineers understand the underlying ground conditions.
- Road and Pavement Construction:In road construction and pavement stabilization, the Three Wing Drag Bit is used to prepare the soil by drilling holes for stabilization. This is important in regions where the soil is weak or loose, as the stabilization treatment will improve the strength and stability of the surface.The bit can also be used for subgrade preparation, ensuring that the foundation for new roads or pavements is solid and free from loose soil that could cause settling or other issues.
- Foundation Drilling:The bit is employed in foundation drilling for structures like buildings, bridges, and other infrastructure projects. By stabilizing the soil before pouring concrete or installing piles, the bit ensures that the foundation will be laid on solid ground.The Three Wing Drag Bit can be particularly useful in areas where soil compaction is needed, such as drilling for pile foundations or rock anchors.
- Mining and Quarrying:In mining and quarrying operations, the Three Wing Drag Bit may be used for drilling blast holes or exploration drilling in softer soil or rock formations. Its design allows for efficient removal of material during drilling, making it an effective tool for creating holes where explosives can be placed for controlled blasting.The bits design is well-suited for mining in areas with variable soil conditions, including soft rock and mixed-ground conditions.
- Well Drilling:The bit can also be used in water well drilling applications, where it helps to create holes for the installation of wells in soft to medium soil layers. The three-wing configuration facilitates efficient drilling in the type of soils commonly found in shallow water wells.
- Tunneling and Underground Construction:The Three Wing Drag Bit can be used for tunneling or underground construction when drilling is required to stabilize soil or rock layers. It is particularly useful in soft and medium-density soils where precise drilling is necessary to install support structures, anchors, or grouting systems.
- Materials:The bit body is usually constructed from high-strength steel or alloy steel to withstand the mechanical stress during drilling, particularly in tough soil and loose rock conditions.The cutting wings of the bit are typically made with high-quality carbide tips or other wear-resistant materials. Carbide provides exceptional hardness, making the bit capable of withstanding abrasion and extending its lifespan.
- Configuration:R32 to R51 and T76 thread; 5″ to 8″ bit diameter.
