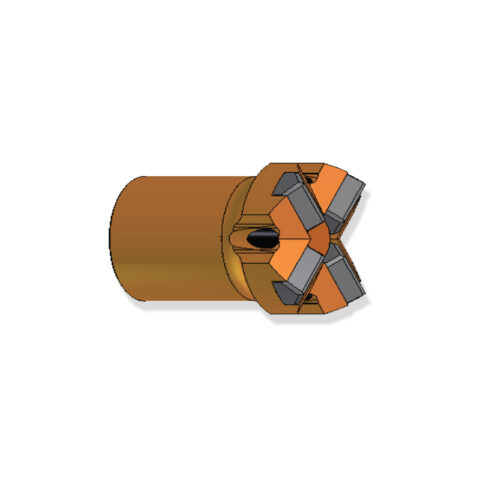

A Tapered Cross Bit is a specialized tool used primarily in drilling operations for rock excavation and mining. It is a type of drill bit designed with a cross-shaped, tapered cutting structure, making it highly effective for creating precise, stable boreholes, especially in hard rock or abrasive materials. These bits are especially common in underground mining, construction, and exploration drilling where efficient penetration and durability are crucial.
- Design:The cross bit typically has four arms or cutting edges that extend outward in the shape of a cross. These edges are designed to make contact with the rock surface in a way that maximizes efficiency and minimizes the amount of friction.The tapered design of the bit gradually reduces in diameter as the bit moves down, which allows for efficient removal of rock cuttings and debris as drilling progresses. The shank of the tapered cross bit is designed to fit into a corresponding tapered drill rod, which allows the bit to rotate as it drills into the material. The tapered connection ensures a tight fit, minimizing the risk of the bit slipping or disengaging from the rod during operation.
- Applications:
- Mining: Tapered Cross Bits are commonly used in underground mining for rock excavation and to create boreholes for rock bolting or ventilation shafts. The bit’s ability to handle high-impact conditions and maintain durability is crucial in harsh underground environments. For quarrying operations, where hard rock needs to be drilled through to extract materials like stone, the tapered cross bit is effective in cutting and drilling large holes efficiently.
- Construction and Civil Engineering: Tapered Cross Bits are employed in foundation work, where they are used to drill holes for piling or foundation reinforcement. The efficient penetration of hard soil or rock is essential for the stability of structures.The bit’s tapered design helps it cut through dense, hard materials in tunnel construction, where creating straight, precise holes is necessary for setting anchors or securing structures.
- Geotechnical Exploration: In geotechnical drilling operations, tapered cross bits are used to extract rock and soil samples for analysis. These samples are crucial for understanding the geological composition of an area before construction or mining work begins.
- Water Well Drilling: In water well drilling, the tapered cross bit is used to penetrate hard, rocky layers in search of groundwater. The bit’s efficiency and resistance to wear ensure reliable drilling even in difficult geological conditions.
- Energy and Oil/Gas Exploration: Tapered Cross Bits are often used in the exploration phase of oil and gas drilling operations, where precise, deep, and stable boreholes are necessary. These bits can be used to drill through a variety of geological formations.
- Blasting Holes:Tapered cross bits are commonly used in drilling blasting holes in mining, quarrying, and demolition. The bit allows for deep penetration and facilitates the placement of explosives for controlled rock or material removal.
- Materials: The cutting edges are often fitted with tungsten carbide inserts or diamond coatings to enhance hardness and wear resistance. This allows the bit to maintain sharpness even when drilling through hard or abrasive rock types. The body of the bit is often made from high-carbon steel for its strength and toughness. This material can withstand the mechanical stress of drilling operations and provide a durable and long-lasting cutting surface.
- Configurations:None
