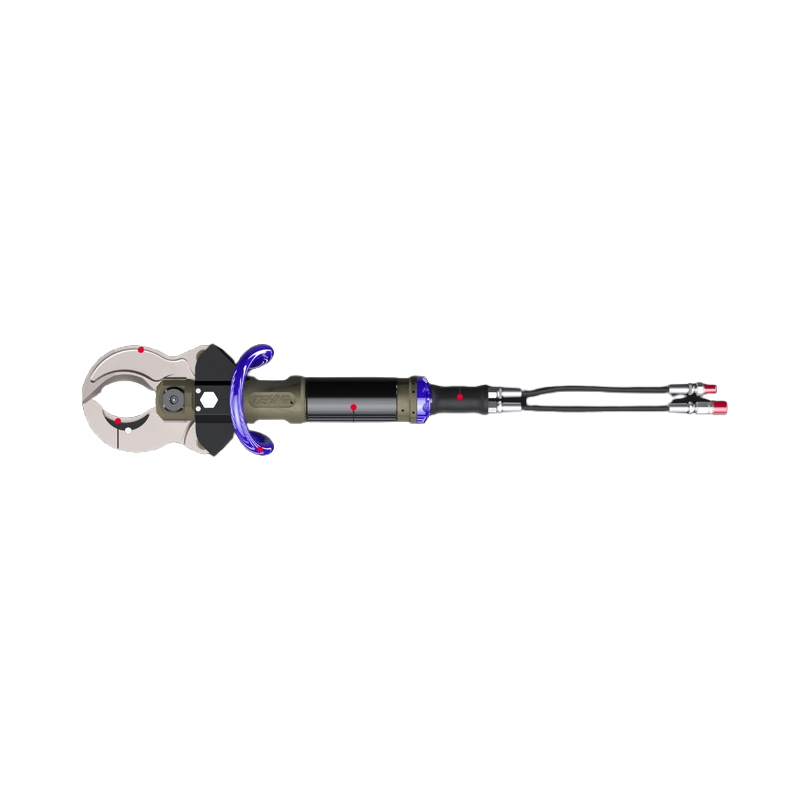

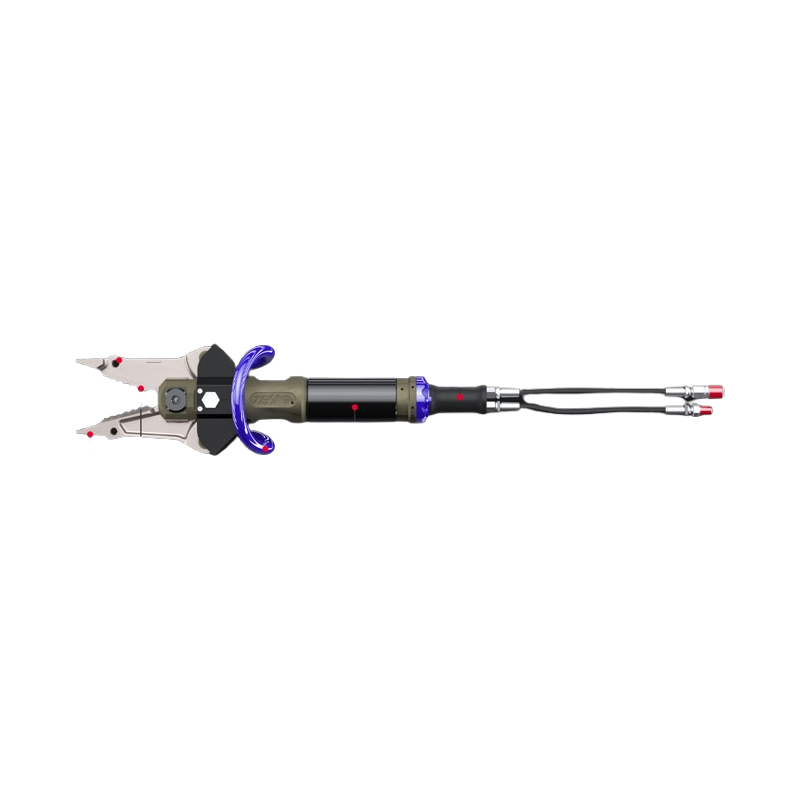

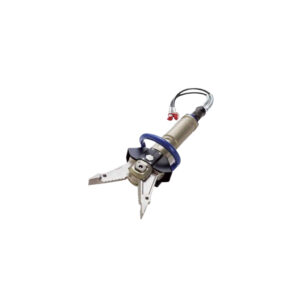

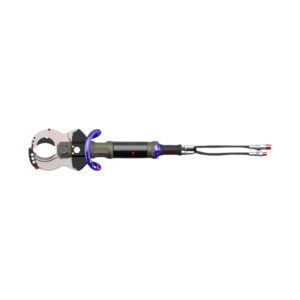

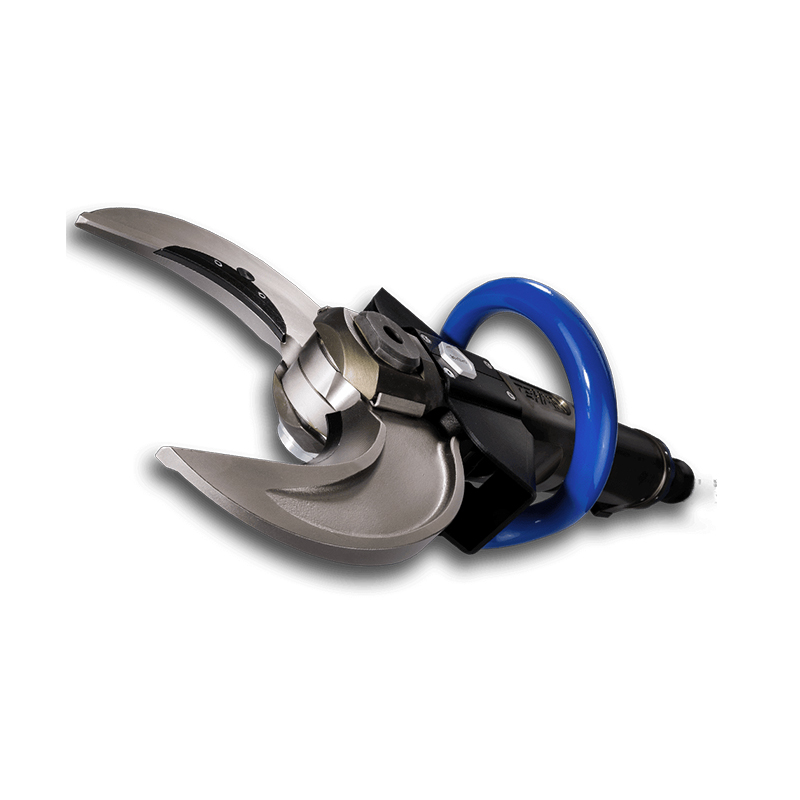

The MS250/GS170:
Based on a modular system consisting of one main body and interchangeable blades sets, in a few steps can be easily converted into 4 different tools: CC300, MS250, GS170 and CS350. Extremely versatile and functional, it is an indispensable partner for demolition inside inhabited buildings or densely populated areas and the right tool to complete the THEMA SP400 / SP600 hydraulic concrete and rock splitters.
Features:
- Cut steel bars and reinforcing iron rods without dangerous splinters or sparks
- Cut pipes and electric or steel cables without dangerous twisting of the blades
- Cutting metal sheets and scraps
- Enlarging openings and separates materials, objects or blocks in previously demolished reinforced concrete structures
- Various applications for Industrial, recycling, nuclear decommissioning and car demolitionUSES
- Cutting of metal profiles and reinforcements (reinforced mesh, steel rebars).
- Cutting of pipes and metal cables (by means of GS170 jaws equipped with blade guide to avoid excessive torsion and dangerous misalignment of the blades when cutting particularly resistant objects).
- Recycling of precious car parts such catalytic converters and mufflers.
- Intervention in the presence of water and underwater demolitions.
| Model | Cutting / Separation Force (kN) | Demolition Force (kN / Ton) | Mouth Opening (mm / in) | Mouth Depth (mm / in) | Weight (kg / lb) | Pressure (bar / psi) | Dimensions LWH (mm / in) |
|---|---|---|---|---|---|---|---|
| CC300 | N/A | 101 / 10.3 MT | 300 / 11.81 in | 150 / 5.91 in | 22.5 / 49.6 lb | 600 / 8,702 psi | 849304190 / 33.4311.977.48 in |
| MS250 | 450 | N/A | 180 / 7.09 in | 150 / 5.91 in | 20.5 / 45.2 lb | 600 / 8,702 psi | 811242190 / 31.939.537.48 in |
| GS170 | 450 | N/A | 174 / 6.85 in | 135 / 5.31 in | 20.5 / 45.2 lb | 600 / 8,702 psi | 819242190 / 32.249.537.48 in |
| CS350 | 360 / 95 | N/A | 362 / 14.25 in | 180 / 7.09 in | 19.5 / 43.0 lb | 600 / 8,702 psi | 849242190 / 33.439.537.48 in |
