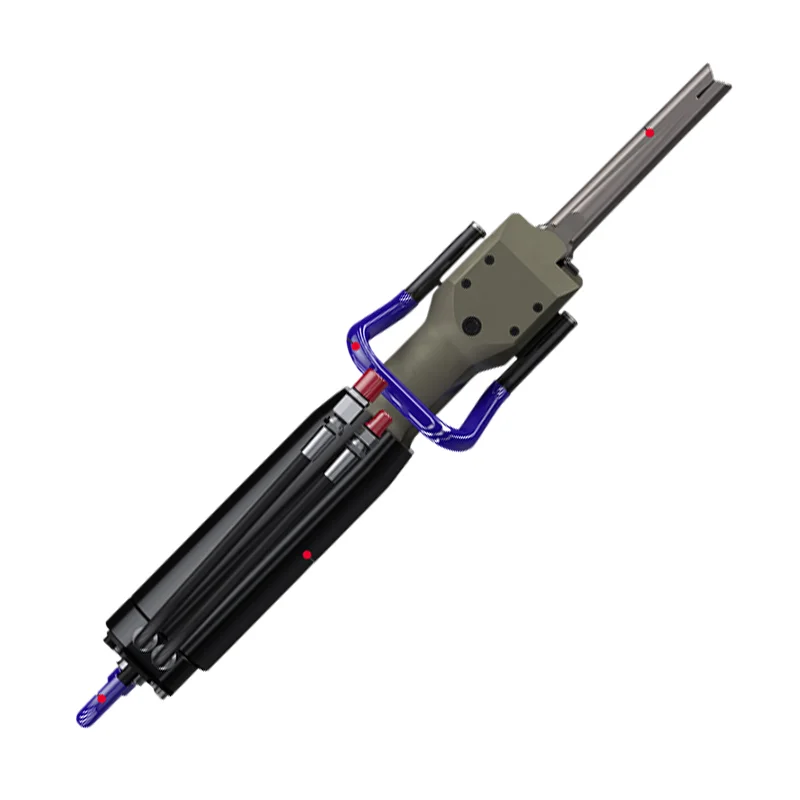

The TEHMA SP400 is a handheld high-pressure hydraulic splitter engineered for controlled demolition of concrete and rock. It uses a wedge-based mechanism: the cylinder advances a central wedge between two counter-wedges inside a pre-drilled hole, producing large splitting force without vibration, percussions or dust.
Design:
- The splitter unit weighs about 23.5 kg and operates at up to 600 bar pressure, delivering a theoretical splitting force of 3,620 kN.
- Required drill hole diameter ~ 45-48 mm (for the SP400 model) and minimum hole depth ~440 mm.
- Splitting gap (distance the material is forced apart) is ~17 mm for the SP400.
- Constructed with premium materials: cylinder and key components made in aeronautical-grade alloy, an inner carbide layer for low friction and durability, high-quality steel wedges, ergonomic handles and reversible control cam for controlled splitting direction.
- The kit version comes paired with a hydraulic power pack (TEHMA PP600 / PP700 series) to supply the required high-pressure hydraulic circuit.
In short: the SP400 provides heavy-duty splitting power in a compact handheld format, enabling controlled demolition in settings where traditional methods (jackhammers, blasts) might be impractical due to noise, vibration or space constraints.
Applications:The SP400 kit is designed for a wide range of demanding demolition or splitting tasks, especially where vibration, noise or dust must be minimized.
- Splitting thick reinforced concrete structures: foundations, floor slabs, pillars, bridge decks, retaining walls.
- Breaking large rocks or boulders in excavations, tunneling, quarrying or utilities routing.
- Jobs in sensitive environments (hospitals, data centers, offices, luxury residential buildings) where low noise, low vibration and minimal dust are required.
- Situations of limited access, upper floors, interior demolition, underwater or confinedspace operations, where large or heavy equipment is impractical.
- Rental fleets or contractors needing a complete kit that integrates the splitter and hydraulic power pack for immediate deployment.
Contents:

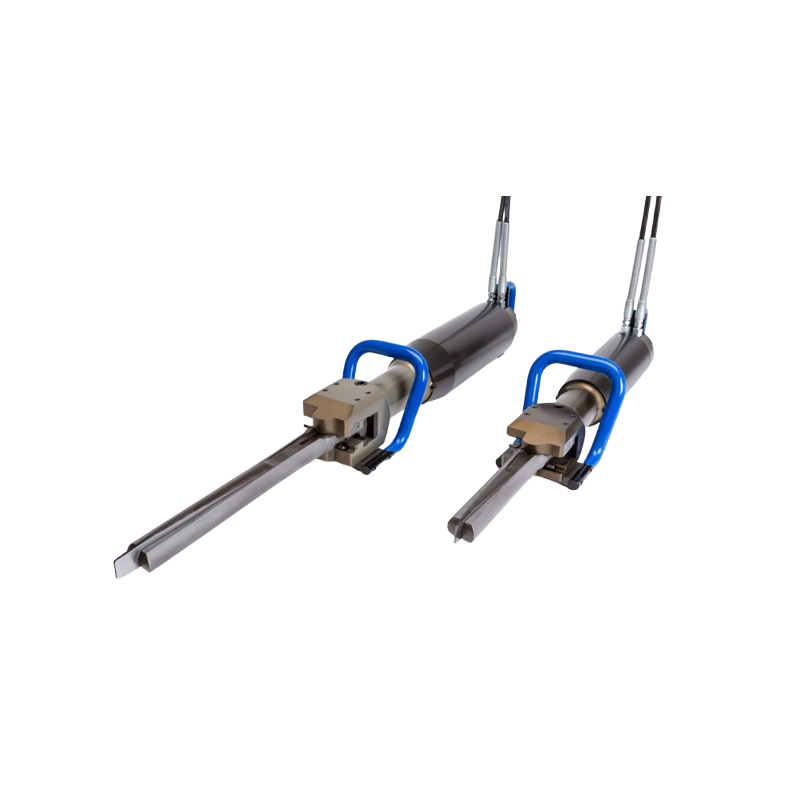

- SP400 Splitting Cylinder (handheld tool) the core splitting unit.

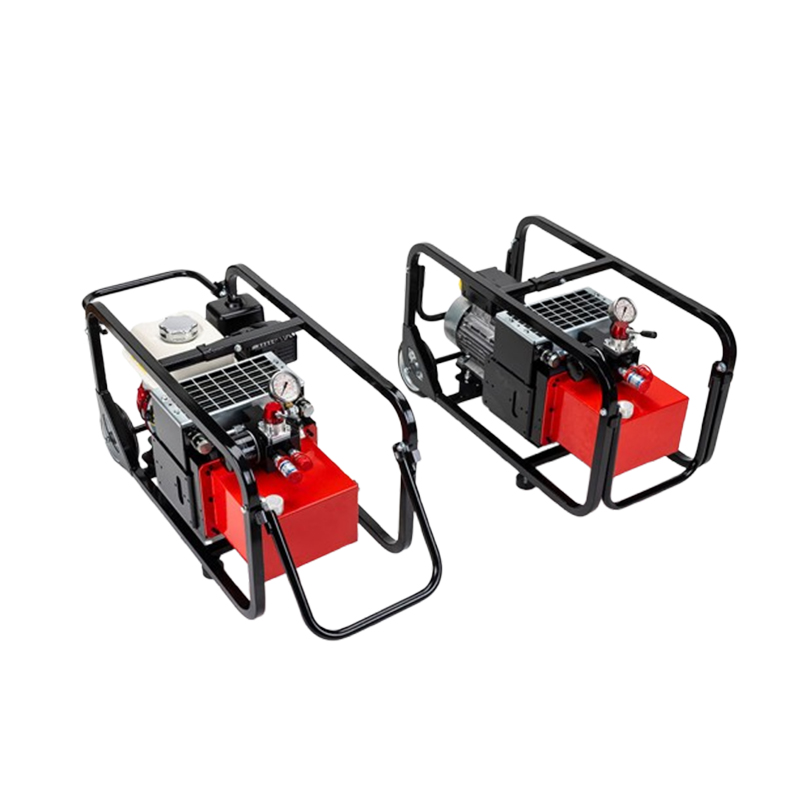

- Hydraulic Power Pack (for example TEHMA PP600 series electric/pneumatic/gas driven) to supply high-pressure hydraulics to the splitter.
- High-pressure hydraulic hose (e.g., 5 m or 10 m) to connect between power pack and splitter.
- One central wedge (plug) and two counter-wedges (feathers) for the SP400.
- 1kg Grease
- Operators manual / Use & Maintenance instructions
