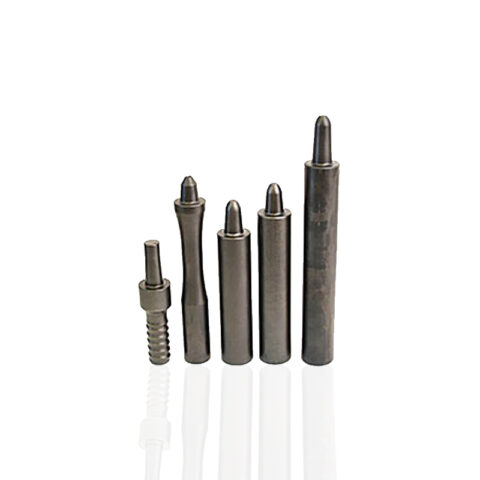

Threaded Head Split Set Driver

$97.00 – QUOTE

$97.00 – QUOTE

Thread: No selection

More options

Overall Length (in): No selection

More options

Nose Length (in): No selection

More options

For Split Set (mm): No selection

More options

Clear

Gallery
Description
Accessories
Specifications

The Threaded Head Split Set Driver is a tool used for installing split set bolts in a variety of applications such as mining, tunneling, and civil engineering. Split set bolts are often used as ground support systems, providing stability and reinforcement to rock or soil in underground excavations or construction projects. The Threaded Head Split Set Driver is designed to facilitate the installation of these anchors, ensuring secure and efficient placement.

The Threaded Head Split Set Driver is a specialized tool that fits onto the end of a split set anchor
The tool is used to drive the anchor into a pre-drilled hole in rock or soil, securing the anchor and providing the necessary support to stabilize the surrounding material
Manufactured from high-quality 8620 heat treated alloy steel for superior strength and durability
Large variety of sizes and threads in stock and can ship same day

Configurations:

- Thread types: R25 to R38, and T38
- Overall Length from 8-1/2″ to 36″
- Split Set: 33MM, 39MM or 46MM
- Nose Length from 1-1/2″ to 4″
- Custom sizes available (Minimum order quantities may apply)

One Piece Split Set Driver

$74.00 – QUOTE

Tapered Socket Head Split Set Driver

$66.00 – $74.00

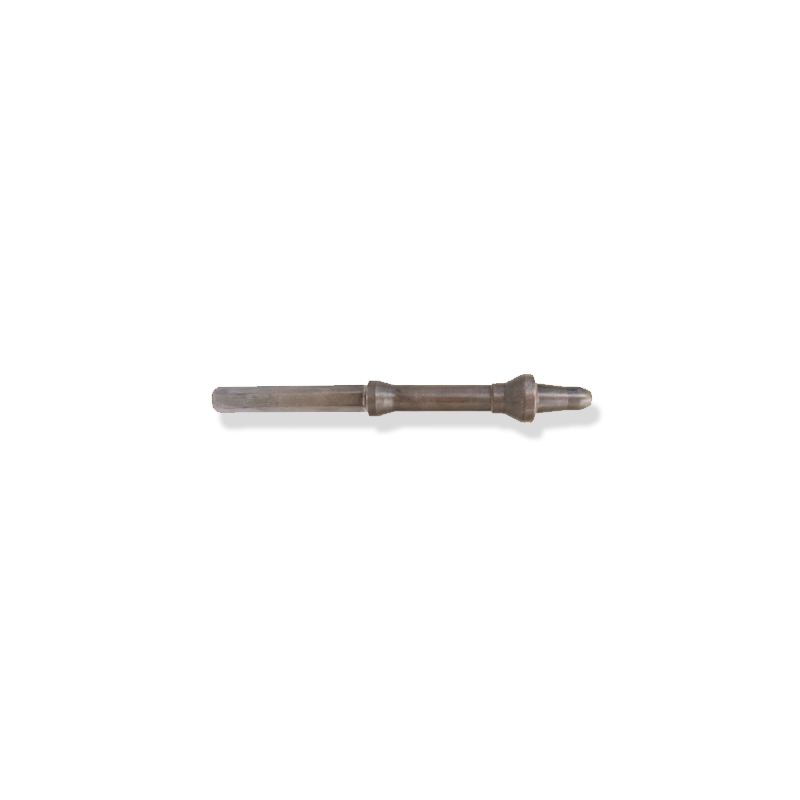

1 x 6-1/4 in Hex Shank Head Split Set Driver

$132.00 – QUOTE

T13 Split Set Driver

$470.00 – $492.00

Split Set Plate

QUOTE

Specifications

	SSDR25F-33	SSDR25F-46	SSDR25F-B	SSDR25F-S	SSDR28F-33	SSDR28F-S	SSDR32F-10.7	SSDR32F-24	SSDR32F-30	SSDR32F-33	SSDR32F-36	SSDR32F-B	SSDR32F-S	SSDR32M-18	SSDR38F-10	SSDR38F-10.1	SSDR38F-10.7	SSDR38F-11.7	SSDR38F-13.5	SSDR38F-13.7	SSDR38F-15.7	SSDR38F-16.7	SSDR38F-17.5	SSDR38F-20	SSDR38F-46	SSDR38F-9	SSDR38F-S	SSDR38F-S2	SSDR38M	SSDT38F-13	SSDT38F-15.75	SSDT38F-46	SSDT38F-8.5	SSDT38F-S	SSDR32F-46
SKU	SSDR25F-33	SSDR25F-46	SSDR25F-B	SSDR25F-S	SSDR28F-33	SSDR28F-S	SSDR32F-10.7	SSDR32F-24	SSDR32F-30	SSDR32F-33	SSDR32F-36	SSDR32F-B	SSDR32F-S	SSDR32M-18	SSDR38F-10	SSDR38F-10.1	SSDR38F-10.7	SSDR38F-11.7	SSDR38F-13.5	SSDR38F-13.7	SSDR38F-15.7	SSDR38F-16.7	SSDR38F-17.5	SSDR38F-20	SSDR38F-46	SSDR38F-9	SSDR38F-S	SSDR38F-S2	SSDR38M	SSDT38F-13	SSDT38F-15.75	SSDT38F-46	SSDT38F-8.5	SSDT38F-S	SSDR32F-46
Product Name	Split Set Driver - R25 (1" Rope) 33mm Nose	Split Set Driver Head - R25 (1" Rope) 46mm Nose	Split Set Dr R25 (1"rope) Bulb Nose	Split Set Dr R25 (1"rope) 39mm	Split Set Dr R28 (1-1/8"R) 33mm Nose	Split Set DR R28 (1 1/8"R) 39mm	Split Set Dr R32 (1-1/4"R)10-3/4"OAL, 1-1/2"39mm	Split Set Dr R32 (1-1/4"R) 24"OAL, 1-1/2"39mm	Split Set Dr R32 (1-1/4"R) 30"OAL, 4"39mm	Split Set Dr R32 (1-1/4"R) 33"OAL, 4"39mm	Split Set Dr R32 (1-1/4"R) 36"OAL, 4"39mm	Split Set Dr R32 (1-1/4"R) 39mm	Split Set Dr R32 (1-1/4"R) 39mm	Split Set Dr R38 (1-1/2"R) 18"OAL, 4"39mm	Split Set Dr R38 (1-1/2"R) 10" OAL, 2"39mm	Split Set Dr R38 10-1/8" OAL, 1-7/8" 39mm	Split Set Dr R38 (1-1/2"R) 10"OAL, 1-7/8"39mm	Split Set Dr R38 (1-1/2"R) 11-3/4"OAL, 1-3/4"39mm	Split Set Dr R38 (1-1/2"R) 13-1/2"OAL, 2"	Split Set Dr R38 (1-1/2"R) 13-3/4"OAL, 1-3/4"39mm	Split Set Dr R38 (1-1/2"R) 15-3/4"OAL, 2-3/4"39mm	Split Set Dr R38 (1-1/2"R) 16-3/4"OAL, 2"	Hourglass DR R38 (1 1/2"R) 17.5"OAL, 1-3/4 NOSE 39MM	Split Set Dr R38 (1-1/2"R) 20"OAL, 2-3/4"39mm	Split Set Dr R38 (1-1/2"R) 8"OAL, 4"46mm	Split Set Dr R38 9"OAL, 2" nose 39mm	Split Set Dr R38 (1-1/2"R) 8"OAL, 4"39mm	Split Set Head R38F x 6"OAL 2" 39MM NOSE	Split Set Dr R38 (1-1/2"R) 8-1/4"OAL, 2-3/4"39mm	Split Set Dr Head T38 FM 13"OAL, 39mm 1 1/2"Nose	Split Set Dr T38 (1-1/2"R) 15.75"OAL, 2-3/4"39mm	Split Set Dr Head T38 46mm Nose	Split Set Head T38F x 8.5"OAL 1.5" 39MM NOSE	Split Set Head T38FM x 8"OAL 4" NOSE	Split Set Dr R32 (1-1/4"R) 46"OAL, 4"39mm
Vendor SKU	SSDR25F-33	SSDR25F-46	SSDR25F-B	SSDR25F-S	SSDR28F-33	SSDR28F-S	SSDR32F-10.7	SSDR32F-24	SSDR32F-30	SSDR32F-33	SSDR32F-36	SSDR32F-B	SSDR32F-S	SSDR32M-18	SSDR38F-10	SSDR38F-10.1	SSDR38F-10.7	SSDR38F-11.7	SSDR38F-13.5	SSDR38F-13.7	SSDR38F-15.7	SSDR38F-16.7	SSDR38F-17.5	SSDR38F-20	SSDR38F-46	SSDR38F-9	SSDR38F-S	-	SSDR38M	SSDT38F-13	SSDT38F-15.75	SSDT38F-46	-	SSDT38F-S	SSDR32F-46
Thread	R25	R25	R25	R25	R28	R28	R32	R32	R32	R32	R32	R32	R32	R32	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	R38	T38	T38	T38	T38	T38	R32
Overall Length (in)	8	8	8	8	8	8	10-3/4	24	30	33	36	8	8	18	10-3/4	10-1/8	10-3/4	11-3/4	13-1/2	13-3/4	15-3/4	16-3/4	17-1/2	20	8	9	8	6	8-1/4	13	15-3/4	8	8-1/2	8	8
Nose Length (in)	4	4	4 Bulb	4	4	4	1-1/2	1-1/2	4	4	4	4 Bulb	4	4	2	1-7/8	1-7/8	1-3/4	2	1-3/4	2-3/4	2	1-3/4	2-3/4	4	2	4	2	2-3/4	1-1/2	2-3/4	4	1-1/2	4	4
For Split Set (mm)	33	46	39	39	33	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	39	46	39	39	39	39	39	39	46	39	39	46
