Rhino Fence Pro Gas Post Driver
Free Ground Shipping within Contintental United States

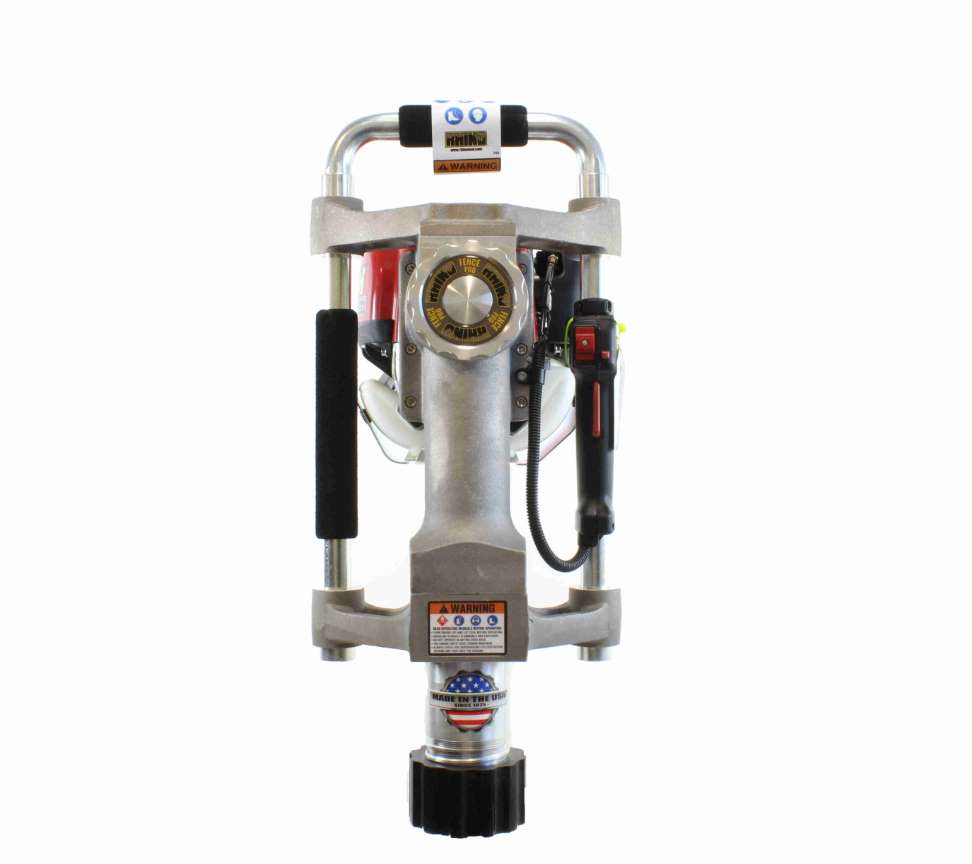

Rhino GPD-40 Fence Pro
| Model Number | Description | Price |
|---|---|---|
| 301001 | GPD-40 Fence Pro Comes with a 2" Chuck-Lok™ Adaptor |
$2,267.00 Add |
| Shipping Dimensions (in) | Actual Ship Weight (lb) | Dimensional Ship Weight (lb) |
|---|---|---|
| 31 X 15 X 18 | 47 | 65 |
Adaptors
| Name | Application | Part Number | Price |
|---|---|---|---|
| 1" Chuck Sleeve Color: Red  |
Ground Rod | 300900 | $40.19 Add |
| 1-3⁄4" Chuck Sleeve Color: Green  |
T-Post | 300895 | $40.19 Add |
| 2" Chuck Sleeve (Included) Color: Black  |
T-Post | 300902 | $40.19 Add |
|
Chuck-Loc™ System Locking Nut (included with driver) |
301920 | $48.35 Add |
Accessories and Replaceable Parts

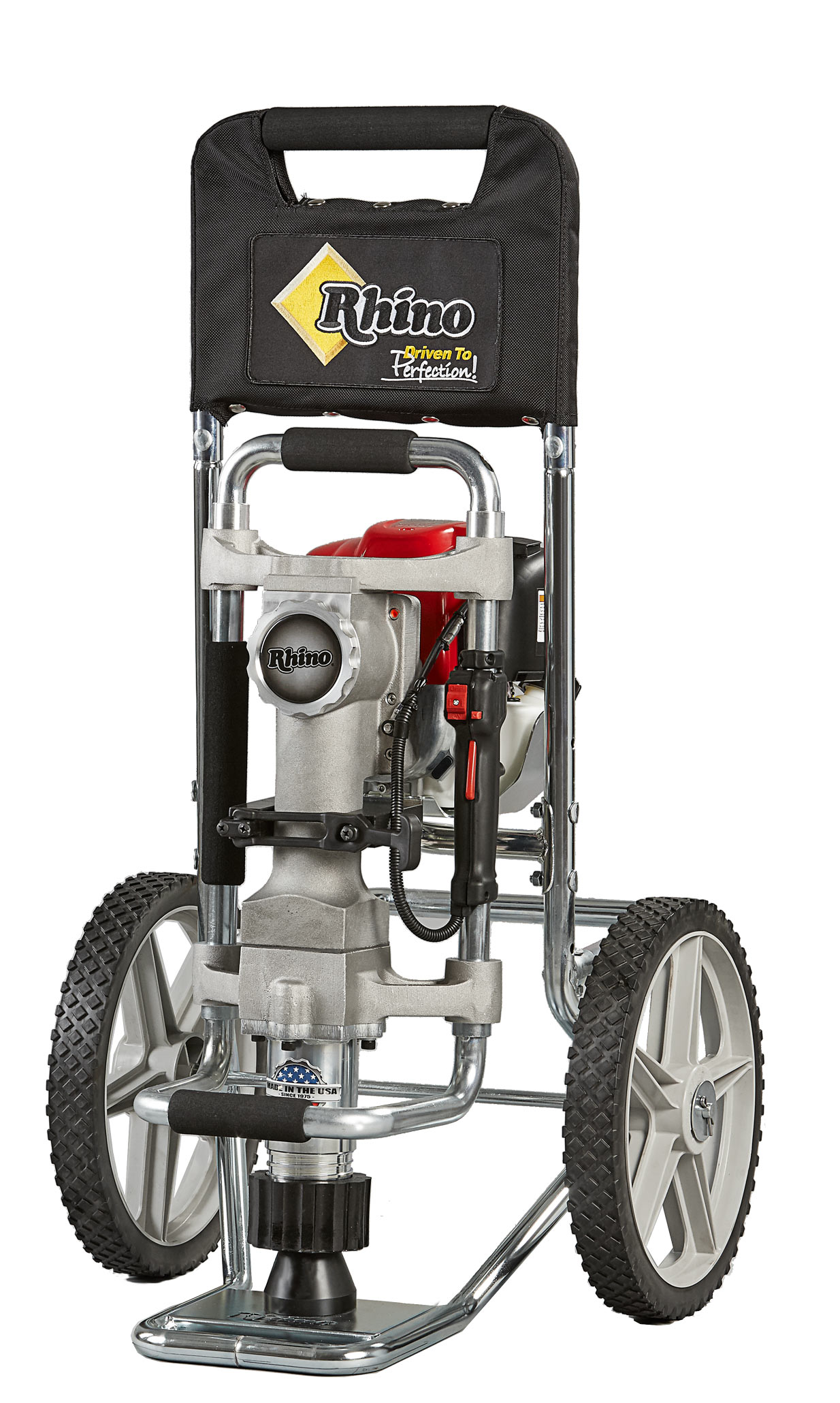

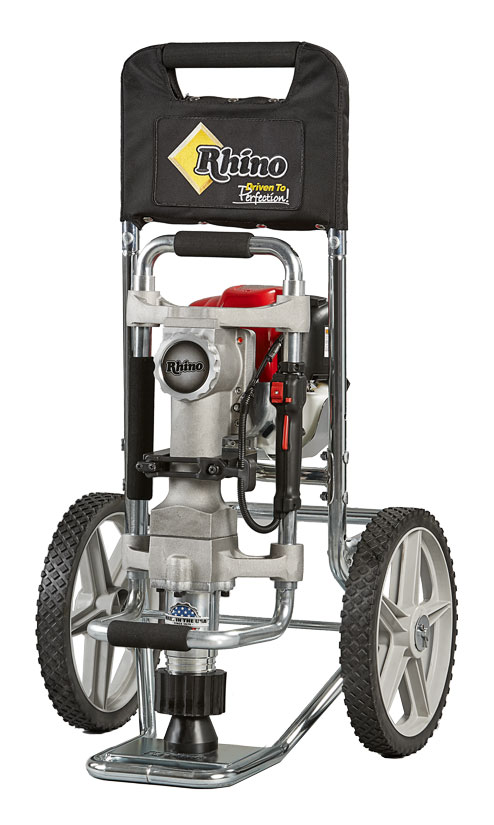

GPD Transport Cart

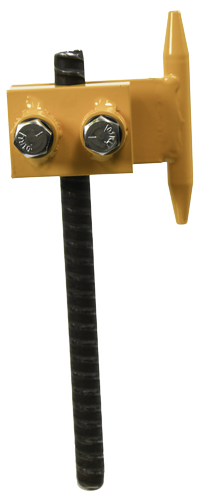

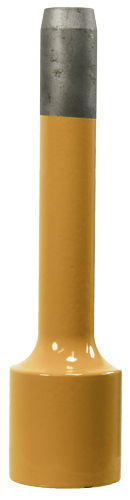

Ground Rod Installation Tool

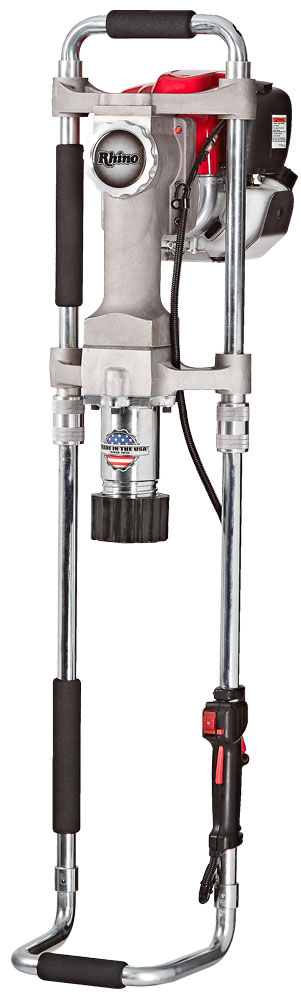

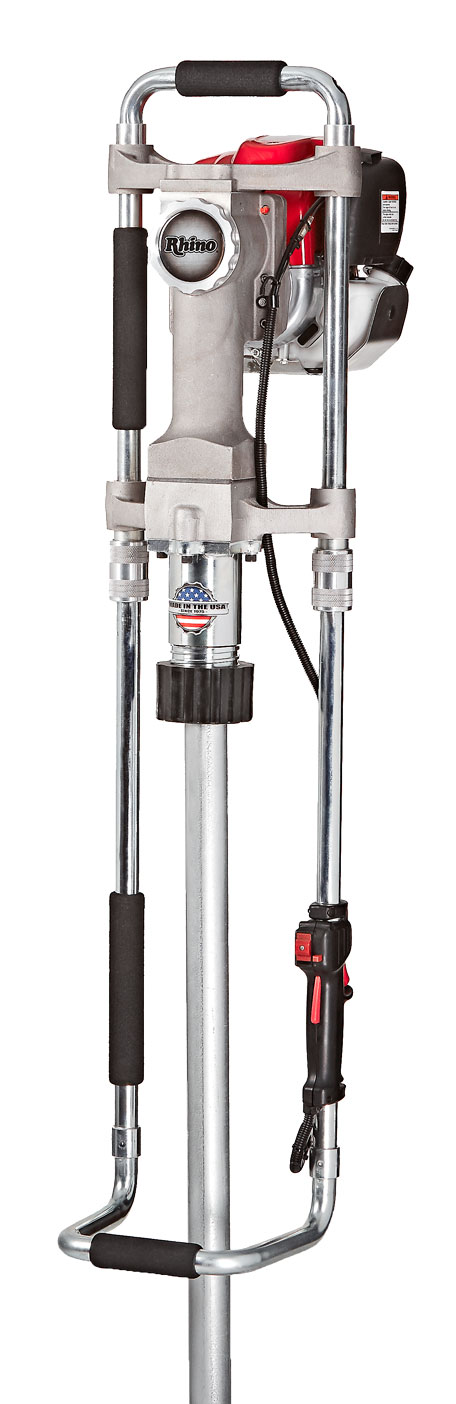

GPD 2ft Extended Handle
| Part Number | Description | Price |
|---|---|---|
| 290050 | GPD Transport Cart | $454.00 Add |
| 300940 | Ground Rod Installation Tool Kit with Drive Cap | $342.36 Add |
| 300943 | Ground Rod Installation Tool (only) | $232.44 Add |
| 300944 | Ground Rod Installation Tool Drive Cap | $109.92 Add |

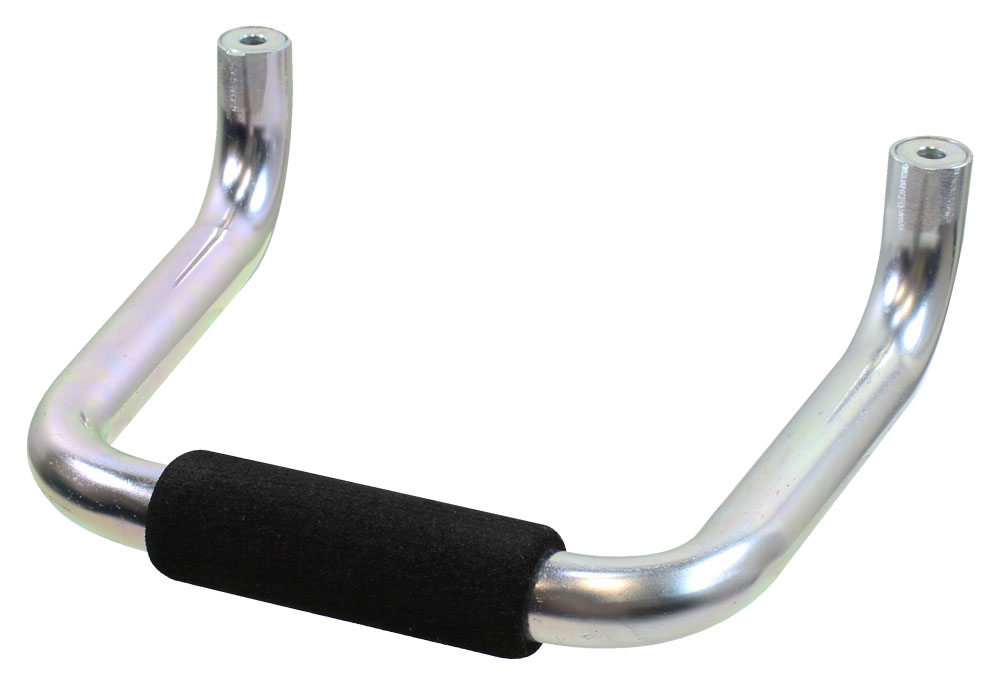

| 301233 | CIS Lower Handle Assembly | $48.65 Add |
| 301250 | GPD Extended Handle Kit - 2' long * Requires 301233 CIS Lower Handle Assembly |
$218.70 Add |
| 301252 | GPD Extended Handle Kit - 4' 6" long * Requires 301233 CIS Lower Handle Assembly |
$234.73 Add |
| 301600 | Top Throttle Kit GPD40FP - SN 002269 or greater |
$255.19 Add |

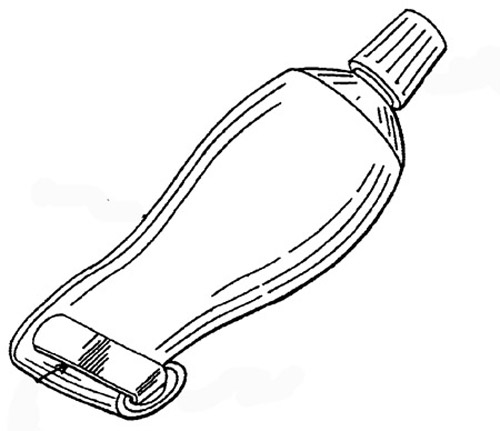

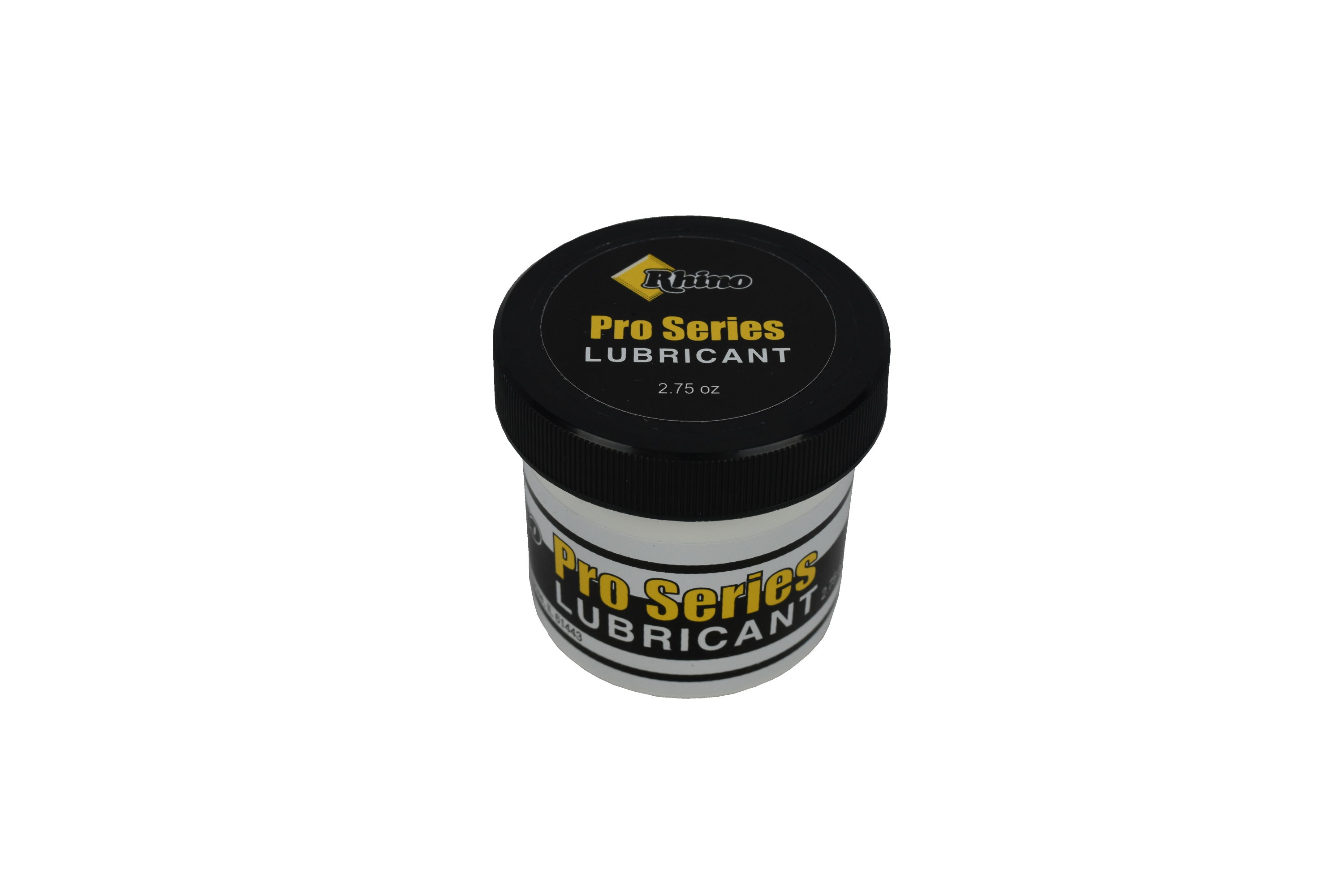

| 300500 | **Rhino Formula Grease (10 hr. grease) | $11.45 Add |

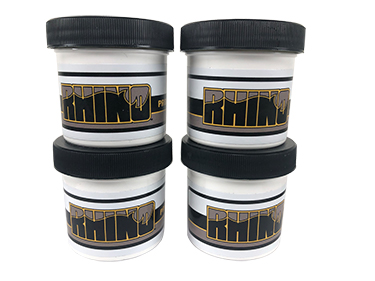

| 300500-4 | Rhino Formula Grease (10 hr. grease) 4-Pack | $44.64 Add |
| 300506 | **Rhino Formula Grease (10 hr. grease) 12-Pack | $117.36 Add |

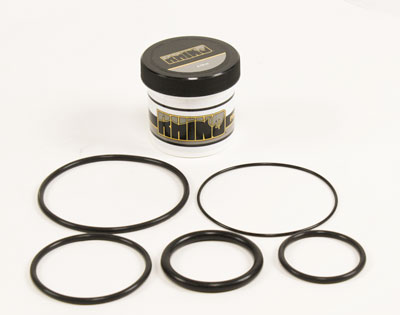

| 301508 | 50 Hour Service Kit | $43.51 Add |
** The GPD-40 uses SAE 10W-30 Engine Oil and Rhino SynLube Grease.
About the Tool
Rhino's GPD-40 Fence Pro is a triumph of engineering. Integrated with the 2-1⁄2" chuck is the innovative Chuck-Lok™ Adapter technology, which increases the tool's effeciency by allowing for fast chuck changes in the field and ensuring proper positioning for optimal driving power. It also increases the tool's effective lifespan substantially. The Fence Pro's default adapter is 2", but can be equipped with optional 1-3⁄4" or 1" adapters.
If you are trying to maximize your time and money in the field, the Fence Pro is an exceptional choice. It is typically used for erosion control, agriculture, livestock management, sign installation, rental tent installtion in both municipal and residential applications, and more. Its portability and flexibility make it a favorite among professional fence contractors.
Features
- Made in the USA with durable quality materials
- Rhino Lifetime impact warranty. See warrant satement for details
- Larger body, hammer, and anvil provide 30% more hitting power than the smaller GPD-30.
- The standard 2-1⁄2" chuck makes this a perfect choice for Round Posts up to 2-3⁄8".
- Includes standard 2" chuck sleeve for driving T-Posts and smaller round posts.
- Comes with Rhino's CIS vibration dampening handles.
- Ergonomically designed handle with an integrated throttle.
- Legendary reliability: Honda GX35 4-stroke industrial engine. This tool has passed the stringent Honda US Certification process.
- Steel skid plate protects the engine and provides rugged durability.
- Weighing less than 40lbs, it is lightweight and easy to transport. Compact and light enough for use by one installer. It fits in areas with limited access and maneuverability.
Works with:
- T-Post - 1-3⁄4"
- Ground Rod - 1"
- Form Pin - 1"
- Round posts up to 2-3⁄8" dia.
- Tent Stake
Specifications
Part No.: 301001
Overall Dimensions (in): 21-1⁄2 x 13 x 14
Weight (lbs): 36.5
Chuck ID (in): 2-1⁄2
Post Size (in): 2-3⁄8
Power: 4-stroke, 35.8 cc
Performance (BPM): 1720
Fuel: Regular unleaded gas
Fuel Capacity: 0.67qts
Engine Oil: SAE 10W-30
Lubricant: Rhino Pro® Series Lubricant
Oil Fill Procedure
Service Kit Installation
Lubricant Levels
