Guardrail Pro - Omni Adjustable Pile Driver

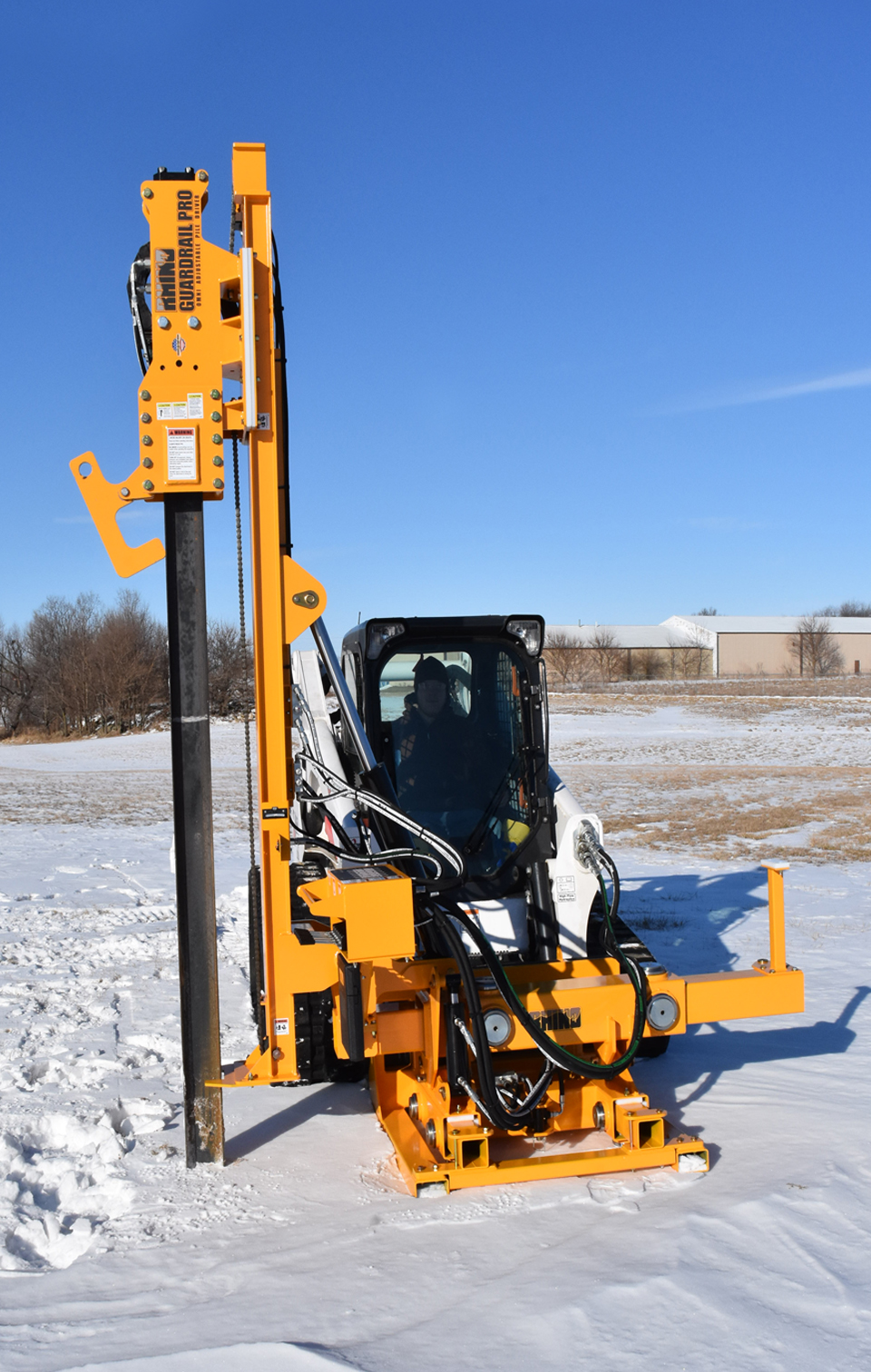

Guardrail Pro Pile Driver

Part Description Price
360002 Guardrail Pro Adjustable Pile Driver $48,500.00 Add
The Guardrail Pro Pile Driver attachment is omni adjustable to ensure prcise, prompt and plumb pile installatins regardless of the jobsite terrain.  Designed to expedite the installatin of steel or timber guardrails posts utilized in highway guardrail systems.  This professional-grade skid steer attachment is designed, built, and support in the USA to provide shorter lead-times and unmatched product support.  It's omni adjustable, powerful 800 ft.lb. (1085 joule) hydraulic hammer safely increases jobsite productivity and profits.
  • FEATURES AND BENEFITS
    • Mast tilts 2 degrees right, 90 degrees left, and 10 degrees front/back.
    • Attachment adjusts 10 in. front-to-back, and 24 in. left to right.
    • Accommodates guardrail posts up to 8.5’ (259 cm) tall.
    • Driving Head and Bottom Guide each hold pile for efficient driving.
    UTILIZE EXISTING COMPANY OWNED (OR RENTAL) HYDRAULIC OPERATED SKID STEER.
    • No need for an expensive self-propelled pile driver to complete projects on time and on budget.
    • Universal Skid Steer mounting plate for quick attachment to most units. Rhino provided, custom mounting plate available on request.
    STATE-OF-THE-ART, FURUKAWA FX 55 HYDRAULIC HAMMER WITH 2-YEAR WARRANTY.
    • Designed for efficient driving, dependability, and long life.
    • Powerful 800 ft. lbs. (1,085 joules) of impact energy per stroke (approx. 1,000 blows/min.)
    • New and improved piston (increased diameter and longer stroke) increases speed – Providing greater impact energy.
    • Mono-block design – Reduced maintenance with only two moving parts.
    OPTIONAL ACCESSORIES
    • Pile Puller Kit – offers an integrated, vibratory assist, pile puller feature for tough pulling tasks.
    • Pile Lift Kit – features a magnetic lift assist that attaches to the pile or post, to aid in manipulating the post into a vertical position.
    • Adapters and Guides – Common post/pile sizes offered. Custom adapter fabrication available.
    WARRANTY – 1-YEAR ON MATERIALS AND WORKMANSHIP / 2-YEARS ON THE FURUKAWA HYDRAULIC HAMMER.
    • Parts and service available throughout the USA.
    • Readily available SAE fittings and hardware – Overnight shipment available on most parts.
    • Hydraulic components are inventoried, or repairable by most local hydraulic repair shops.
    QUALITY US MATERIALS AND WORKMANSHIP FOR DEPENDABILITY, MINIMAL MAINTENANCE, AND A LONG OPERATING LIFE.


Specifications

Unit Weight 2,600 lbs (1,361 kg)
Pile Driving Impact Energy 800 ft. lbs. (1,085 joules) Per Stroke
Blows Per Minute Approximately 500 to 1,000
Omni Directional Adjustment for positioning the pile and for uneven terrain Mast Tilt 2 degrees left and 90 degrees right
  Mast Tilts 10 Degrees Forwards and Backwards
  10" (25.4 cm) Front to Back Adjustment
  24" (61 cm) Left to Right Adjustment
Unit Size Folded for Transportation 5'8" H x 3'10" W x 10'7" L (178 x 117 x 323 cm)
Maximum Pile Height 8'5" (2.6m) Tall
Standard Anvil - Maximum Pile Footprint* 8" x 7.25" (20.32 x 18.4cm)
Large Anvil - Maximum Pile Footprint)* 10" x 7.25" (25.4 x 18.4cm)
* Custom sizes and shapes available



Applications

Ground Mounted Piles/Posts/Beams
C-Channel Piles
Highway Guardrail Posts
I-Beam
UNIRAC 6" x 4.5"
S3 X 5.7 I-Beam
7 x 4 SINCLAIR
8 x 3.15m SOLAR MTS
W6 x 15 I-BEAM
W8 x 10 lbs/ft SOLAR
10" Anvil Kit - 9 x 4 Sinclair
* Custom sizes and shapes available


Accessories

Post Puller Kit 360267 $549.60 Add
Post Lifting Kit 360270 $677.84 Add
UNIRAC 6 x 4.5" Adaptor 360200 $256.42 Add
S3 x 5.7 I-Beam Adaptor 360294 $256.48 Add
7 x 4 SINCLAIR Adaptor 360296 $256.42 Add
8 x 3.15m SOLAR MTS Adaptor 360300 $256.42 Add
W6 x 15 I-Beam/ W8 x 10 lbs/ft SOLAR Adaptor 360304 $256.42 Add
Guide Part - Standard 360154 $95.34 Add
S3 x 5.7 I-Beam Guide Part 360295 $110.80 Add
