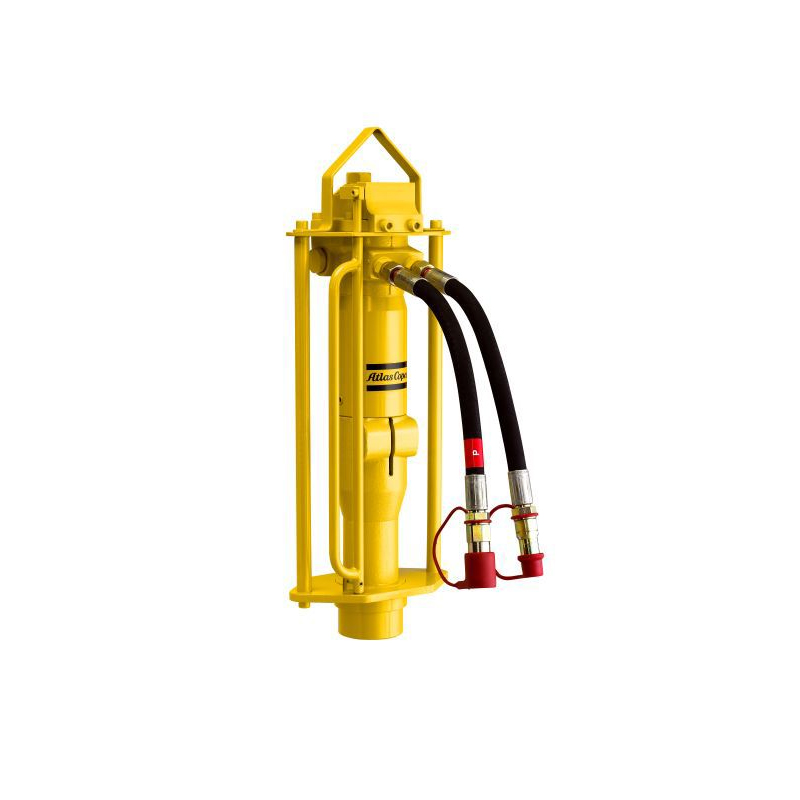

Atlas Copco LPD-LD Heavy Duty Hydraulic Post Driver

$3,836.00

Add to Cart
Atlas Copco LPD-LD Heavy Duty Hydraulic Post Driver
Atlas Copco LPD-LD Heavy Duty Hydraulic Post Driver
$3,836.00

LPD-LD Heavy Duty Hydraulic Post Driver

Used for driving road barrier tubes, profiles, sign posts, fences and a wide range of anchors. The post drivers provide stable, powerful, high speed driving for a variety of post sizes. When operated with an option hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.

Features:

  • Built-in on/off valve for short pole driving
  • Drives up to 96mm diameter poles
  • For driving:
    • Road barriers
    • Tubes/Profiles
    • Signposts
    • Fences
    • Anchors

*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD30 Oil Flow Divider. Max flow in: 32 gpm; Max pressure: 3600 psi. No warranty for tools damaged by over-pressure when run without an oil flow divider.

Suggested Together

Atlas Copco LPD-LD Heavy Duty Hydraulic Post Driver
CURRENT ITEM

Atlas Copco LPD-LD Heavy Duty Hydraulic Post Driver

$3,836.00

Hydraulic Hose Set with Quick Connects

Hydraulic Hose Set with Quick Connects

$485.00$628.00

Subtotal: $ 3836

Accessories

Hydraulic Hose Set with Quick Connects

Hydraulic Hose Set with Quick Connects

$485.00$628.00

Specifications

SKU
Product Name
Vendor SKU
Activation type
Power Source
Min Oil Flow (gpm)
Max Oil Flow (gpm)
Hydraulic system
Tool Weight (lb)
Min Working pressure (PSI)
Max Working pressure (PSI)
Impact Rate (bpm)
Driving capacity (in)
Hydraulic ports
Sound Power Level Guaranteed (db)
Sound Pressure Level (ISO 11203) dB(A)
AC-1801414000
Atlas Copco LPD-HD-T Hydraulic Heavy-Duty Post Driver
1801414000
Trigger Lever
Hydraulic
7
11
Open centre
86
1522
1812
1320
3-6
1/2 BSP
118
105
AC-1801415000
Atlas Copco LPD-HD-RV Hydraulic Heavy Duty Post Driver
1801415000
Remote Valve
Hydraulic
7
11
Open- or closed-centre
88
1522
1812
1320
3-6
1/2 BSP
118
105
