Atlas Copco LPD-LD Hydraulic Post Driver
Atlas Copco LPD-LD Hydraulic Post Driver
$3,246.00

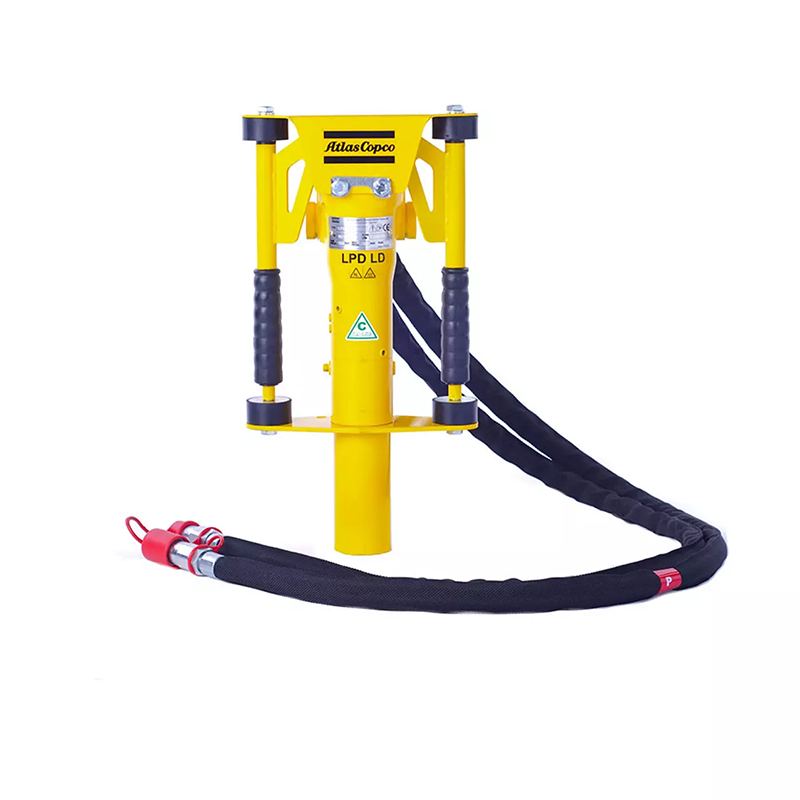

LPD-LD has an built-in anvil and a front end that allows for a quick mount of adaptors and bushings for small diameter rods. Special composite guiding bushings called PTFE protect the zinc or copper surface from the driving rod. The sliding surface of the composite material permits smooth, low-friction operation.

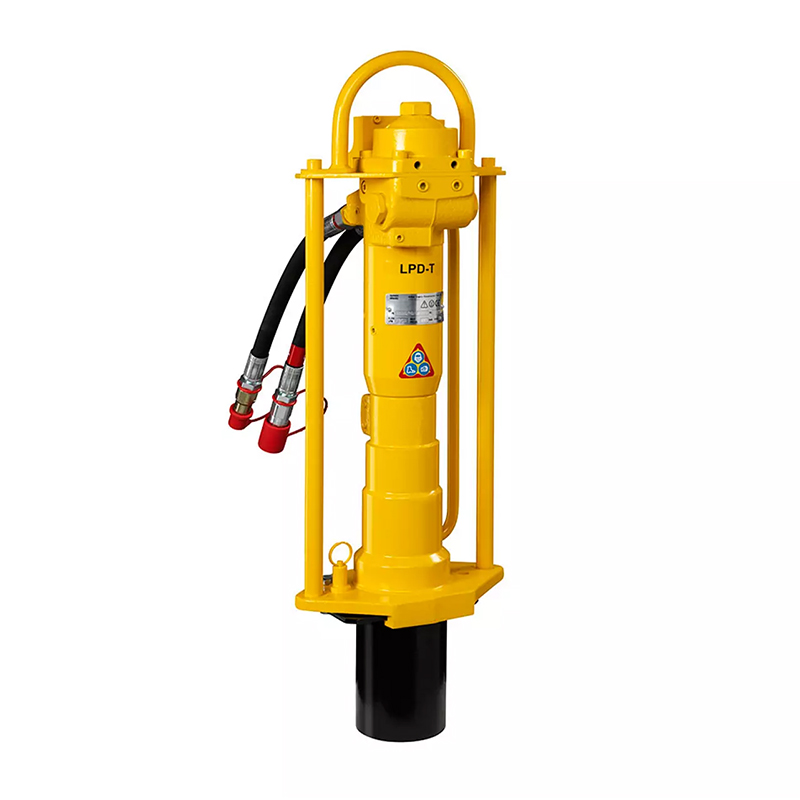

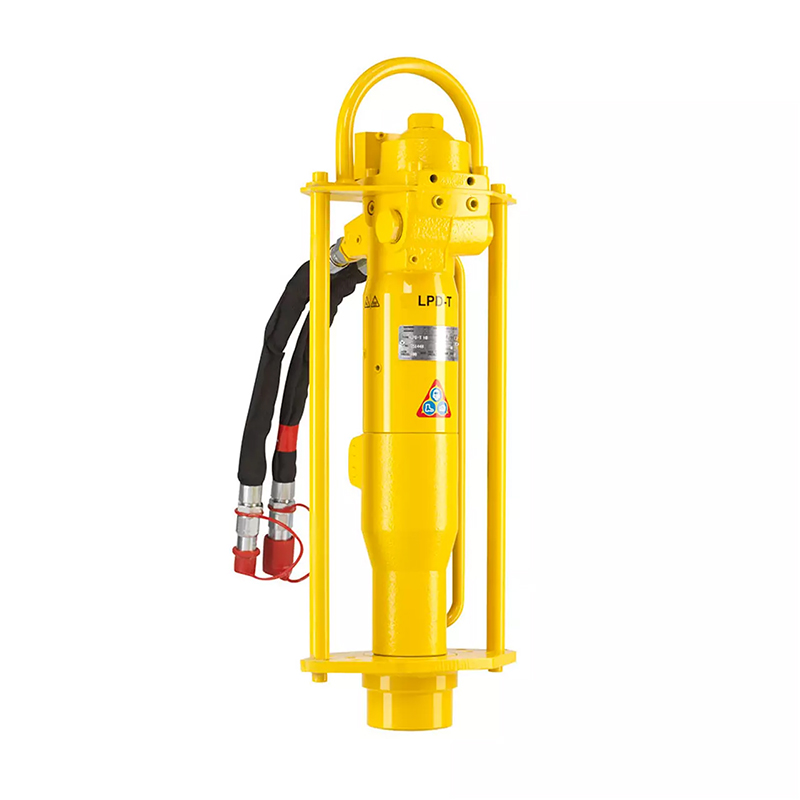

LPD-T post driver comes with a standard 0.5 m quick release coupling tail hose. It has a built-in start/stop trigger that you can activate directly on the driver. T-version is great for driving in road barrier tubes, profiles, signposts and a wide range of anchors and poles.

Features:

  • Drives up to 150 mm diameter poles
  • Available with built-in on/o valve or hose mounted remote on/o valve
  • Road barriers
  • Tubes / pro les
  • Signposts
  • Fences
  • Anchors
  • Ground rod

Options:

  • Adaptors driving heads
  • Kits

Suggested Together

Atlas Copco LPD-LD Hydraulic Post Driver
CURRENT ITEM

Atlas Copco LPD-LD Hydraulic Post Driver

$3,246.00

Hydraulic Hose Set with Quick Connects

Hydraulic Hose Set with Quick Connects

$485.00$628.00

Subtotal: $ 3246

Accessories

Hydraulic Hose Set with Quick Connects

Hydraulic Hose Set with Quick Connects

$485.00$628.00

Specifications

SKU
Product Name
Vendor SKU
Activation type
Power Source
Min Oil Flow (gpm)
Max Oil Flow (gpm)
Hydraulic system
Tool Weight (lb)
Min Working pressure (PSI)
Max Working pressure (PSI)
Impact Rate (bpm)
Sound Power Level Guaranteed (db)
Driving capacity (in)
Hydraulic ports
Sound Pressure Level (ISO 11203) dB(A)
AC-1801404002
Atlas Copco LPD-T Hydraulic Post Driver
1801404002
Trigger Lever
Hydraulic
5
8
Open centre
71
1522
2030
1680
115
-
-
-
AC-1801405002

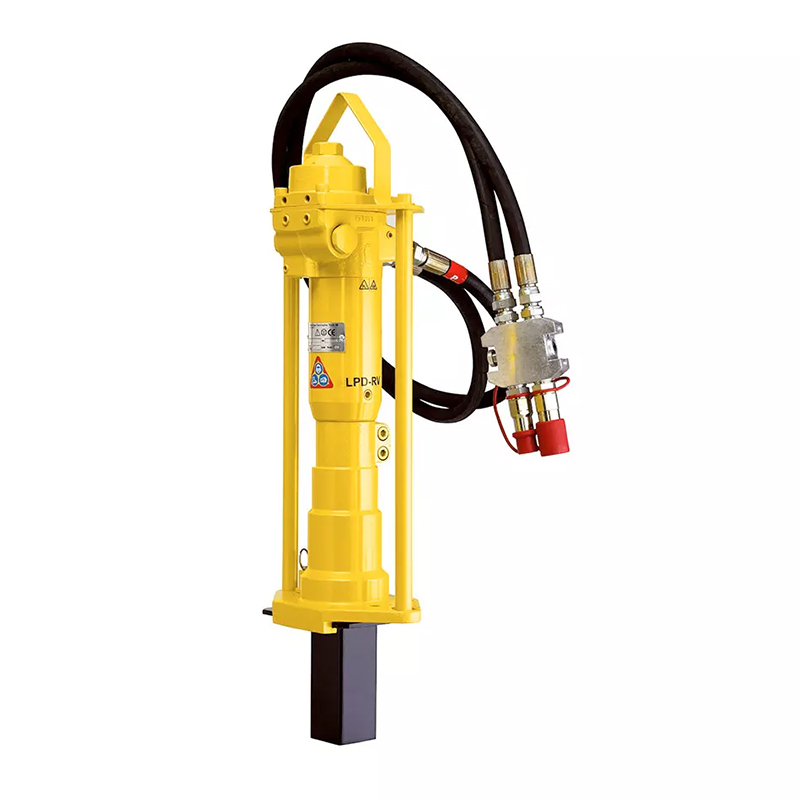

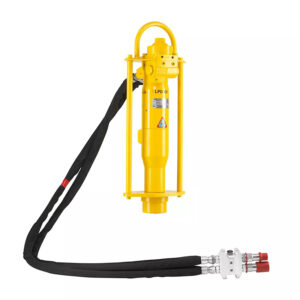

Atlas Copco LPD-RV HBP Hydraulic Post Driver
1801405002
Remote Valve
Hydraulic
5
8
Open- or closed-centre
73
1522
2030
1680
115
2-4
1/2 BSP
102
