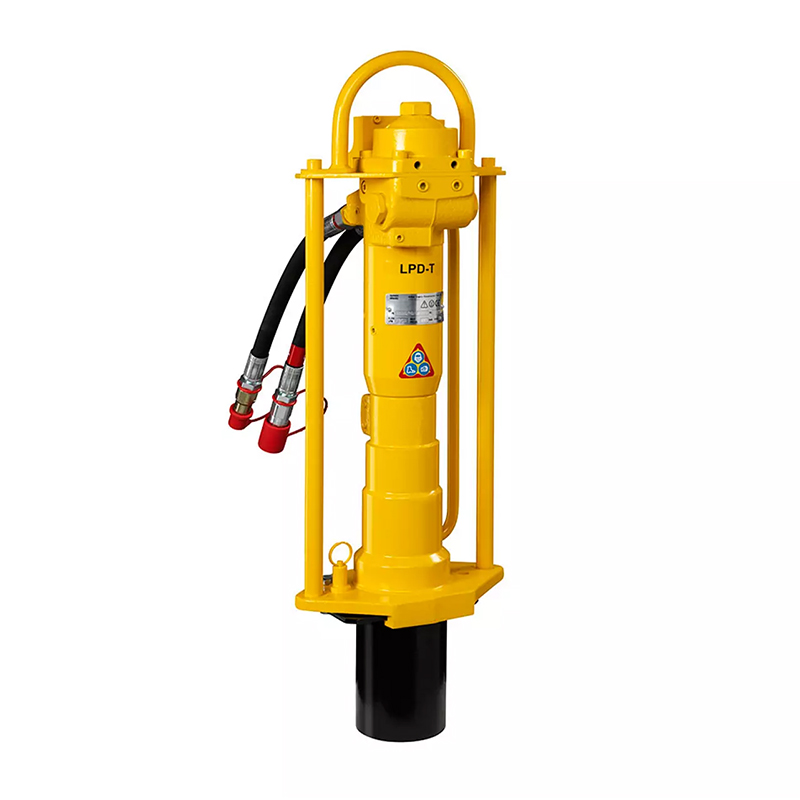

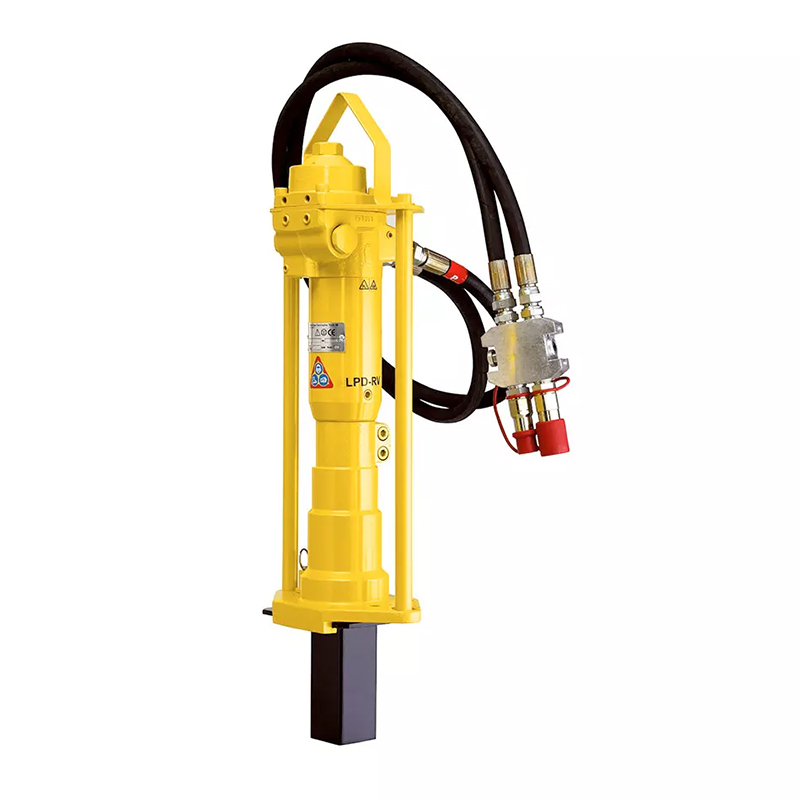

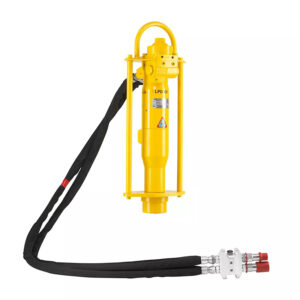

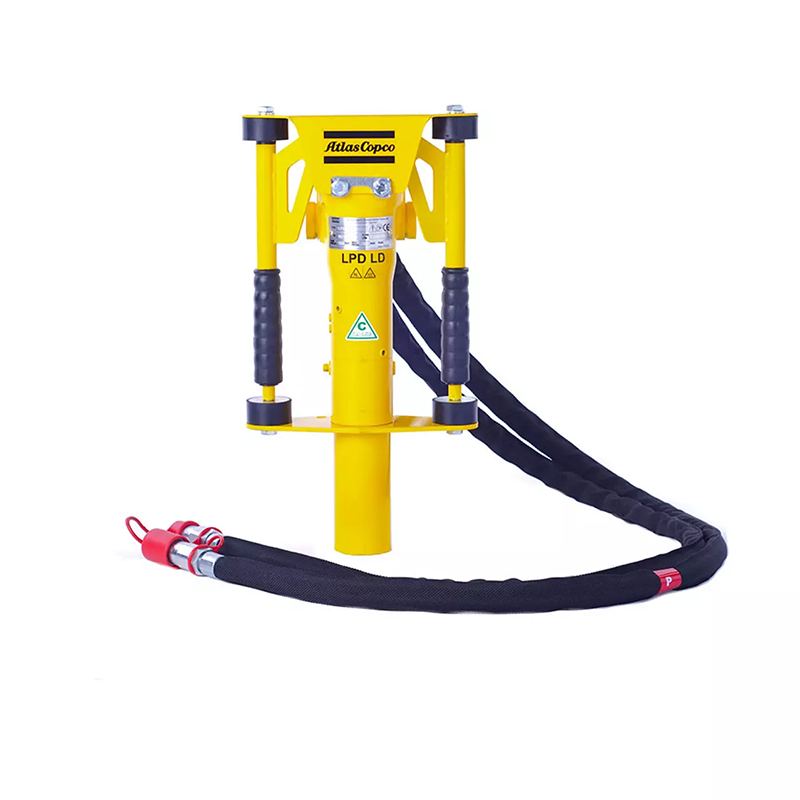

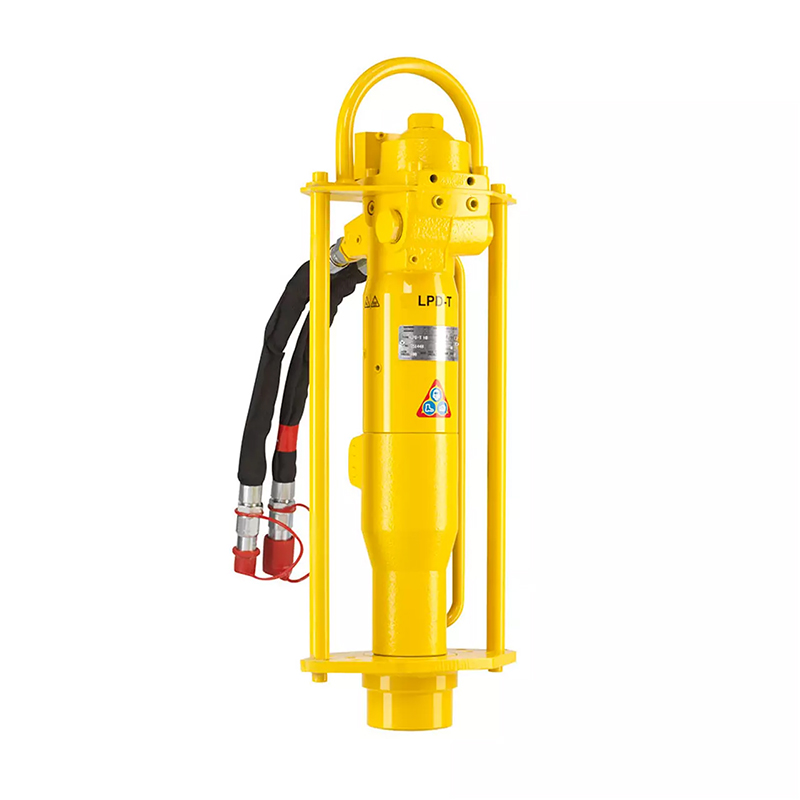

The Atlas Copco LPD is a handheld hydraulic post driver rated at 1,680 blows per minute on 5 to 8 GPM of oil flow, driving sign posts, fence posts, road barrier tubes, anchors, ground rods and poles up to 150 mm in diameter. It runs from a hydraulic power pack or a carriers auxiliary hydraulics, in trigger-lever (71 lb) or remote-valve (73 lb) configurations selectable on this page.
PTFE composite guiding bushings protect zinc and copper post coatings while keeping operation smooth and low-friction, and the trigger version carries a built-in start/stop trigger with a 0.5 m quick-release tail hose. The LPD anchors the light end of the Atlas Copco hydraulic post driver range we stock alongside our full post driver selection; matching adapters and driving heads size the nose to the post.
- 1,680 BPM impact rate at 1,5222,030 PSI working pressure
- 5 GPM minimum to 8 GPM maximum oil flow; 1/2 BSP hydraulic ports
- Trigger-lever version runs open-centre systems; remote-valve version runs open- or closed-centre
- Drives poles up to 150 mm diameter: road barriers, tubes, profiles, signposts, fences, anchors and ground rod
- PTFE composite guiding bushings protect zinc or copper post surfaces during driving
- 71 lb (trigger lever) or 73 lb (remote valve) tool weight for handheld operation
- Powered by a hydraulic power pack or carrier auxiliary hydraulics
- Stocked by Crowder Supply in Denver with free UPS Ground shipping
