Carbide Tipped Cross Bit

$52.40 – QUOTE

$52.40 – QUOTE

Bit Diameter (in): No selection

More options

Retrac: No selection

More options

Thread: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

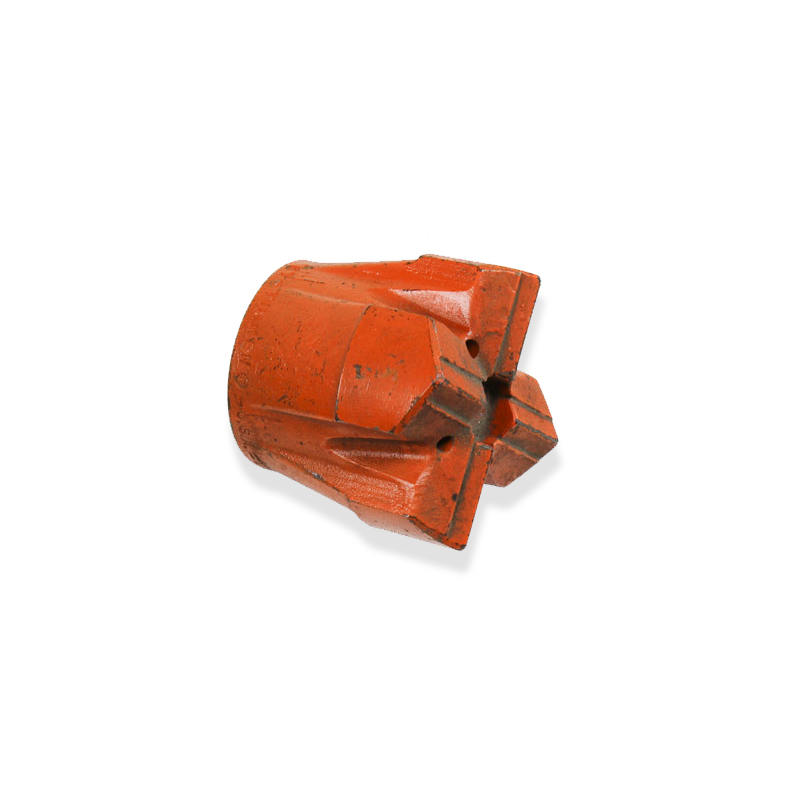

A carbide-tipped cross bit is a type of rock drilling bit characterized by a cross-shaped cutting structure with tungsten carbide inserts. It is primarily used for percussive drilling in hard and abrasive rock formations. These bits are highly durable and designed for straight hole drilling, making them a common choice in mining, tunneling, and construction.

Design: Cross-shaped cutting structure provides a balanced cutting action and improved hole straightness and reduces bit deviation in fractured or jointed rock formations. Chisel-Edged Carbide is used for efficient cutting in hard rock. Wedge-Shaped Carbide is designed for improved penetration in medium-hard formations. Integrated air or water-flushing system for effective cuttings removal and reduced bit wear. Compatible with drill rods and shank adapters (e.g., R25, R28, R32) for easy integration with drilling systems.
Applications: Carbide cross bits are ideal for drilling in tough conditions where high impact resistance and hole precision are required.
- Mining & Quarrying: Used for blasthole drilling in underground and open-pit mining; Effective in hard rock formations such as granite, basalt, and quartzite.
- Tunneling & Construction:Used in rock bolting, ground stabilization, and excavation projects. Ensures precise hole drilling in foundation works and infrastructure projects.
- Geotechnical & Exploration Drilling:Provides stable hole formation in soil testing and rock sampling applications. Used in drilling for geological surveys and mineral exploration.
- Hydrogeological & Water Well Drilling:Suitable for drilling through hard rock layers to access groundwater. Ensures straight and efficient borehole formation for well construction.
- Road & Railway Construction: Utilized in slope stabilization, rock anchoring, and drilling for foundation support.
Materials:Bit Body is made of heat-treated alloy steel to withstand high impact and stress.Cutting Edges are tungsten carbide inserts brazed onto the cross-shaped head for enhanced wear resistance.
Configurations:Bit Diameter: 1-1/2″ to 5″, Thread Type: D Thread, H Thread, R25 to R38, T38 to T51.

Threaded Coupling (Female to Female Thread)

$31.20 – QUOTE

Coupling Adapter (Female to Female)

$110.00 – QUOTE

Bit Adapter (Male to Female Thread)

$52.00 – QUOTE

Stud Rod Adapter (Male to Male Thread)

$80.00 – $198.00

Carbide Tipped Button Bit

$74.00 – QUOTE

Threaded Reaming Button Bit

QUOTE

Pilot Adapter for Reaming Button Bit

$180.00 – QUOTE

Tapered Reaming Bit (to be used with Bit Shell)

$157.00 – $224.00

Tapered Reaming Button Bit

$157.00 – QUOTE

Striking Bar/Shank Adapter

$186.00 – QUOTE

Hex Shanked Rod

$69.00 – QUOTE

Extension Rod (Male to Male Thread)

$85.00 – QUOTE

Drifter/Club Rods

$204.00 – QUOTE

Bell Hole Saver

$162.00 – $550.00

Spear Hole Saver

$177.00 – QUOTE

Specifications

	BCD45	BCD48	BCD51	BCD57	BCD60	BCD64	BCD70	BCD76	BCD89	BCH35	BCH38	BCH41	BCH45	BCH48	BCH51	BCH54	BCH57	BCH60	BCH64	BCH67	BCH70	BCH76	BCR25102	BCR2532	BCR2535	BCR2538	BCR2541	BCR2545	BCR2548	BCR2551	BCR2557	BCR2564	BCR2576	BCR2589	BCR32102	BCR3238	BCR3241	BCR3245	BCR3248	BCR3251	BCR3257	BCR3264	BCR3270	BCR3276	BCR3289	BCR38102	BCR38102RT	BCR3864	BCR3864RT	BCR3870	BCR3876	BCR3876RT	BCR3889	BCR3889RT	BCT38102	BCT3857	BCT3864	BCT3870	BCT3876	BCT3889	BCT45102	BCT45115	BCT4564	BCT4576	BCT4589	BCT51102	BCT51115	BCT51127	BCT5189
SKU	BCD45	BCD48	BCD51	BCD57	BCD60	BCD64	BCD70	BCD76	BCD89	BCH35	BCH38	BCH41	BCH45	BCH48	BCH51	BCH54	BCH57	BCH60	BCH64	BCH67	BCH70	BCH76	BCR25102	BCR2532	BCR2535	BCR2538	BCR2541	BCR2545	BCR2548	BCR2551	BCR2557	BCR2564	BCR2576	BCR2589	BCR32102	BCR3238	BCR3241	BCR3245	BCR3248	BCR3251	BCR3257	BCR3264	BCR3270	BCR3276	BCR3289	BCR38102	BCR38102RT	BCR3864	BCR3864RT	BCR3870	BCR3876	BCR3876RT	BCR3889	BCR3889RT	BCT38102	BCT3857	BCT3864	BCT3870	BCT3876	BCT3889	BCT45102	BCT45115	BCT4564	BCT4576	BCT4589	BCT51102	BCT51115	BCT51127	BCT5189
Product Name	Bit, Carbide Cross D-Thread 1-3/4"	Bit, Carbide D-thread 1-7/8"	Bit, Carbide D-thread 2"	Bit, Carbide D-thread 2-1/4"	Bit, Carbide D-thread 2-3/8"	Bit, Carbide D-thread 2-1/2"	Bit, Carbide D-thread 2-3/4"	Bit, Carbide D-thread 3"	Bit, Carbide D-thread 3-1/2"	Carbide Tipped Cross Bit H-thread 1-3/8"	Carbide Tipped Cross Bit H-thread 1-1/2"	Carbide Tipped Cross Bit H-thread 1-5/8"	Carbide Tipped Cross Bit H-thread 1-3/4"	Carbide Tipped Cross Bit H-thread 1-7/8"	Carbide Tipped Cross Bit H-thread 2"	Carbide Tipped Cross Bit H-thread 2-1/8"	Carbide Tipped Cross Bit H-thread 2-1/4"	Carbide Tipped Cross Bit H-thread 2-3/8"	Carbide Tipped Cross Bit H-thread 2-1/2"	Carbide Tipped Cross Bit H-thread 2-5/8"	Carbide Tipped Cross Bit H-thread 2-3/4"	Carbide Tipped Cross Bit H-thread 3"	Carbide Tipped Cross Bit 1" Rope 4"	Carbide Tipped Cross Bit 1" Rope X 1-1/4"	Carbide Tipped Cross Bit 1" Rope x 1-3/8"	Carbide Tipped Cross Bit 1" Rope x 1-1/2"	Carbide Tipped Cross Bit 1" Rope x 1-5/8"	Carbide Tipped Cross Bit 1" Rope x 1-3/4"	Carbide Tipped Cross Bit 1" Rope x 1-7/8"	Carbide Tipped Cross Bit 1" Rope x 2"	Carbide Tipped Cross Bit 1" Rope x 2-1/4"	Carbide Tipped Cross Bit 1" Rope x 2-1/2"	Carbide Tipped Cross Bit 1" Rope x 3"	Carbide Tipped Cross Bit 1" Rope x 3-1/2"	Carbide Tipped Cross Bit 1-1/4" Rope x 4"	Carbide Tipped Cross Bit 1-1/4" Rope x 1-1/2"	Carbide Tipped Cross Bit 1-1/4" Rope x 1- 5/8"	Carbide Tipped Cross Bit 1-1/4" Rope x 1-3/4"	Carbide Tipped Cross Bit 1-1/4" Rope x 1-7/8"	Carbide Tipped Cross Bit 1-1/4" Rope x 2"	Carbide Tipped Cross Bit 1-1/4" Rope x 2-1/4"	Carbide Tipped Cross Bit 1-1/4" Rope x 2-1/2"	Carbide Tipped Cross Bit 1-1/4" Rope x 2-3/4"	Carbide Tipped Cross Bit 1-1/4" Rope x 3"	Carbide Tipped Cross Bit 1-1/4" Rope x 3-1/2"	Carbide Tipped Cross Bit 1-1/2" Rope x 4"	Carbide Tipped Cross Bit 1 1/2" Rope 4" Retrac	Carbide Tipped Cross Bit 1-1/2" Rope x 2-1/2"	Carbide Tipped Cross Bit 1 1/2" Rope 2 1/2" Retrac	Carbide Tipped Cross Bit 1-1/2" Rope x 2-3/4"	Carbide Tipped Cross Bit 1-1/2" Rope x 3"	Carbide Tipped Cross Bit 1 1/2" Rope 3" Retrac	Carbide Tipped Cross Bit 1-1/2" Rope x 3-1/2"	Carbide Tipped Cross Bit 1 1/2" Rope 3 1/2" Retrac	Carbide Tipped Cross Bit T38 Thd x 4"	Carbide Tipped Cross Bit T38 Thd x 2-1/4"	Carbide Tipped Cross Bit T38 Thd x 2-1/2"	Carbide Tipped Cross Bit T38 Thd x 2-3/4"	Carbide Tipped Cross Bit T38 Thd x 3"	Carbide Tipped Cross Bit T38 Thd x 3-1/2"	Carbide Tipped Cross Bit T45 Thd x 4"	Carbide Tipped Cross Bit T45 Thd x 4-1/2"	Carbide Tipped Cross Bit T45 Thd x 2-1/2"	Carbide Tipped Cross Bit T45 Thd x 3"	Carbide Tipped Cross Bit T45 Thd x 3-1/2"	Carbide Tipped Cross Bit T51 Thd x 4"	Carbide Tipped Cross Bit T51 Thd x 4-1/2"	Carbide Tipped Cross Bit 51 Thd 5"	Carbide Tipped Cross Bit T51 Thd x 3-1/2"
Bit Diameter (in)	1-3/4	1-7/8	2	2-1/4	2-3/8	2-1/2	2-3/4	3	3-1/2	1-3/8	1-1/2	1-5/8	1-3/4	1-7/8	2	2-1/8	2-1/4	2-3/8	2-1/2	2-5/8	2-3/4	3	4	1-1/4	1-3/8	1-1/2	1-5/8	1-3/4	1-7/8	2	2-1/4	2-1/2	3	3-1/2	4	1-1/2	1-5/8	1-3/4	1-7/8	2	2-1/4	2-1/2	2-3/4	3	3-1/2	4	4	2-1/2	2-1/2	2-3/4	3	3	3-1/2	3-1/2	4	2-1/4	2-1/2	2-3/4	3	3-1/2	4	4-1/2	2-1/2	3	3-1/2	4	4-1/2	5	3-1/2
Retrac	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	Yes	No	Yes	No	No	Yes	No	Yes	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Thread	D	D	D	D	D	D	D	D	D	H	H	H	H	H	H	H	H	H	H	H	H	H	R25	R25	R25	R25	R25	R25	R25	R25	R25	R25	R25	R25	R32	R32	R32	R32	R32	R32	R32	R32	R32	R32	R32	R38	R38	R38	R38	R38	R38	R38	R38	R38	T38	T38	T38	T38	T38	T38	T45	T45	T45	T45	T45	T51	T51	T51	T51
Vendor SKU	-	-	-	-	-	-	-	T3008M0	-	T1207M0	T1507M0	T1607M0	T1707M0	T1907M0	T2007M0	T2107M0	T2207M0	-	T2507M0	-	-	T3007M0	-	-	T1210M0	T1510M0	T1610M0	T1710M0	T1910M0	T2010M0	T2210M0	-	-	-	-	-	T1612M0	T1712M0	T1912M0	T2012M0	T2212M0	T2512M0	-	T3012M0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
