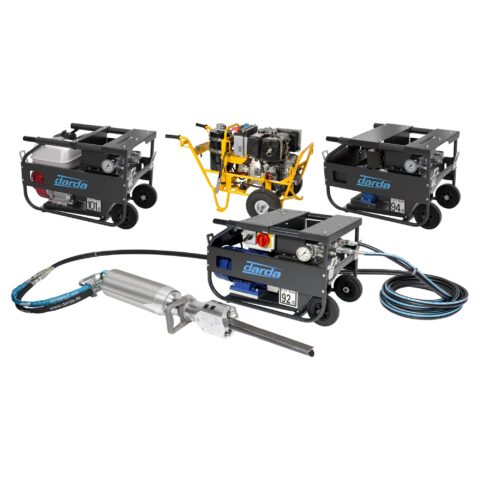

Darda Splitter Size 12 with Electric Power Pack
The No. 12 cylinder, the largest and most powerful, is recommended for heavy duty jobs and reinforced concrete.
SHIPPING
- $150 Flat Rate LTL/Truck Shipping to Commercial destinations*
- $250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.
| DARDA CYLINDER SPECIFICATIONS |
| Model: | #12 |
| Weight (lb): | 68 |
| Length (in): | 50-3/4 |
| Max Expansion (in): | .75-1.87 |
| Size Hole Required (in): | 1-3/4 |
| Min Hole Depth (in): | 26 |
| Max Splitting Force (tons): | 385 |
| | |
| PUMP SPECIFICATIONS |
| Model: | Electric 03 |
| Weight (lb): | 74 |
| Height (in): | 24 |
| Width (in): | 18 |
| Depth (in): | 12-1/2 |
| Oil Capacity (gal): | 5 |
| Motor: | 3450 rpm, 115 volts at 20 amps & 220 volts at 10 amps |
| | |
| DOCUMENTATION |
| Cylinder Parts Manual: | /476.htm |
| Power Units Parts Manual: | /513.htm |
| Safety and Operating Instructions: | /assets/files/docs/DardaProductManual.pdf |
| Plub & Feather Lubricant MSDS Sheet: | /assets/files/DARDA%20PLUG%20&%20FEATHER%20LUBE%20MSDS.pdf |
| | |
| ACCESSORIES |
| Plug - Size 12 | D010-12 |
| Feather - Size 8 & 12 | D011-812 |
| Enlarging Feather - Size 8 & 12 | D011-8123 |
| Block Manifold - used to run 2 cylinders | D016-13 |
| Block Manifold - used to run 3 cylinders | D016-14 |
| Block Manifold - used to run 4 cylinders | D016-15 |
| Plug & Feather Lubricant - 1/2 pt can | D00-HPT |
| Plug & Feather Lubricant - 1 pt Can | D00-PT |
| Plug & Feather Lubricant - Case of 12 - 1/2 pt Cans | D014-3 |
| Plug & Feather Lubricant - Case of 12 -1 pt Cans | D014-4 |
| Betonamit Non-Explosive Cracking Agent | BETON-TYPR |
| High Pressure Hose - 50' | D016-50 |
| Low Pressure Hose - 50' | D016-51 |
| Quick Connect Coupler | D016-26 |
| Coupler Cover | D016-27 |
| 1/4 Female x 3/8 Male Reducer | D437 |
| Low Pressure Hose Connector | D438 |
