APT Pneumatic Chipping Hammers — 2, 3 & 4 in. Stroke
Seven American Pneumatic Tools air chipping hammers in stock in Denver, from the 12-lb M652 to the 22-lb heavy-duty M44: scaling, chiseling, form stripping, cement finishing, light demolition, and mixer clean-out. Every model comes in .680 round or .580 hex nose with your choice of three retainer styles.
The short version
Match stroke to the work: 2-in. for fast, light chipping and finishing (M652), 3-in. for the everyday balance of speed and punch (M653, M263, M43), 4-in. for harder hits on tougher concrete (M654, M264, M44). Then pick your series by duty: 650 series is the classic light pistol grip, the 2-bolt 260 series adds APT’s patented automatic ball valve, and the 4-bolt M43/M44 are the heavy-duty shop-and-shipyard hammers. Full walkthrough: the Chipping Hammer Buyer’s Guide, or compare every brand at all chipping hammers. Questions? Call 1-888-883-5144.
Pick Your APT Chipping Hammer
Seven models in three series. Every nose and retainer combination below is in stock.
The APT Chipping Hammer Line
Every APT chipping hammer runs on 32–35 CFM, takes .680 round or .580 hex shank steel, and prices the same way: $678 with the standard oval collar retainer, $769 with the quick-change ball retainer and spring, $791 with the bolt-on ball retainer (no spring needed). Pick stroke for hitting power, series for duty class, nose for your steel.
650 Series — The Light Classics (12–16 lb)
APT 652 Pneumatic Chipping Hammer
The fast, light one: 2,100 BPM from a 12-lb pistol-grip hammer for precision scaling, chiseling, form stripping, and mixer clean-out. A flapper valve lets dirt pass without stalling.
12 lb · 13-1/4 in. · 2-in. stroke · 2,100 BPM · 32–34 CFM
APT 653 Pneumatic Chipping Hammer
The everyday 650: a 3-in. stroke balances chipping speed with hitting power for scaling, form stripping, and light concrete demolition.
14 lb · 15-1/4 in. · 3-in. stroke · 1,650 BPM · 33–35 CFM
APT 654 Pneumatic Chipping Hammer
The hardest-hitting 650: a 4-in. stroke slows the rate to 1,375 BPM and puts more energy in every blow for tougher concrete and heavier scaling.
16 lb · 4-in. stroke · 1,375 BPM · 34–36 CFM
260 Series — 2-Bolt, Patented Ball Valve (14–15 lb)
APT 263 Pneumatic Chipping Hammer
The 260-series workhorse: APT’s patented automatic ball valve and a 2-bolt drop-forged handle, hitting 1,650 BPM in a package light enough for overhead work.
14 lb · 14-9/16 in. · 3-in. stroke · 1,650 BPM · 33–35 CFM
APT 264 Pneumatic Chipping Hammer
The 260 with the harder blow: a 4-in. stroke and inside trigger for detailed work that still needs real hitting power — scaling, chiseling, and mixer build-up removal.
15 lb · 15-9/16 in. · 4-in. stroke · 1,375 BPM · 34–36 CFM
M43 & M44 — 4-Bolt Heavy Duty (21–22 lb)
M43 · 3-in. Stroke · 21 lb · Old Part #18850 / 18851

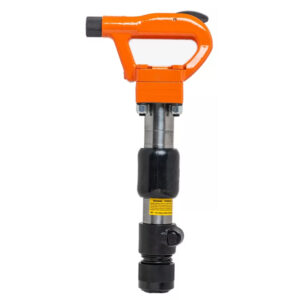

APT M43 Pneumatic Chipping Hammer
Our best-selling chipping hammer: the heavy-duty 4-bolt drop-forged handle (grade 8 bolts, easy maintenance), patented automatic ball valve, and 21 lb of mass that lets the tool do the pushing.
21 lb · 16-3/4 in. · 3-in. stroke · 1,650 BPM · 33–35 CFM
APT M44 Pneumatic Chipping Hammer
The M43’s harder-hitting twin: same 4-bolt heavy-duty build with a 4-in. stroke for the strongest blow in the APT chipping line.
22 lb · 17-3/4 in. · 4-in. stroke · 1,375 BPM · 34–36 CFM
APT Chipping Hammer Spec Comparison
All seven take .680 round or .580 hex steel with a 7/8-24 air inlet thread.
| Model | Series | Stroke | BPM | CFM | Weight | Length | Price |
|---|---|---|---|---|---|---|---|
| M652 | 650 | 2 in. | 2,100 | 32–34 | 12 lb | 13-1/4 in. | From $678 |
| M653 | 650 | 3 in. | 1,650 | 33–35 | 14 lb | 15-1/4 in. | From $678 |
| M654 | 650 | 4 in. | 1,375 | 34–36 | 16 lb | — | From $678 |
| M263 | 260 · 2-bolt | 3 in. | 1,650 | 33–35 | 14 lb | 14-9/16 in. | From $678 |
| M264 | 260 · 2-bolt | 4 in. | 1,375 | 34–36 | 15 lb | 15-9/16 in. | From $678 |
| M43 | 4-bolt HD | 3 in. | 1,650 | 33–35 | 21 lb | 16-3/4 in. | From $678 |
| M44 | 4-bolt HD | 4 in. | 1,375 | 34–36 | 22 lb | 17-3/4 in. | From $678 |
Swipe to see the full table.
Which Chipping Hammer Do I Need?
Finishing & fast light chipping
The 12-lb, 2,100-BPM M652 for cement finishing, thin scale, and all-day one-hand work.
APT M652Everyday scaling & form stripping
3-in. stroke models — M653, M263, or the heavy-duty M43 — balance speed and punch.
APT M43Tough concrete & heavy scale
4-in. stroke models — M654, M264, M44 — hit hardest at 1,375 BPM.
APT M44Steel, Hose & Parts — on the Same Order
Chipping Hammer Questions, Answered
What is a pneumatic chipping hammer?
A pneumatic chipping hammer is a hand-held air hammer that drives a chisel, moil point, or scaling tool for surface work: removing weld slag and scale, chipping concrete, stripping forms, cement finishing, and cleaning build-up out of mixers. Lighter and faster than a breaker, it is the precision percussion tool of the air-tool family. APT builds seven, from 12 to 22 lb.
Which stroke length should I choose?
Stroke sets the blow: 2-in. (M652) hits fastest and lightest for finishing and thin scale; 3-in. (M653, M263, M43) is the everyday balance; 4-in. (M654, M264, M44) hits hardest at 1,375 BPM for tougher concrete. Most first-hammer buyers do best with a 3-in. model.
What is the difference between the 650, 260, and M43/M44 series?
Duty class. The 650 series is the classic light pistol-grip hammer (12–16 lb) with a flapper valve. The 260 series (14–15 lb) adds APT’s patented automatic ball valve and a 2-bolt drop-forged handle. The M43 and M44 (21–22 lb) are the heavy-duty pair: 4-bolt handles with grade 8 bolts for easy service, and extra mass that does the pushing for you on all-day work.
.680 round or .580 hex nose — which do I need?
Match the nose bushing to your steel: .680 round collar shank steel is the most common in the US; .580 hex locks rotation for tools like scaling chisels. If you already own steels, buy the nose that fits them — both cost the same.
What do the retainer options mean?
The retainer holds the steel in the nose. Standard oval collar with spring ($678) is the classic; the quick-change ball retainer with locking spring ($769) speeds steel changes; the bolt-on ball retainer ($791) needs no spring at all. The -02/-04/-06 suffixes on APT part numbers are exactly these three options.
What air compressor does a chipping hammer need?
All seven APT models run on 32–36 CFM at 90 psi with a 7/8-24 inlet — a small towable compressor or a healthy shop compressor handles one easily. See the compressors we stock.
Are these the same tools as APT 18668-04 or 5298-02?
Yes — the base number is the model (5298/5299 = M652, 5300/5301 = M653, 5302/5303 = M654, 18667/18670 = M263, 18668/18671 = M264, 18850/18851 = M43, 18852/18853 = M44; the pair covers round vs hex nose) and the suffix is the retainer. Order by either numbering.
How fast do APT chipping hammers ship?
Every configuration on this page ships same day on orders by 4 PM Eastern, free UPS Ground on most orders, from Denver.
Put an APT Chipping Hammer to Work
Tell us the surface, the steel you run, and how many hours a day the tool works — we will match series, stroke, and retainer in one call.
