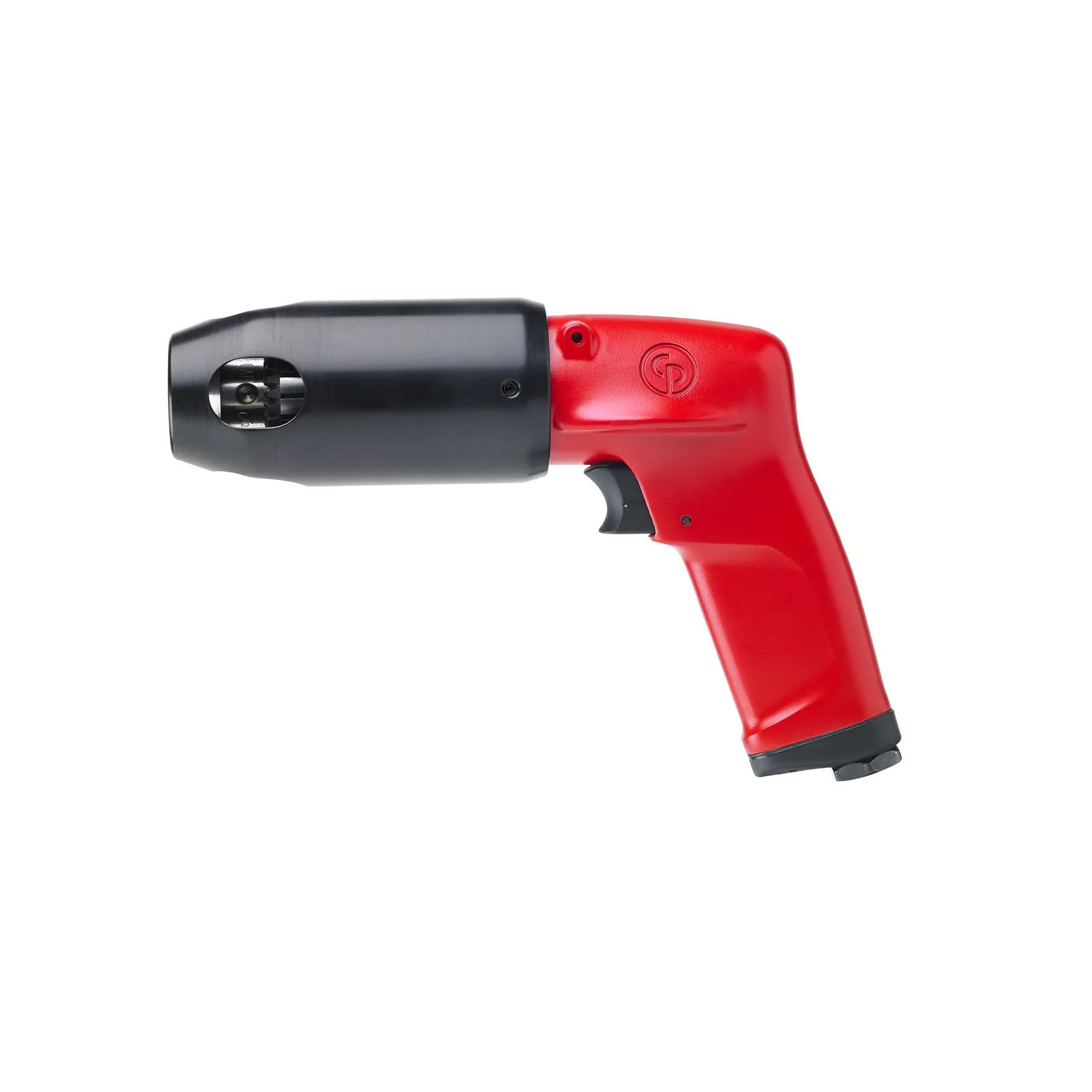

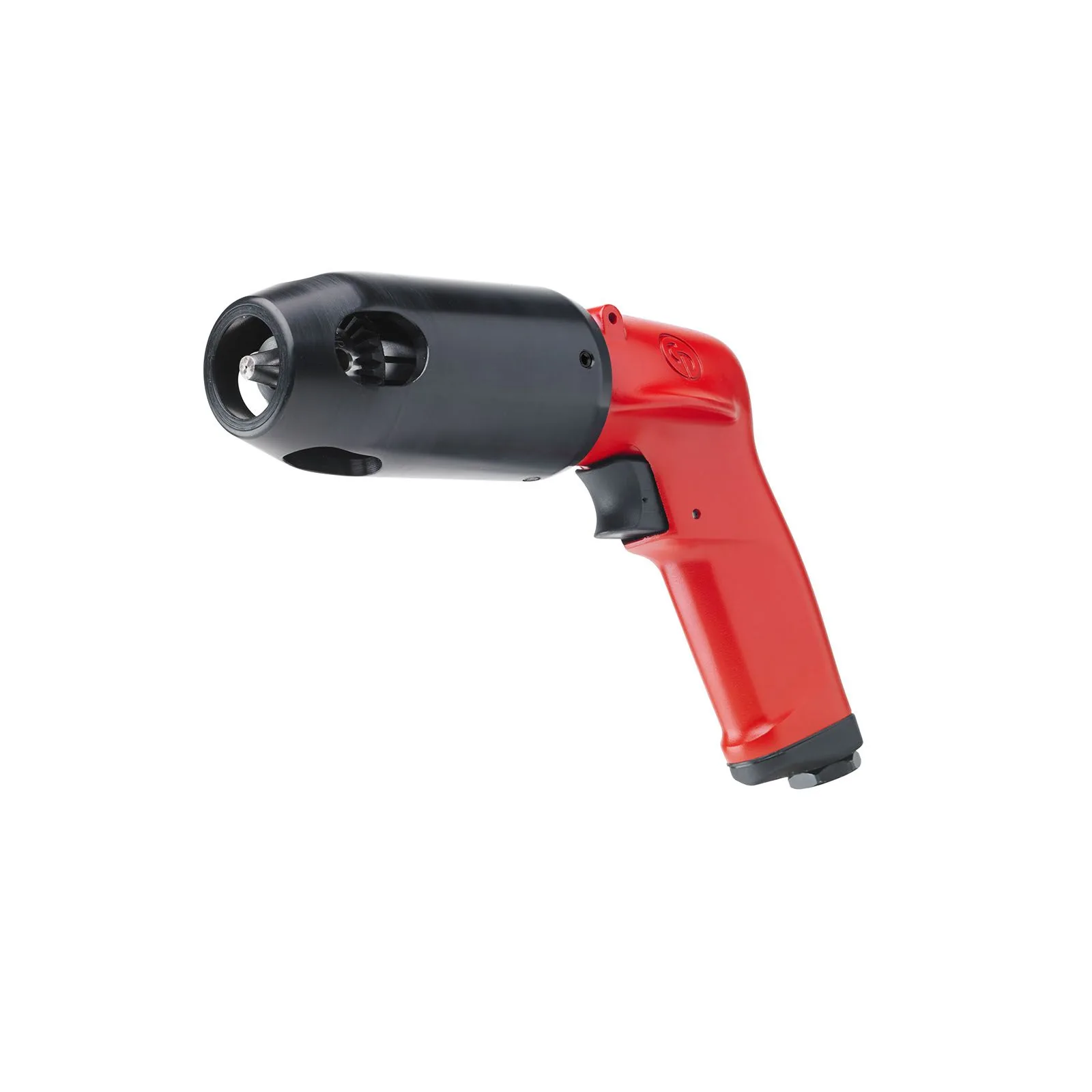

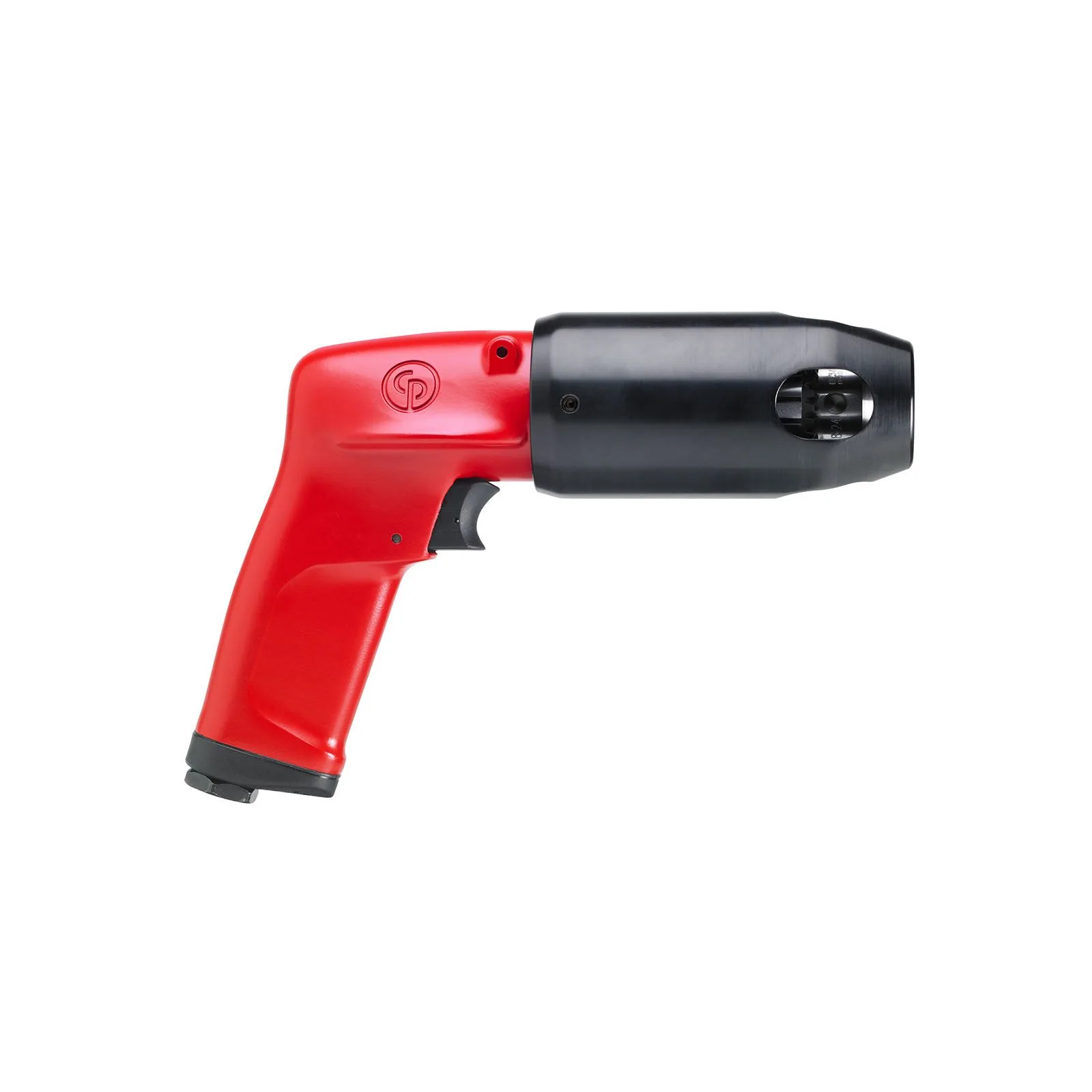

Chicago Pneumatic CP1117 Series – Drills

$393.00 – $670.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP1117 Series – Drills

$393.00 – $670.00

Chicago Pneumatic CP1117 Series - Drills

$393.00 – $670.00

Free Speed (rpm): No selection

More options

Chuck Type: No selection

More options

Atex Certified: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

The Best Power to Weight Ratio Drills

The best power to weight ratio drills for Industrial production, intensive duty with high durability and operator comfort.

High power 1hp (750W) with excellent control by teasing throttle handle
high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations
High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 “(10 mm) to 1/2” (13 mm)

Take advantages of this CP1117 range of egonomic, high speed, durable and precise drills. The CP1117 range is defined by 15 models with 1 Hp (750 W) pneumatic motor from 500 to 6000 RPM and from 3.4 Nm (2.5 ft.lb) to 30 Nm (22.2,2 ft.lb) stall torque. Full range offers a selection of drills without, keyless or Keyed chuck.

Find the matching size or fitment across our Chicago Pneumatic tool accessories and see the related related products. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Chicago Pneumatic SUSPENSION RING KIT

$11.00

Chicago Pneumatic CPA1008 TIMER CARD

QUOTE

Chicago Pneumatic CPA5000 PORTABLE VACUUM CLEANER

$1,530.00

Chicago Pneumatic CP9912 BALANCER 1.0-2.0KG 2.2-4.4LB

$135.00

Chicago Pneumatic CP9913 BALANCER 2.0-3.0KG 4.4-6.6LB

$139.00

Chicago Pneumatic CP9920 BALANCER 1.0-2.5KG 2.2-5.5LB

$258.00

Chicago Pneumatic Effi Max Hose 194 200 -40

$103.00 – $616.00

Chicago Pneumatic Effi Max Hose Whip 2 194 200

$50.00 – QUOTE

Chicago Pneumatic Pur Hose 82 176 200

$238.00 – $457.00

Chicago Pneumatic HOSE CONNECTOR 10MM SCREW M 1/4" BSP

QUOTE

Chicago Pneumatic NIPPLE M08S 14 NPT-SET OF 5

$54.00

Chicago Pneumatic NIPPLE M08S 14 NPT

$10.00

Chicago Pneumatic L12BSP

QUOTE

Chicago Pneumatic Composite FRL Air preparation COMPOSITE Single part

$192.00 – QUOTE

Chicago Pneumatic FRL - Filter, Regulator, Lubricator 100 BSP Air preparation

QUOTE

Chicago Pneumatic Air Line Regulator BSP

QUOTE

Chicago Pneumatic Filter-Regulator BSP

QUOTE

Chicago Pneumatic Filter BSP

QUOTE

Chicago Pneumatic REGULATOR-AIR

$39.00

Chicago Pneumatic AIR REGULATOR

$97.00

Chicago Pneumatic Inline Oiler 400 BSP 34

$71.00 – $100.00

Chicago Pneumatic Mini Oiler 0 NPT 0

$29.00

Chicago Pneumatic CPA1014 MOTOR OIL 1L

$33.00

Chicago Pneumatic CPA1015 MOTOR OIL 125 mL

$16.00

Chicago Pneumatic CPA1016 MOTOR OIL 5L

$113.00

Chicago Pneumatic KEYLESS CHUCK 10MM-3/8"x24 510-2H

$144.00

Chicago Pneumatic KEY CHUCK JACOBS K30

$15.00

Chicago Pneumatic KEYED CHUCK 10MM-3/8"x24 41BA

$97.00

Chicago Pneumatic KEY CHUCK JACOBS K32

$15.00

Chicago Pneumatic DRILL BITS 8PCS SET WOOD

$38.00

Chicago Pneumatic Open Drill Shroud 1 NA Accessories for drills, tappers

QUOTE

Chicago Pneumatic DRILL BIT SET 21PC SET GENERAL USE / IMP

QUOTE

Chicago Pneumatic DRILL BITS 8PCS SET CONCRETE

$36.00

Chicago Pneumatic KEYED CHUCK 13MM-3/8"x24 33BA

$200.00

Chicago Pneumatic KEYED CHUCK 13MM-3/8"X24

$58.00

Chicago Pneumatic KEYLESS CHUCK 13MM-3/8"x24 513-2M

$164.00

Chicago Pneumatic CHUCK GUARD (P26/P32)

QUOTE

Chicago Pneumatic BAIL SUSPENSION

QUOTE

Specifications

	CI-6151580350	CI-6151580240	CI-6151580170	CI-6151580180	CI-6151580230	CI-6151580150	CI-6151580160	CI-6151580360	CI-6151580220	CI-6151580130	CI-6151580140	CI-6151580370	CI-6151580210	CI-6151580110	CI-6151580120	CI-6151580200	CI-6151580090	CI-6151580100
SKU	CI-6151580350	CI-6151580240	CI-6151580170	CI-6151580180	CI-6151580230	CI-6151580150	CI-6151580160	CI-6151580360	CI-6151580220	CI-6151580130	CI-6151580140	CI-6151580370	CI-6151580210	CI-6151580110	CI-6151580120	CI-6151580200	CI-6151580090	CI-6151580100
Product Name	Chicago Pneumatic CP1117P05 ATEX - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Pistol Handle, ATEX, 1.01 HP / 750 W, Stall Torque 22.1 ft. lbf / 30 Nm - 500 RPM	Chicago Pneumatic CP1117P05 - 1/2 Inch (13 mm) Air Drill, No Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 22.1 ft. lbf / 30 Nm - 500 RPM	Chicago Pneumatic CP1117P05-K - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 22.1 ft. lbf / 30 Nm - 500 RPM	Chicago Pneumatic CP1117P05-KL - 1/2 Inch (13 mm) Air Drill, Keyless Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 22.1 ft. lbf / 30 Nm - 500 RPM	Chicago Pneumatic CP1117P09 - 1/2 Inch (13 mm) Air Drill, No Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 14.1 ft. lbf / 19.1 Nm - 900 RPM	Chicago Pneumatic CP1117P09-K - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 14.2 ft. lbf / 19.3 Nm - 900 RPM	Chicago Pneumatic CP1117P09-KL - 1/2 Inch (13 mm) Air Drill, Keyless Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 14.2 ft. lbf / 19.3 Nm - 900 RPM	Chicago Pneumatic CP1117P26 ATEX - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, ATEX, 1.01 HP / 750 W, Stall Torque 4 ft. lbf / 5.4 Nm - 3200 RPM	Chicago Pneumatic CP1117P26 - 3/8 Inch (10 mm) Air Drill, No Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4.6 ft. lbf / 6.3 Nm - 2600 RPM	Chicago Pneumatic CP1117P26-K - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4.6 ft. lbf / 6.3 Nm - 2600 RPM	Chicago Pneumatic CP1117P26-KL - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4.6 ft. lbf / 6.3 Nm - 2600 RPM	Chicago Pneumatic CP1117P32 ATEX - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, ATEX, 1.01 HP / 750 W, Stall Torque 4.6 ft. lbf / 6.3 Nm - 2600 RPM	Chicago Pneumatic CP1117P32 - 3/8 Inch (10 mm) Air Drill, No Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4 ft. lbf / 5.4 Nm - 3200 RPM	Chicago Pneumatic CP1117P32-K - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4 ft. lbf / 5.4 Nm - 3200 RPM	Chicago Pneumatic CP1117P32-KL - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 4 ft. lbf / 5.4 Nm - 3200 RPM	Chicago Pneumatic CP1117P60 - 3/8 Inch (10 mm) Air Drill, No Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 2.5 ft. lbf / 3.4 Nm - 6000 RPM	Chicago Pneumatic CP1117P60-K - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 2.5 ft. lbf / 3.4 Nm - 6000 RPM	Chicago Pneumatic CP1117P60-KL - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Pistol Handle, 1.01 HP / 750 W, Stall Torque 2.5 ft. lbf / 3.4 Nm - 6000 RPM
Vendor SKU	6151580350	6151580240	6151580170	6151580180	6151580230	6151580150	6151580160	6151580360	6151580220	6151580130	6151580140	6151580370	6151580210	6151580110	6151580120	6151580200	6151580090	6151580100
Free Speed (rpm)	500	500	500	500	900	900	900	3200	2600	2600	2600	2600	3200	3200	3200	6000	6000	6000
Chuck Type	Keyed	No chuck	Keyed	Keyless	No chuck	Keyed	Keyless	Keyed	No chuck	Keyed	Keyless	Keyed	No chuck	Keyed	Keyless	No chuck	Keyed	Keyless
Atex Certified	Yes	No	No	No	No	No	No	Yes	No	No	No	Yes	No	No	No	No	No	No
Max power	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01	1.01
Reversible	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Chuck max capacity (in)	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8
Sound Power (dB(A))	95	94	94	94	94	94	94	94	94	94	94	95	94	94	94	94	94	94
Sound Pressure (dB(A))	84	83	83	83	83	83	83	83	83	83	83	84	83	83	83	83	83	83
Uncertainty Vibration-k (ft/s²)	6.6	6.6	6.6	6.6	8.5	8.5	8.5	-	5.6	5.6	5.6	5.6	-	-	-	-	-	-
Air Consumption At Load (cfm)	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29	29
Air Inlet Thread Size (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Max Dynamic Air Working Pressure (psi)	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Min Hose Diam (mm)	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38
Stall Torque (Nm)	22.1	22.1	22.1	22.1	14.1	14.2	14.2	4	4.6	4.6	4.6	4.6	4	4	4	2.5	2.5	2.5
Air consumption at free speed (cfm)	34	34	34	34	34	34	34	35	35	35	35	35	35	35	35	35	35	35
Height (in)	5.94	-	-	-	-	-	-	5.82	-	-	-	5.82	-	-	-	-	-	-
Length (in)	10.56	7.99	7.99	7.99	7.99	7.99	7.99	8.66	7.09	7.87	8.27	8.66	7.09	7.87	8.27	7.09	7.87	8.27
Width (in)	2.43	-	-	-	-	-	-	2.31	-	-	-	2.31	-	-	-	-	-	-
Tool Weight (lb)	4.96	3.37	3.37	3.37	2.18	2.18	2.18	3.17	2.18	2.18	2.18	4.85	2.18	2.18	2.18	2.18	2.18	2.18
Handle type	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol
Main Material type	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Starting System	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger
