Chicago Pneumatic CP1720 Series – Drills
Chicago Pneumatic CP1720 Series - Drills
$3,337.00$5,530.00

High Torque, Compact, Durability & Precision

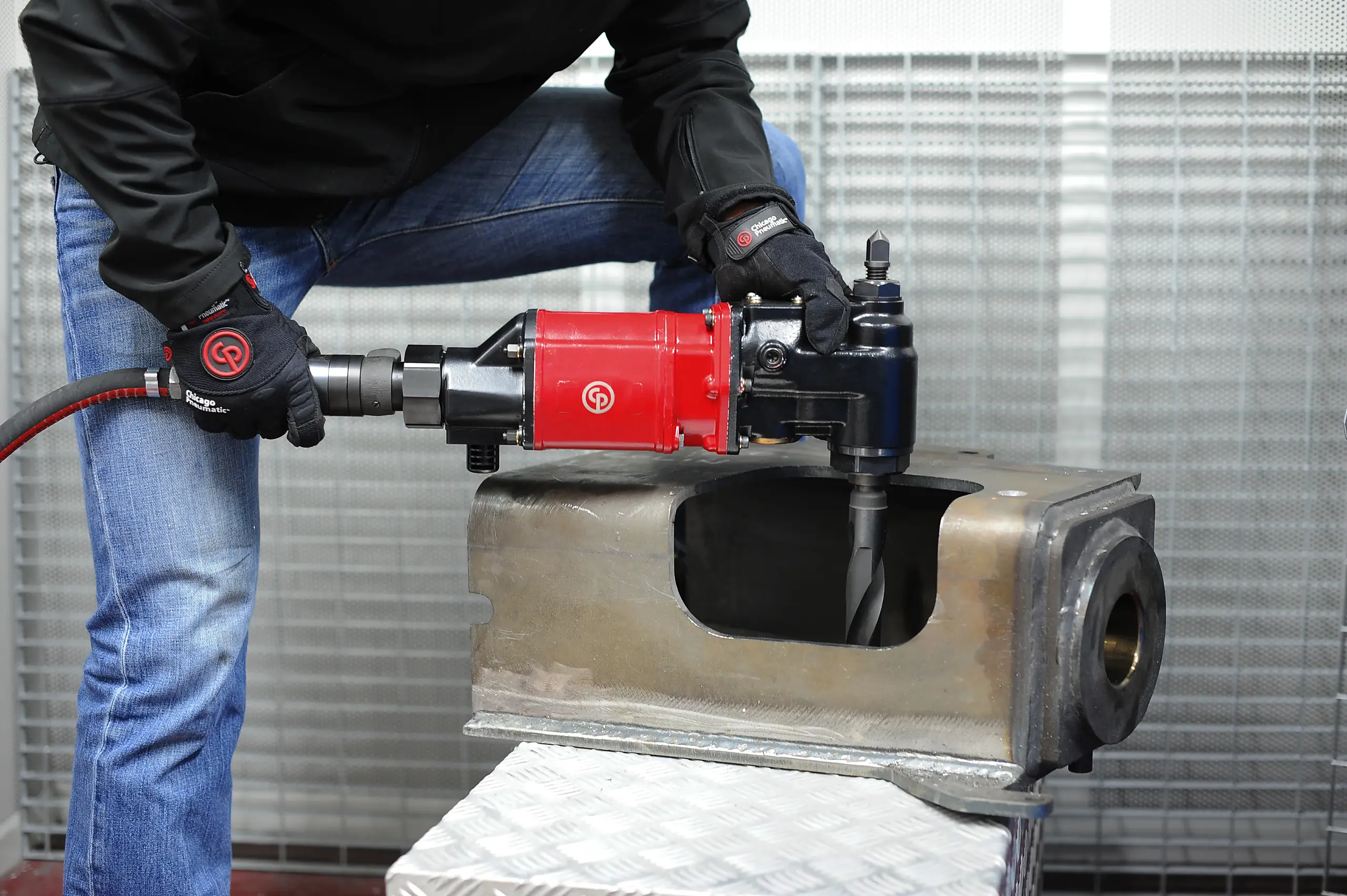

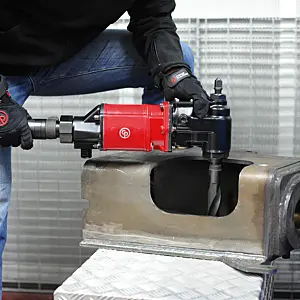

Designed for super intensive drilling, reaming and tappingof mild steel, cast iron with high durability and precision in industrial maintenance and production applications

  • Highest power with a durable and powerfull Air motor.
  • Fast with high free speed
  • High capacity reversible corner drill
  • Excellent durable gearbox ensures the strong drilling

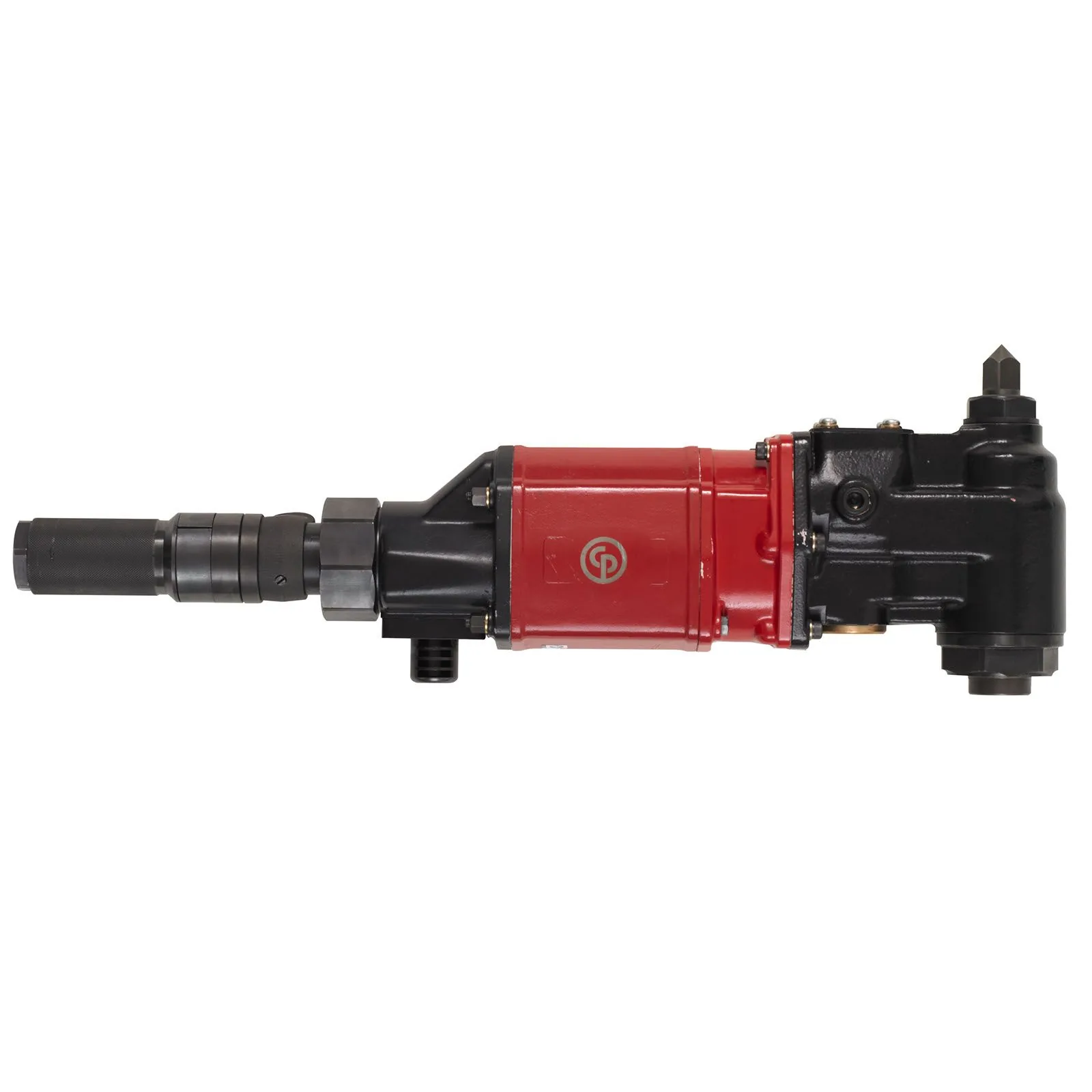

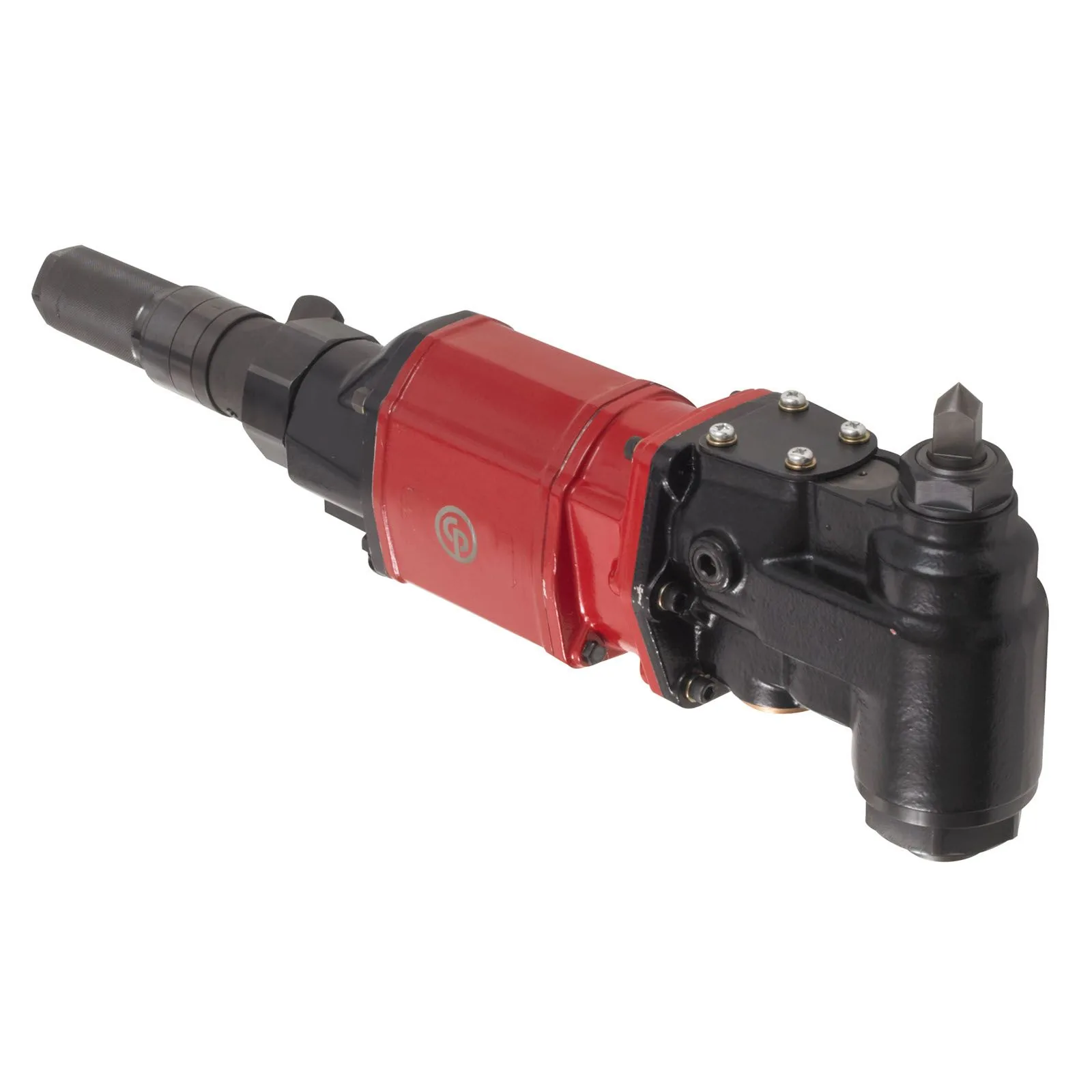

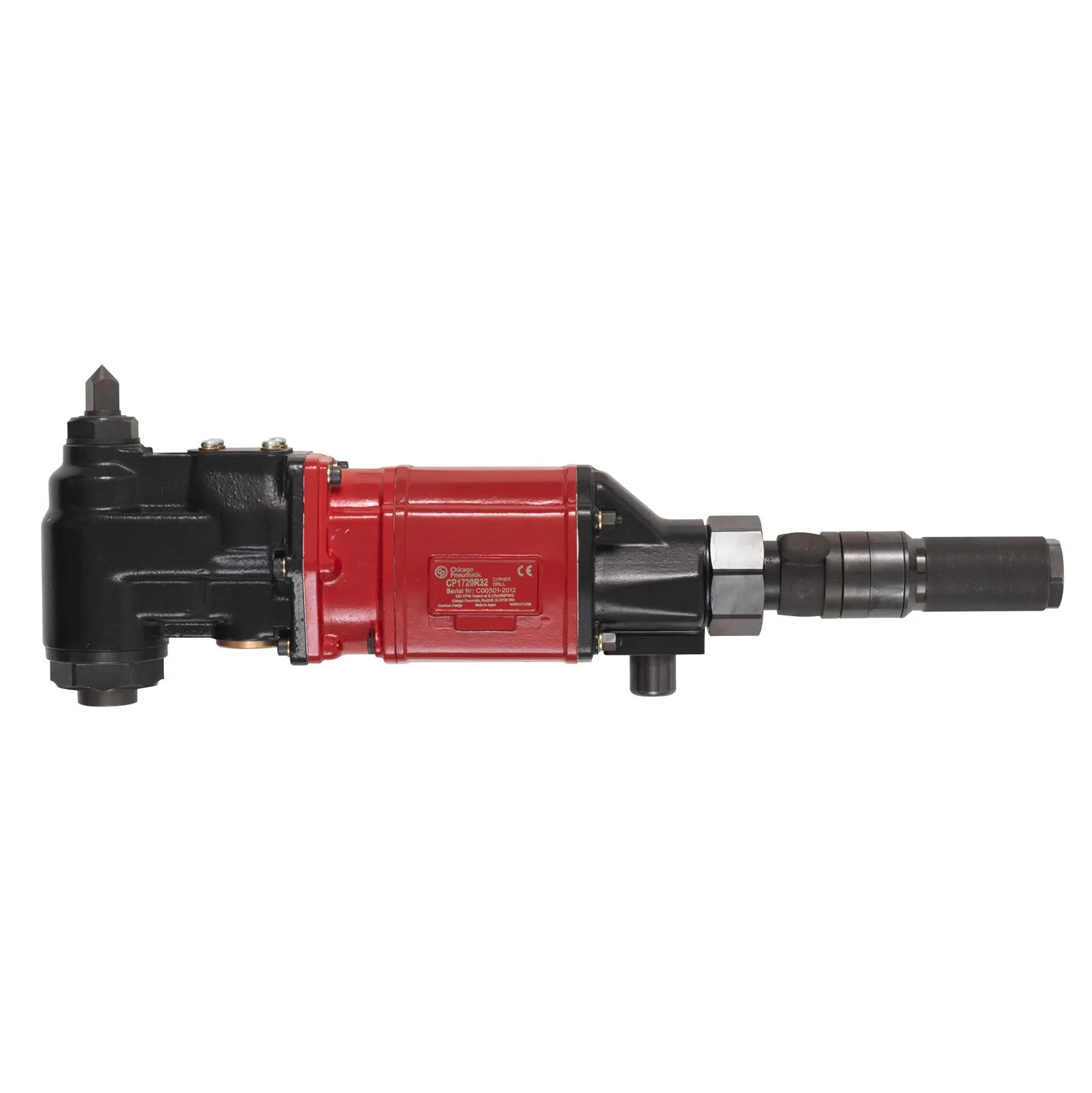

Take advantages of this CP1720R range of durable and precise reversible corner drills. The CP1720R range is defined by 3 models with 1.2 Hp (890 W) to 2.2 Hp (1630 W) pneumatic motor from 140 to 430 RPM and from 80.4 Nm (59.3 ft.lb) to 392.0 Nm (289.3 ft.lb) stall torque. Morse tapper socket are form N 2 to N 4. CP1720R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Chuck max capacity (in)
Reversible
Power Source
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Max power
Stall Torque (Nm)
Free Speed (rpm)
Length (in)
Tool Weight (lb)
Chuck Type
Handle type
Main Material type
Starting System
Air Inlet Thread Type
CI-6151580250
CP1720R22 - 7/8 in
6151580250
7/8
Yes
Pneumatic
117
106
1.6
53
1/2
90
0.5
1.19
59.3
430
18.58
15.4
Morse taper 2
Corner
Aluminum
Self return rolling throttle
NPT
CI-6151580260
CP1720R32 - 1-1/4 in
6151580260
1-1/4
Yes
Pneumatic
115
104
4.6
63
1/2
90
0.75
2.19
131
350
22.76
29.7
Morse taper 3
Corner
Aluminum
Self return rolling throttle
NPT
CI-6151580270
CP1720R50 - 2 in
6151580270
2
Yes
Pneumatic
118
107
2
80
1/2
90
0.75
2.19
289
140
23.43
35.2
Morse taper 4
Corner
Aluminum
Self return rolling throttle
NPT
