Chicago Pneumatic CP1816 Series – Drills
Chicago Pneumatic CP1816 Series - Drills
$1,678.00

High Power, Durability, D-Handle

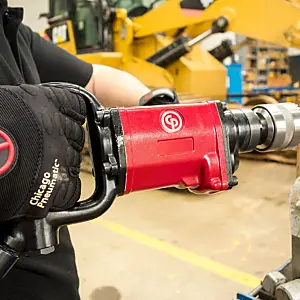

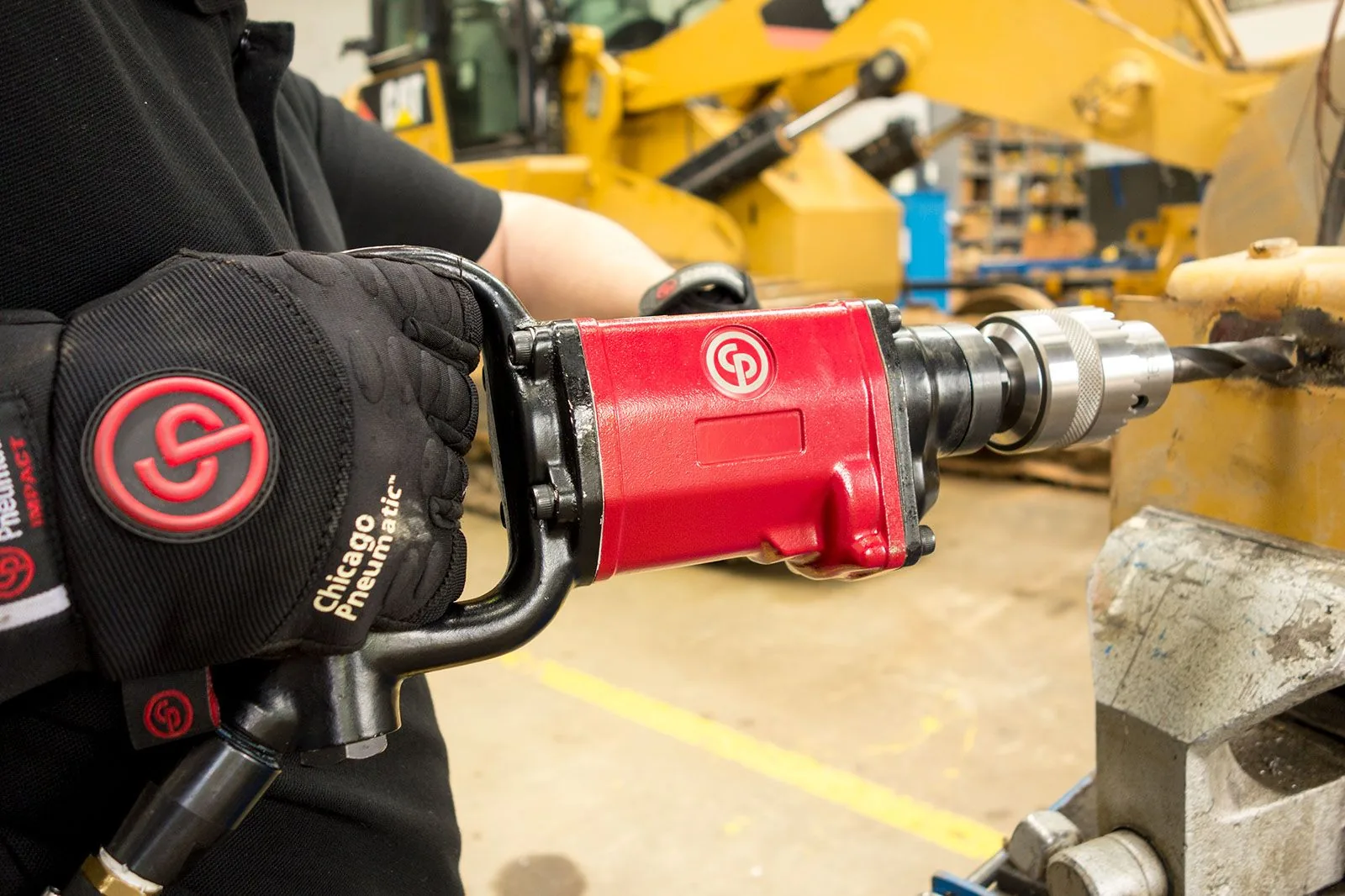

Designed for super intensive drilling of mild steel, cast iron with high durability and precision in industrial maintenance and production applications

  • Powerfull 1 Hp (750 W) Air motor for intensive application
  • Ergonomic with a D-Handle
  • Versatile with a 5/8″ (16 mm) chuck capacity
  • Excellent durable gearbox ensures the strong drilling

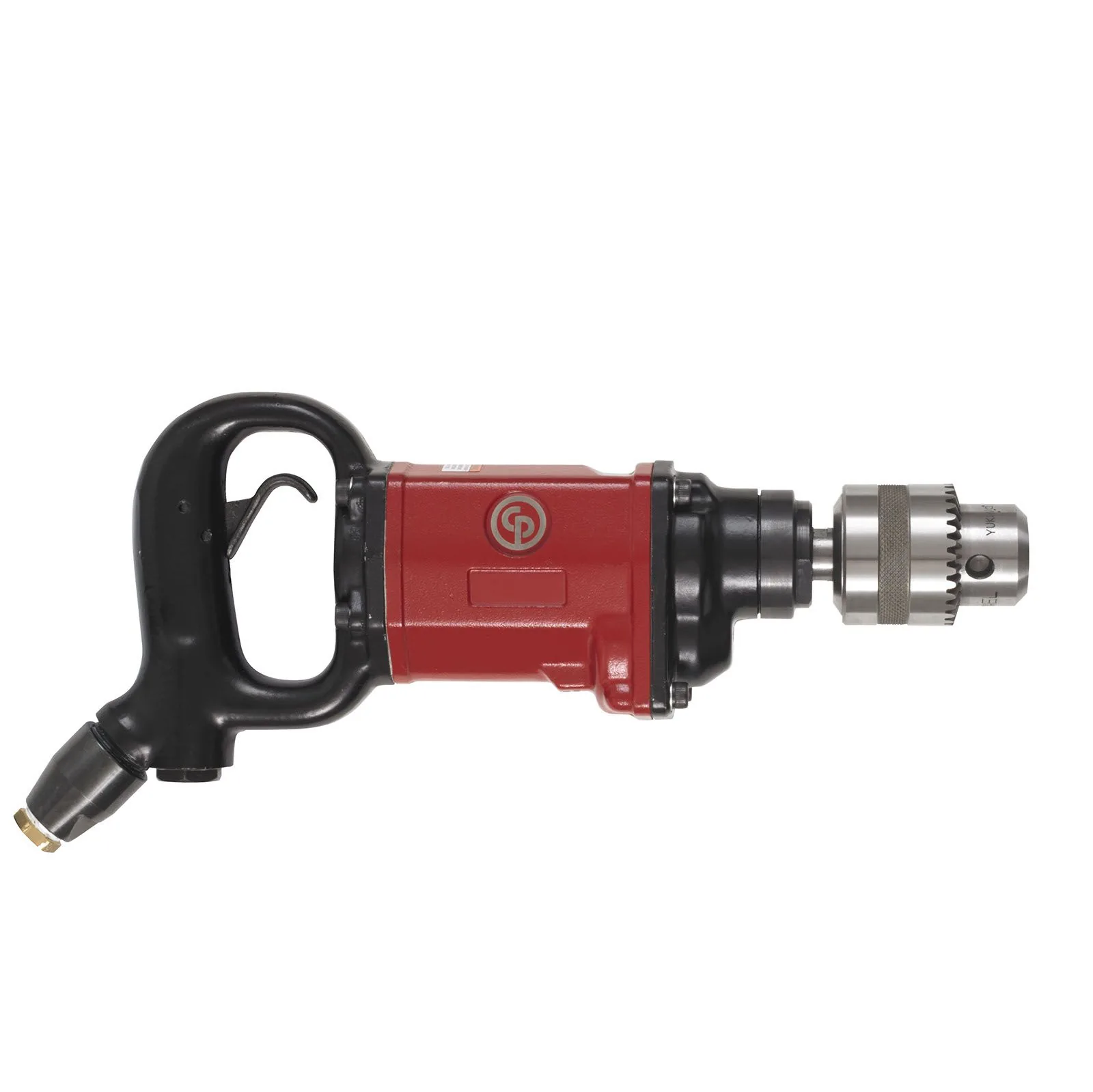

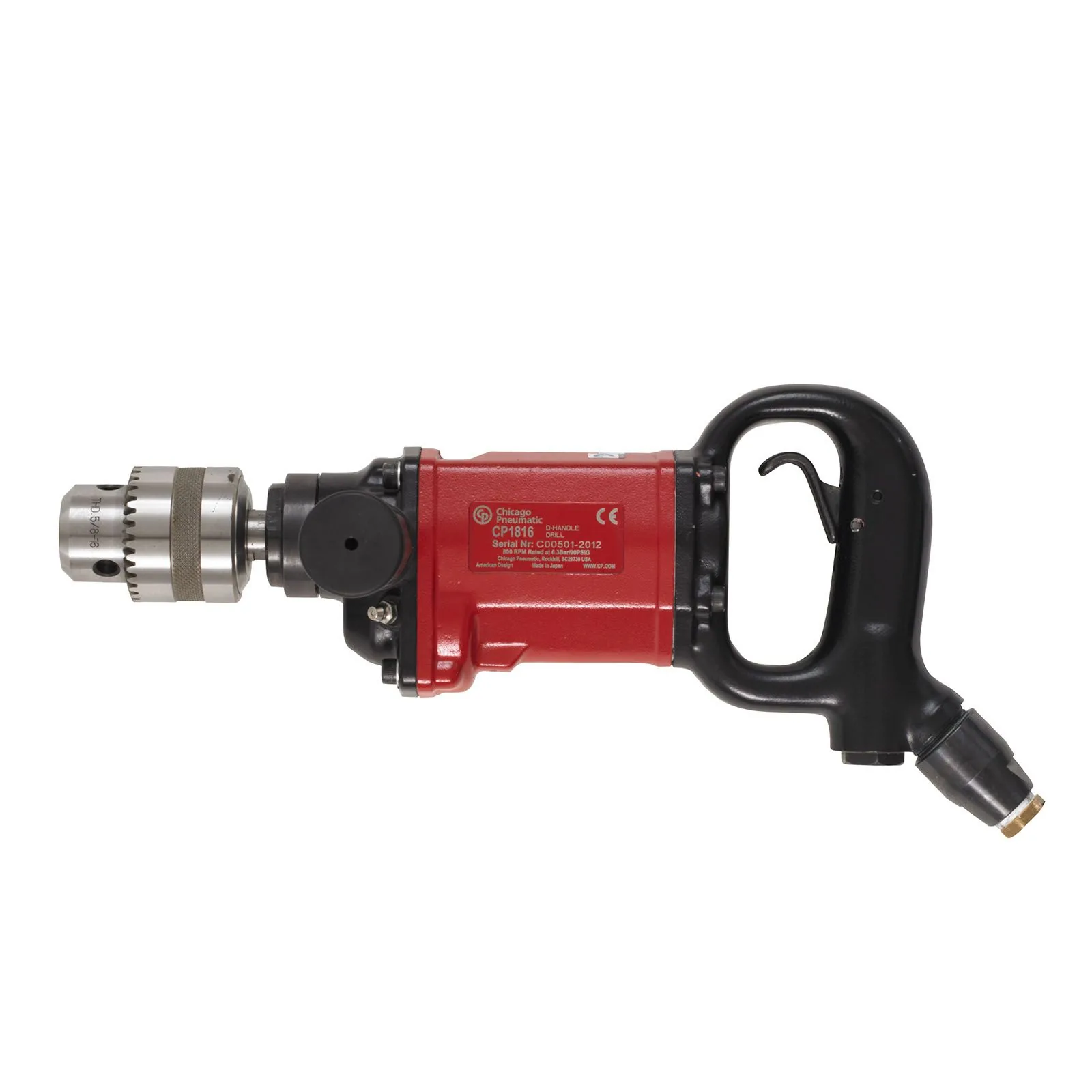

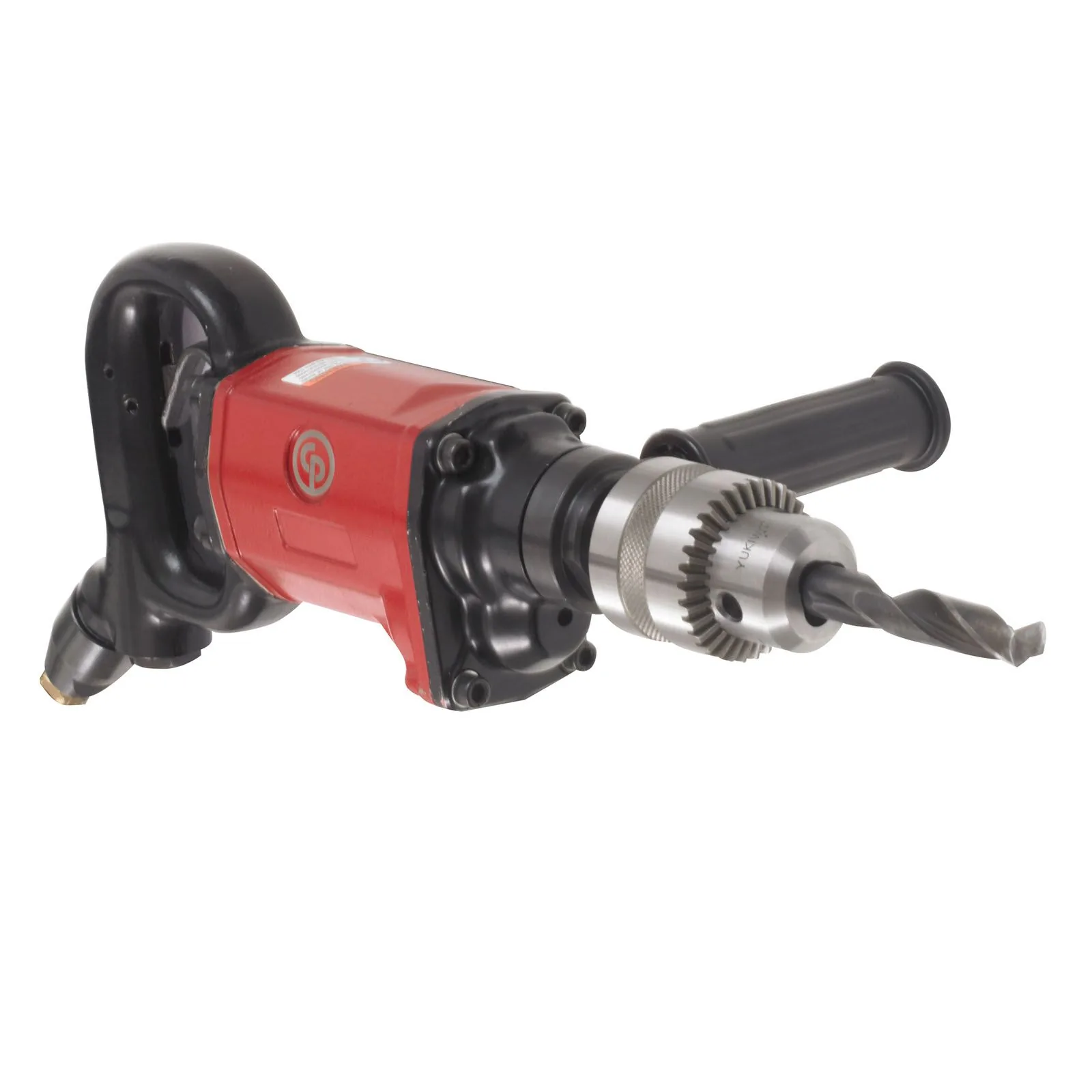

Take advantages of this CP1816 durable and precise straight D-Handle drill. The CP1816 straight D-Handle drill is defined by a 1.0 Hp (750 W) pneumatic motor, 800 RPM and 34.3 Nm (25.3 ft.lb) stall torque. Chuck capacity is 5/8″ (16 mm). CP1816 straight D-Handle drill cover a large variety of applications like drilling of mild steel, cast iron.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Chuck Type
Chuck max capacity (in)
Max power
Free Speed (rpm)
Reversible
Power Source
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Stall Torque (Nm)
Length (in)
Tool Weight (lb)
Handle type
Main Material type
Starting System
Air Inlet Thread Type
CI-6151580300
CP1816 - Keyed
6151580300
Keyed
5/8
1.01
800
No
Pneumatic
101
90
1.6
42
3/8
90
0.5
25.3
14.33
8.16
D-handle
Aluminum
Trigger
PT
