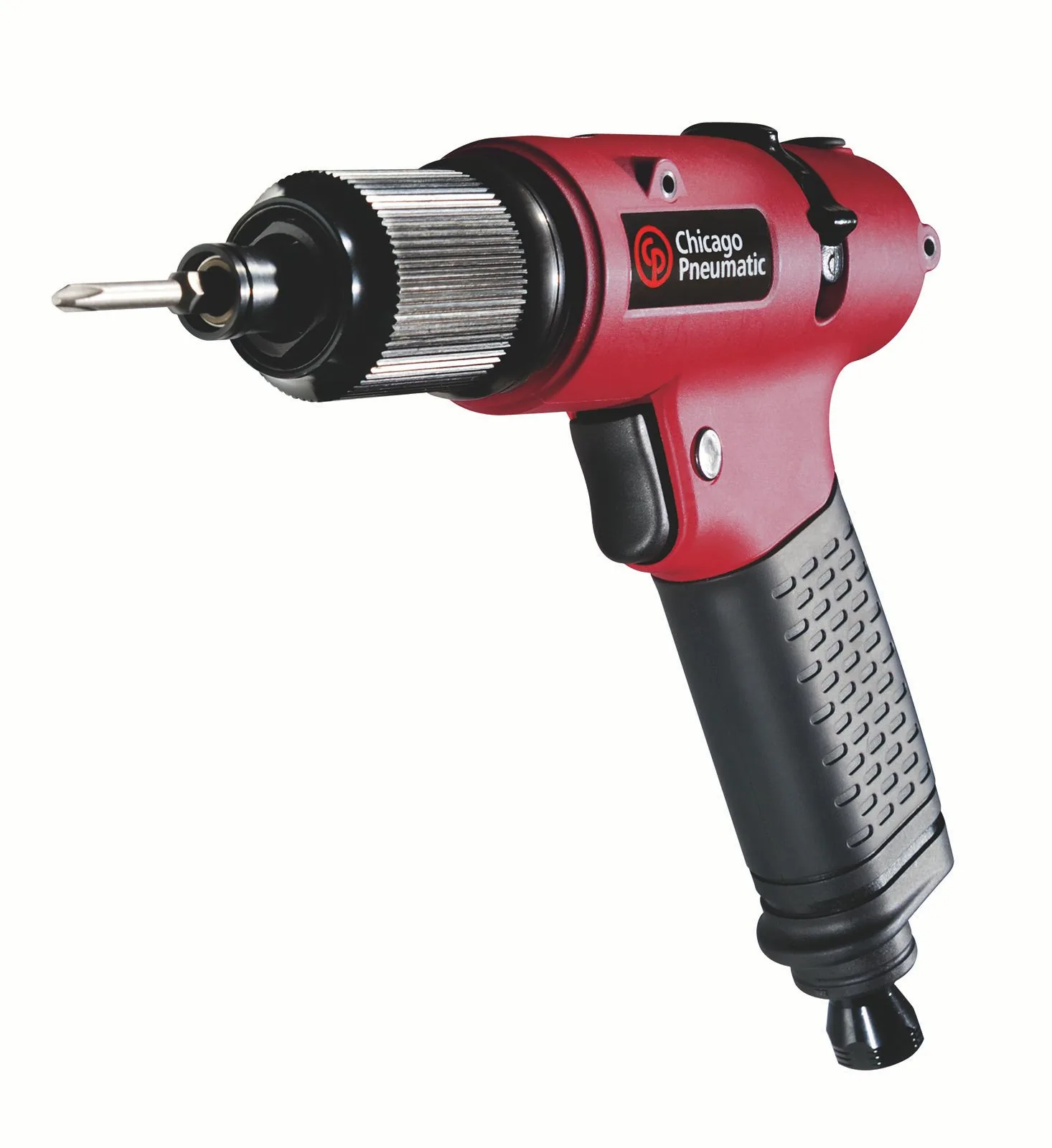

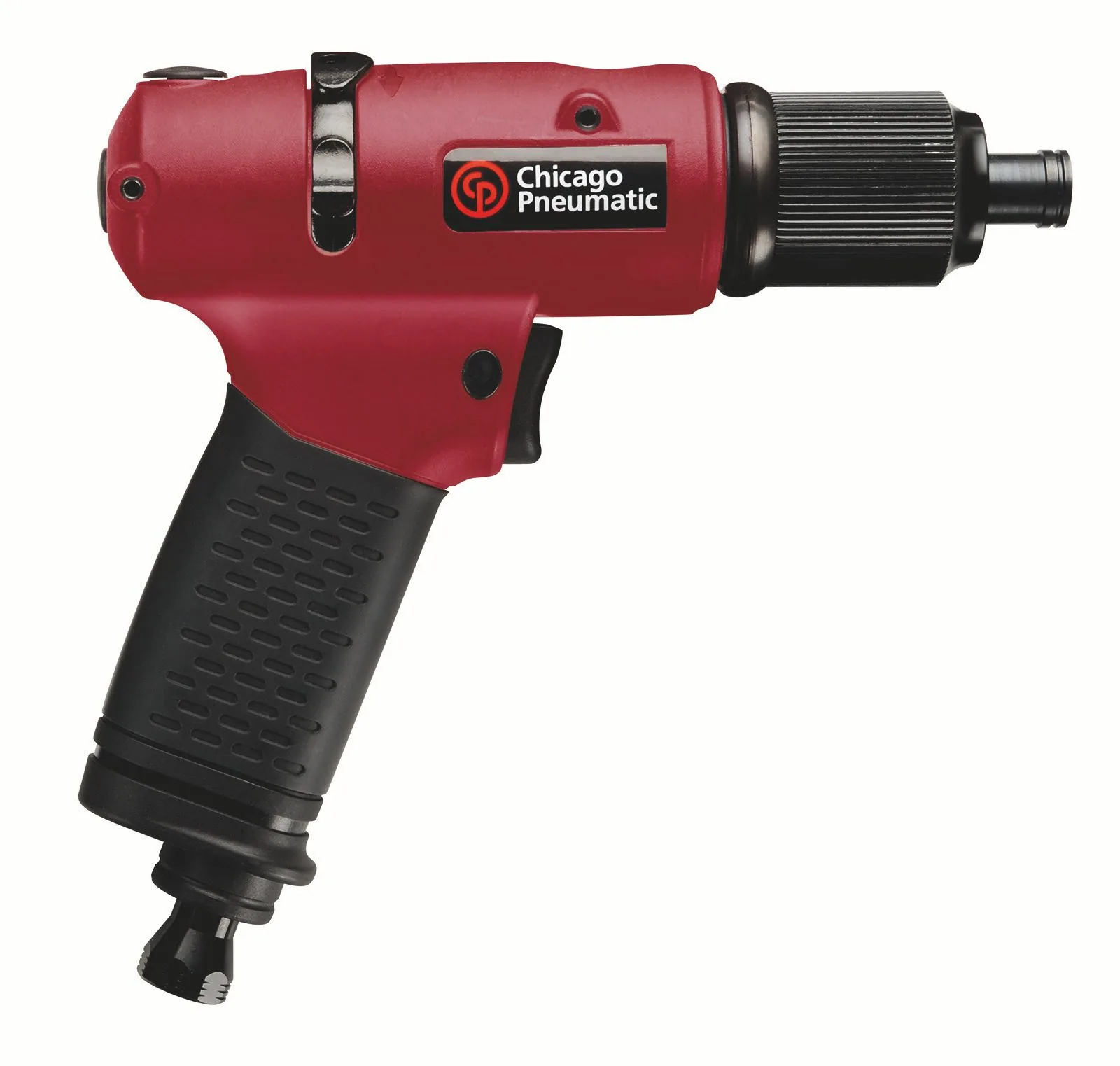

Chicago Pneumatic CP2612 Series – Cushion Screwdrivers

Chicago Pneumatic CP2612 Series – Cushion Screwdrivers

$524.00

Add to Cart
Chicago Pneumatic CP2612 Series – Cushion Screwdrivers
Chicago Pneumatic CP2612 Series - Cushion Screwdrivers
$524.00

Speed, Compactness, Multiple Operating Positions

For intensive fastening operations in MRO and light assembly applications, the CP2612 Series offers compactness and versatility with 3 air inlets positions.

  • Reliable cushion clutch for various fastening applications
  • Low noise and vibration for operator comfort
  • Keyless quick torque setting and light composite body for better ergonomic handling. Color rings for torque identification
  • Progressive trigger & reverse on top
  • 3 air inlets for versatile access

The CP2612 is a keyless torque setting 1/4″ hex pistol cushion clutch screwdriver offering a wide torque range, speed and high reliability in high rate fastening operations. Operator comfort is ensured with its limited noise level and the 3 pneumatic inlets to ensure vertical and horizontal applications.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Torque Control System
Max torque in forward (lb ft)
Min Torque In Forward (ft.lbf)
Tool Weight (lb)
Clutch Type
Power Source
Output drive size (in)
Free Speed (rpm)
Air consumption at free speed (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Height (in)
Length (in)
Adjustment
Body
Clutch Housing
Handle type
Main Material type
Output drive type
Output retainer type
Reversible
Starting System
Air Inlet Thread Type
Vibration (m/s²)
CI-6151922612
CP2612 - Non Shut-off-clutch
6151922612
Non shut-off-clutch
4.4
0.7
1.98
Cushion clutch
Pneumatic
1/4
1700
21
1/4
90
0.38
88
77
6.89
7.48
Rotative ring
Composite
Steel
Pistol
Aluminium
Hex
Quick change
Yes
Trigger
NPT
<2.5
