Chicago Pneumatic CP2623 Series – Cushion Screwdrivers

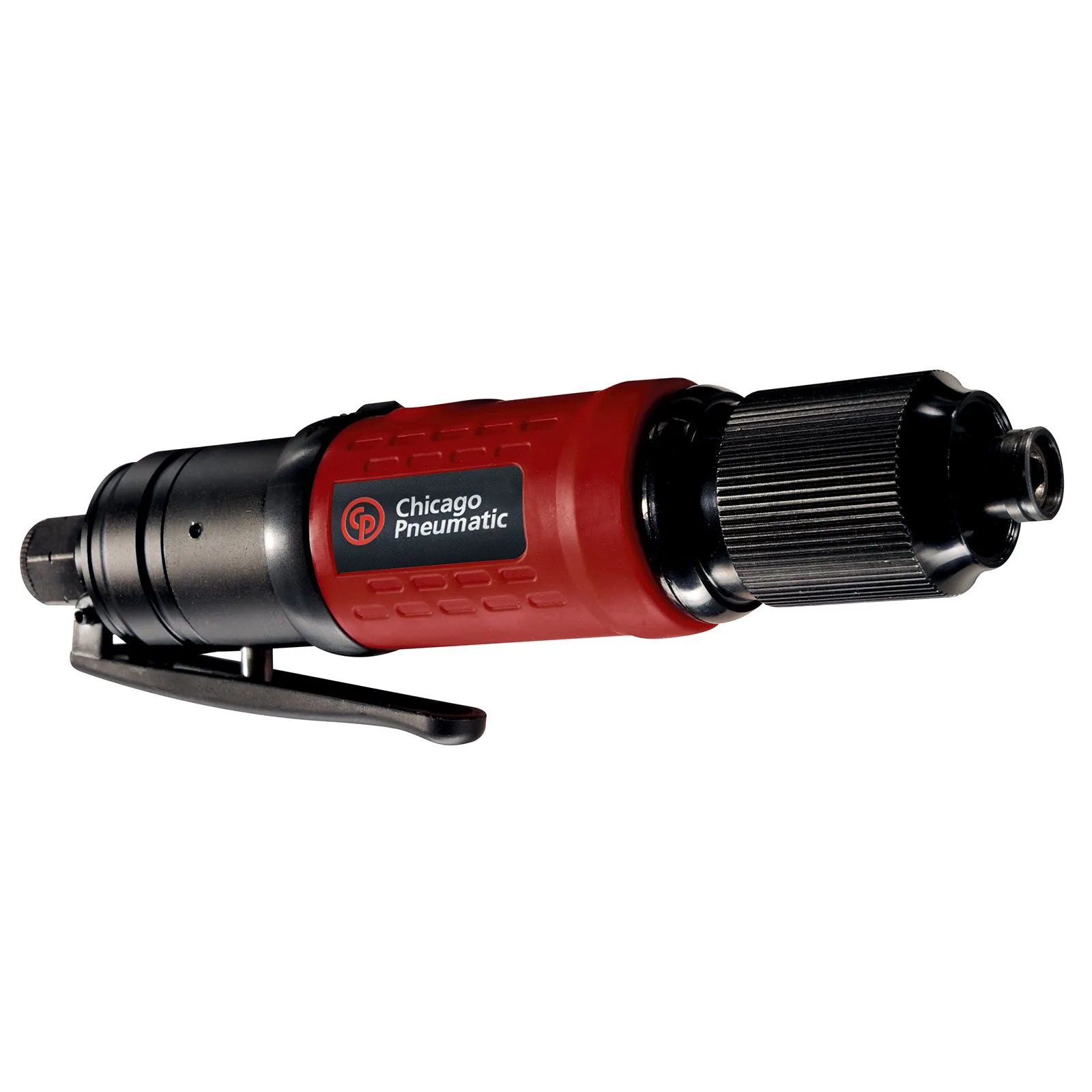

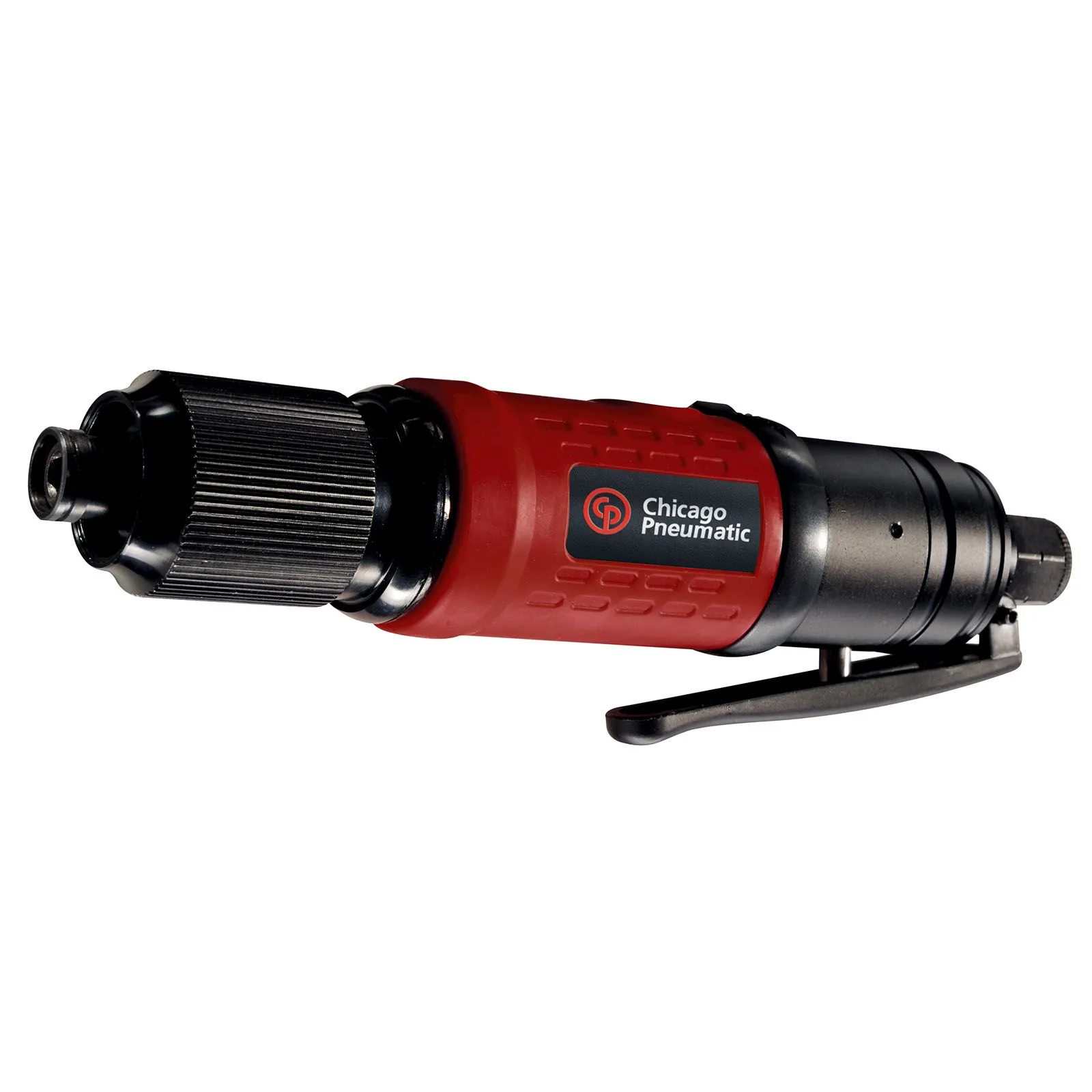

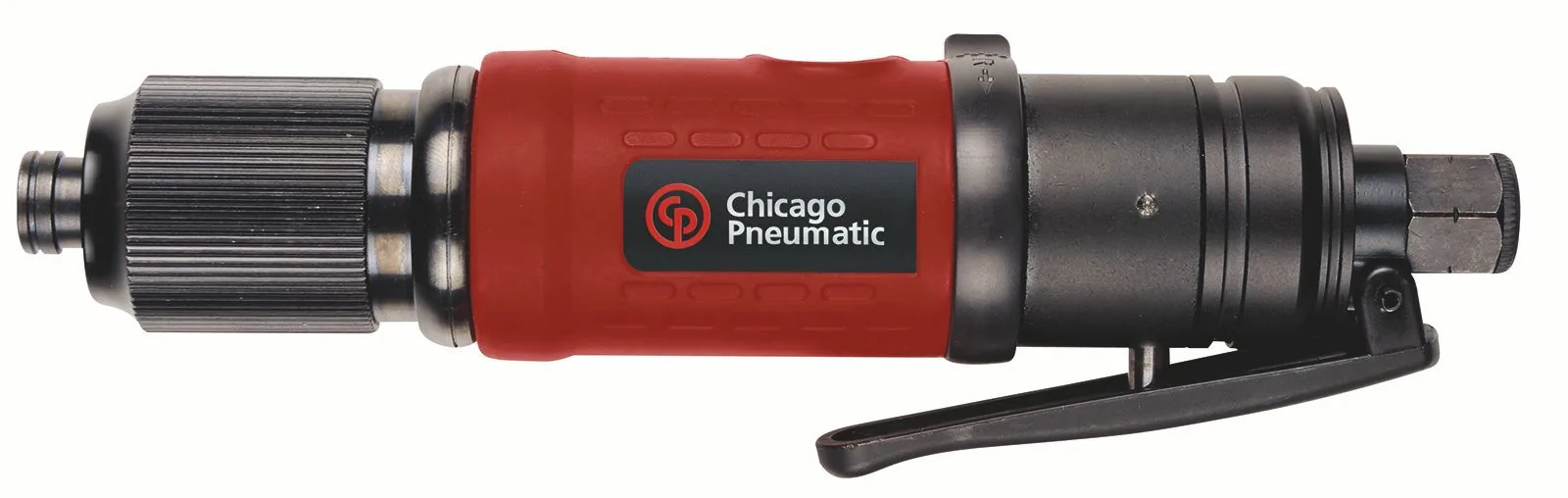

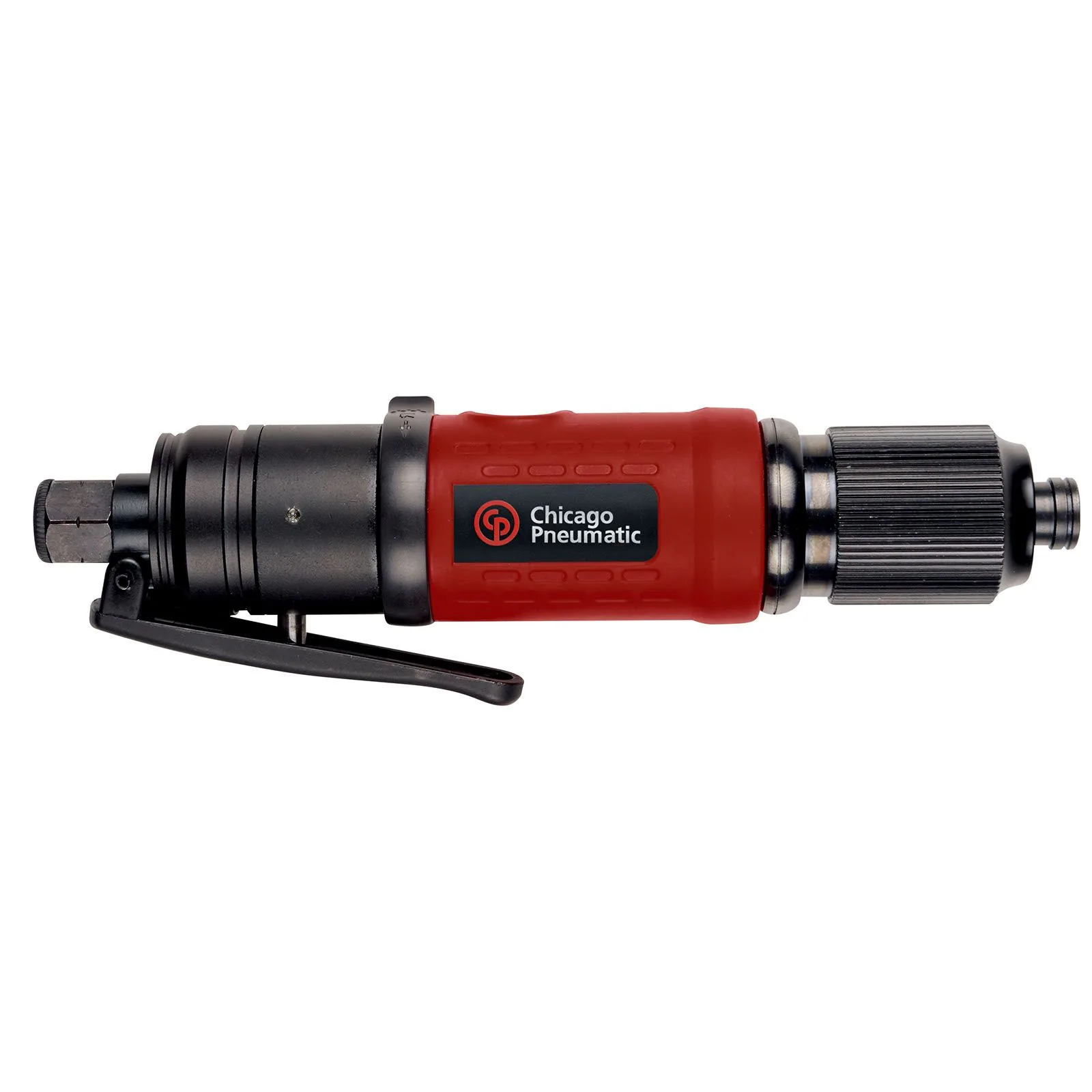

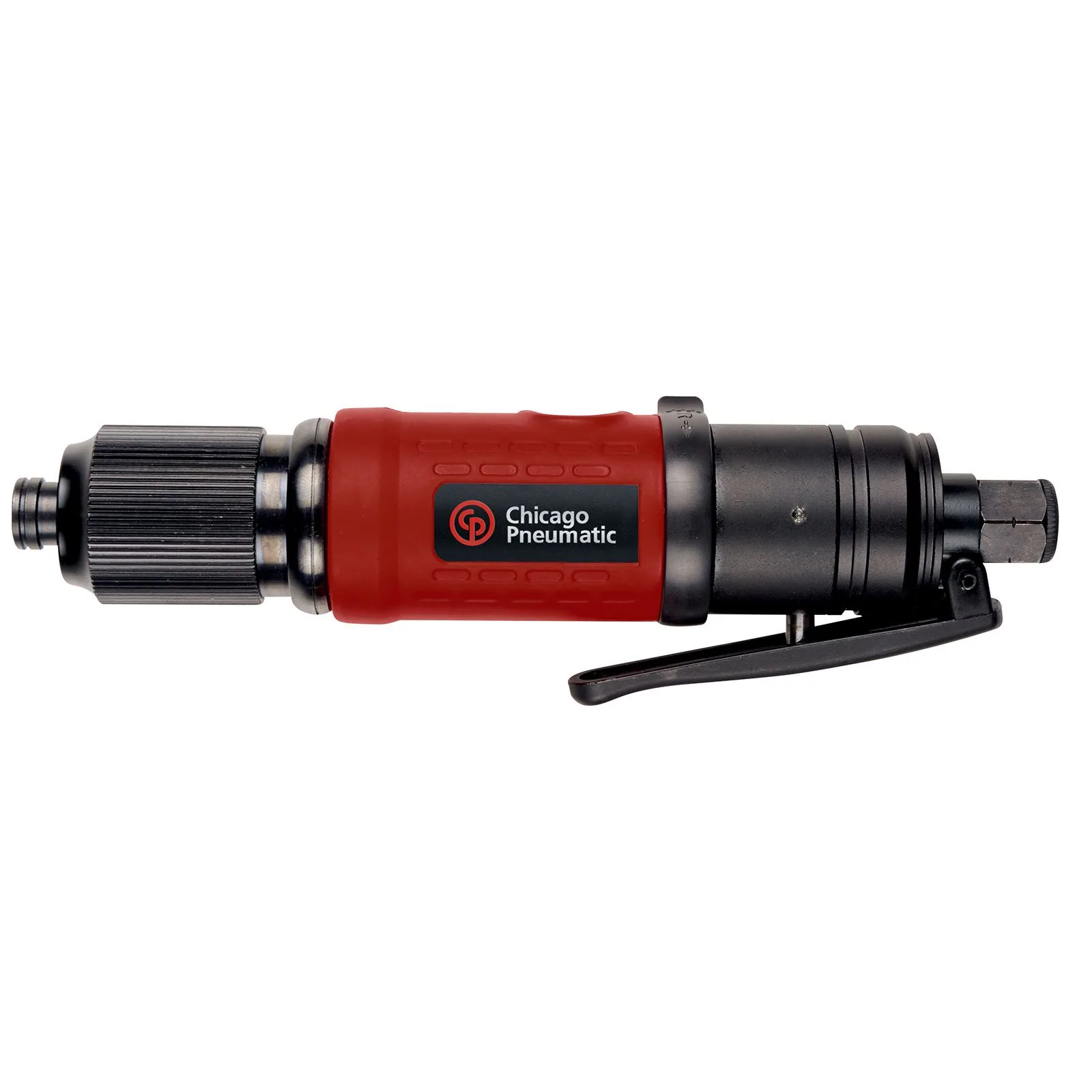

Chicago Pneumatic CP2623 Series - Cushion Screwdrivers
$390.00

High Speed for High Productivity

Designed for your intense MRO and light assembly applications, the CP2623 offers high speed for high productivity demands.

  • Reliable cushion clutch for various fastening applications
  • Keyless quick torque setting, color rings for torque identification
  • Robust aluminum body with rubber grip, even for heavy duty applications
  • Convenient straight push-to-start operation and one-hand reverse button
  • Low noise and vibration for operator comfort

The CP2623 is a keyless torque setting 1/4″ hex pistol cushion clutch screwdriver offering a wide torque range, speed and high reliability in high rate fastening operations.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Torque Control System
Max torque in forward (lb ft)
Min Torque In Forward (ft.lbf)
Tool Weight (lb)
Clutch Type
Power Source
Output drive size (in)
Free Speed (rpm)
Air consumption at free speed (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Length (in)
Adjustment
Body
Clutch Housing
Handle type
Output drive type
Output retainer type
Reversible
Starting System
Air Inlet Thread Type
Vibration (m/s²)
CI-6151922623
CP2623 - Non Shut-off-clutch
6151922623
Non shut-off-clutch
4.1
1.1
1.76
Cushion clutch
Pneumatic
1/4
1700
27
1/4
90
0.38
89
78
8.15
Rotative ring
Steel
Steel
Straight handle
Hex
Quick change
Yes
Lever
NPT
<2.5
