Chicago Pneumatic CP28 Series – Cushion clutch Screwdrivers
Chicago Pneumatic CP28 Series - Cushion clutch Screwdrivers
$1,040.00$1,082.00

Wide Torque and Speed Range with High Reliability

CP28 series cushion clutch meet the demands for industrial performance, accuracy and durability.

  • Reliable cushion clutch for various fastening applications
  • Keyless quick torque setting
  • Robust aluminum body and clutch housing, even for heavy duty applications
  • Rubber grip and one-hand reverse button for operator comfort

The CP28 Series cushion clutch are 1/4″ hex pistol cushion clutch screwdrivers designed for your heavy duty applications. Well-balanced and lightweight design based on rugged aluminum housing with a comfortable rubber grip to ensure operator comfort. Available in 2 free speed levels: 950 rpm CP2812 and 1300 rpm CP2822.

Compare this against the other pneumatic screwdrivers in the catalog and the companion custom maintenance tools are stocked alongside it. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Handle type
Clutch Type
Power Source
Max torque in forward (lb ft)
Min Torque In Forward (ft.lbf)
Output drive size (in)
Free Speed (rpm)
Air consumption at free speed (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Height (in)
Length (in)
Width (in)
Tool Weight (lb)
Torque Control System
Adjustment
Body
Clutch Housing
Main Material type
Output drive type
Output retainer type
Reversible
Starting System
Air Inlet Thread Type
Vibration (m/s²)
CI-6151630080

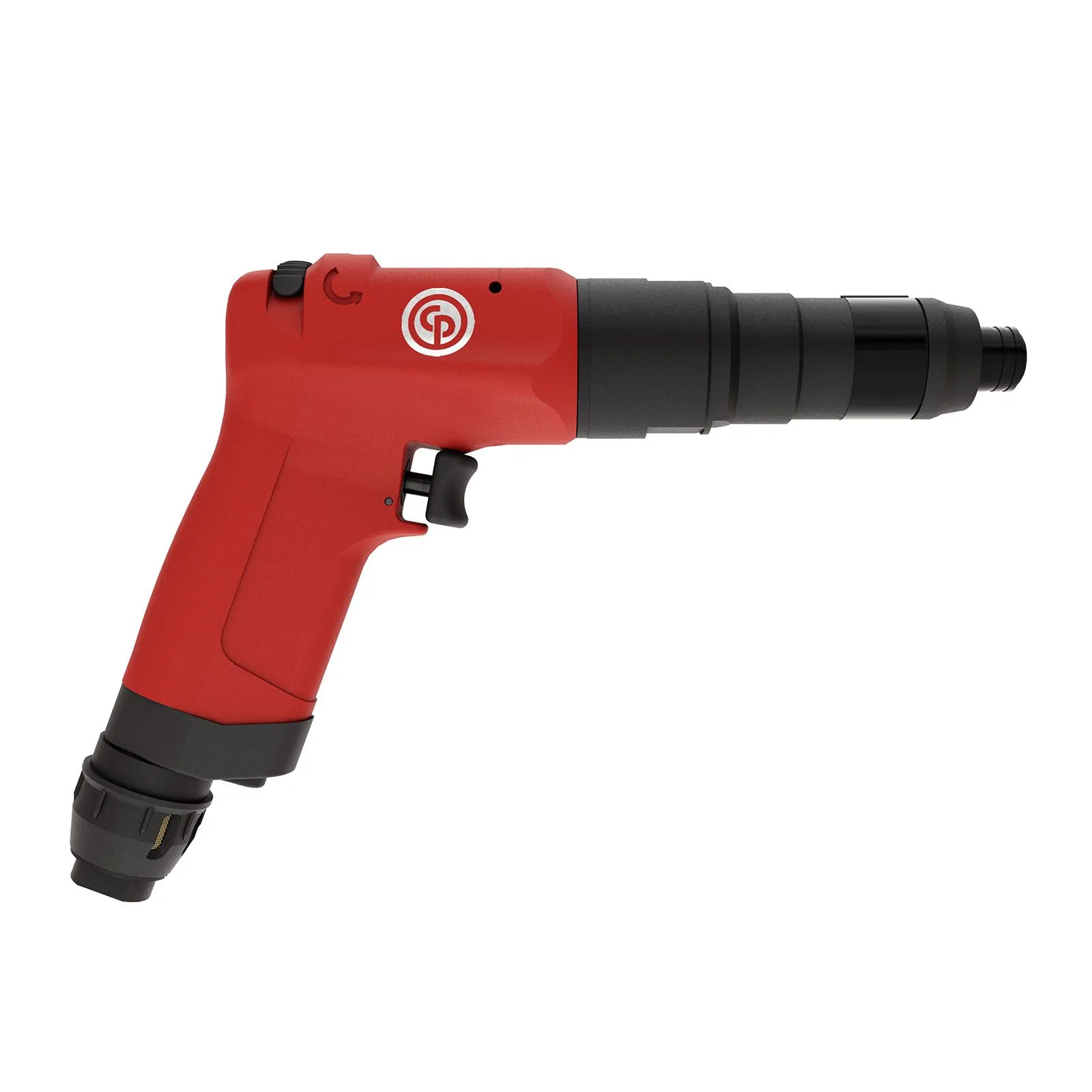

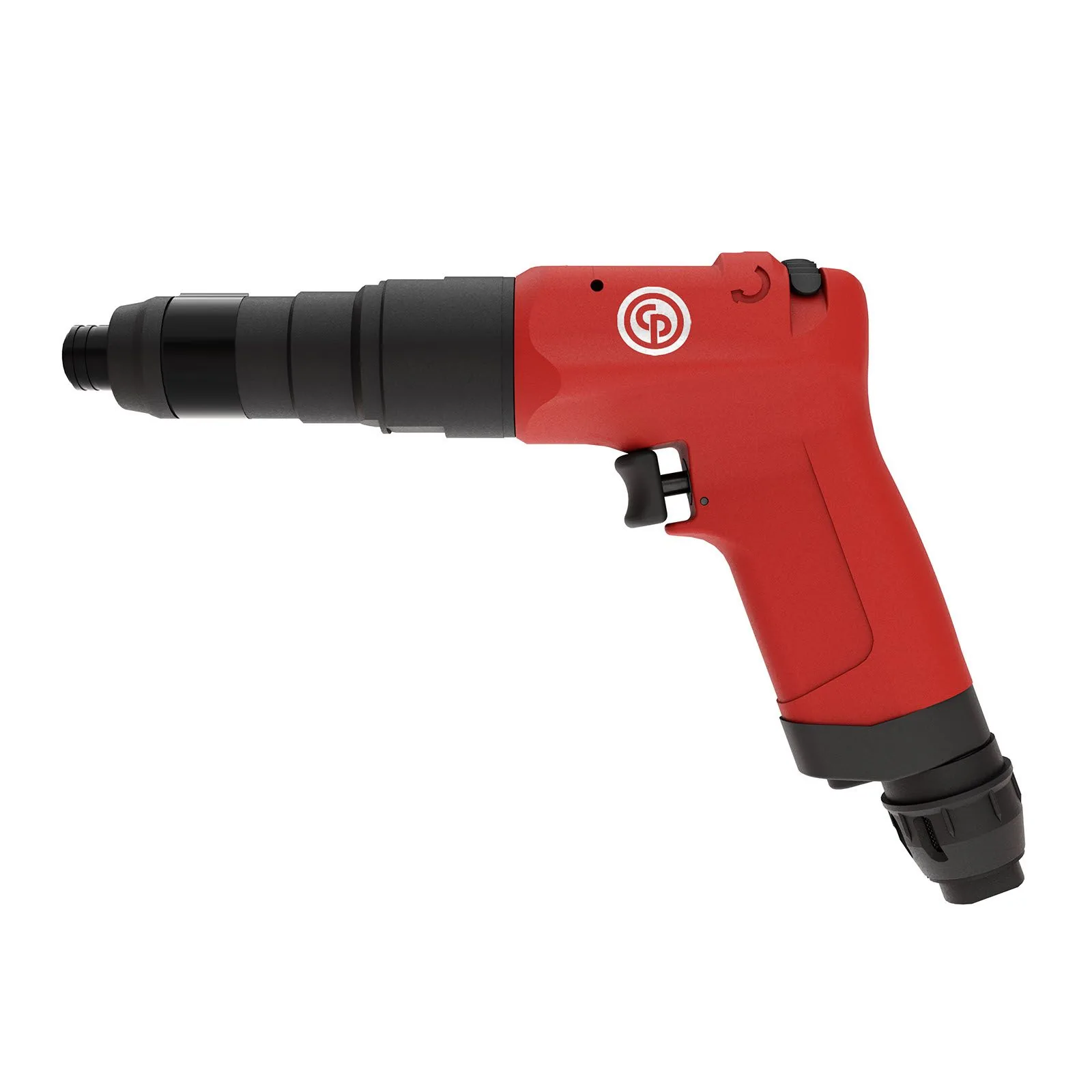

Chicago Pneumatic CP2812 - 1/4 Inch Hex Shank Air Screwdriver, Reversible, Pistol Handle, Cushion Clutch, Quick Change, Max Torque 8.1 ft. lbf / 11 Nm - 950 RPM
6151630080
Pistol
Cushion clutch
Pneumatic
8.1
1.8
1/4
950
17
1/4
90
0.38
93
82
6.3
9.13
1.93
2.43
Non shut-off-clutch
Key
Aluminum
Steel
Aluminium, Composite over-sleeve
Hex
Quick change
Yes
Push start
BSP
<2.5
CI-6151630090

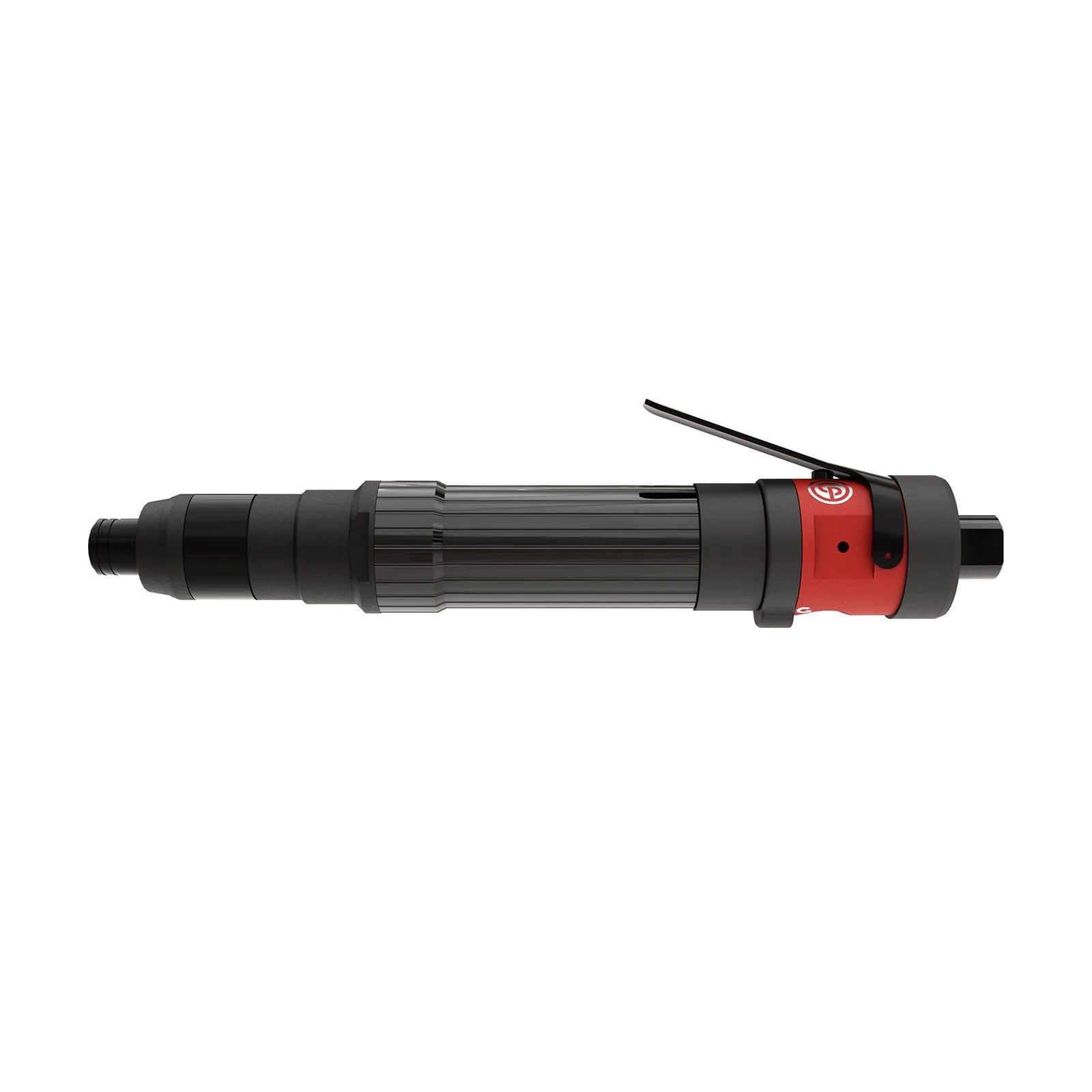

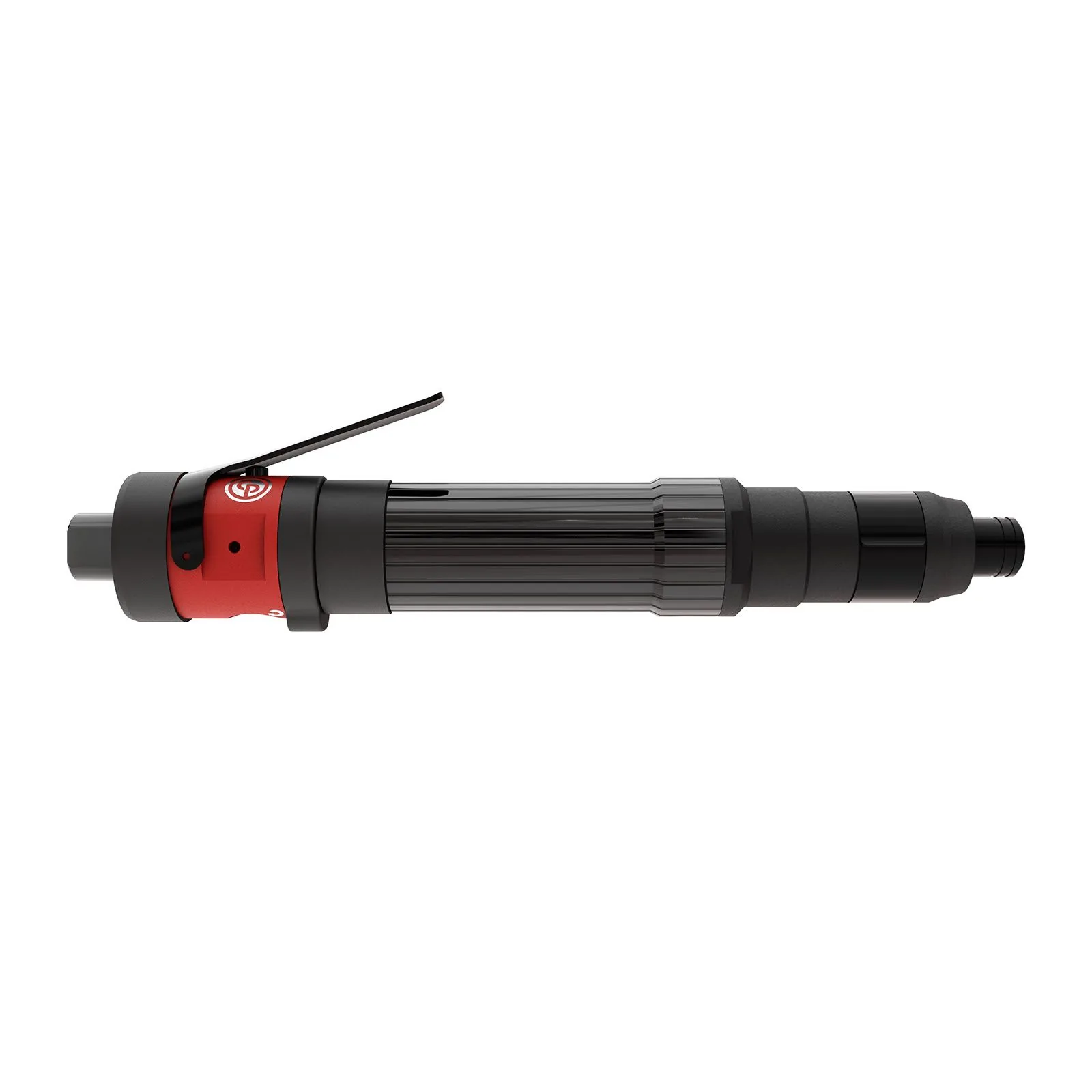

Chicago Pneumatic CP2828 - 1/4 Inch Hex Shank Air Screwdriver, Reversible, Straight Handle, Cushion Clutch, Quick Change, Max Torque 4.4 ft. lbf / 6 Nm - 1300 RPM
6151630090
Straight
Cushion clutch
Pneumatic
4.4
1.5
1/4
1300
8.5
1/4
90
0.25
94
83
1.46
9.84
1.46
1.98
Non shut-off-clutch
Key
Aluminum
Steel
Aluminium, Composite over-sleeve
Hex
Quick change
Yes
Push start
BSP
<2.5
