Chicago Pneumatic CP28 series – Direct drive

Chicago Pneumatic CP28 series – Direct drive

$826.00$1,022.00

Add to Cart
Chicago Pneumatic CP28 series – Direct drive
Chicago Pneumatic CP28 series - Direct drive
$826.00$1,022.00

Robust and Precise Pistol Design for Heavy Duty Applications

CP28 Direct drive series meet the demands for industrial performance, accuracy and durability.

  • Durable stall torque clutch for various fastening
  • Light weight for intensive use.
  • Robust aluminium body,evenfor heavy duty application
  • Convenient progressive trigger and one-hand reversebutton for ergonomic handing

The CP28 series direct drive pneumatic screwdriver have a high robustness with aluminum body. Designed for heavy duty applications. It has a speed of 2400 rpm and offers a tightening torque up to 3.32 ft.lb/4.5 Nm for the CP2810. CP2811 offers a speed of 750 rpm and a tightening torque up to 8.85 ft.lb/12 Nm. Good handling is ensured thanks to its convenient progressive trigger and one-hand reverse button.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Handle type
Clutch Type
Power Source
Max torque in forward (lb ft)
Output drive size (in)
Free Speed (rpm)
Air consumption at free speed (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Height (in)
Length (in)
Width (in)
Tool Weight (lb)
Torque Control System
Body
Clutch Housing
Output drive type
Output retainer type
Reversible
Starting System
Air Inlet Thread Type
Vibration (m/s²)
CI-6151630070

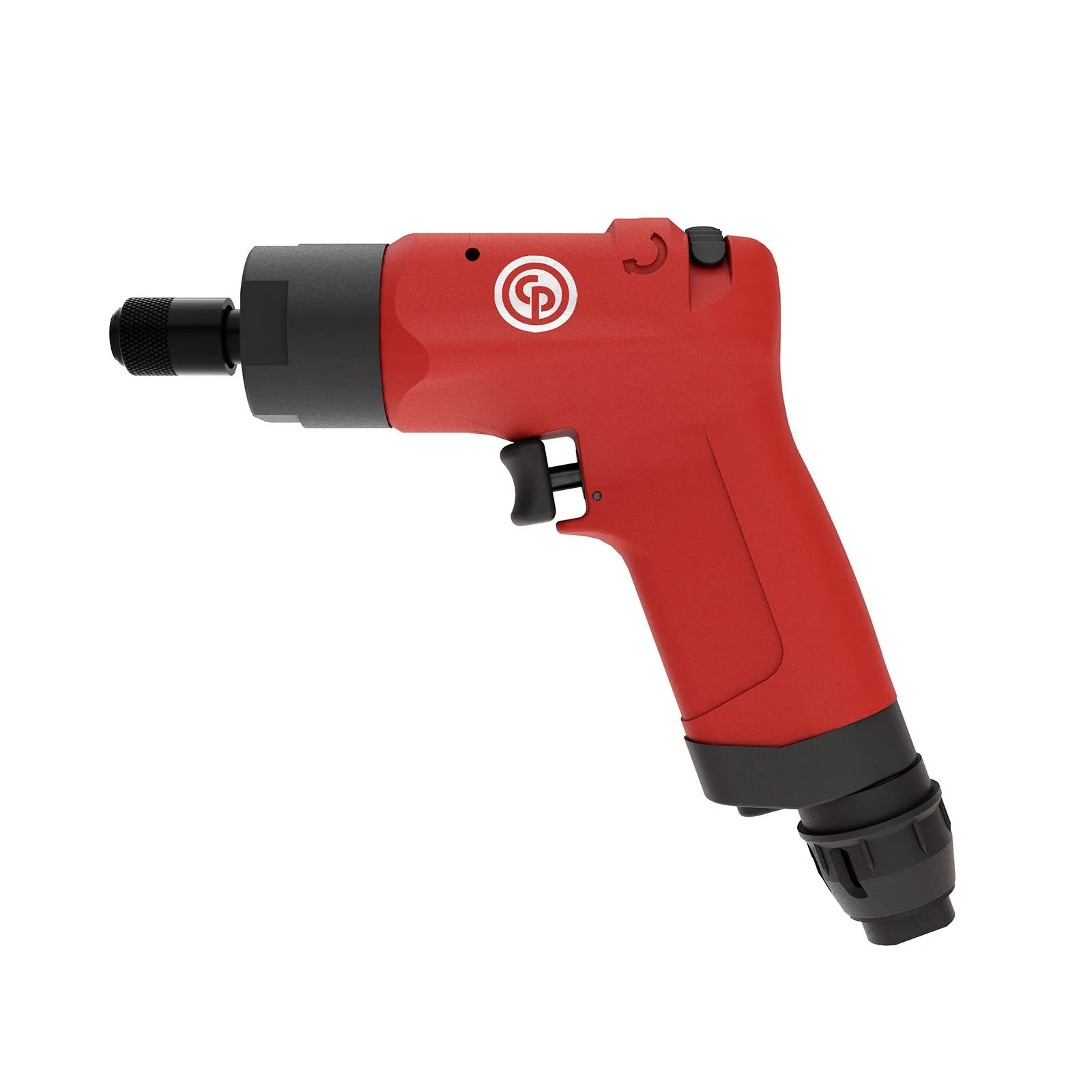

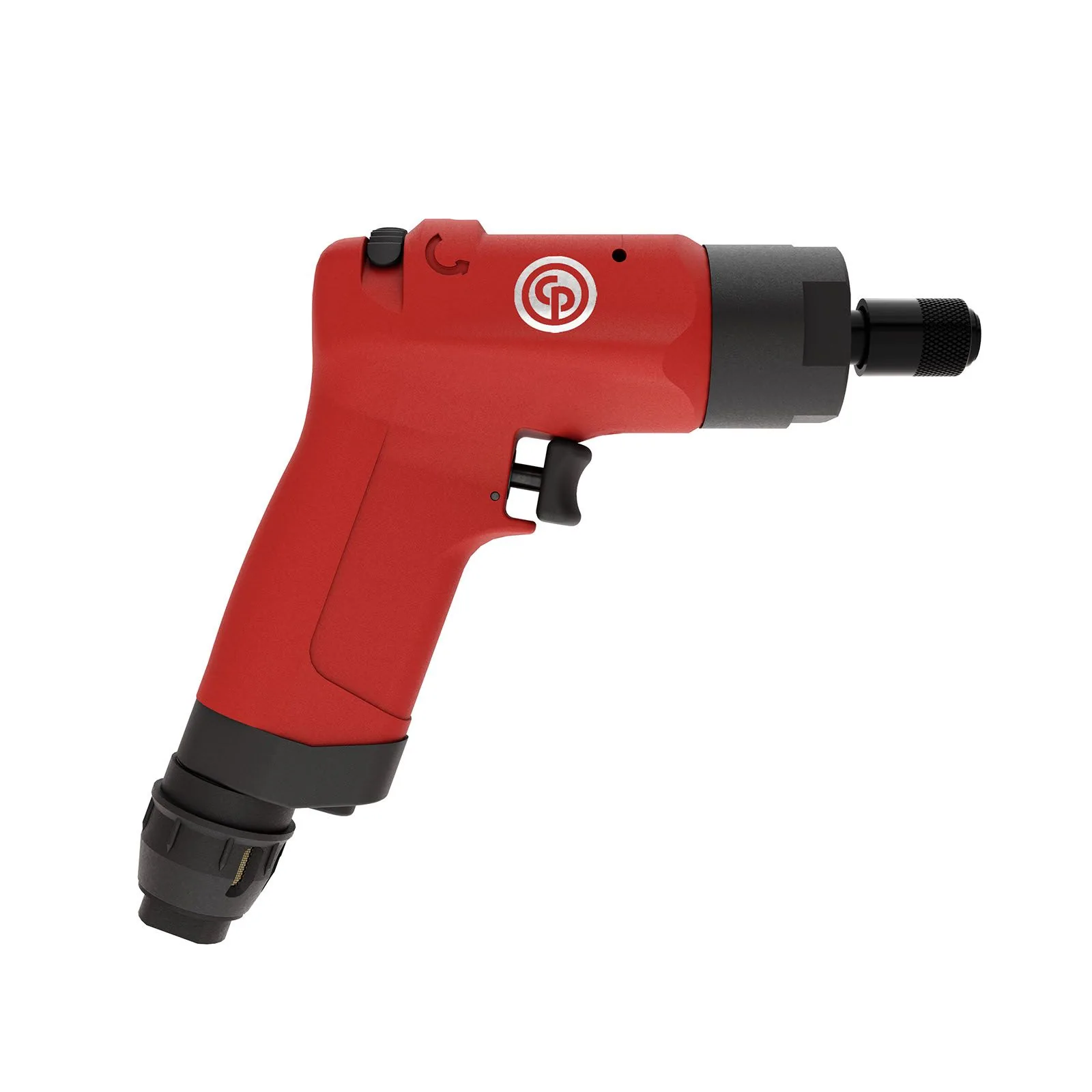

CP2810 - Straight
6151630070
Straight
Direct drive
Pneumatic
3.3
1/4
2400
11
1/4
90
0.31
94
83
6.3
7.2
1.93
1.76
None
Aluminum
Steel
Hex
Quick change
Yes
Trigger
BSP
<2.5
CI-6151630060

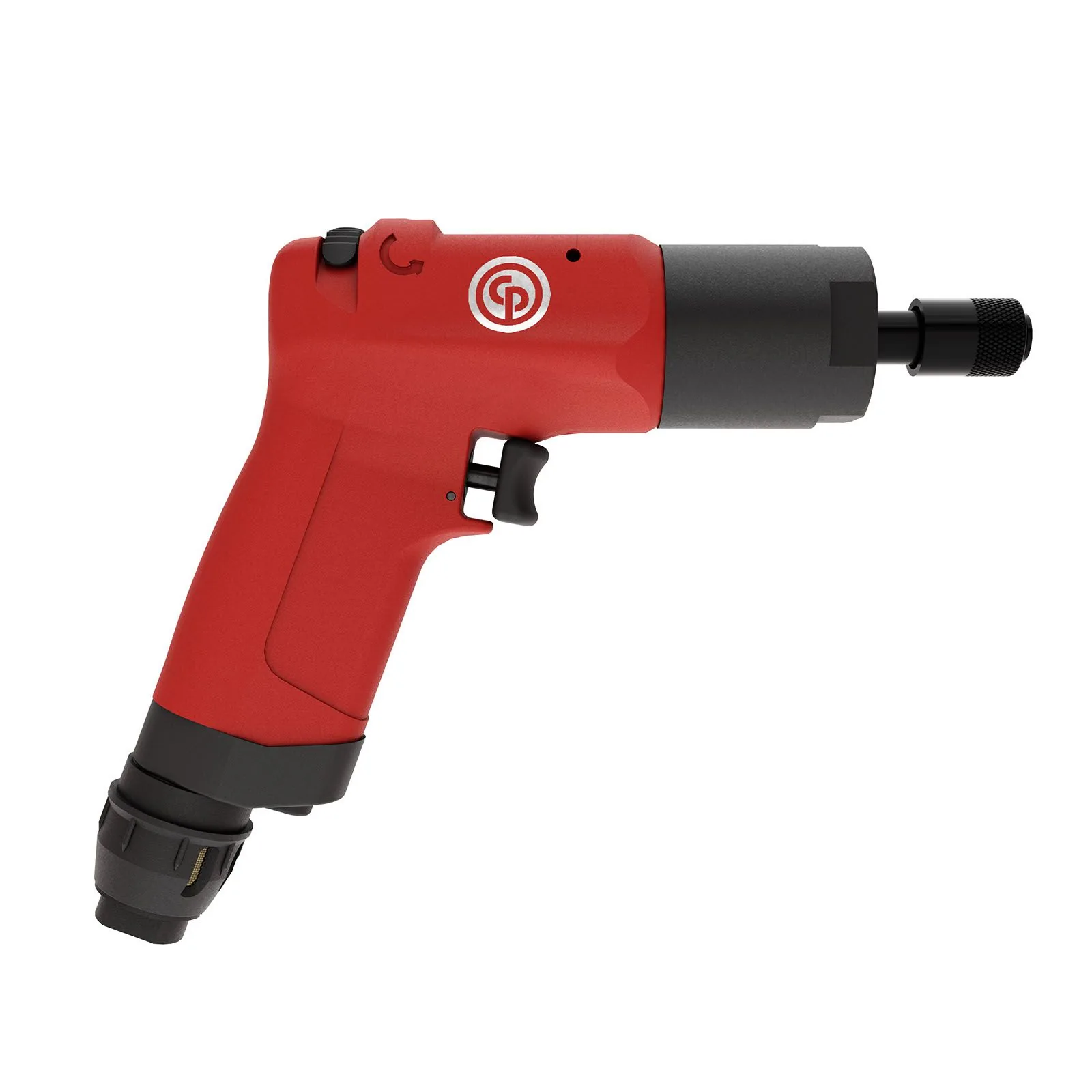

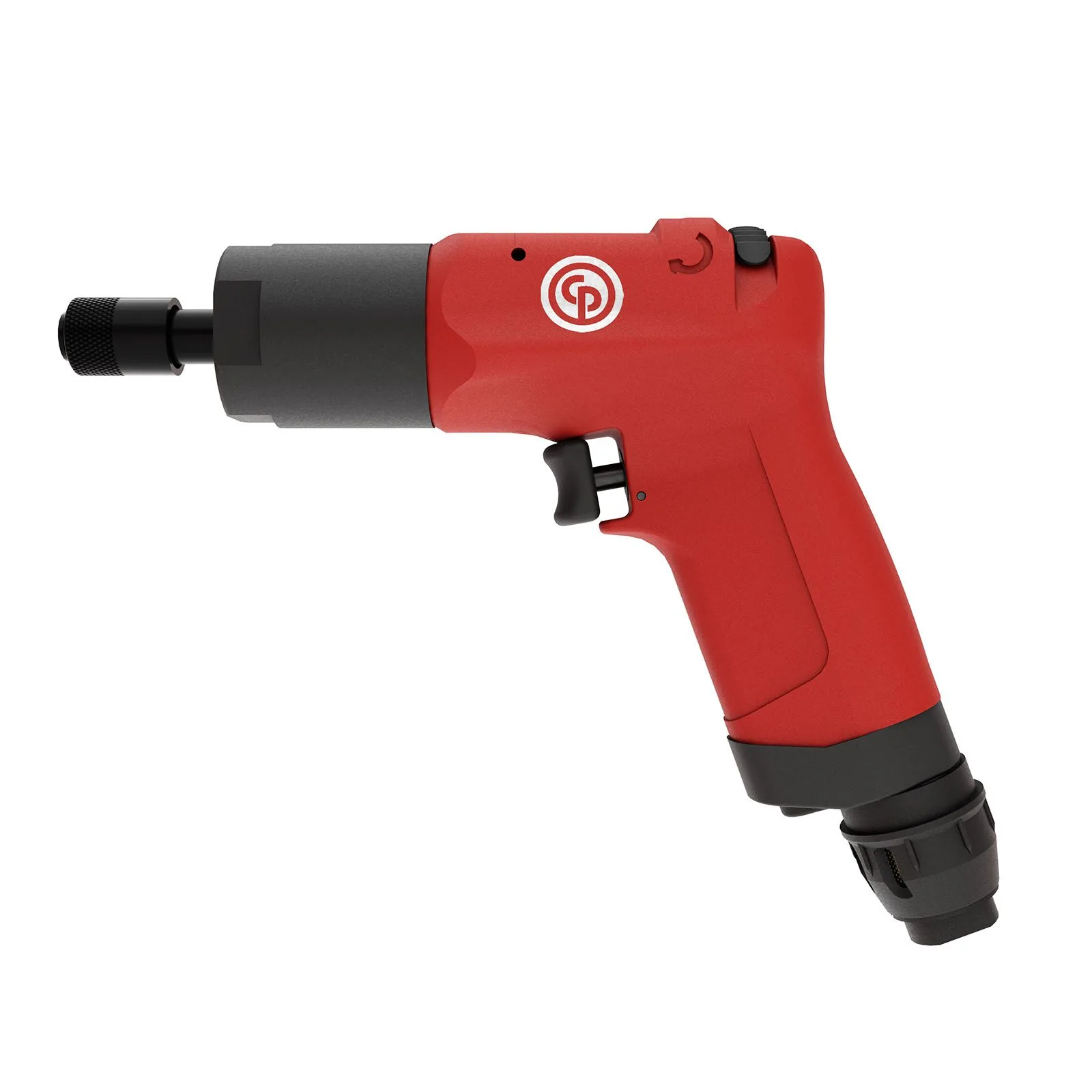

CP2811 - Pistol
6151630060
Pistol
Direct drive
Pneumatic
8.9
1/4
750
11
1/4
90
0.31
94
83
6.3
8.03
1.93
1.98
None
Aluminum
Steel
Hex
Quick change
Yes
Trigger
BSP
<2.5
