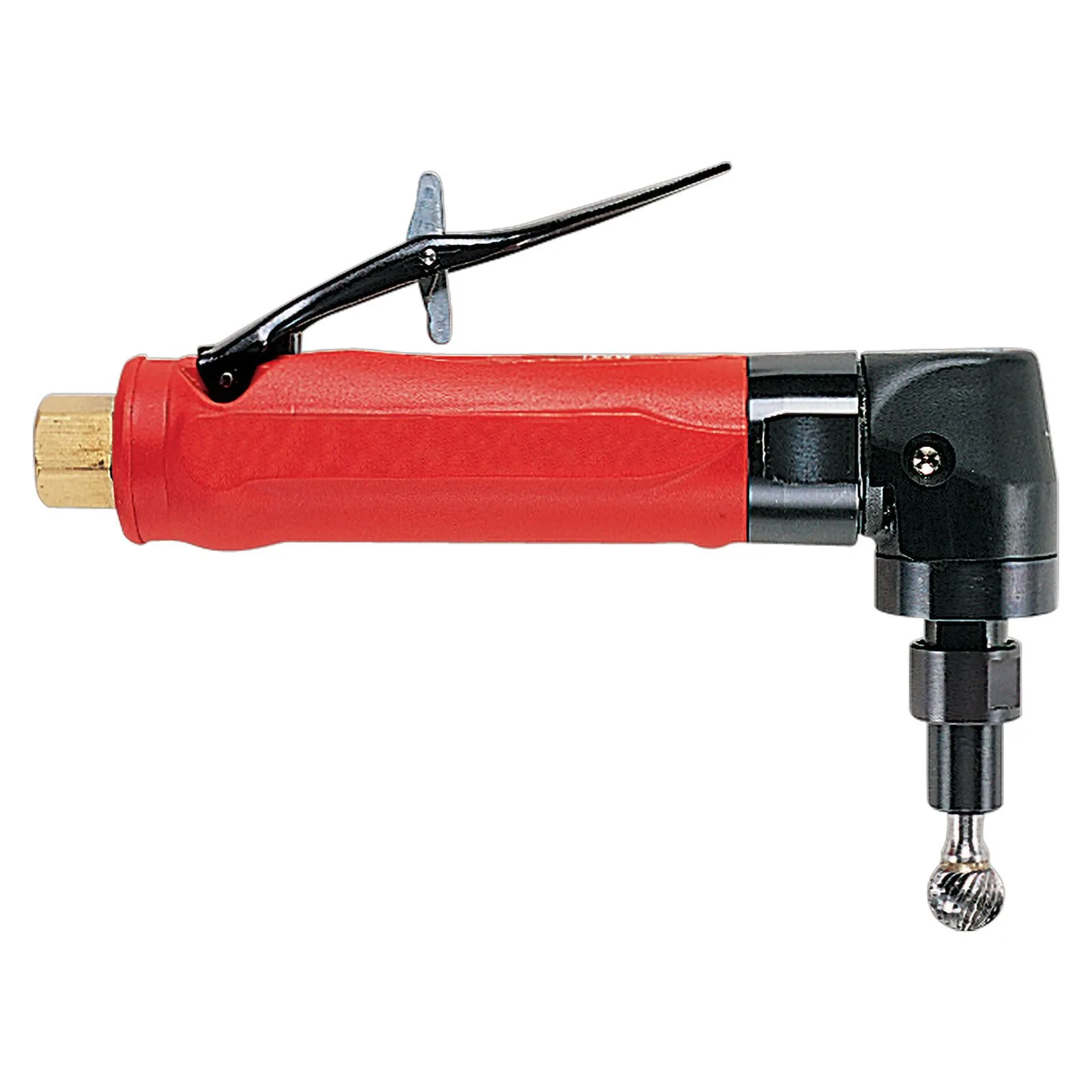

Chicago Pneumatic CP3019 Series – Angle Die Grinders

$746.00 – QUOTE

Visit Chicago Pneumatic store

Chicago Pneumatic CP3019 Series – Angle Die Grinders

$746.00 – QUOTE

Chicago Pneumatic CP3019 Series - Angle Die Grinders

$746.00 – QUOTE

Free Speed (rpm): No selection

More options

Cnomo: No selection

More options

Exhaust: No selection

More options

Handle Length: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

High Performance in a Compact Package

High performance in a compact industrial Air angle die grinder tool with a powerful 0.5 hp (375 W) motor.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Streamlined safety lever for operator safety
Powerful 0.5 hp (375 W) governed motor ensures safety
Compact body with an insulating composite over-housing for operator comfort and superior ergonomics

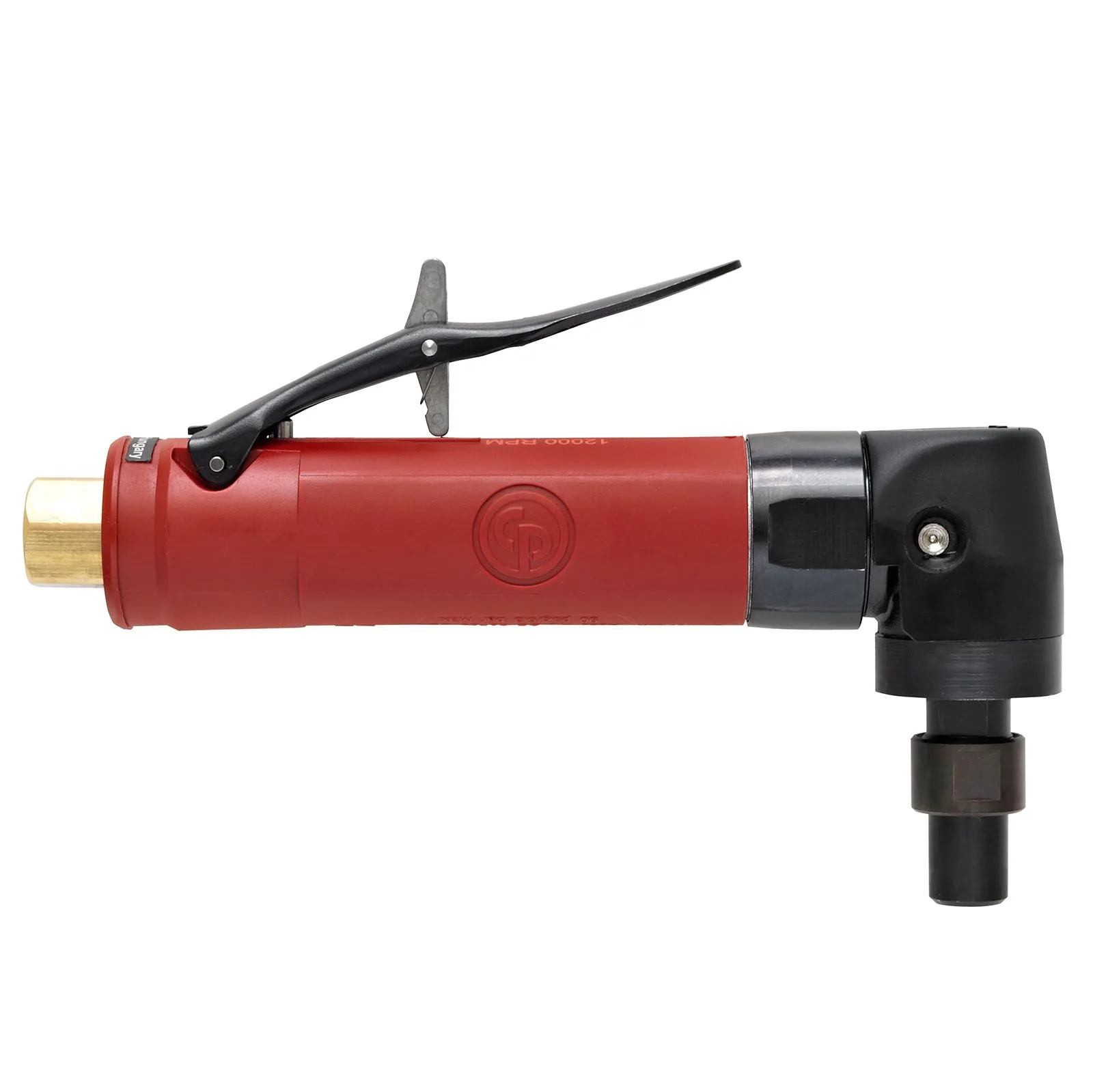

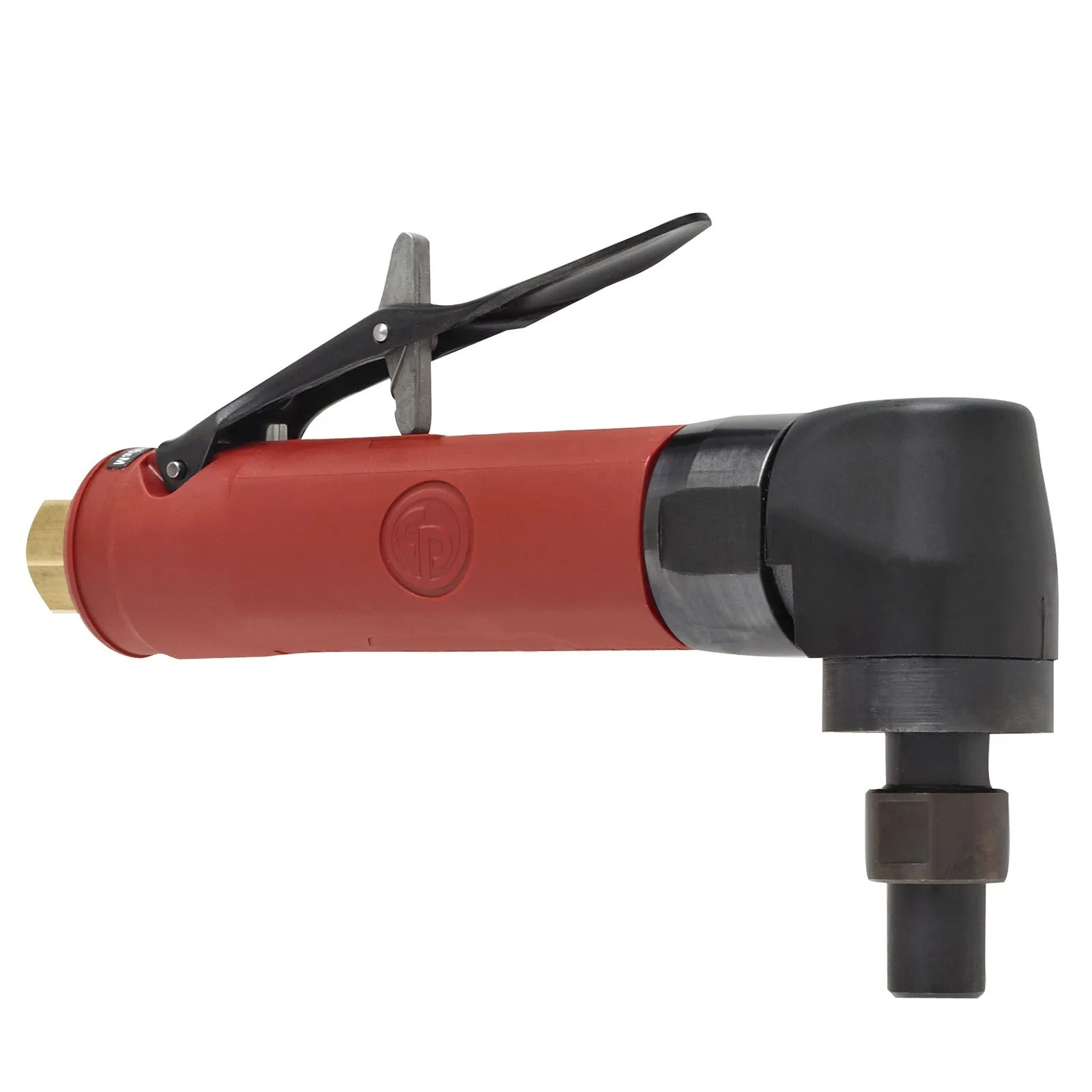

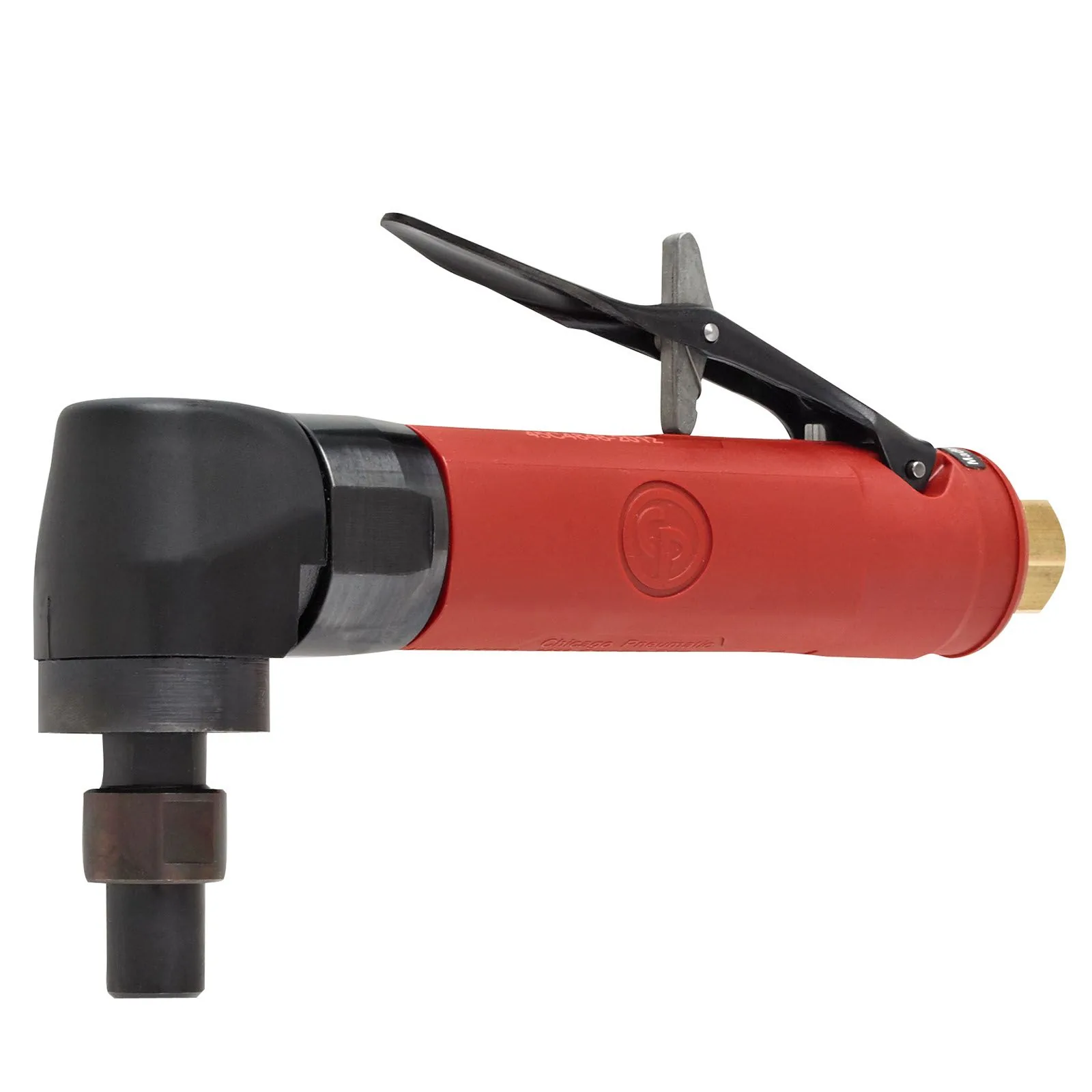

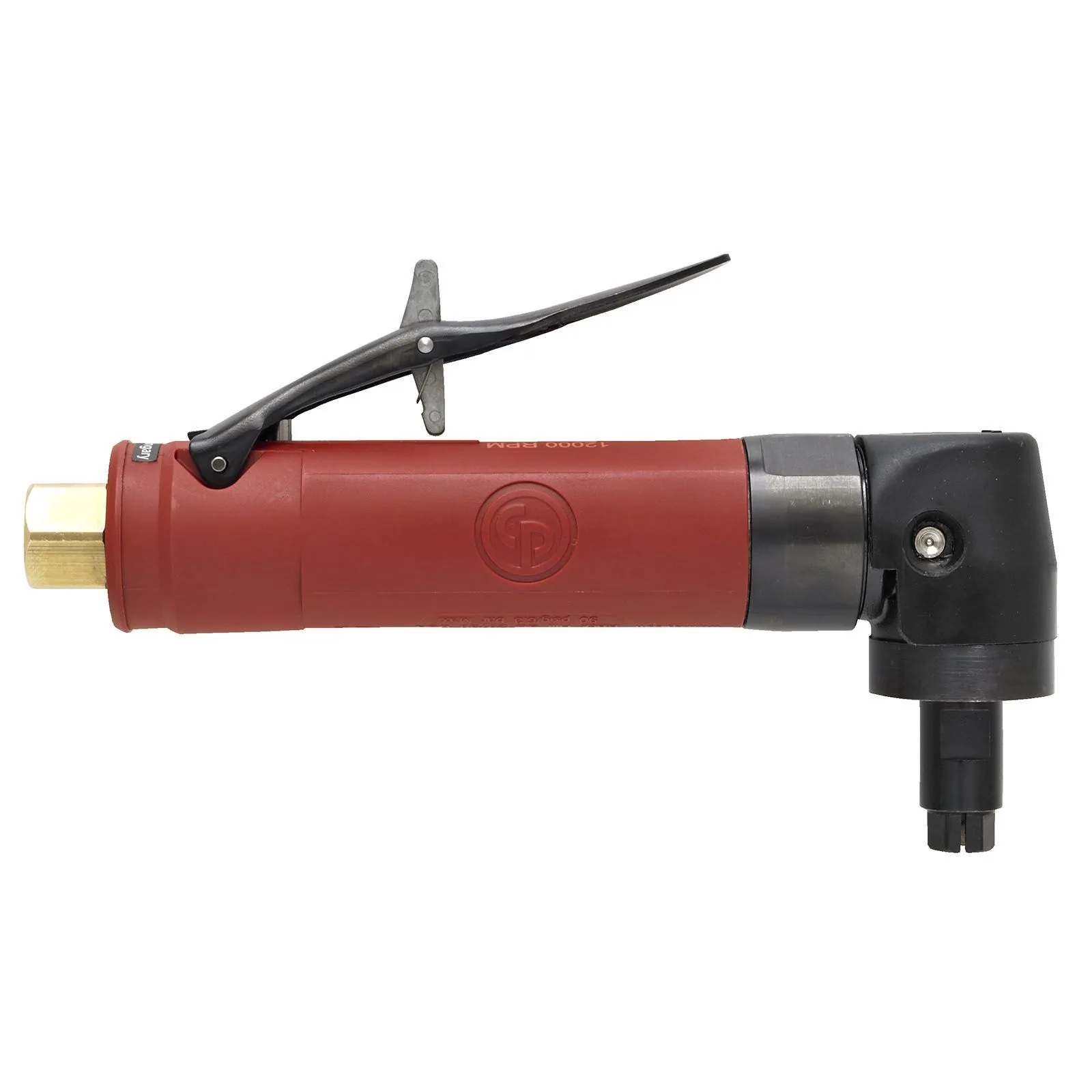

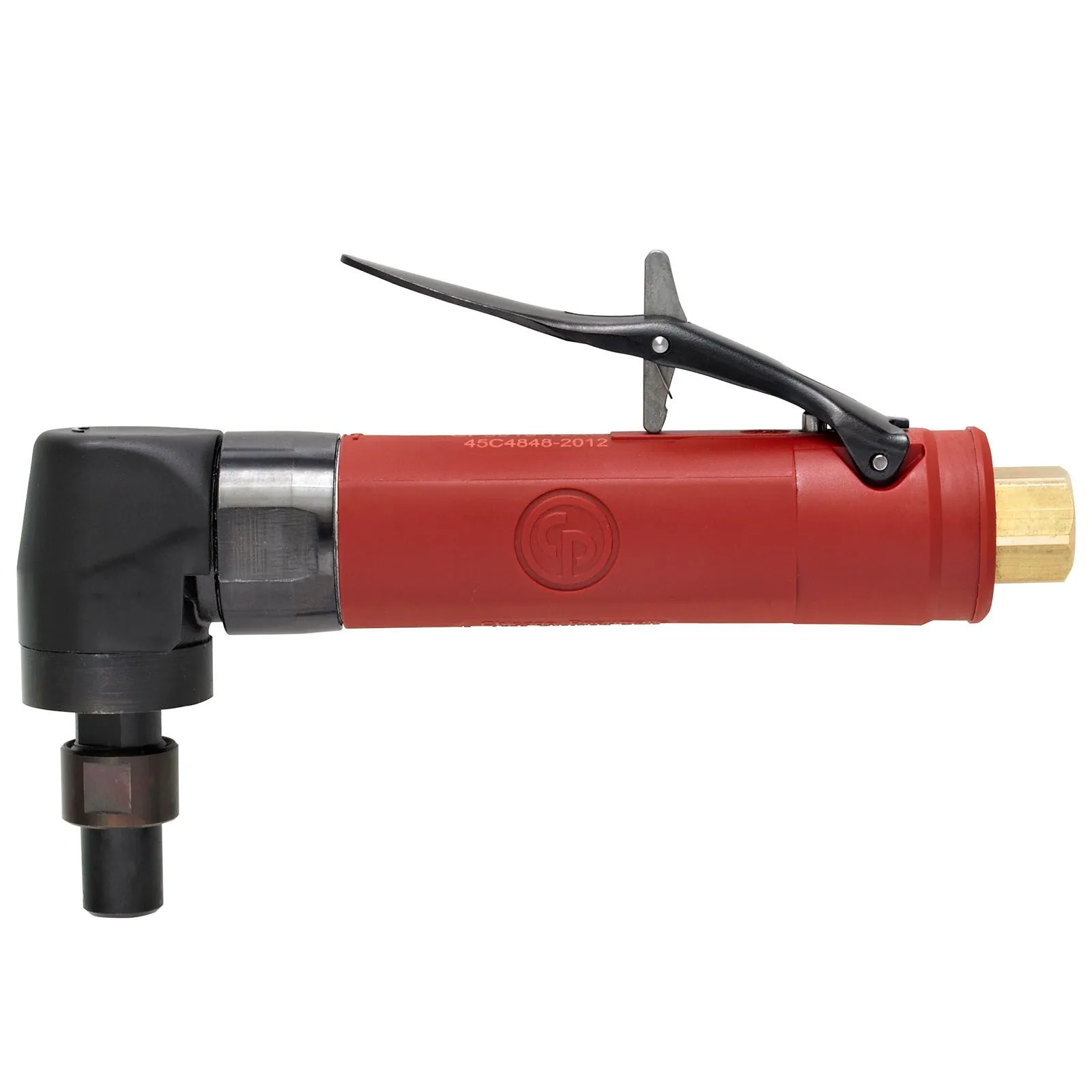

The CP3019 Series – angle pneumatic Die Grinders, with a 1/4″ (6.35 mm) collet capacity or CNOMO collet capacity consists of 4 models with 2 free speed options from 12,000 to 20,000 rpm. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. The range is characterized by a compact design and a simplified safety lever.

Compare this against the other pneumatic grinders in the catalog and the companion custom maintenance tools are stocked alongside it. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

	CI-6151604230	CI-6151700390	CI-6151604240	CI-6151700470	CI-6151702660	CI-6151604070	CI-6151701470	CI-6151702050	CI-6151704610	CI-6151604080	CI-6151701460	CI-6151702060
SKU	CI-6151604230	CI-6151700390	CI-6151604240	CI-6151700470	CI-6151702660	CI-6151604070	CI-6151701470	CI-6151702050	CI-6151704610	CI-6151604080	CI-6151701460	CI-6151702060
Product Name	Chicago Pneumatic CP3019-12AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 370 W - 12000 RPM	Chicago Pneumatic CP3019-12ACES - 1/4 Inch (6 mm) Air Ext. Angle Die Grinder, 0.5 HP / 375 W - 12000 RPM	Chicago Pneumatic CP3019-20AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 370 W - 20000 RPM	Chicago Pneumatic CP3019-20ACES - 1/4 Inch (6 mm) Air Ext. Angle Die Grinder, 0.5 HP / 375 W - 20000 RPM	Chicago Pneumatic CP3019-09AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 375 W - 9000 RPM	Chicago Pneumatic CP3019-12AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 370 W - 12000 RPM	Chicago Pneumatic CP3019-12ACES - 1/4 Inch (6 mm) Air Ext. Angle Die Grinder, 0.5 HP / 375 W - 12000 RPM	Chicago Pneumatic CP3019-12ACFE - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 375 W - 12000 RPM	Chicago Pneumatic CP3019-18AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 375 W - 18000 RPM	Chicago Pneumatic CP3019-20AC - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 370 W - 20000 RPM	Chicago Pneumatic CP3019-20ACES - 1/4 Inch (6 mm) Air Ext. Angle Die Grinder, 0.5 HP / 375 W - 20000 RPM	Chicago Pneumatic CP3019-20ACFE - 1/4 Inch (6 mm) Air Angle Die Grinder, 0.5 HP / 375 W - 20000 RPM
Vendor SKU	6151604230	6151700390	6151604240	6151700470	6151702660	6151604070	6151701470	6151702050	6151704610	6151604080	6151701460	6151702060
Free Speed (rpm)	12000	12000	20000	20000	9000	12000	12000	12000	18000	20000	20000	20000
Cnomo	Yes	Yes	Yes	Yes	No	No	No	No	No	No	No	No
Exhaust	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Front	Rear	Rear	Rear	Front
Handle Length	Standard	Extended	Standard	Extended	Standard	Standard	Extended	Standard	Standard	Standard	Extended	Standard
Max power	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Length (in)	8.5	9.69	8.5	9.69	6.54	8.5	9.69	6.54	6.54	8.5	9.69	6.54
Tool Weight (lb)	1.12	1.32	1.12	1.32	1.1	1.12	1.34	1.1	1.12	1.12	1.34	1.1
Air consumption at free speed (cfm)	6.8	6.4	11	13	6.4	6.8	6.4	6.4	21	11	13	13
Air Consumption At Load (cfm)	17	19	19	21	19	17	19	19	13	19	21	21
Air Inlet Thread Size (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Max Dynamic Air Working Pressure (psi)	90	90	90	90	90	90	90	90	90	90	90	90
Min Hose Diam (mm)	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31
Sound Power (dB(A))	89	88	93	91	87	89	88	89	88	93	91	91
Sound Pressure (dB(A))	78	77	82	80	76	78	77	78	77	82	80	80
Uncertainty Vibration-k (ft/s²)	6.2	4.6	11.2	7.5	5.6	6.2	5.9	6.6	6.9	11.2	8.2	6.9
Air Inlet Thread Type	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT
Angle Type	90 Degree	-	90 Degree	-	-	90 Degree	-	-	-	90 Degree	-	-
Collet max capacity (in)	1/4	-	1/4	-	-	1/4	-	-	-	1/4	-	-
Collet/collet Holder/collet Nut Type	Cnomo type	-	Cnomo type	-	-	Erickson serie 300 type	-	-	-	Erickson serie 300 type	-	-
Governor Type	Ball	-	Ball	-	-	Ball	-	-	-	Ball	-	Ball
Main Material type	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve
Rotative Inlet	No	No	No	No	No	No	No	No	No	No	No	No
Spindle Lock	No	No	No	No	No	No	No	No	No	No	No	No
Starting System	Safety lever	Lever	Safety lever	Lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever
Autobalancer	No	No	No	No	No	No	No	No	No	No	No	No
Vibration (m/s²)	-	11.2	-	16.7	10.8	-	12.1	10.5	13.5	-	16.4	-
Height (in)	-	2.99	-	2.99	2.99	-	2.99	2.99	2.99	-	2.99	2.99
Swiveling Guard	-	No	-	No	No	-	No	No	No	-	No	-
