Chicago Pneumatic CP3019 Series – Angle Grinders

$793.00 – $1,143.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP3019 Series – Angle Grinders

$793.00 – $1,143.00

Chicago Pneumatic CP3019 Series - Angle Grinders

$793.00 – $1,143.00

Free Speed (rpm): No selection

More options

Wheel/Disc diameter (in): No selection

More options

Handle Length: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

High Performance & Sustainability Are Key

High performance and extreme durability in a compact industrial Angle Grinder tool with a powerful 0.5 hp (375 W) motor.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Streamlined safety lever
Governed motor for operator safety
Compact body with an insulating composite over-housing for operator comfort and superior ergonomics

The combination of extreme durability and powerful motor makes the CP3019 Angle Grinders range a great product for strong productivity. Designed with a governed motor and streamlined safety level, it offers a strong safety level for the operator. 3 models from 3′ (75mm) to 4′ (100mm) max wheel capacity and a 0.5 hp (375 W) powerful motor define the range. CP3019 compact Angle Grinder range free speed is from 13,500 to 20,000 rotations per minute.

Specifications

SKU	Product Name	Vendor SKU	Free Speed (rpm)	Wheel/Disc diameter (in)	Handle Length	Max power	Output Spindle Thread	Power Source	Air consumption at free speed (cfm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Vibration (m/s²)	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Length (in)	Tool Weight (lb)	Autobalancer	Rotative Guard Type	Spindle Lock	Starting System	Swiveling Guard	Air Inlet Thread Type	Guard Max Rotation (°)	Main Material type
CI-6151704880	CP3019-20A2 - Standard, 20000 rpm, 2 in	6151704880	20000	2	Standard	0.5	3/8-24	Pneumatic	13	89	78	11.5	40.4	21	1/4	90	0.31	6.42	1.32	No	Band	No	Safety lever	Key	NPT	-	-
CI-6151704870	CP3019-20AES2 - Extended, 20000 rpm, 2 in	6151704870	20000	2	Extended	0.5	3/8-24	Pneumatic	13	89	78	11.5	40.4	21	1/4	90	0.31	9.57	1.76	No	Band	No	Safety lever	Key	NPT	360	Aluminium, Composite over-sleeve
CI-6151607060	CP3019-18A3 - Standard, 18000 rpm, 3 in	6151607060	18000	3	Standard	0.5	3/8-24	Pneumatic	10	91.4	80.4	8.5	40.4	19	1/4	90	0.31	6.42	1.32	No	Band	No	Safety lever	Key	NPT	360	Aluminium, Composite over-sleeve
CI-6151700450	CP3019-18AES3 - Extended, 18000 rpm, 3 in	6151700450	18000	3	Extended	0.5	3/8-24	Pneumatic	10	91	80	8.5	40.4	19	1/4	90	0.31	9.57	1.79	No	Band	No	Lever	Key	NPT	360	Aluminium
CI-6151607070	CP3019-20A3 - Standard, 20000 rpm, 3 in	6151607070	20000	3	Standard	0.5	3/8-24	Pneumatic	12	93.6	82.6	10.5	43.6	19	1/4	90	0.31	6.42	1.32	No	Band	No	Safety lever	Key	NPT	360	Aluminium, Composite over-sleeve
CI-6151700460	CP3019-20AES3 - Extended, 20000 rpm, 3 in	6151700460	20000	3	Extended	0.5	3/8-24	Pneumatic	12	94	83	10.5	43.6	19	1/4	90	0.31	9.57	1.76	No	Band	No	Lever	Key	NPT	360	Aluminium, Composite over-sleeve

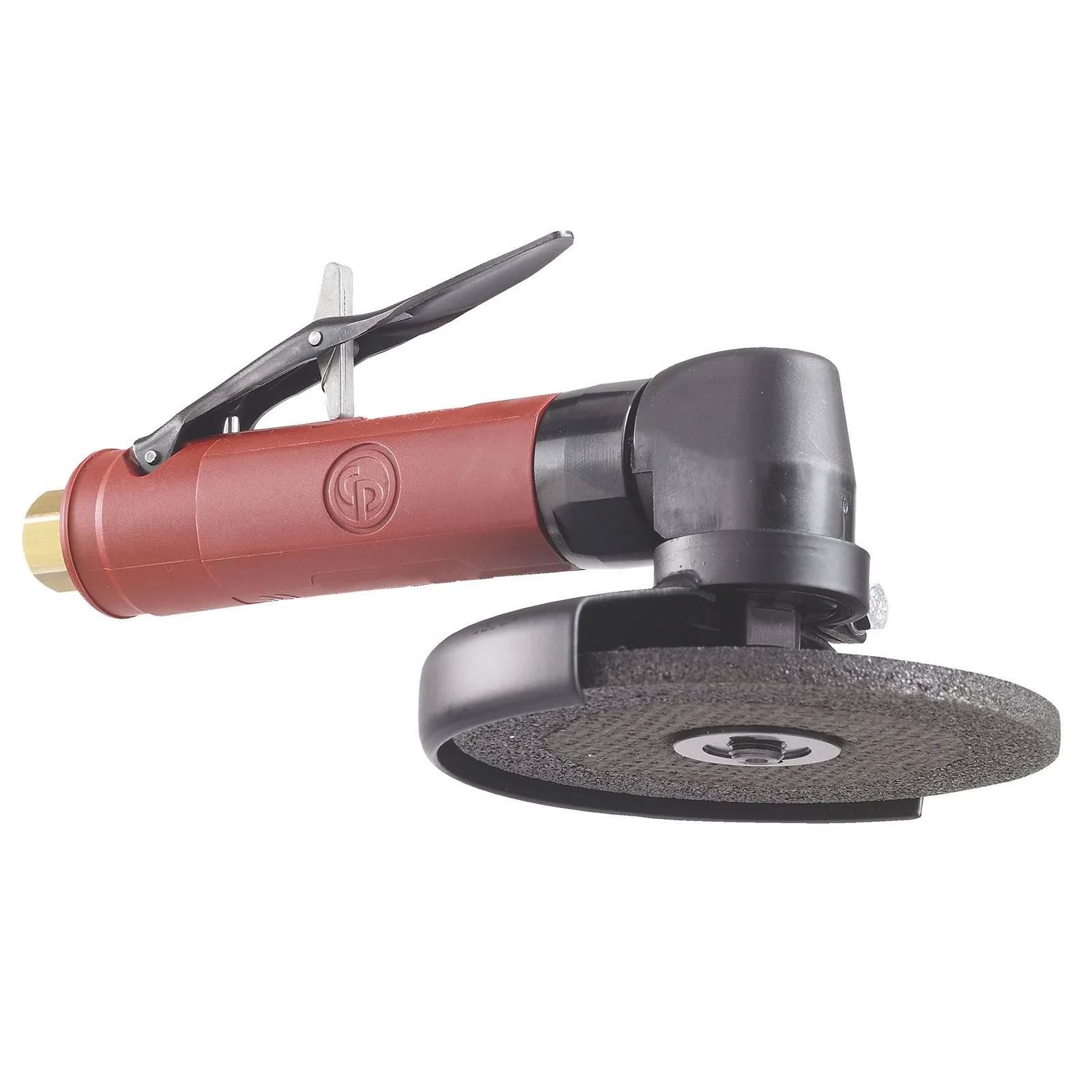

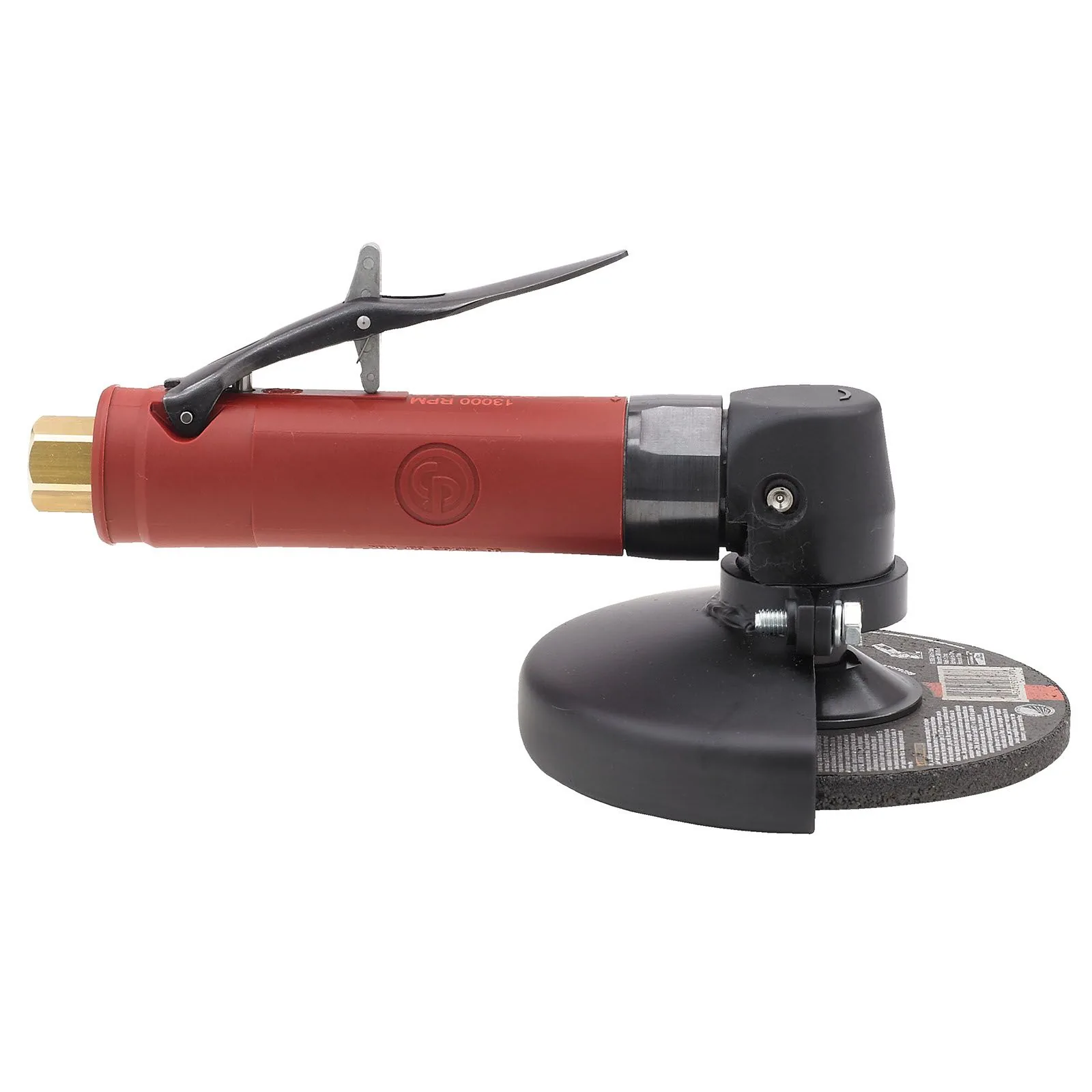

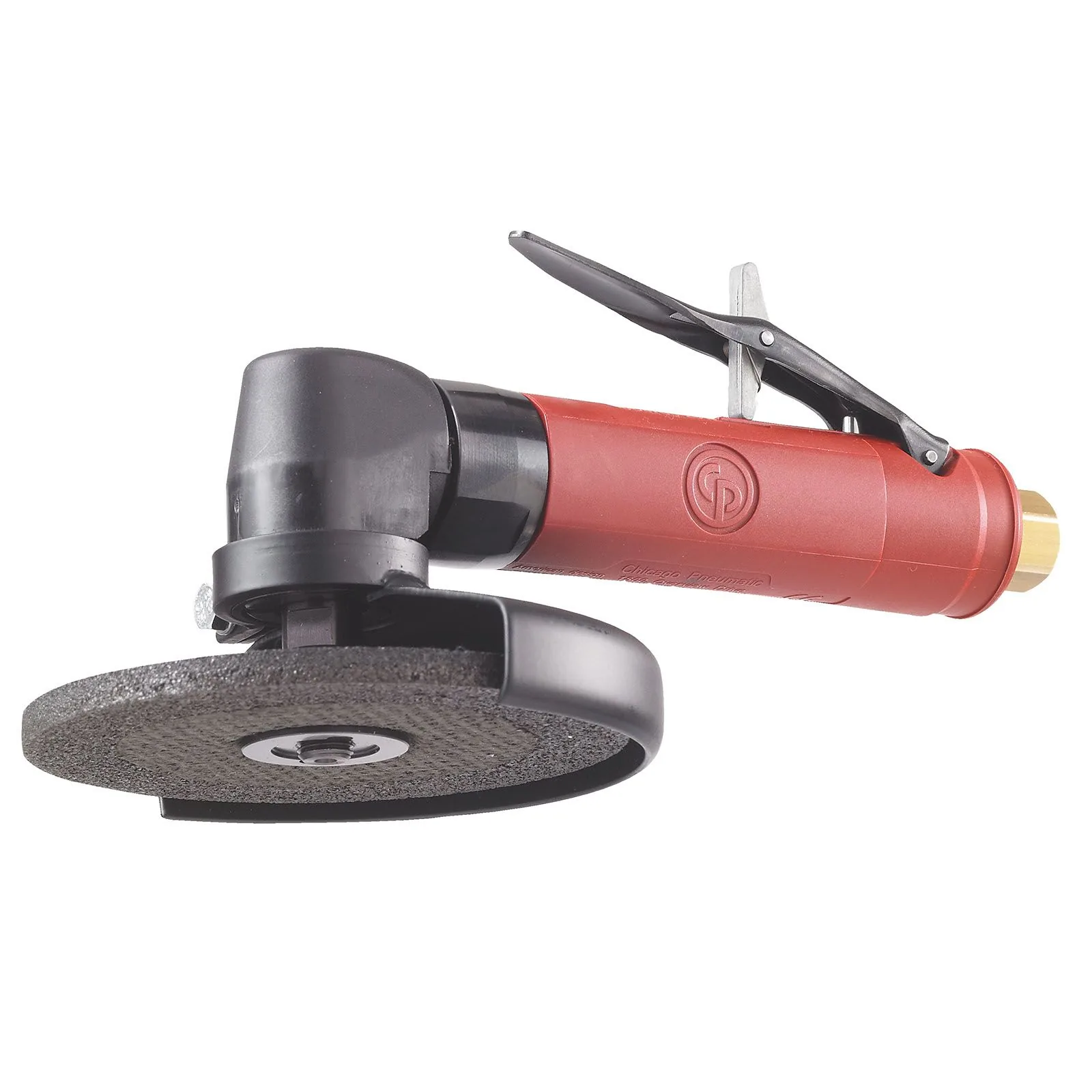

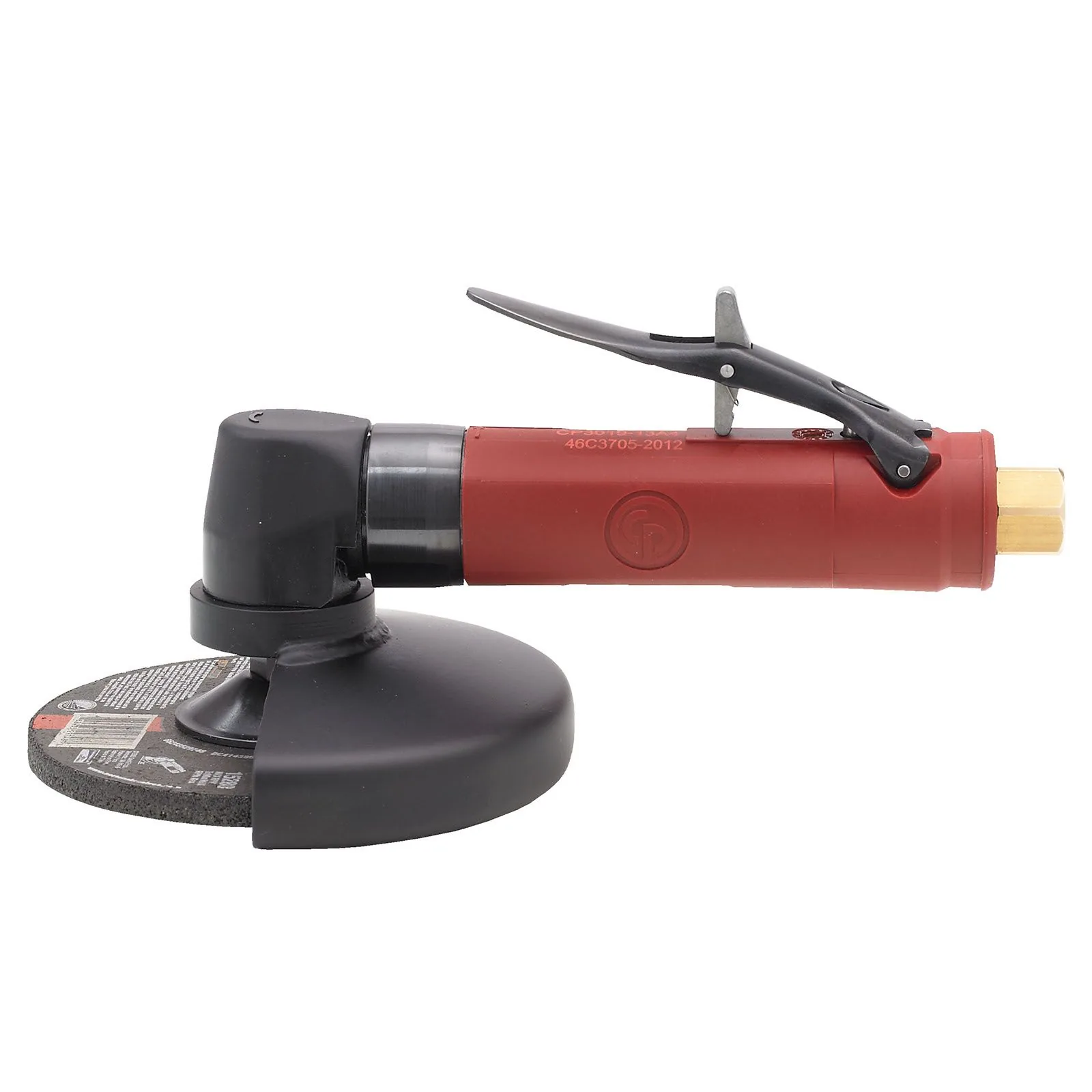

CI-6151607050	CP3019-13A4 - Standard, 13500 rpm, 4 in	6151607050	13500	4	Standard	0.5	3/8-24	Pneumatic	7.4	90.3	79.3	9.8	28.2	17	1/4	90	0.31	6.42	1.54	No	Band	No	Safety lever	Key	NPT	360	Aluminium, Composite over-sleeve
