Straight Compact Design for High Performance

High performance in a compact industrial Air straight or straight extended die grinder tool with a powerful 0.5 hp (375 W) motor.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Streamlined safety lever for operator safety
Powerful 0.5 hp (375 W) governed motor ensures safety
Compact body with an insulating composite over-housing for operator comfort and superior ergonomics

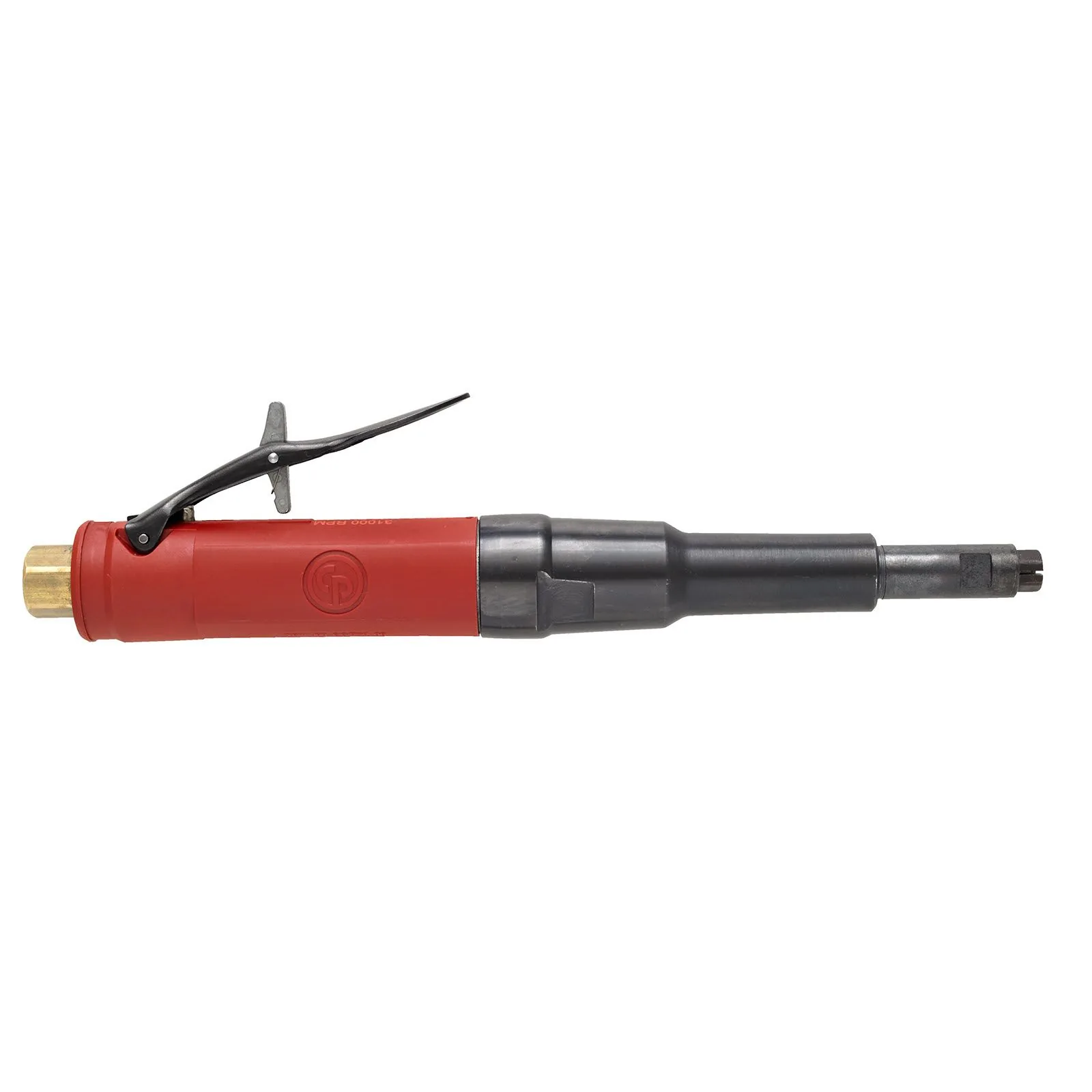

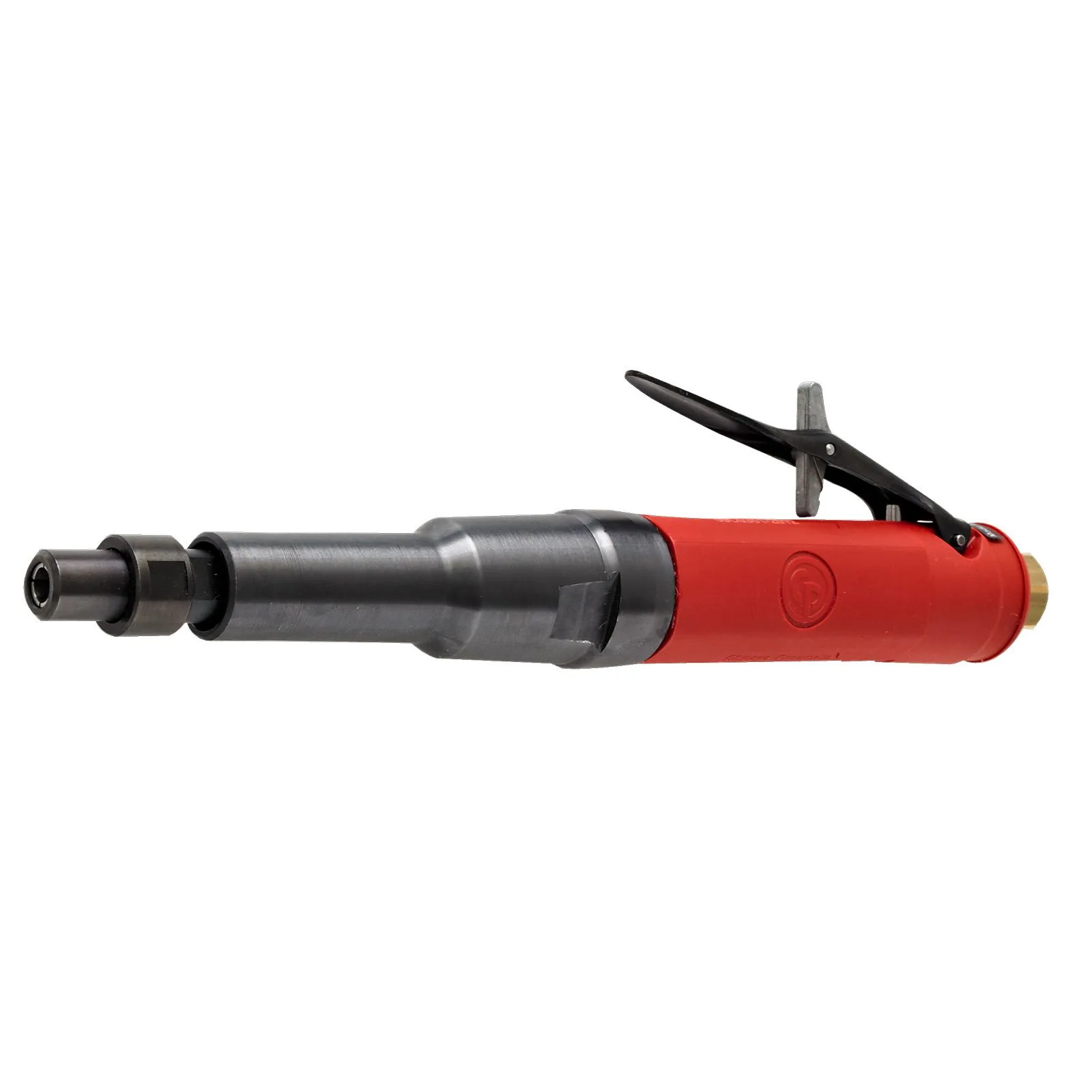

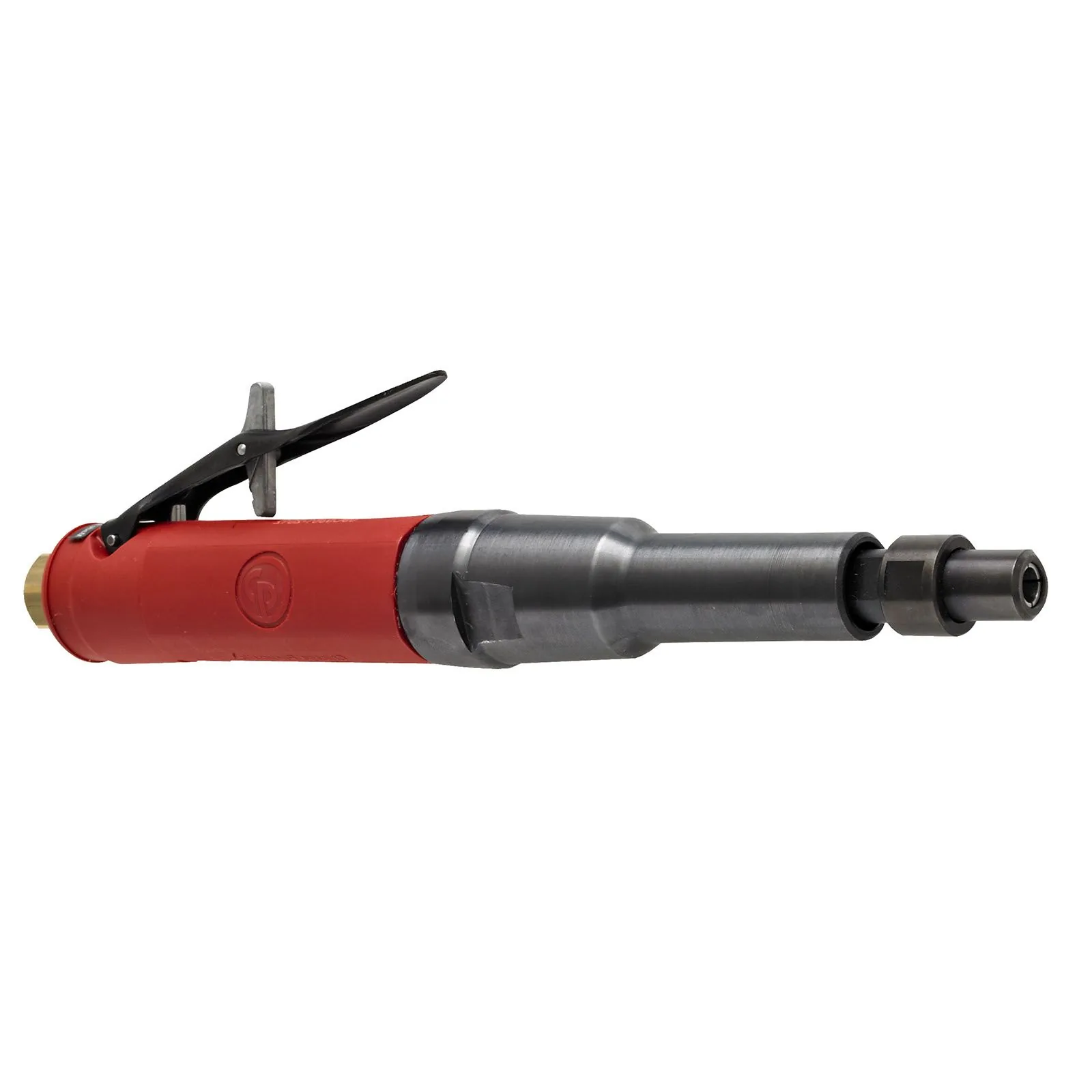

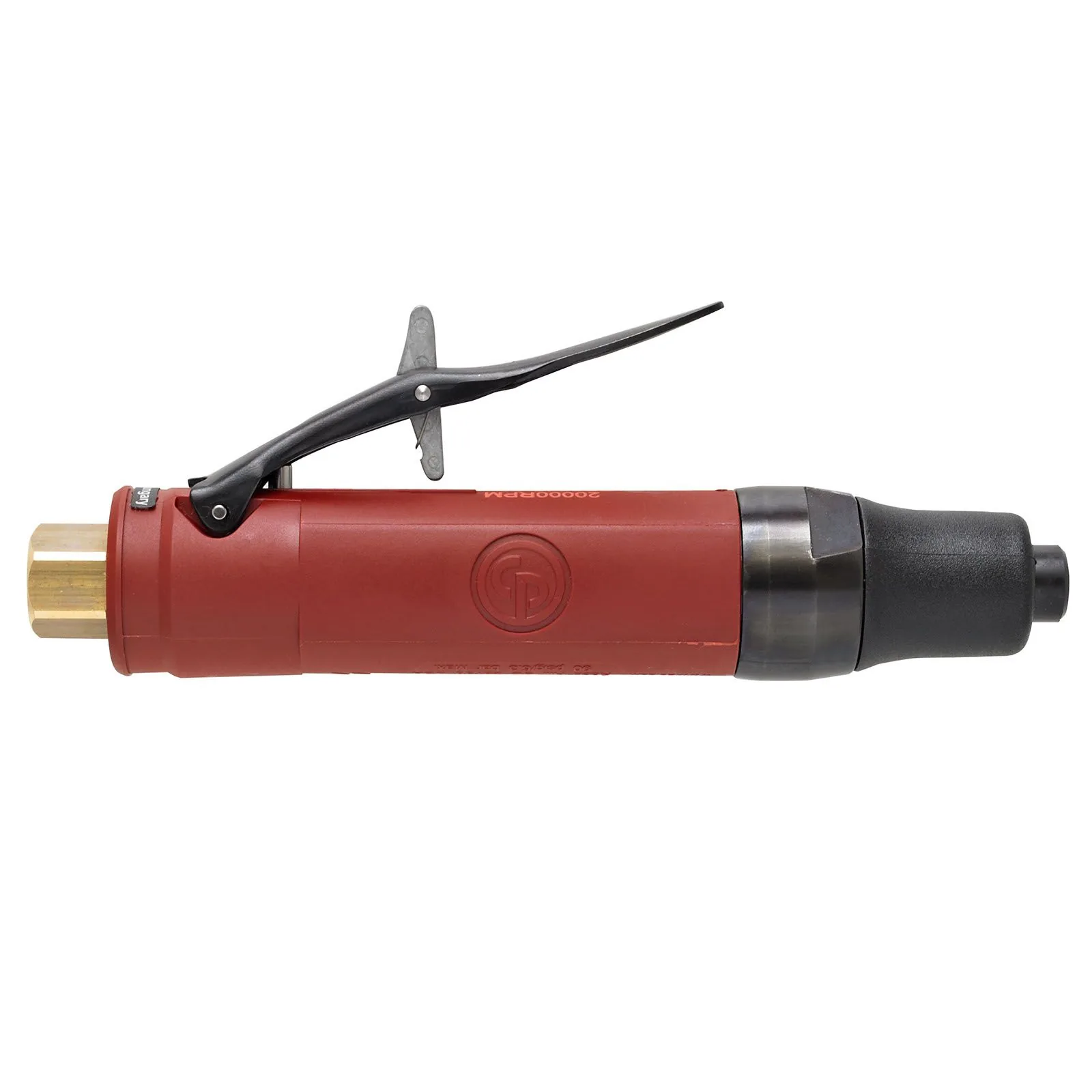

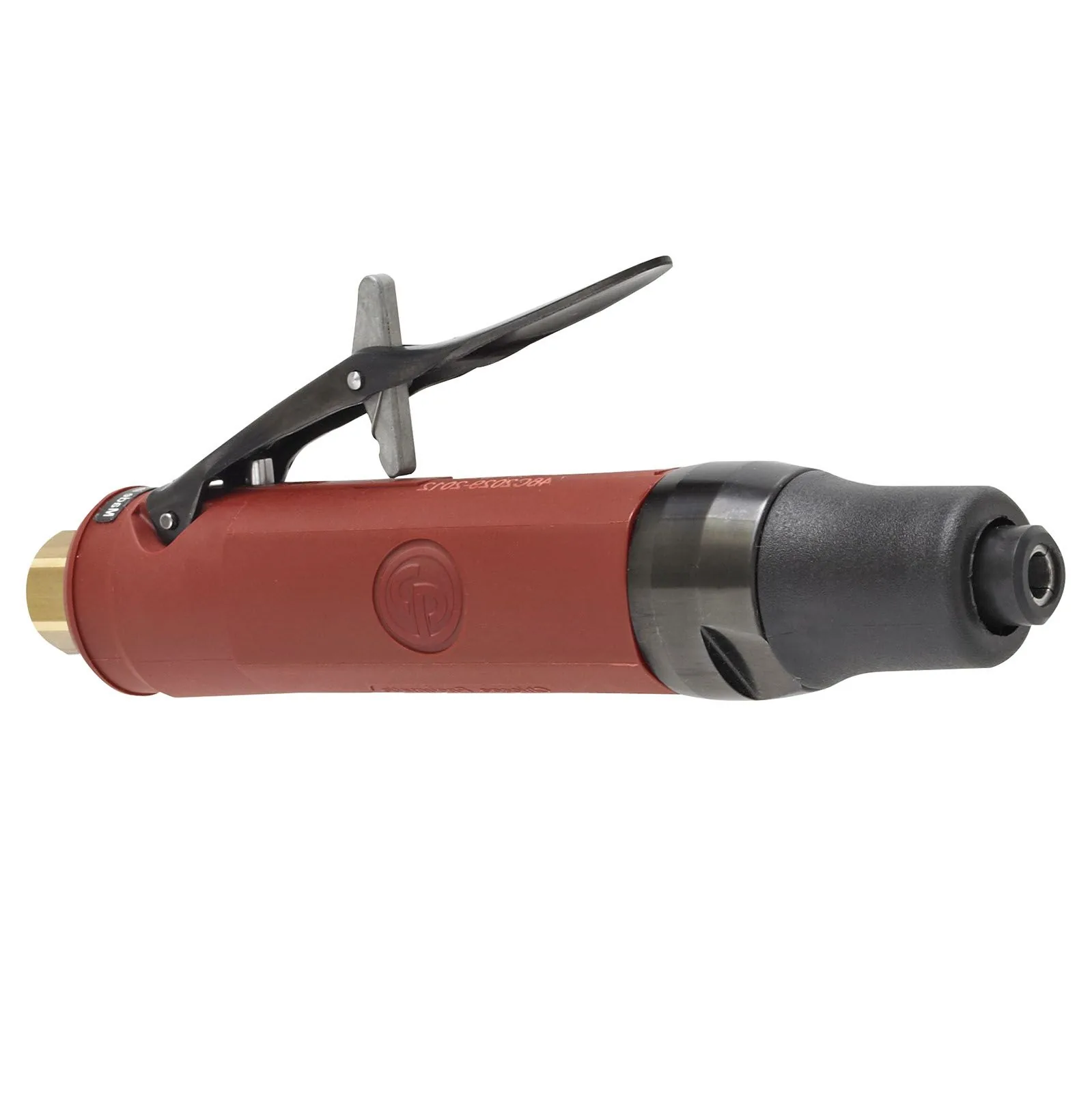

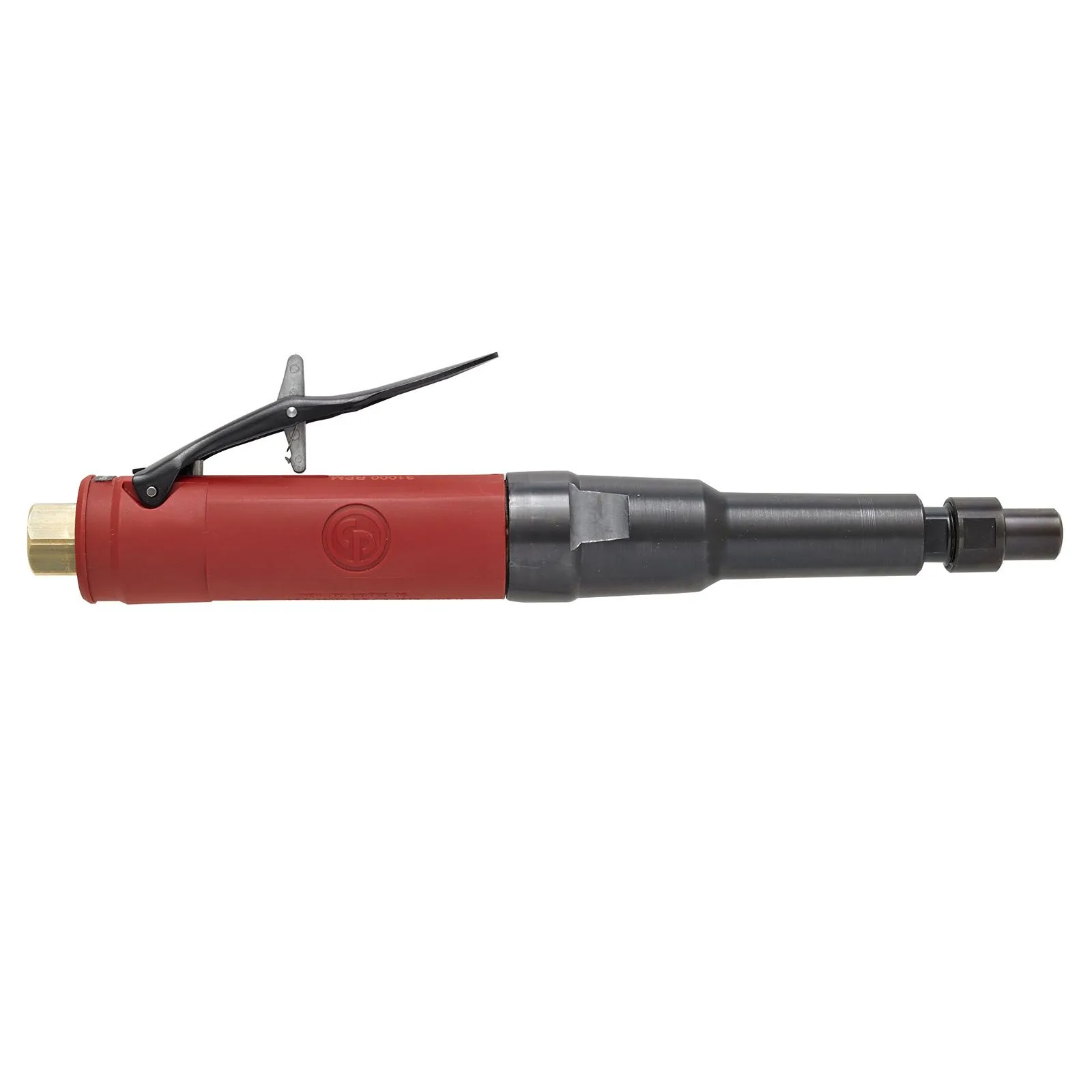

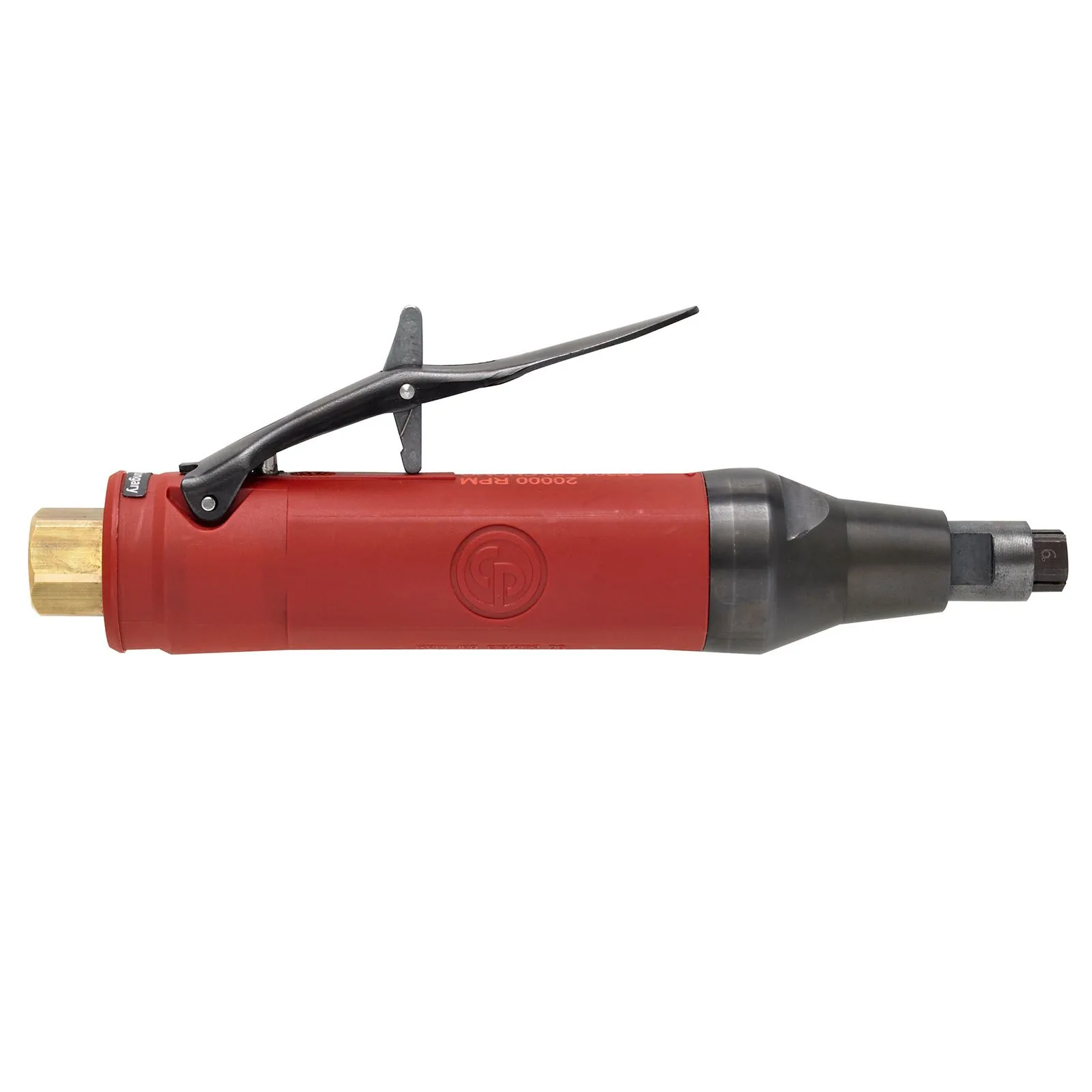

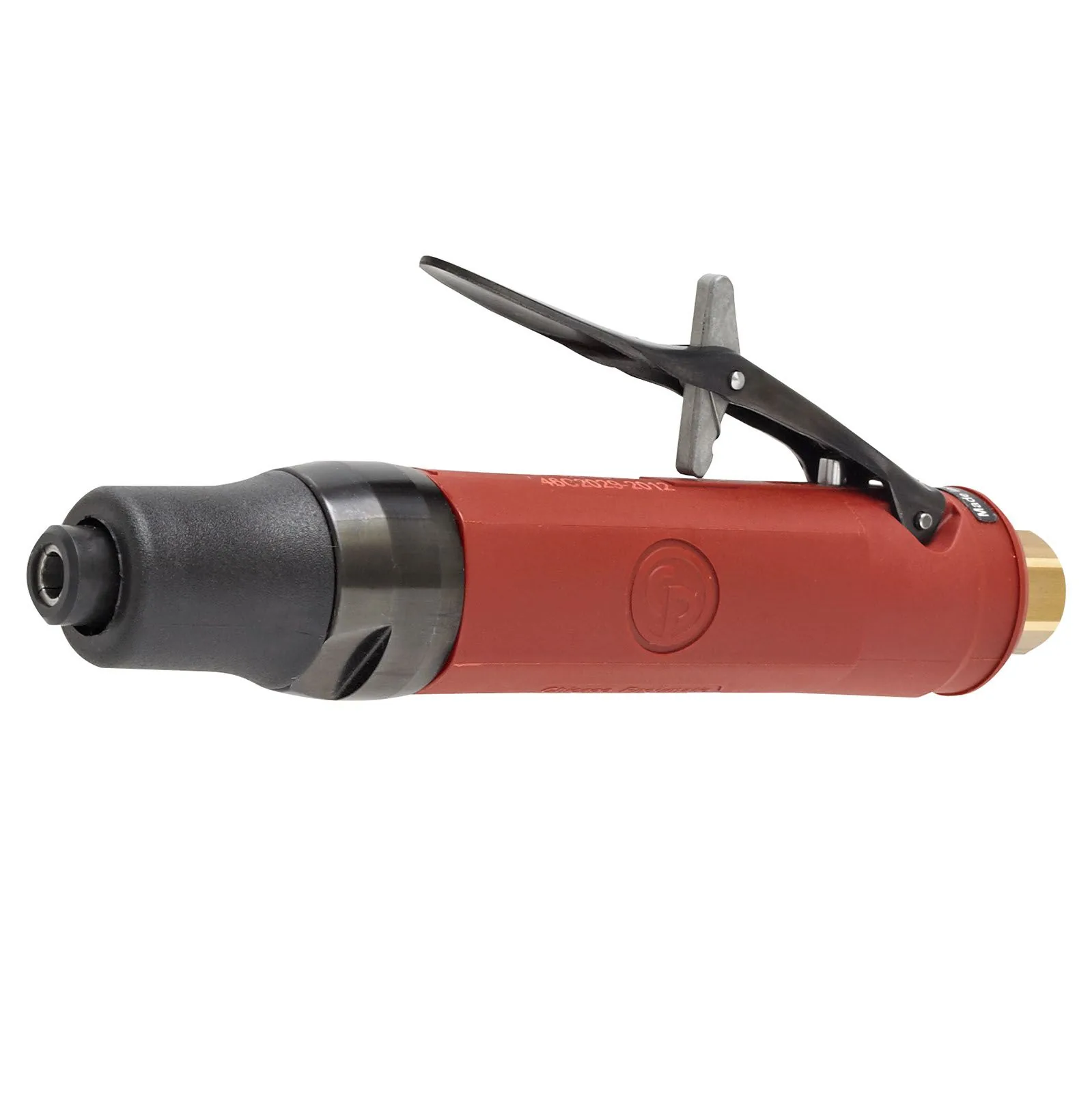

The CP3019 Series – straight pneumatic Die Grinders, with a 1/4″ (6.35 mm) collet capacity or CNOMO collet capacity consists of 17 models with 5 free speed options from 12,000 to 40,000 rpm and a straight or straight extended housing collet spindle. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. A compact design and a simplified safety lever characterize the range.

Specifications

	CI-6151600090	CI-6151600100	CI-6151600110	CI-6151602180	CI-6151600120	CI-6151602190	CI-6151600130	CI-6151602200	CI-6151600340	CI-6151602210	CI-6151600350	CI-6151602220	CI-6151600360	CI-6151602230	CI-6151600370	CI-6151602240	CI-6151602170
SKU	CI-6151600090	CI-6151600100	CI-6151600110	CI-6151602180	CI-6151600120	CI-6151602190	CI-6151600130	CI-6151602200	CI-6151600340	CI-6151602210	CI-6151600350	CI-6151602220	CI-6151600360	CI-6151602230	CI-6151600370	CI-6151602240	CI-6151602170
Product Name	CP3019-18 - Standard, 18000 rpm, No	CP3019-20 - Standard, 20000 rpm, No	CP3019-25 - Standard, 25000 rpm, No	CP3019-25ES - Extended, 25000 rpm, No	CP3019-31 - Standard, 31000 rpm, No	CP3019-31ES - Extended, 31000 rpm, No	CP3019-40 - Standard, 40000 rpm, No	CP3019-40ES - Extended, 40000 rpm, No	CP3019-20 - Standard, 20000 rpm, Yes	CP3019-20ES - Extended, 20000 rpm, Yes	CP3019-25 - Standard, 25000 rpm, Yes	CP3019-25ES - Extended, 25000 rpm, Yes	CP3019-31 - Standard, 31000 rpm, Yes	CP3019-31ES - Extended, 31000 rpm, Yes	CP3019-40 - Standard, 40000 rpm, Yes	CP3019-40ES - Extended, 40000 rpm, Yes	CP3019-20ES - Extended, 20000 rpm, No
Vendor SKU	6151600090	6151600100	6151600110	6151602180	6151600120	6151602190	6151600130	6151602200	6151600340	6151602210	6151600350	6151602220	6151600360	6151602230	6151600370	6151602240	6151602170
Free Speed (rpm)	18000	20000	25000	25000	31000	31000	40000	40000	20000	20000	25000	25000	31000	31000	40000	40000	20000
Cnomo	No	No	No	No	No	No	No	No	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	No
Handle Length	Standard	Standard	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Extended
Max power	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Angle Type	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Length (in)	6.65	6.65	6.65	9.8	6.65	9.8	6.65	9.8	6.65	9.8	6.65	9.8	6.65	9.8	6.65	9.8	9.8
Tool Weight (lb)	0.84	0.84	0.84	1.26	0.84	1.26	0.84	1.26	0.84	1.26	0.84	1.26	0.84	1.26	0.84	1.26	1.26
Air consumption at free speed (cfm)	5.3	6.4	8.5	7.6	10	10	14	14	6.4	7	8.5	7.6	10	10	14	14	7
Air Consumption At Load (cfm)	15	19	19	19	21	19	22	21	19	18	19	19	21	19	22	21	18
Air Inlet Thread Size (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Max Dynamic Air Working Pressure (psi)	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Min Hose Diam (mm)	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31	0.31
Sound Power (dB(A))	86.8	85.7	88.7	87.9	90.3	91.7	92.2	91.3	85	86	89	89	88	91	88	89	84.8
Sound Pressure (dB(A))	75.8	74.7	77.7	76.9	79.3	80.7	81.2	80.3	74	75	78	78	77	80	77	78	73.8
Air Inlet Thread Type	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT	NPT
Vibration (m/s²)	<2.5	-	-	-	-	-	<2.5	-	<2,5	-	<2,5	-	-	<2,5	-	<2,5	-
Collet max capacity (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	6mm (only for Die Grinders)	1/4
Collet/collet Holder/collet Nut Type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Erickson serie 300 type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Erickson serie 300 type
Exhaust	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear
Governor Type	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball
Main Material type	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve
Rotative Inlet	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Spindle Lock	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Starting System	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever
Uncertainty Vibration-k (ft/s²)	-	4.9	4.9	5.6	6.6	5.2	-	6.6	-	3	-	7.9	6.6	-	4.6	-	6.2
