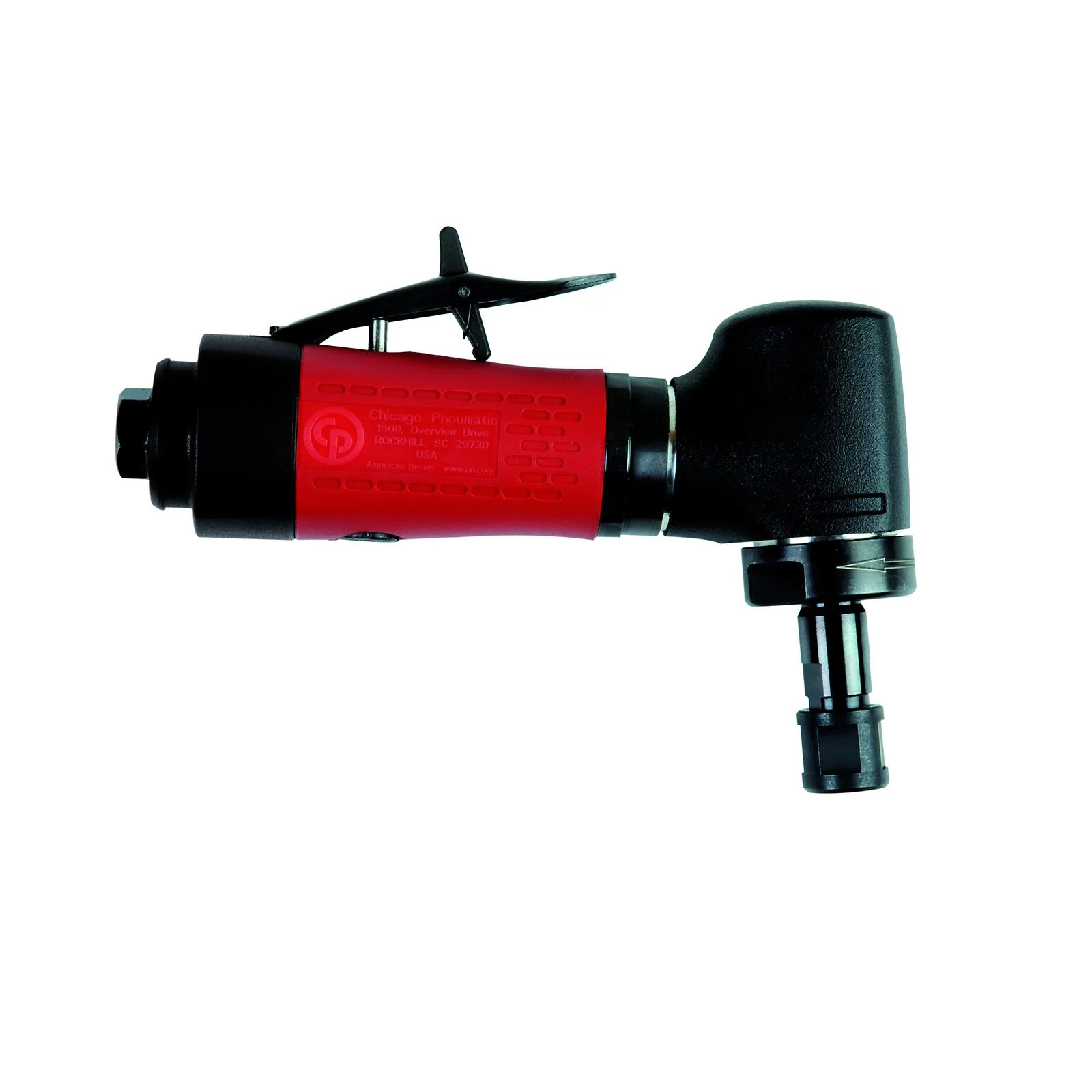

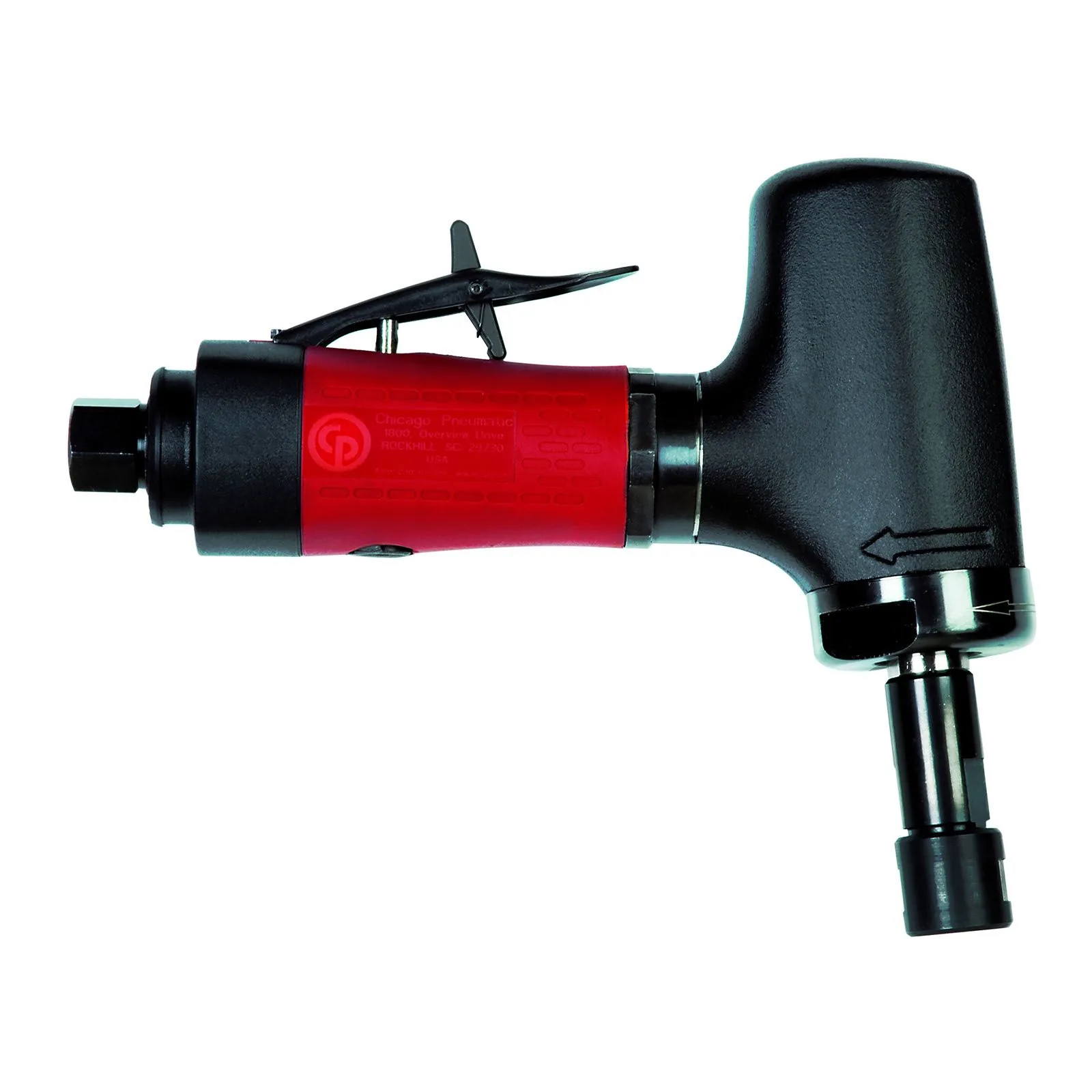

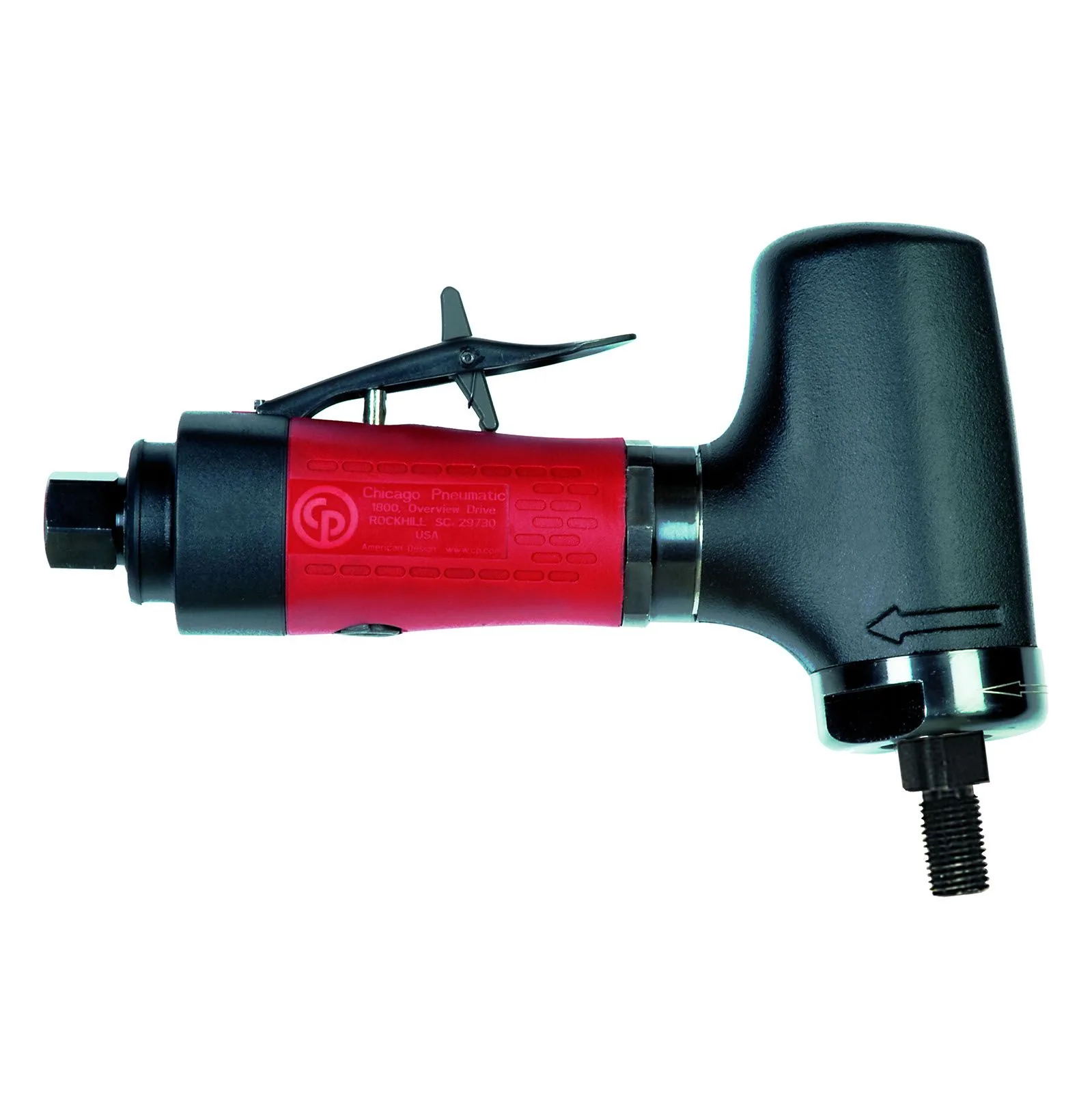

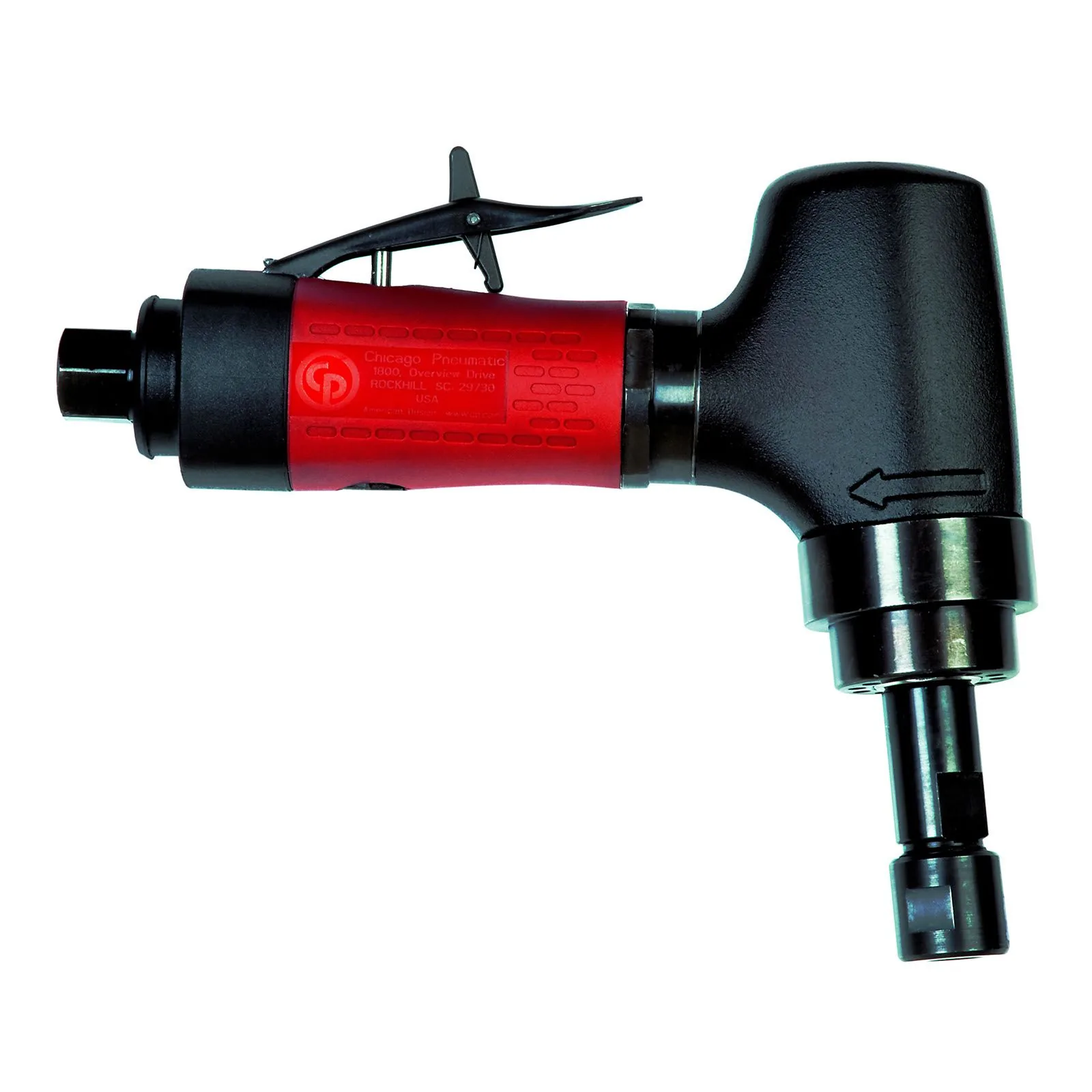

Chicago Pneumatic CP3030 Series – Die Grinders

Chicago Pneumatic CP3030 Series – Die Grinders

$391.00 – $520.00

Add to Cart
Chicago Pneumatic CP3030 Series – Die Grinders
Chicago Pneumatic CP3030 Series - Die Grinders
$391.00 – $520.00

Gearless Durable Design

In pursuit of durability, the CP3030 Series air die grinders are designed with an efficient gearless construction to increase the interval between maintenance and failure elimination.

  • Industrial grade durability up to 1,000 hours between maintenance intervals
  • Gearless construction for high durability
  • Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for a perfect material removal result
  • Compact and composite handle for a great operator comfort

The CP3030 Series are pneumatic Die Grinders with a 1/4″ (6.35 mm) collet capacity designed for optimum productivity in heavy applications such as deburring, die contouring, light chamfering. It features a powerful gearless design to increase the interval between maintenance. The range is defined by 11 models from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are equipped with a safety lever and benefit from a rear exhaust.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Free Speed (rpm)
Power
Vibration (m/s²)
Angle Type
Collet max capacity (in)
Power Source
Length (in)
Tool Weight (lb)
Air consumption at free speed (cfm)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Max power
Air Inlet Thread Type
Collet/collet Holder/collet Nut Type
Exhaust
Governor Type
Main Material type
Rotative Inlet
Spindle Lock
Starting System
CI-6151604090
CP3030-325R - 25000 rpm, 300 W
6151604090
25000
300 W
<2.5
97 Degree
1/4
Pneumatic
6.06
1.15
21
17
1/4
90
0.38
90.8
79.8
0.4
NPT
Erickson serie 300 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
CI-6151604100
CP3030-330R - 30000 rpm, 300 W
6151604100
30000
300 W
<2.5
97 Degree
1/4
Pneumatic
6.06
1.15
21
19
1/4
90
0.38
88.1
77.1
0.4
NPT
Erickson serie 300 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
CI-6151604130
CP3030-418R - 18000 rpm, 400 W
6151604130
18000
400 W
<2.5
97 Degree
1/4
Pneumatic
6.85
1.84
25
21
1/4
90
0.38
86.4
75.4
0.54
NPT
Erickson serie 200 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
CI-6151604140
CP3030-420R - 20000 rpm, 400 W
6151604140
20000
400 W
<2.5
97 Degree
1/4
Pneumatic
6.85
1.84
27
23
1/4
90
0.38
87.2
76.2
0.54
NPT
Erickson serie 200 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
CI-6151604150
CP3030-424R - 24000 rpm, 400 W
6151604150
24000
400 W
<2.5
97 Degree
1/4
Pneumatic
6.85
1.84
27
23
1/4
90
0.38
88.5
77.5
0.54
NPT
Erickson serie 200 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
CI-6151604200
CP3030-520R - 20000 rpm, 500 W
6151604200
20000
500 W
<2.5
97 Degree
1/4
Pneumatic
6.85
1.87
32
29
1/4
90
0.38
91
80
0.67
NPT
Erickson serie 200 type
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
