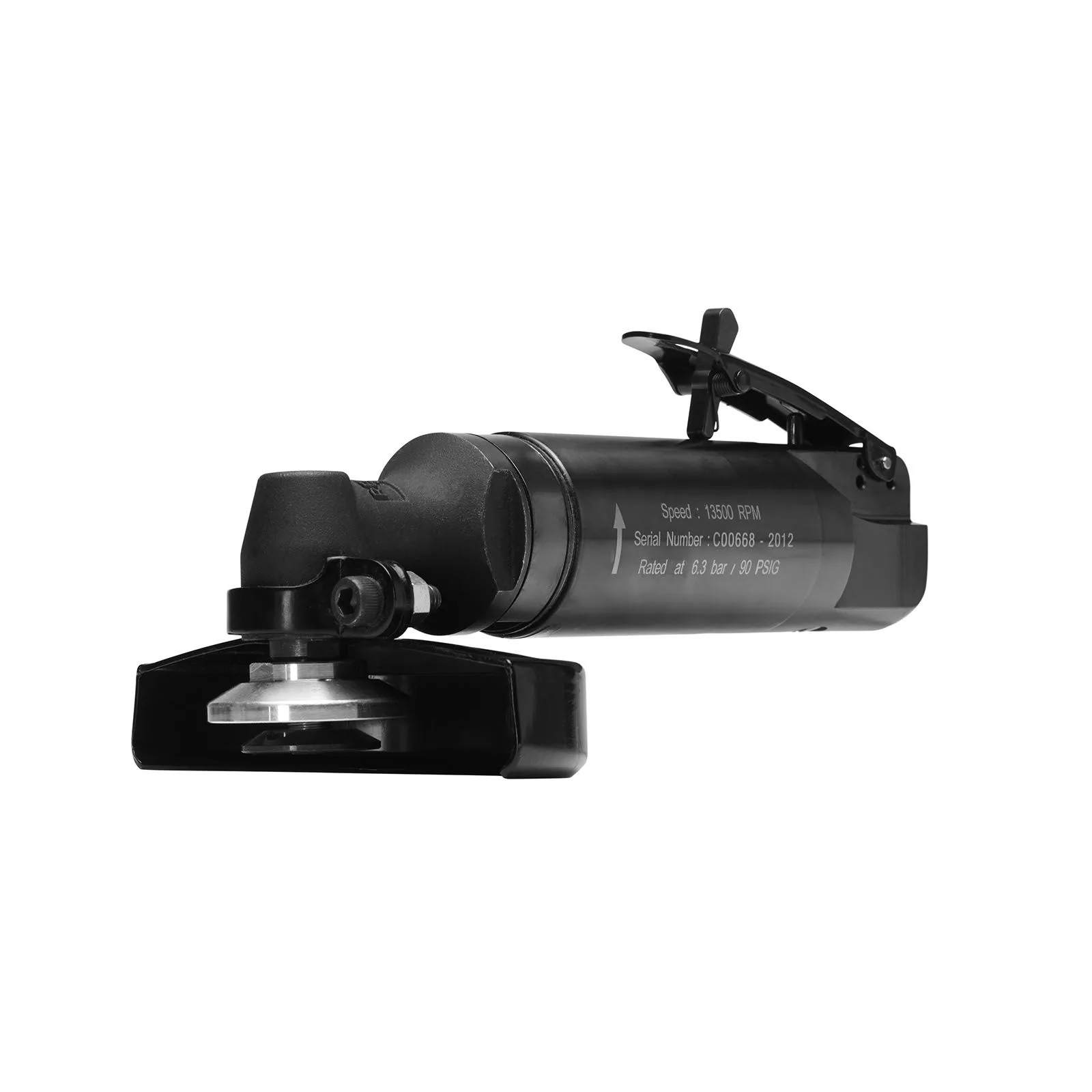

Chicago Pneumatic CP3040 Series – Angle Grinders
Chicago Pneumatic CP3040 Series - Angle Grinders
$544.00$627.00

Made of Steel for Harsh Industrial Environments

4″(100mm) steel angle grinder designed to perform in any harsh industrial environment.

  • Machined steel housing designed for tough usage
  • Super durable bevel gear for a robust construction
  • Ultra compact for a great maneuverability in both version standard and extended shaft.
  • Up to 0.7 hp (520 W) industrial grade motor and 13,000 rotations per minute for a perfect material removal result

The CP3040, 4″ (100 mm) steel construction angle grinder is a perfect match when working in industrial maintenance and production. With a generated power of 0.5 hp (375 W) and designed with a 3/8-24″ spindle thread. CP3040 is ultra compact and provide a free speed of 13 500 rotation per minutes. 2 models available: Standard and extended shaft.

Crowder Supply stocks the full line of pneumatic grinders and pair it with the matching custom maintenance tools. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

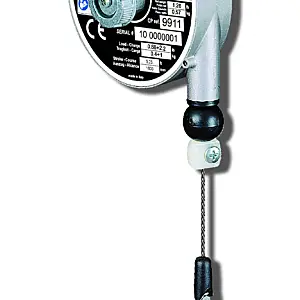

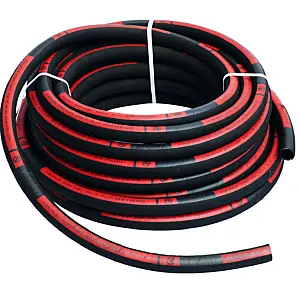

Accessories

Specifications

SKU
Product Name
Vendor SKU
Handle Length
Free Speed (rpm)
Max power
Output Spindle Thread
Power Source
Air consumption at free speed (cfm)
Guard Max Rotation (°)
Wheel/Disc diameter (in)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Tool Weight (lb)
Autobalancer
Main Material type
Rotative Guard Type
Spindle Lock
Starting System
Swiveling Guard
CI-6151607010

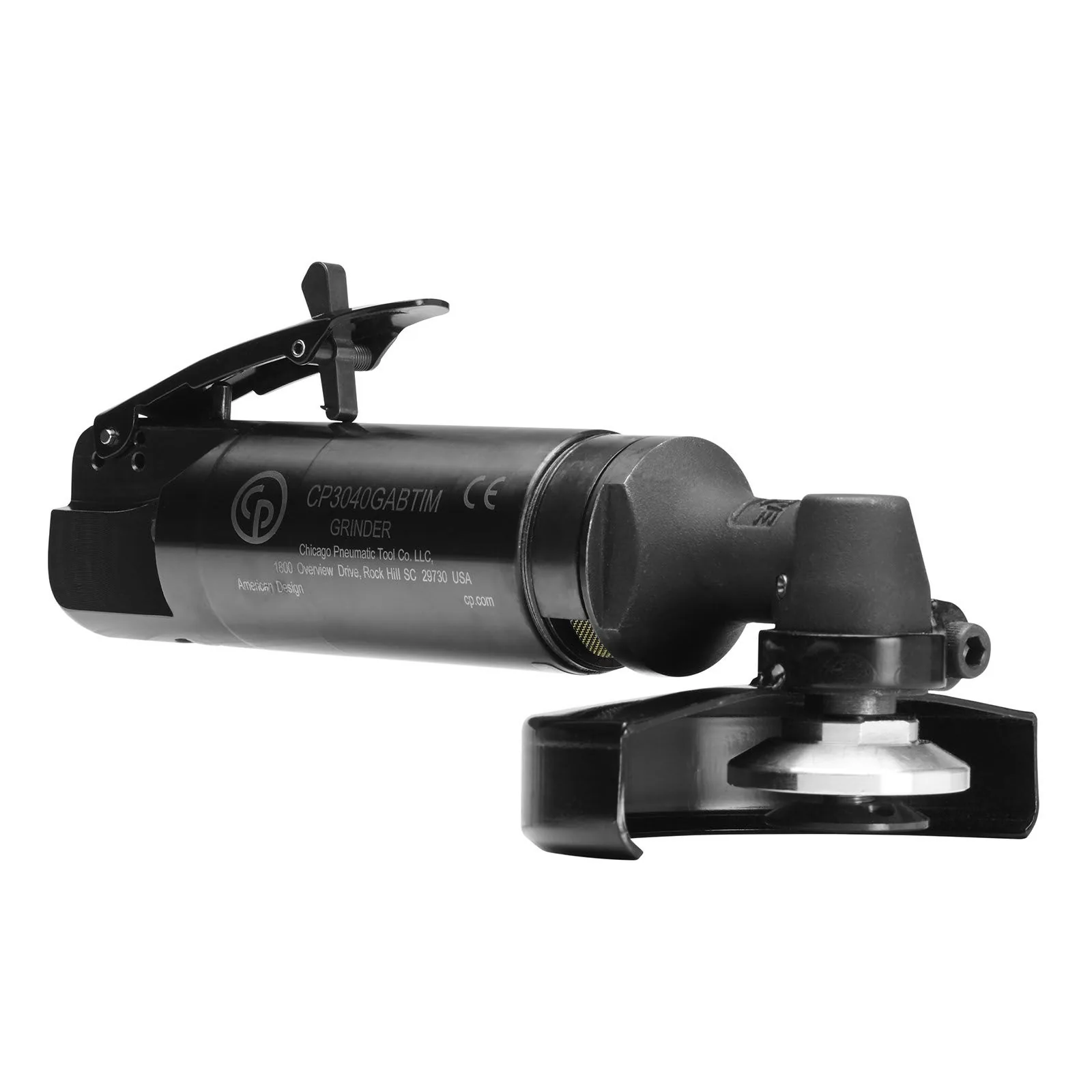

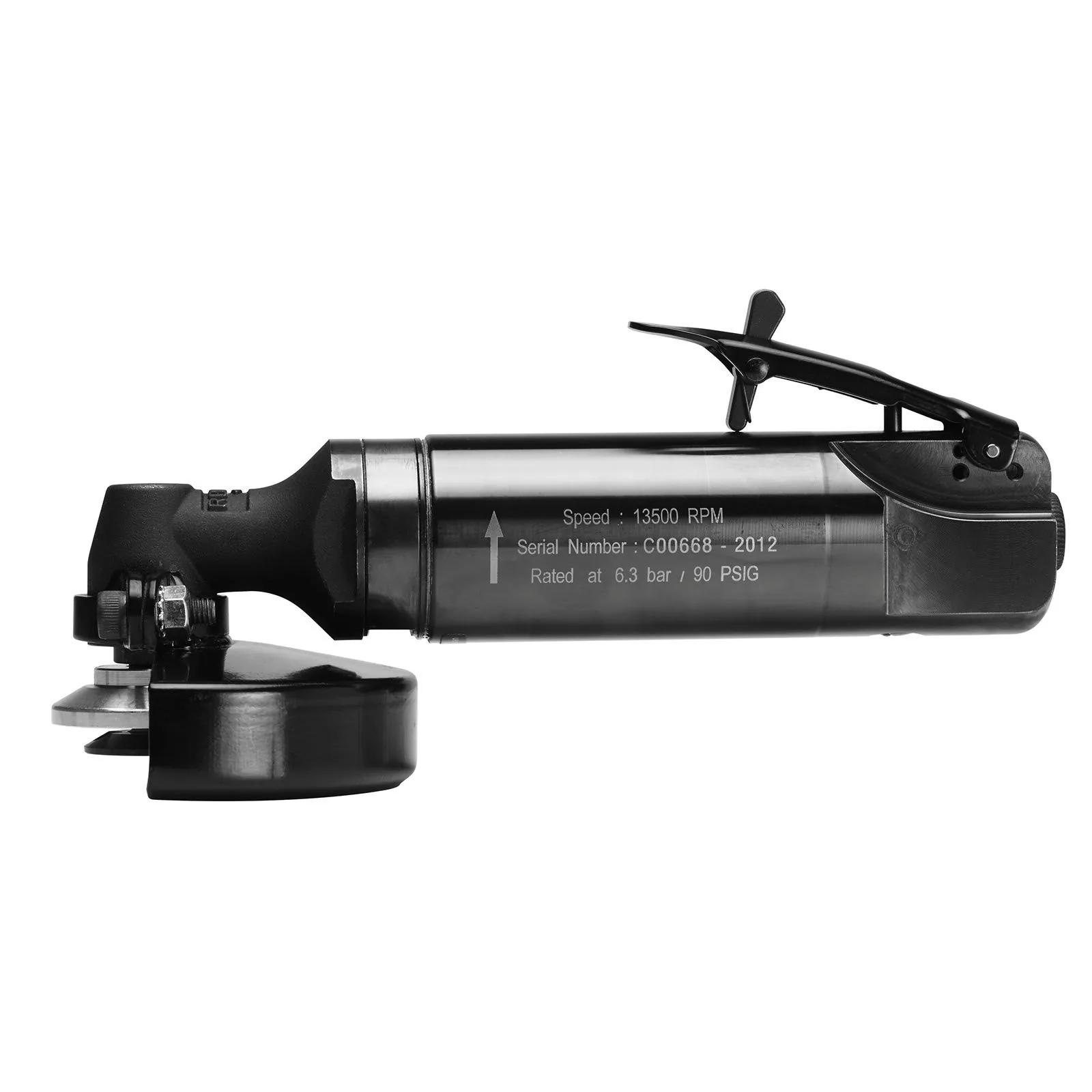

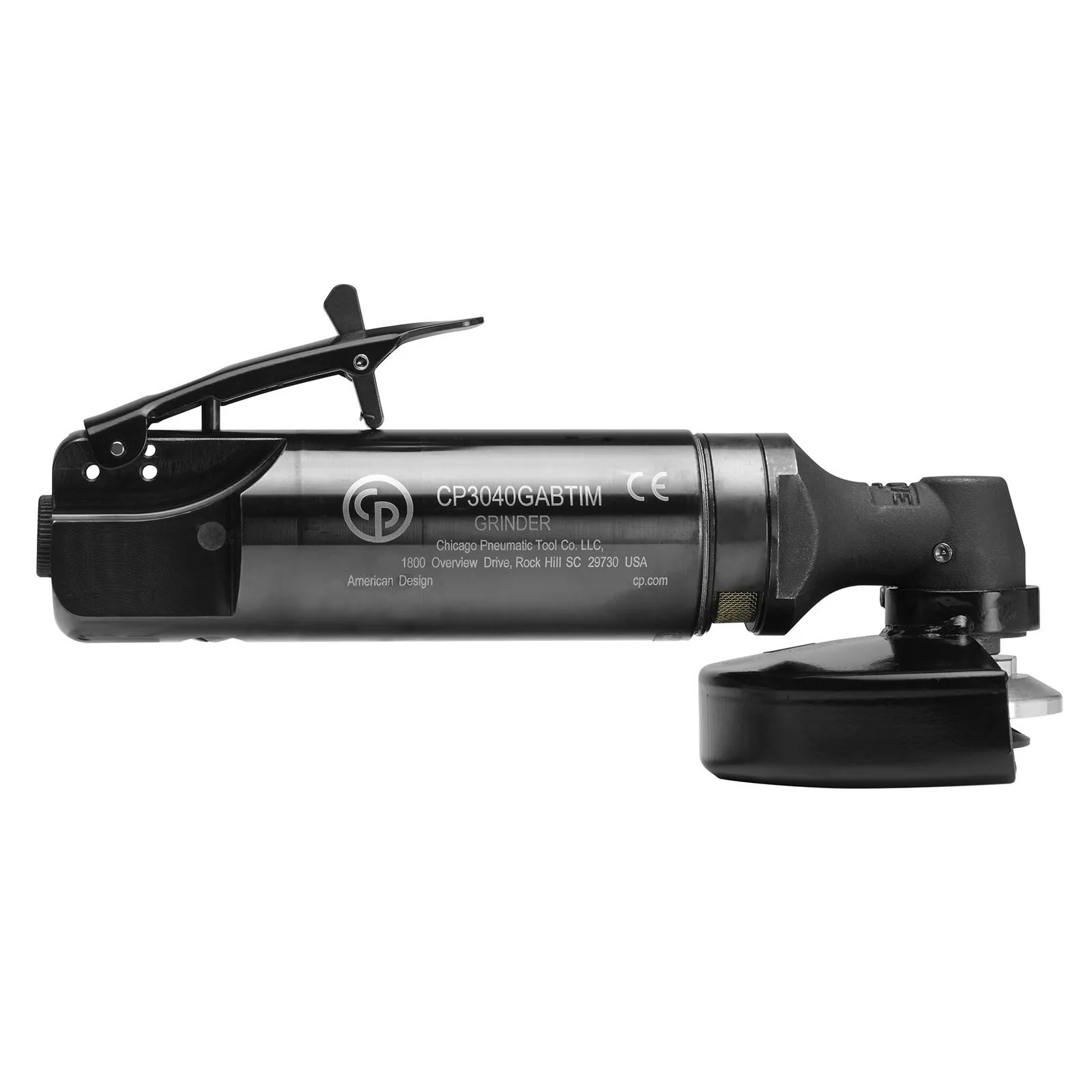

Chicago Pneumatic CP3040 GABTIM - 4 Inch (100 mm) Air Angle Grinder, 1.01 HP / 750 W - 13500 RPM
6151607010
Standard
13500
1.01
3/8-24
Pneumatic
32
360
4
99
88
7.9
23.6
26
3/8
90
0.38
8.27
3.31
No
Steel
Band
No
Safety lever
Key
CI-6151607020

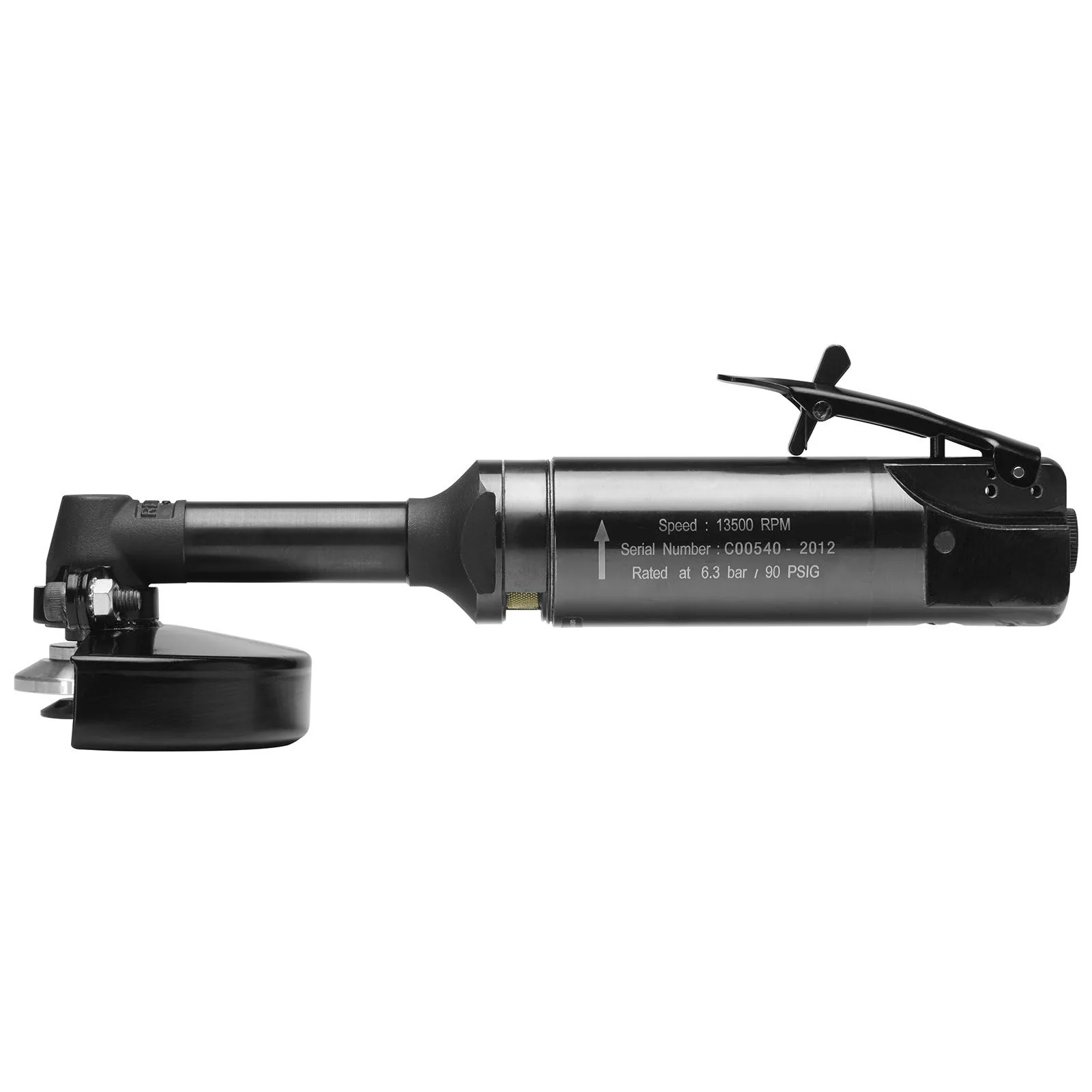

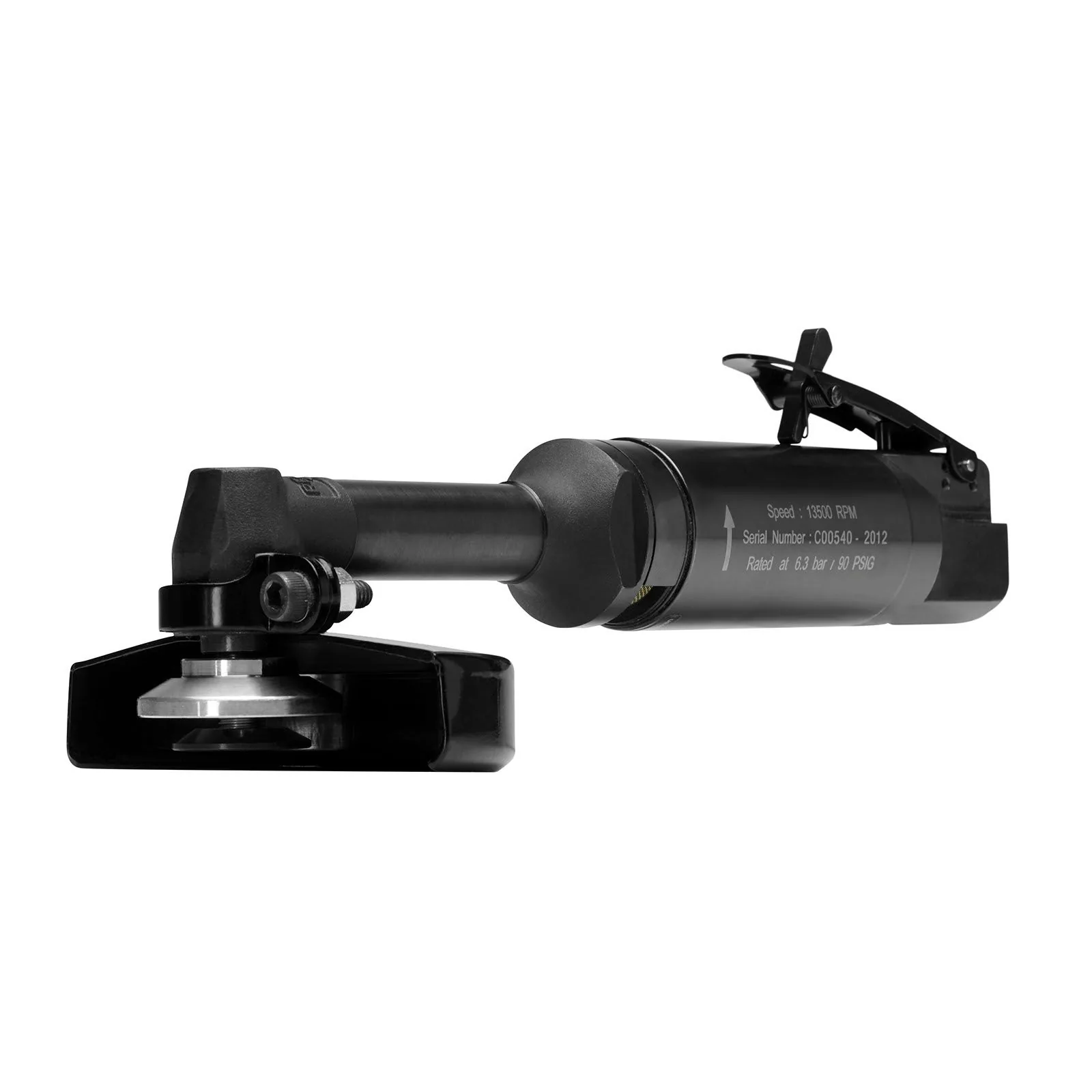

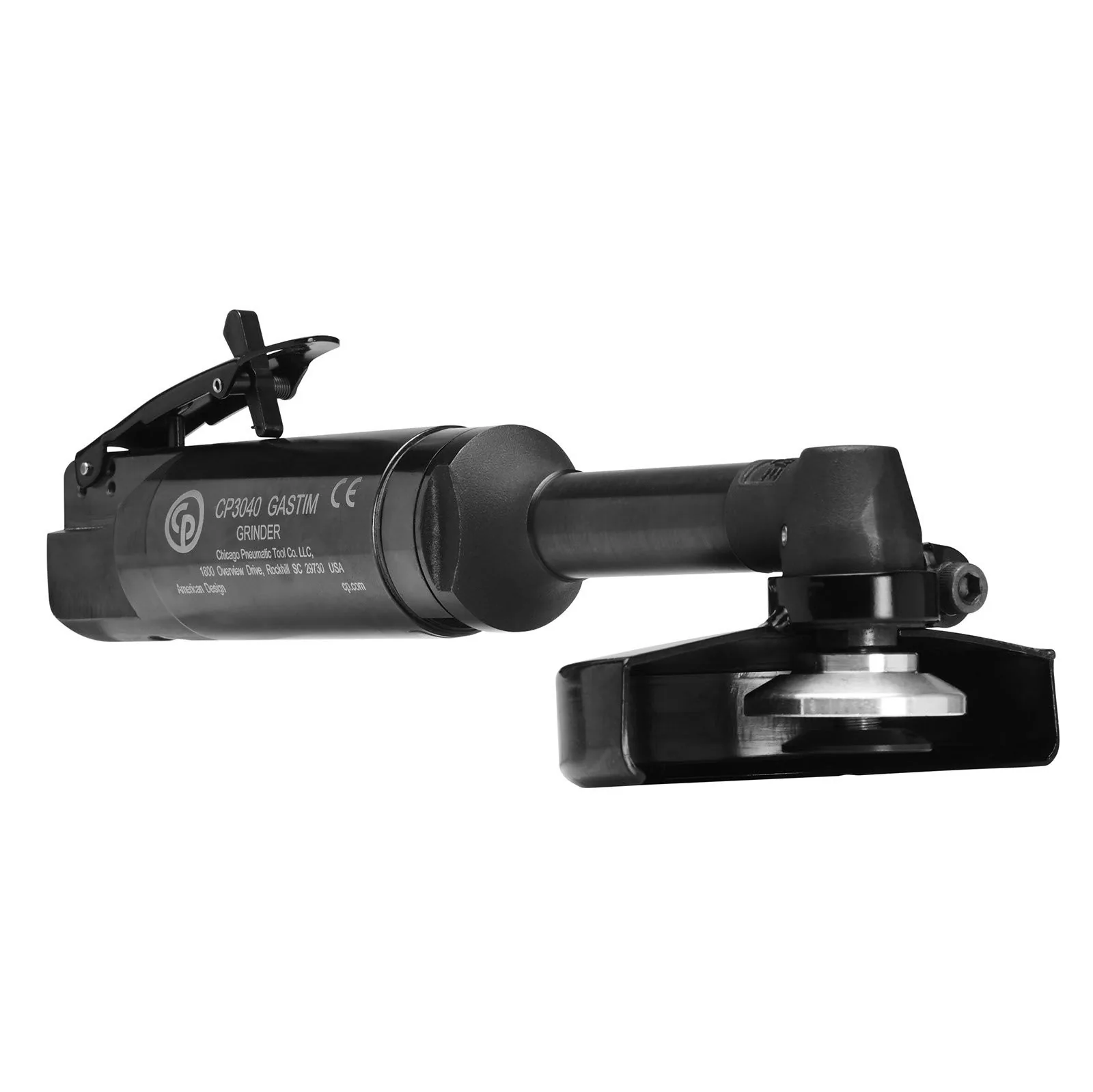

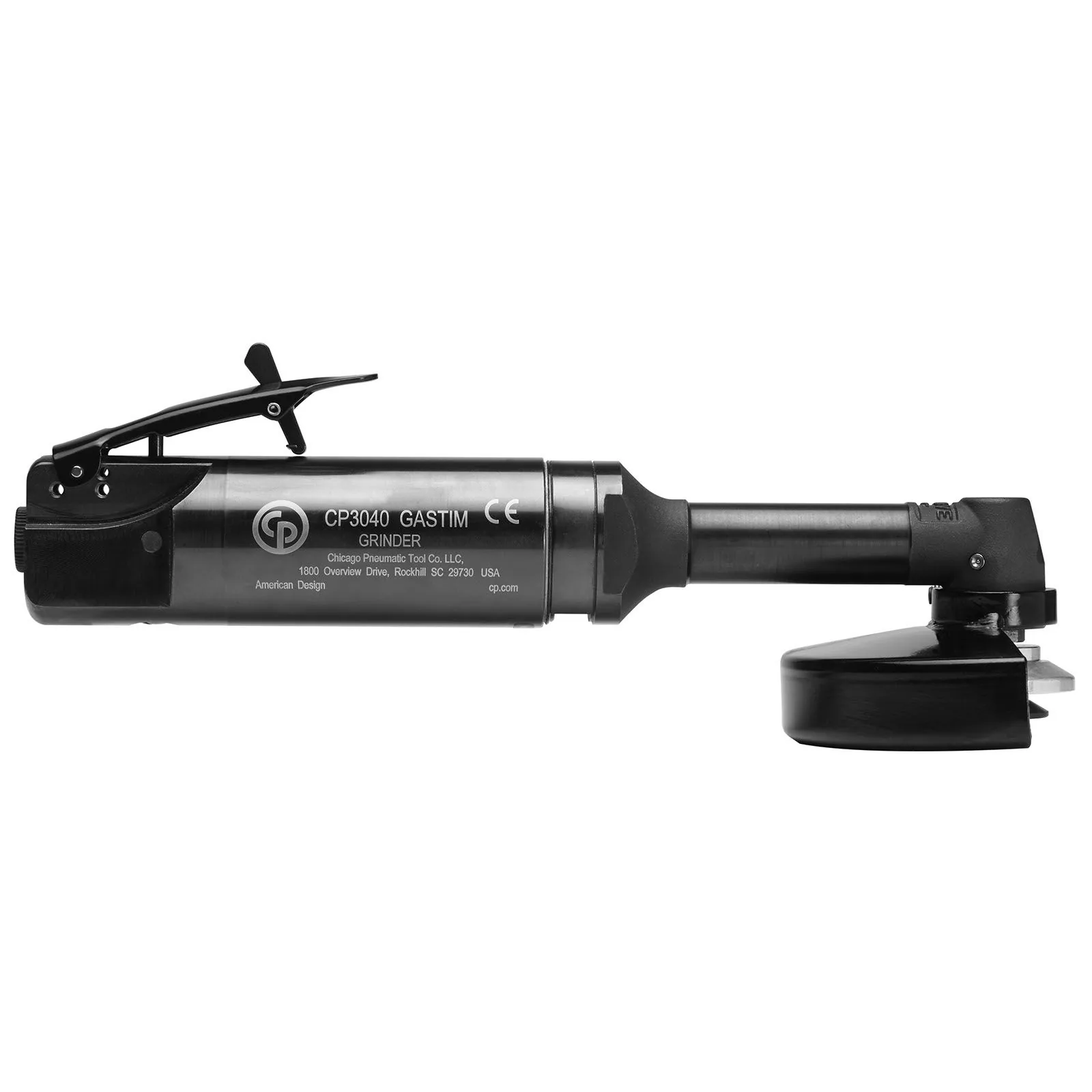

Chicago Pneumatic CP3040 GASTIM - 4 Inch (100 mm) Air Angle Grinder, 1.01 HP / 750 W - 13500 RPM
6151607020
Extended
13500
1.01
3/8-24
Pneumatic
32
-
4
103
92
10.8
31.5
26
3/8
90
0.38
10.63
3.75
No
Steel
-
No
Safety lever
-
