Chicago Pneumatic CP3109 Series – Die Grinders

$801.00 – QUOTE

Visit Chicago Pneumatic store

Chicago Pneumatic CP3109 Series – Die Grinders

$801.00 – QUOTE

Chicago Pneumatic CP3109 Series - Die Grinders

$801.00 – QUOTE

Free Speed (rpm): No selection

More options

Collet max capacity (in): No selection

More options

Shaft Length: No selection

More options

Tool Type: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

Highly Durable Bevel Gear for High Performance

High durability in a high productivity industrial straight die Grinder tool with a powerful 0.85 hp (600 W) motor.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Streamlined safety lever for operator safety
Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics
Powerful 0.8hp (600 W) governed motor

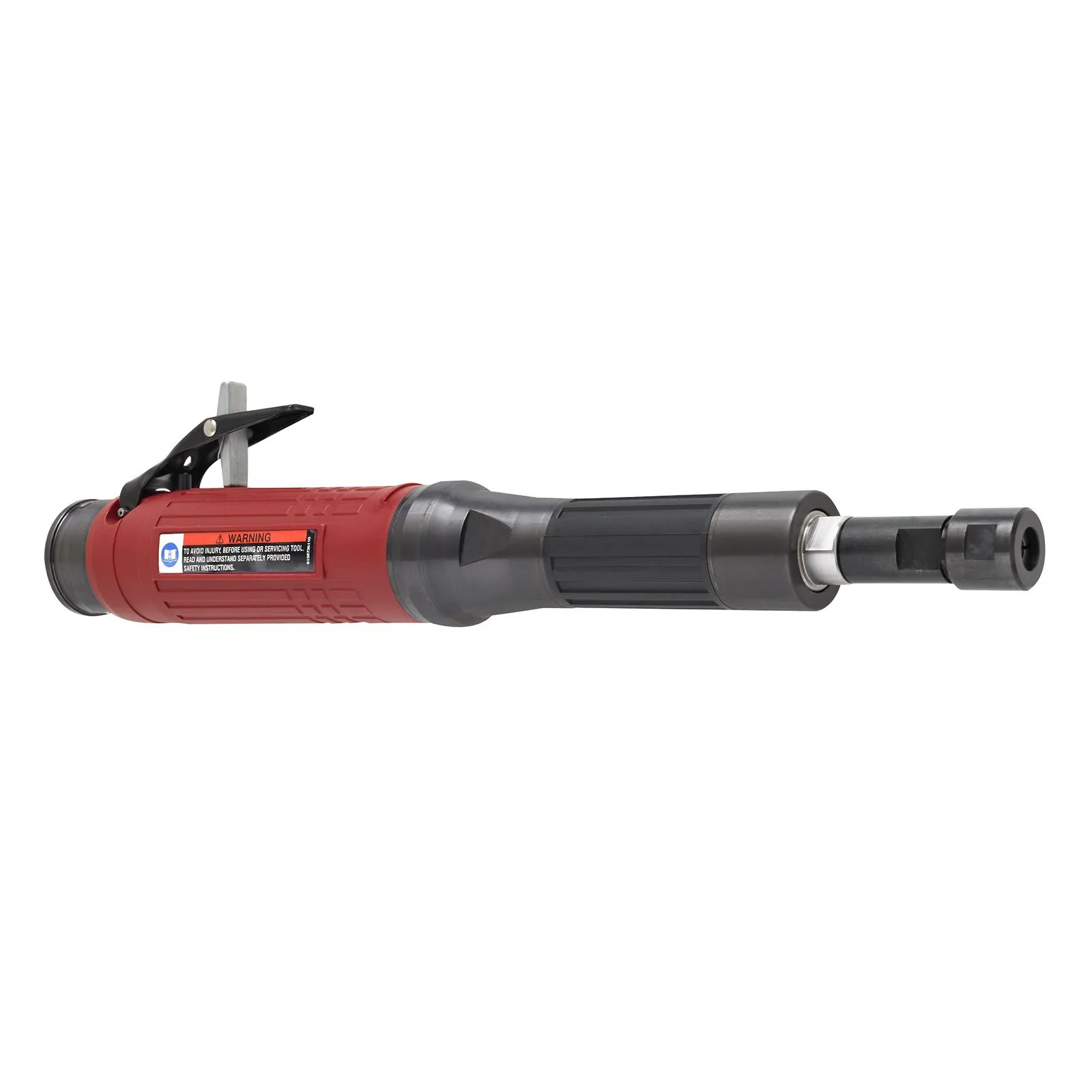

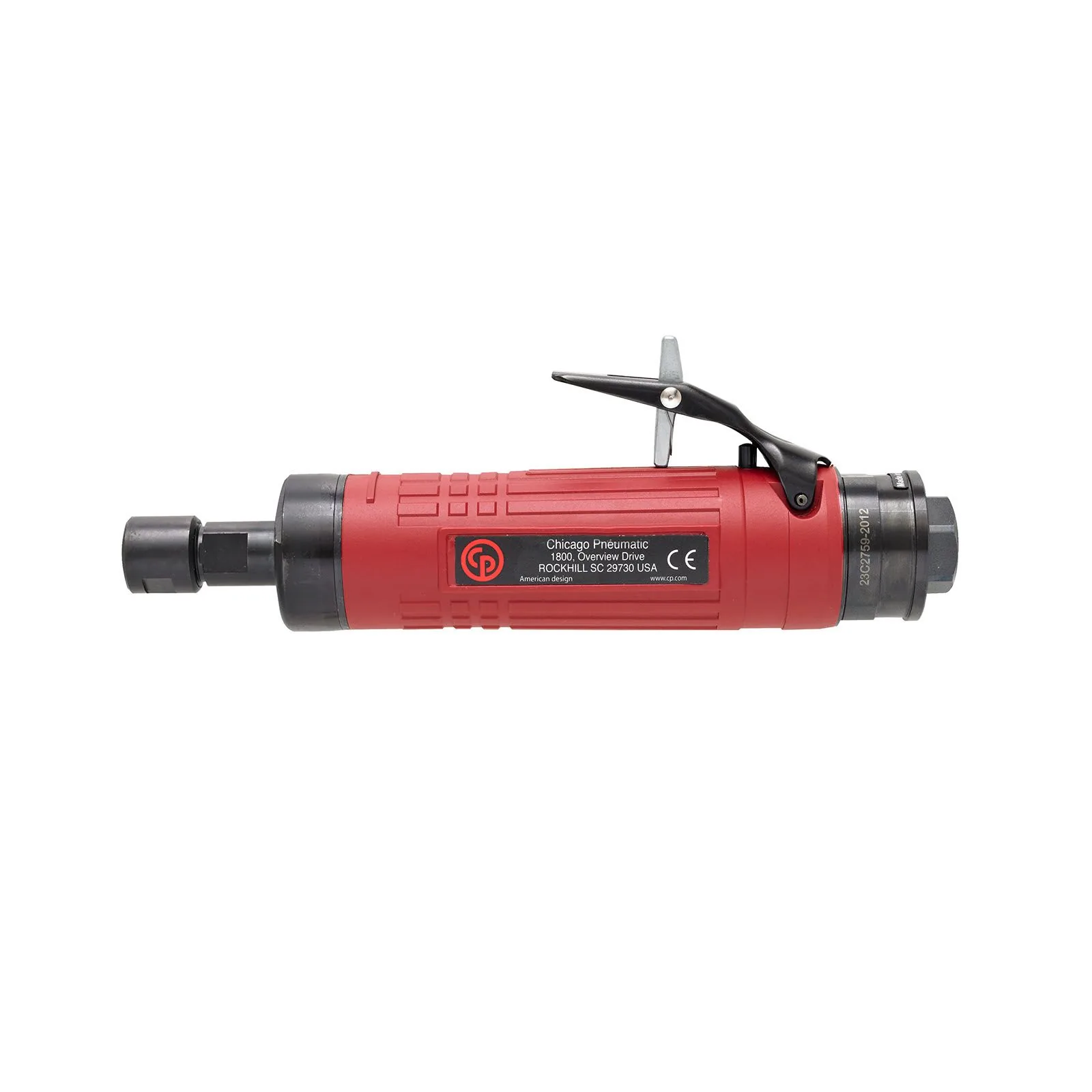

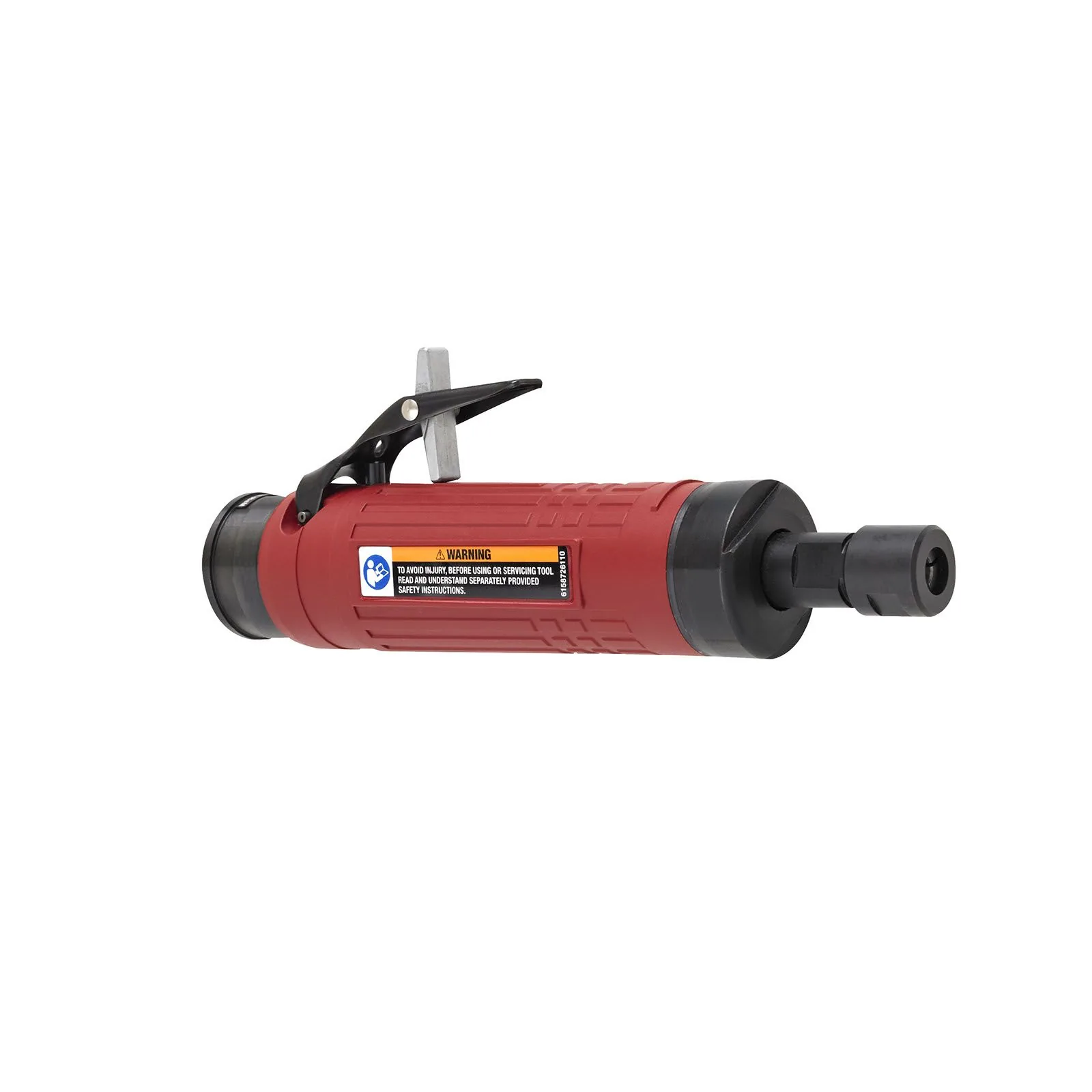

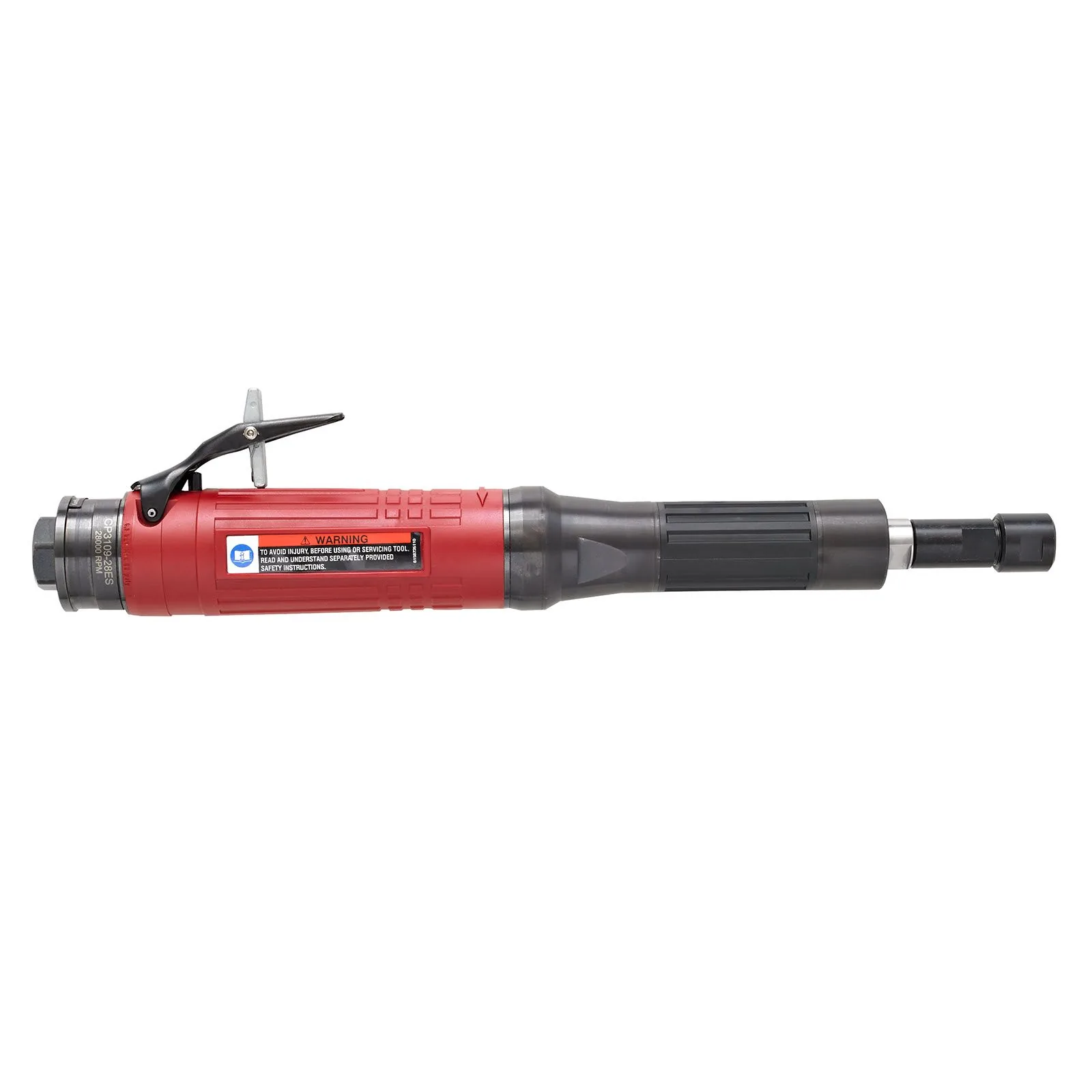

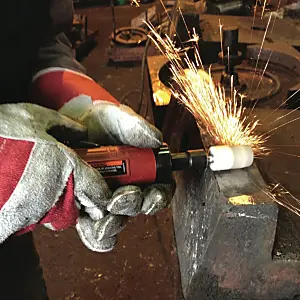

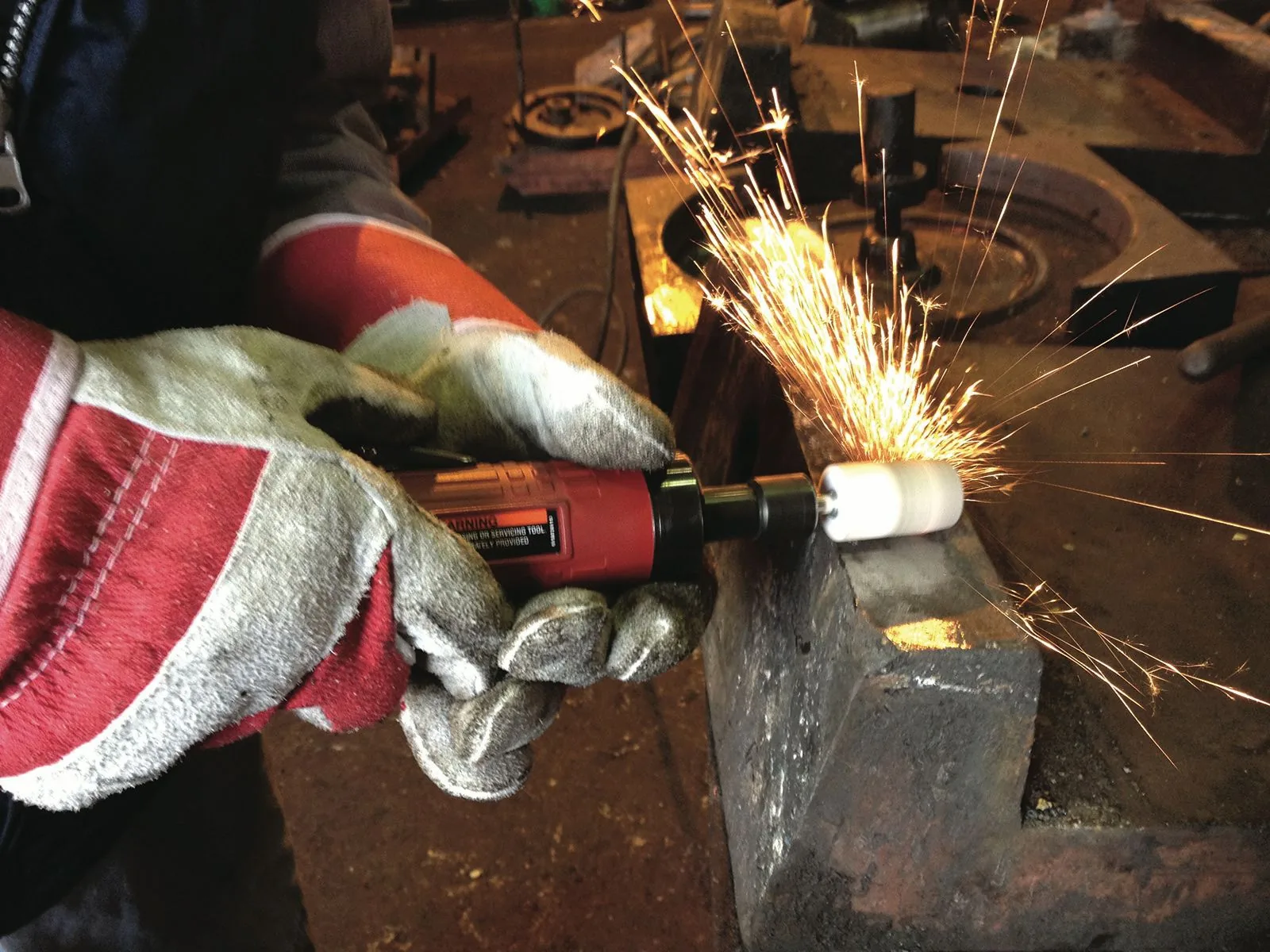

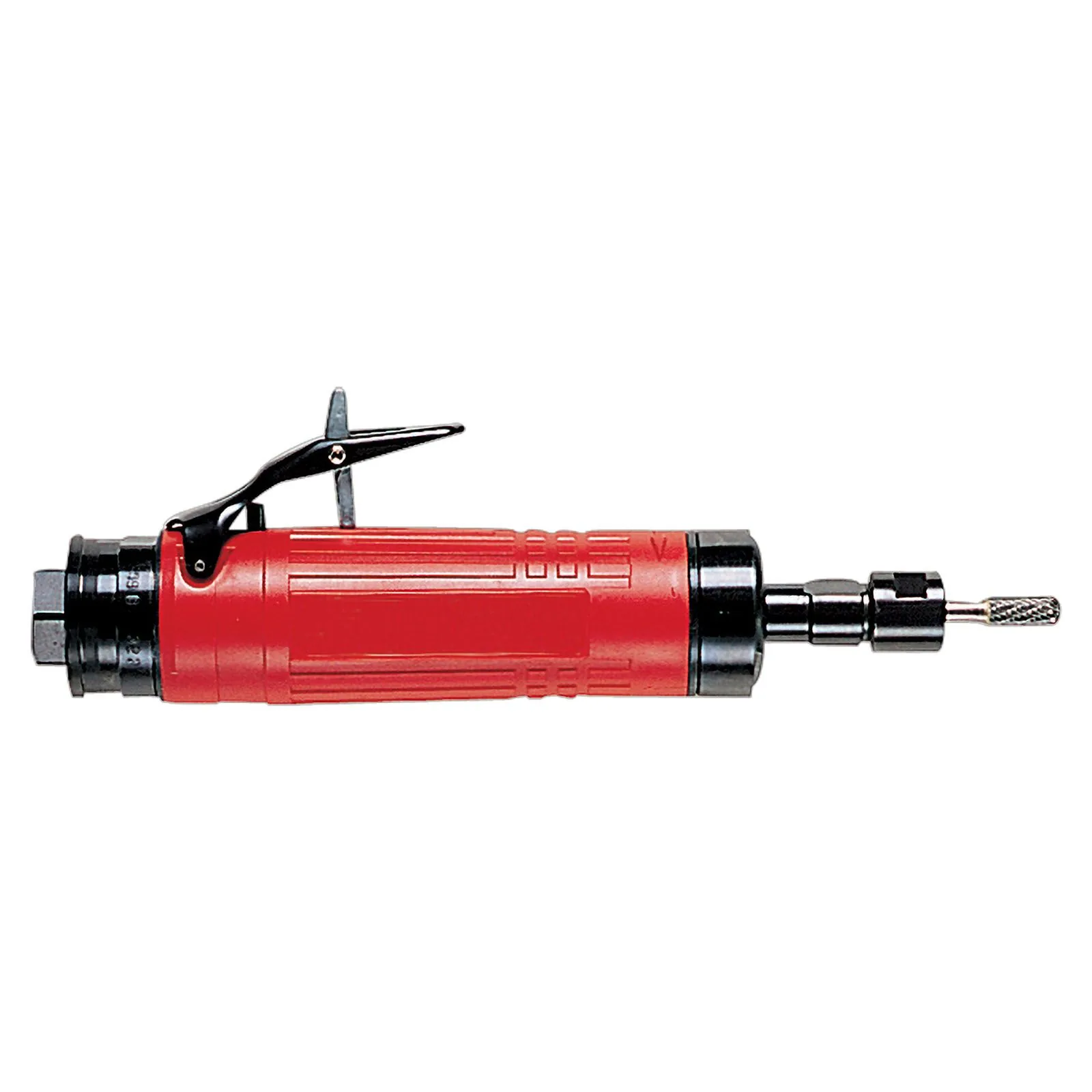

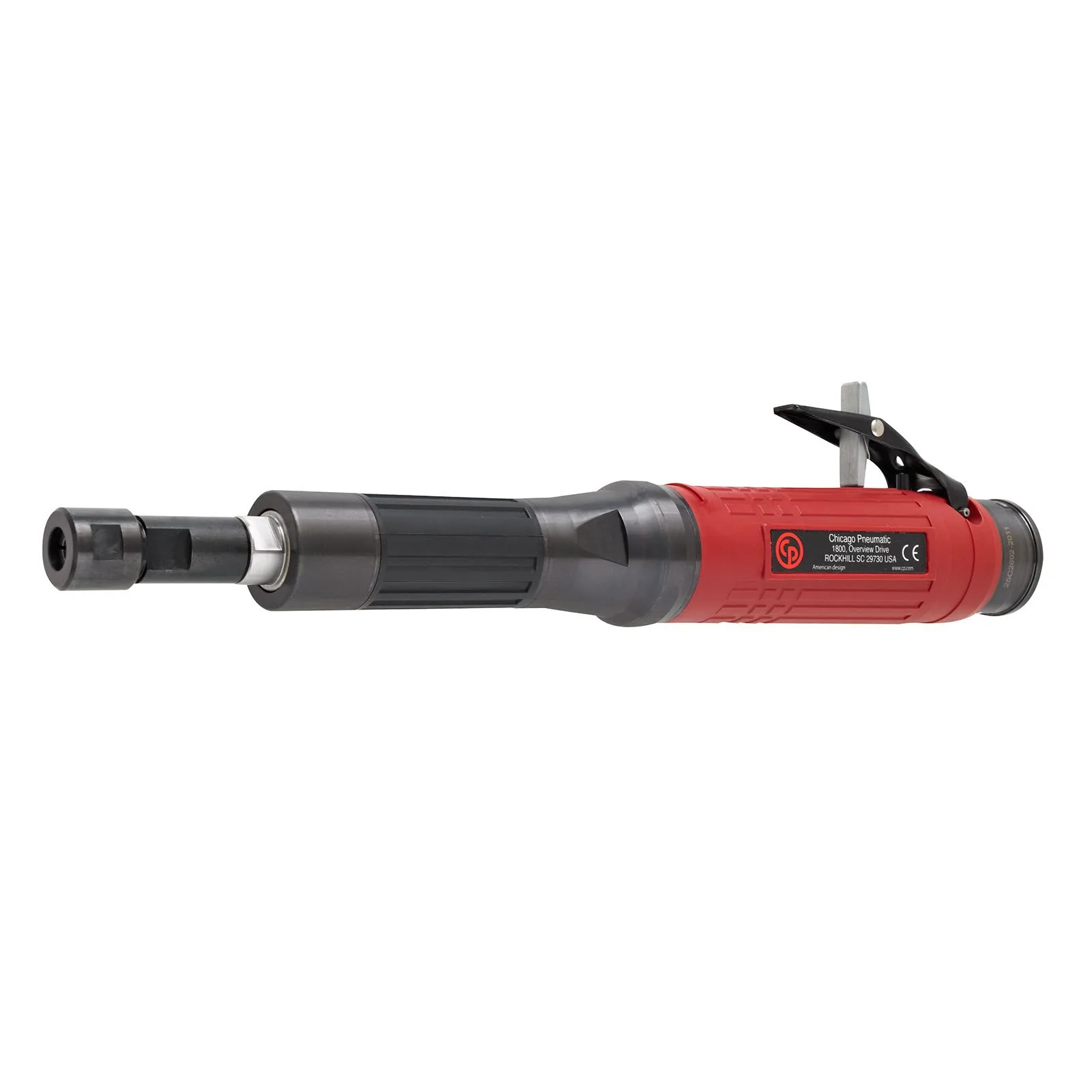

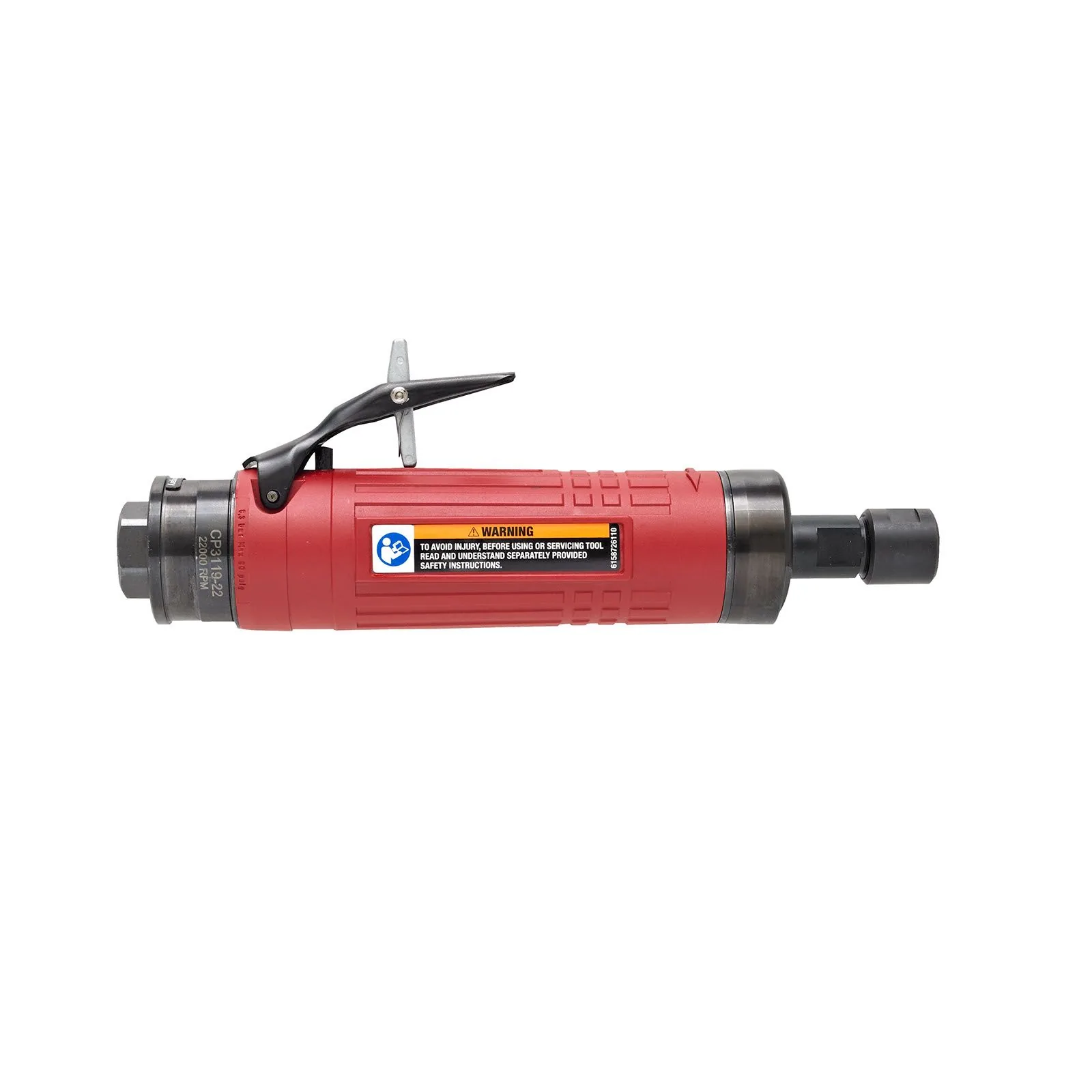

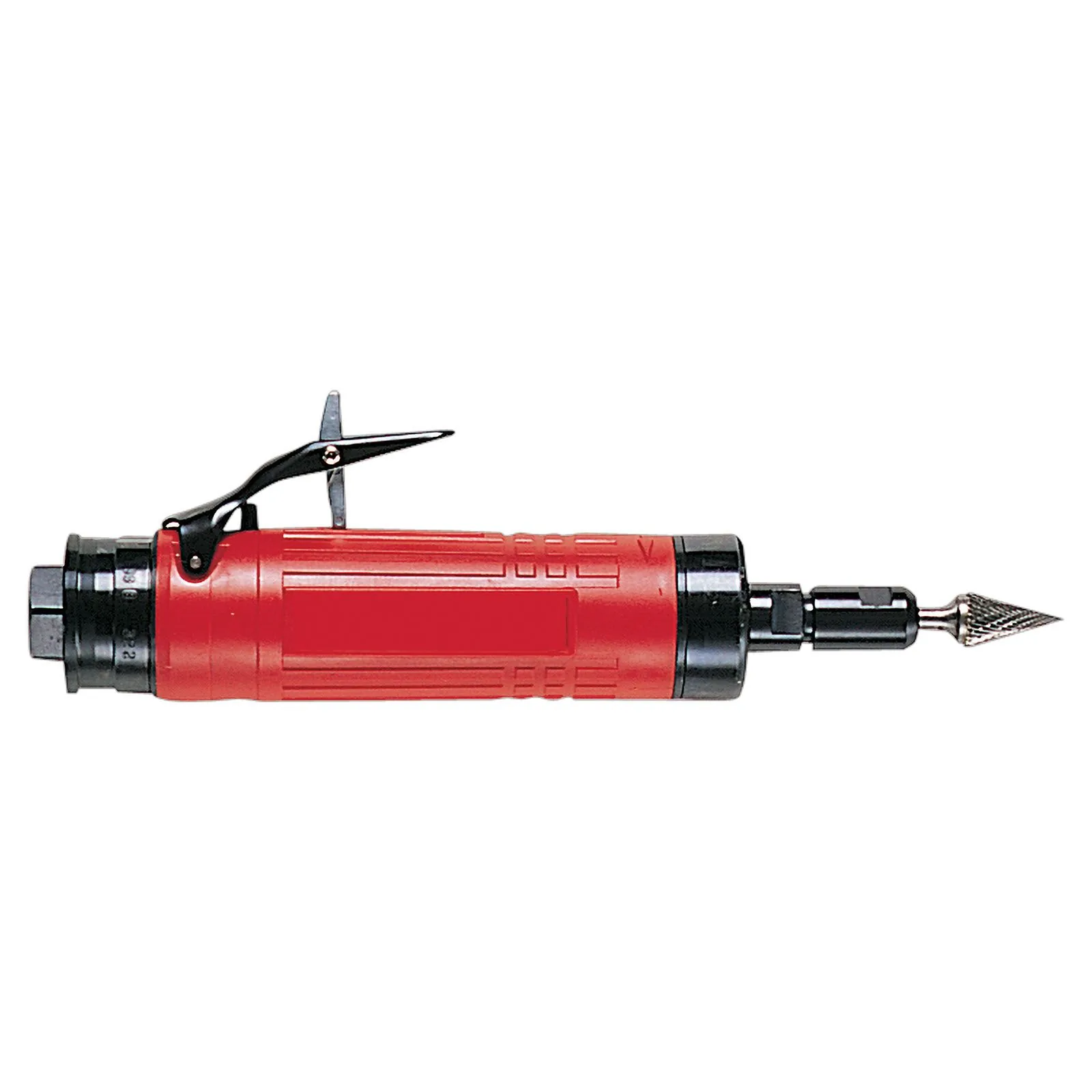

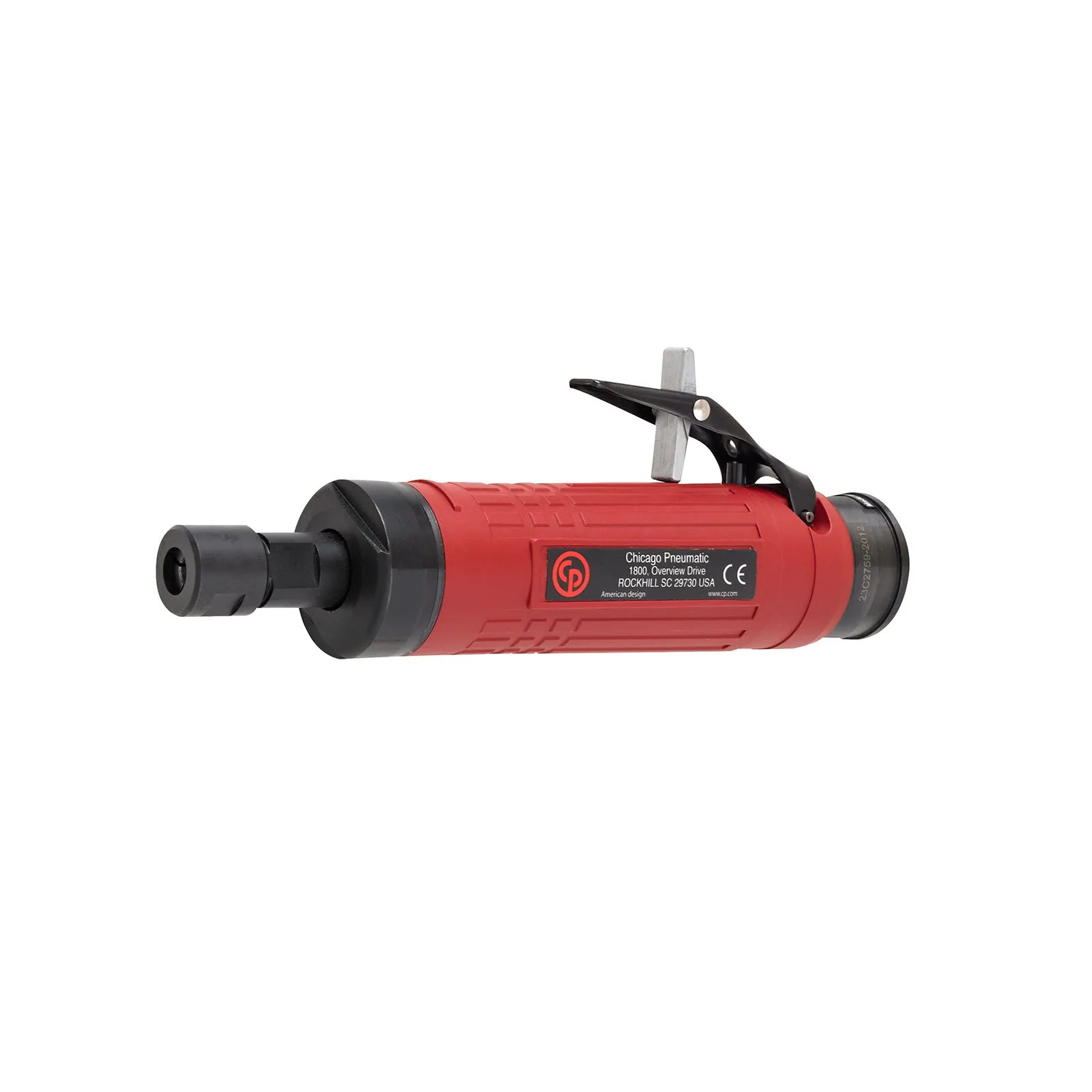

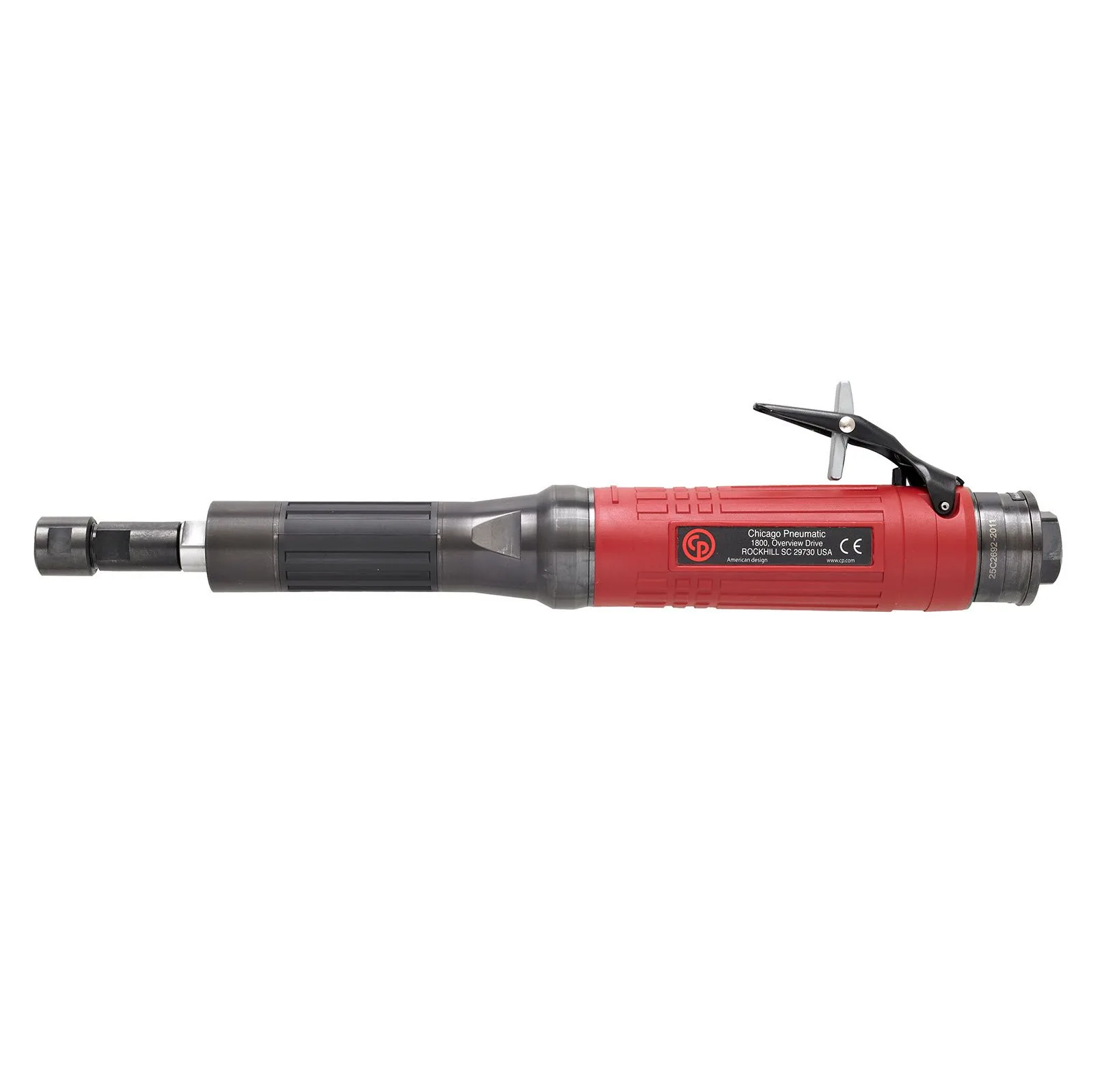

The CP3109 Series – pneumatic Straight Die Grinders – meets the intensive needs of grinding, contouring, deburring, and cleaning with carbide burrs, mounted points, abrasive wheels, and flap wheels. It has a 6.35 mm (1/4″) or CNOMO capacity collet with a very durable bevel gear and a powerful 0.8 hp (600 W) motor. The range consists of 18 models, straight or straight extended housing collet spindle with 4 free speed options from 15,000 to 28,000 rotations per minute.

See the rest of our pneumatic grinders and it works with our custom maintenance tools. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Chicago Pneumatic Collet NA Grinding Files

Specifications

	CI-6151702900	CI-6151701230	CI-6151701040	CI-6151701240	CI-6151701050	CI-6151701250	CI-6151701060	CI-6151701260	CI-6151701070	CI-6151701630	CI-6151701550	CI-6151600020	CI-6151602080	CI-6151600030	CI-6151602090	CI-6151600040	CI-6151602100
SKU	CI-6151702900	CI-6151701230	CI-6151701040	CI-6151701240	CI-6151701050	CI-6151701250	CI-6151701060	CI-6151701260	CI-6151701070	CI-6151701630	CI-6151701550	CI-6151600020	CI-6151602080	CI-6151600030	CI-6151602090	CI-6151600040	CI-6151602100

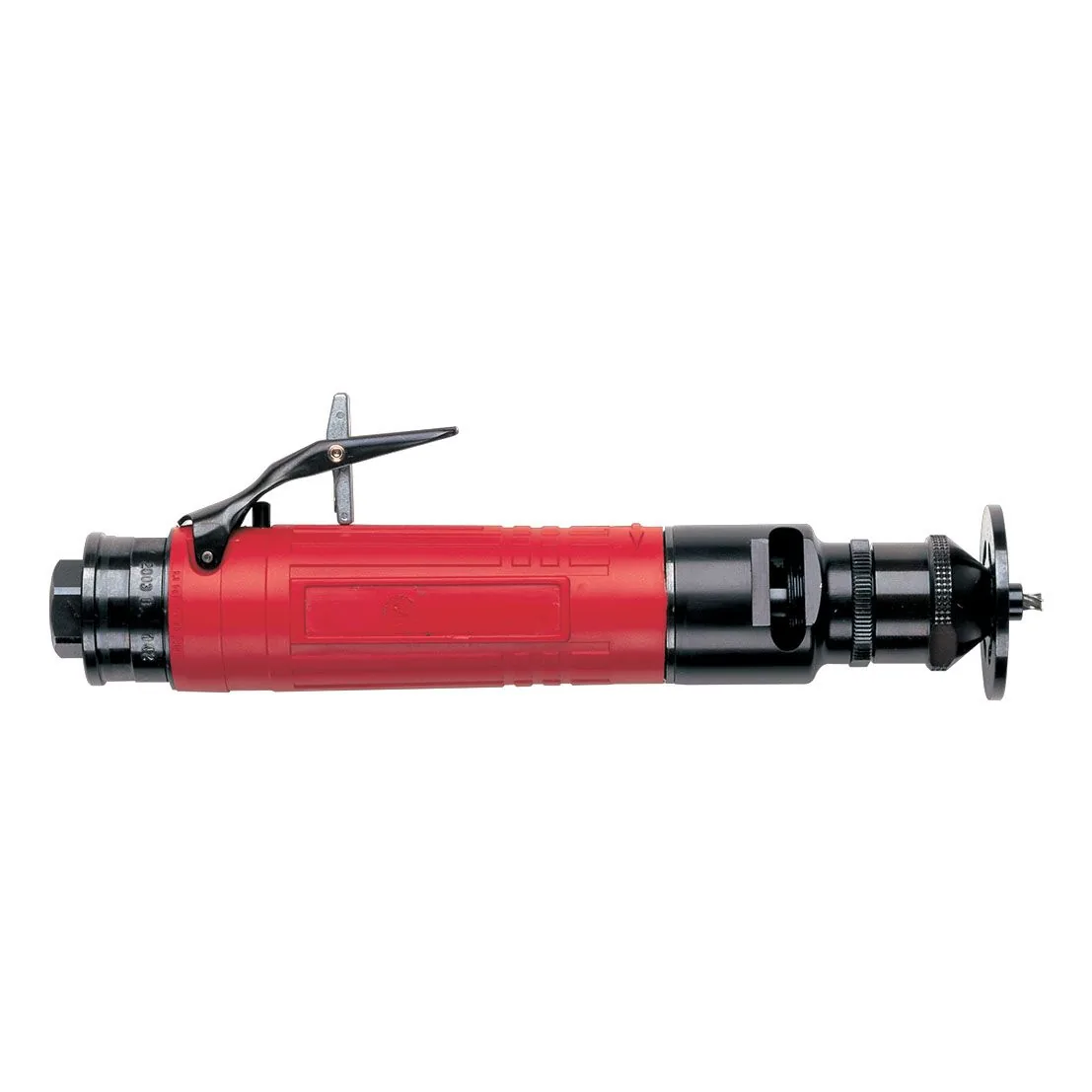

Product Name	Chicago Pneumatic CP3109-24RT - 1/4 Inch (6 mm) Air Die Grinder/Router, 0.8 HP / 600 W - 24000 RPM	Chicago Pneumatic CP3109-15 - 1/4 Inch (6 mm) Air Die Grinder, 0.8 HP / 600 W - 15000 RPM	Chicago Pneumatic CP3109-15ES - 1/4 Inch (6 mm) Air Ext. Die Grinder, 0.8 HP / 600 W - 15000 RPM	Chicago Pneumatic CP3109-19 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 19000 RPM	Chicago Pneumatic CP3109-19ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 19000 RPM	Chicago Pneumatic CP3109-24 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 24000 RPM	Chicago Pneumatic CP3109-24ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 24000 RPM	Chicago Pneumatic CP3109-28 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 28000 RPM	Chicago Pneumatic CP3109-28ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 28000 RPM	Chicago Pneumatic CP3109-15 - 1/4 Inch (6 mm) Air Die Grinder, 0.8 HP / 600 W - 15000 RPM	Chicago Pneumatic CP3109-15ES - 1/4 Inch (6 mm) Air Ext. Die Grinder, 0.8 HP / 600 W - 15000 RPM	Chicago Pneumatic CP3109-19 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 19000 RPM	Chicago Pneumatic CP3109-19ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 19000 RPM	Chicago Pneumatic CP3109-24 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 24000 RPM	Chicago Pneumatic CP3109-24ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 24000 RPM	Chicago Pneumatic CP3109-28 - 1/4 Inch (6 mm) Air Straight Die Grinder, 0.8 HP / 600 W - 28000 RPM	Chicago Pneumatic CP3109-28ES - 1/4 Inch (6 mm) Air Straight Die Grinder, Extended One-piece Body, 0.8 HP / 600 W - 28000 RPM
Vendor SKU	6151702900	6151701230	6151701040	6151701240	6151701050	6151701250	6151701060	6151701260	6151701070	6151701630	6151701550	6151600020	6151602080	6151600030	6151602090	6151600040	6151602100
Free Speed (rpm)	24000	15000	15000	19000	19000	24000	24000	28000	28000	15000	15000	19000	19000	24000	24000	28000	28000
Collet max capacity (in)	1/4	15/64	15/64	15/64	15/64	15/64	15/64	15/64	15/64	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Shaft Length	Standard	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended	Standard	Extended
Tool Type	Router Tool	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder	Die Grinder
Max power	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Angle Type	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Length (in)	8.74	8.74	14.29	8.74	14.29	8.74	14.29	8.74	14.29	8.74	14.21	8.74	14.29	8.74	14.21	8.74	14.21
Tool Weight (lb)	2.65	1.98	2.87	1.98	2.87	1.98	2.87	1.98	2.87	1.98	2.87	1.98	2.87	1.98	2.87	1.98	2.87
Air consumption at free speed (cfm)	18	-	12	12	-	21	12	33	33	-	-	12	12	21	21	33	33
Air Consumption At Load (cfm)	31	31	12	31	31	31	31	31	31	31	31	31	31	31	31	31	31
Air Inlet Thread Size (in)	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8	3/8
Min Hose Diam (mm)	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38
Sound Power (dB(A))	93	85	87	85	87	93	92	96	96	85	87	87	87	92	92	96	96
Sound Pressure (dB(A))	82	74	76	74	76	82	81	85	85	74	76	76	76	81	81	85	85
Uncertainty Vibration-k (ft/s²)	4.3	-	-	-	-	-	4.9	3.4	-	6.6	5	5.9	-	-	-	-	-
Air Inlet Thread Type	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP	BSP
Vibration (m/s²)	4.97	<2.5	<2.5	<2.5	<2.5	<2.5	2.6	4,6	<2.5	3.4	2.5	-	<2.5	<2.5	<2.5	<2.5	<2.5
Collet/collet Holder/collet Nut Type	Erickson serie 200 type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Cnomo type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type	Erickson serie 200 type
Exhaust	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear	Rear
Governor Type	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball	Ball
Main Material type	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve
Rotative Inlet	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Spindle Lock	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
Starting System	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever	Safety lever
Max Dynamic Air Working Pressure (psi)	-	-	-	-	-	-	-	-	-	-	-	90	90	90	90	90	90
