Chicago Pneumatic CP3119 Series – Straight Grinders

$1,195.00 – $1,506.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP3119 Series – Straight Grinders

$1,195.00 – $1,506.00

Chicago Pneumatic CP3119 Series - Straight Grinders

$1,195.00 – $1,506.00

Wheel/Disc diameter (in): No selection

More options

Wheel thickness (in): No selection

More options

Free Speed (rpm): No selection

More options

Output Spindle Thread: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

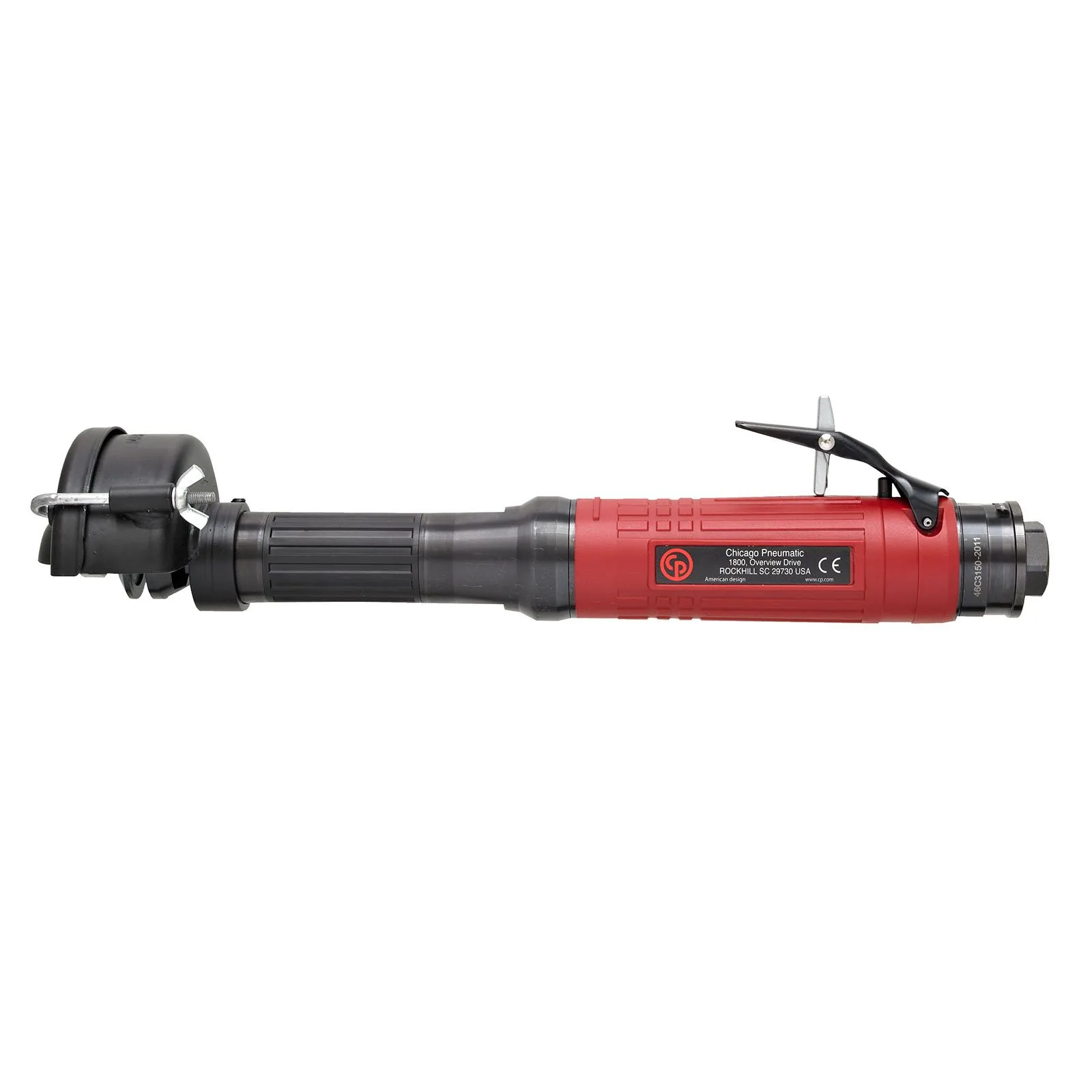

Industrial Straight Wheel Grinder

High performance in a high productivity industrial Straight Wheel Grinder tool – 3″ (80mm) with a powerful 1.2 hp (900 W) motor. Ergonomic and extremely durable tool.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Streamlined safety lever and 1.2 hp (900 W) governed motor for operator safety
Long steel housing with an insulating composite over-housing for operator comfort
Superior ergonomics with 2-handed handling

The CP3119 straight wheel grinders range consists of 6 models, with max wheel capacity from 2.5×1/2×3/8″ (63x13x9.52 mm) to 4×1/2×3/8″ (100x13x9.52 mm) and a 1.2 hp (900 W) powerful motor. CP3019 straight Grinder range free speed is from 12,000 to 18,000 rotations per minute.

Chicago Pneumatic EXHAUST HOSE

QUOTE

Chicago Pneumatic EXHAUST HOSE 0.75 M LENGTH

QUOTE

Chicago Pneumatic SILENCER KIT

QUOTE

Chicago Pneumatic GUARD

$269.94

Chicago Pneumatic COLLET 8mm ERICKSON Series 200

$92.00

Chicago Pneumatic COLLET 9.5mm ERICKSON Series 200

QUOTE

Chicago Pneumatic COLLET 3.2mm ERICKSON Series 200

QUOTE

Chicago Pneumatic COLLET 6mm ERICKSON Series 200

QUOTE

Chicago Pneumatic COLLET 1/4" ERICKSON Series 200

$89.05

Chicago Pneumatic COLLET HOLDER.

QUOTE

Chicago Pneumatic GUARD

QUOTE

Chicago Pneumatic GUARD

QUOTE

Chicago Pneumatic CPA1008 TIMER CARD

QUOTE

Chicago Pneumatic CP9920 BALANCER 1.0-2.5KG 2.2-5.5LB

QUOTE

Chicago Pneumatic CP9912 BALANCER 1.0-2.0KG 2.2-4.4LB

QUOTE

Chicago Pneumatic NIPPLE M076E 38 BSP-SET OF 10

QUOTE

Chicago Pneumatic NIPPLE M08S 38 BSP

QUOTE

Chicago Pneumatic HOSE CONNECTOR 10MM SCREW M 3/8" BSP

QUOTE

Chicago Pneumatic NIPPLE M104E 38 BSP-SET OF 5

QUOTE

Chicago Pneumatic L12BSP

QUOTE

Chicago Pneumatic NIPPLE 3/8BSP D8mm

QUOTE

Chicago Pneumatic Air Fuse Female Female

QUOTE

Chicago Pneumatic Effi Max Hose Kit 194 -40 200

QUOTE

Chicago Pneumatic Effi Max Hose 194 200 -40

QUOTE

Chicago Pneumatic Pur Hose 82 176 200

QUOTE

Chicago Pneumatic HOSE RUBBER 12.5X19MM 20M

QUOTE

Chicago Pneumatic Effi Max Hose Whip 2 194 200

QUOTE

Chicago Pneumatic Air Flex 100 Not recommended for percussive tools Male

QUOTE

Chicago Pneumatic Composite FRL Air preparation COMPOSITE Single part

$192.44 – QUOTE

Chicago Pneumatic FRL - Filter, Regulator, Lubricator 100 BSP Air preparation

QUOTE

Chicago Pneumatic Air Line Regulator BSP

QUOTE

Chicago Pneumatic Filter-Regulator BSP

QUOTE

Chicago Pneumatic Mini Oiler 0 NPT 0

QUOTE

Chicago Pneumatic Filter BSP

QUOTE

Chicago Pneumatic CPA1014 MOTOR OIL 1L

QUOTE

Chicago Pneumatic CPA1015 MOTOR OIL 125 mL

QUOTE

Chicago Pneumatic CPA1016 MOTOR OIL 5L

QUOTE

Specifications

SKU	Product Name	Vendor SKU	Wheel/Disc diameter (in)	Wheel thickness (in)	Free Speed (rpm)	Output Spindle Thread	Max power	Power Source	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Length (in)	Tool Weight (lb)	Air consumption at free speed (cfm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Autobalancer	Exhaust	Governor Type	Main Material type	Rotative Guard Type	Rotative Inlet	Spindle Lock	Starting System	Air Inlet Thread Type	Overspeed Shut-off	Vibration (m/s²)

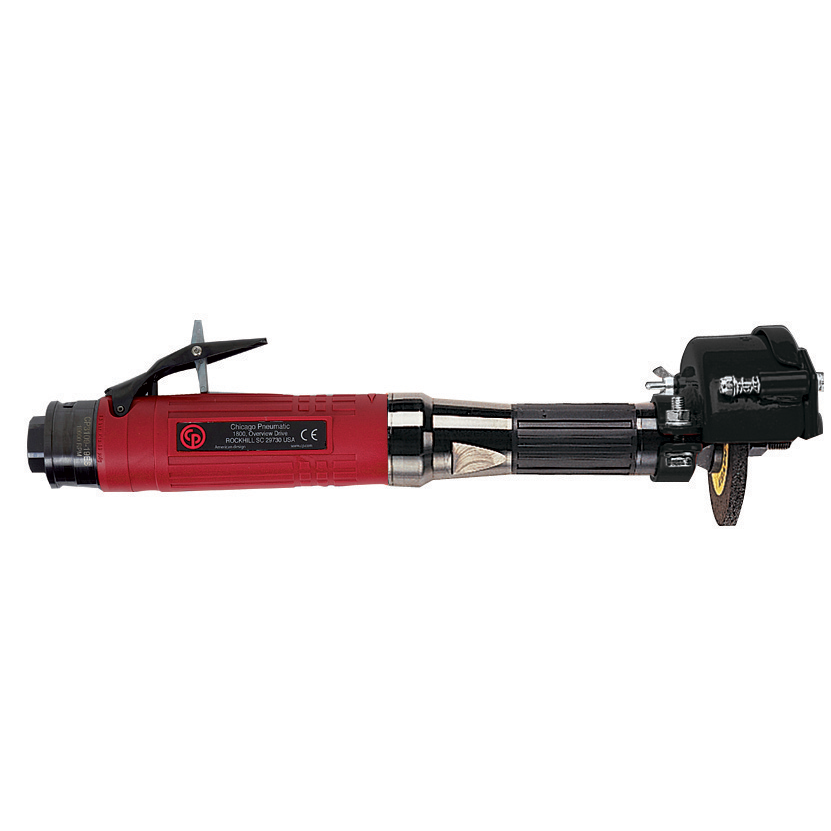

CI-6151606070	CP3119-123X - 1/2-13 UNC, 3 in, 25/32 in, 12000 rpm	6151606070	3	25/32	12000	1/2-13 UNC	1.21	Pneumatic	33	3/8	90	0.38	9.29	3.75	14	81	70	39.4	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	<2.5

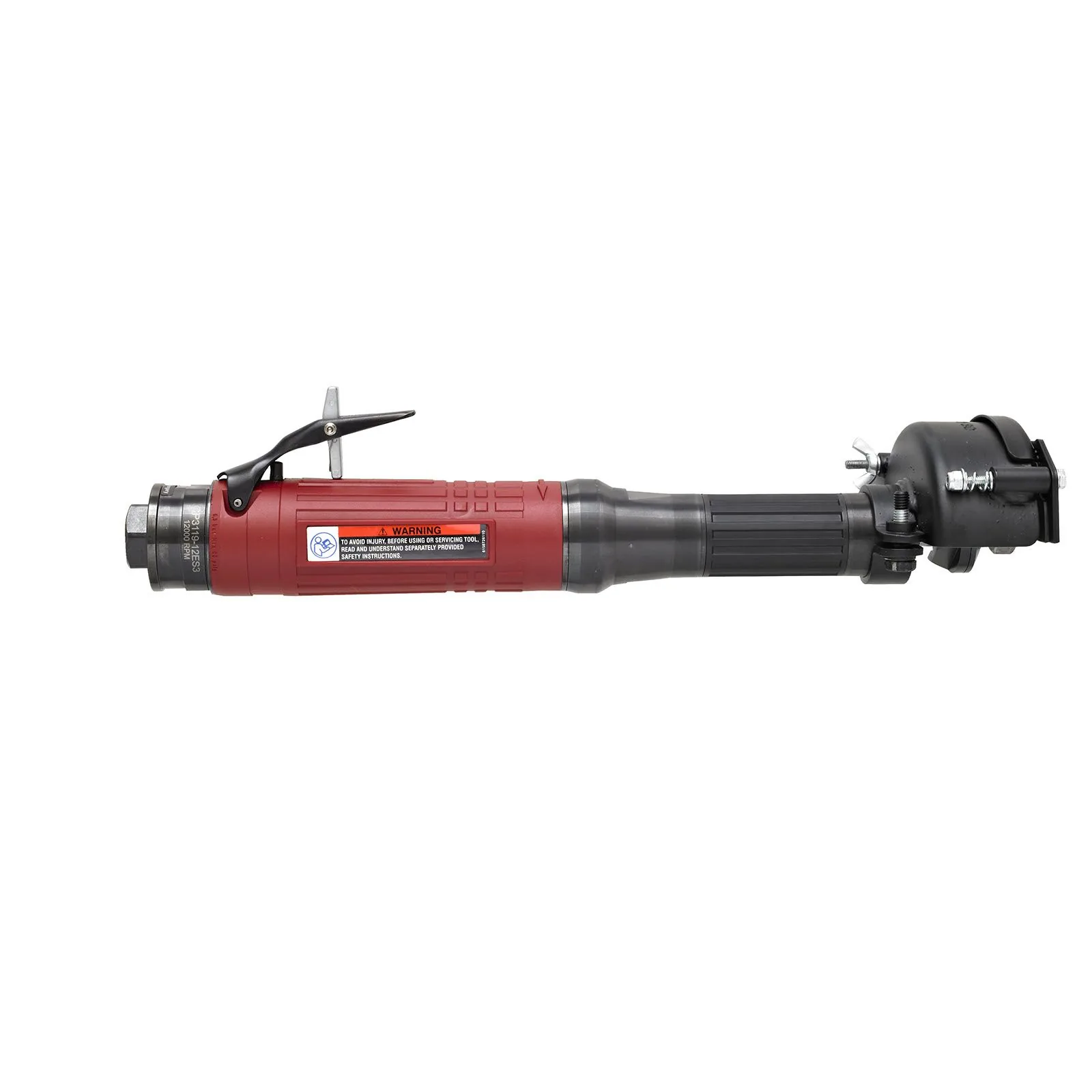

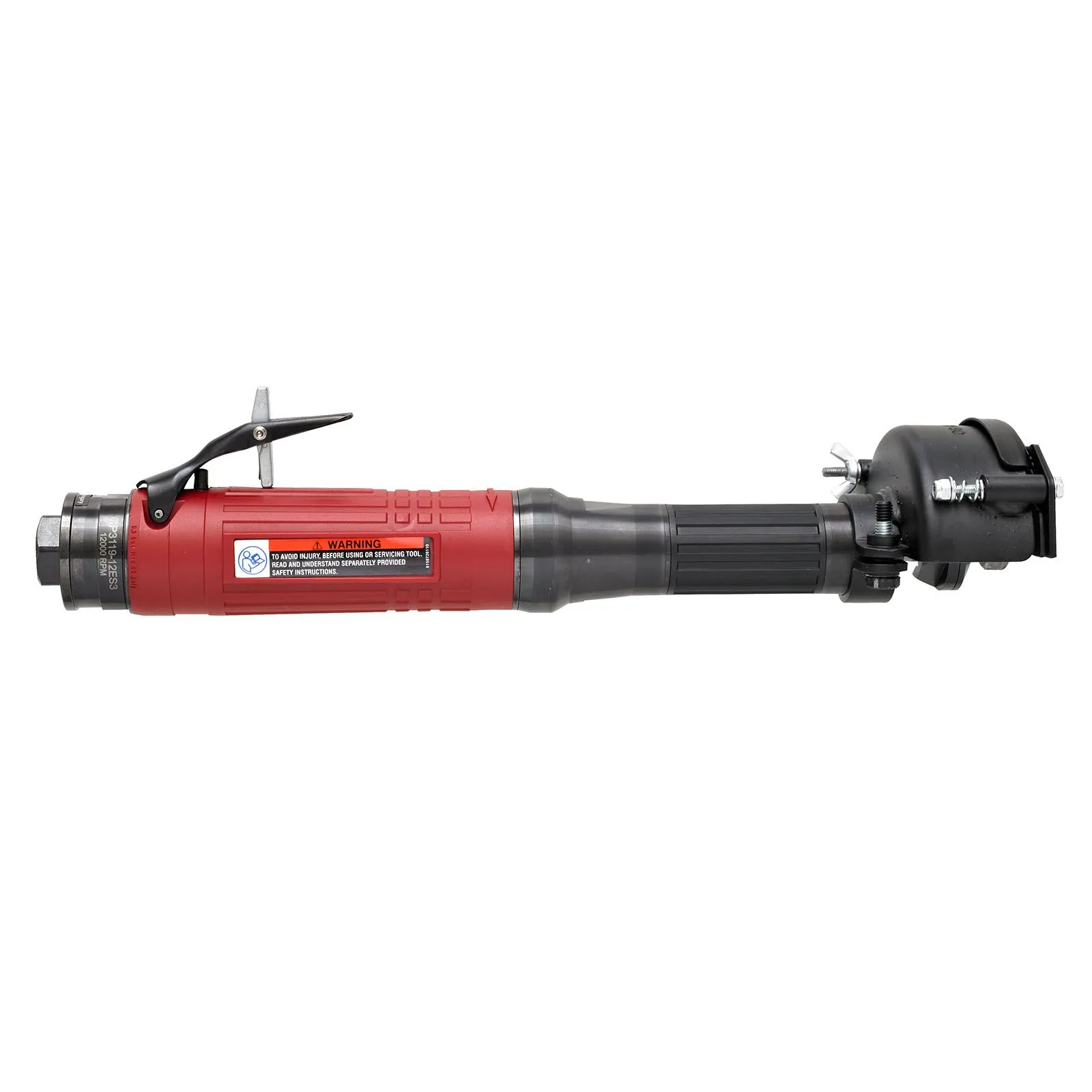

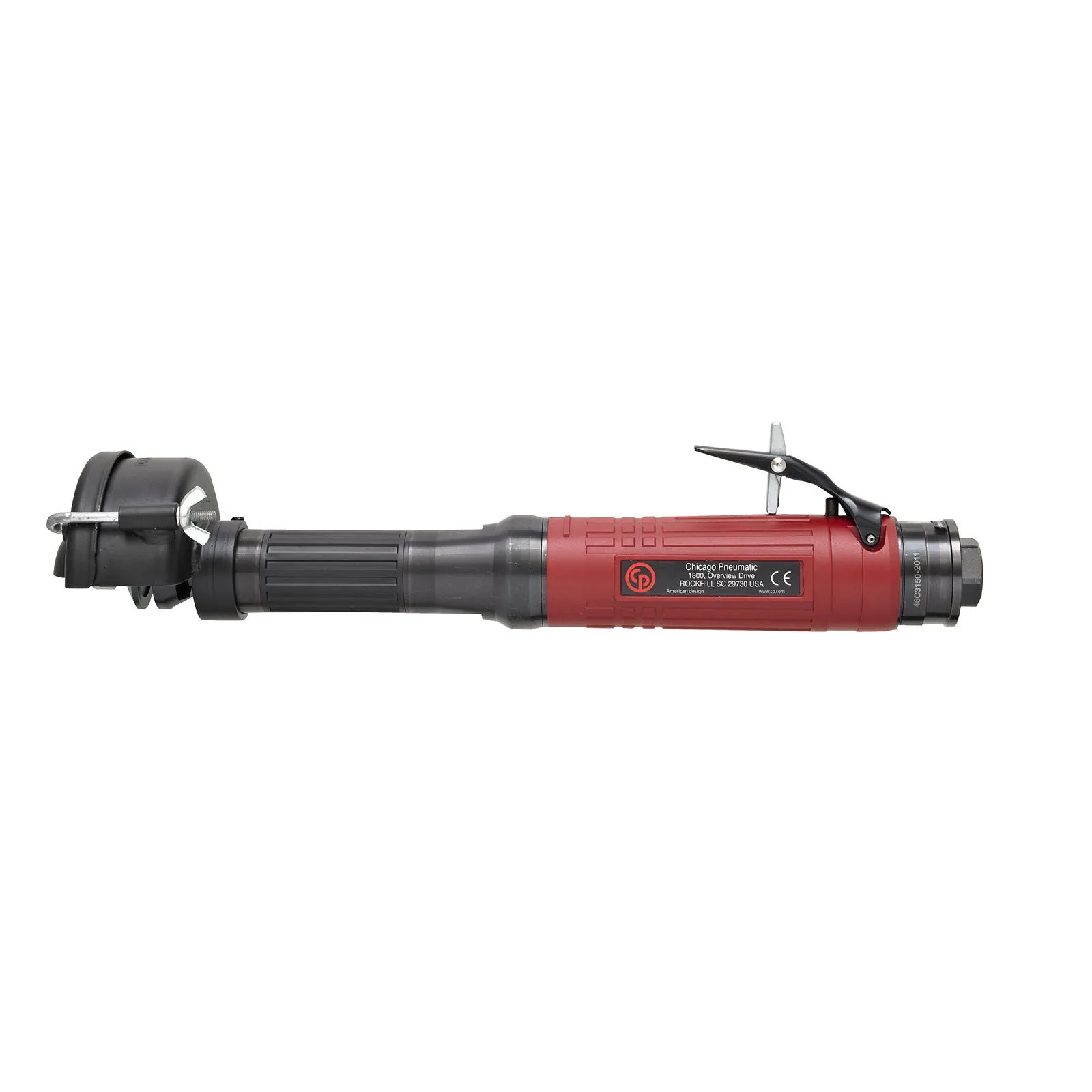

CI-6151606010	CP3119-12ES3 - 3/8-24 UNF, 3 in, 1/2 in, 12000 rpm	6151606010	3	1/2	12000	3/8-24 UNF	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.75	14	92	81	-	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	<2.5
CI-6151606030	CP3119-12ES3X - 1/2-13 UNC, 3 in, 1/2 in, 12000 rpm	6151606030	3	1/2	12000	1/2-13 UNC	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.75	14	88	77	-	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	<2.5

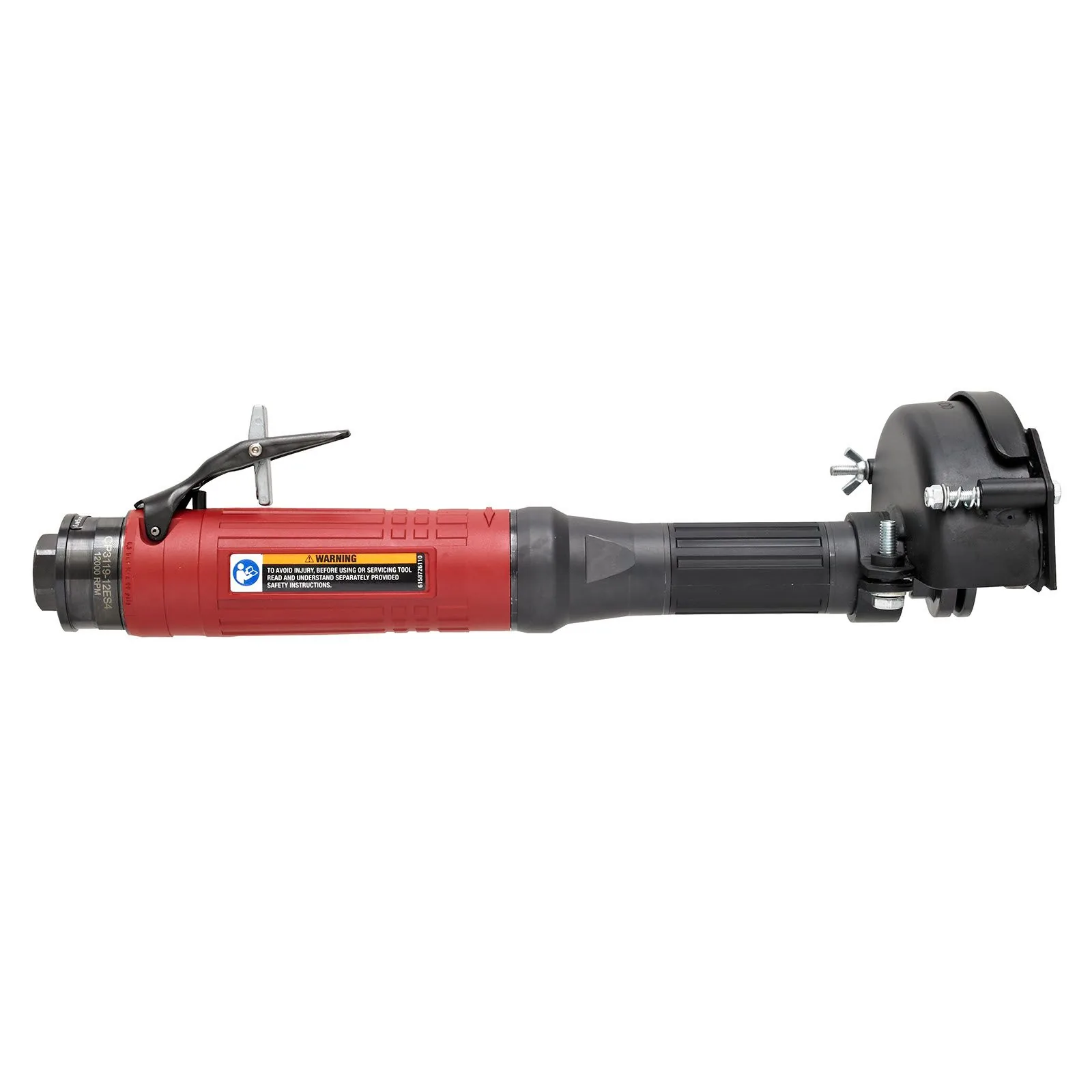

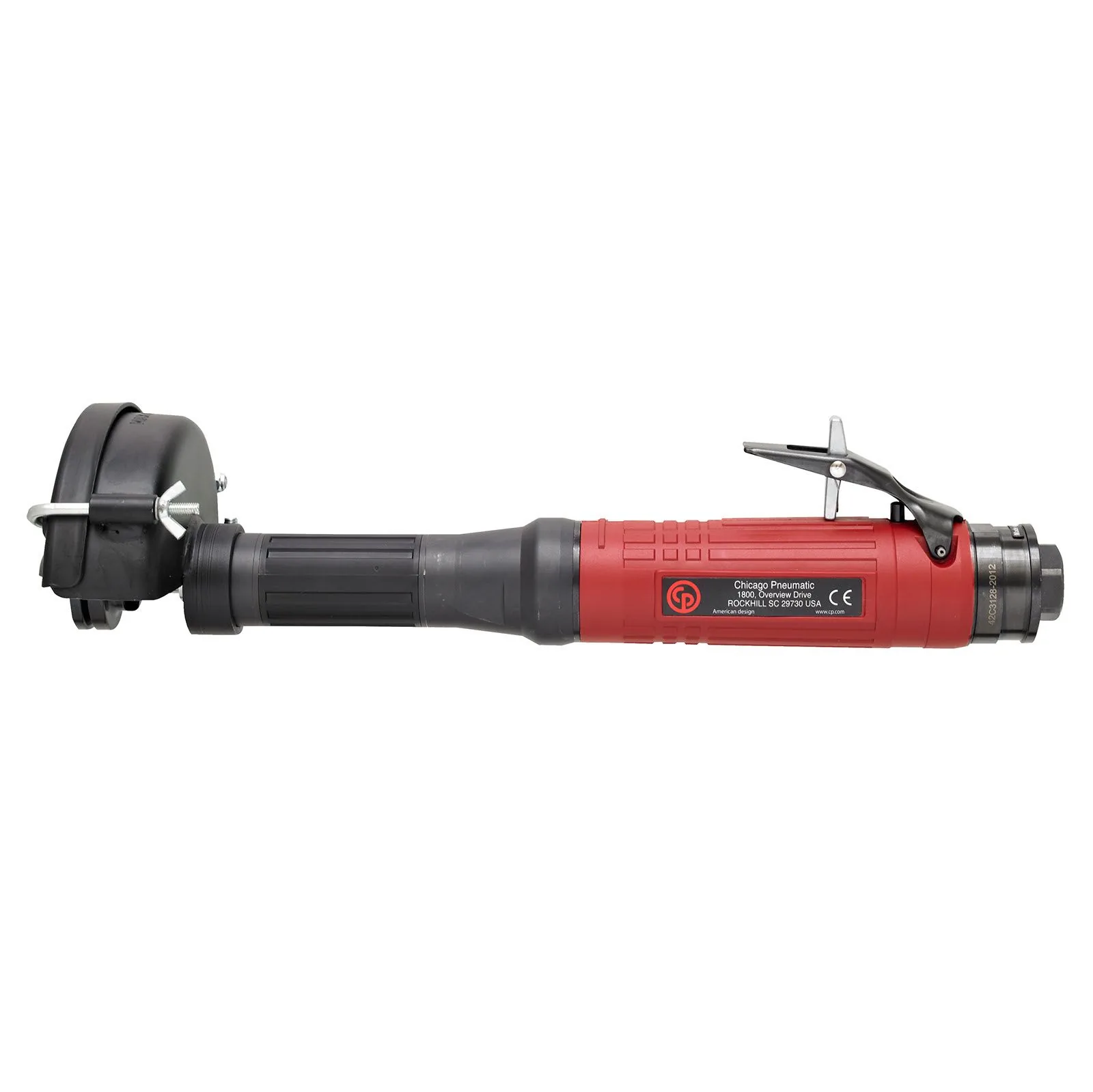

CI-6151606020	CP3119-12ES4 - 3/8-24 UNF, 4 in, 1/2 in, 12000 rpm	6151606020	4	1/2	12000	3/8-24 UNF	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.97	14	89	78	-	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	<2.5

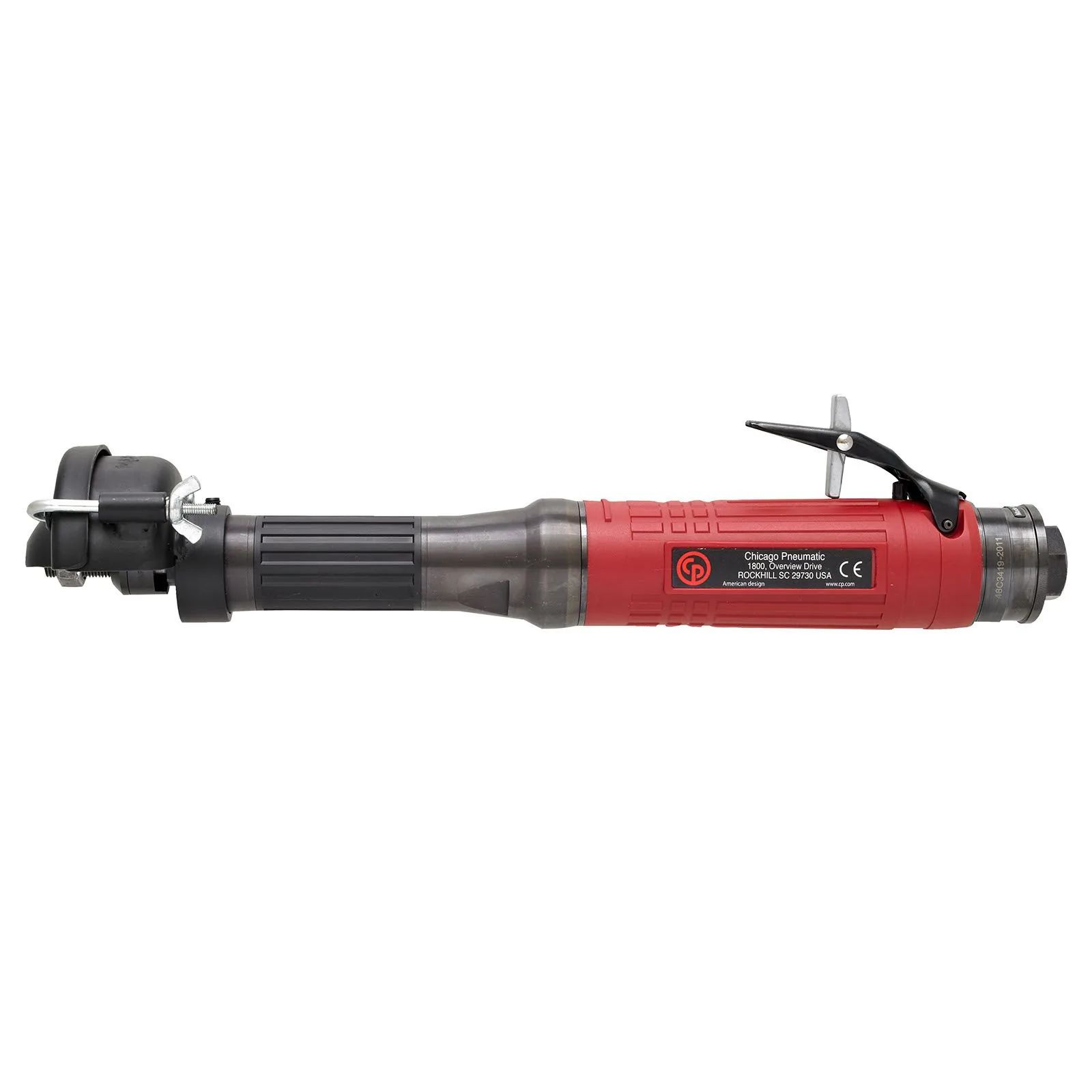

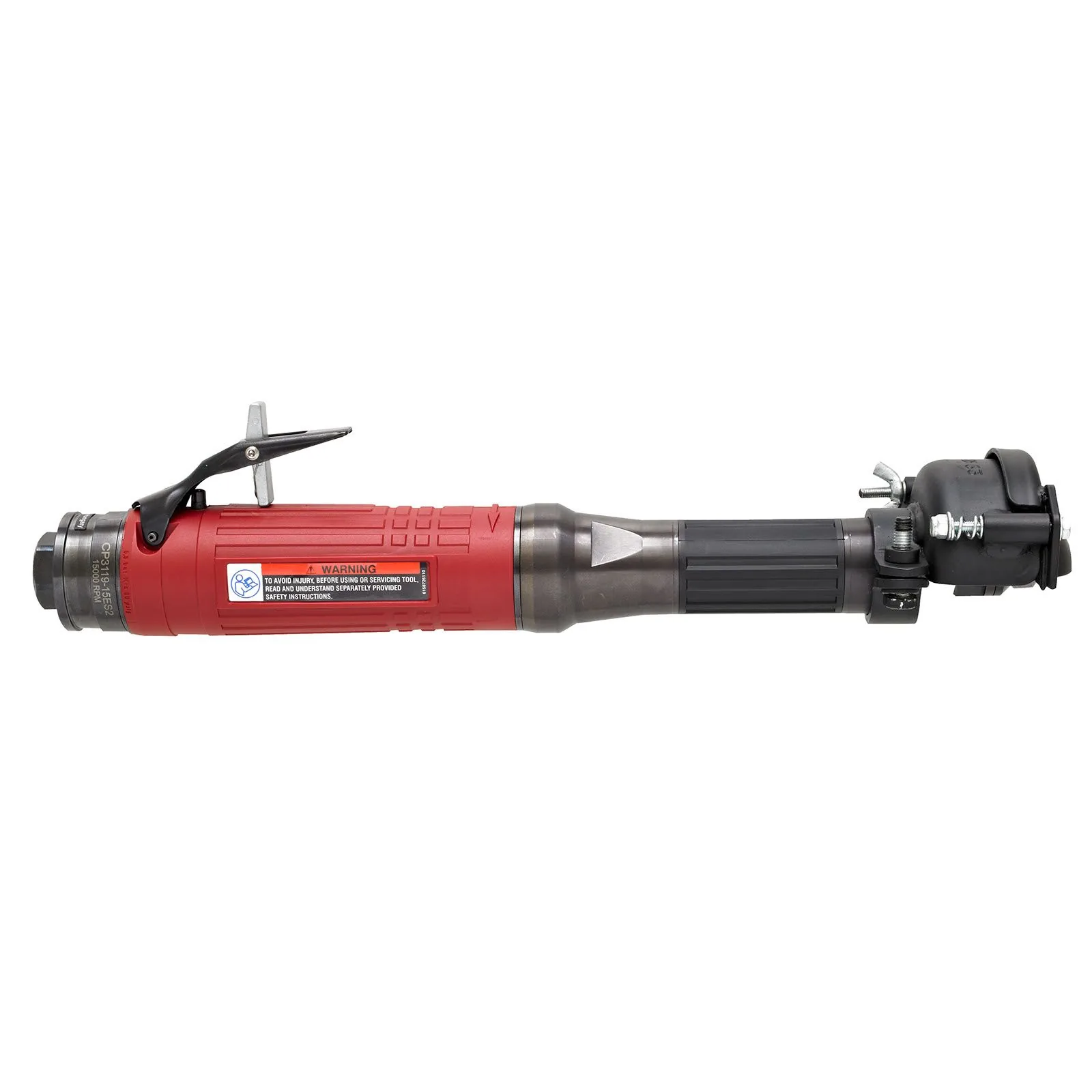

CI-6151606040	CP3119-15ES2 - 3/8-24 UNF, 2-1/2 in, 1/2 in, 15000 rpm	6151606040	2-1/2	1/2	15000	3/8-24 UNF	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.53	14	88	77	-	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	<2.5
CI-6151606050	CP3119-15ES3 - 3/8-24 UNF, 3 in, 1/2 in, 15000 rpm	6151606050	3	1/2	15000	3/8-24 UNF	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.75	14	89	78	3.6	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	8.9
CI-6151606060	CP3119-18ES3 - 3/8-24 UNF, 3 in, 1/2 in, 18000 rpm	6151606060	3	1/2	18000	3/8-24 UNF	1.21	Pneumatic	33	3/8	90	0.38	13.31	3.75	14	88	77	10.2	No	Rear	Ball	Aluminium, Composite over-sleeve	Band	No	No	Safety lever	BSP	No	17.4
