Chicago Pneumatic CP3340 Series – Vertical Grinders
Chicago Pneumatic CP3340 Series - Vertical Grinders
$1,162.00$1,166.00

Best in Class Productivity, Optimal Safety

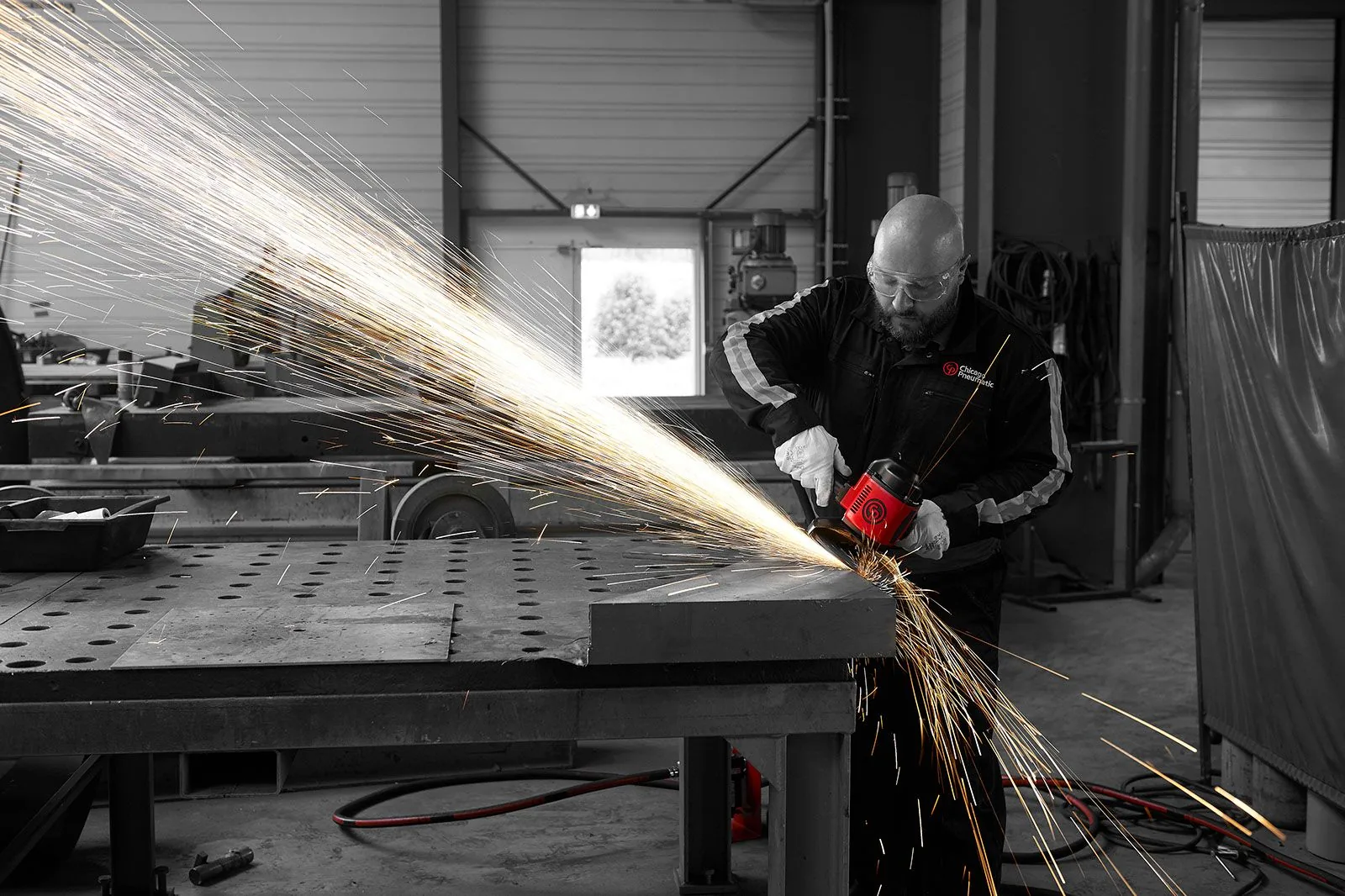

A Best-in-class power for material removal twice as fast as competitors. The CP3340 vertical grinder from 6″ to 9″ (150 to 230 mm) is suitable for milling, deburring, cutting, finishing, and cleaning welds in harsh environments.

  • Highest durability in demanding applications with up to 2,000 hours maintenance intervals
  • Governed motor – 4.5 hp (3,400 W) – ensures operator safety while maintaining abrasive speed under operator load
  • Overspeed shut-off device, avoids abrasive bursts in case of accidental air pressure variations
  • Robust aluminum housing and high resistance protective guard for long-term durability
  • Streamlined safety lever allows easy tool operation while wearing heavy gloves

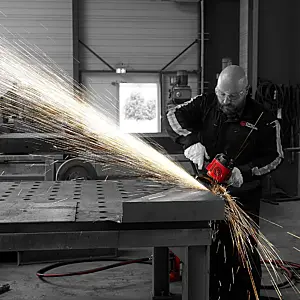

The CP3340 vertical grinder is ideal for heavy grinding and cutting applications. Highly robust and durable with integrated over speed shut-off device, it features a powerful governed pneumatic motor and free speed from 6,000 to 8,500 rpm, a streamlined safety lever, and very resistant protective guard for optimal operator safety. All models are 5/8″-11 UNS male spindle type. Available in 3 models: CP3340-SALAVEL for ANSI market and CP3340 SALAVET, CP3340-SALAVADE for CE market.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Wheel/Disc diameter (in)
Max power
Output Spindle Thread
Power Source
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Side To Center (in)
Tool Weight (lb)
Free Speed (rpm)
Air consumption at free speed (cfm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Inlet Thread Type
Autobalancer
Exhaust
Main Material type
Rotative Inlet
Spindle Lock
Starting System
Swiveling Guard
Overspeed Shut-off
CI-6151609280

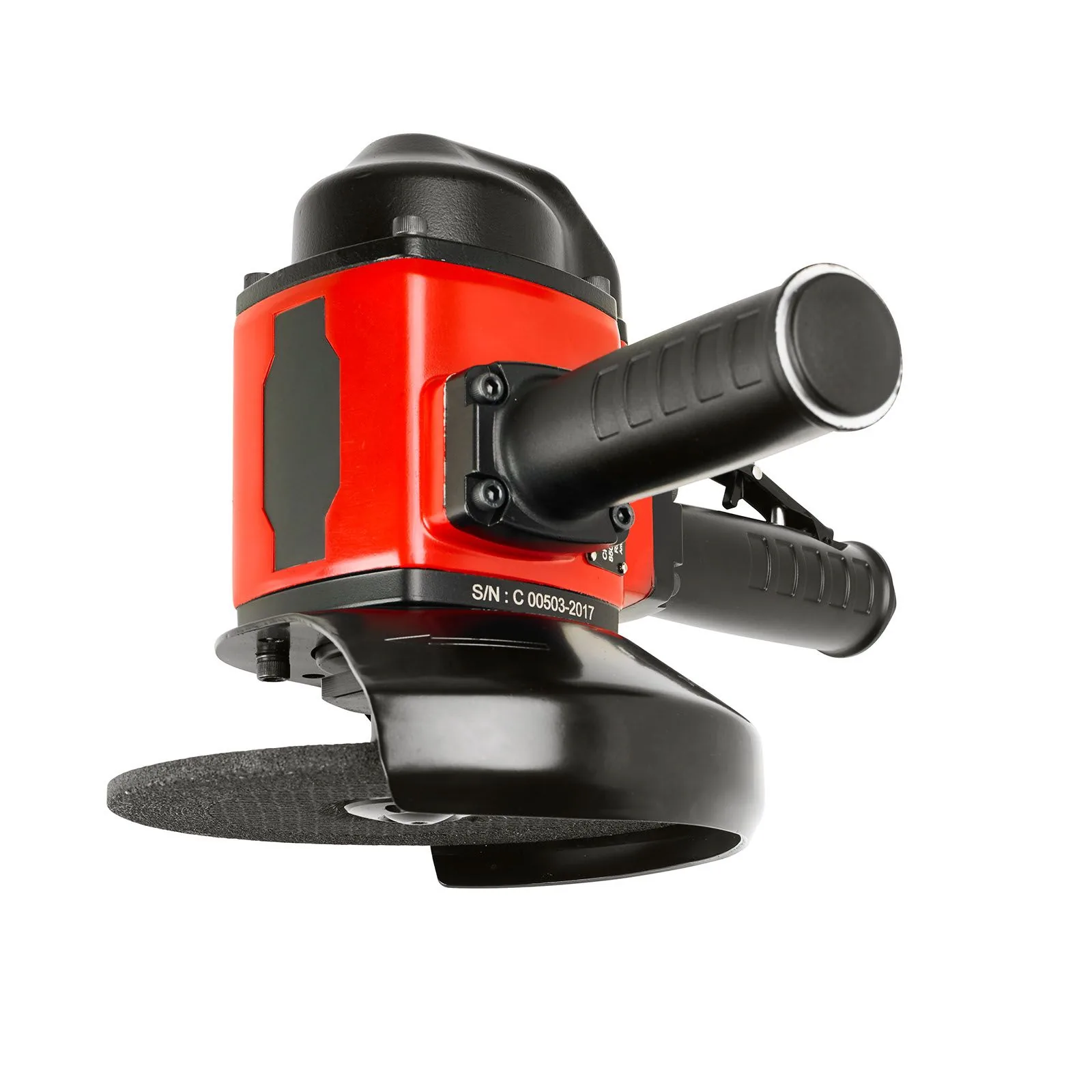

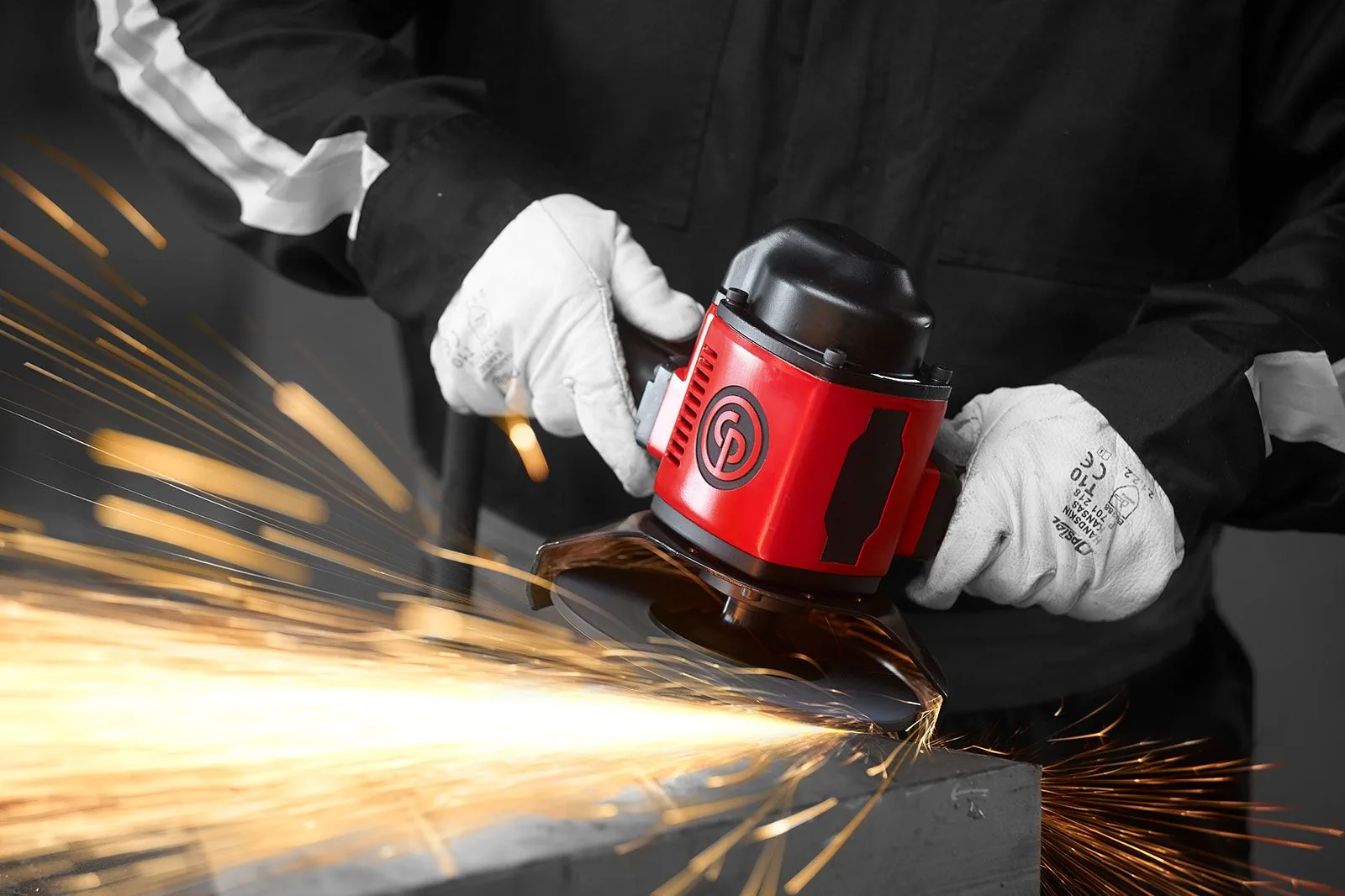

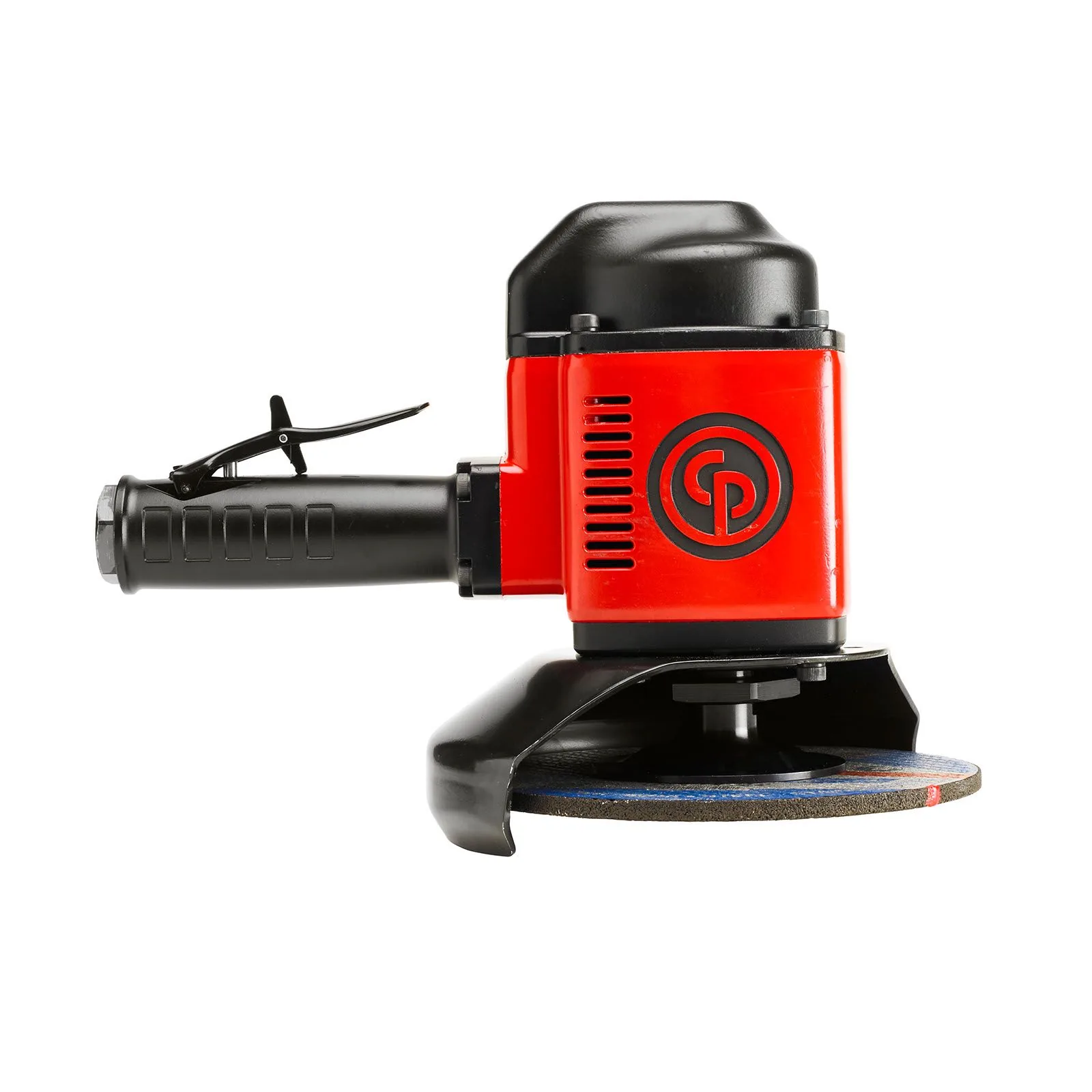

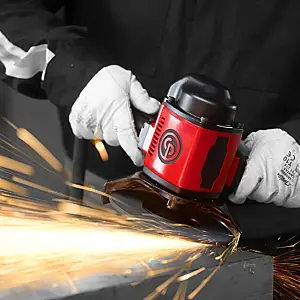

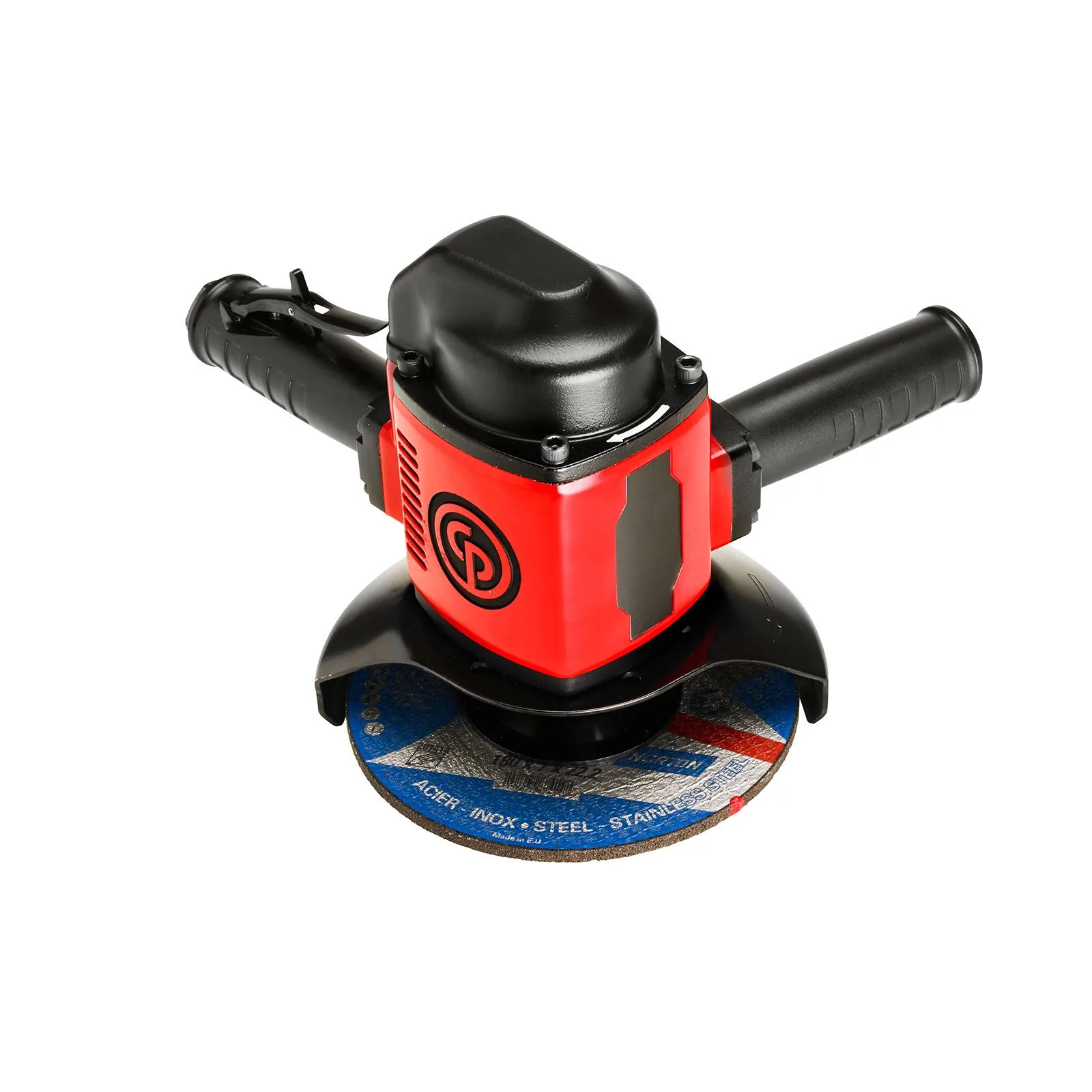

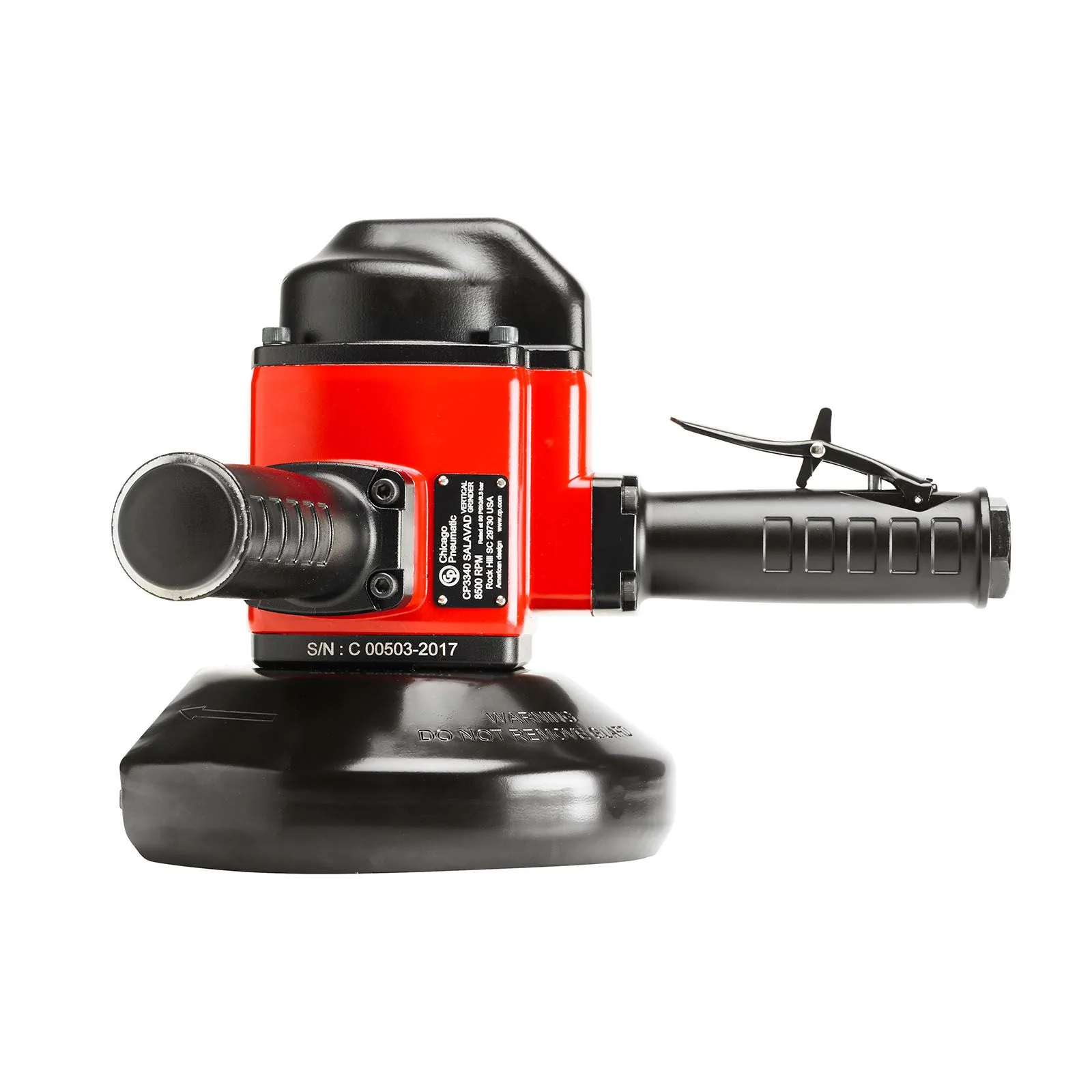

CP3340-SALAVAD - 7 in
6151609280
7
4.56
5/8-11
Pneumatic
110
1/2
90
0.63
9.84
1.97
12.3
8500
61
111
100
5.6
16.1
NPT
No
Side
Aluminium
No
No
Safety lever
No
Yes
CI-6151609290

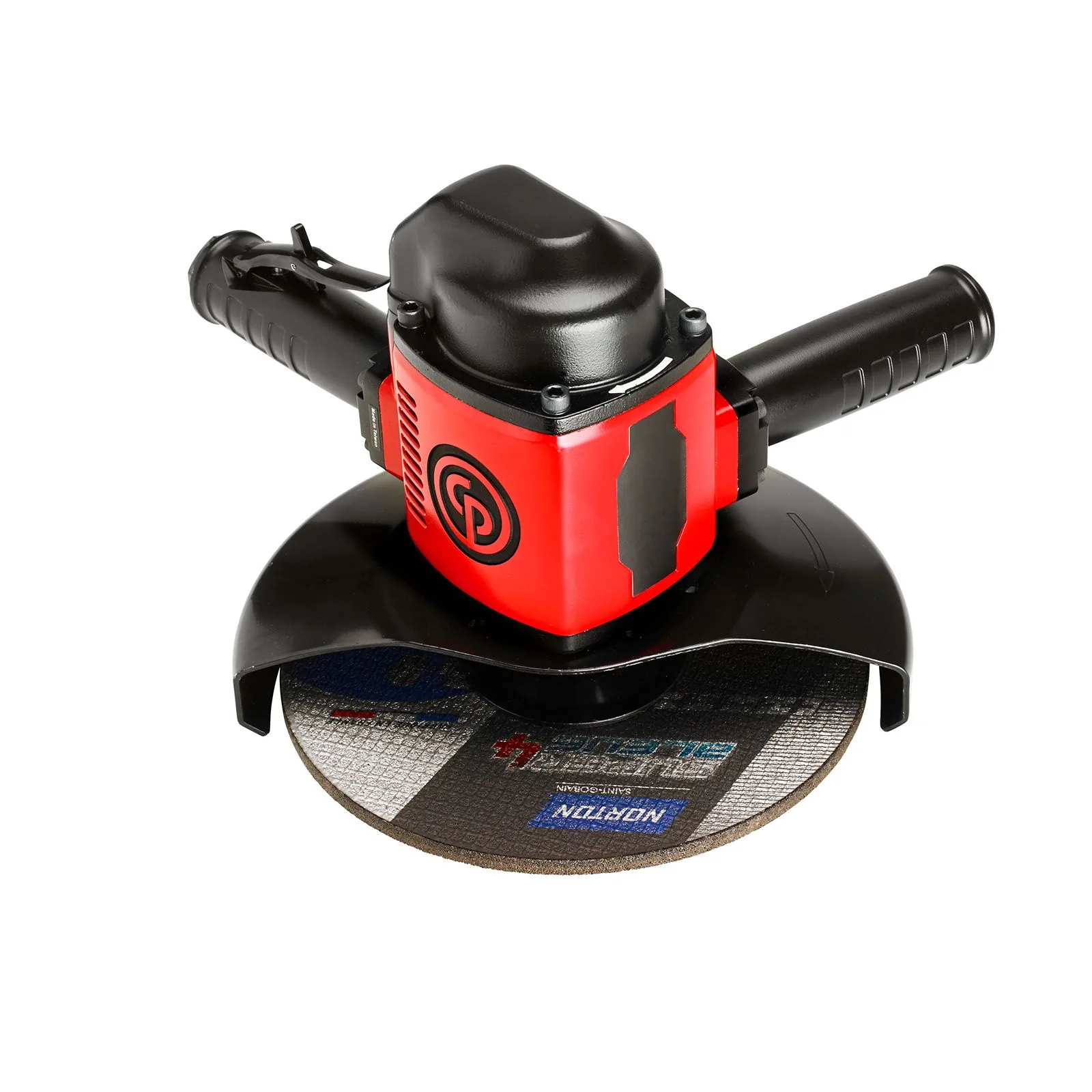

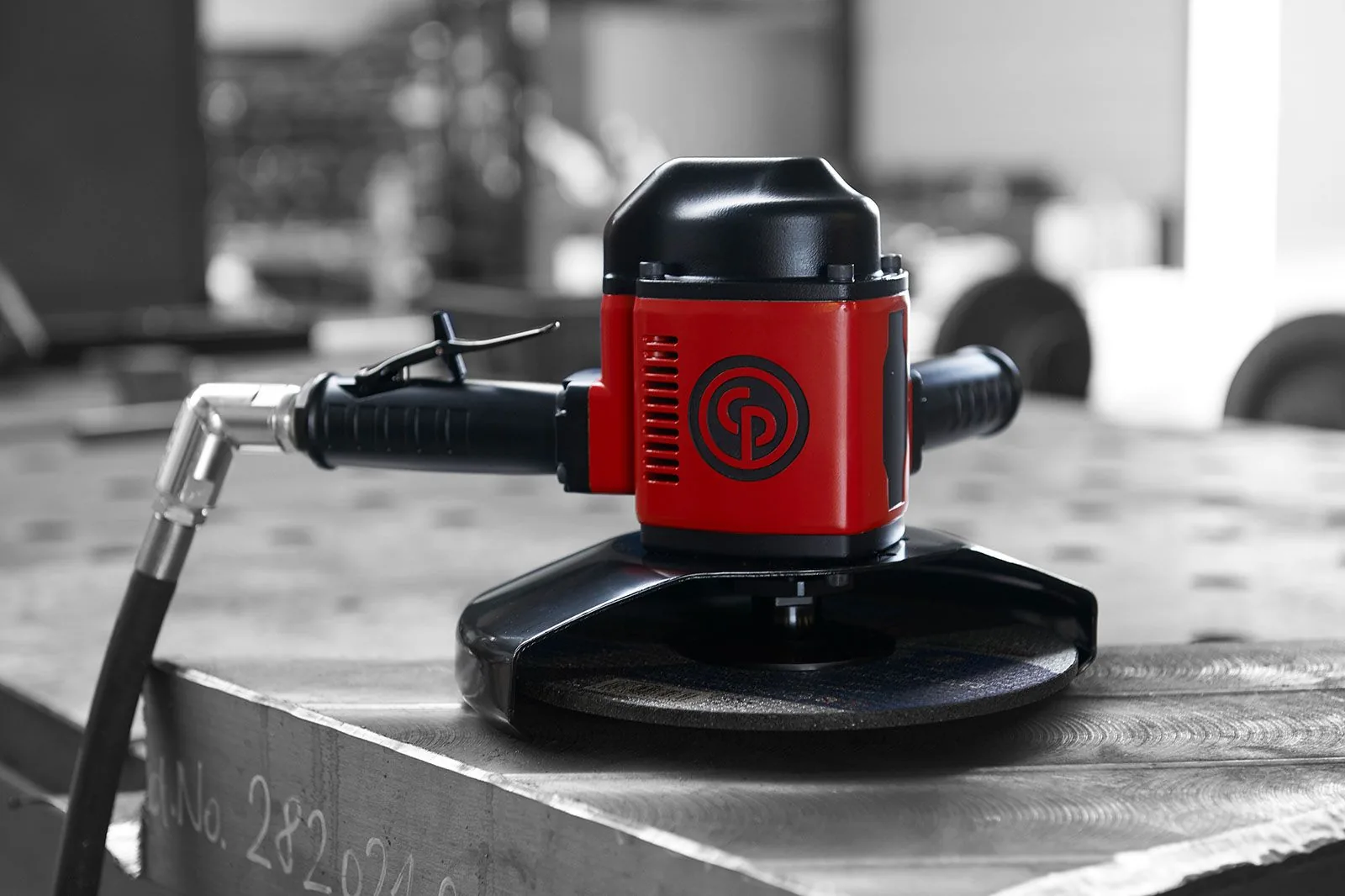

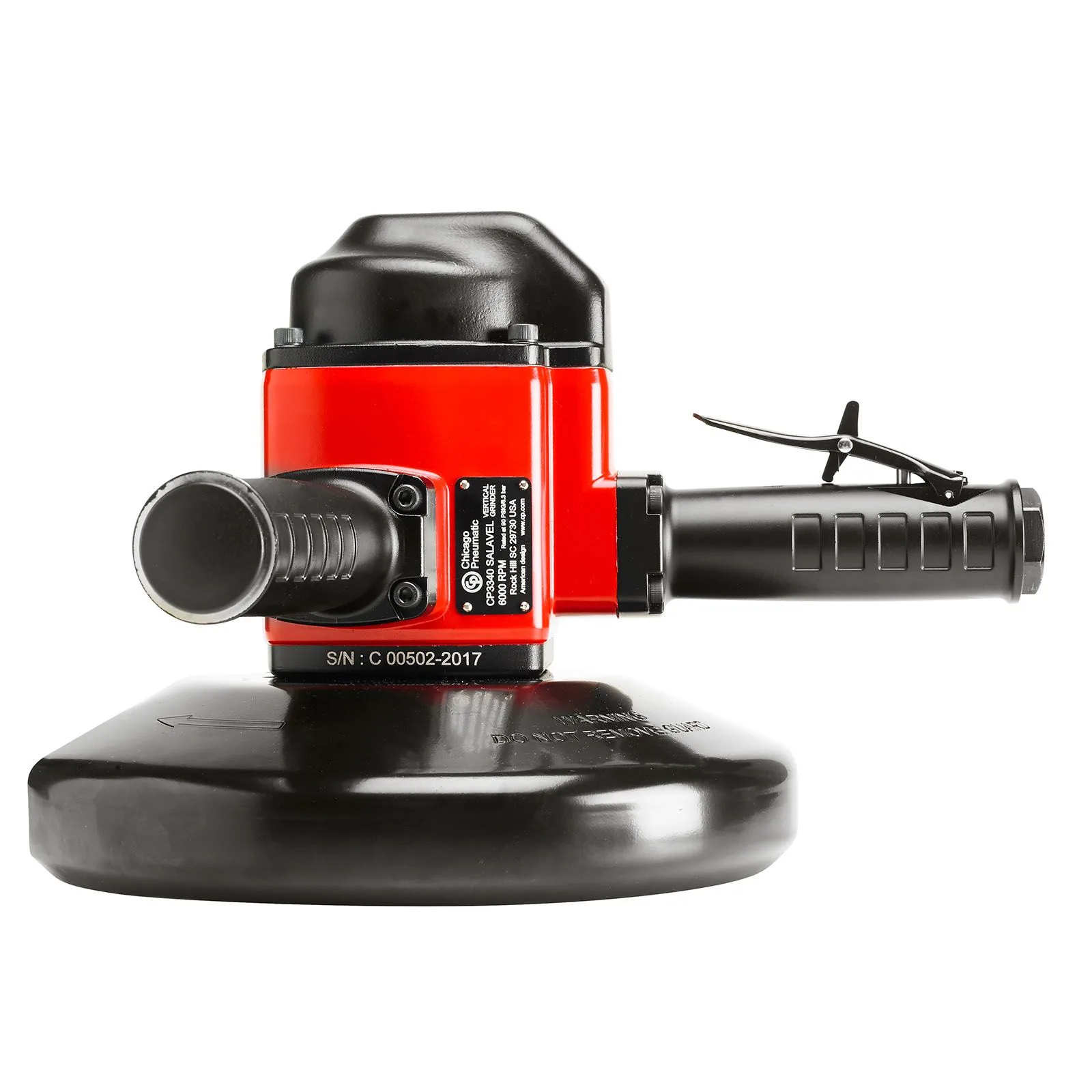

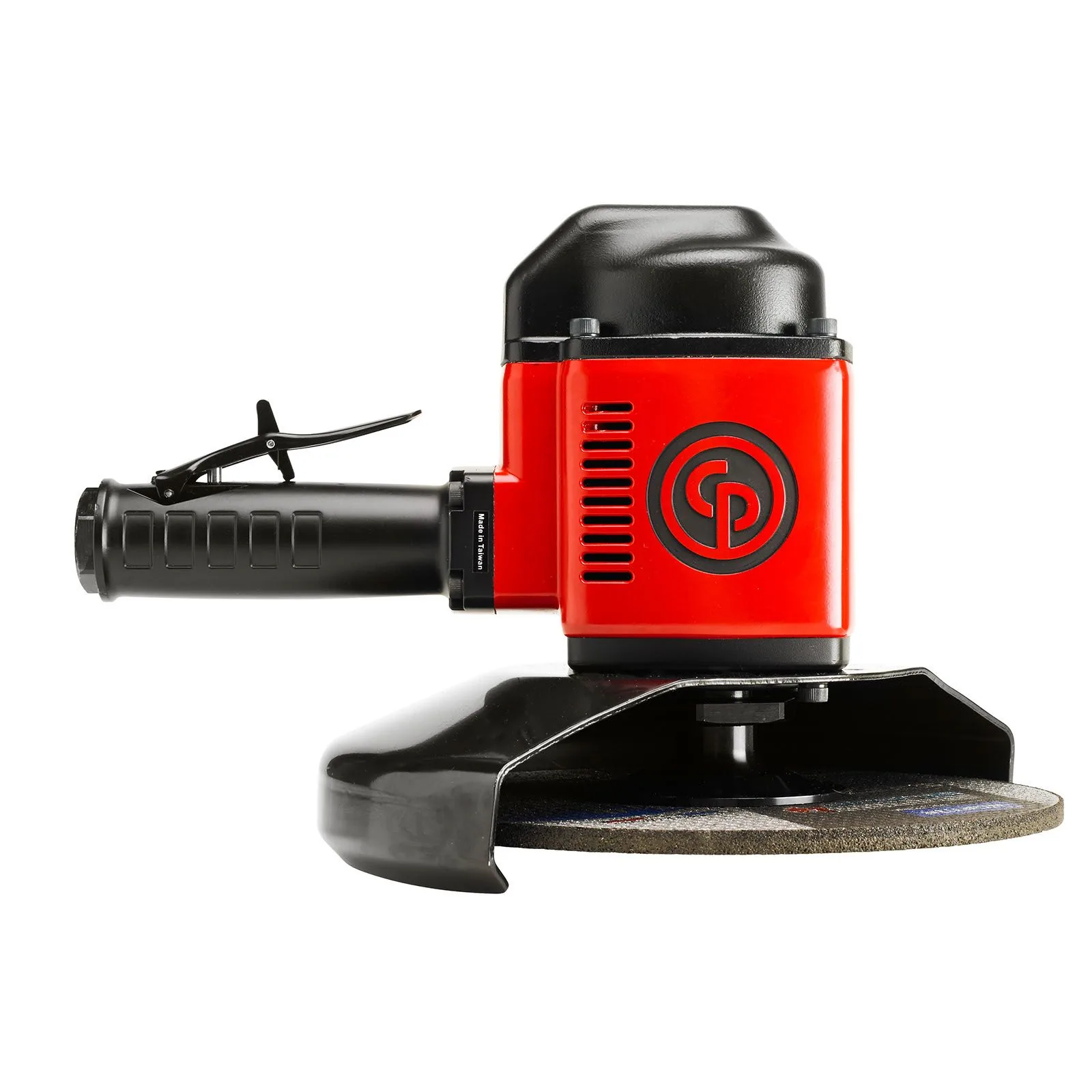

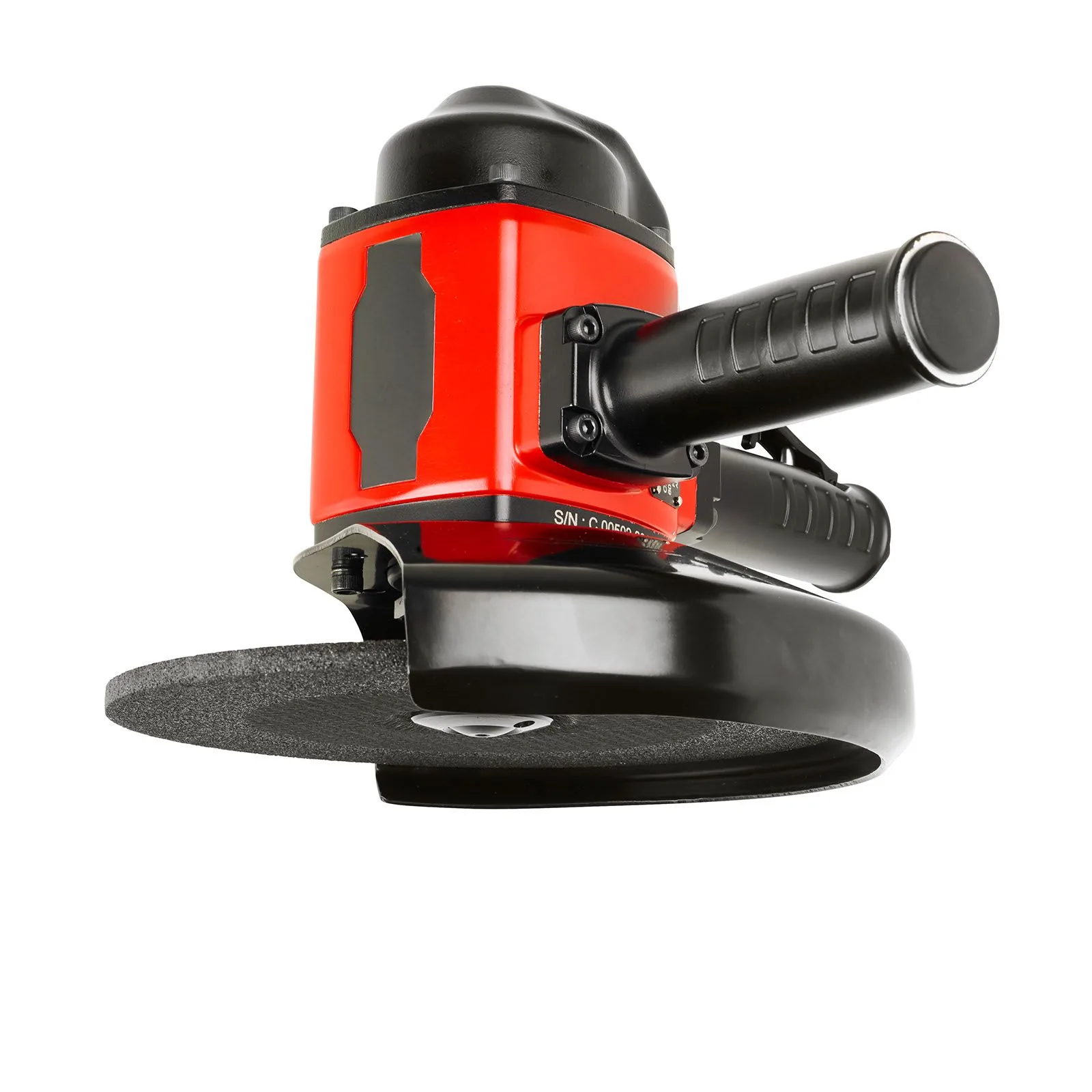

CP3340-SALAVEL - 9 in
6151609290
9
4.56
5/8-11
Pneumatic
95
1/2
90
0.63
9.84
1.97
13.1
6000
33
106
95
-
< 2.5
NPT
No
Side
Aluminium
No
No
Safety lever
No
Yes
CI-6151609270

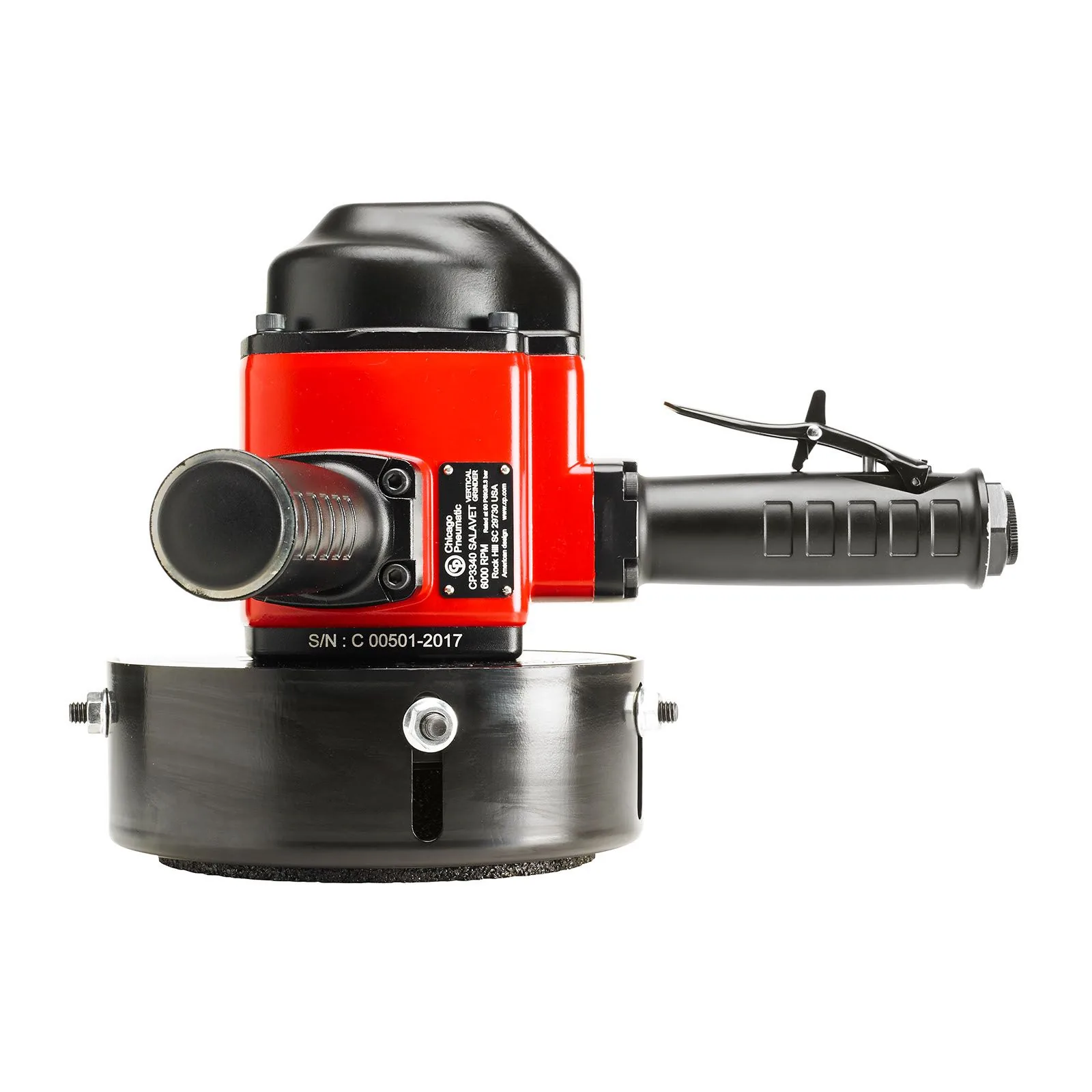

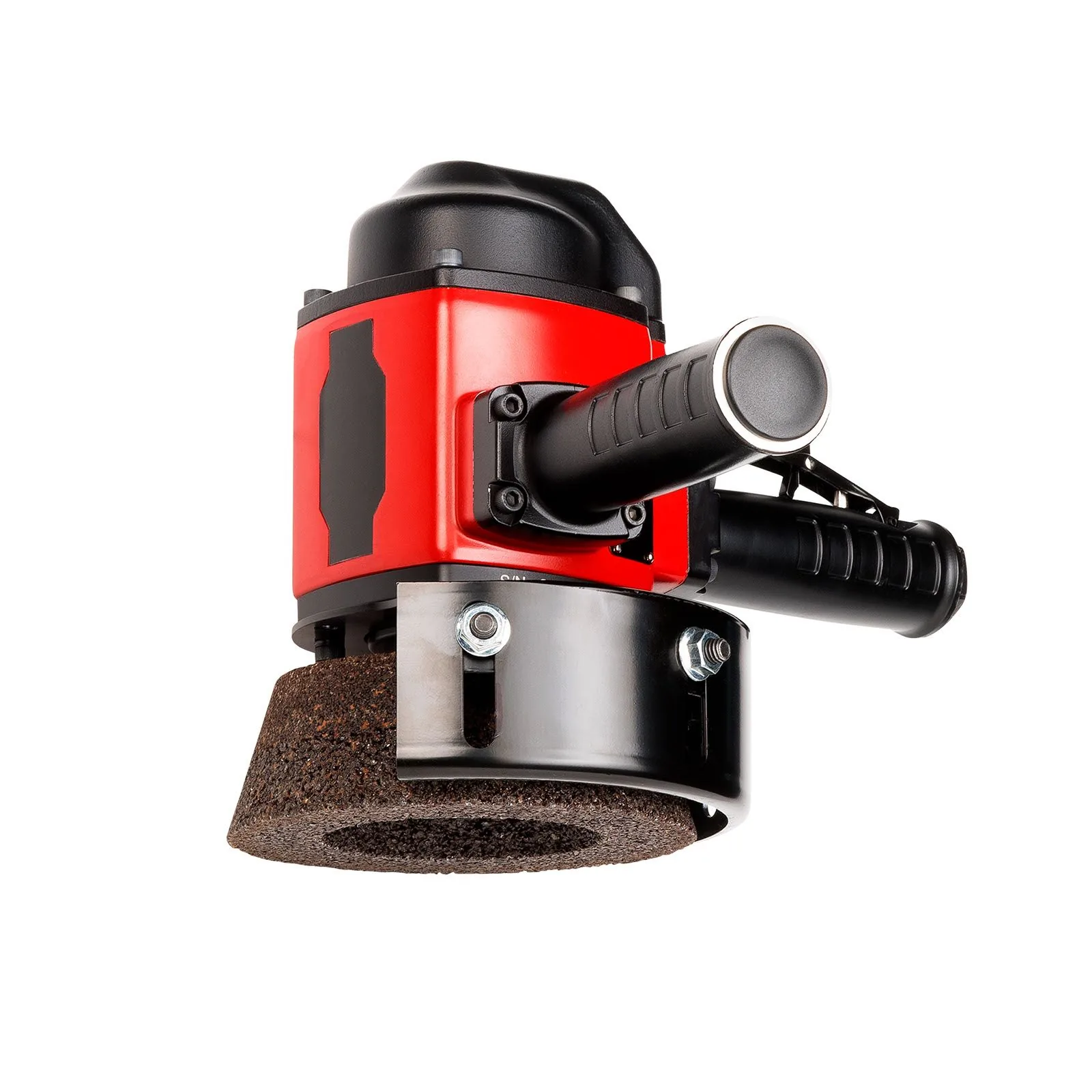

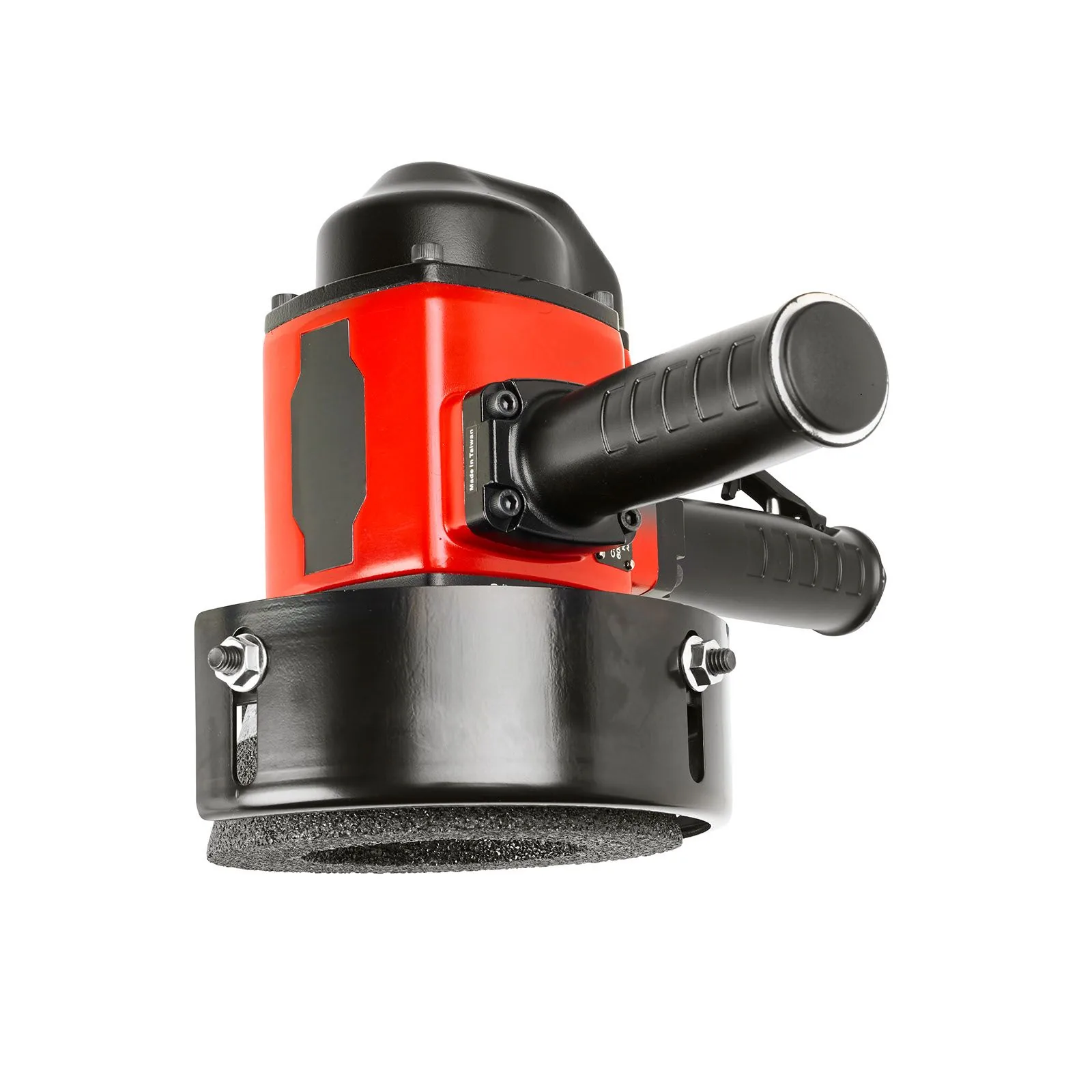

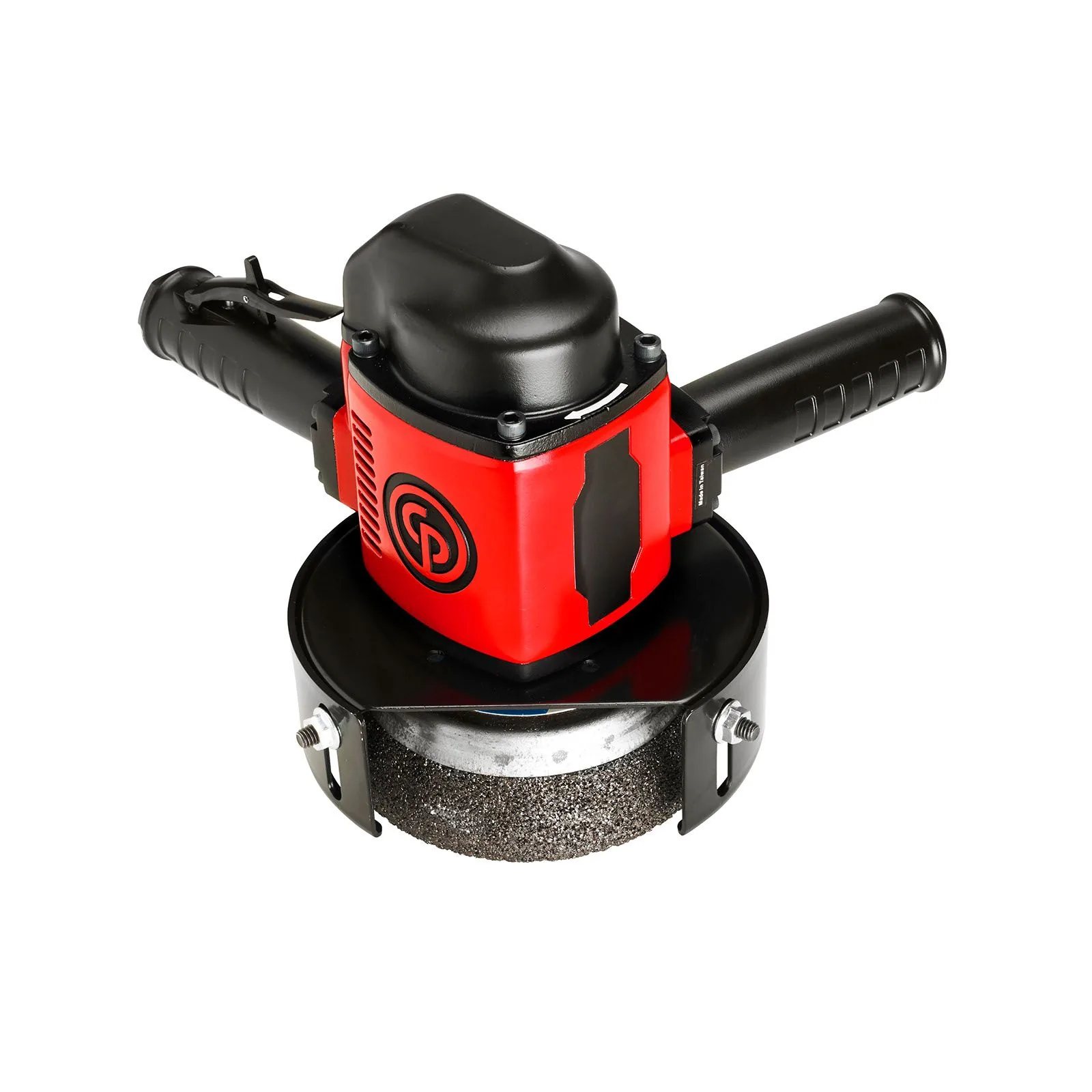

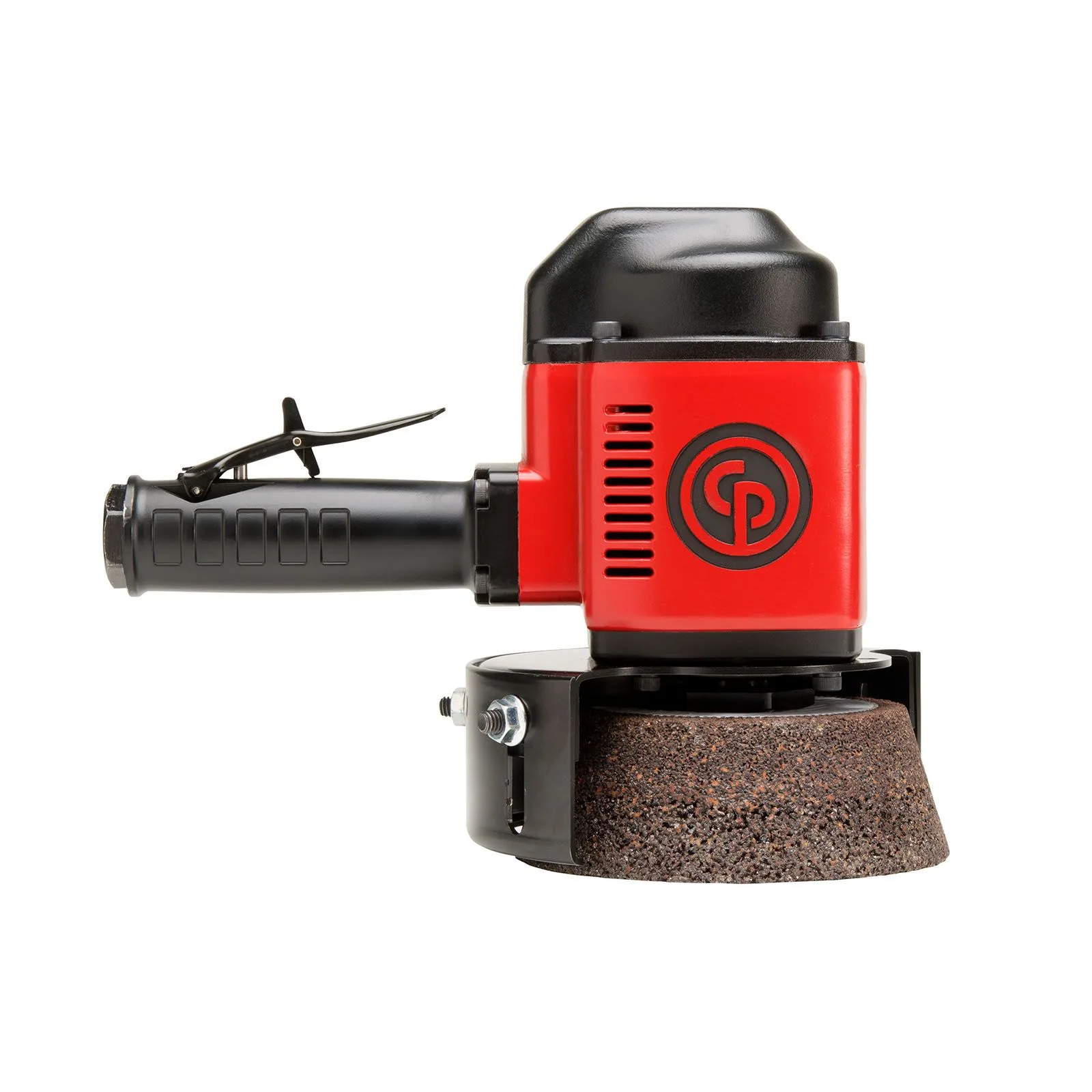

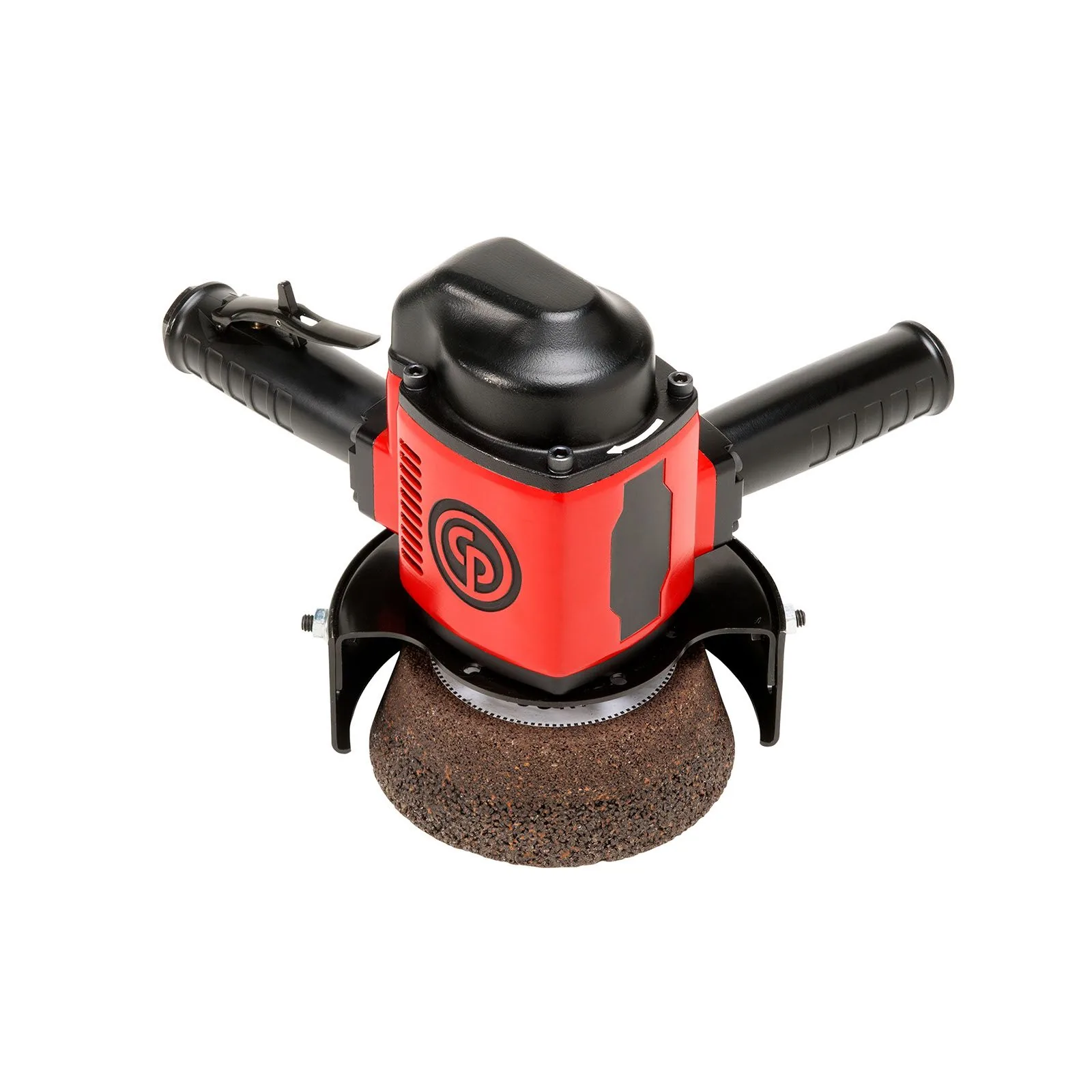

CP3340-SALAVET - 6 in
6151609270
6
4.56
5/8-11
Pneumatic
95
1/2
90
0.63
9.84
1.97
12.1
6000
33
106
95
4.3
11.8
NPT
No
Side
Aluminium
No
No
Safety lever
No
Yes
