Performance in Heavy Applications

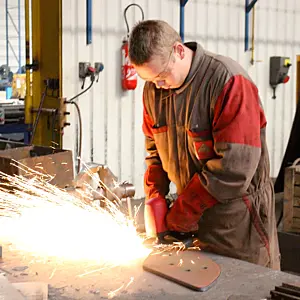

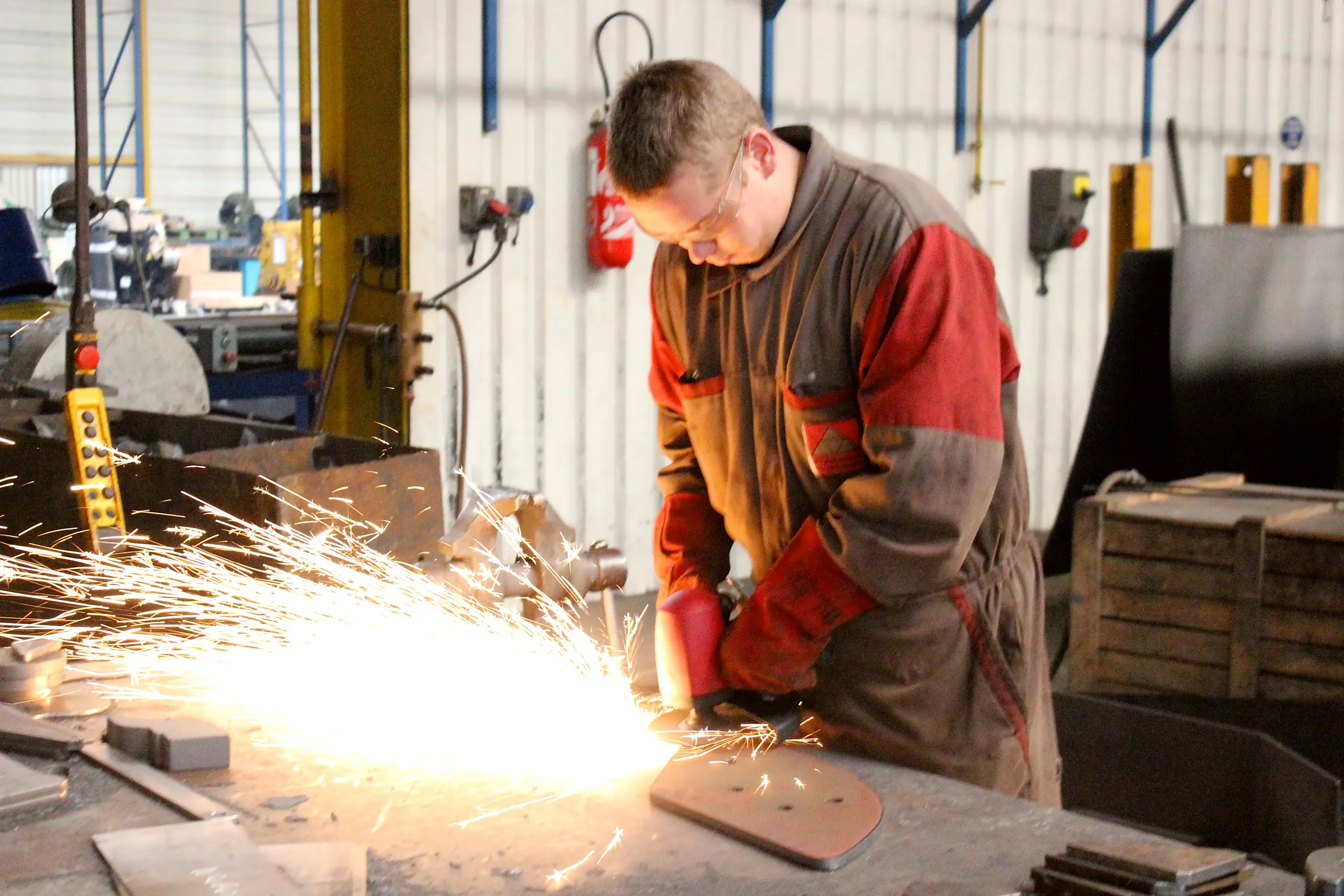

Ultimate performance in heavy applications such as foundries with this vertical grinder. The CP3349 is highly robust and durable thanks to its integrated lubrication tank.

Highest durability in demanding applications, up to 2,000 hours maintenance intervals
Double ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start up
An ergonomic handle to promote a good operating position by keeping the operator’s wrist straight
Built-in lubricant tank for constant lubrication, reducing failure and increasing tool lifetime
Reinforced rubber grip side handle provides a steady grip, increasing operator grinding control

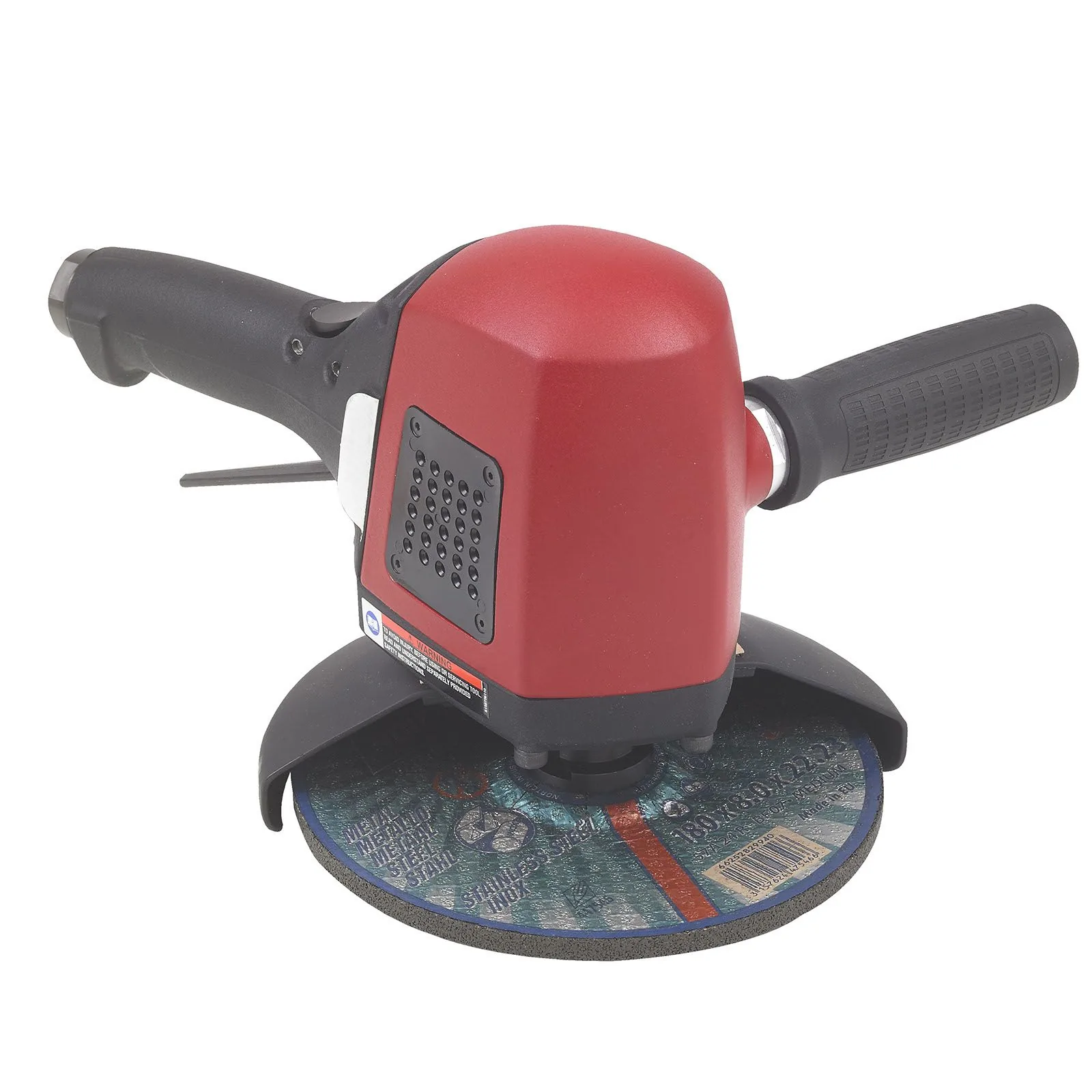

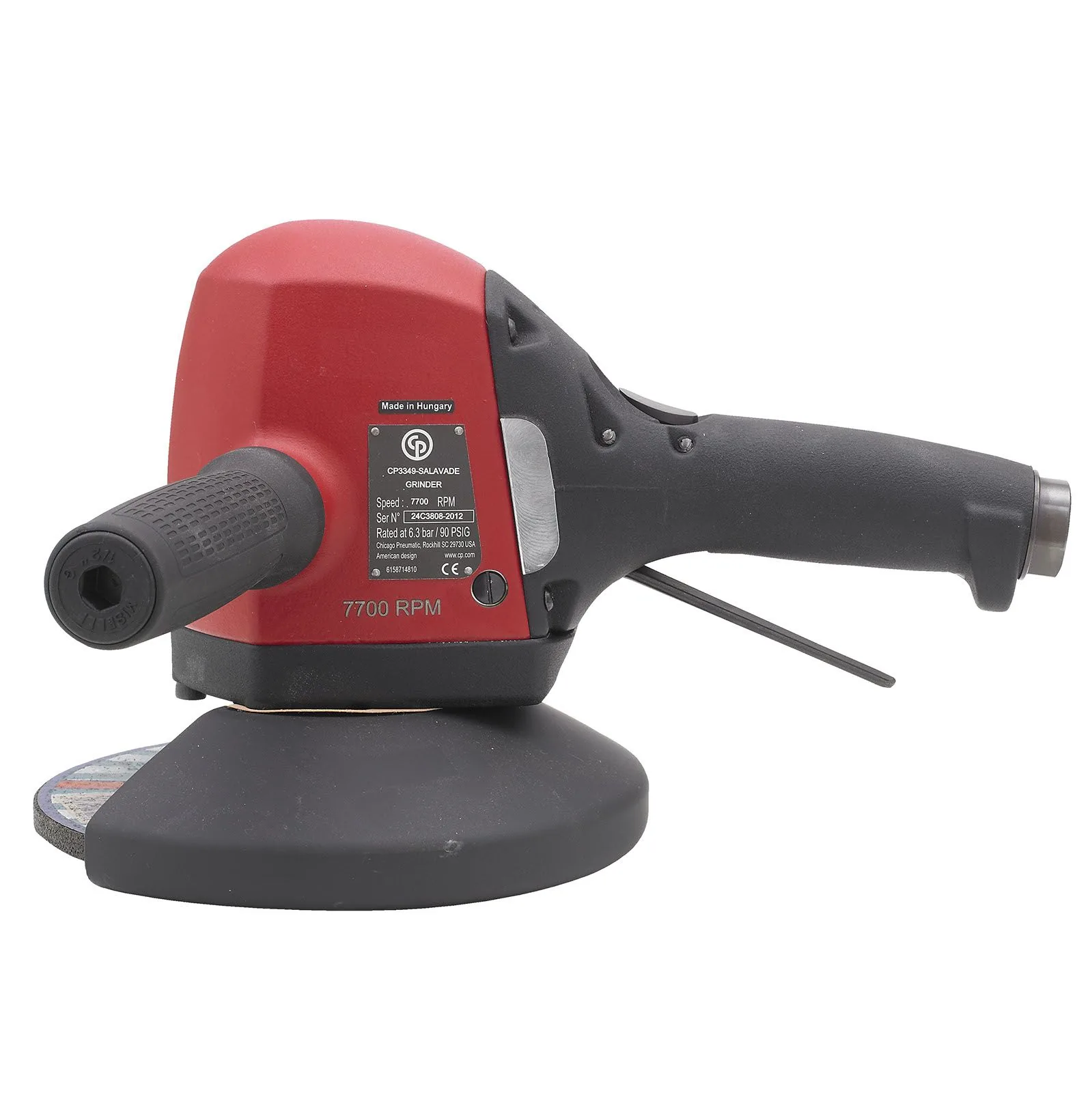

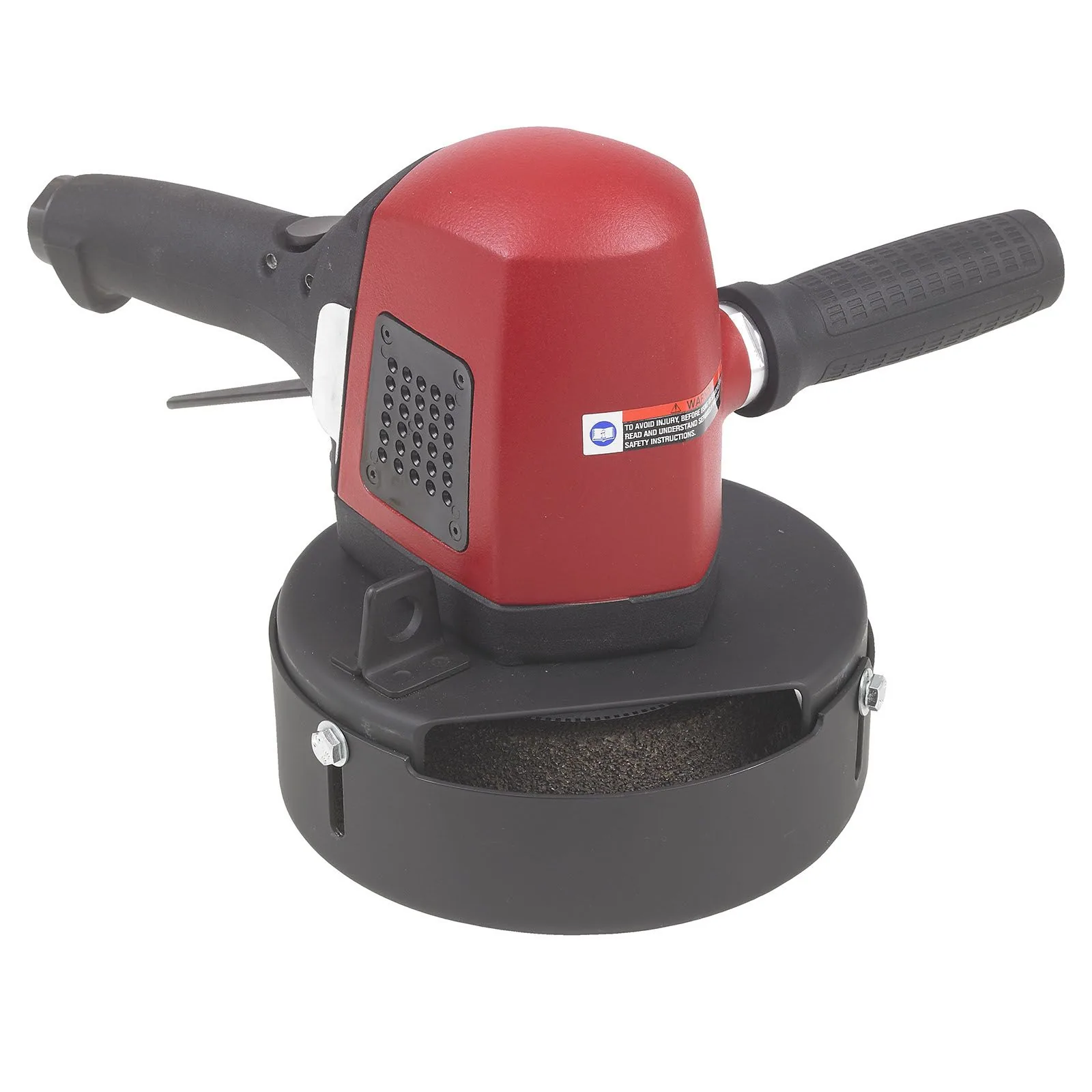

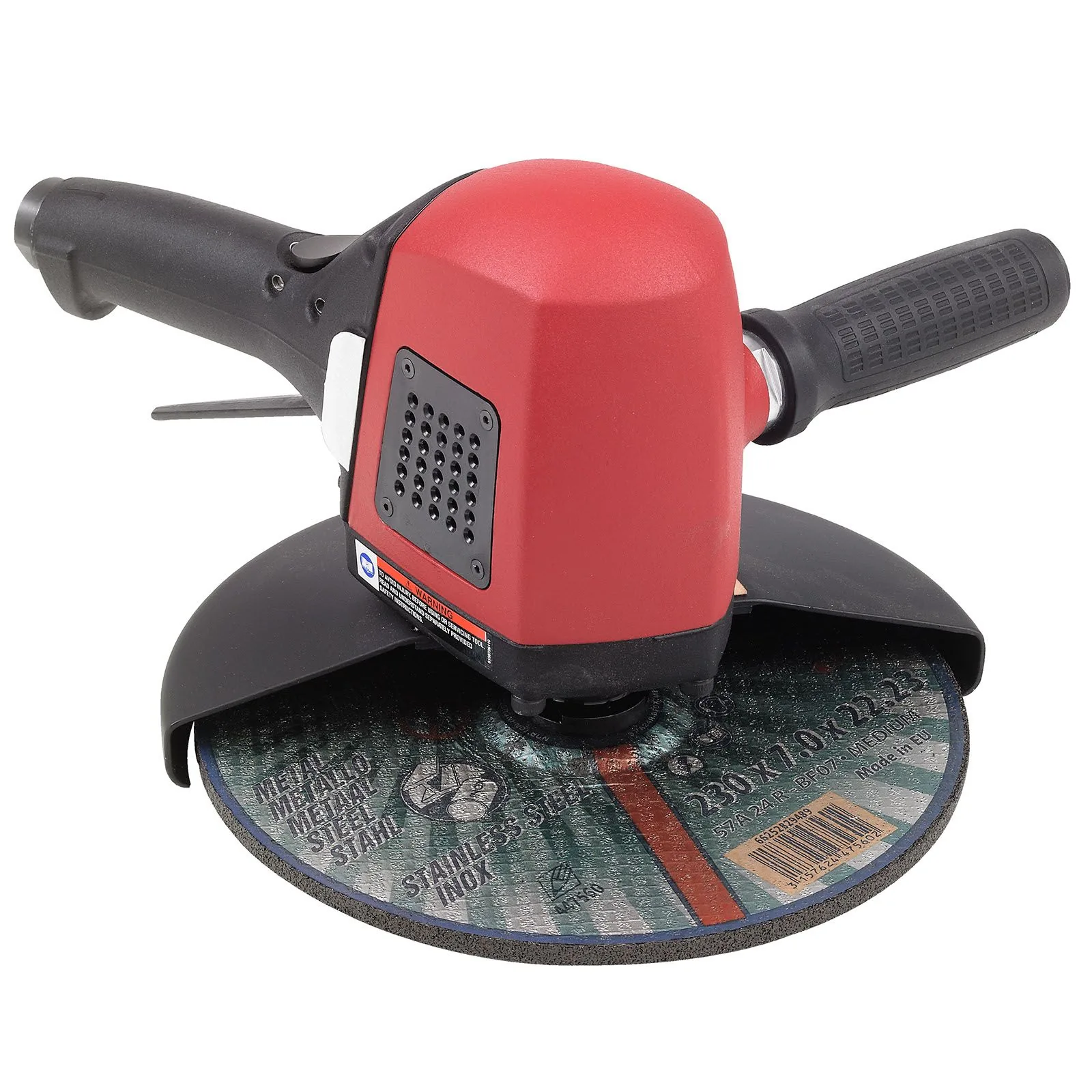

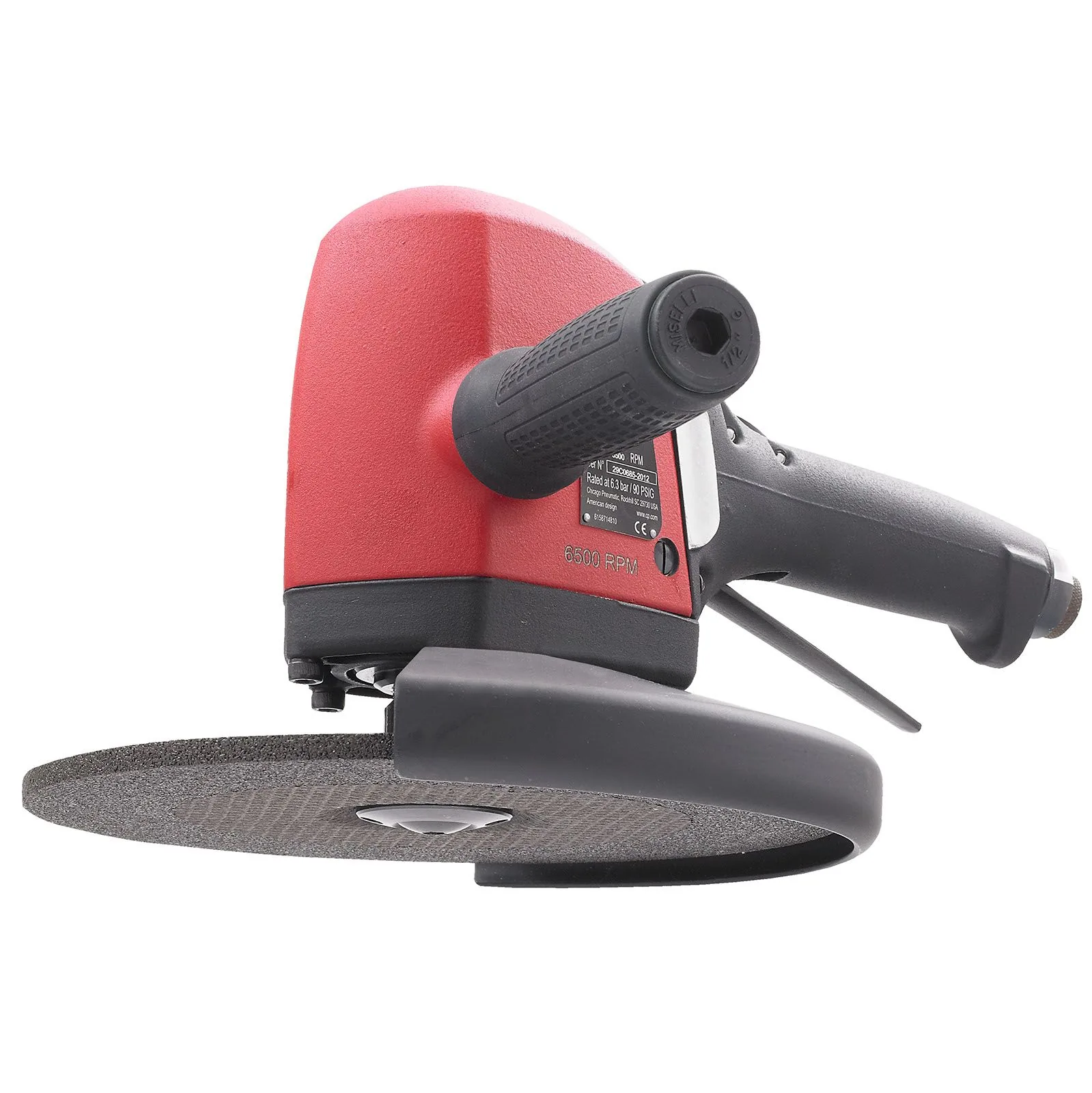

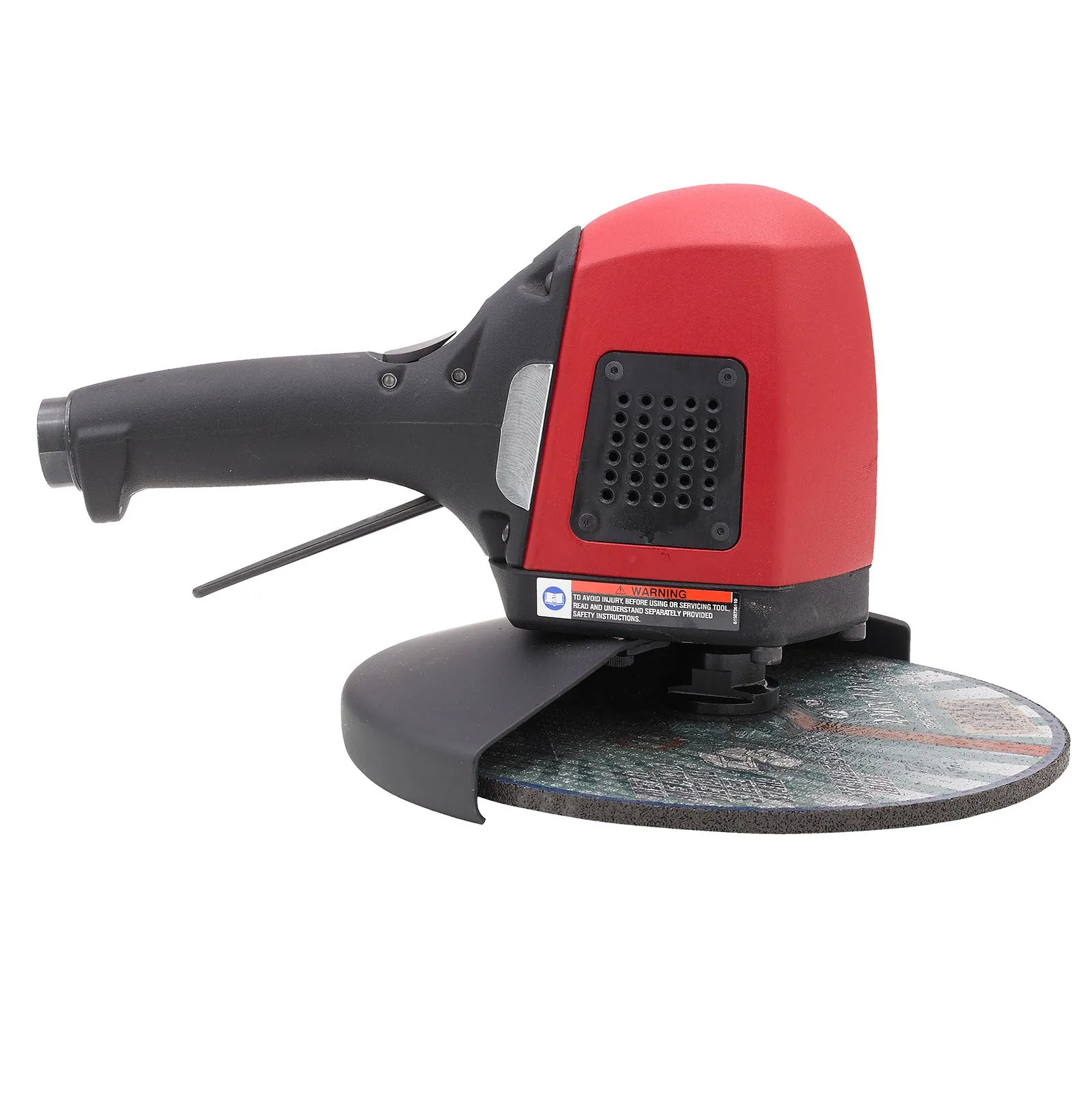

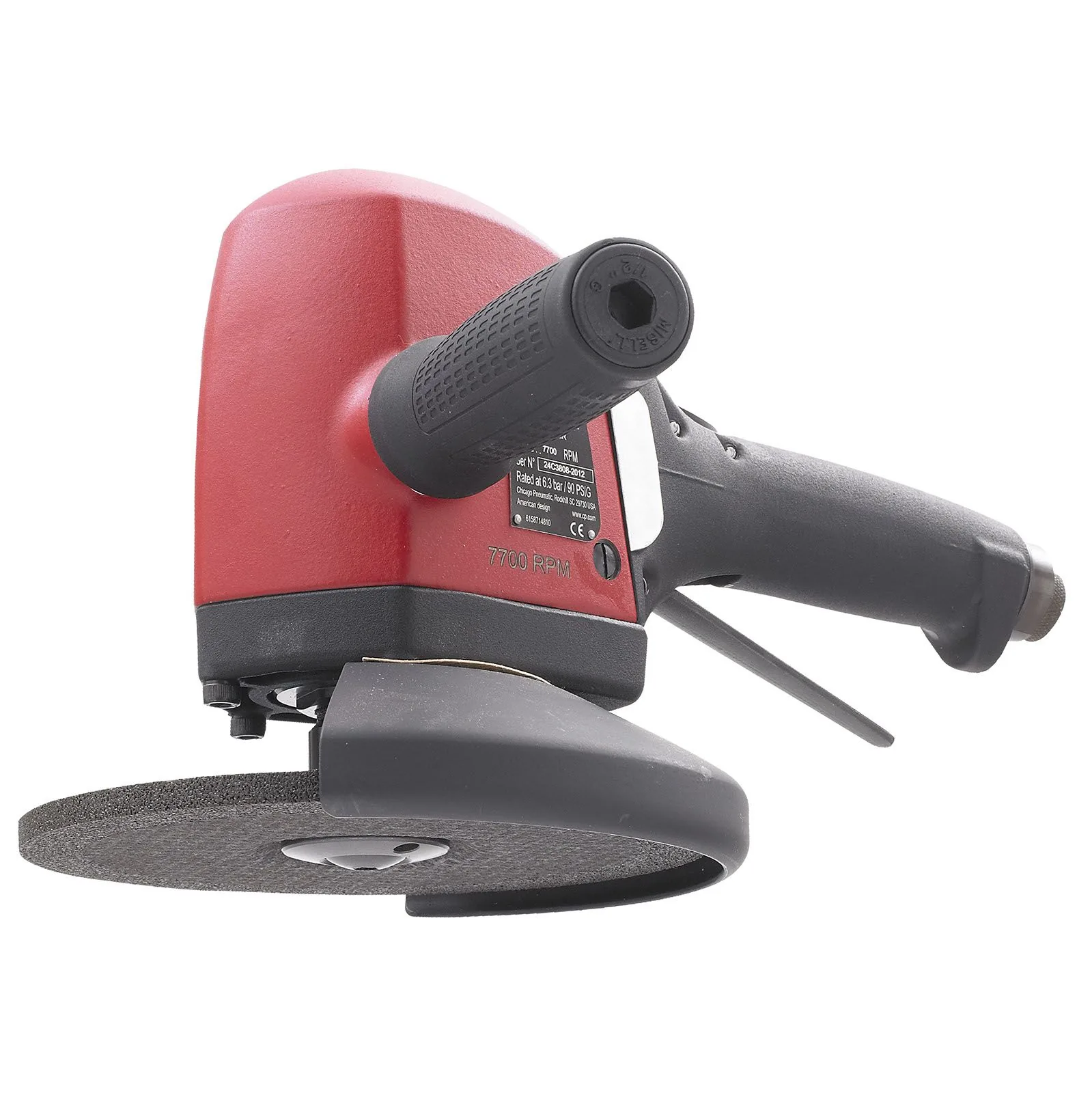

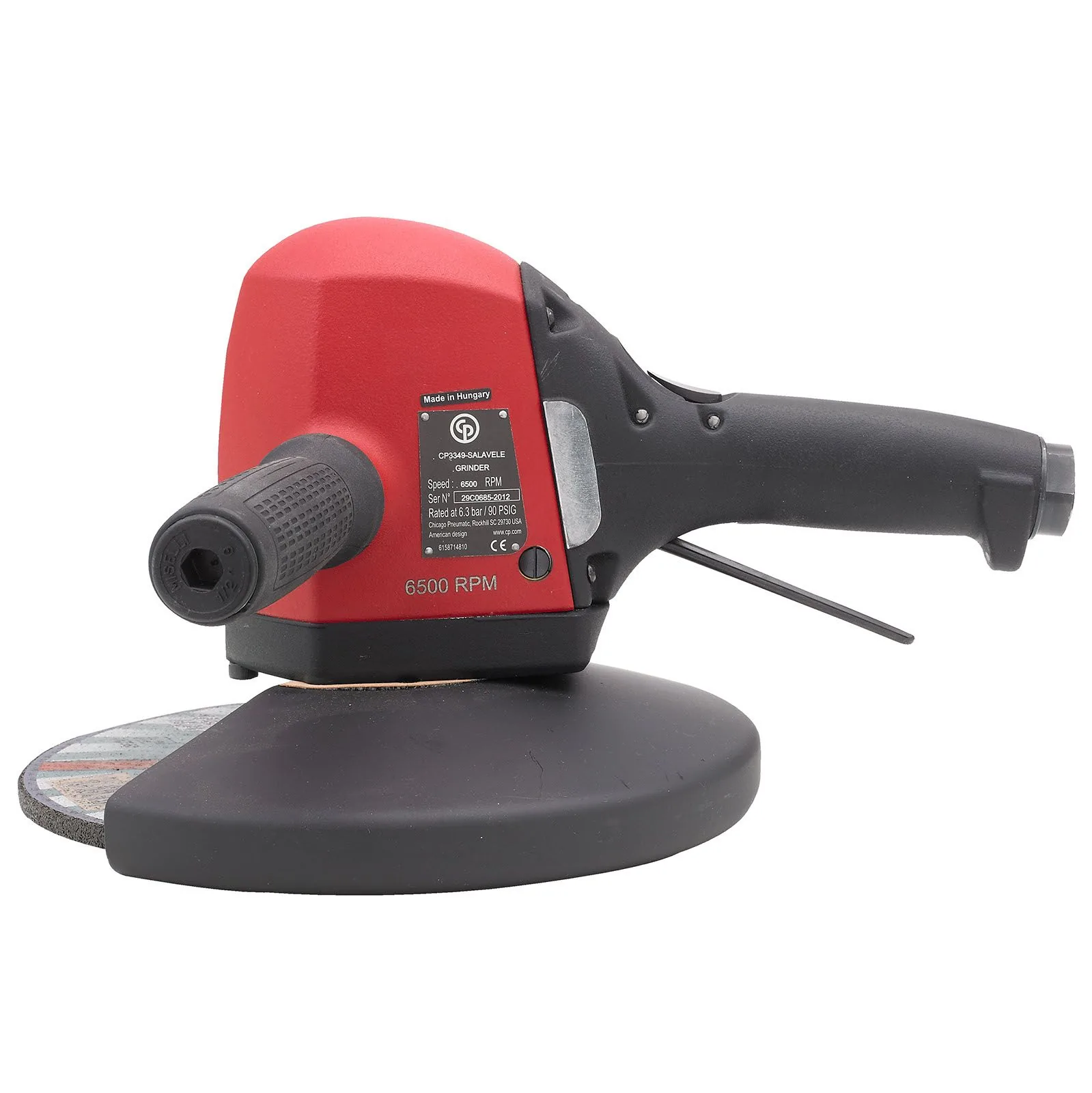

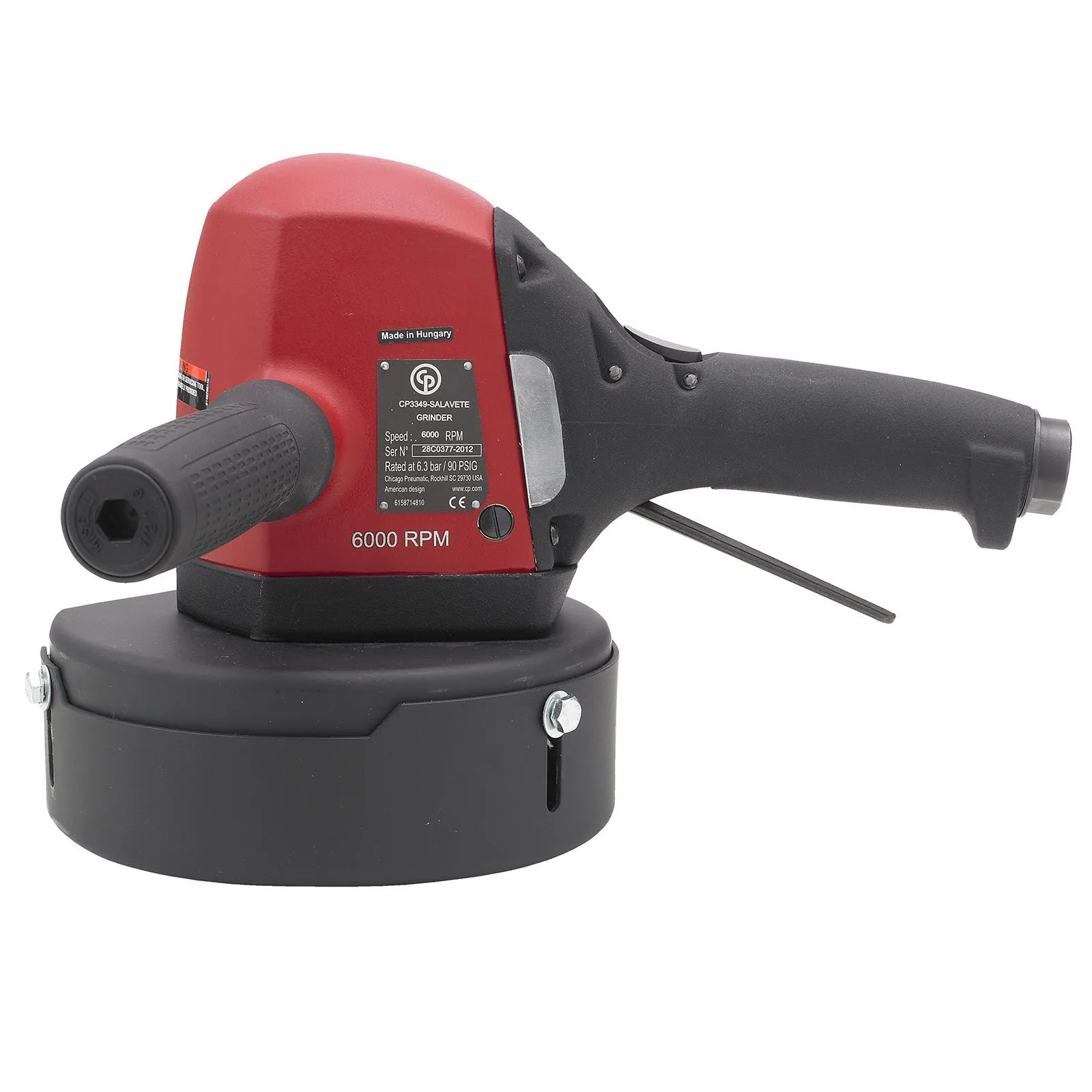

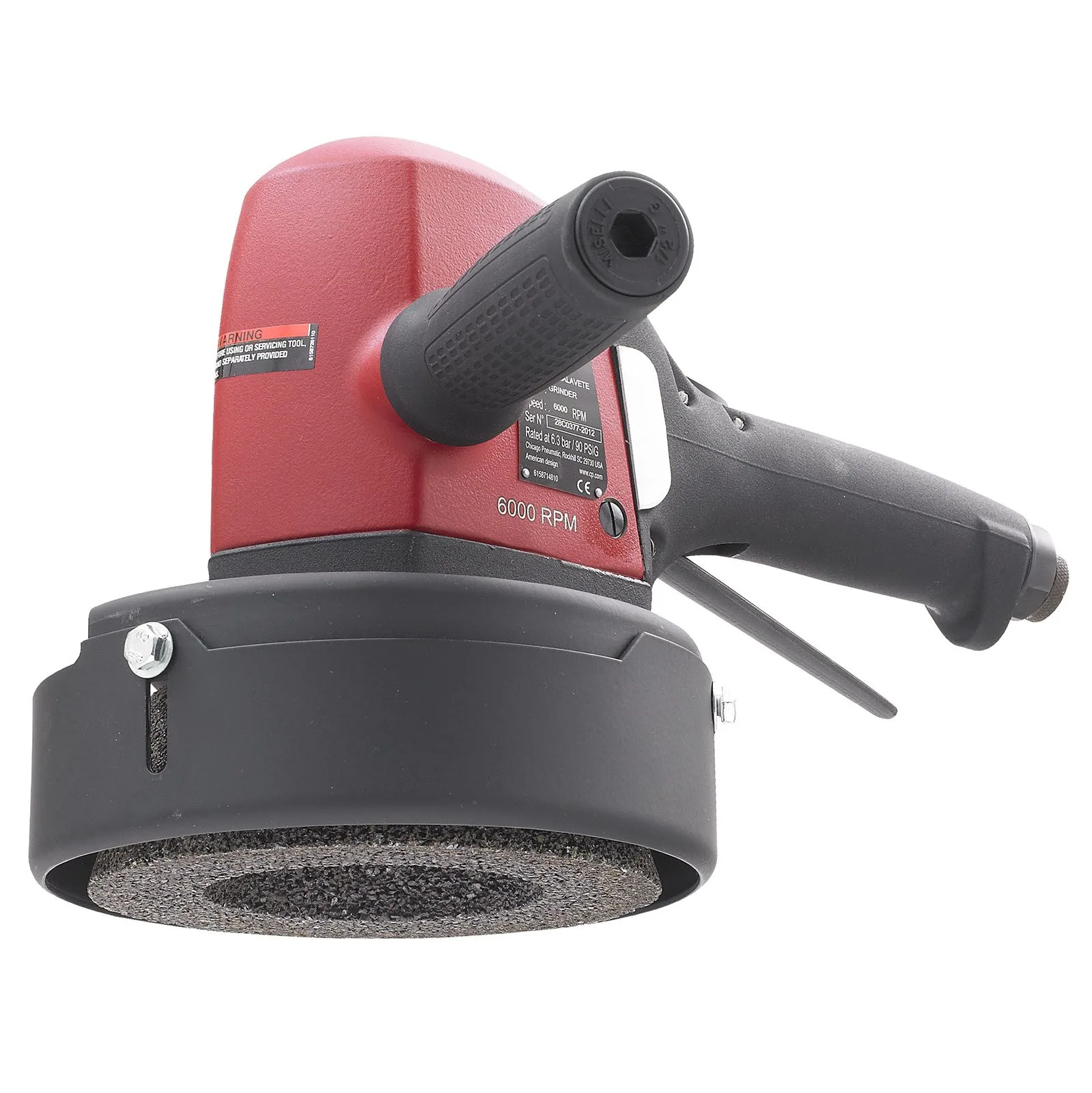

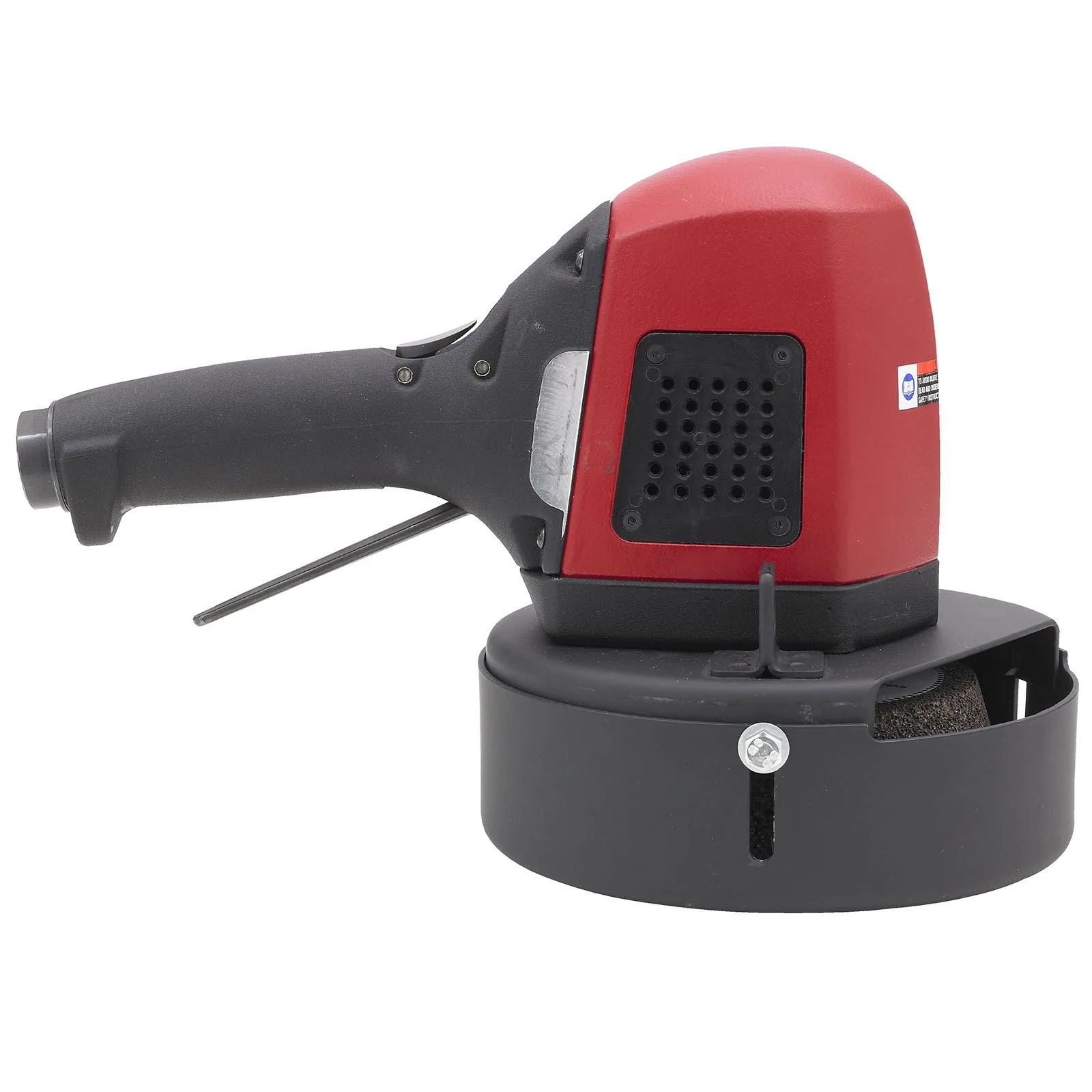

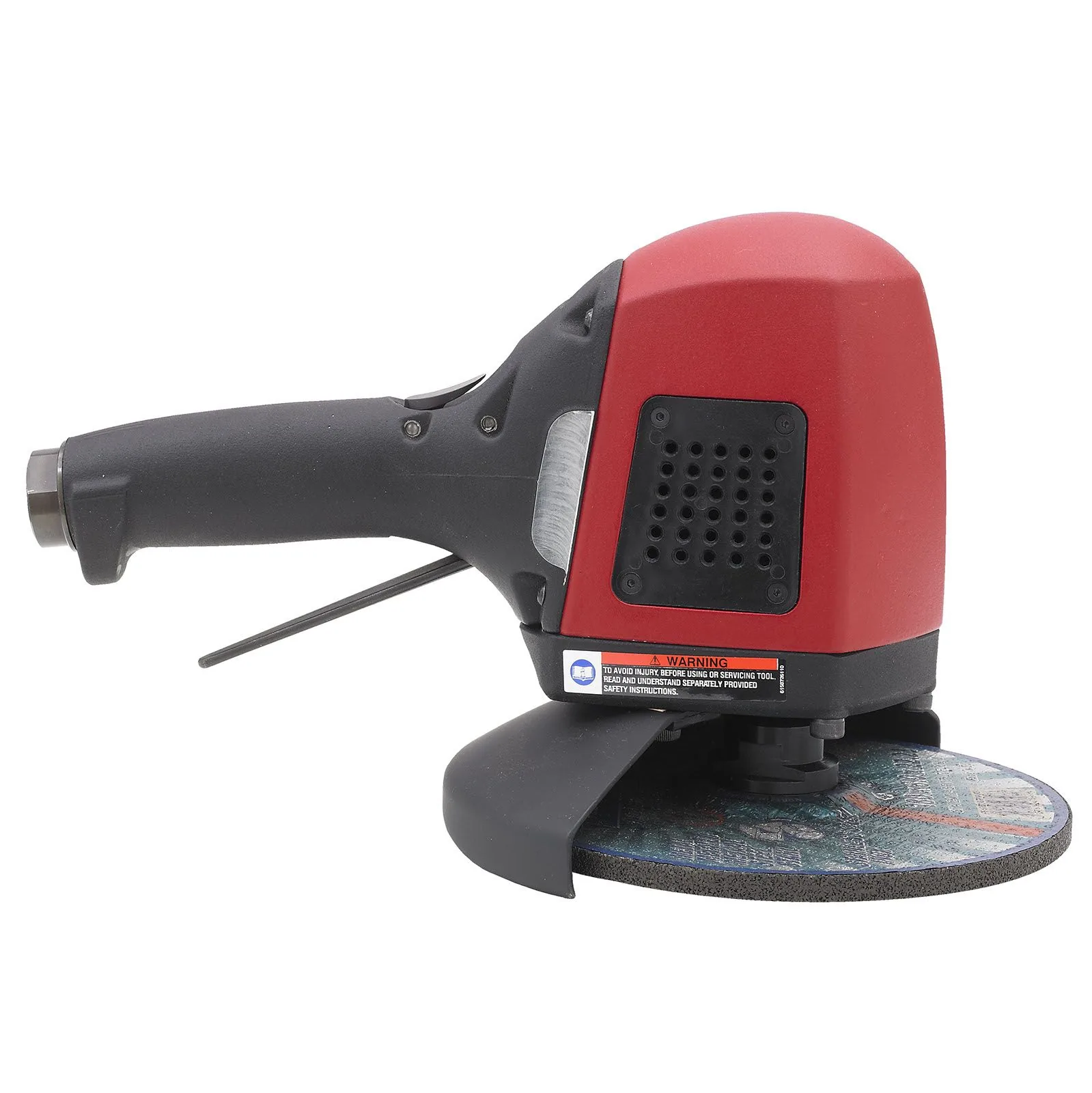

The CP3349 vertical grinder – 6″ to 9″ (150 to 230 mm) is designed with a powerful governed motor of 4 hp/3000 W and a free speed from 6,000 to 7,700 rpm. The Series features a curved design to increase control and comfort, a safety lever, a reinforced rubber grip, and high resistance protective guard. Built-in oil tank for high durability, it offers up to 2000 h maintenance intervals. Tools are equipped with 5/8-11″ spindle thread. The range consists of 5 models: CP3349-SALAVEL, SALAVET for ANSI NA market and CP3349-SALAVADE, SALAVETE, SALAVELE for CE market.

Chicago Pneumatic REAR FLANGE AUTO BALANCER

Specifications

SKU	Product Name	Vendor SKU	Overspeed Shut-off	Wheel/Disc diameter (in)	Anti-vibration	Output Spindle Thread	Power Source	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Max power	Length (in)	Tool Weight (lb)	Air consumption at free speed (cfm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Vibration (m/s²)	Air Inlet Thread Type	Autobalancer	Exhaust	Main Material type	Rotative Inlet	Spindle Lock	Starting System	Swiveling Guard	Height (in)	Free Speed (rpm)
CI-6151609070	CP3349-SALAVEL - 9 in, No, No	6151609070	No	9	No	5/8-11	Pneumatic	93	1/2	90	0.63	4.02	11.02	9.7	27	98	87	13.1	BSP	No	Side	Aluminium	No	No	Safety lever	No	-	-
CI-6151609080	CP3349-SALAVET - 6 in, No, No	6151609080	No	6	No	5/8-11	Pneumatic	91	1/2	90	0.63	4.02	11.02	9.7	25	95	84	<2.5	BSP	No	Side	Aluminium	No	No	Safety lever	No	-	-
CI-6151704740	CP3349-SALABELE - No, 9, Yes	6151704740	No	9	Yes	5/8-11	Pneumatic	27	1/2	-	0.63	3.89	-	9.7	-	-	87	13.1	BSP	No	Side	Aluminium	No	No	Safety lever	No	7.48	6500
CI-6151609110	CP3349-SALAVADE - 7 in, Yes, No	6151609110	Yes	7	No	5/8-11	Pneumatic	97	1/2	90	0.63	4.02	11.02	9.26	40	99	88	15.1	BSP	No	Side	Aluminium	No	No	Safety lever	No	-	-
CI-6151609130	CP3349-SALAVELE - 9 in, Yes, No	6151609130	Yes	9	No	5/8-11	Pneumatic	93	1/2	90	0.63	4.02	11.02	9.7	27	98	87	13.1	BSP	No	Side	Aluminium	No	No	Safety lever	No	-	-
CI-6151609150	CP3349-SALAVETE - 6 in, Yes, No	6151609150	Yes	6	No	5/8-11	Pneumatic	91	1/2	90	0.63	4.02	11.02	9.7	25	95	84	<2.5	BSP	No	Side	Aluminium	No	No	Safety lever	No	-	-
CI-6151703360	CP3349-SALAVODE - No, 7, No	6151703360	No	7	No	5/8-11	Pneumatic	31	1/2	-	0.63	3.62	-	8.82	-	-	86	16.4	BSP	No	-	Aluminium	No	No	Safety lever	-	7.48	8500
