Chicago Pneumatic CP3450 Series – Angle Grinders

Chicago Pneumatic CP3450 Series – Angle Grinders

$784.00 – $795.00

Add to Cart
Chicago Pneumatic CP3450 Series – Angle Grinders
Chicago Pneumatic CP3450 Series - Angle Grinders
$784.00 – $795.00

Unique Low Profile Angle Head for Versatile Use

Designed to meet the needs of industrial productivity, the CP3450 angle grinder range offers a unique low profile angle head design for versatile use.

  • Industrial grade durability up to 1,000 hours between maintenance intervals
  • Streamlined orientable safety lever for operator comfort
  • Steel housing with an insulating composite over-housing for optimal handling
  • Low profile angle head for better ergonomics
  • Constant lubrication bevel gear design

CP3450 angle Grinders Series have grinding wheel capacities from 4″ (100 mm) to 5″ (125 mm) with a powerful motor 1.1 hp (810 W) and a free speed up to 12,000 rpm. Its low-profile angle head design is perfect for surface preparation in any type of space. A constant lubrication bevel gear design ensures high durability. The CP3450 angle grinder Series offers 5 models with 3-wheel capacities and 3 spindle thread size choices (M14, 3/8-24″ and 5/8-11″). The CP3450-12CR4 with rotative throttle is not for CE/NA Market.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Wheel/Disc diameter (in)
Free Speed (rpm)
Max power
Power Source
Air consumption at free speed (cfm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Tool Weight (lb)
Autobalancer
Guard Positions
Main Material type
Output Spindle Thread
Rotative Guard Type
Spindle Lock
Starting System
Swiveling Guard
CI-6151604010

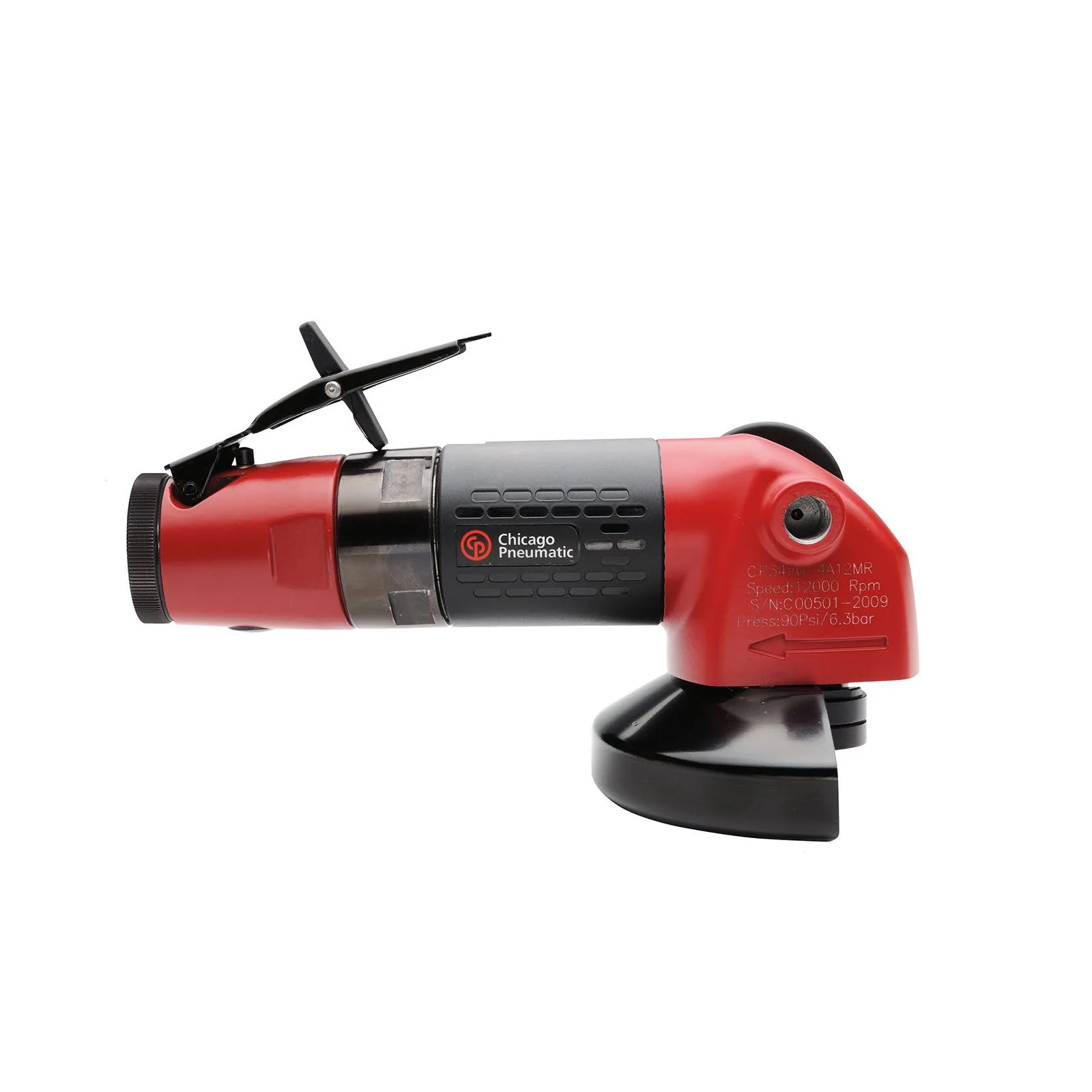

CP3450-12AC4 - 4 in
6151604010
4
12000
1.09
Pneumatic
37
104.8
93.8
6.8
21.5
36
3/8
90
0.38
9.07
3.13
No
1
Aluminium, Composite over-sleeve
3/8-24
Screws
No
Safety lever
No
CI-6151604050

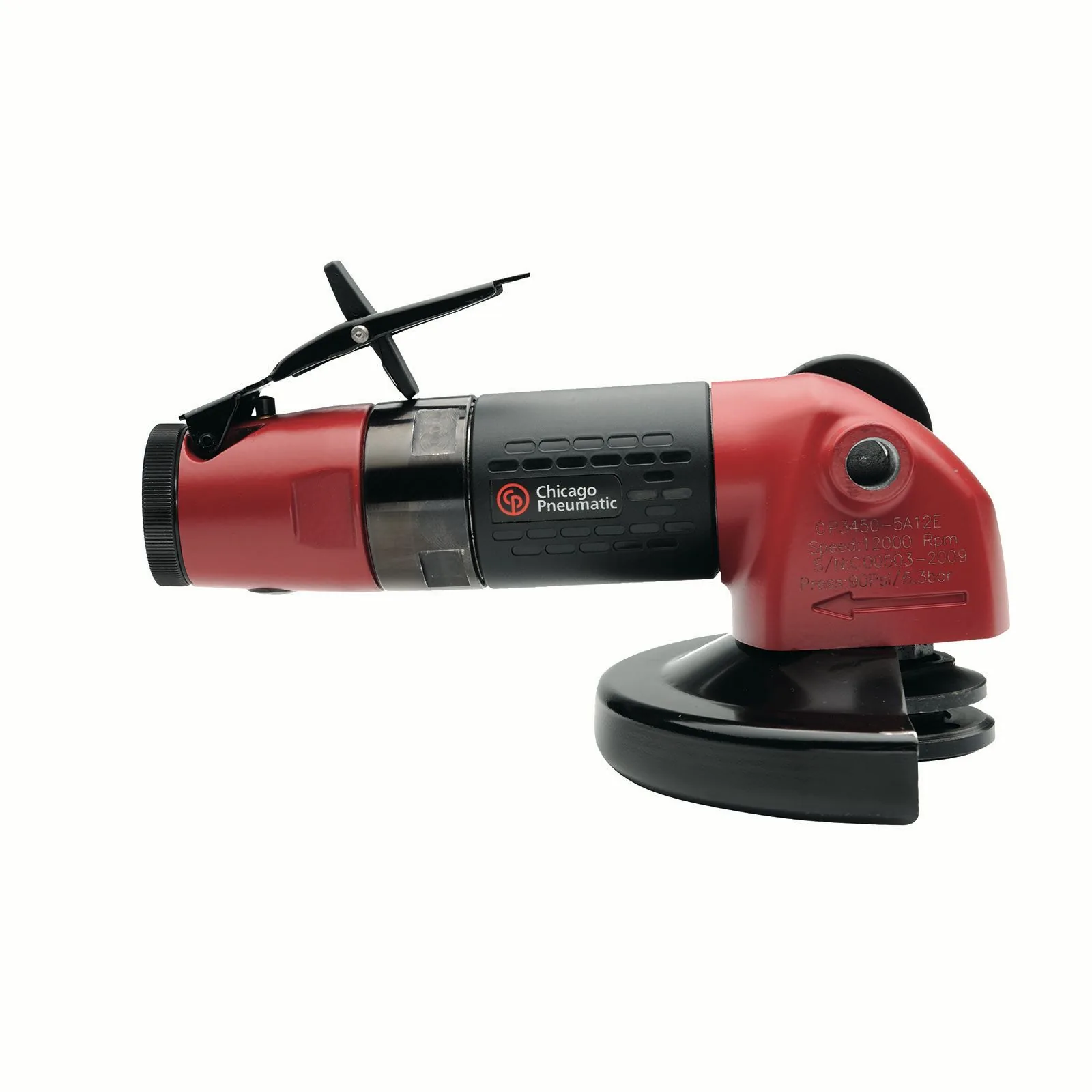

CP3450-12AB5 - 5 in
6151604050
5
12000
1.09
Pneumatic
38
106
95
9.2
27.9
36
3/8
90
0.38
9.09
3.75
No
1
Aluminium, Composite over-sleeve
5/8-11
Screws
No
Safety lever
No
CI-6151604030
CP3450-12AC45 - 4-1/2 in
6151604030
4-1/2
12000
1.09
Pneumatic
38
104.8
93.8
9.9
27.3
36
3/8
90
0.38
9.07
3.13
No
1
Aluminium, Composite over-sleeve
3/8-24
Screws
No
Safety lever
No
