Chicago Pneumatic CP3451 Series – Die Grinders

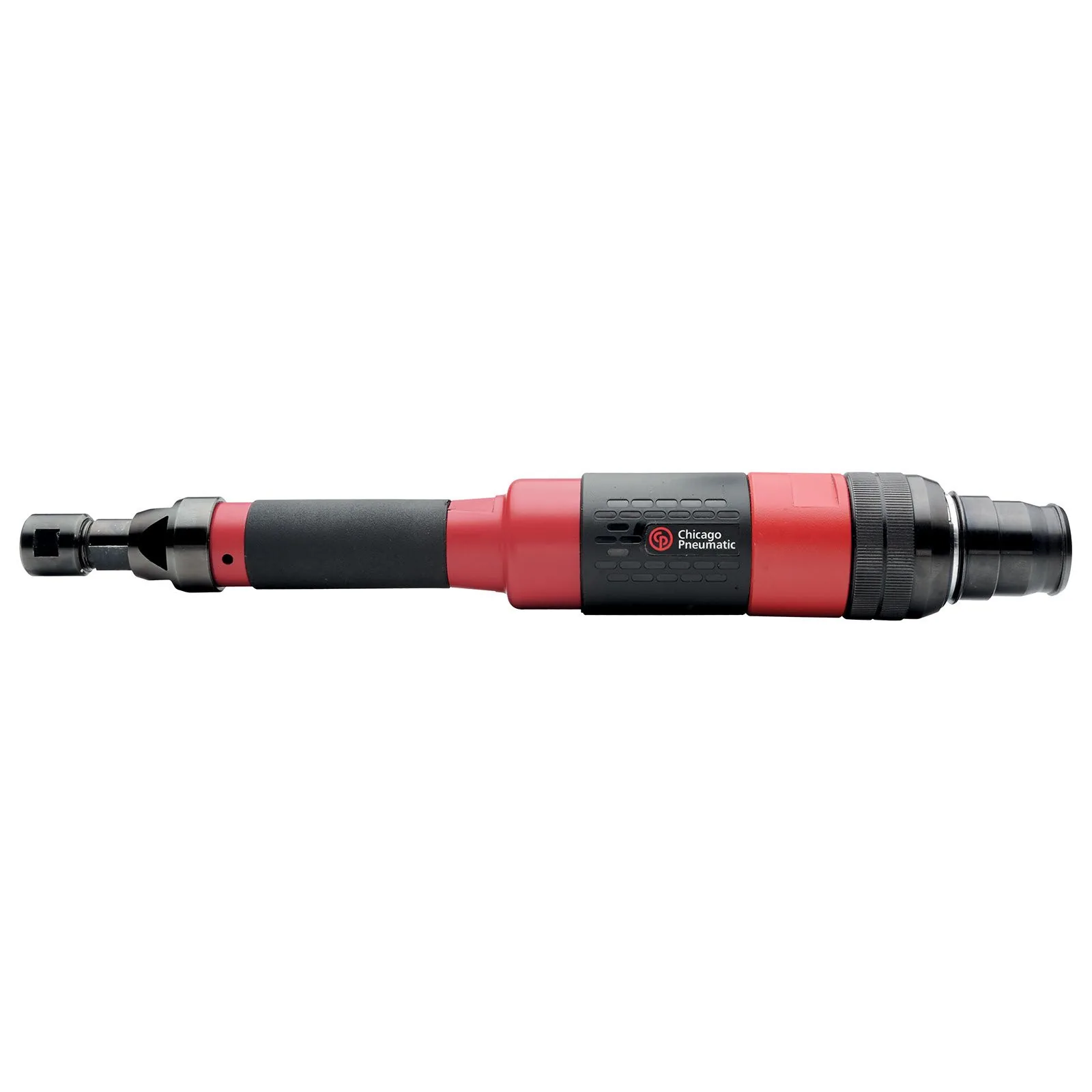

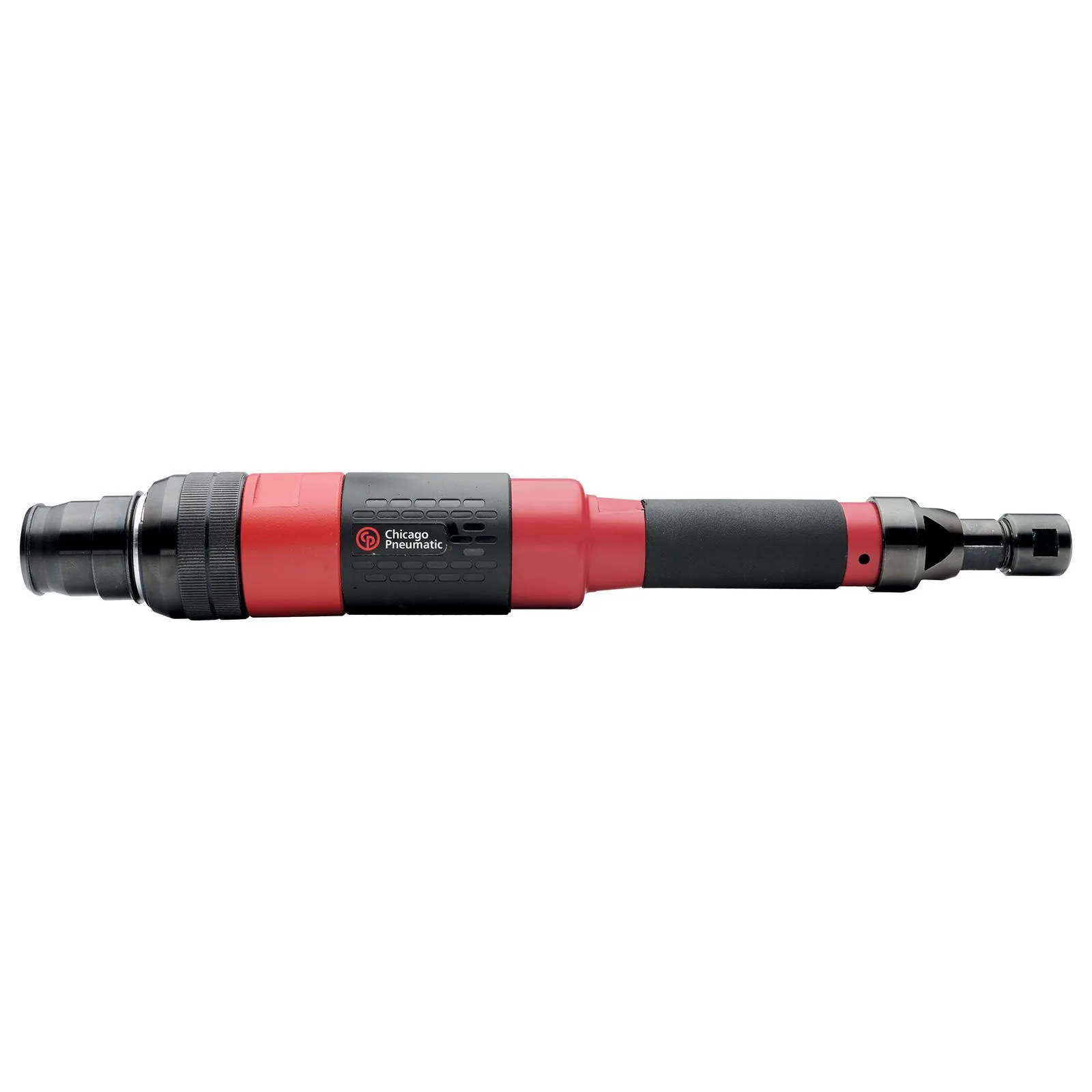

Chicago Pneumatic CP3451 Series - Die Grinders
$658.00

Industrial Grade Extended Shaft Die Grinder

High performance in a high productivity industrial straight Die grinder tool with a powerful 1 hp (750 W) motor. An extremely durable tool designed for rough use.

  • Industrial grade durability up to 1,000 hours between maintenance intervals
  • Machined aluminum housing for a lightweight easy to use Die Grinder.
  • Streamlined safety lever
  • 1 hp (750 W) industrial grade motor and 25,000 rpm for a perfect material removal result
  • Superior ergonomics with 2-handed handling

The CP3451 series, a 1/4″ (6.35 mm) collet capacity die grinder, features an extended shaft to fit your most constrained access applications and to keep your quality at the higher standard. It delivers maximum sustained power with 18,000 rpms capable of running carbide burrs or mounted points for grinding, contouring, deburring, and cleaning applications. The motor is extremely powerful and reliable with 1 hp (750W). Available in 2 models: Safety lever for European market, rotative sleeve for North America market.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Type
Free Speed (rpm)
Max power
Angle Type
Collet max capacity (in)
Power Source
Length (in)
Tool Weight (lb)
Air consumption at free speed (cfm)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Exhaust
Governor Type
Main Material type
Rotative Inlet
Spindle Lock
Starting System
CI-6151602010
CP3451-18SEC - 1/4in Collet
6151602010
1/4in Collet
18000
1.01
Straight
1/4
Pneumatic
12.99
3.09
40
36
3/8
90
0.38
94.8
83.8
5.9
Rear
NA
Aluminium, Composite over-sleeve
No
No
Safety lever
