Chicago Pneumatic CP3451 Series – Straight Grinders

Chicago Pneumatic CP3451 Series – Straight Grinders

$757.00

Add to Cart

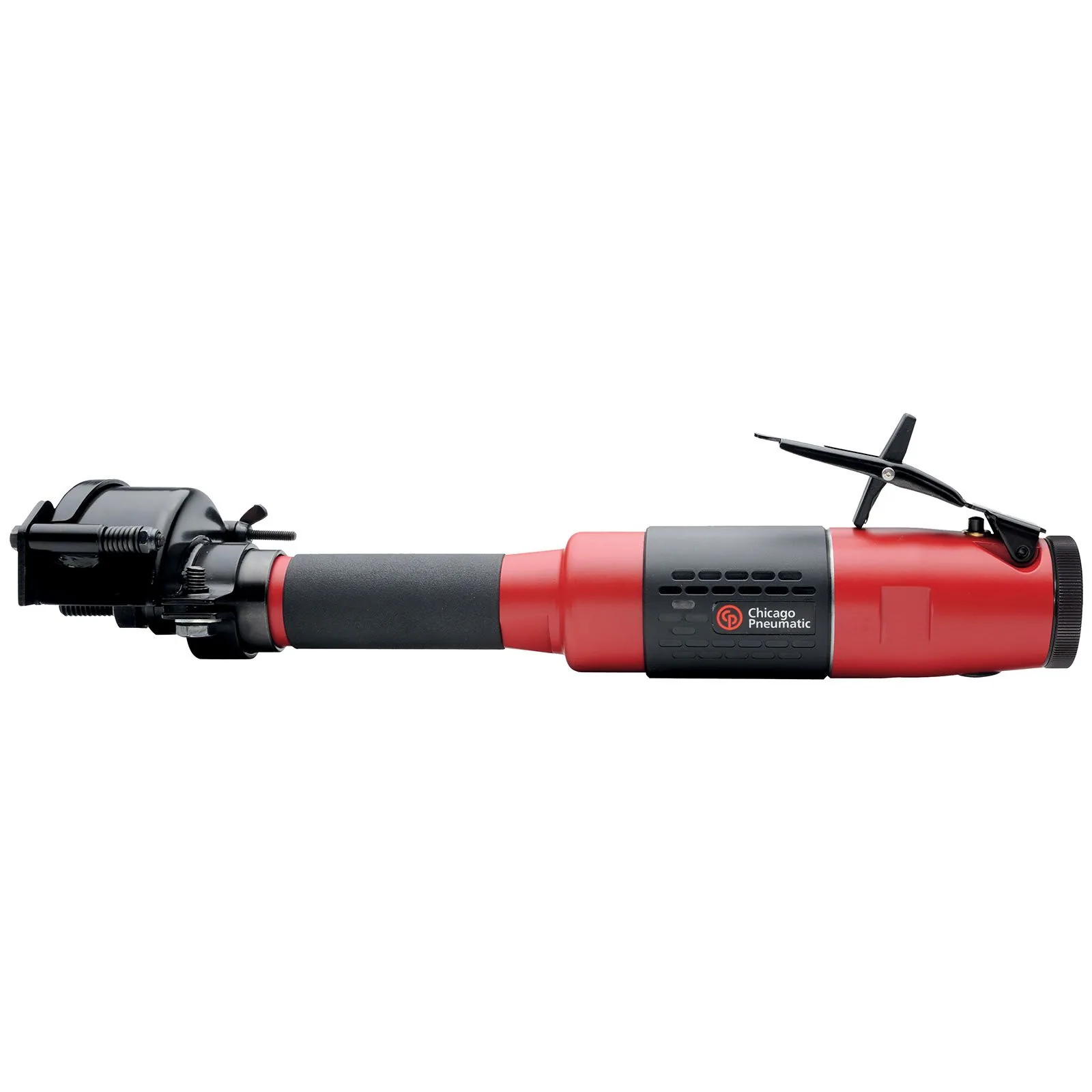

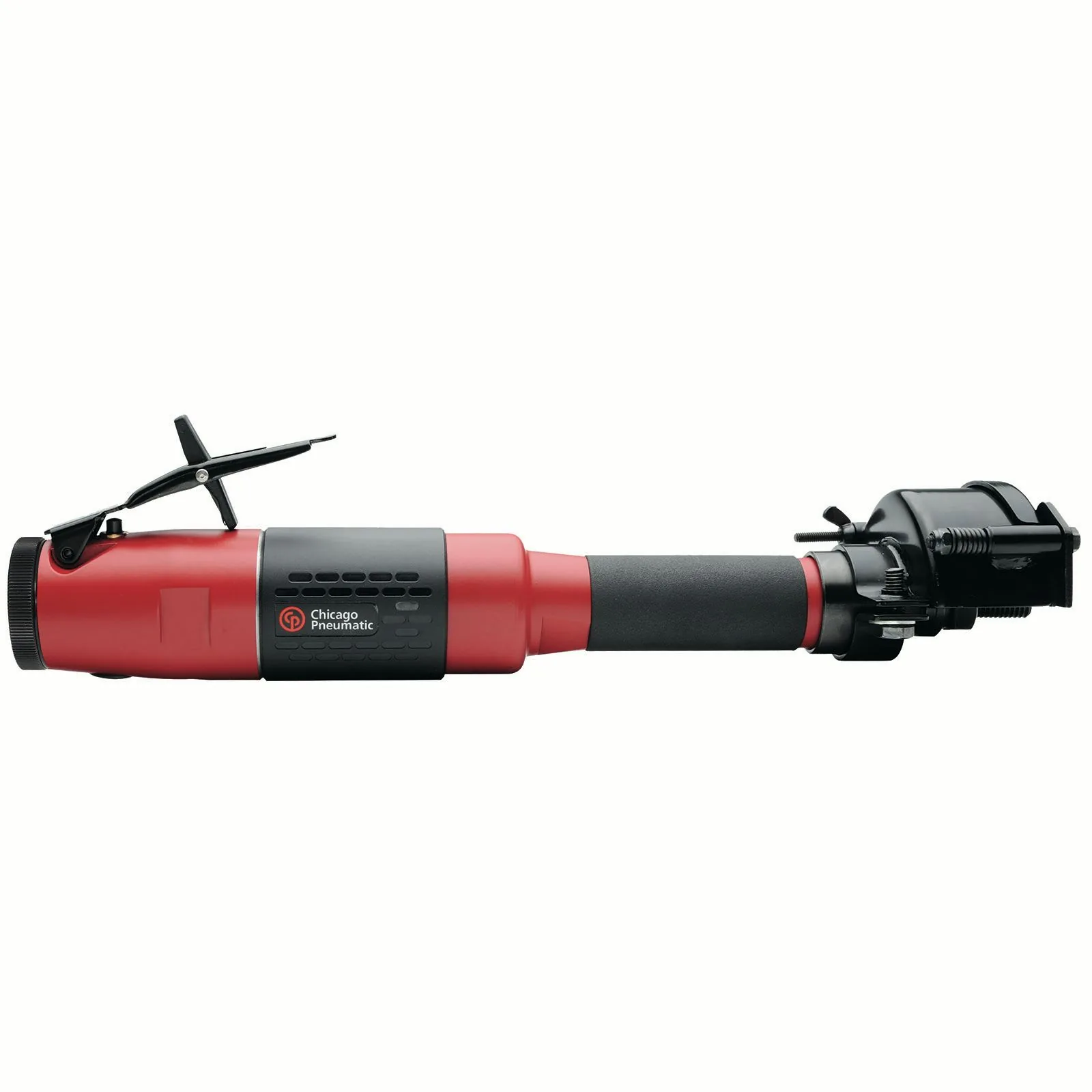

Chicago Pneumatic CP3451 Series – Straight Grinders
Chicago Pneumatic CP3451 Series - Straight Grinders
$757.00

Industrial Grade Straight Wheel Grinder

High performance in a high productivity industrial straight grinder tool with a powerful 1 hp (750 W) motor. Extremely durable tool. Designed for rough use.

  • Industrial grade durability up to 1,000 hours between maintenance intervals
  • Machined aluminum housing for a lightweight easy to use straight Grinder
  • Streamlined safety lever motor
  • Insulating composite over-housing for operator comfort
  • Superior ergonomics with 2-handed handling

The CP3451 lightweight straight grinders range is defined by 4 models with wheel capacity from 2.5×1/2×3/8″ (63x13x9.52 mm) to 3×1/2×3/8″ (80x13x9.52 mm) and a 0.8 hp (600 W) to 1 hp (750 W) powerful motor. CP3451 benefits from a free speed up to 18,000 rpm. CP3451 design offers safety lever for European market or rotative sleeve for North America market.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Type
Max power
Output Spindle Thread
Power Source
Wheel/Disc diameter (in)
Wheel thickness (in)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Tool Weight (lb)
Free Speed (rpm)
Air consumption at free speed (cfm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Autobalancer
Exhaust
Governor Type
Main Material type
Rotative Guard Type
Rotative Inlet
Spindle Lock
Starting System
Overspeed Shut-off
CI-6151602030
CP3451-18SE3 - 3in Disc
6151602030
3in Disc
1.01
3/8-24
Pneumatic
3
1/2
36
3/8
90
0.38
13.82
3.53
18000
39
94.8
815
187
367
No
Rear
NA
Aluminium, Composite over-sleeve
Band
No
No
Safety lever
No
