Chicago Pneumatic CP3650 Series – Rotary Angle Sanders
Chicago Pneumatic CP3650 Series - Rotary Angle Sanders
QUOTE

Best Power to Weight Ratio for High Productivity

Ergonomic angle sander designed with an extremely durable bevel gear and governed 2.4 hp (1800 W) motor for your heavy-duty industrial sanding applications.

  • Highest durability in demanding applications up to 2000 hours maintenance intervals
  • Streamlined safety lever and 2.4 hp (1800 W) governed motor for operator safety
  • Steel housing with an insulating composite over-housing and vibration damping side handle for comfort and superior ergonomics
  • Spindle lock button for fast pad changing
  • Orientable 2 positions safety trigger for better ergonomic.

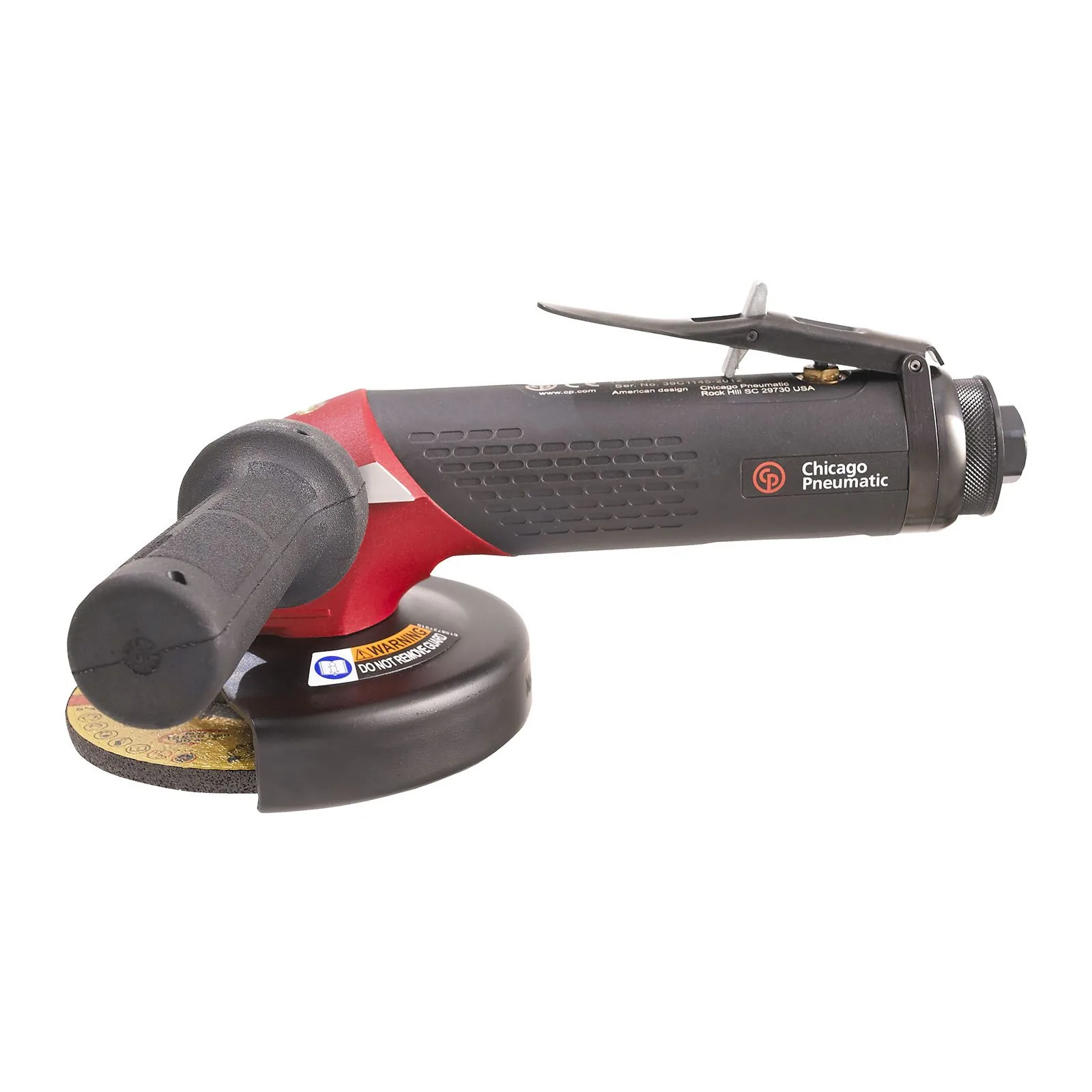

Industrial-Duty Chicago pneumatic 3650 Series Sander offers a lightweight sander with a powerful governed vane 2.4Hp (1800W) motor delivers superior torque for high productivity in sanding applications. The CP3650 angle grinder has a free speed range of 7,500 to 13,500 rpm. It features a streamlined safety-lever, a vibration damping side handle to reduce hand fatigue. It allows quick and easy abrasive change with a push of a button. The range is available in 7 models with wheel capacities from 4″ (115 mm) to 7″ (180 mm). The choice of spindle thread size is M14, 3/8-24 and 5/8-11.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Power Source
Circular Abrasive Pad Size (in)
Max power
Free Speed (rpm)
Output Spindle Thread
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Tool Weight (lb)
Air consumption at free speed (cfm)
Autobalancer
Exhaust
Governor Type
Main Material type
Rotative Inlet
Spindle Lock
Starting System
Air Inlet Thread Type
Overspeed Shut-off
CI-6151607250
CP3650-120AB - Pneumatic
6151607250
Pneumatic
5
2.41
12000
5/8-11
97
86
4.9
67
3/8
90
0.5
9.37
3.11
42
No
Rear
Ball
Aluminium, Composite over-sleeve
No
Yes
Safety lever
BSP
No
