Chicago Pneumatic CP3750 Series- Angle Grinders

Chicago Pneumatic CP3750 Series- Angle Grinders

$1,261.00QUOTE

Add to Cart
Chicago Pneumatic CP3750 Series- Angle Grinders
Chicago Pneumatic CP3750 Series- Angle Grinders
$1,261.00QUOTE

The Best Ratio Price Performance

The right level of performance and ergonomics when it comes to industry with no compromise on safety.

  • 2,2 HP / 1640 W air motor
  • Vibration dampening side handle
  • 1000 Hours bevel gear durability (Checking at 500 hours)
  • One hand reinforced Swiveling Guard
  • Swiveling air inlet

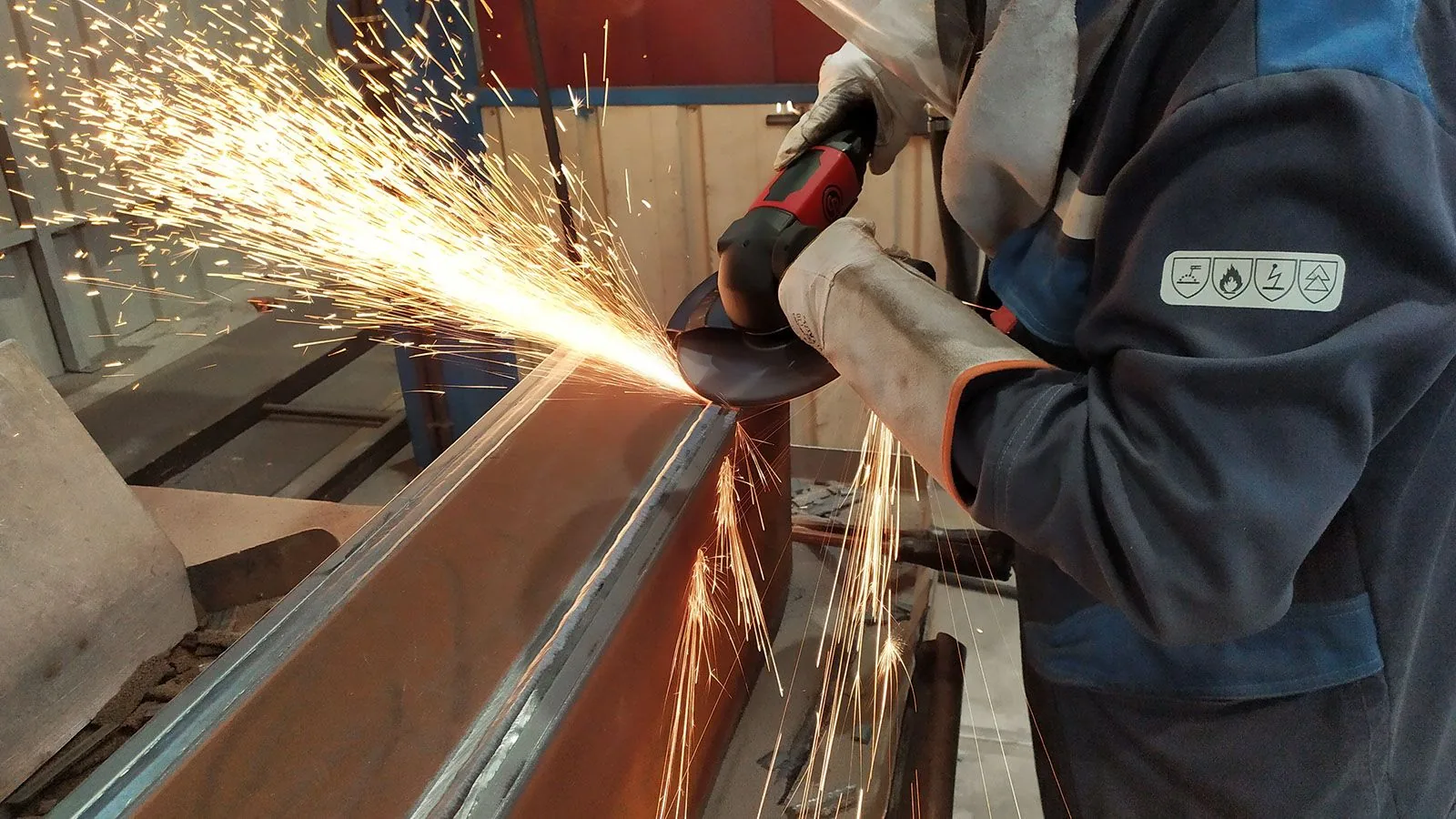

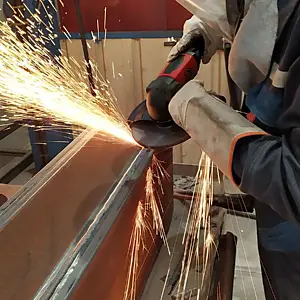

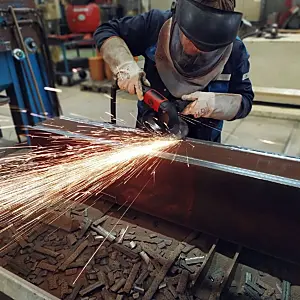

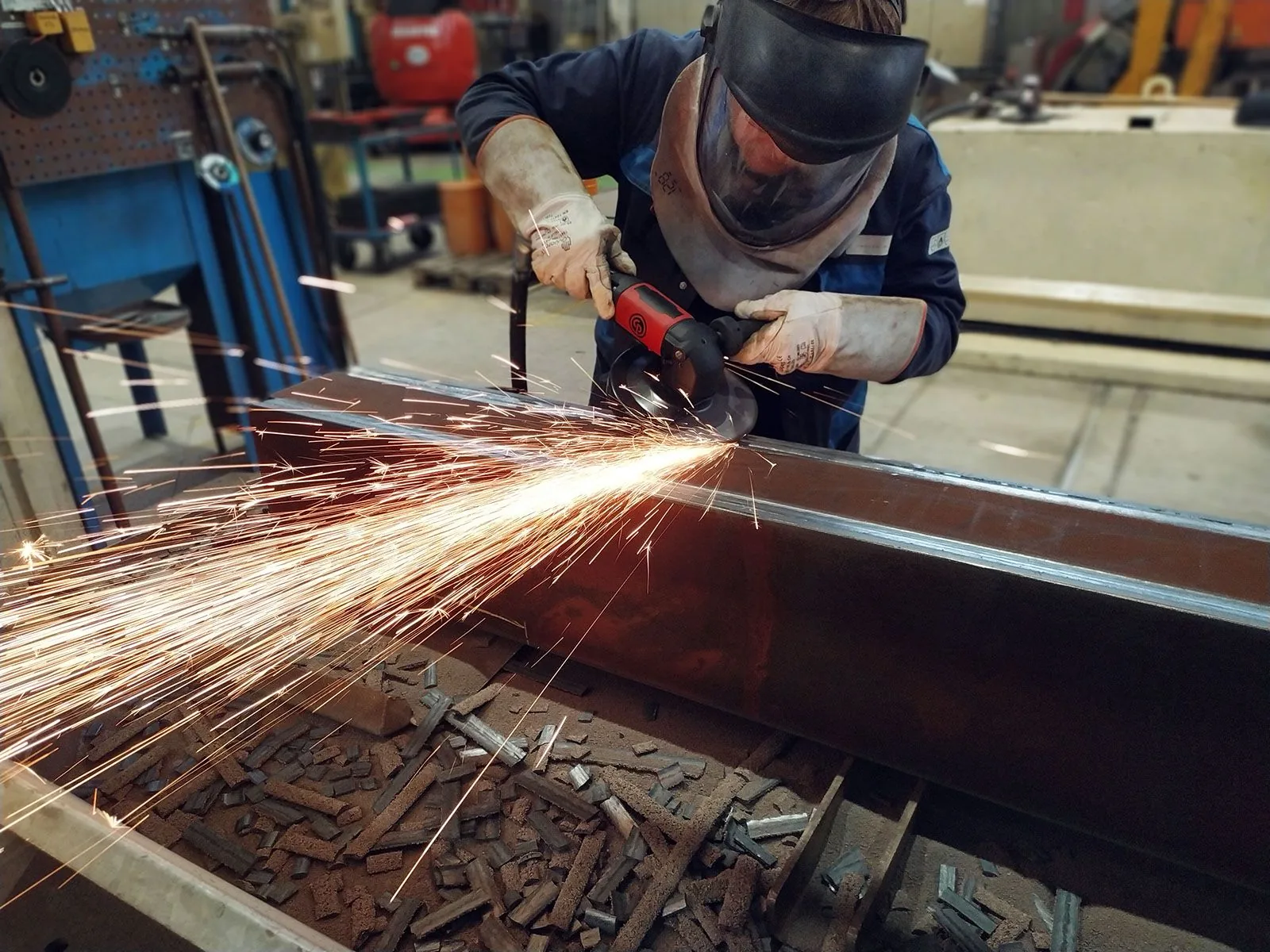

The CP3750 series angle grinder has been designed with the right level of performance, a regulated motor of 2.2 HP (1640 W), a free speed of 8500 rpm and ergonomics. It offers a damping side handle, curved grab handle, swivel air inlet, swivel wheel guard and wheel lock button when it comes to industry without compromising on safety. Designed for industrial use such as grinding, cutting, contouring and cleaning welds. Available in 2 references: 5 / 8-11″ or M14, 7″ / 180mm wheel diameter.
CP3750 grinders are not compatible with type 41 nor discs with thickness < 1/8″ / 3,2mm.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Output Spindle Thread
Free Speed (rpm)
Max power
Power Source
Air consumption at free speed (cfm)
Guard Max Rotation (°)
Wheel/Disc diameter (in)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Height (in)
Length (in)
Width (in)
Side To Center (in)
Tool Weight (lb)
Abrasive Type
Autobalancer
Guard Positions
Main Material type
Rotative Guard Type
Spindle Lock
Starting System
Swiveling Guard
Air Inlet Thread Type
CI-6151607820
CP3750-085AB7 - 5/8-11 UNC
6151607820
5/8-11
8500
2.2
Pneumatic
38
120
7
100
89
8.9
24.9
74
1/2
90
0.63
4.06
12.36
2.68
1.3
6.39
Type 27
No
7
Aluminium, Composite over-sleeve
Lock
Yes
Safety lever
Keyless
NPT
CI-6151607830
CP3750-085AA7 - M14x2
6151607830
M14x2
8500
2.2
Pneumatic
38
120
7
100
89
8.9
24.9
74
1/2
90
0.63
4.06
12.36
2.68
1.3
6.39
Type 27
No
7
Aluminium, Composite over-sleeve
Lock
Yes
Safety lever
Keyless
NPT
