Chicago Pneumatic CP3850 Series – Angle Grinders

Chicago Pneumatic CP3850 Series – Angle Grinders

$1,787.00 – $1,937.00

Add to Cart
Chicago Pneumatic CP3850 Series – Angle Grinders
Chicago Pneumatic CP3850 Series - Angle Grinders
$1,787.00 – $1,937.00

The Highest Power-to-weight Ratio in Its Class

The CP3850 series – 7″and 9″ (180, 230 mm) angle grinders – has the highest power-to-weight ratio in its class. Designed for heavy-duty use in a harsh environment, it provides superior torque for maximum productivity.

  • Highly durable spiral bevel gear reduces vibration and torque transmission stress, resulting in a 2,000 h maintenance interval
  • Double streamlined safety lever facilitates single-handed engagement and helps reduce risk of accidental start up
  • Ergonomic, multi-position (360), anti-vibration side handle to keep the operator”s wrist straight and comfortable
  • 360 adjustable air exhaust with integrated muffler for a noise level limited to 84 dB(A)
  • Debris magnet to collect debris and extend super durable spiral bevel gear

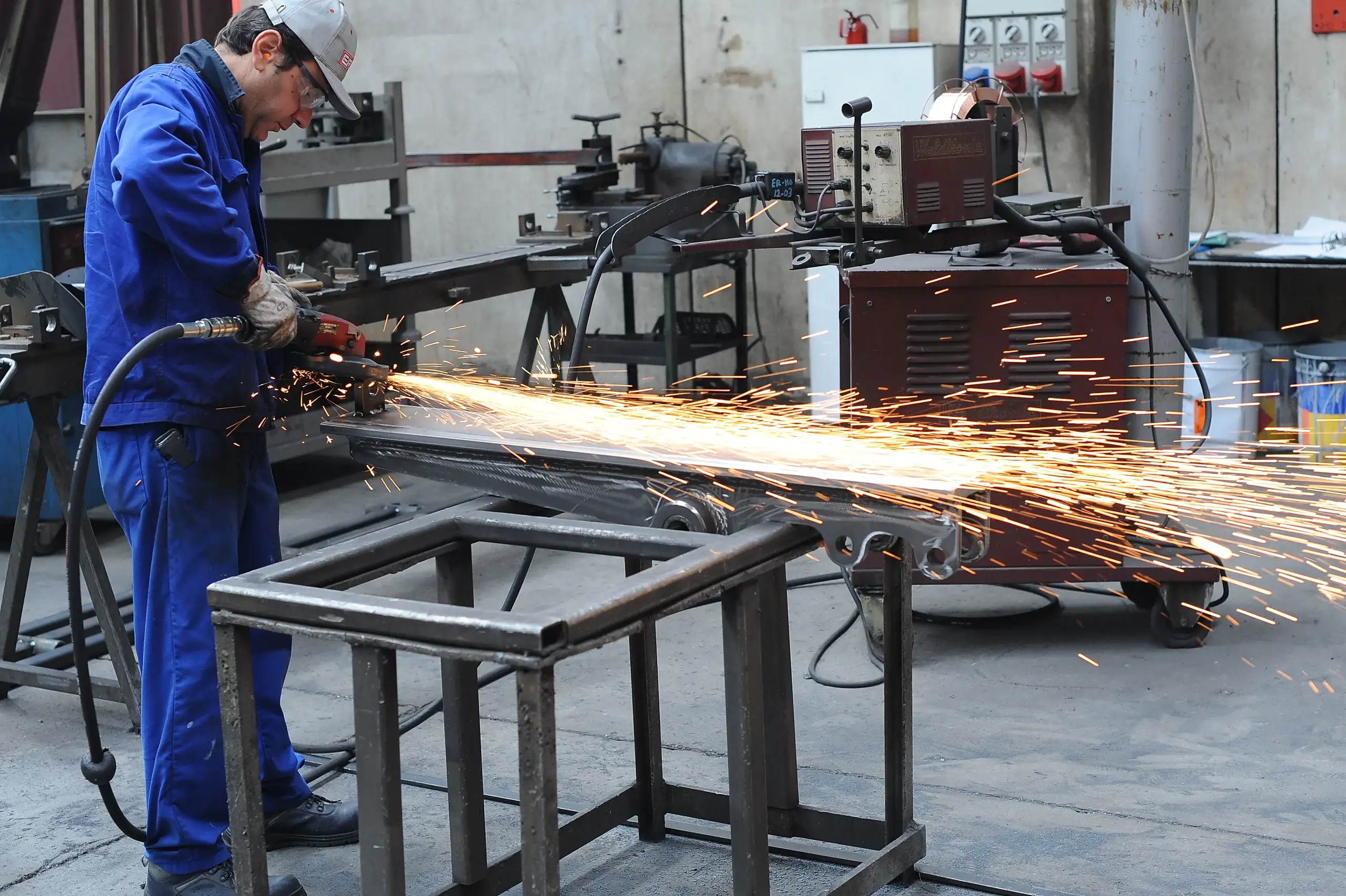

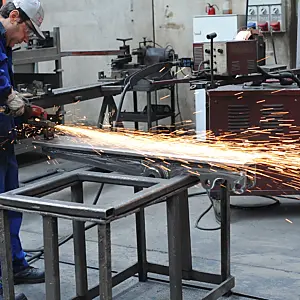

The CP3850 Series angle grinder is a rugged and durable tool with a regulated 2.8 hp (2100 W) motor and a free speed of 6,500 to 8,500 rpm. Designed for rough industrial use such as grinding, cutting, contouring, deburring, and weld cleaning, it offers ergonomic handling due to its curved design. A 360 exhaust muffler, a multi-position guard and a spindle lock button ensure comfort and safety. Available in 11-models for 7″ and 9″ wheels and pads. Possibility to select tools with 5/8-11″ or Hex spindle thread.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Free Speed (rpm)
Wheel/Disc diameter (in)
Autobalancer
Max power
Power Source
Air consumption at free speed (cfm)
Guard Max Rotation (°)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Side To Center (in)
Tool Weight (lb)
Guard Positions
Main Material type
Output Spindle Thread
Rotative Guard Type
Spindle Lock
Starting System
Swiveling Guard
Air Inlet Thread Type
CI-6151607340
CP3850-60AB9V - 6000 rpm, 9 in, No
6151607340
6000
9
No
2.82
Pneumatic
44
150
104
93
3.6
22.3
80
1/2
90
0.63
13.39
1.14
7.05
7
Aluminium, Composite over-sleeve
5/8-11
Screws
Yes
Safety lever
Key
BSP
CI-6151704950
CP3850-65AH9VE - 6500 rpm, 9 in, Yes
6151704950
6500
9
Yes
2.82
Pneumatic
44
150
104
93
3.3
17.7
80
1/2
90
0.63
13.39
1.14
6.39
7
Aluminium
-
Screws
Yes
Safety lever
Key
BSP
CI-6151704960
CP3850-77AB7V - 7700 rpm, 7 in, No
6151704960
7700
7
No
2.82
Pneumatic
33
150
95
84
3.6
17.4
67
1/2
90
0.63
13.39
1.14
6.61
7
Aluminium
5/8-11
Screws
Yes
Safety lever
Key
BSP
CI-6151607440
CP3850-85AB7V - 8500 rpm, 7 in, No
6151607440
8500
7
No
2.82
Pneumatic
36
150
98
87
3.6
18.7
76
1/2
90
0.63
13.39
1.14
6.61
7
Aluminium, Composite over-sleeve
5/8-11
Screws
Yes
Safety lever
Key
BSP
CI-6151704930
CP3850-85AH7VE - 8500 rpm, 7 in, Yes
6151704930
8500
7
Yes
2.82
Pneumatic
36
150
98
87
3.3
17.7
76
1/2
90
0.63
13.39
1.14
5.95
7
Aluminium
-
Screws
Yes
Safety lever
Key
BSP
