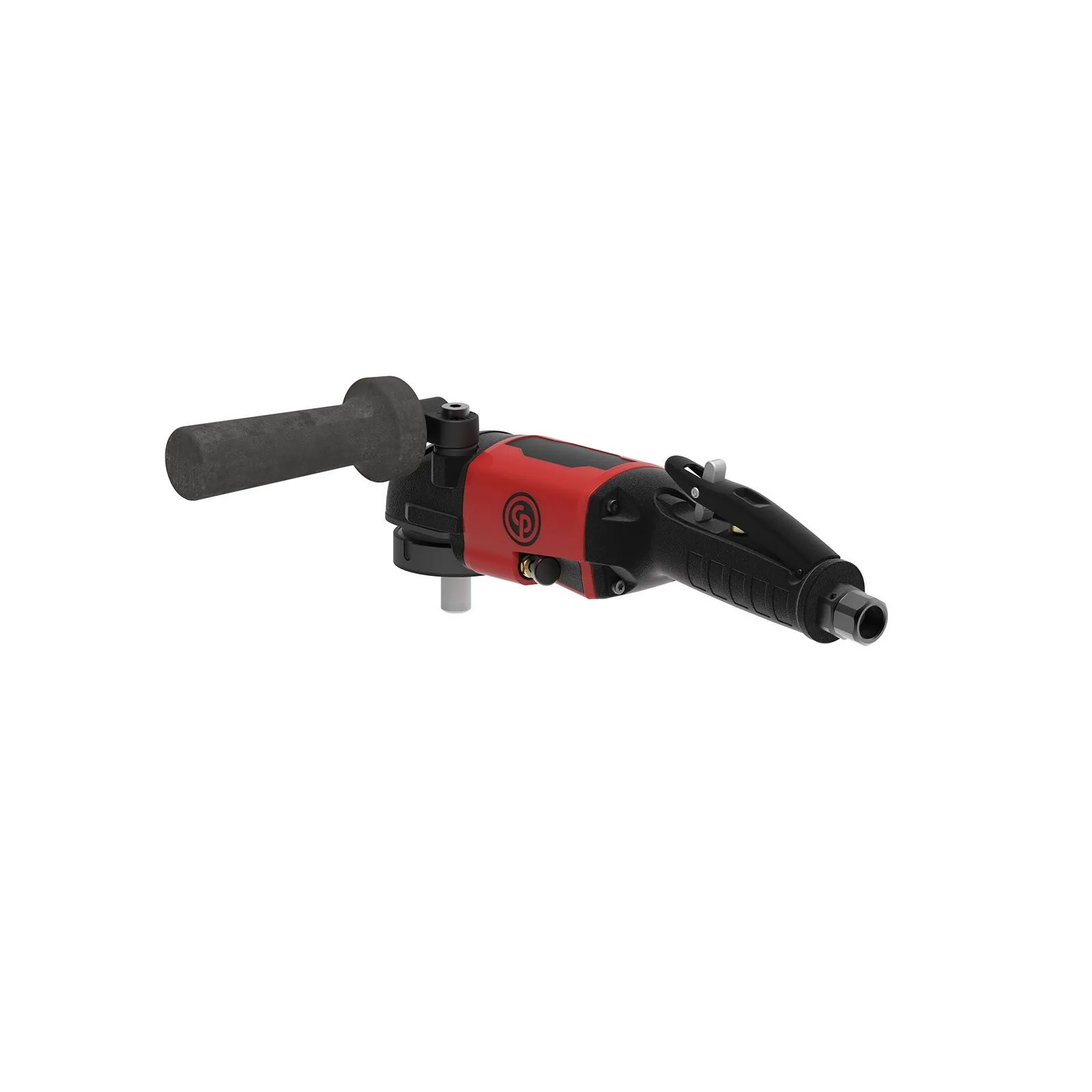

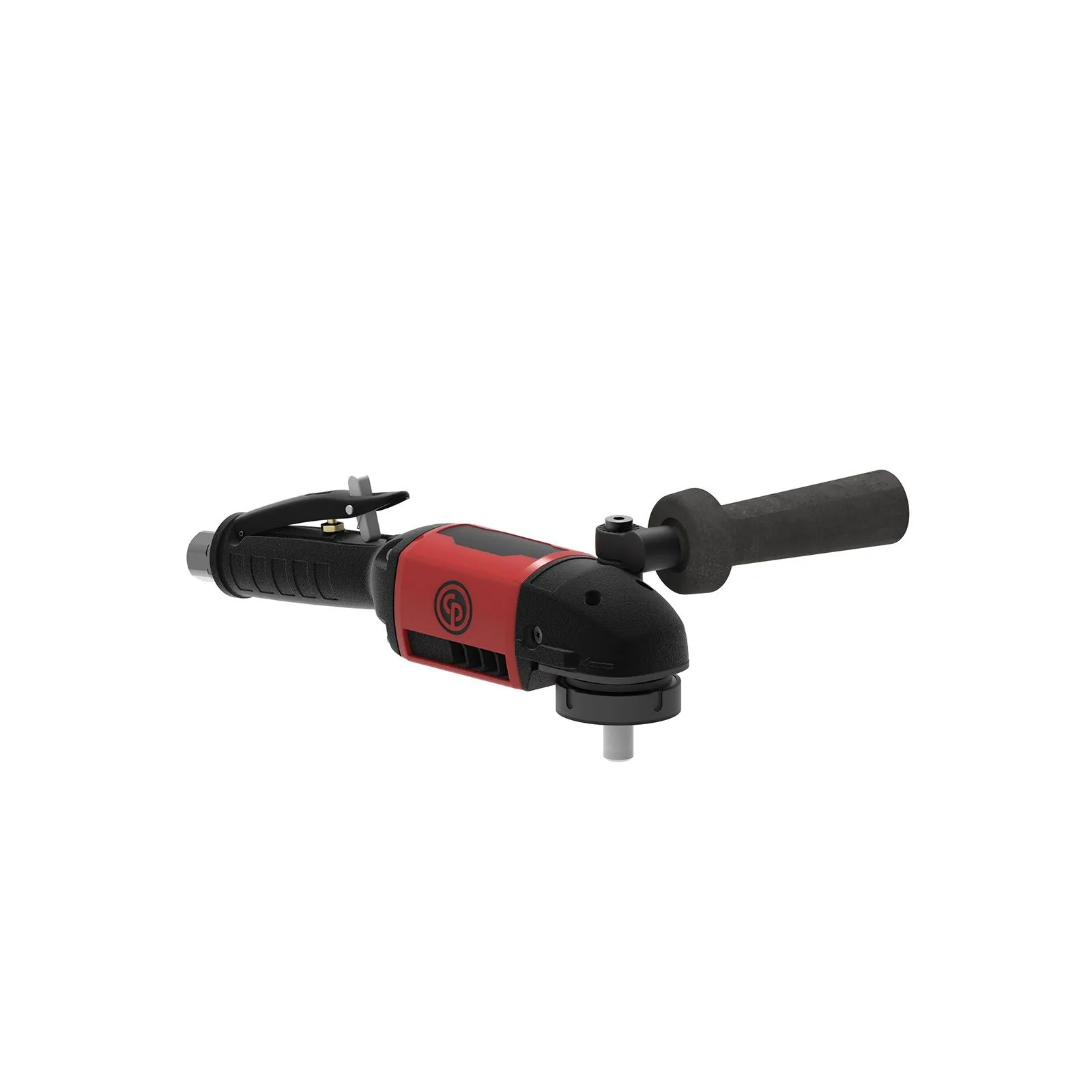

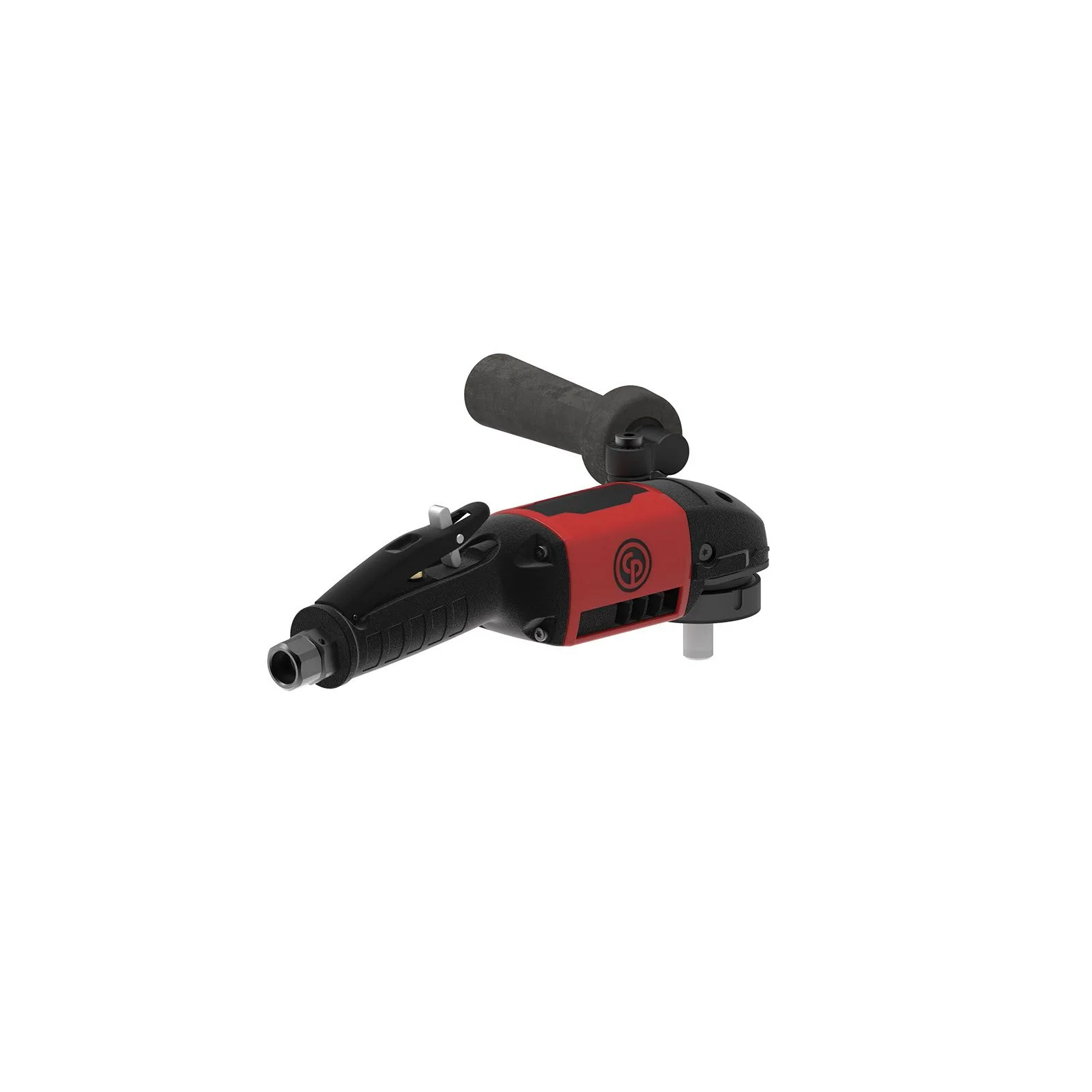

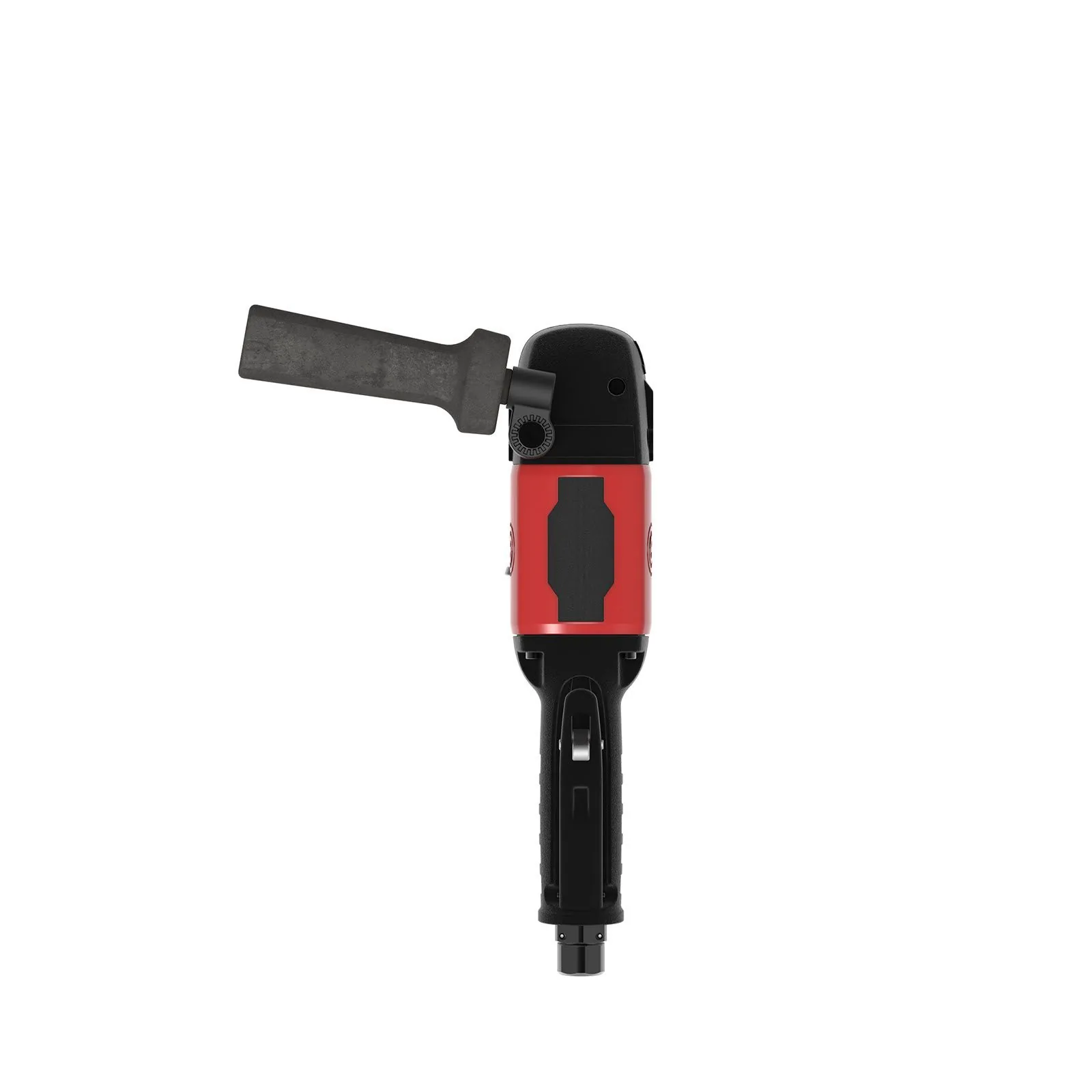

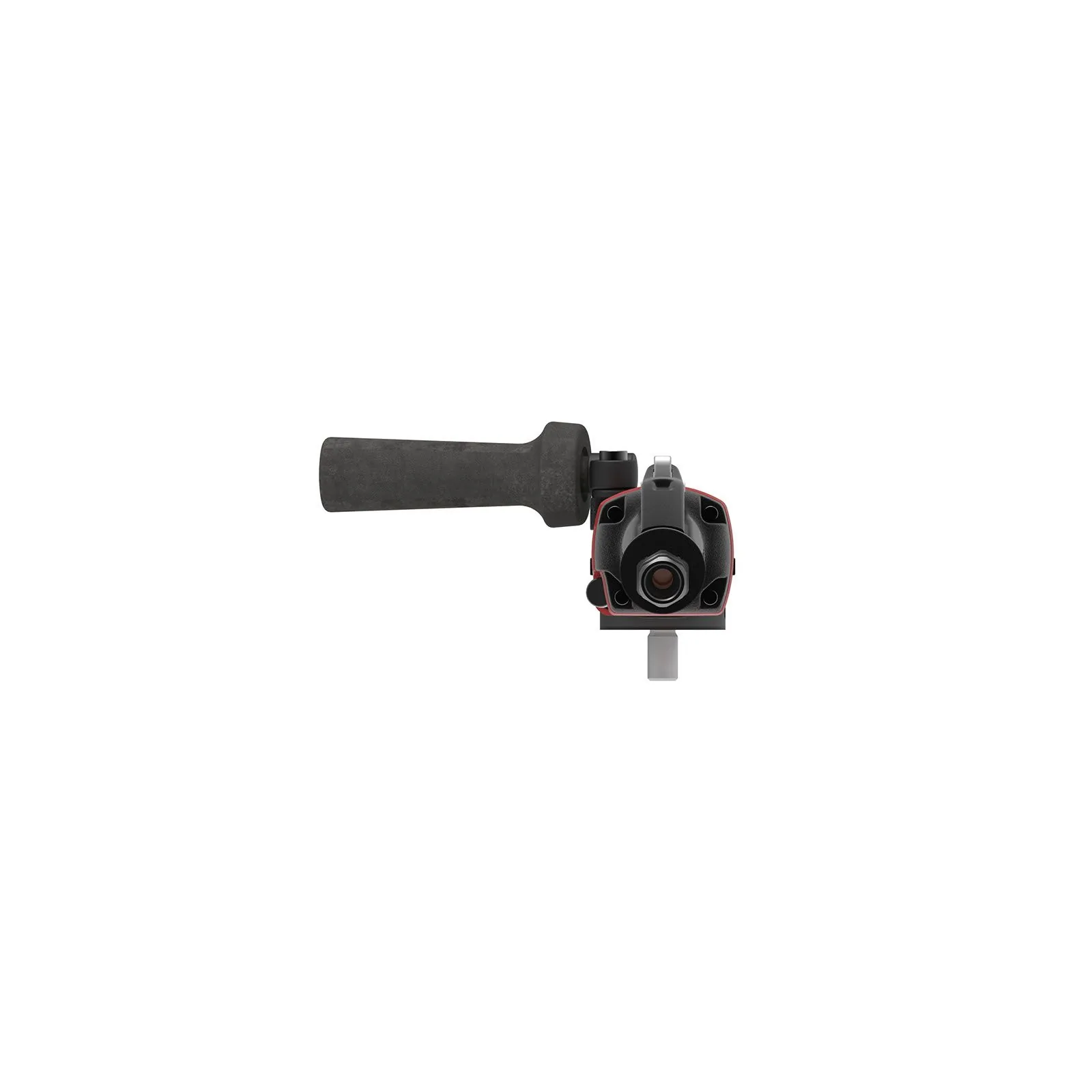

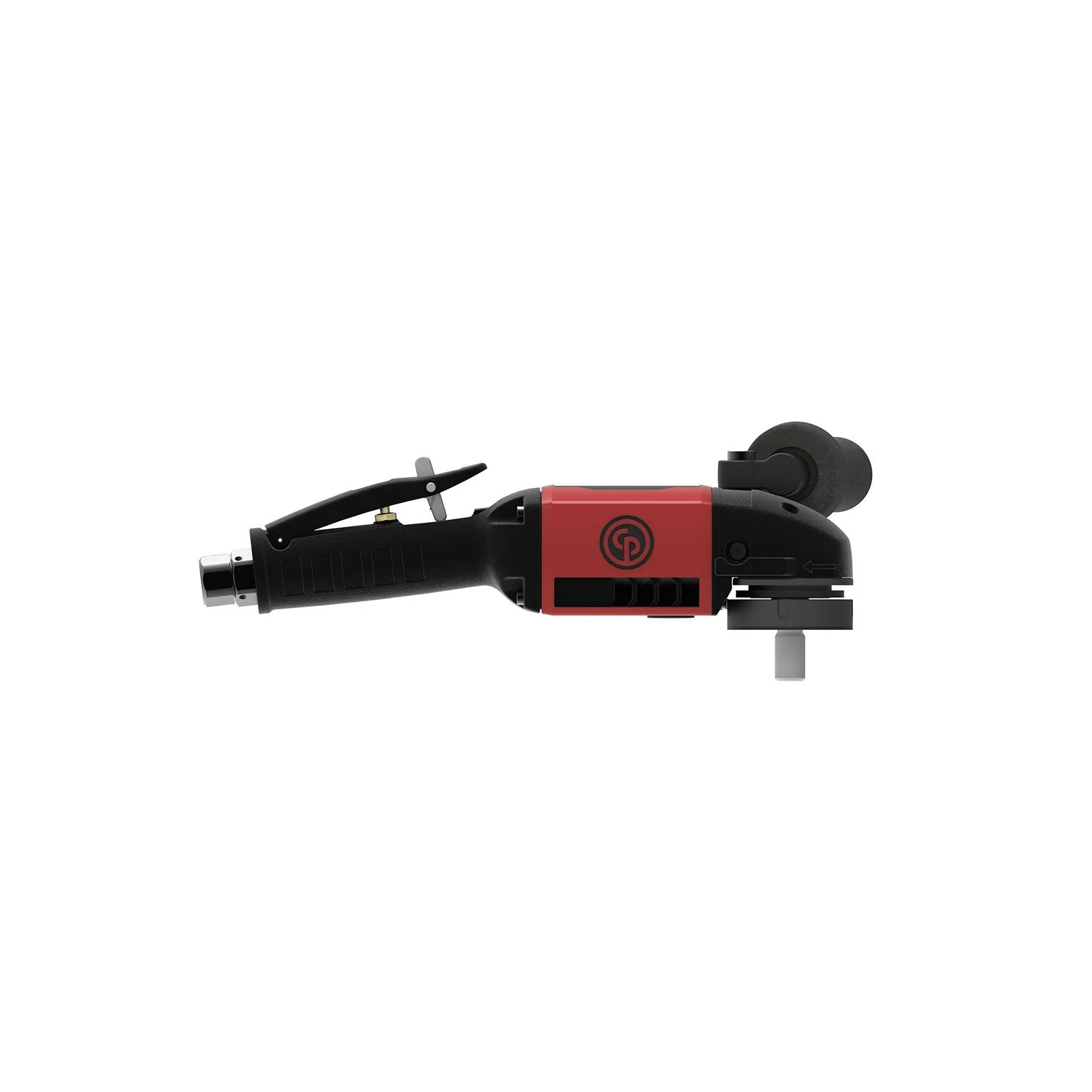

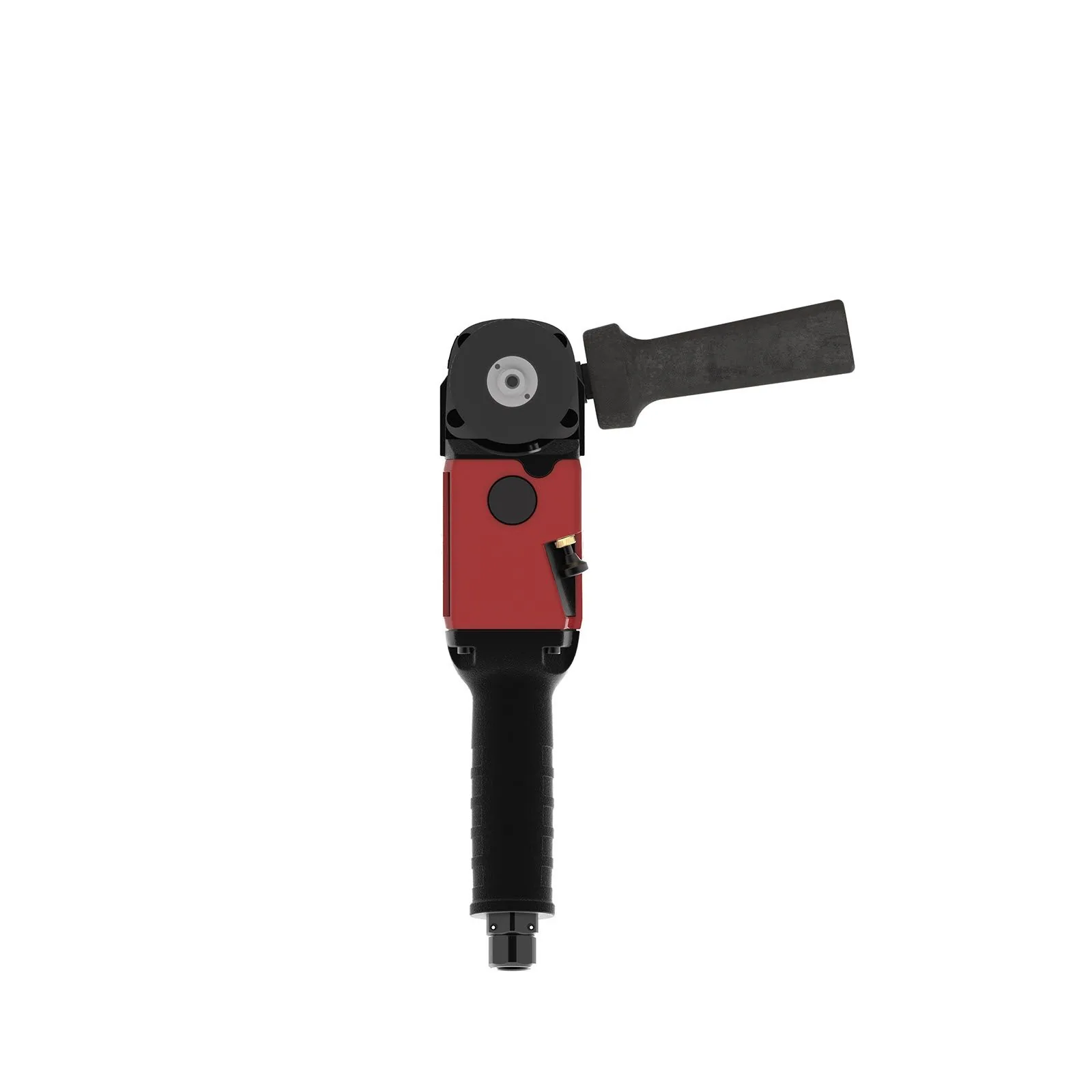

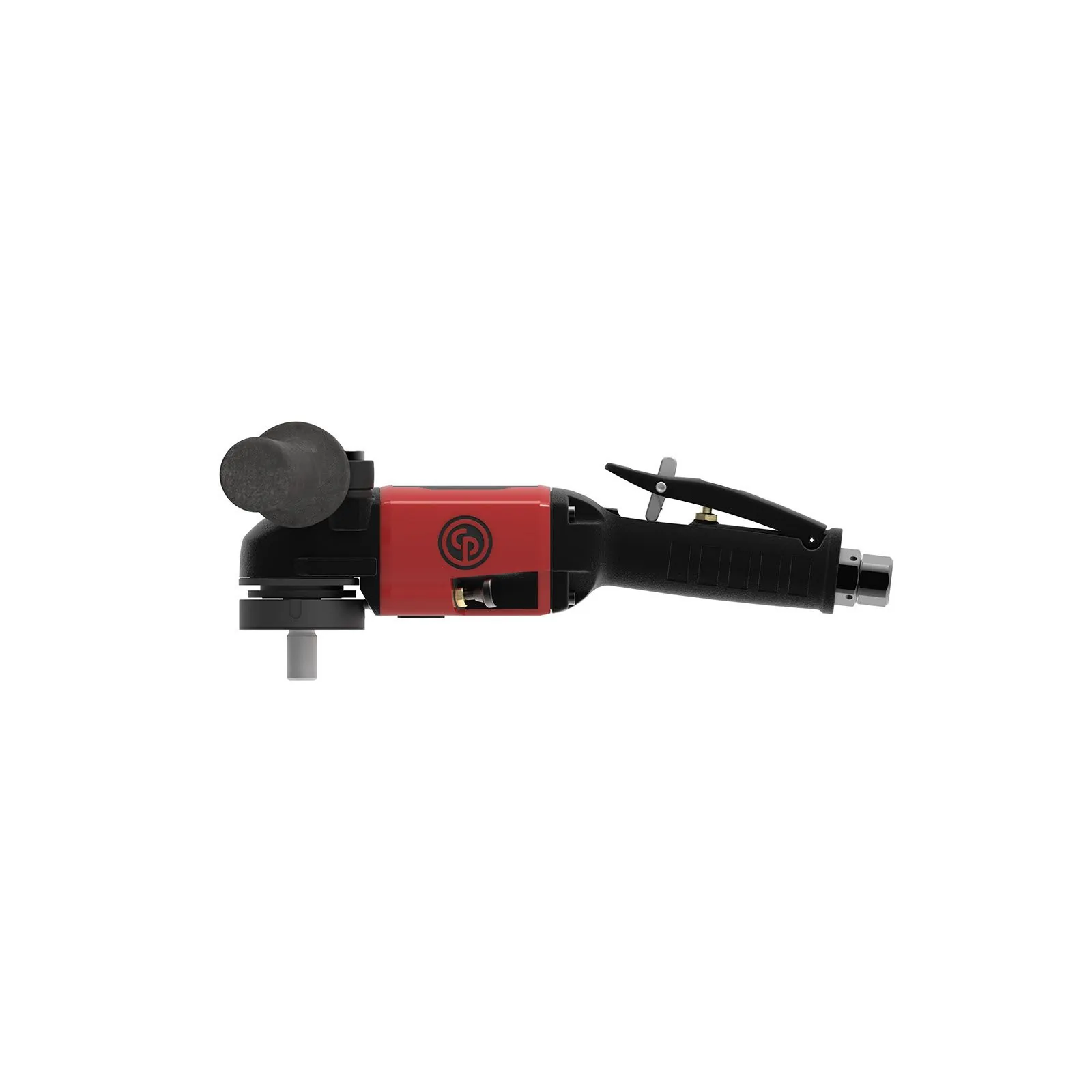

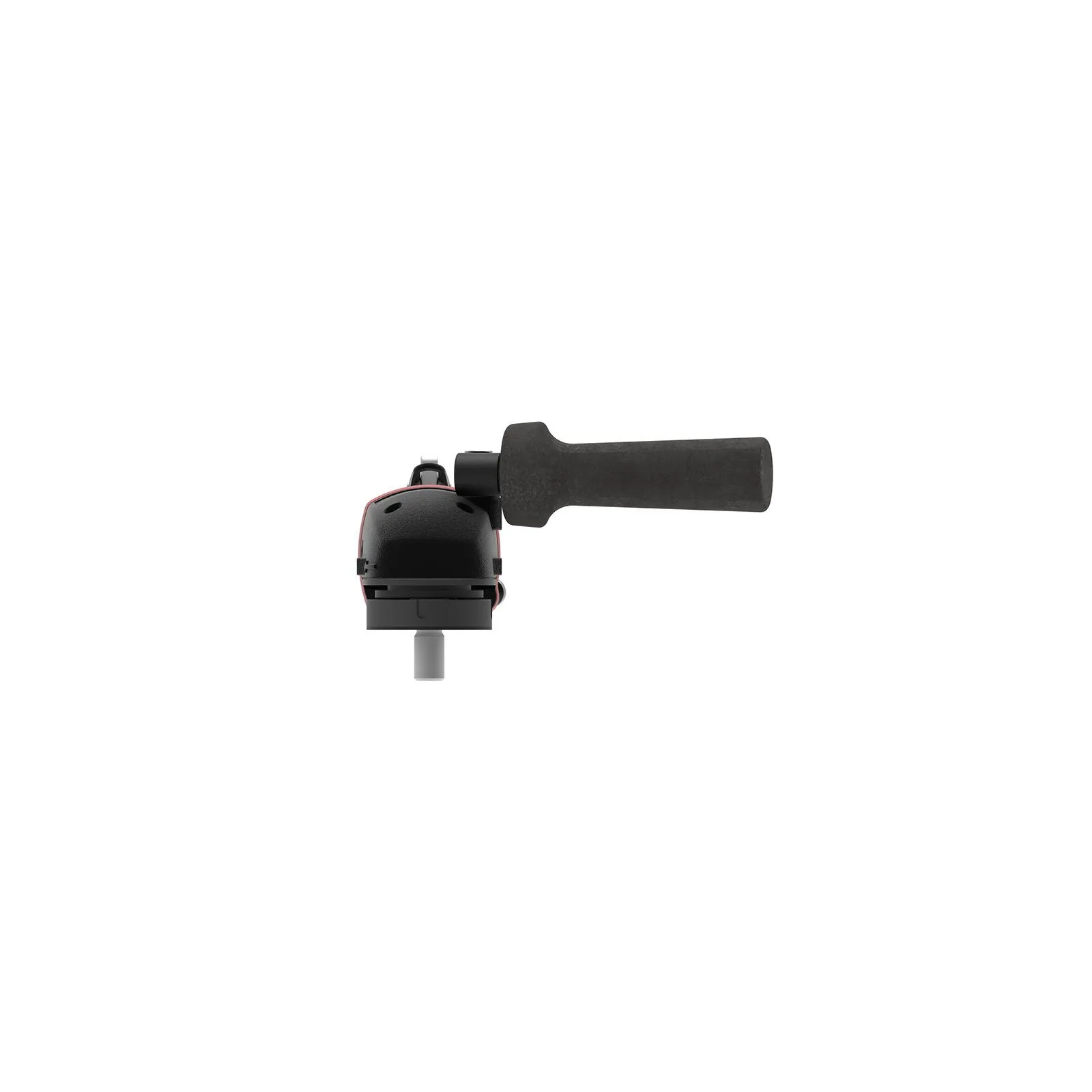

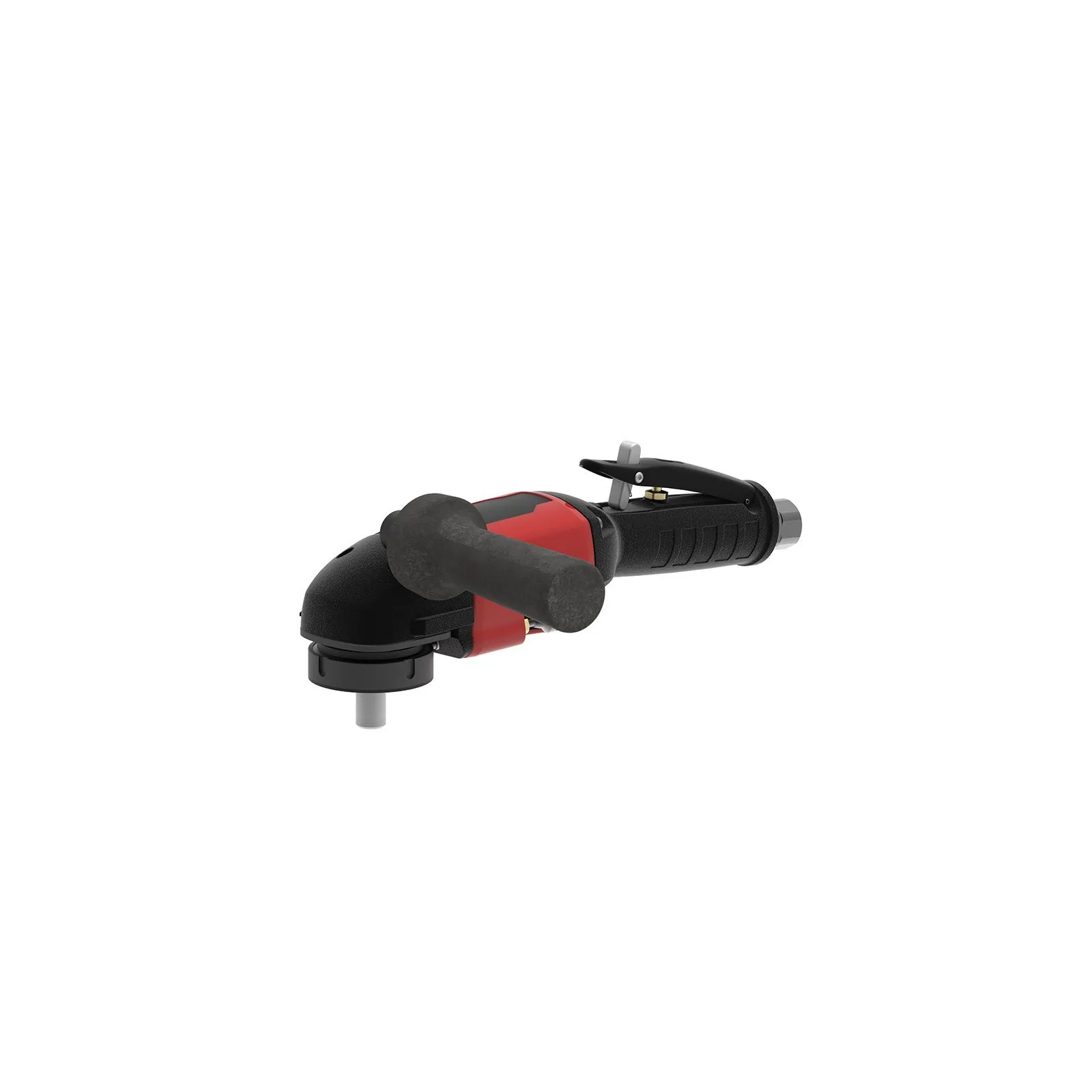

Chicago Pneumatic CP3T30 Series – Angle Turbine Sanders
Chicago Pneumatic CP3T30 Series - Angle Turbine Sanders
QUOTE

Experience unmatched productivity with the CP3T30 turbine angle sander: superior material removal meets exceptional ergonomics. Enjoy powerful performance in a lightweight, compact design that minimizes noise and vibration for operator comfort.

  • High material removal for effective finishing
  • Excellent power-to-weight ratio
  • Compact design for hard-to-reach applications
  • Autobalancer to minimize vibration for operator comfort
  • Low noise level of only 76 dB(A) for a quieter workspace

Enter a new dimension in sanding with the CP3T30 turbine angle sanders series. 2 powerful models, each delivering 2.3 kW while weighing just 2.1 kg, provide an unbeatable power-to-weight ratio. Designed for 180 mm (7”) wheels, the series offers M14 and 5/8-11″ spindle options. An integrated autobalancer boosts productivity and ergonomics by minimizing vibration, while the low noise level of just 76 dB(A) ensures quieter operation. These tools are ideal for hard-to-reach areas, delivering unparalleled power without compromising comfort or air efficiency.

Specifications

SKU
Product Name
Vendor SKU
Output Spindle Thread
Free Speed (rpm)
Wheel/Disc diameter (in)
Power Source
Height (in)
Length (in)
Width (in)
Side To Center (in)
Tool Weight (lb)
Max power
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Air consumption at free speed (cfm)
Circular Abrasive Pad Size (in)
Sound Pressure (dB(A))
Air Inlet Thread Type
Overspeed Shut-off
Autobalancer
Exhaust
Governor Type
Main Material type
Rotative Inlet
Spindle Lock
Starting System
Vacuum
Vibration (m/s²)
Energy Type
CI-6151620480
CP3T30-085ABV - 5/8-11 UNC
6151620480
5/8-11 UNC
8500
7
Pneumatic
3.39
11.89
2.64
1.32
4.63
3.08
32 1/sNl
3/8
90
0.63
8 1/sNl
7
76
BSP
Yes
Yes
Rear
Ball
Aluminium, Composite over-sleeve
Yes
Yes
Safety lever
Non vaccum
2.5
Pneumatic
