$624.00 – $860.00
$624.00 – $860.00
High Speed and Robust Design for Versatile Industrial Applications
High speed and robust design for heavy-duty customers looking for a versatile and durable belt sander
Universal and versatile belt sander with 13x610mm (1/2×24″) belt capacity
SKU | Product Name | Vendor SKU | Free Speed (rpm) | Belt Size WxL (in) | Kit | Power Source | Air consumption at free speed (cfm) | Length (in) | Tool Weight (lb) | Air Consumption At Load (cfm) | Air Inlet Thread Size (in) | Max Dynamic Air Working Pressure (psi) | Min Hose Diam (mm) | Max power | Sound Power (dB(A)) | Sound Pressure (dB(A)) | Overspeed Shut-off | Air Inlet Thread Type | Autobalancer | Exhaust | Main Material type | Rotative Inlet | Starting System | Vibration (m/s²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

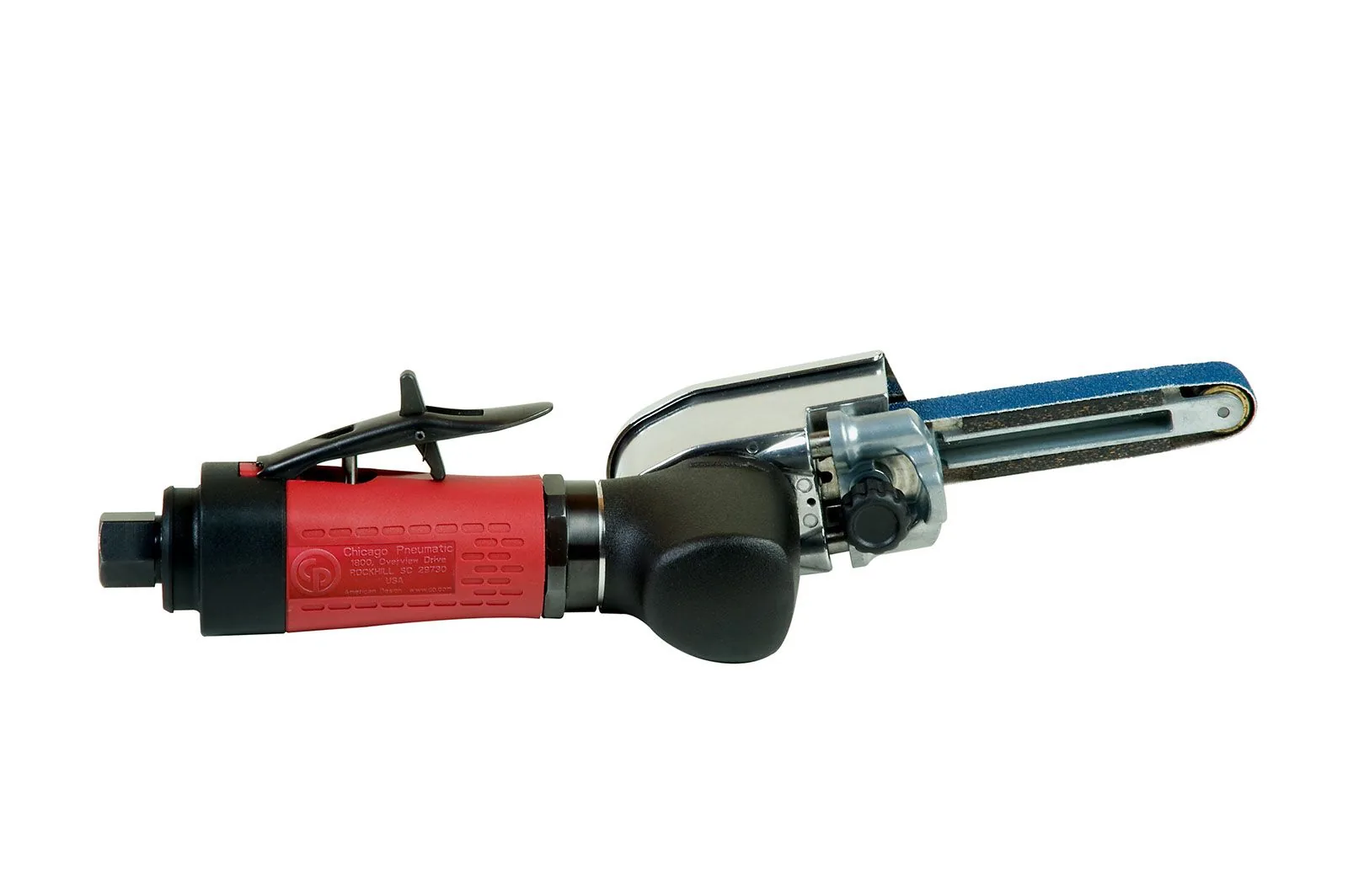

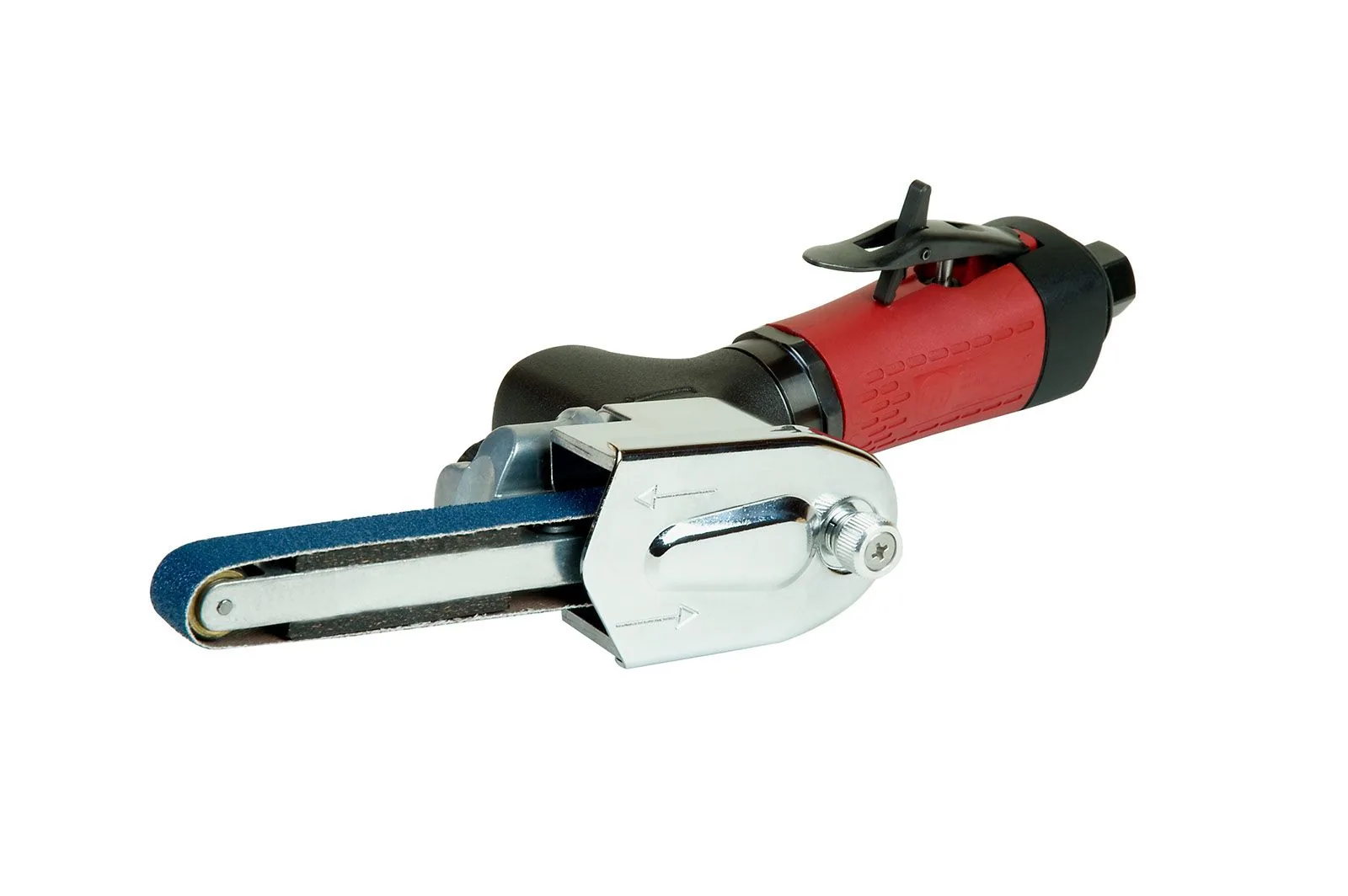

CI-6151620000 | Chicago Pneumatic CP5080-3260D12 - 12 x 1/2 Inch (305 x 13 mm) Air Belt Sander, 0.4 HP / 300 W - 26000 RPM | 6151620000 | 26000 | 1/2x12 | Tool Only | Pneumatic | 21 | 11.02 | 1.7 | 37 | 1/4 | 90 | 0.25 | 0.4 | 92.5 | 81.5 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

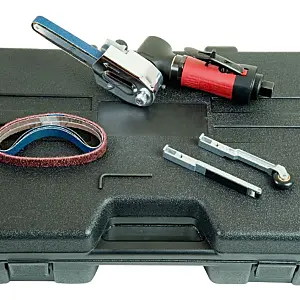

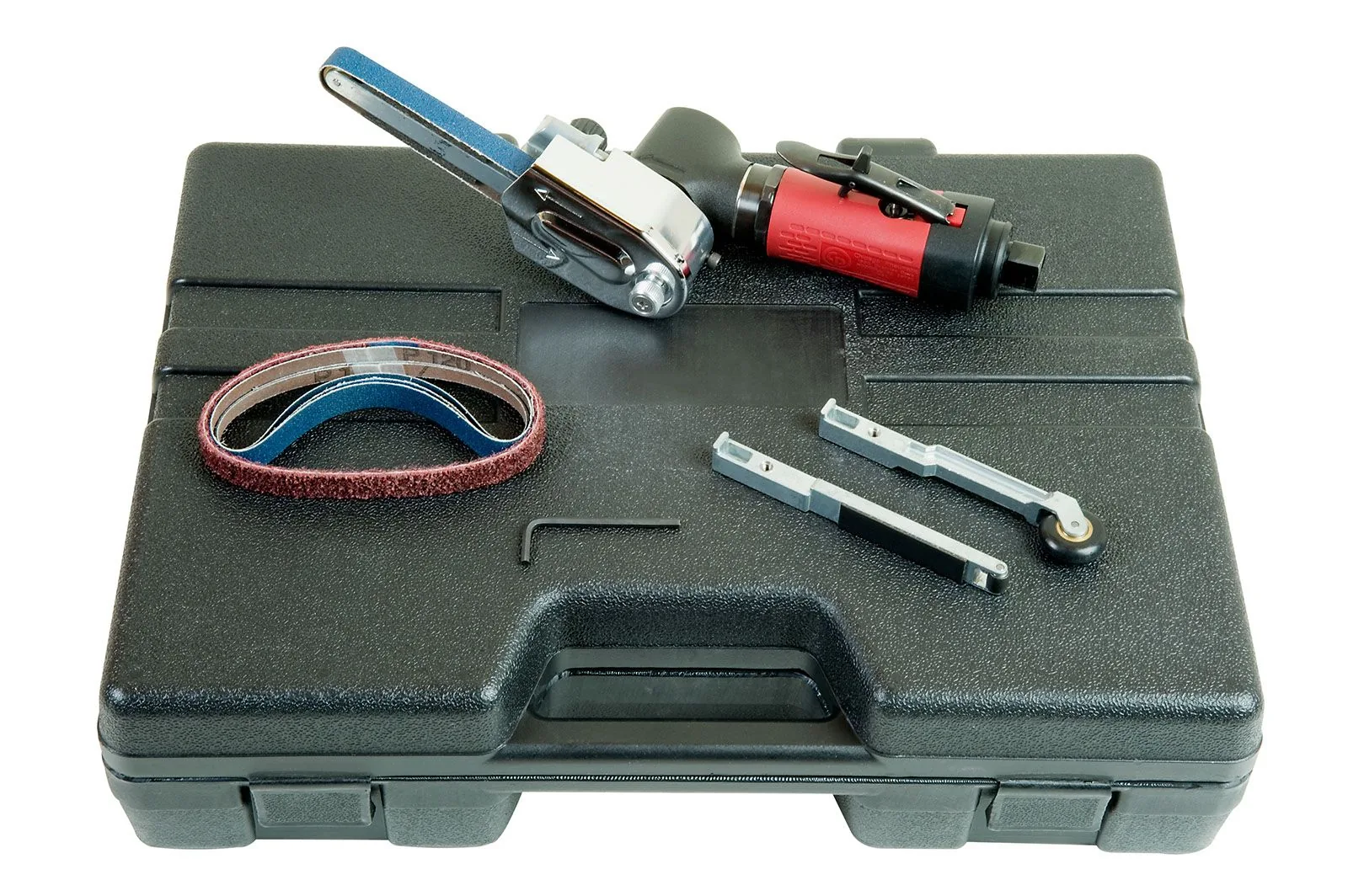

CI-6151620050 | Chicago Pneumatic CP5080-3260D12K - Kit - 12 x 1/8 - 1/2 Inch (305 x 3 - 13 mm) Air Belt Sander, 0.4 HP / 300 W - 26000 RPM | 6151620050 | 26000 | 1/8-11/2x12 | Yes | Pneumatic | 21 | 11.02 | 1.7 | 37 | 1/4 | 90 | 0.25 | 0.4 | 92.5 | 81.5 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

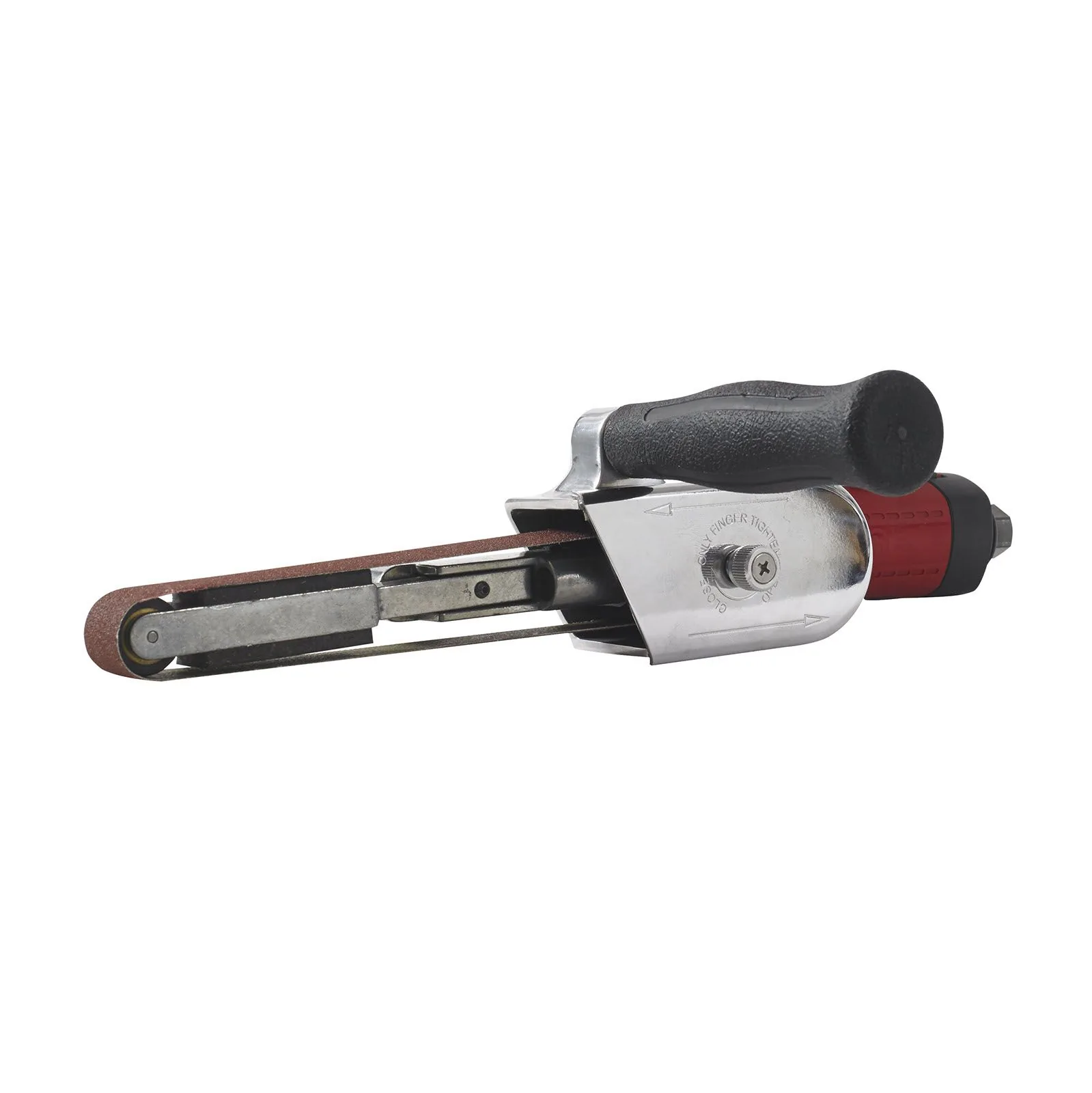

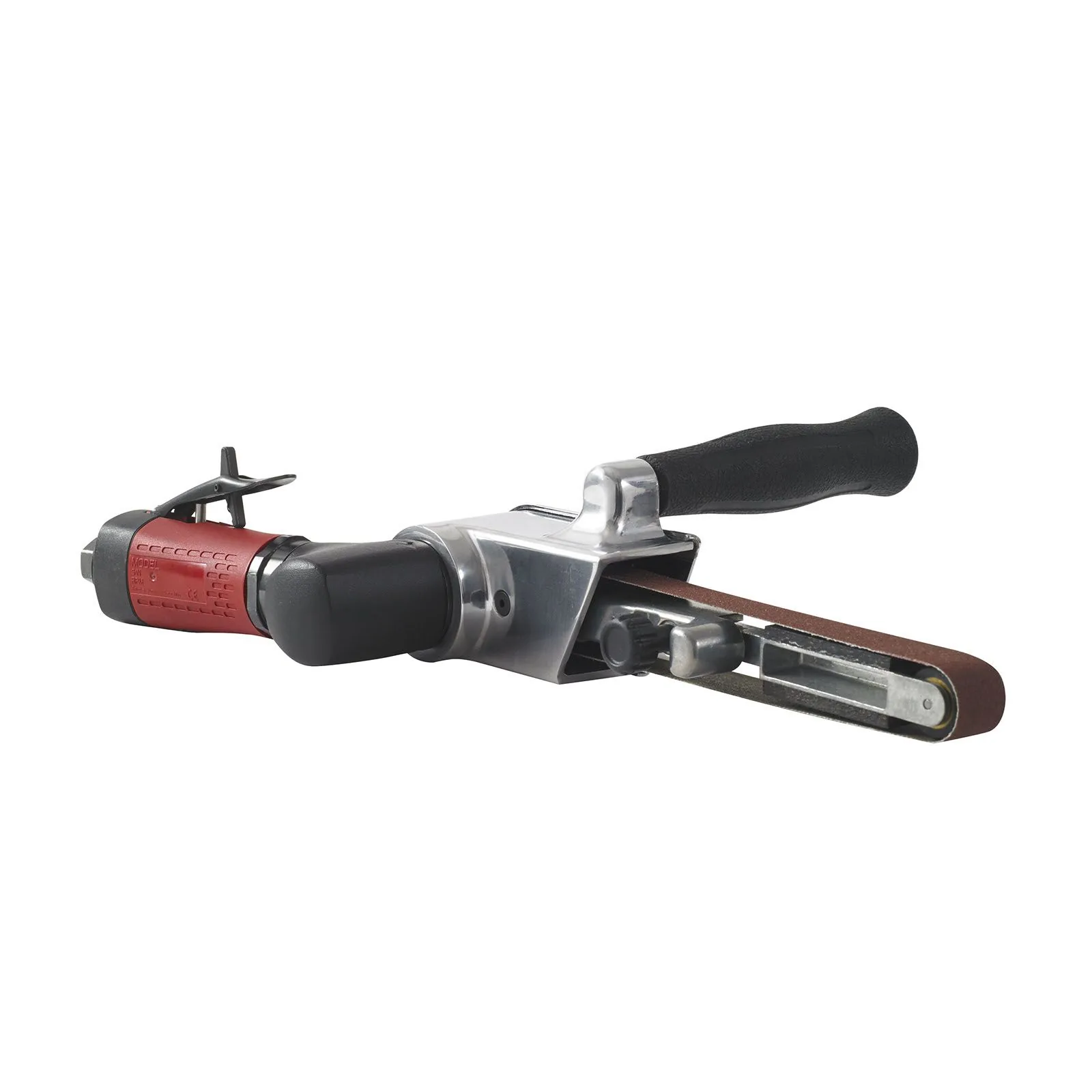

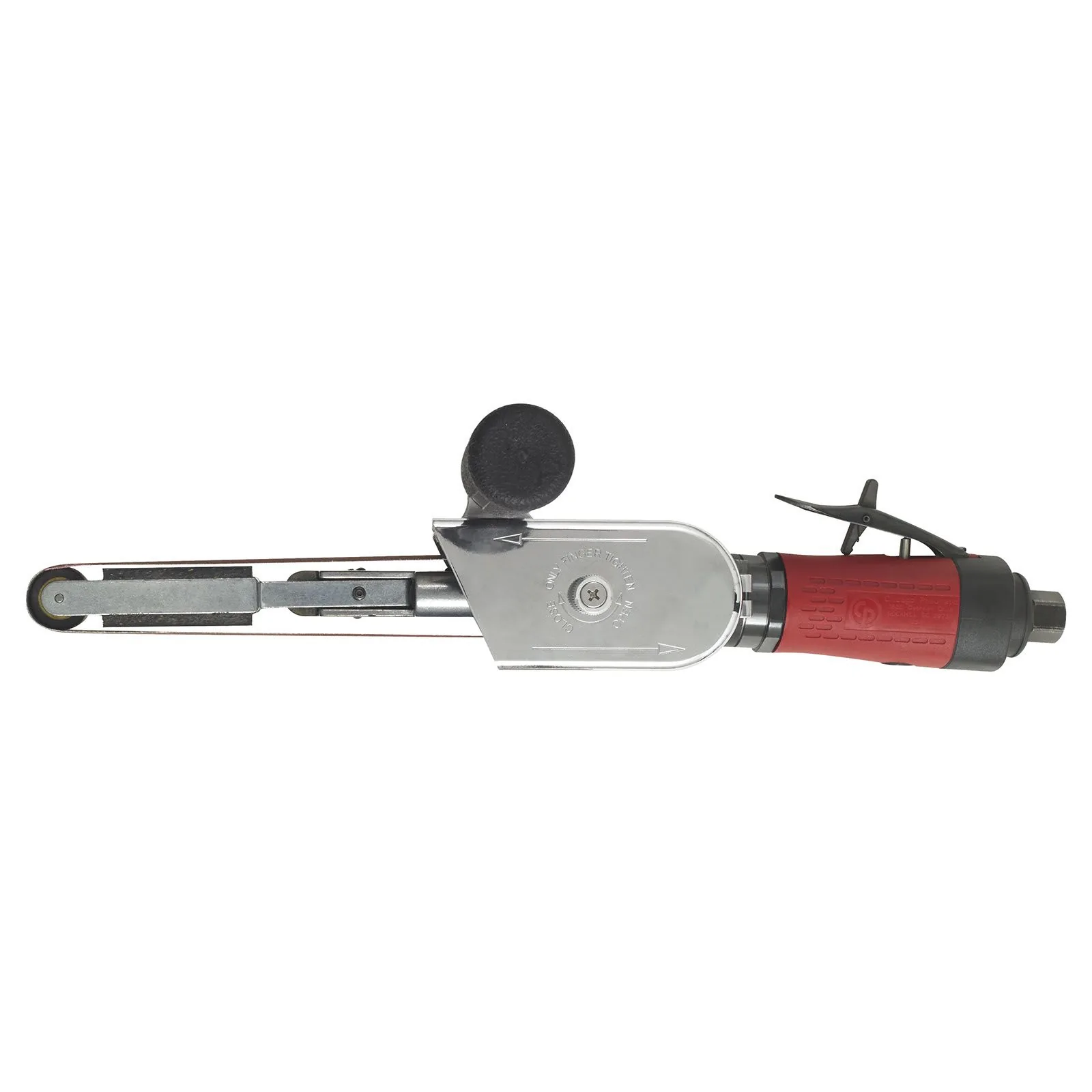

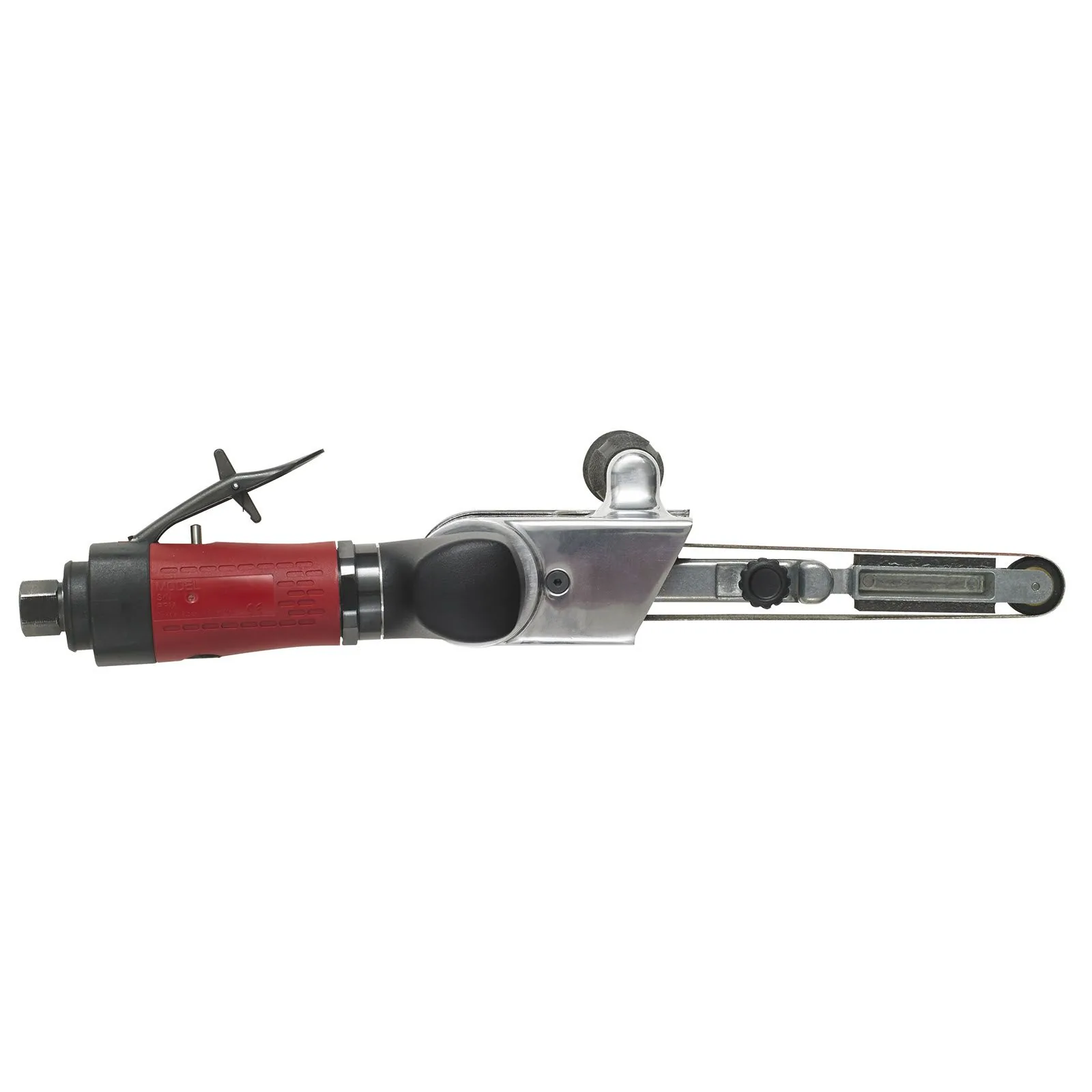

CI-6151620200 | Chicago Pneumatic CP5080-3260H19 - 19 x 1/2 - 1 Inch (480 x 13-25 mm) Air Belt Sander, 0.4 HP / 300 W - 26000 RPM | 6151620200 | 26000 | 1/2-1x19 | Tool Only | Pneumatic | 21 | 14.57 | 2.51 | 37 | 1/4 | 90 | 0.25 | 0.4 | 90.2 | 79.2 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

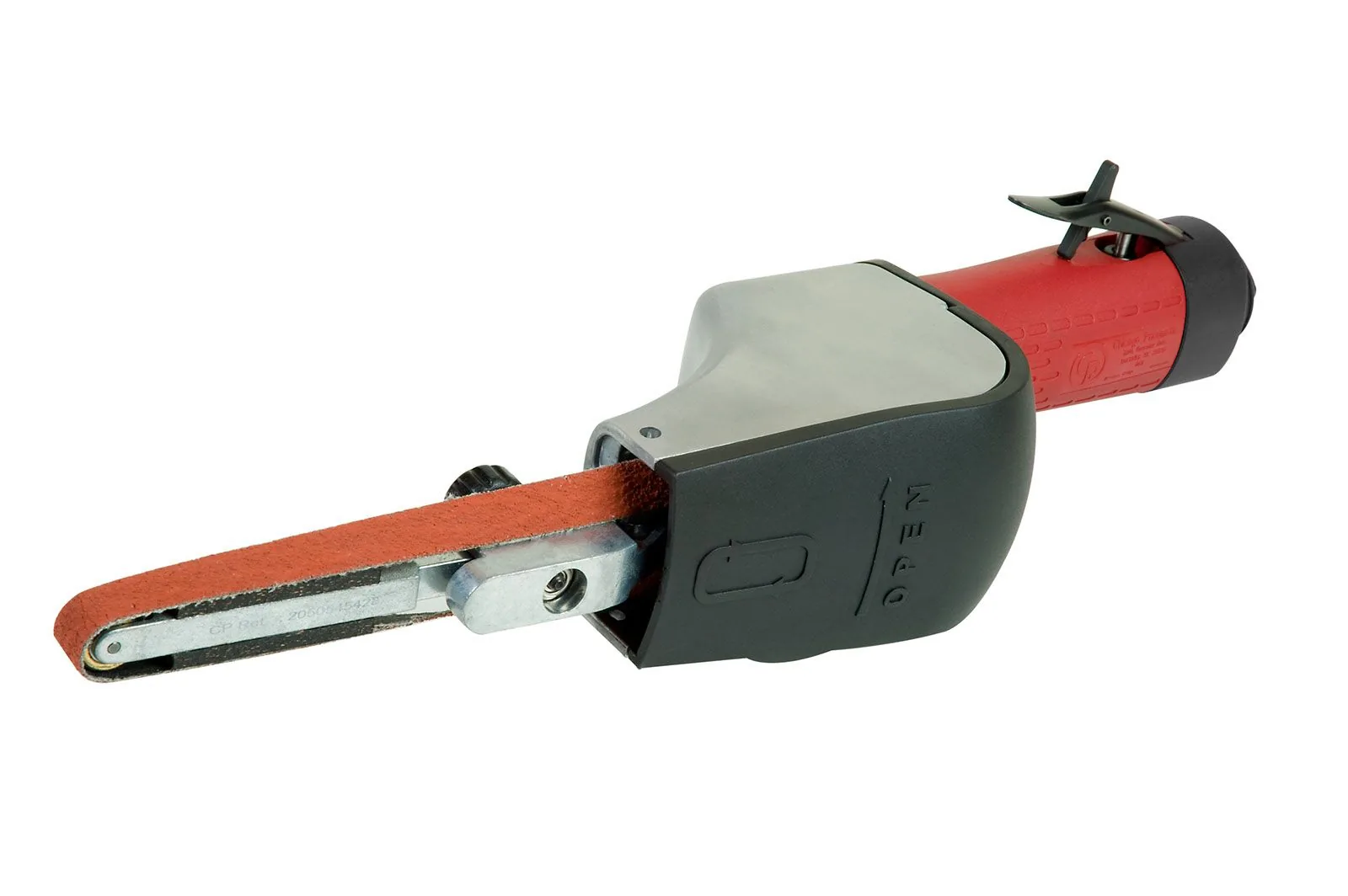

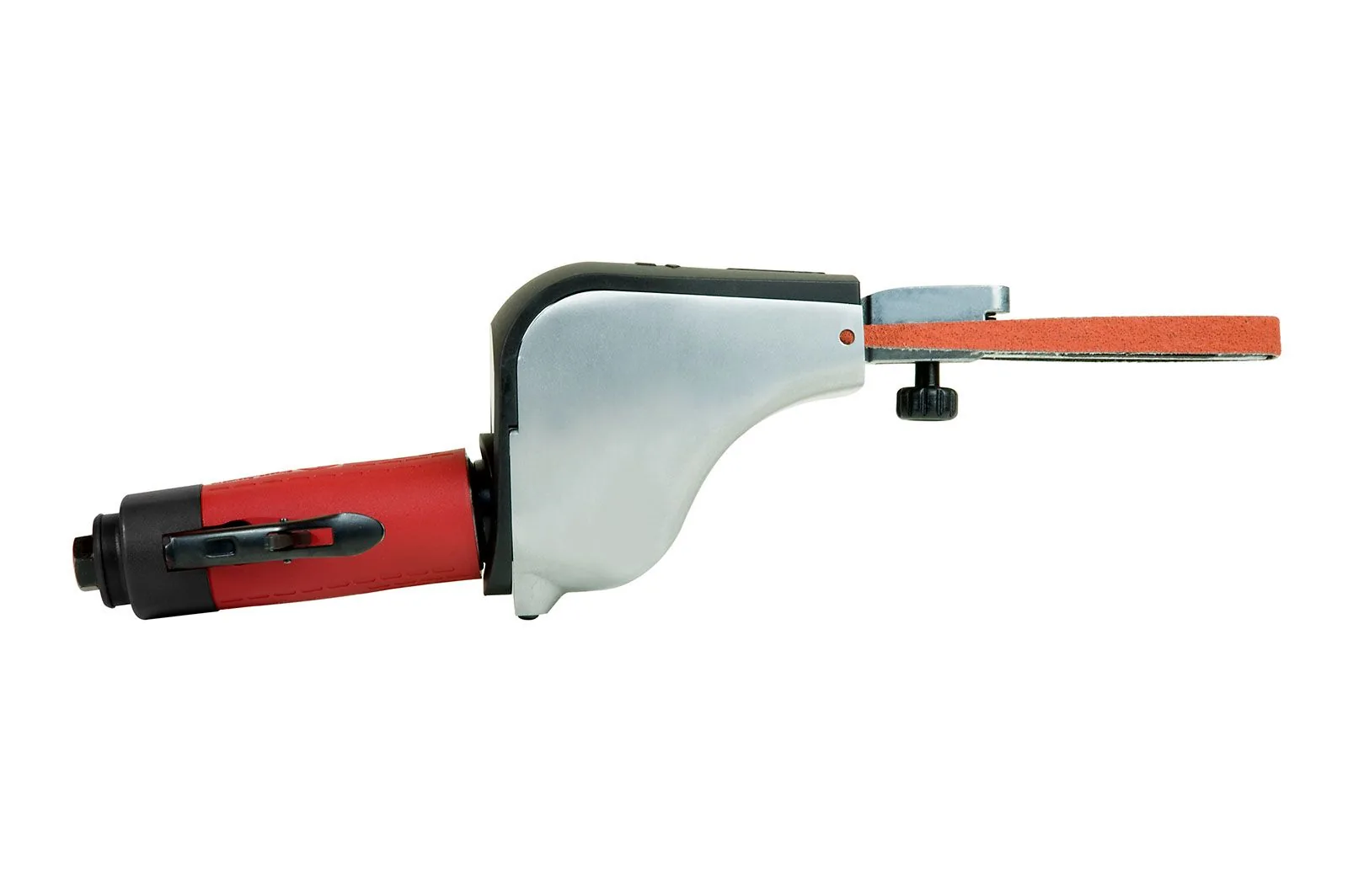

CI-6151620010 | Chicago Pneumatic CP5080-4200D24 - 24 x 1/2 Inch (610 x 13 mm) Air Belt Sander, 0.54 HP / 400 W - 20000 RPM | 6151620010 | 20000 | 1/2x24 | Tool Only | Pneumatic | 25 | 15.35 | 3.06 | 45 | 1/4 | 90 | 0.25 | 0.54 | 89 | 78 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

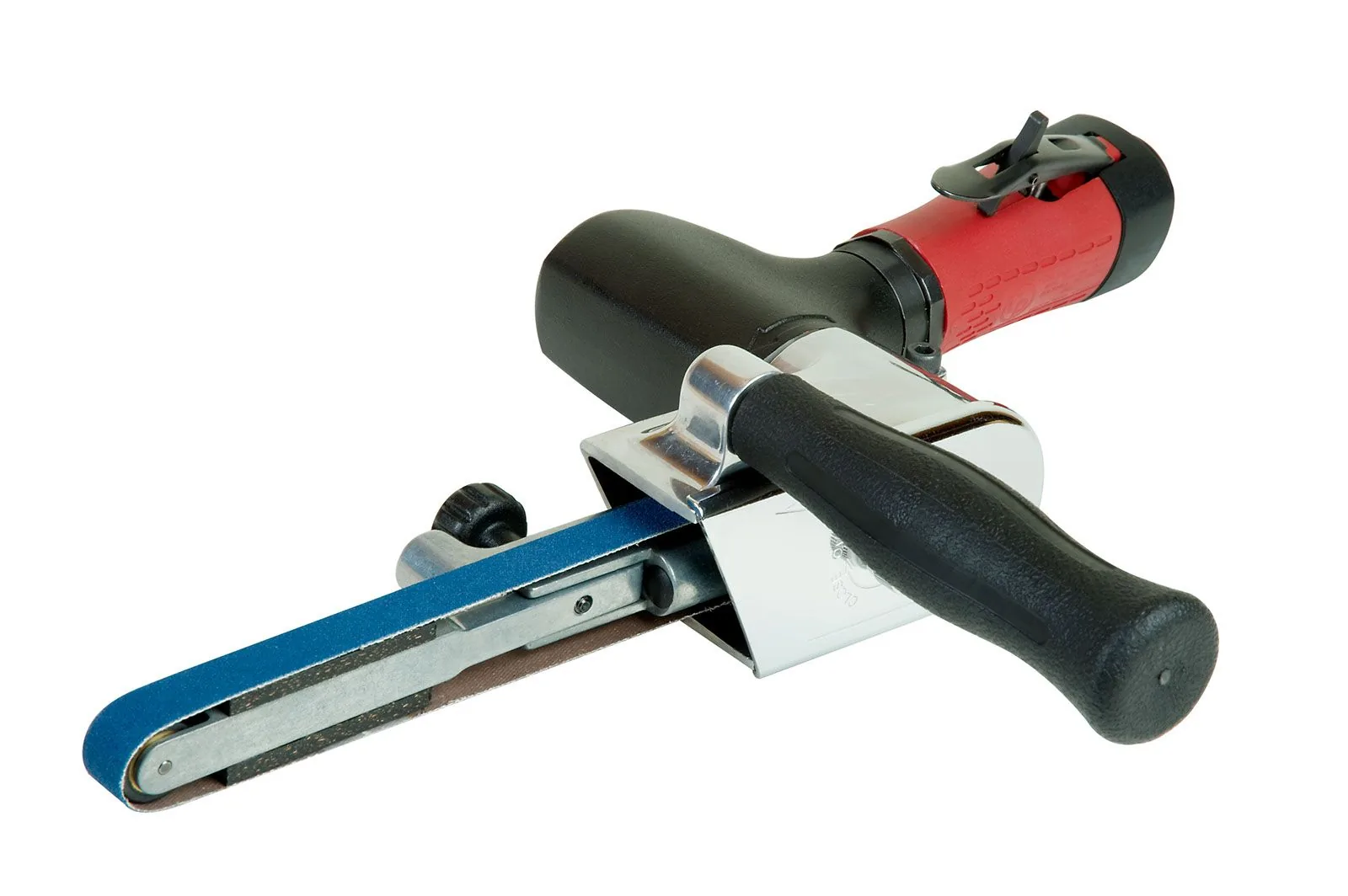

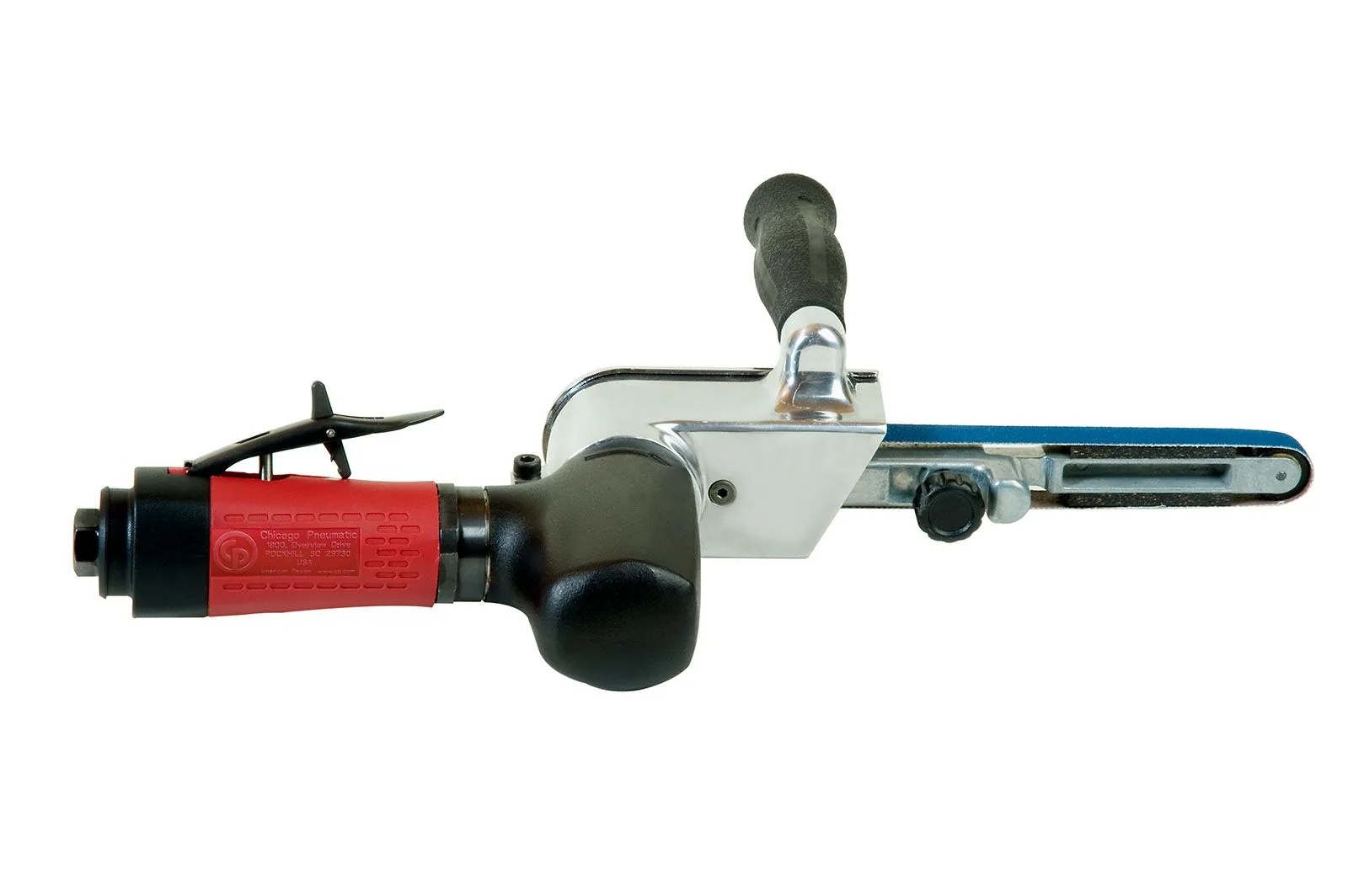

CI-6151620020 | Chicago Pneumatic CP5080-4200H18 - 18 x 1/2 Inch (457 x 13 mm) Air Belt Sander, 0.54 HP / 400 W - 20000 RPM | 6151620020 | 20000 | 1/2x18 | Tool Only | Pneumatic | 25 | 13.39 | 2.82 | 45 | 1/4 | 90 | 0.25 | 0.54 | 91 | 80 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

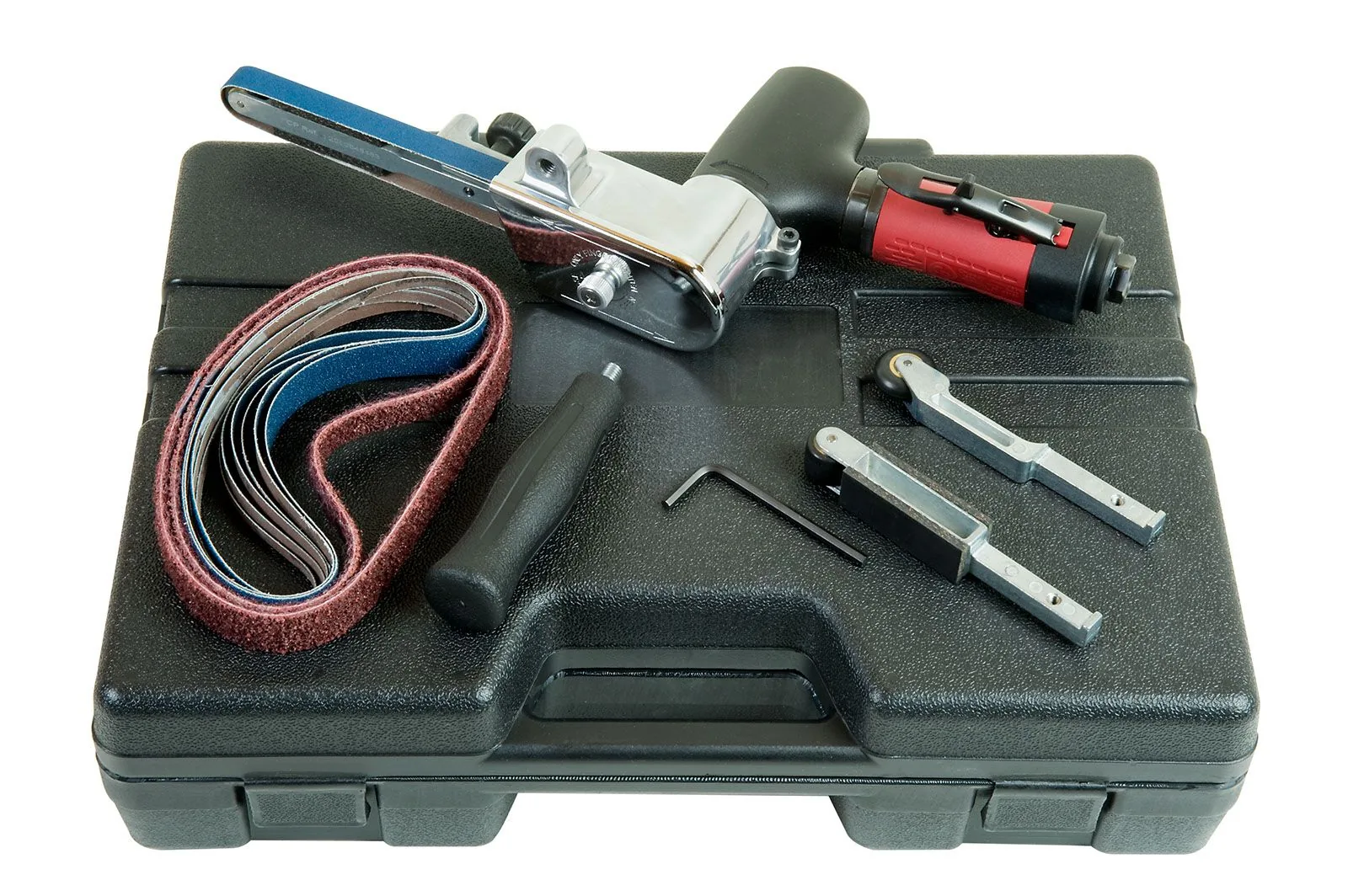

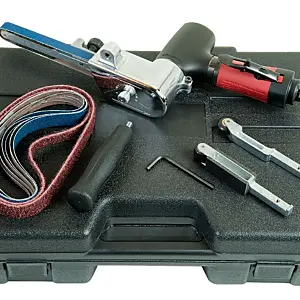

CI-6151620040 | Chicago Pneumatic CP5080-4200H18K - Kit - 18 x 1/2 - 3/4 Inch (457 x 13 - 19 mm) Air Belt Sander, 0.54 HP / 400 W - 20000 RPM | 6151620040 | 20000 | 1/2-3/4x18 | Yes | Pneumatic | 25 | 13.39 | 3.06 | 45 | 1/4 | 90 | 0.25 | 0.54 | 89 | 78 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |

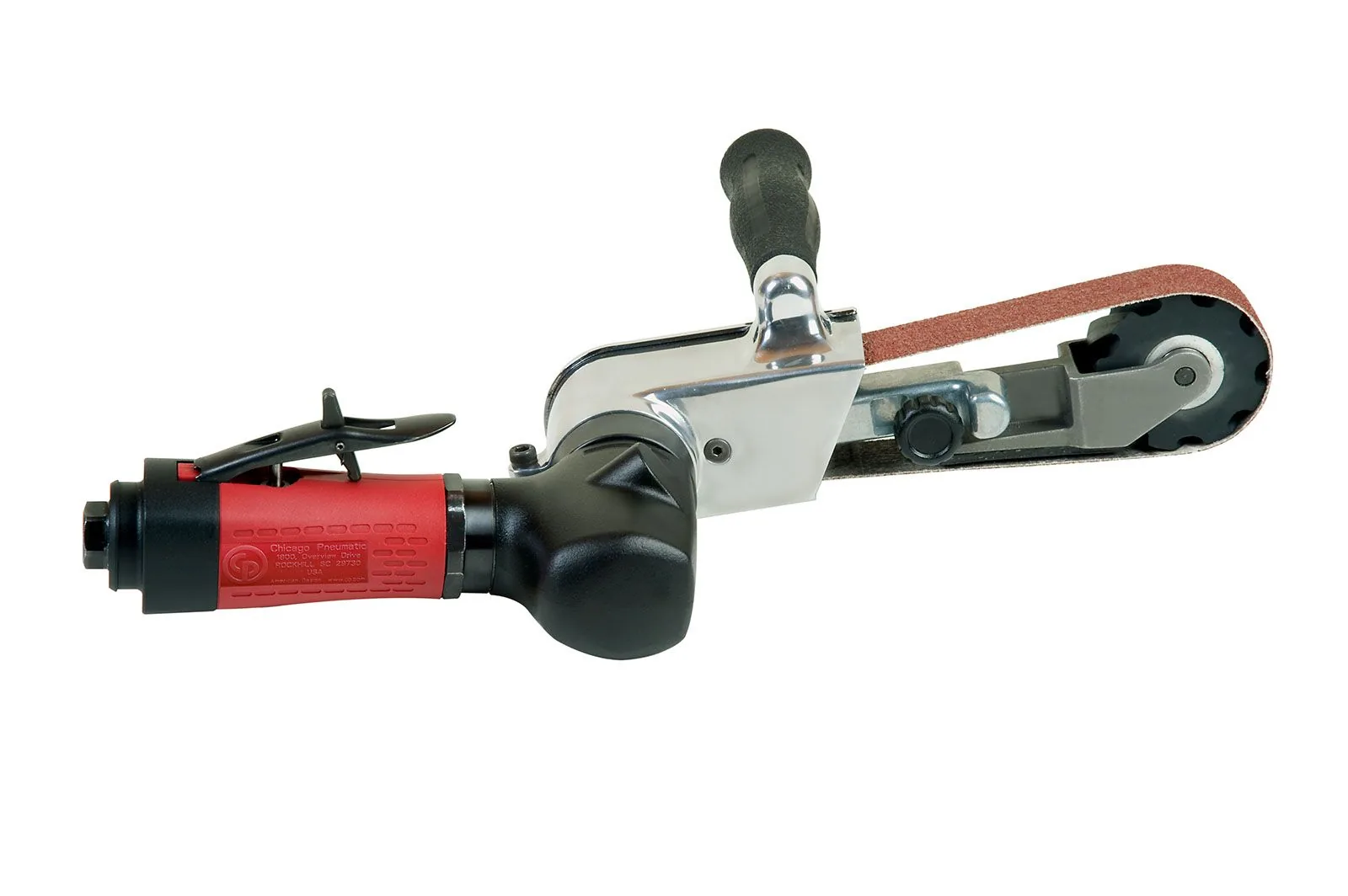

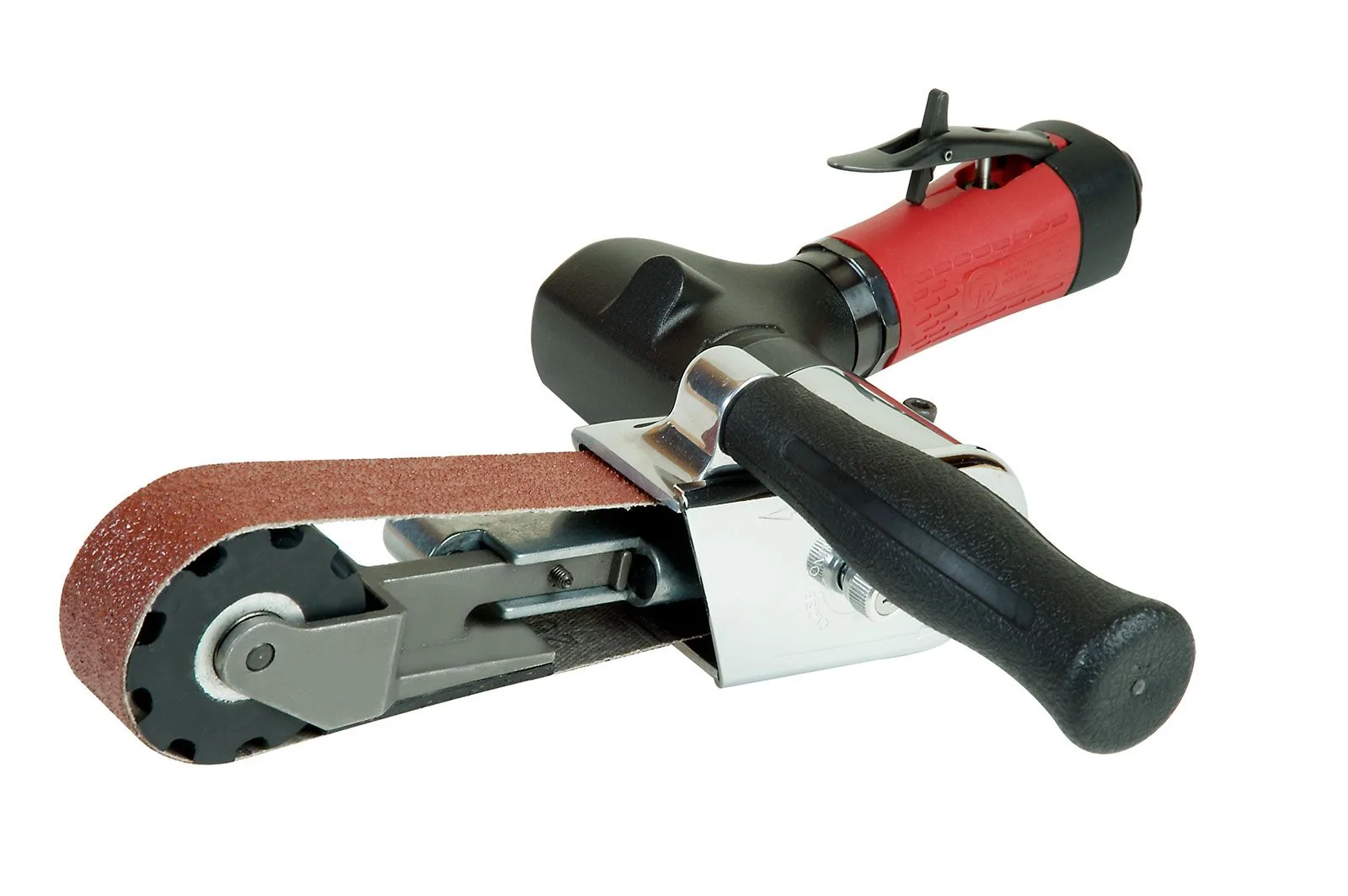

CI-6151620030 | Chicago Pneumatic CP5080-5220H18 - 18 x 1 Inch (457 x 25 mm) Air Belt Sander, 0.75 HP / 560 W - 22000 RPM | 6151620030 | 22000 | 1x18 | Tool Only | Pneumatic | 31 | 13.39 | 3.26 | 57 | 1/4 | 90 | 0.25 | 0.75 | 95 | 84 | No | NPT | No | Rear | Aluminium, Composite over-sleeve | No | Safety lever | <2.5 |
