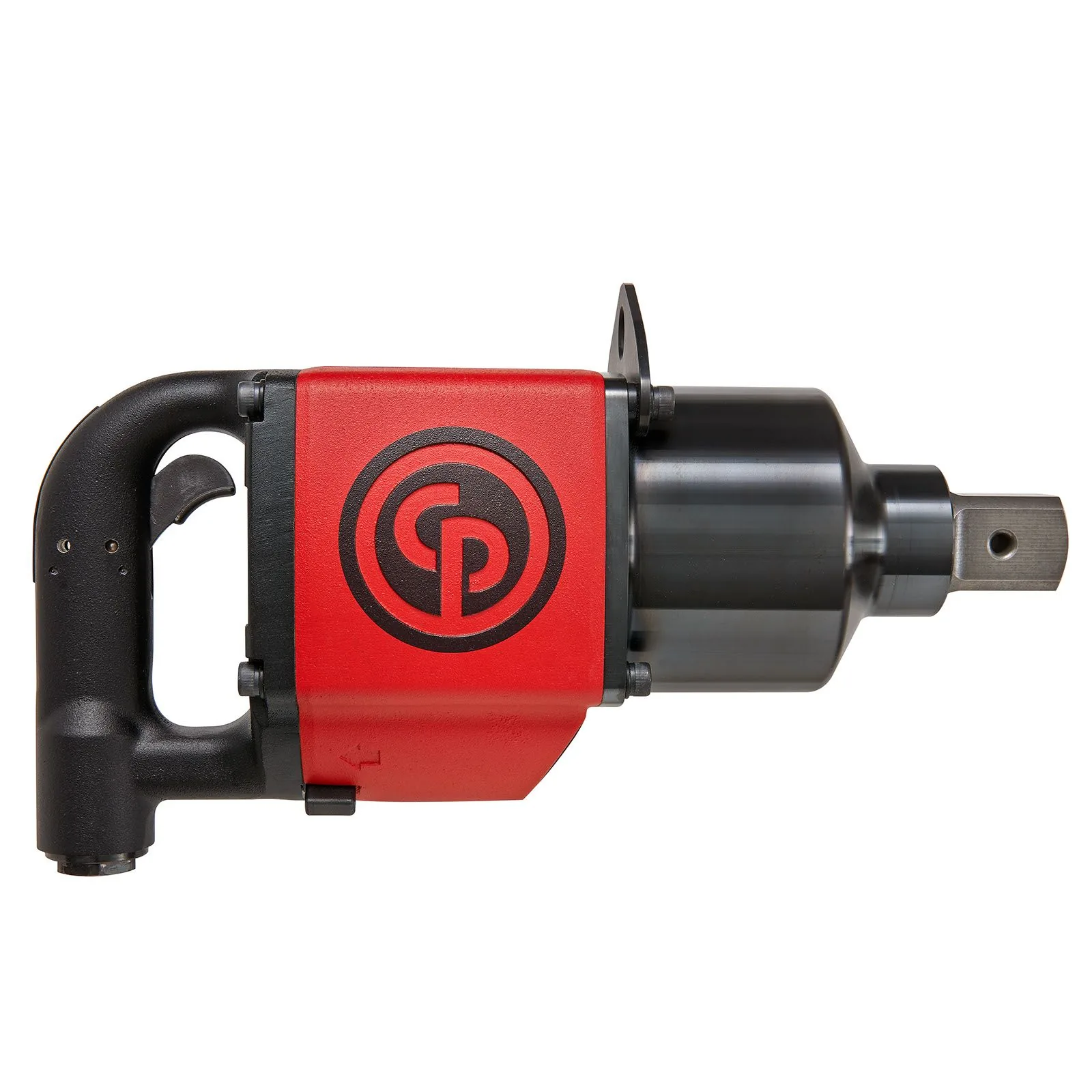

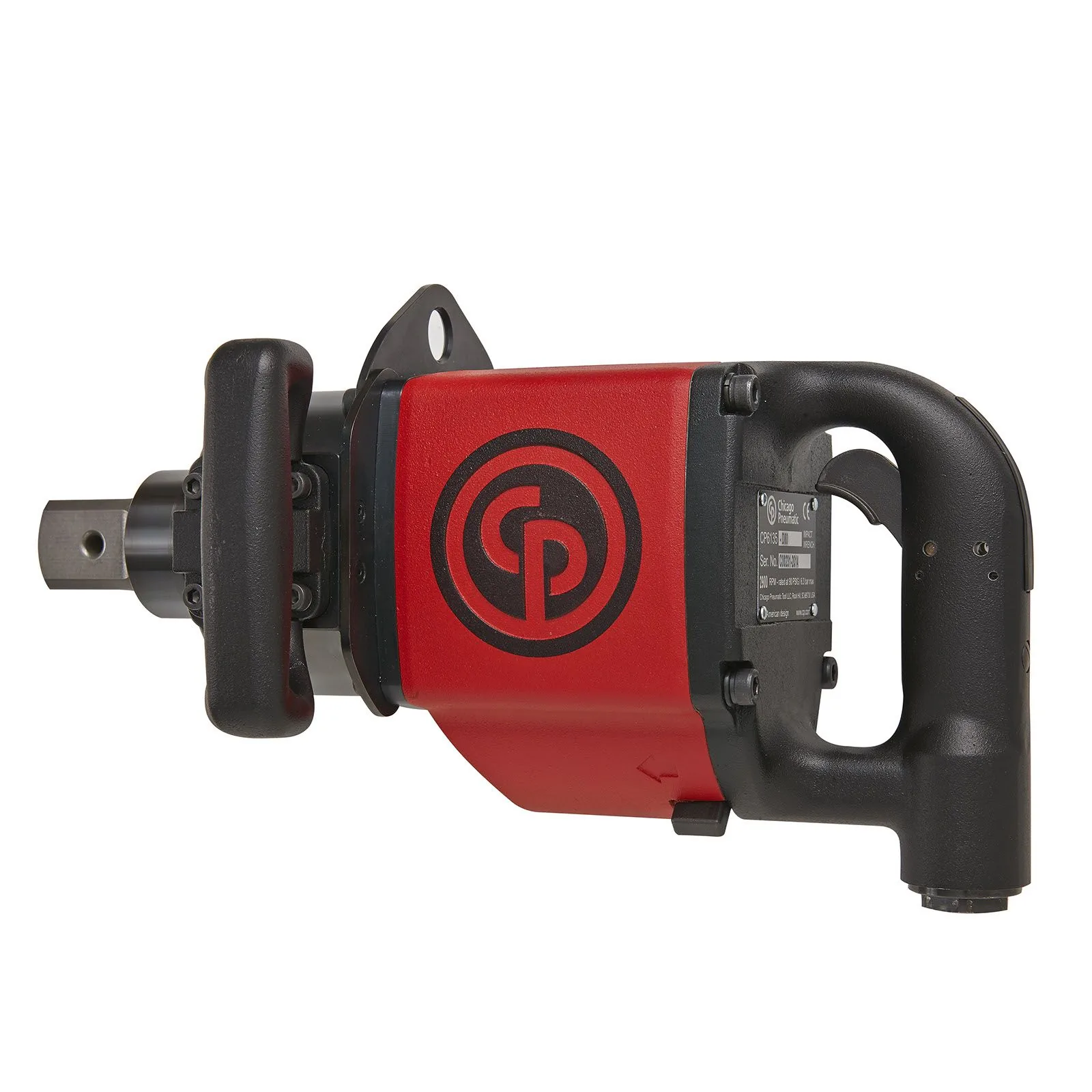

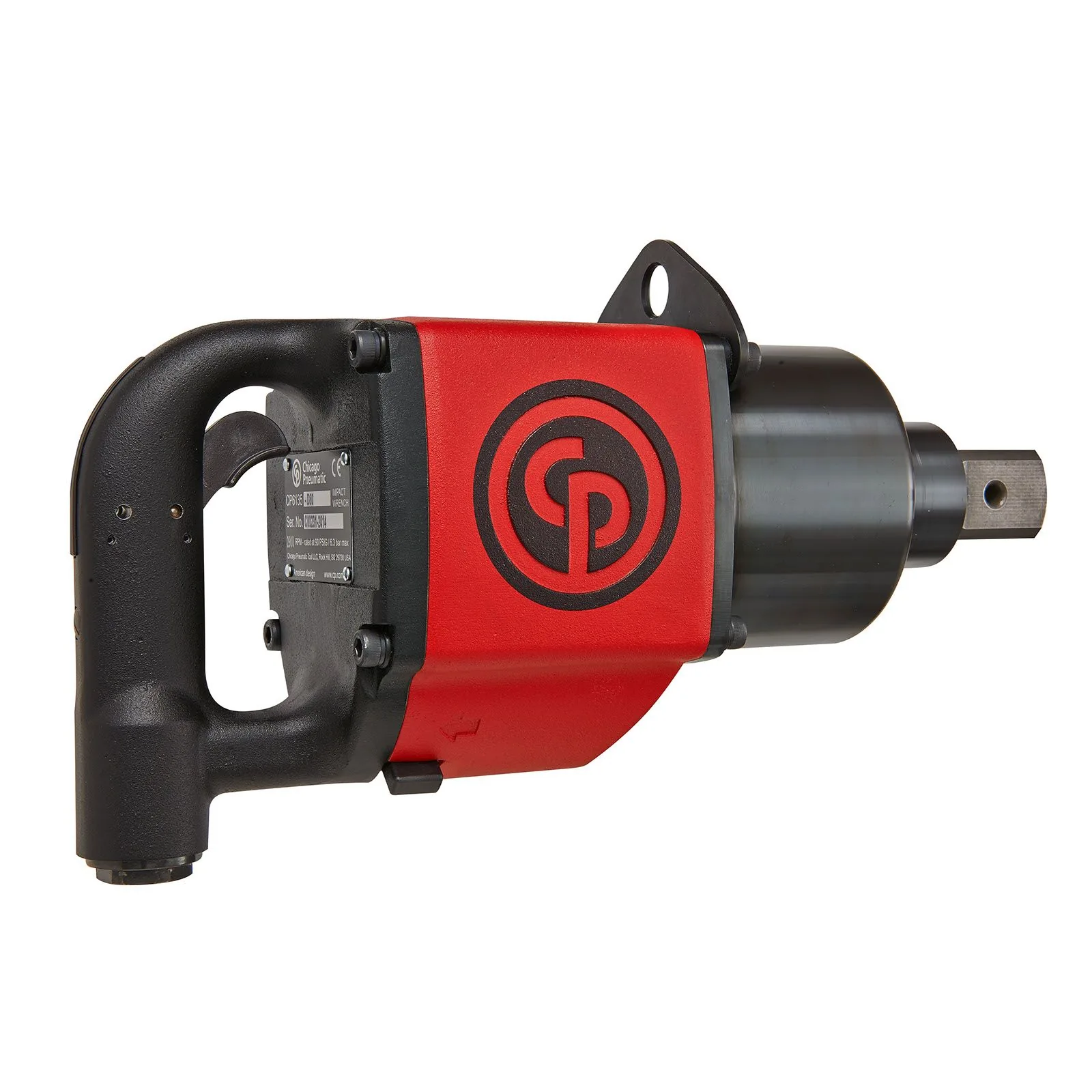

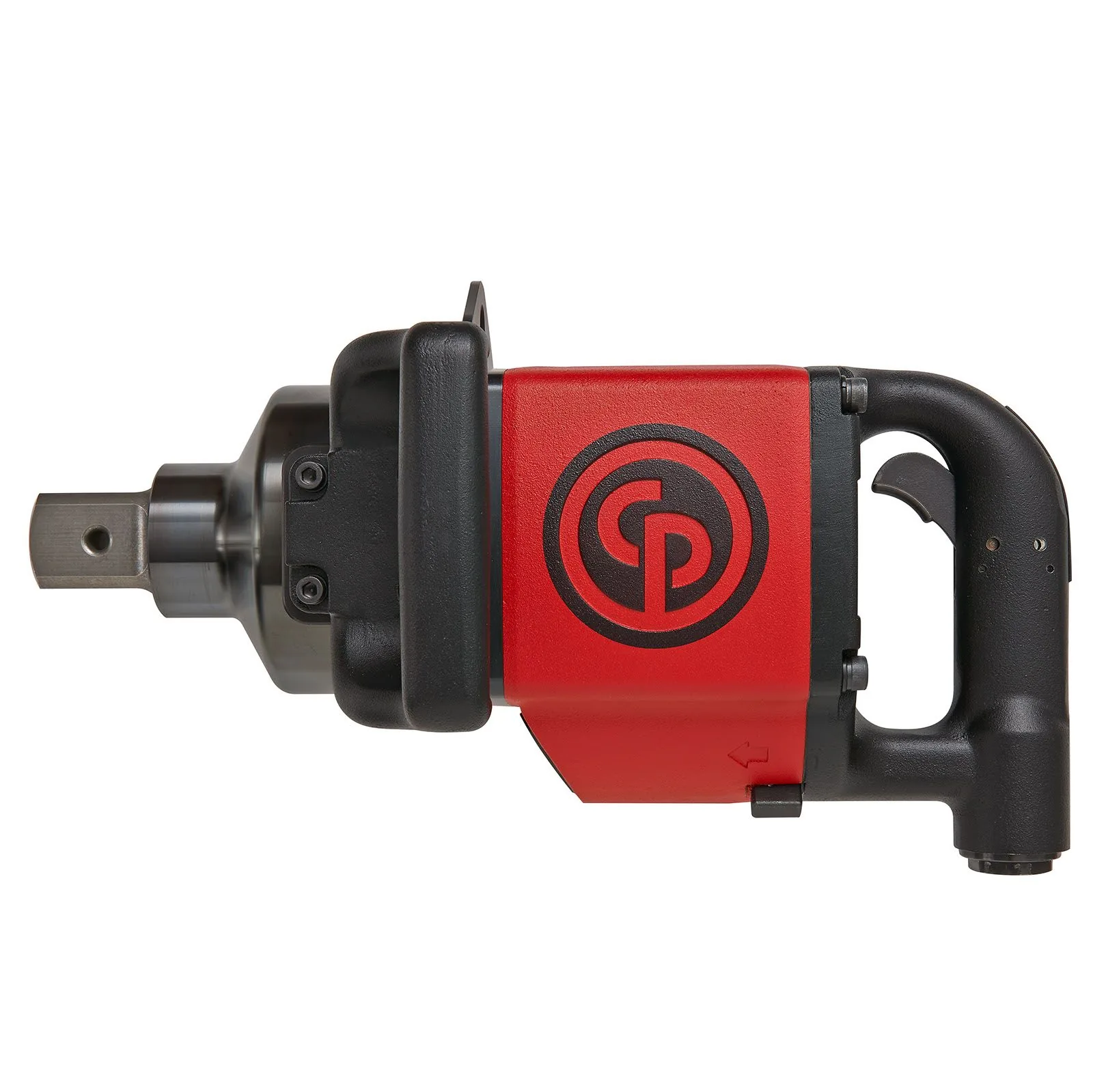

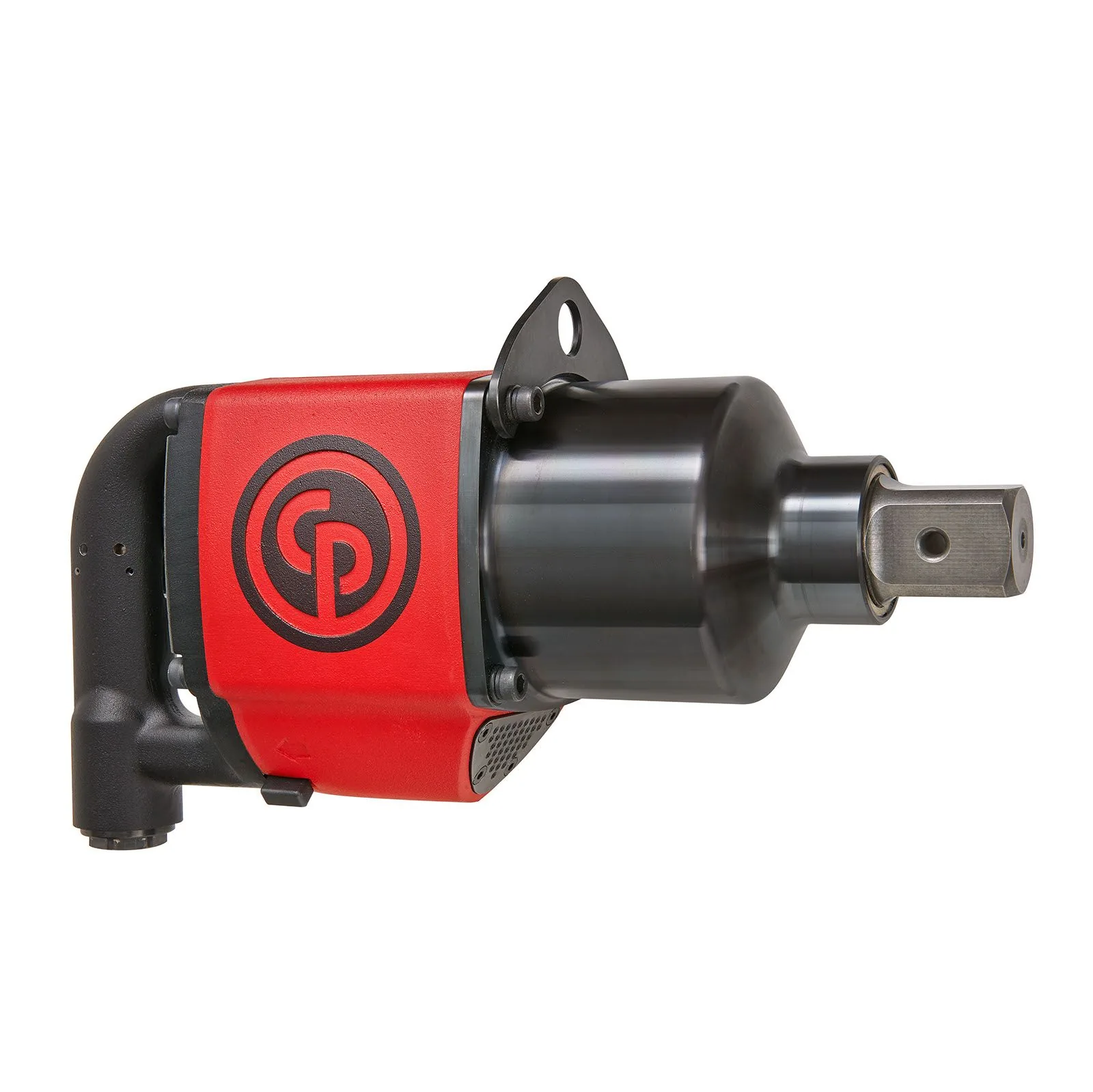

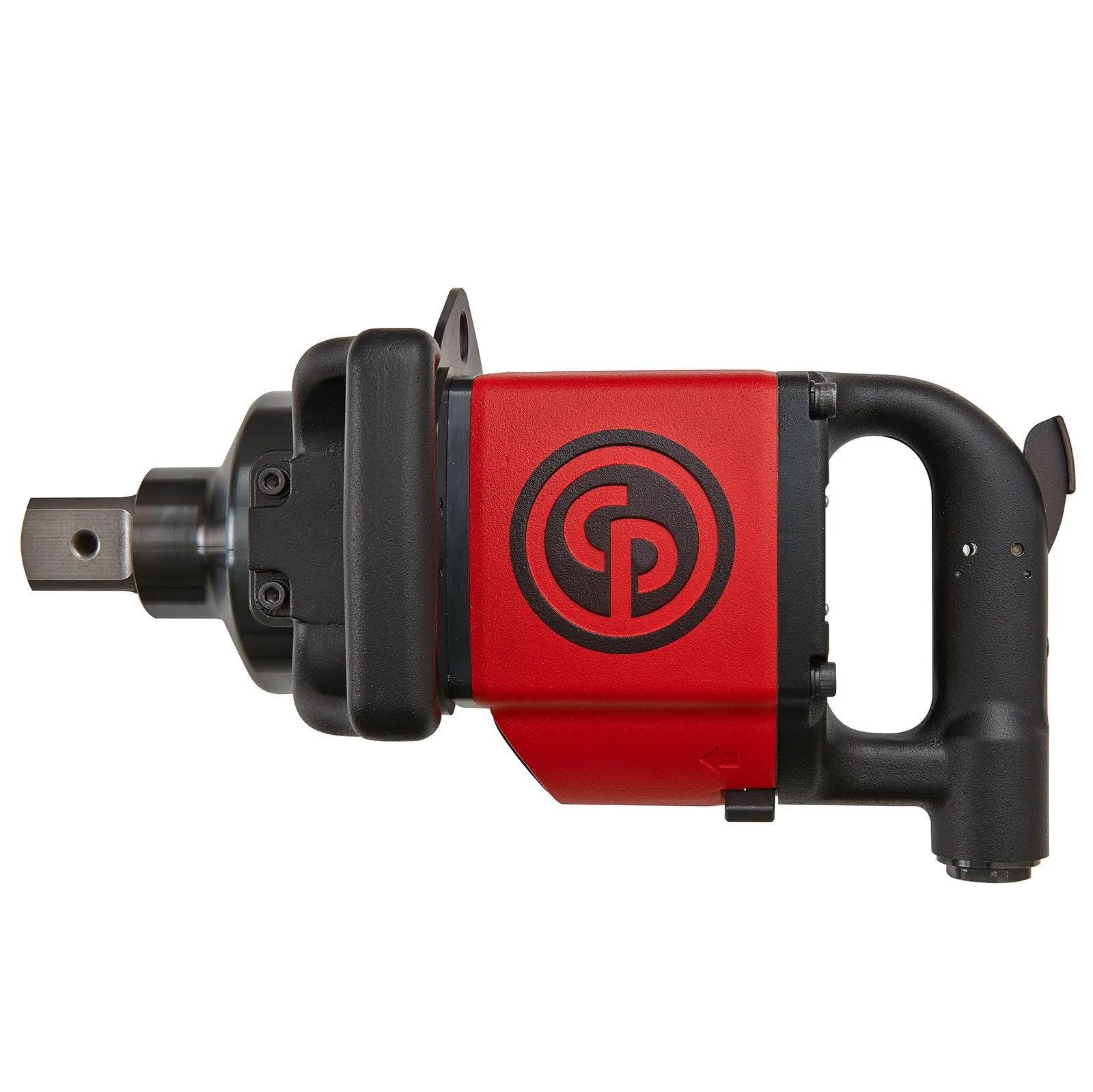

Chicago Pneumatic CP6135 Series – Impact Wrenches

$7,718.00 – QUOTE

Visit Chicago Pneumatic store

Chicago Pneumatic CP6135 Series – Impact Wrenches

$7,718.00 – QUOTE

Chicago Pneumatic CP6135 Series - Impact Wrenches

$7,718.00 – QUOTE

Kit: No selection

More options

Output drive size (in): No selection

More options

Clear

Gallery
Description
Accessories
Specifications

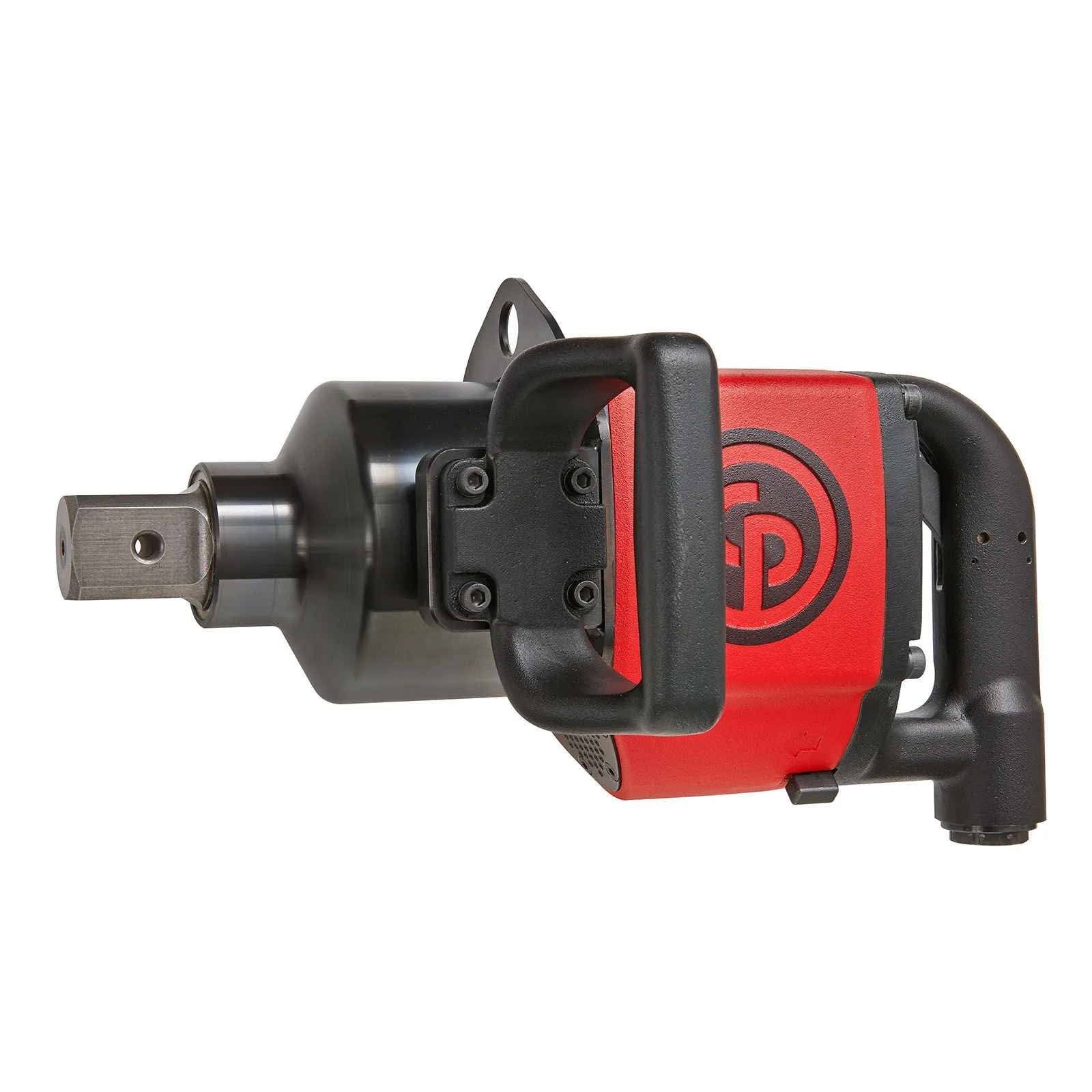

An ultra lightweight impact wrench series- 1-1/2″,#5 – for heavy duty industrial users who require very high torque.

Reliable pinless rocking dog clutch mechanism.
Lightweight, low vibration for operational comfort even at very high torque.
Durable aluminium body and robust steel clutch housing for extreme durability.
Teasing trigger allows a high progressive max torque for smooth operation .

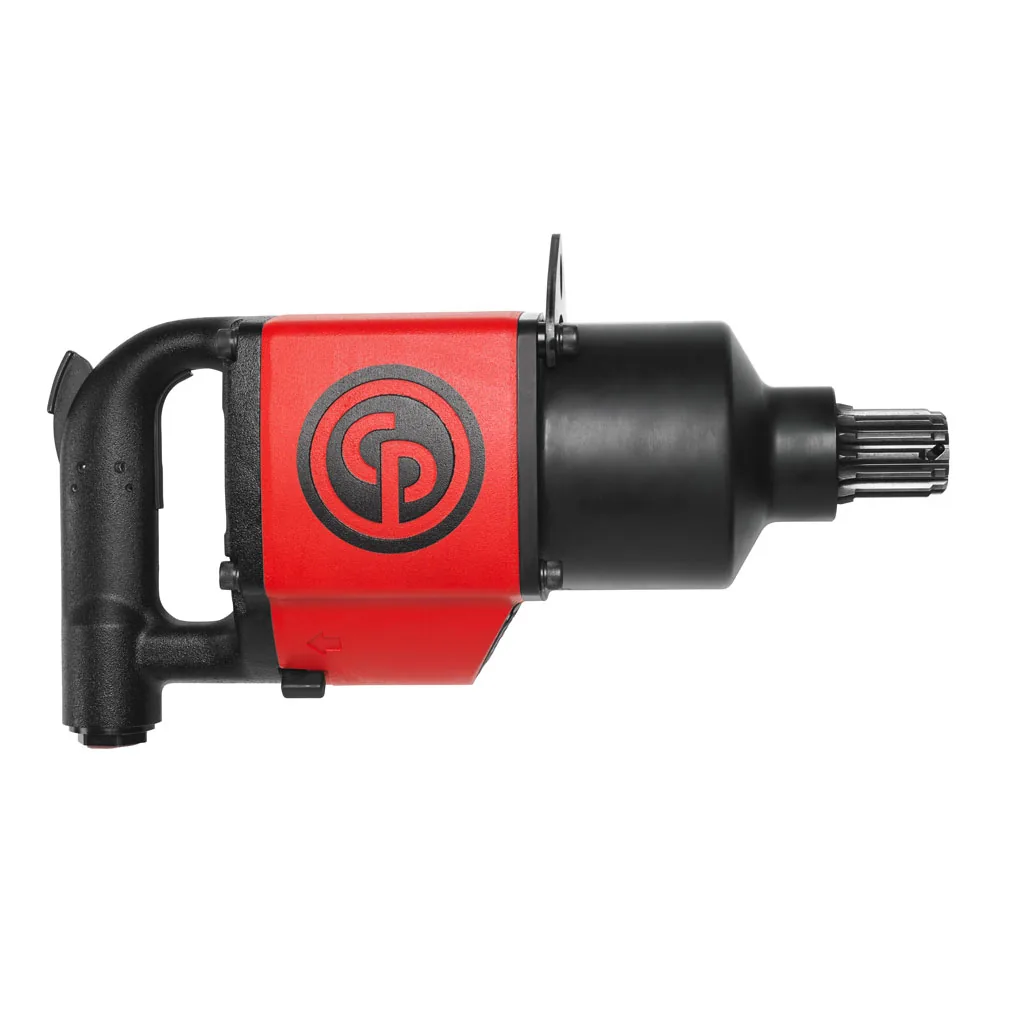

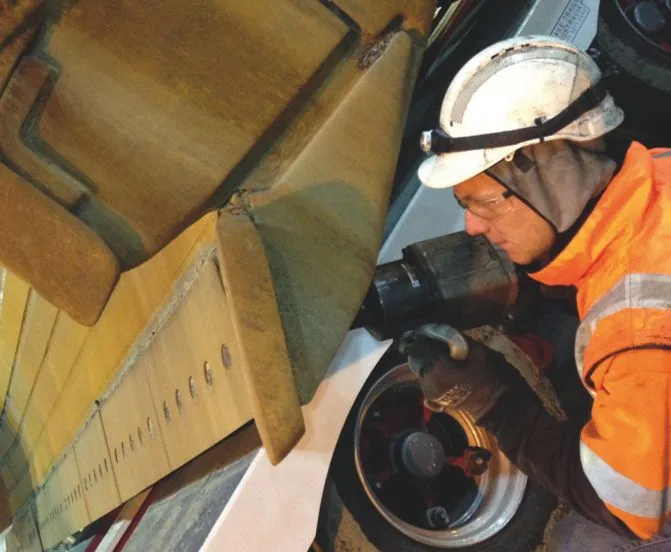

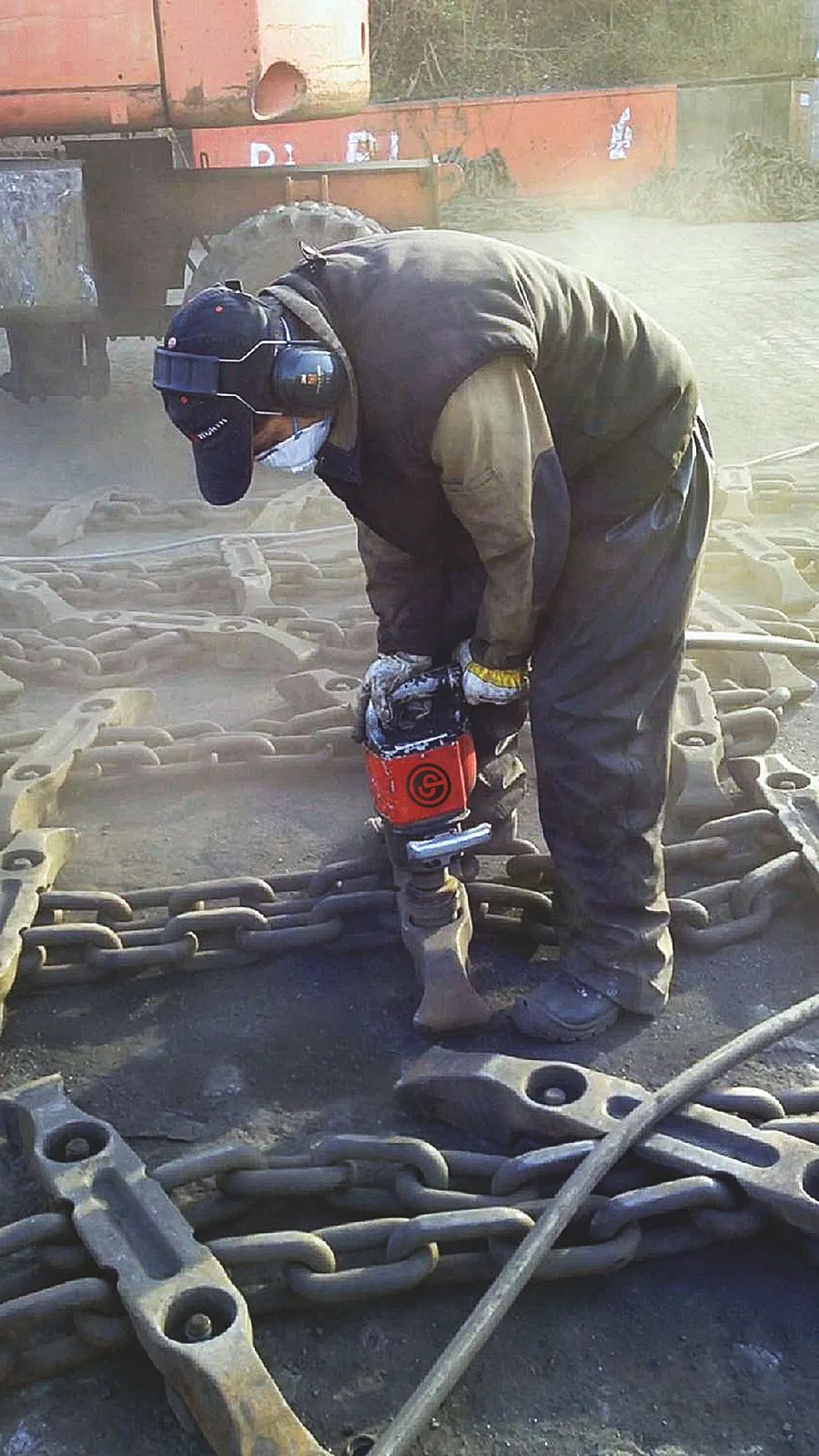

The best power to weight ratio available in the 1-1/2, #5 impact wrench category. This compact and reliable tool is designed with a durable pinless rocking dog clutch mechanism, aluminium body and steel clutch housing to work comfortably in all heavy-duty assembly or disassembly applications. Maximum reverse torque is 8,000 Nm / 5,900 ft.lb. The CP6135 series is available in 2 configurations, with holes or spline socket retainer.

Compare this against the other pneumatic impact wrenches in the catalog and it works with our custom maintenance tools. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

SKU	Product Name	Vendor SKU	Kit	Output drive size (in)	Power Source	Max Working Torque Fwd (ft.lbf)	Max Torque Reverse (ft.lbf)	Min Working Torque Fwd (ft.lbf)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Free Speed (rpm)	Length (in)	Power Weight Ratio (Nm/kg)	Side To Center (in)	Tool Weight (lb)	Torque limited	Vibration (m/s²)	Blow per minute (bpm)	Body	Clutch Housing	Clutch Lubrication Type	Handle type	Impact Mecanism	Output drive type	Output retainer type	Side Handle	Starting System
CI-6151590380	Chicago Pneumatic CP6135-D80 - 1-1/2 Inch Air Impact Wrench, D-Handle with Side Handle, Max Torque Reverse Output 5900 ft. lbf / 8000 Nm, 2800 RPM, Pinless Rocking Dog	6151590380	No	1-1/2	Pneumatic	4060	5900	0.7	1/2	90	0.63	109	98	7.2	2800	16.06	500	2.66	35.2	No	13.6	750	Aluminum	Steel	Grease	D-handle	Pinless rocking dog	Sq	Hole	Yes	Trigger
CI-6151590680	Chicago Pneumatic CP6135-D80 - 1-1/2 Inch Air Impact Wrench, D-Handle with Side Handle, Max Torque Reverse Output 5900 ft. lbf / 8000 Nm, 2800 RPM, Pinless Rocking Dog	6151590680	Yes	1-1/2	Pneumatic	-	-	-	-	-	-	-	-	-	-	-	-	-	-	No	-	-	-	-	-	-	-	-	-	No	-
