Compact, Robust & Powerful for Industrial Maintenance

Designed to meet regular usage needs for industrial maintenance and production users, the CP6763/6773 Series offers a 3/4″, 1″ square drive and a torque level suitable for loosening bolts up to M27.

Powerful hard hitting twin hammer clutch mechanism
Flexibility and safety is guaranteed with the double hole and ring retaining system.
Steel clutch housing and aluminium motor housing for robustness
Short and narrow side-to-centre for easy access

Our 3/4″ -1″ high torque impact wrench CP6763/CP6773 Series is designed for the toughest environments and bolting applications. The twin hammer clutch mechanism, with aluminum body and steel clutch housing delivers a high power-to-weight ratio for demanding industrial environments. The motor provides up to 1630, 1760 Nm/1200, 1300 ft.lbs of max reverse torque. Available in 4 models: The 3/4″ and 1″ pistol handles feature a compact design and allow easy access due to the short side-to-center position.

Crowder Supply stocks the full line of pneumatic impact wrenches and the companion custom maintenance tools are stocked alongside it. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

SKU	Product Name	Vendor SKU	Pack	Anvil	Max Working Torque Fwd (ft.lbf)	Output drive size (in)	Anvil Extension	Power Source	Max Torque Reverse (ft.lbf)	Min Working Torque Fwd (ft.lbf)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Free Speed (rpm)	Length (in)	Power Weight Ratio (Nm/kg)	Side To Center (in)	Tool Weight (lb)	Torque limited	Vibration (m/s²)	Blow per minute (bpm)	Body	Clutch Housing	Clutch Lubrication Type	Handle type	Impact Mecanism	Output drive type	Output retainer type	Starting System	Side Handle	Air consumption at free speed (cfm)	Air Consumption At Load (cfm)

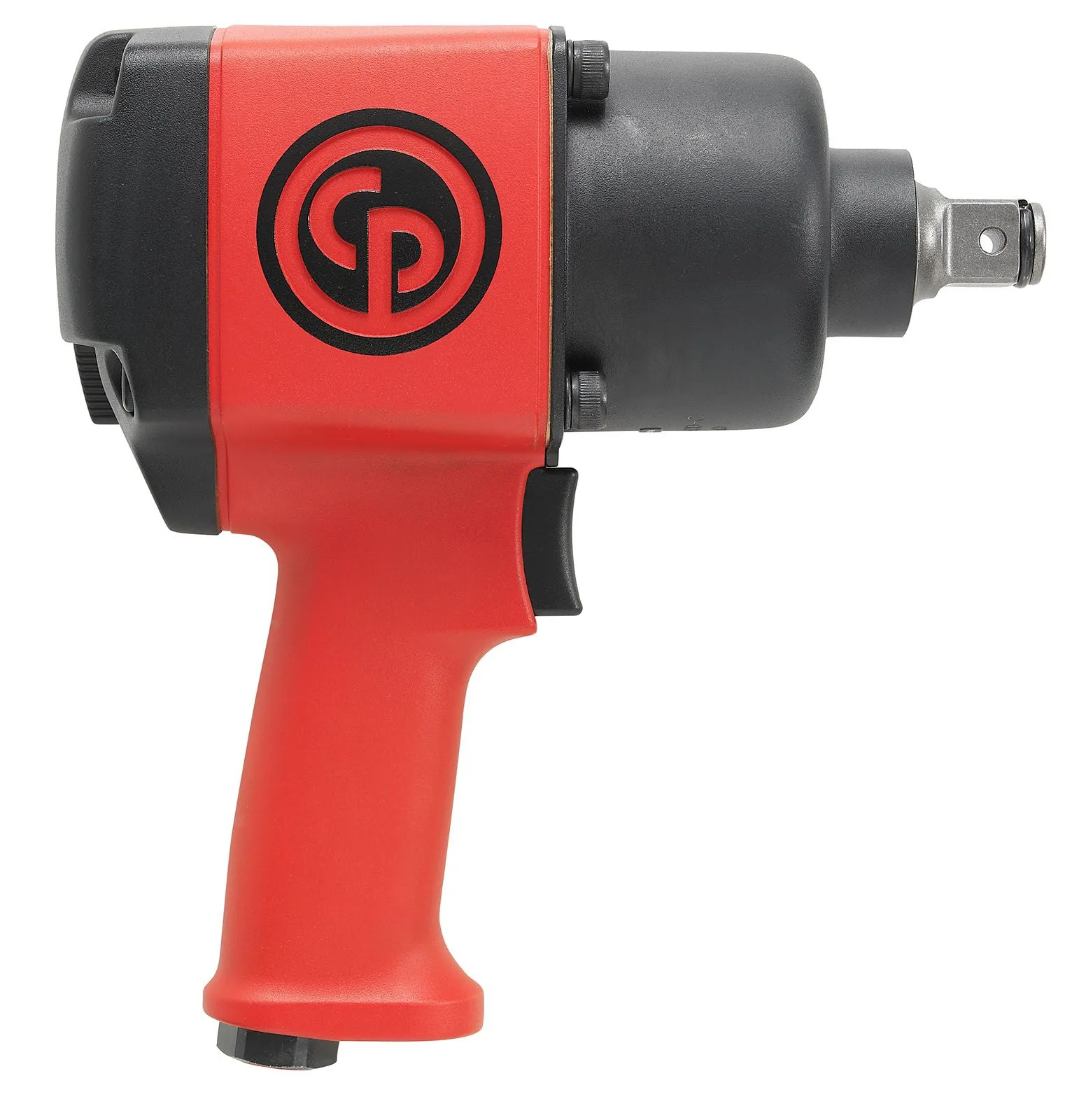

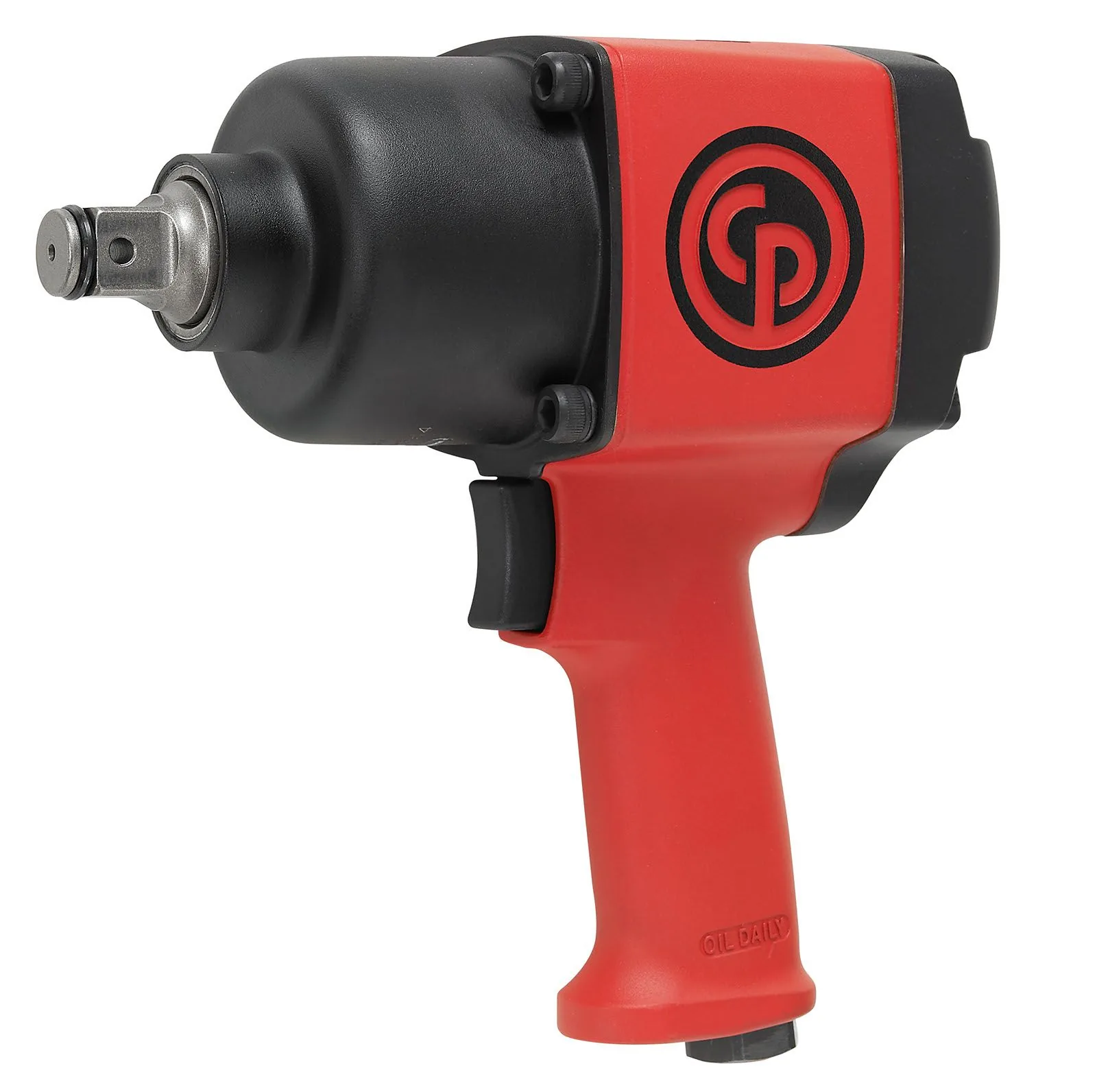

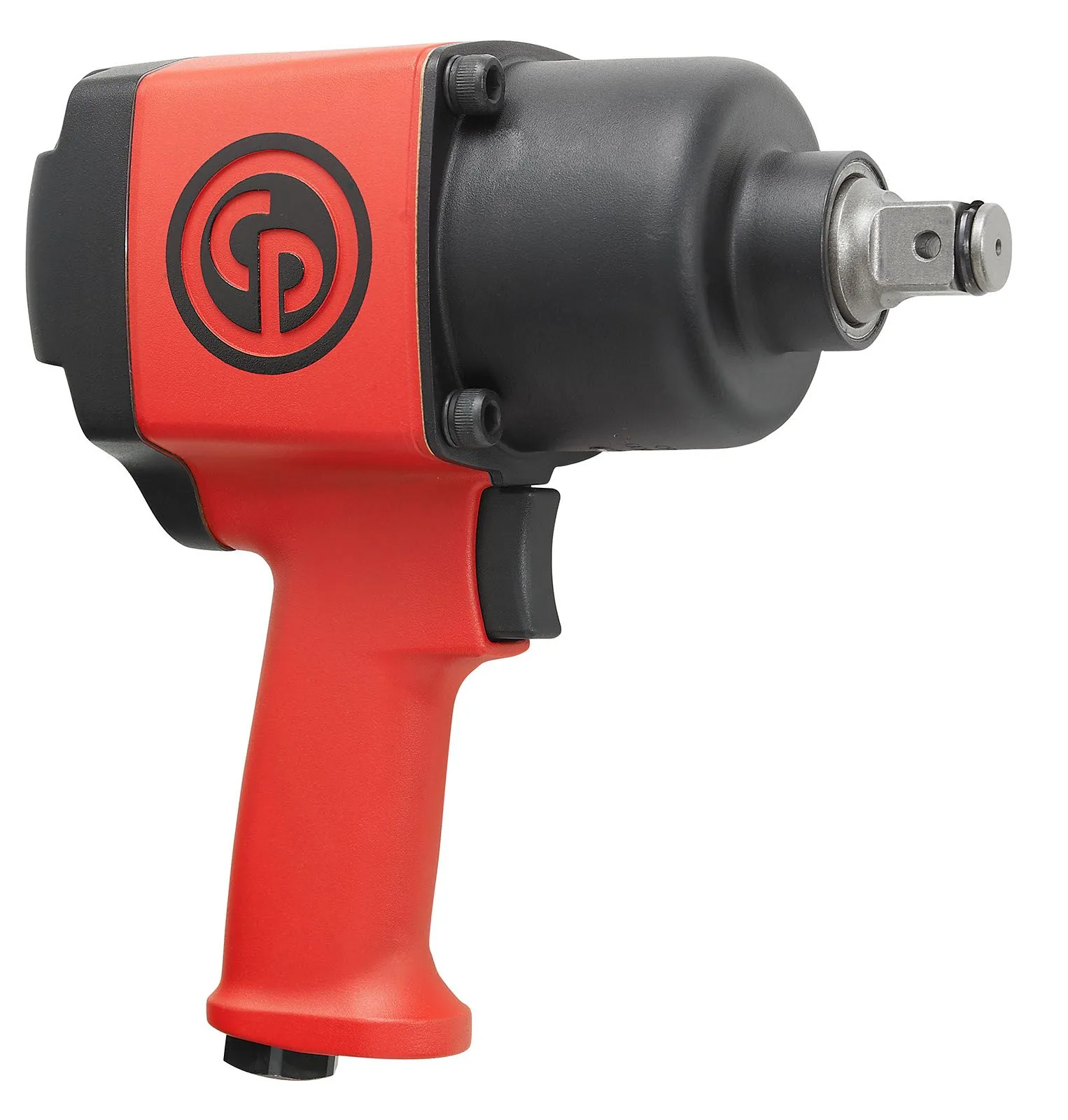

CI-6151590400	Chicago Pneumatic CP6763 - 3/4 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	6151590400	No	Standard	952	3/4	None	Pneumatic	1200	258	3/8	90	0.5	107	96	4.3	6300	8.74	290	1.61	12.1	No	9.4	900	Aluminium	Steel	Oil bath	Pistol	Twin hammer	Sq	Friction ring	Trigger	No	-	-
CI-6151590640	Chicago Pneumatic CP6763-D18D - 3/4 Inch Air Impact Wrench, D-Handle with Side Handle, Max Torque Reverse Output 1300 ft. lbf / 1760 Nm, 6600 RPM, Twin Hammer	6151590640	No	Standard	1070	3/4	None	Pneumatic	1300	251	1/2	90	0.38	109	98	9.5	6600	11.42	-	1.61	14.5	No	11.4	730	Aluminum	Steel	Grease	D-handle	Twin hammer	Sq	Dual	Trigger	Yes	55	-
CI-6151590410	Chicago Pneumatic CP6773 - 1 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	6151590410	No	Standard	952	1	None	Pneumatic	1200	258	3/8	90	0.5	107	96	4.3	6300	8.96	290	1.61	12.3	No	-	900	Aluminium	Steel	Oil bath	Pistol	Twin hammer	Sq	Friction ring	Trigger	No	-	-

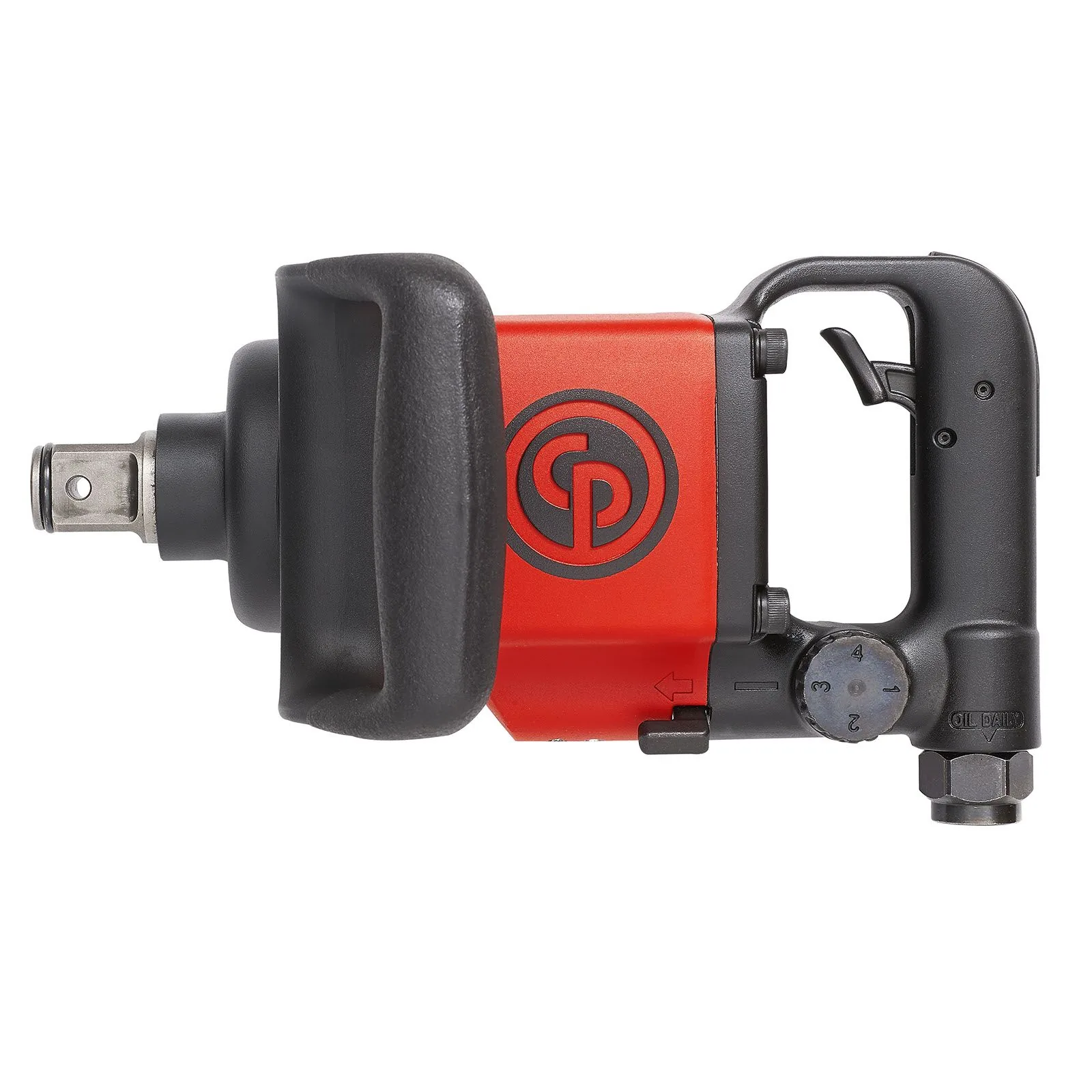

CI-6151590650	Chicago Pneumatic CP6773-D18D - 1 Inch Air Impact Wrench, D-Handle with Side Handle, Max Torque Reverse Output 1300 ft. lbf / 1760 Nm, 6600 RPM, Twin Hammer	6151590650	No	Standard	1070	1	None	Pneumatic	1300	251	1/2	90	0.38	109	98	9.5	6600	11.42	-	1.61	14.7	No	11.4	730	Aluminum	Steel	Grease	D-handle	Twin hammer	Sq	Dual	Trigger	Yes	56	-
CI-8941077731	Chicago Pneumatic CP7773D - 1 Inch Air Impact Wrench, D-Handle with Side Handle, Max Torque Reverse Output 1300 ft. lbf / 1760 Nm, 6600 RPM, Twin Hammer	8941077731	No	Standard	1070	1	6 Inch	Pneumatic	1300	251	1/2	90	0.38	109	98	10.8	6600	11.42	-	1.77	14.5	No	12	-	Composite	Aluminum	Grease	D-handle	Twin hammer	Sq	Friction ring	Trigger	Yes	56	40
CI-8941077737	Chicago Pneumatic CP7773D-6 - 1 Inch Air Impact Wrench with 6 Inch Extended Anvil, D-Handle with Side Handle, Max Torque Reverse Output 1300 ft. lbf / 1760 Nm, 6600 RPM, Twin Hammer	8941077737	No	6 inch	1070	1	6 Inch	Pneumatic	1300	251	1/2	90	0.38	109	98	10.8	6600	17.52	-	1.77	16.3	No	12	-	Composite	Aluminum	Grease	D-handle	Twin hammer	Sq	Friction ring	Trigger	Yes	55	40
CI-6151590510	Chicago Pneumatic CP6763+TUNE - 3/4 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	6151590510	Yes	Standard	952	3/4	None	Pneumatic	-	-	-	-	-	-	-	-	-	-	-	-	-	No	-	-	-	-	-	-	-	-	-	-	No	-	-
CI-6151590520	Chicago Pneumatic CP6773+TUNE - 1 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	6151590520	Yes	Standard	952	1	None	Pneumatic	-	-	-	-	-	-	-	-	-	-	-	-	-	No	-	-	-	-	-	-	-	-	-	-	No	-	-
