Chicago Pneumatic CP7263/64/66/67 Series – Rectangle/Delta Sanders

$281.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP7263/64/66/67 Series – Rectangle/Delta Sanders

$281.00

Chicago Pneumatic CP7263/64/66/67 Series - Rectangle/Delta Sanders

$281.00

Vacuum: No selection

More options

Abrasive pad size WxL (in): No selection

More options

Clear

Gallery
Description
Accessories
Specifications

Ergonomic & Powerful

For operators working in body shops applications for surface preparation from body filler to paint primer who look for powerful & comfortable tools, CP7225-3 series is the orbital sander that you need.

Operator comfort with ergonomic palm shape in soft grip for perfect control
Productivity increased with low vibration level and low noise level
Powerful motor 0.3 hp (210 W) for vertical and horizontal applications
Rectangle, delta random orbital with palm sander with 3/32″(2.5mm) orbit for surface preparation from body filler to paint primer

Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 6″ (150mm) orbital sander (3/16″ – 5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 8 models: Non Vacuum (NV) model Hook & Loop and Central Vacuum (CV) model Hook & Loop.

Specifications

SKU	Product Name	Vendor SKU	Vacuum	Abrasive pad size WxL (in)	Max power	Free Speed (rpm)	Power Source	Rectangle abrasive pad size WxL (in)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Vibration (m/s²)	Air consumption at free speed (cfm)	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Height (in)	Length (in)	Width (in)	Tool Weight (lb)	Orbit Size (in)	Overspeed Shut-off	Air Inlet Thread Type	Abrasive Pad Attachment	Autobalancer	Exhaust	Main Material type	Orbit type	Pad Holes Number	Pad Type	Rotative Inlet	Starting System

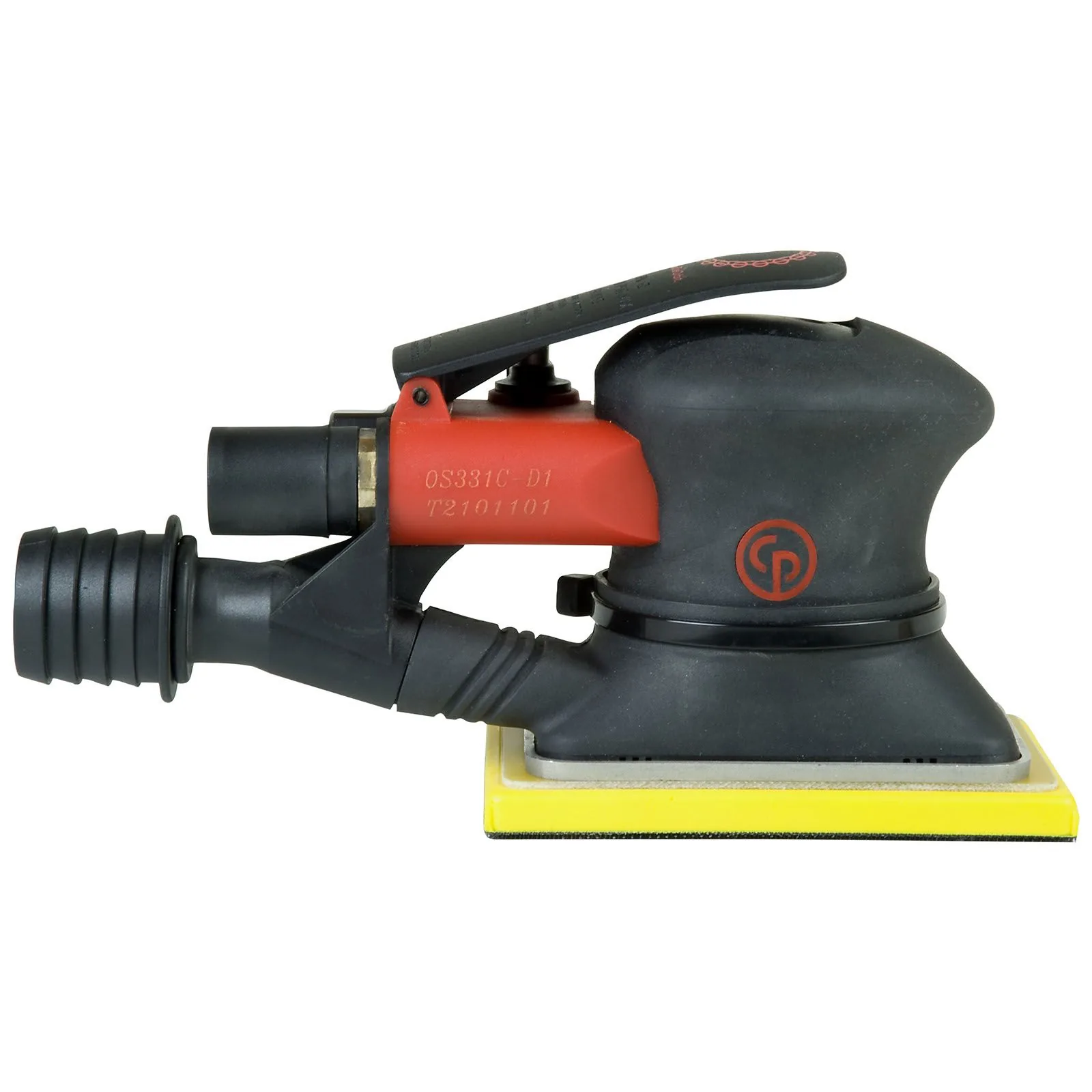

CI-8941172650	CP7263CVE - 3x4-1/4, Central Vacuum	8941172650	Central vacuum	3x4-1/4	0.28	10000	Pneumatic	3x4-1/4	89	78	6.9	29.2	18	18	1/4	90	0.38	3.94	7.68	2.95	1.5	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	4	Foam	No	Lever
CI-8941072650	CP7263E - 3x4-1/4, Non Vacuum	8941072650	Non vacuum	3x4-1/4	0.28	10000	Pneumatic	3x4-1/4	89	78	9.8	30.8	18	18	1/4	90	0.38	3.94	6.1	2.95	1.39	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	-	Foam	No	Lever

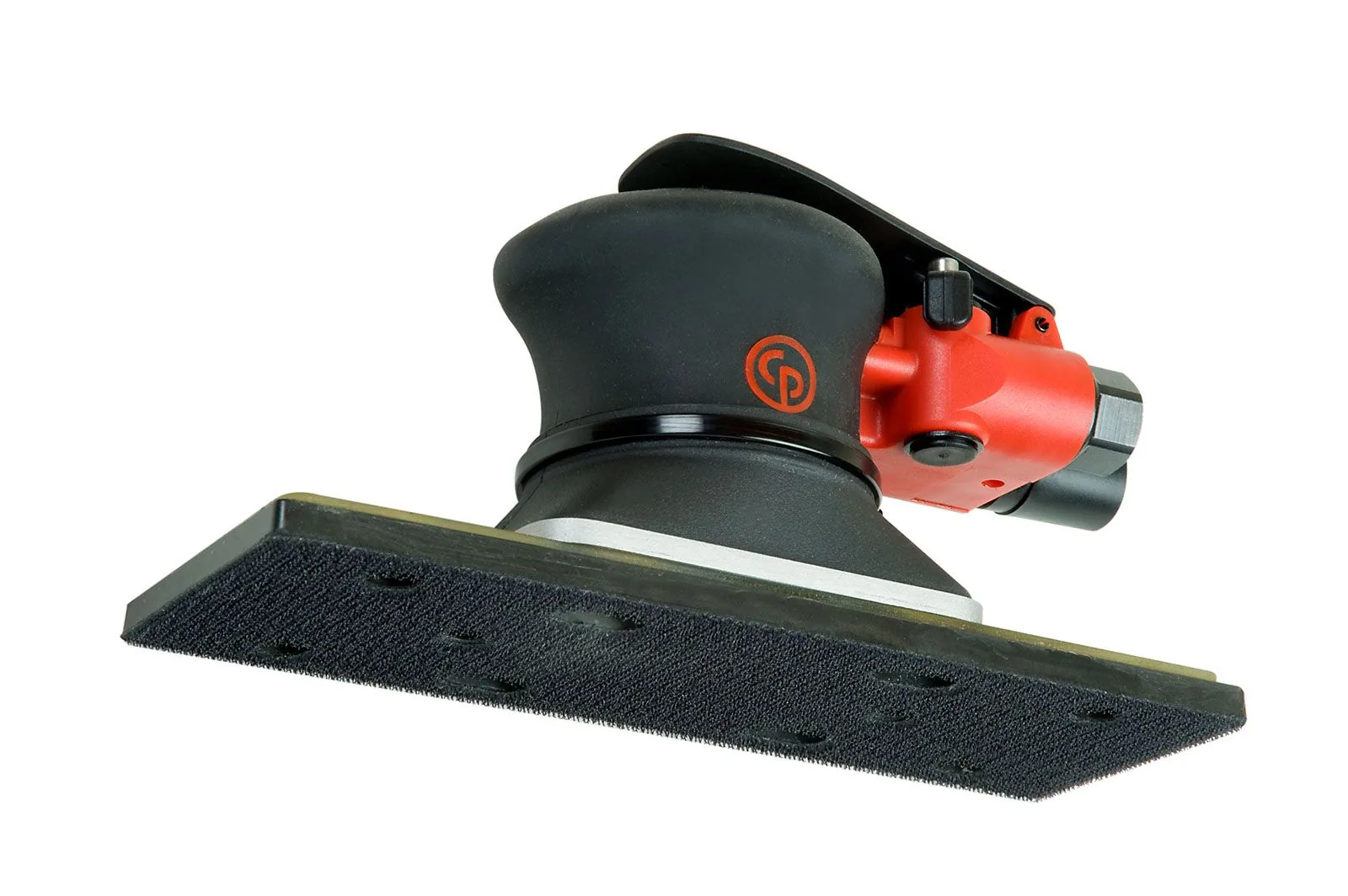

CI-8941172640	CP7264CVE - 2-3/4x7-3/4, Central Vacuum	8941172640	Central vacuum	2-3/4x7-3/4	0.28	10000	Pneumatic	2-3/4x7-3/4	89	78	6.9	23.6	18	18	1/4	90	0.38	3.94	9.45	3.15	1.65	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	8	Foam	No	Lever
CI-8941072640	CP7264E - 2-3/4x7-3/4, Non Vacuum	8941072640	Non vacuum	2-3/4x7-3/4	0.28	10000	Pneumatic	2-3/4x7-3/4	89	78	11.2	30.2	18	18	1/4	90	0.38	3.94	7.87	3.15	1.54	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	8	Foam	No	Lever
CI-8941172660	CP7266CVE - 3-1/4x5, Central Vacuum	8941172660	Central vacuum	3-1/4x5	0.28	10000	Pneumatic	3-1/4x5	89	78	9.2	25.3	18	18	1/4	90	0.38	3.94	7.68	2.76	1.57	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	4	Foam	No	Lever
CI-8941072660	CP7266E - 3-1/4x5, Non Vacuum	8941072660	Non vacuum	3-1/4x5	0.28	10000	Pneumatic	3-1/4x5	89	78	9.5	24	18	18	1/4	90	0.38	3.94	6.1	2.76	1.46	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	-	Foam	No	Lever

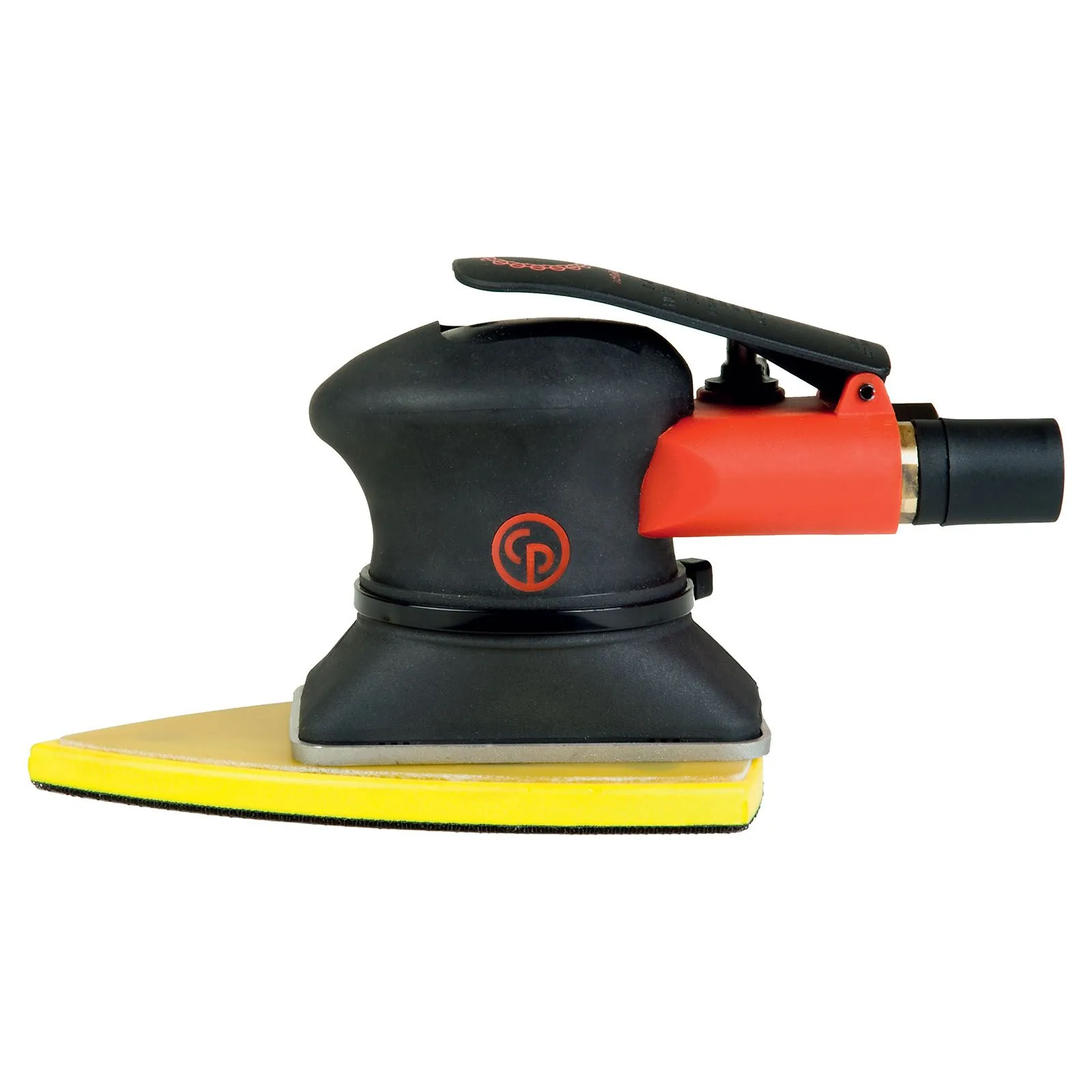

CI-8941172670	CP7267CVE - 3-7/8x5-5/8, Central Vacuum	8941172670	Central vacuum	3-7/8x5-5/8	0.28	10000	Pneumatic	-	89	78	12.1	29.5	18	18	1/4	90	0.38	3.94	9.45	3.94	1.57	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	4	Foam	No	Lever
CI-8941072670	CP7267E - 3-7/8x5-5/8, Non Vacuum	8941072670	Non vacuum	3-7/8x5-5/8	0.28	10000	Pneumatic	-	89	78	10.5	31.5	18	18	1/4	90	0.38	3.94	7.28	3.94	1.46	3/32	No	NPT	Hook&Loop	No	Rear	Aluminium, Composite over-sleeve	Jitterbug	4	Foam	No	Lever
