Chicago Pneumatic CP7300/CP928X/CP978X /CP979X Series – Drills

$158.00 – $277.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP7300/CP928X/CP978X /CP979X Series – Drills

$158.00 – $277.00

Chicago Pneumatic CP7300/CP928X/CP978X /CP979X Series - Drills

$158.00 – $277.00

Chuck max capacity (in): No selection

More options

Chuck Type: No selection

More options

Reversible: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

High Comfort & Lightweight

For operators working in body shops or general maintenance applications such as drilling, honing, reaming and hole sawing who look for high comfort & lightweight drills, CP7300 / CP928X / CP978X / CP979X Series is the composite drills that you need.

Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort
Large teasing trigger and progressive valve allowing more control to start holes
Handle exhaust allowing the air to flow away from the operator
Flat back part for better pushing action while drilling and tapping

Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP7300 / CP928X / CP978X / CP979X Series offers high comfort with its compositie housing with thermoplastic rubber handle grip, its wings on right & left sides to guide the forefinger and its handle exhaust. This model belongs to theCP7300 / CP928X / CP978X / CP979X Series which is composed of 11 models: 3 x 1/4″ drills, 4 x 3/8″ drills and 4 x 1/2″ drills

Specifications

	CI-8941073013	CI-8941073011	CI-8941073012	CI-8941092850	CI-8941092860	CI-8941092870	CI-8941092880	CI-8941097890	CI-8941097900	CI-8941097910	CI-8941097920
SKU	CI-8941073013	CI-8941073011	CI-8941073012	CI-8941092850	CI-8941092860	CI-8941092870	CI-8941092880	CI-8941097890	CI-8941097900	CI-8941097910	CI-8941097920

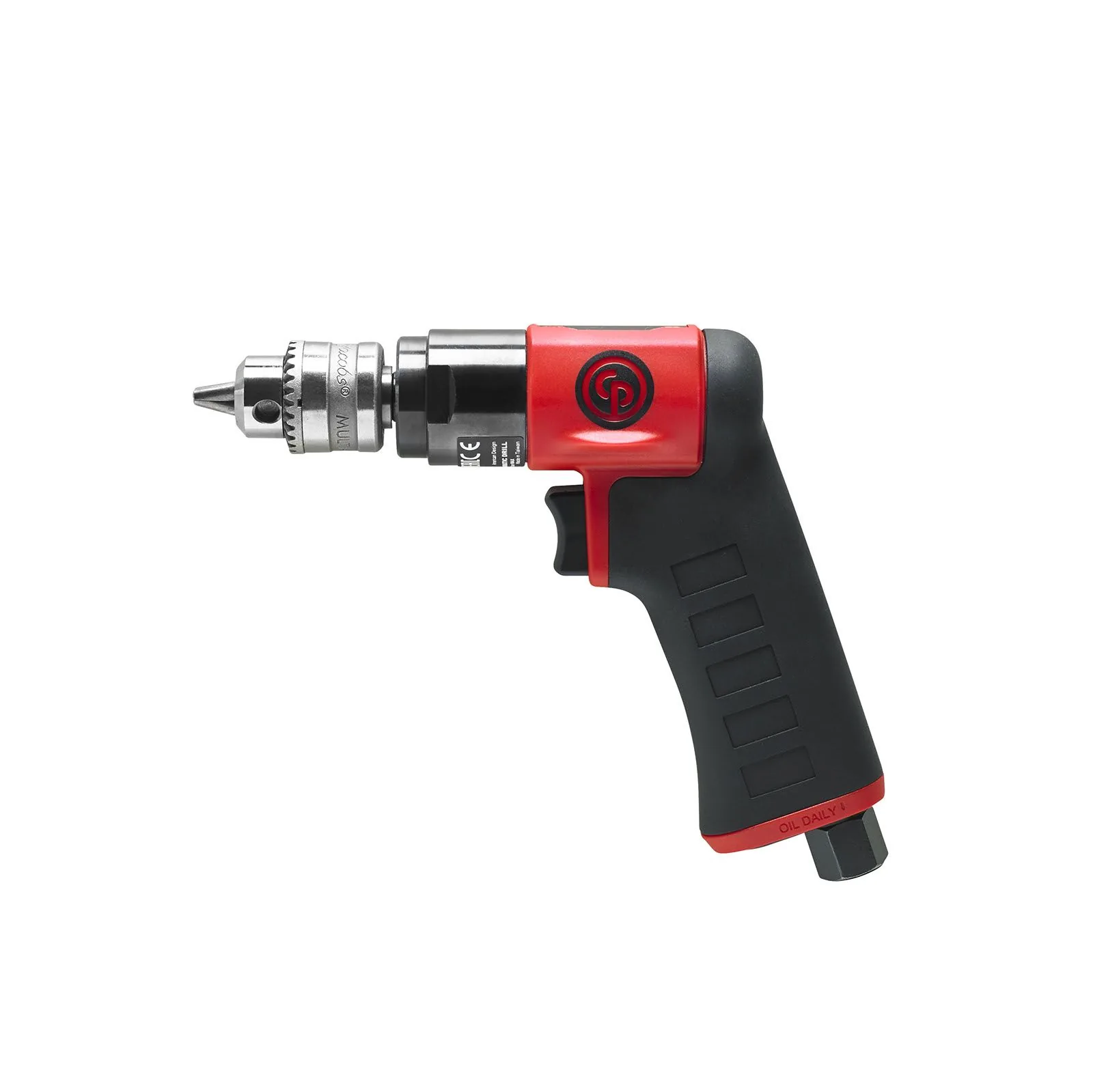

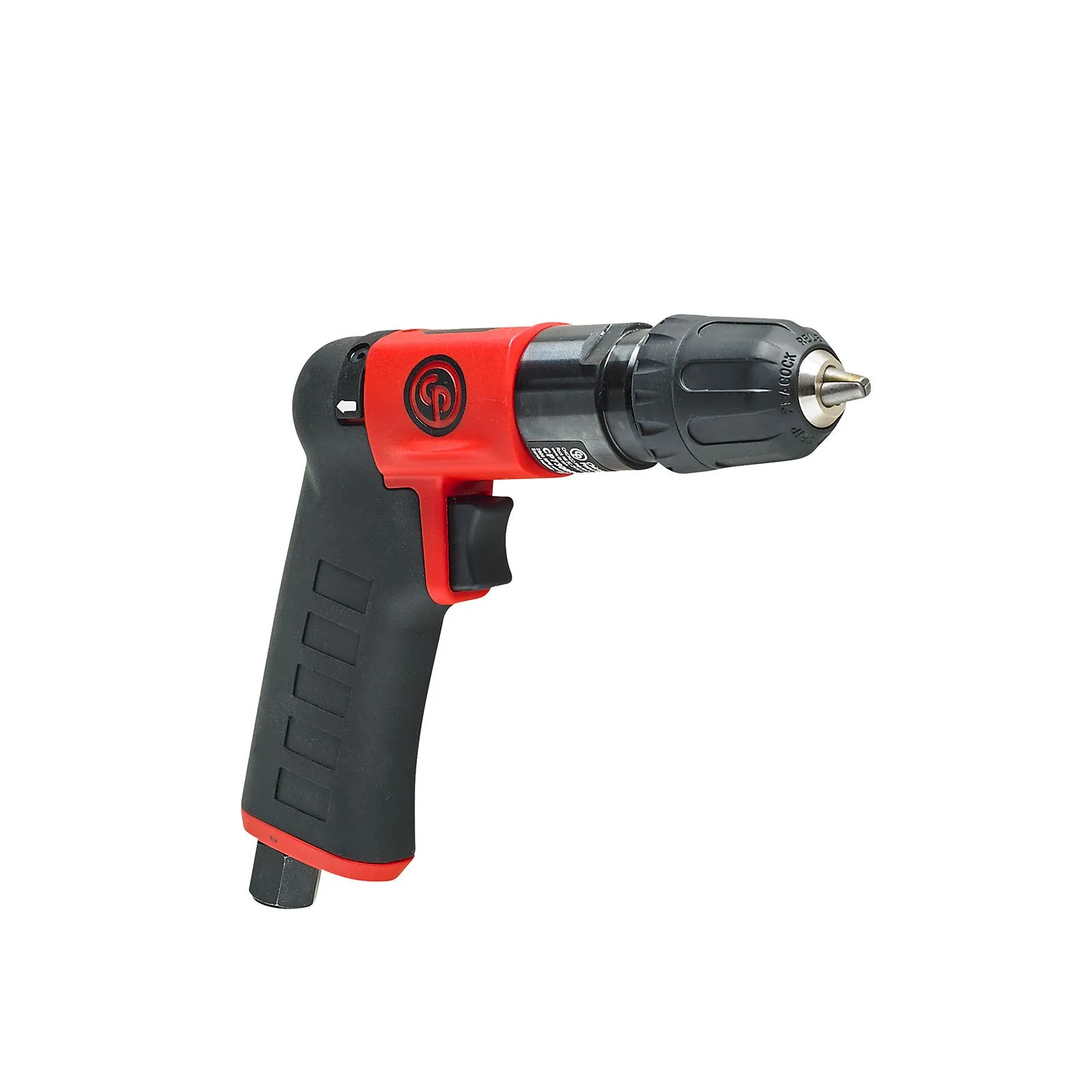

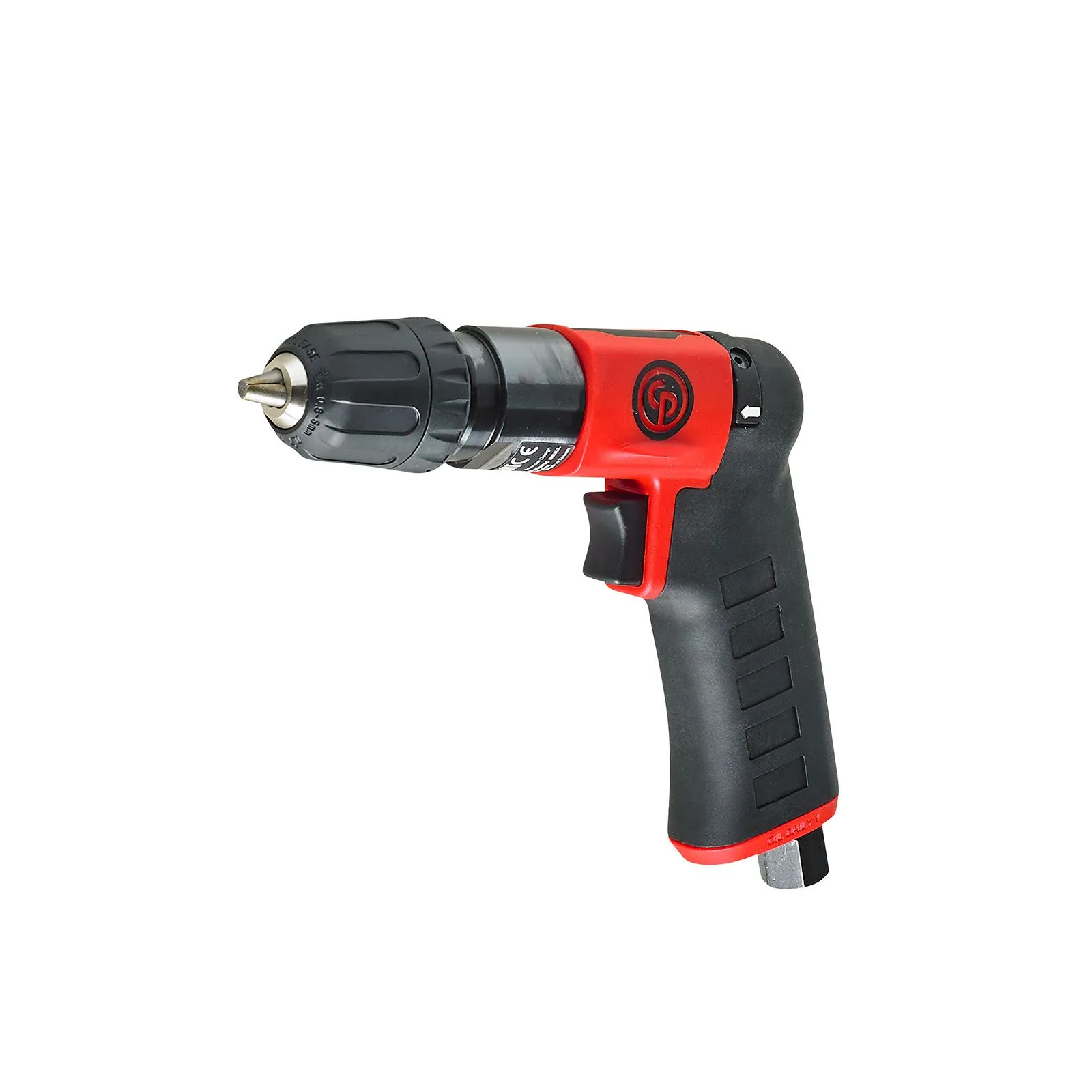

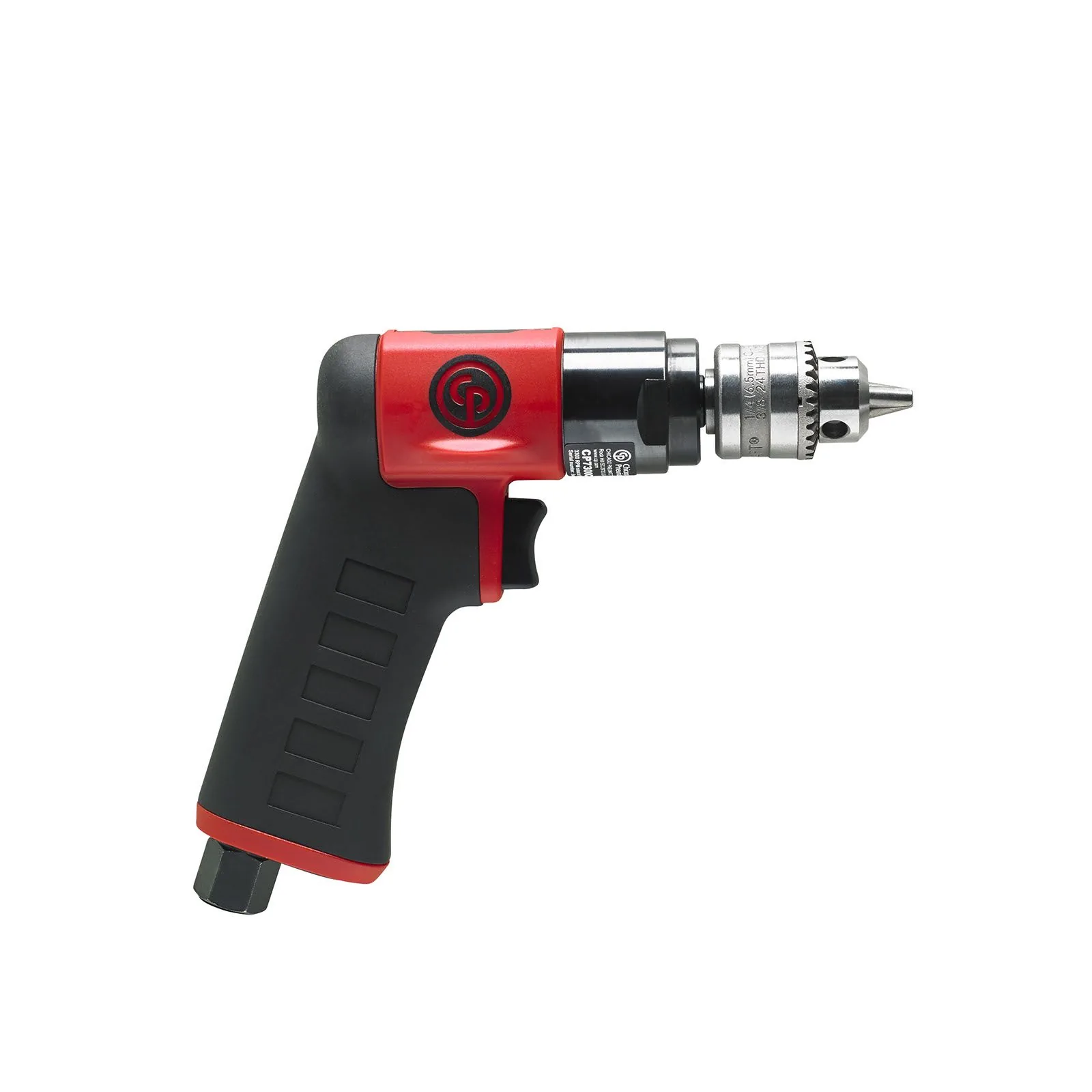

Product Name	Chicago Pneumatic CP7300C - 1/4 Inch (6.5 mm) Air Drill, Keyed Chuck, Pistol Handle, 0.31 HP / 230 W, Stall Torque 1.9 ft. lbf / 2.6 Nm - 3300 RPM	Chicago Pneumatic CP7300RC - 1/4 Inch (6.5 mm) Air Drill, Reversible, Keyed Chuck, Pistol Handle, 0.31 HP / 230 W, Stall Torque 1.9 ft. lbf / 2.6 Nm - 2800 RPM	Chicago Pneumatic CP7300RQCC - 1/4 Inch (6.5 mm) Air Drill, Reversible, Keyless Chuck, Pistol Handle, 0.31 HP / 230 W, Stall Torque 1.9 ft. lbf / 2.6 Nm - 2800 RPM	Chicago Pneumatic CP9285C - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, 0.62 HP / 460 W, Stall Torque 4.1 ft. lbf / 5.5 Nm - 3000 RPM	Chicago Pneumatic CP9286C - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Pistol Handle, 0.48 HP / 360 W, Stall Torque 16.2 ft. lbf / 22 Nm - 600 RPM	Chicago Pneumatic CP9287C - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Pistol Handle, 0.62 HP / 460 W, Stall Torque 4.1 ft. lbf / 5.5 Nm - 3000 RPM	Chicago Pneumatic CP9288C - 1/2 Inch (13 mm) Air Drill, Keyless Chuck, Pistol Handle, 0.48 HP / 360 W, Stall Torque 16.2 ft. lbf / 22 Nm - 600 RPM	Chicago Pneumatic CP9789C - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Pistol Handle, 0.47 HP / 350 W, Stall Torque 10.3 ft. lbf / 14 Nm - 840 RPM	Chicago Pneumatic CP9790C - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Pistol Handle, 0.48 HP / 360 W, Stall Torque 4.1 ft. lbf / 5.5 Nm - 2100 RPM	Chicago Pneumatic CP9791C - 1/2 Inch (13 mm) Air Drill, Keyless Chuck, Pistol Handle, 0.47 HP / 350 W, Stall Torque 10.3 ft. lbf / 14 Nm - 840 RPM	Chicago Pneumatic CP9792C - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Pistol Handle, 0.48 HP / 360 W, Stall Torque 4.1 ft. lbf / 5.5 Nm - 2100 RPM
Vendor SKU	8941073013	8941073011	8941073012	8941092850	8941092860	8941092870	8941092880	8941097890	8941097900	8941097910	8941097920
Chuck max capacity (in)	1/4	1/4	1/4	3/8	1/2	3/8	1/2	1/2	3/8	1/2	3/8
Chuck Type	Keyed	Keyed	Keyless	Keyed	Keyed	Keyless	Keyless	Keyed	Keyed	Keyless	Keyless
Reversible	No	Yes	Yes	No	No	No	No	Yes	Yes	Yes	Yes
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Sound Power (dB(A))	96	93	93	94.7	95.2	94.7	95.2	99.3	98.5	99.3	98.5
Sound Pressure (dB(A))	85	82	82	83.7	84.2	83.7	84.2	88.3	87.1	88.3	87.1
Air Inlet Thread Size (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4	1/4
Max Dynamic Air Working Pressure (psi)	90	90	90	90	90	90	90	90	90	90	90
Min Hose Diam (mm)	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.38
Max power	0.31	0.31	0.31	0.62	0.48	0.62	0.48	0.47	0.48	0.47	0.48
Stall Torque (Nm)	1.9	1.9	1.9	4.1	16.2	4.1	16.2	10.3	4.1	10.3	4.1
Free Speed (rpm)	3300	2800	2800	3000	600	3000	600	840	2100	840	2100
Air consumption at free speed (cfm)	21	21	21	27	27	27	27	27	27	27	27
Height (in)	5.71	5.75	5.75	5.91	5.91	5.91	5.91	5.91	5.91	5.91	5.91
Length (in)	6.69	7.32	7.48	8.23	9.84	8.23	9.84	10.43	9.25	10.43	9.25
Side To Center (in)	1.5	1.5	1.5	2.01	2.01	2.01	2.01	1.93	1.93	1.93	2.01
Tool Weight (lb)	1.41	1.48	1.52	2.4	3.28	2.38	3.2	3.09	2.43	3.09	2.43
Handle type	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol
Main Material type	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminum, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve	Aluminium, Composite over-sleeve
Starting System	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger
Air Consumption At Load (cfm)	-	-	-	21	23	21	23	-	-	-	-
