Chicago Pneumatic CP7630 Series – Impact Wrenches
Chicago Pneumatic CP7630 Series - Impact Wrenches
QUOTE

Powerful and Versatile

For operators working in general repairs and maintenance applications who are looking for a powerful tool, the CP7630 series is the 3/4″ that will suit your needs.

  • Metal motor housing with twin hammer impact mechanism for high performance
  • Well-balanced and comfortable due to a design which minimises wrist strain

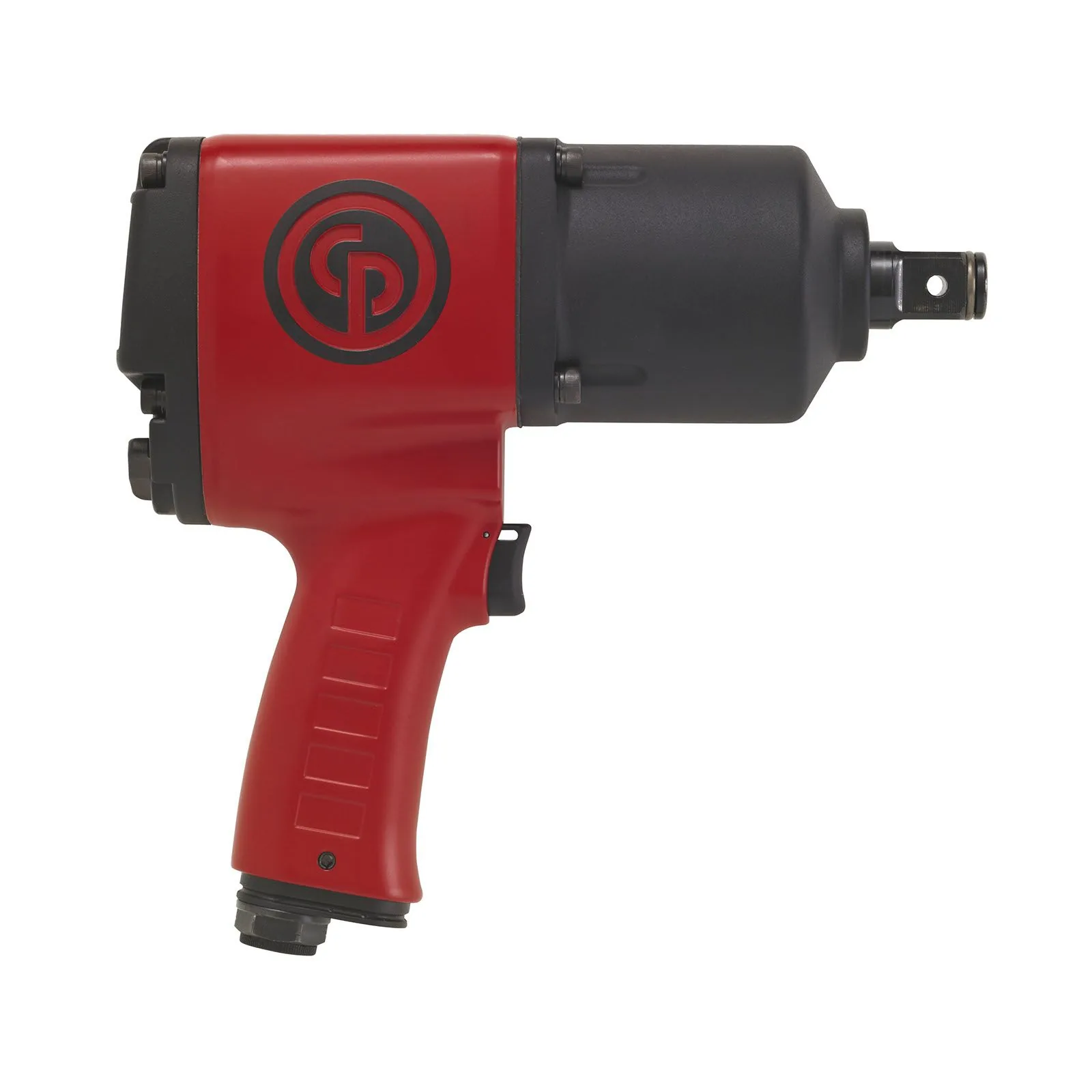

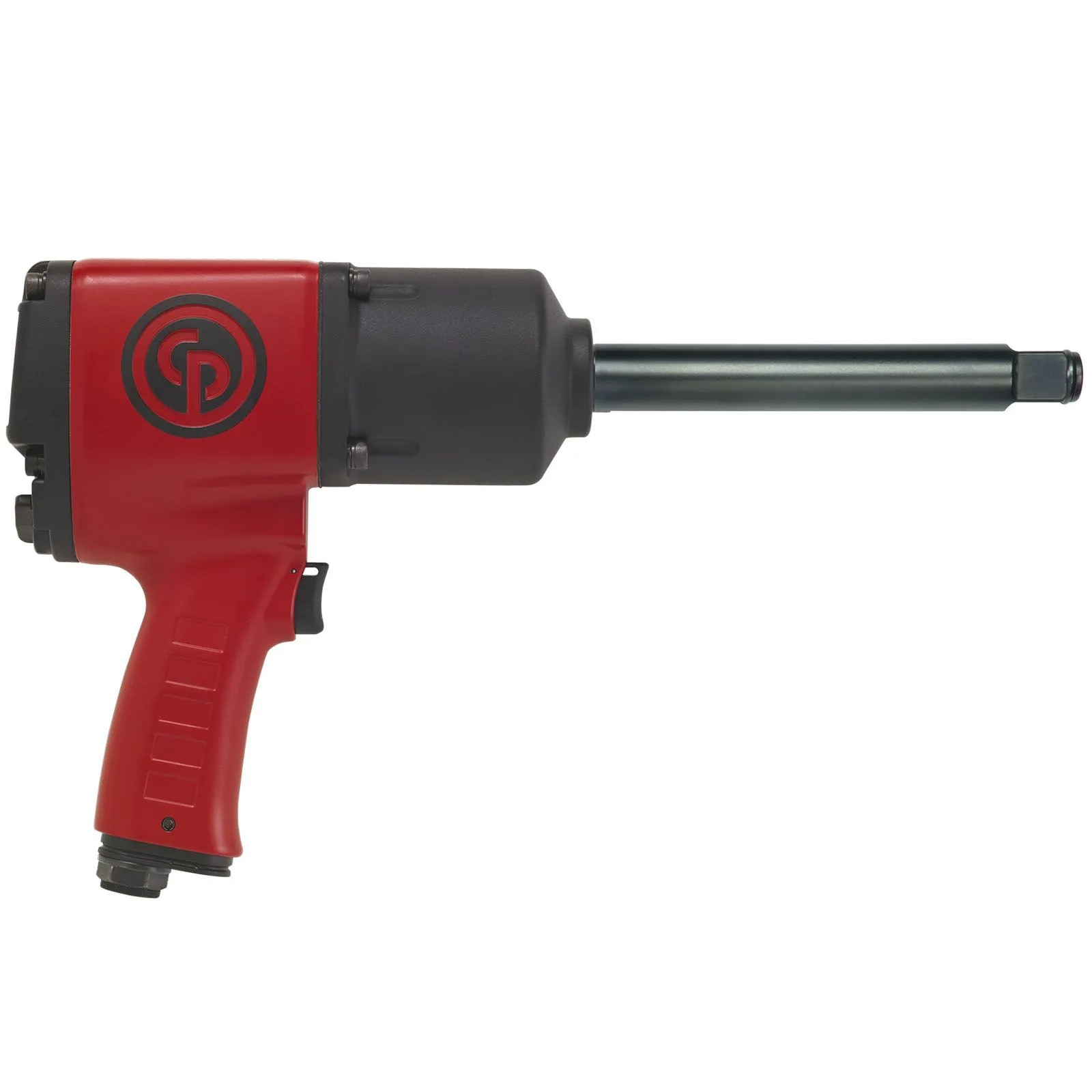

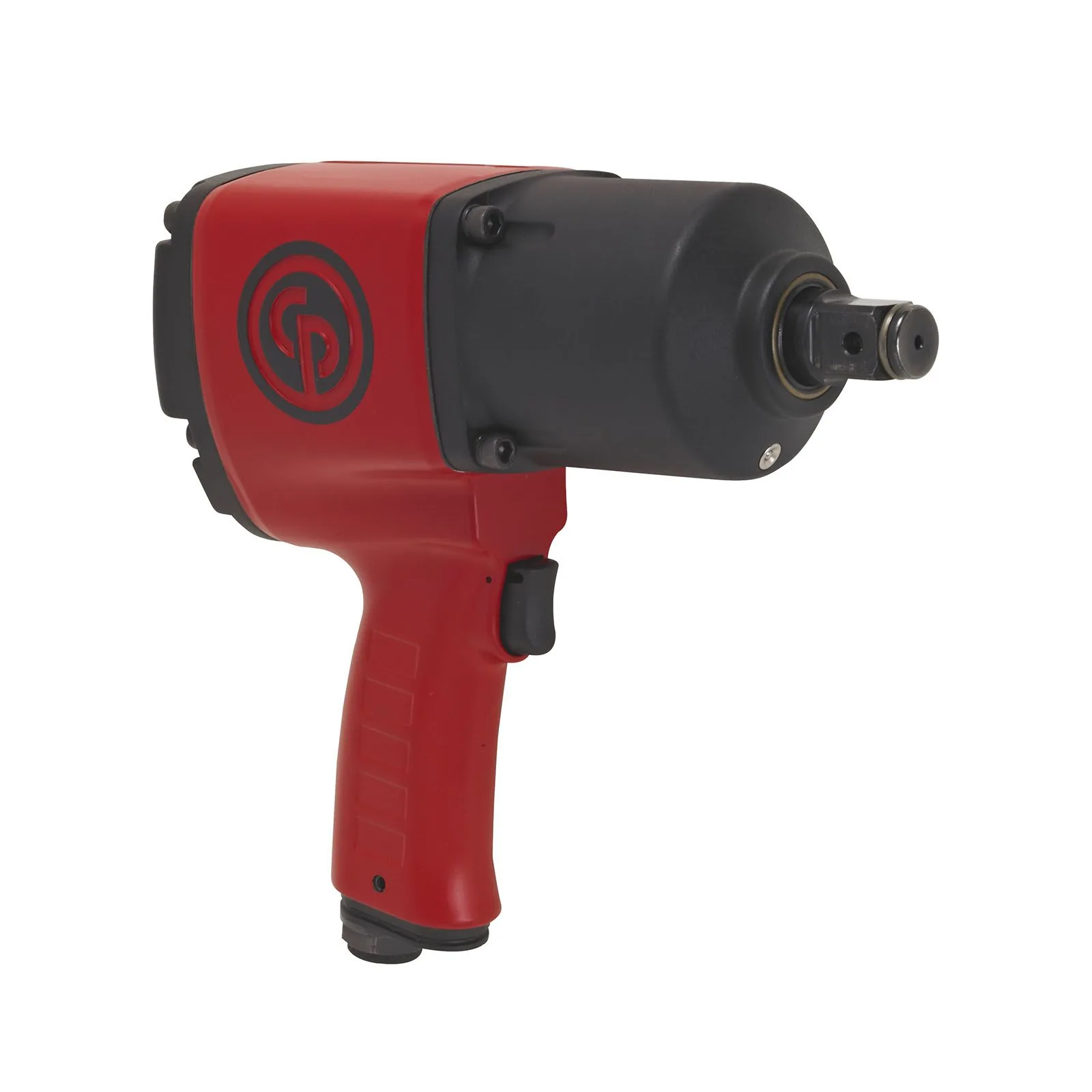

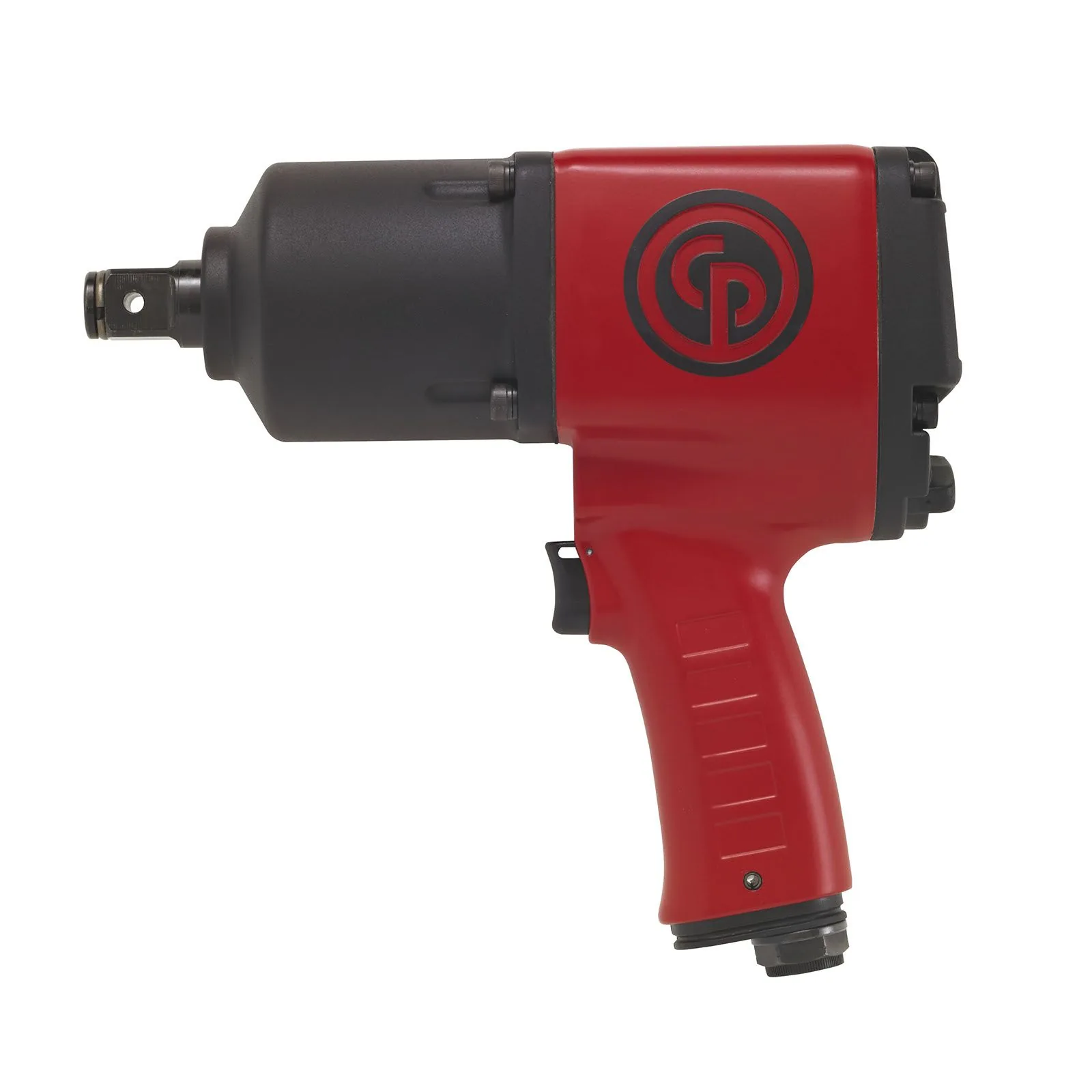

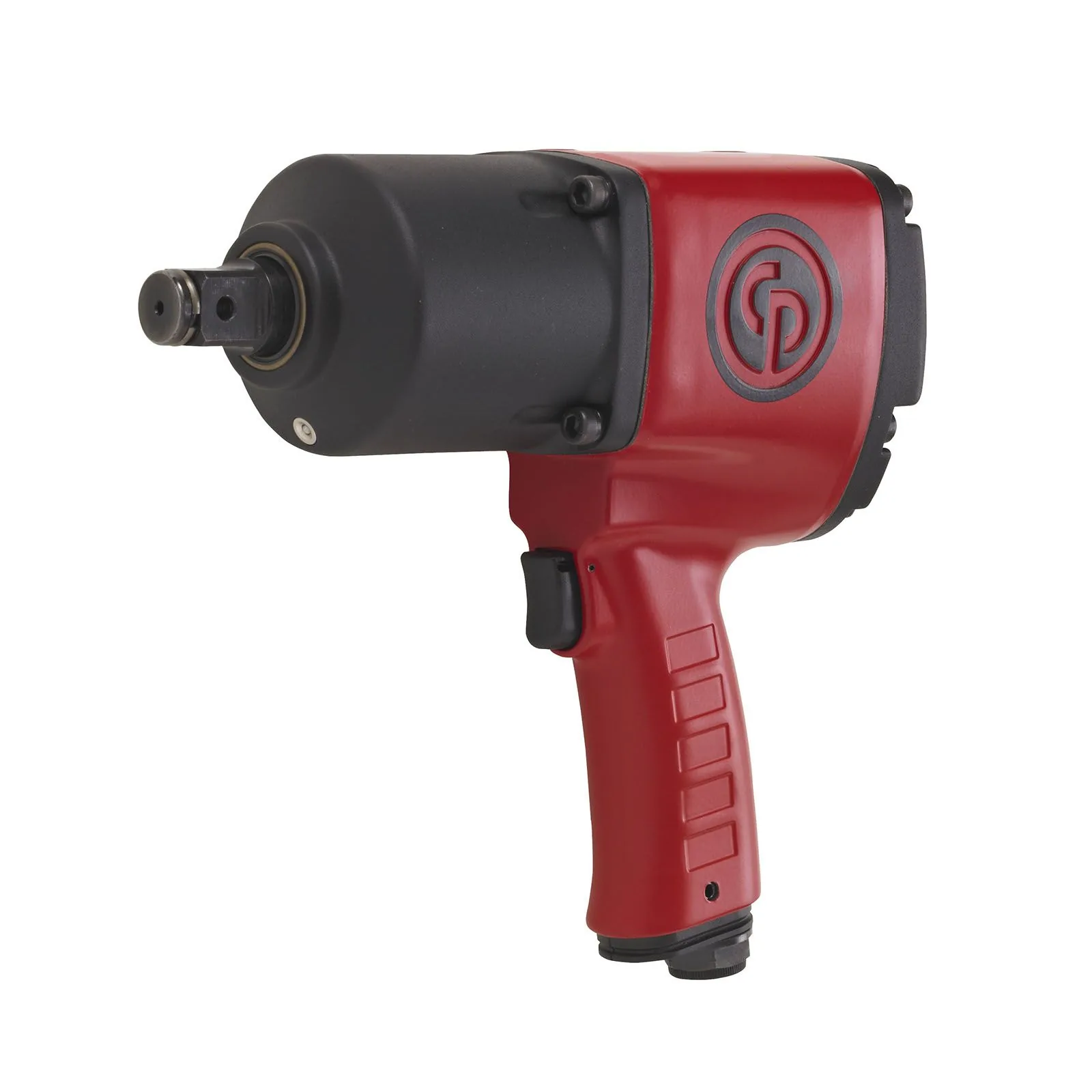

This 3/4″ impact wrench, designed with a twin hammer impact mechanism and a metal motor housing for good performance is highly recommended. High productivity is ensured with a torque of 1,100 ft.lbs / 1,500 Nm. This model belongs to the CP7630 series which is composed of 2 models: 3/4″ short anvil and 3/4″ long anvil (6″ anvil).

Accessories

Specifications

SKU
Product Name
Vendor SKU
Power Source
Max Torque Reverse (ft.lbf)
Free Speed (rpm)
Tool Weight (lb)
Output drive size (in)
Handle type
Output retainer type
Max Working Torque Fwd (ft.lbf)
Min Working Torque Fwd (ft.lbf)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air consumption at free speed (cfm)
Length (in)
Torque limited
Vibration (m/s²)
Body
Clutch Housing
Clutch Lubrication Type
Impact Mecanism
Main Material type
Output drive type
Starting System
CI-8941076300
CP7630 - Pneumatic
8941076300
Pneumatic
1110
6900
10.5
3/4
Pistol
Dual
809
131
20
3/8
90
0.5
116.3
105.3
9.8
47
9.45
No
9.8
Aluminium
Steel
Grease
Twin hammer
Aluminium
Sq
Trigger
